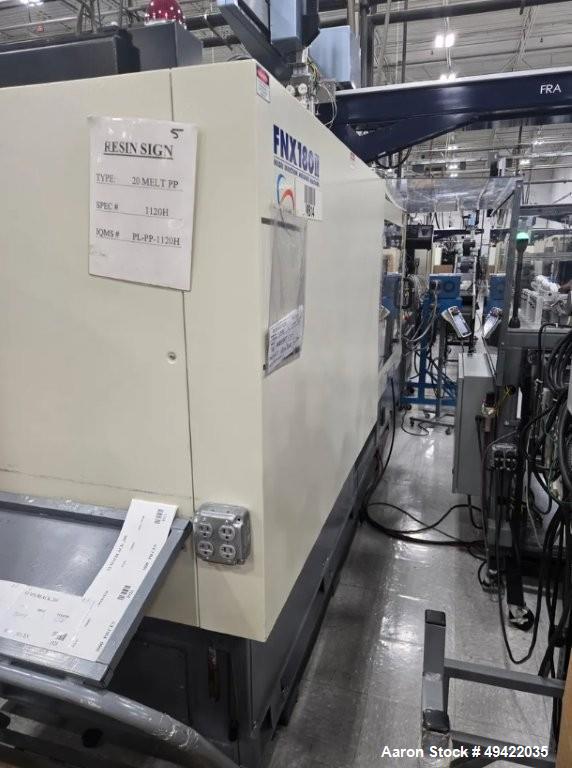

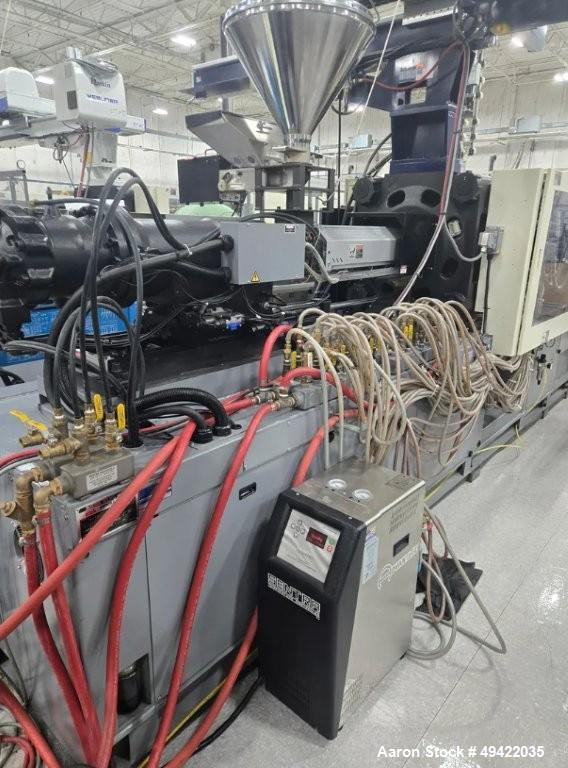

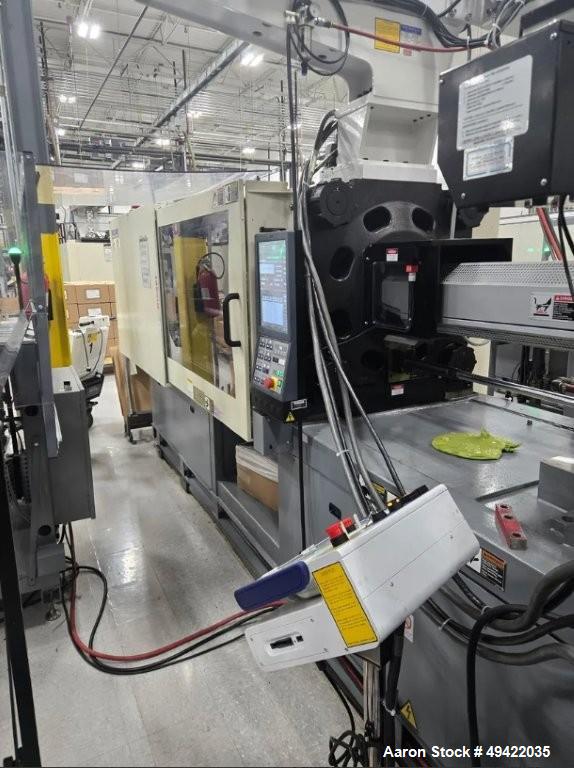

Used Nissei FNX180IIIA-36A 198-Ton All-Electric Injection Molding Machine – 14.9 Oz Shot
Used Nissei Injection Molding Machine, Model FNX180IIIA-36A. This all-electric press is rated at 198 tons of clamp force with a 14.9 oz shot size, 22" x 22" tie bar spacing, and 31.5" x 31.5" platens. Maximum daylight is 37.4", with a 27.6" clamp stroke and 4.3" ejector stroke, running under a Tact IV control. Equipped with Super Clean, dual air blow, SPI robot interface, and a hardened screw and barrel. Built 2016.
| Manufacturer | NisseiNissei |
| Model | FNX180IIIA-36A |
| Category | Plastics EquipmentPlastics Equipment |
| Subcategory | Injection Molders - HorizontalInjection Molders - Horizontal |
Manufacturer Information
Nissei Plastic Industrial Co., Ltd.
Nissei is a globally recognized manufacturer of injection molding machinery used throughout the plastics, medical, packaging, electronics, automotive, consumer products, and precision manufacturing industries. Nissei injection molding machines are known for precision process control, repeatability, and advanced molding technology.
Description
Available for sale is a used Nissei Model FNX180IIIA-36A injection molding machine, built in 2016 and configured for precision plastic injection molding applications.
This machine provides approximately 198 tons of clamp force with a 14.9 oz shot size. The clamping section features 22" x 22" tie-bar spacing and approximately 31.5" x 31.5" platens, providing substantial mold-mounting capacity for a press in this tonnage range.
The machine has a maximum daylight of approximately 37.4", a 27.6" clamp stroke, and a 4.3" ejector stroke. Process operation and machine functions are managed through the Nissei TACT IV control system.
Additional equipment includes Super Clean, dual air blow, an SPI robot interface for integration with compatible automation, and a hardened screw and barrel for enhanced wear resistance.
This Nissei press is well suited for manufacturers seeking a modern, precision injection molding machine for high-quality molded plastic components and automated production cells.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Nissei |
| Model | FNX180IIIA-36A |
| Equipment Type | Injection Molding Machine |
| Clamp Force | Approximately 198 Tons |
| Shot Size | 14.9 oz |
| Tie-Bar Spacing | 22" x 22" |
| Platen Size | 31.5" x 31.5" |
| Maximum Daylight | 37.4" |
| Clamp Stroke | 27.6" |
| Ejector Stroke | 4.3" |
| Control | Nissei TACT IV |
| Super Clean | Equipped |
| Air Blow | Dual Air Blow |
| Robot Interface | SPI |
| Screw & Barrel | Hardened |
| Year Built | 2016 |
| Condition | Used |
Typical Applications
- Precision injection molding
- Medical component manufacturing
- Consumer product molding
- Automotive component production
- Electronics molding
- Packaging component manufacturing
- Appliance component production
- Industrial plastic parts
- Automated molding cells
- Technical plastic components
- High-volume plastic production
- General-purpose injection molding
Products This Machine Could Be Used For
- Medical plastic components
- Electronic housings
- Automotive plastic parts
- Closures and caps
- Consumer product components
- Appliance parts
- Plastic housings and enclosures
- Precision molded components
- Packaging components
- Industrial plastic fittings
- Technical molded parts
- Small-to-medium plastic components
Actual mold and product suitability depends on resin, part geometry, projected area, mold dimensions, required injection pressure, shot requirements, cycle time, and other processing parameters.
Frequently Asked Questions
- What is the clamp force of this Nissei injection molding machine? The FNX180IIIA-36A is rated at approximately 198 tons of clamp force.
- What is the shot size? The machine has a stated 14.9 oz shot size. Buyers should confirm shot capacity for the specific resin being processed.
- What mold space is available? The press has 22" x 22" tie-bar spacing, approximately 31.5" x 31.5" platens, and a maximum daylight of approximately 37.4".
- What control system does it use? This machine is equipped with a Nissei TACT IV control, providing centralized operation and process control.
- Can this machine be integrated with automation? Yes. The press includes an SPI robot interface, as well as dual air blow, providing useful features for integration into an automated molding cell.
- Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, heavy machinery transportation, and logistics planning for injection molding machines and related plastics-processing equipment.
- Nissei injection molder
- Injection molding machine
- Nissei FNX180
- 198 ton injection molder
- Plastic injection press
- Injection molding press
- Used Nissei injection molder
- 198 ton injection molding machine
- Nissei FNX180IIIA-36A
- 14.9 oz injection molding machine
- Used plastic injection press
- Nissei TACT IV molding machine
- Used Nissei FNX180IIIA-36A injection molding machine for sale
- 198 ton Nissei injection molding press with 14.9 oz shot
- Used Nissei injection molder with TACT IV controls
- 2016 Nissei FNX180 injection molding machine for sale
- Nissei injection molding press with SPI robot interface
- Used 198 ton plastic injection molding machine with hardened screw
- Used injection molding machine
- Injection molding machine for sale
- Used Nissei equipment
- Plastic injection molding equipment
- Used plastics processing equipment
- Industrial injection molding press
- Buy used Nissei injection molding machine
- Nissei FNX180IIIA-36A for sale
- Buy 198 ton injection molding machine
- Used Nissei injection press for sale
- Buy plastic injection molding machine
- Used 14.9 oz injection molding press
- Buy Nissei FNX180 injection molder
- Used injection molding equipment
- Buy plastics processing machinery
- Used 198 ton injection molding press
- Sell Nissei injection molding machine
- Sell used injection molding press
- Sell 198 ton injection molder
- Sell plastic injection equipment
- Sell Nissei FNX180
- Aaron Equipment buys injection molding machines
- Sell used plastics machinery
- Sell injection molding equipment
- Liquidate plastics processing machinery
- Sell used Nissei equipment
