Used Theysohn 45mm Co-Rotating Twin Screw Extruder TSK-N 045 – 500 RPM, 50 HP Gearbox, Side Feeder

Manufacturer Information

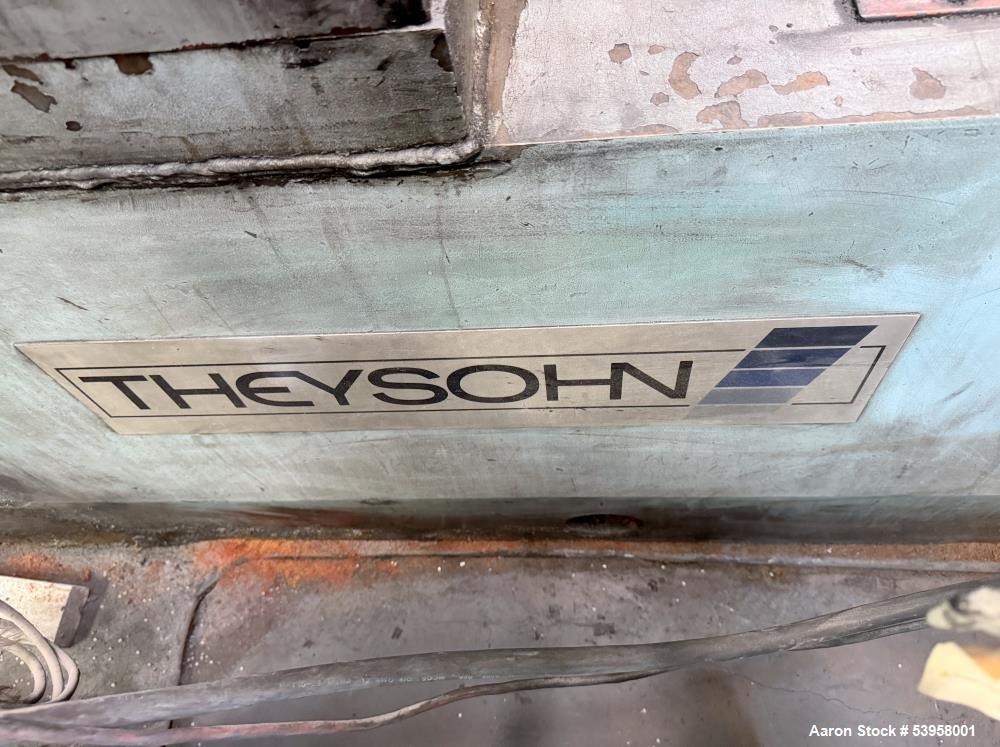

• Brand: Theysohn

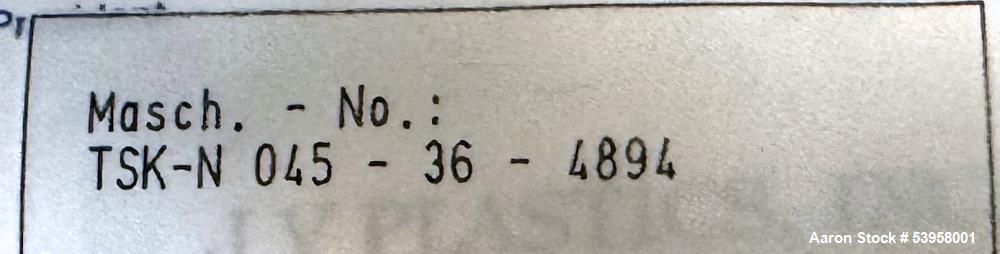

• Model: TSK-N 045

• Origin: Known for high-quality German engineering in twin screw extruder systems, particularly for polymer and plastics processing.

Description

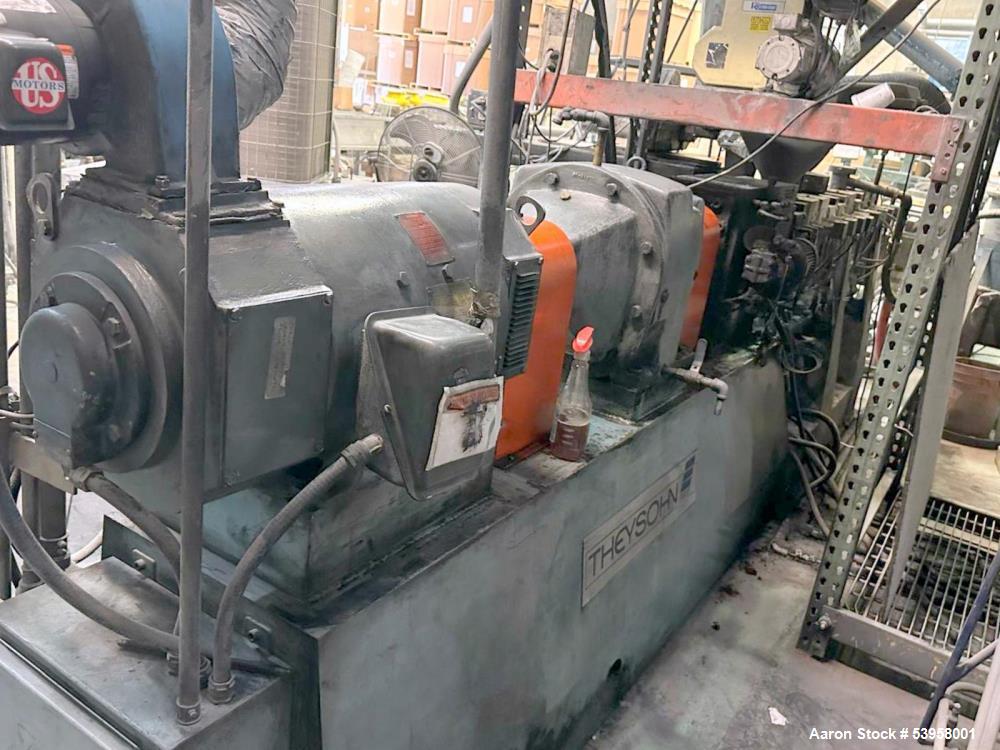

This used Theysohn TSK-N 045 co-rotating twin screw extruder features a 45mm (1.77") screw diameter and a 36:1 L/D ratio. The unit includes 8 barrel housing sections and 1 die zone. It is electrically heated and water cooled, offering optimal thermal regulation for high-performance compounding. The extruder is powered by a 50 HP (37.5 kW) PIV variable speed gearbox and driven by a 60 HP (44.7 kW), 500V DC, 105A, continuous duty motor operating at 1750/2100 RPM. Included with the system are a side feeder, Allen Bradley PLC controls, and an Emerson Digitax ST Plus DC drive module. The extruder was last used in a polyolefins application.

Specifications

• Screw Diameter: 45 mm (1.77”)

• L/D Ratio: 36:1

• Barrel Sections: 8 plus 1 die zone

• Heating/Cooling: Electrically heated, water cooled

• Max Screw Speed: 500 RPM

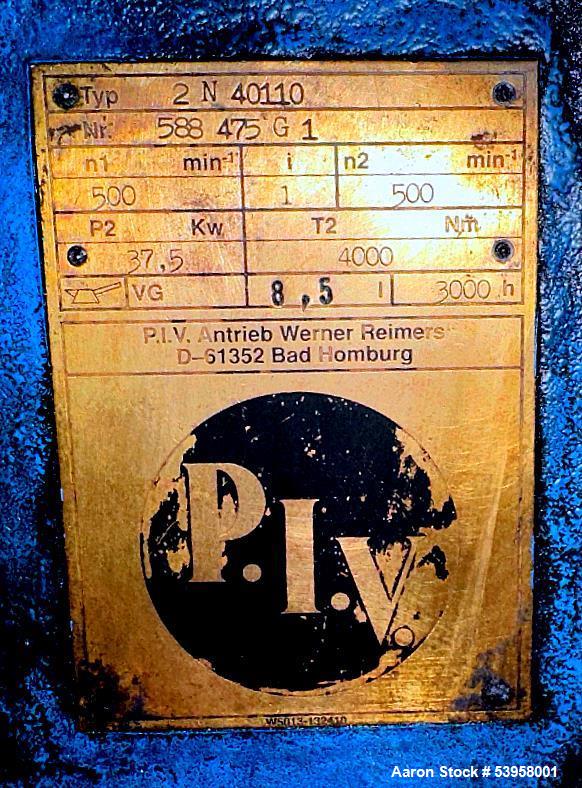

• Gearbox: 50 HP (37.5 kW) PIV variable speed, type 2N40110

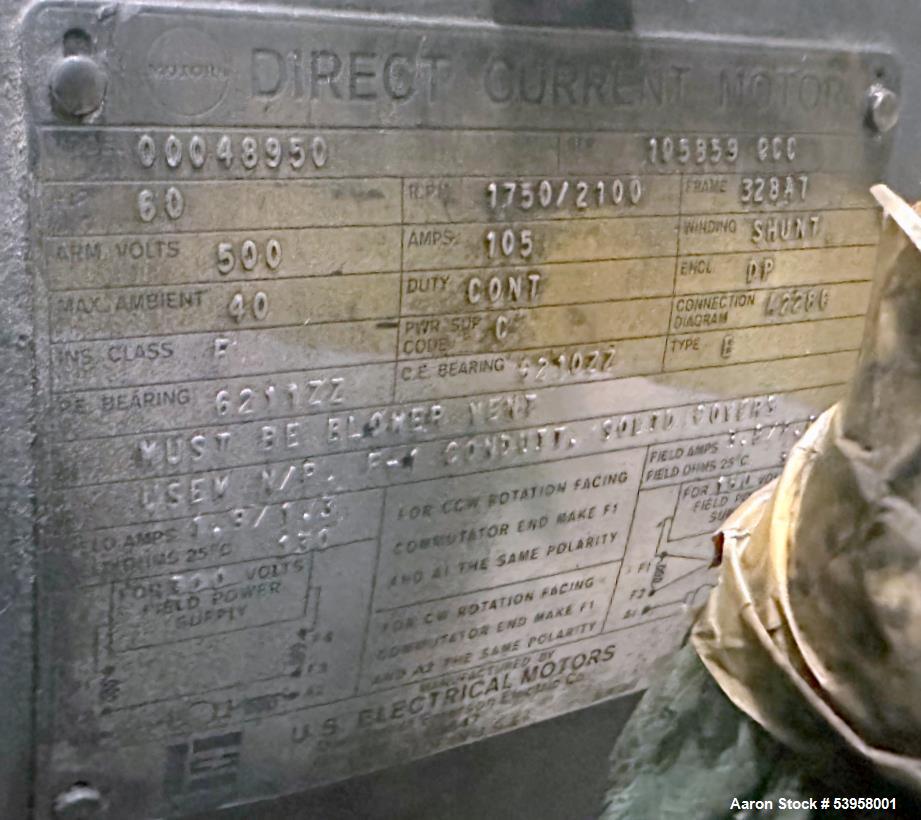

• Motor: 60 HP (44.7 kW), 500V DC, 105A, continuous duty, 1750/2100 RPM

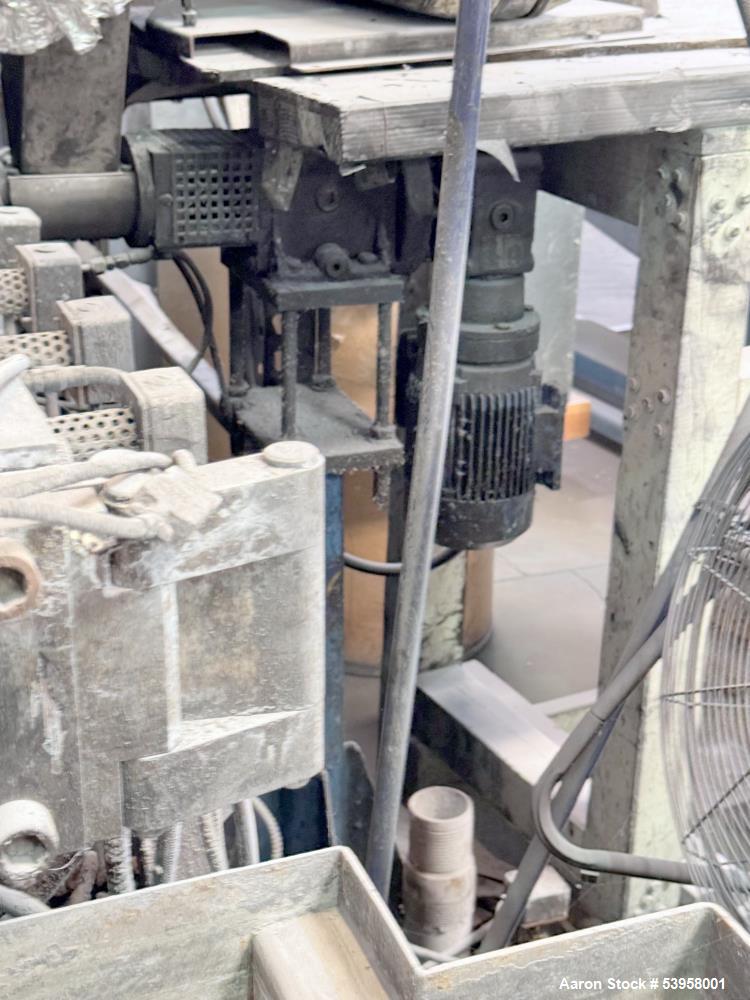

• Side Feeder: Included

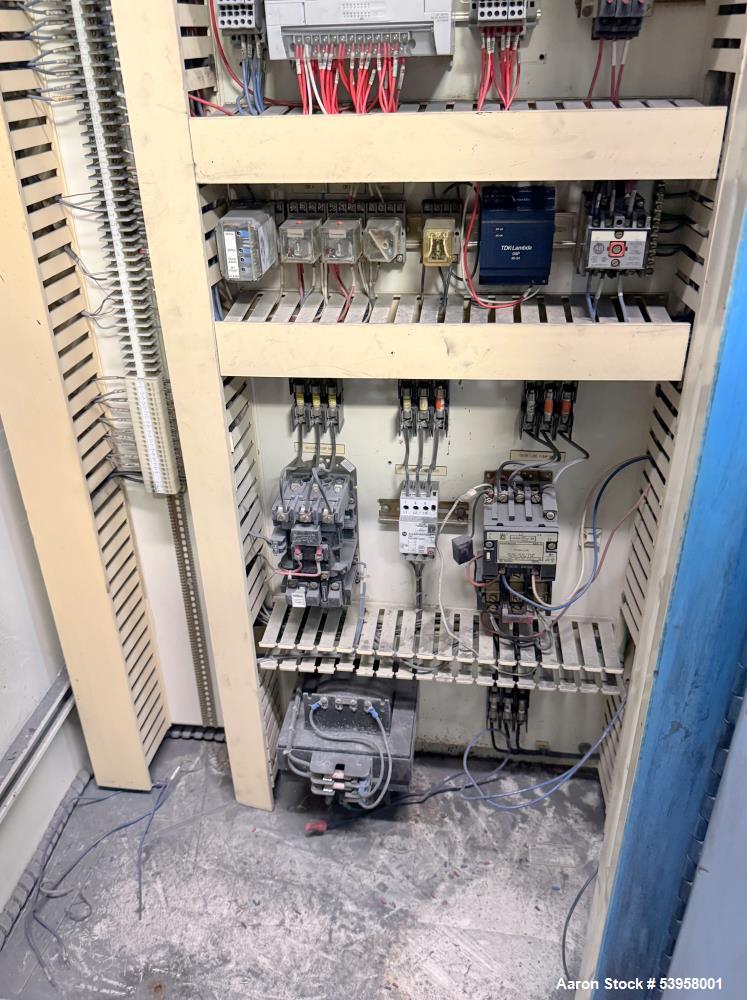

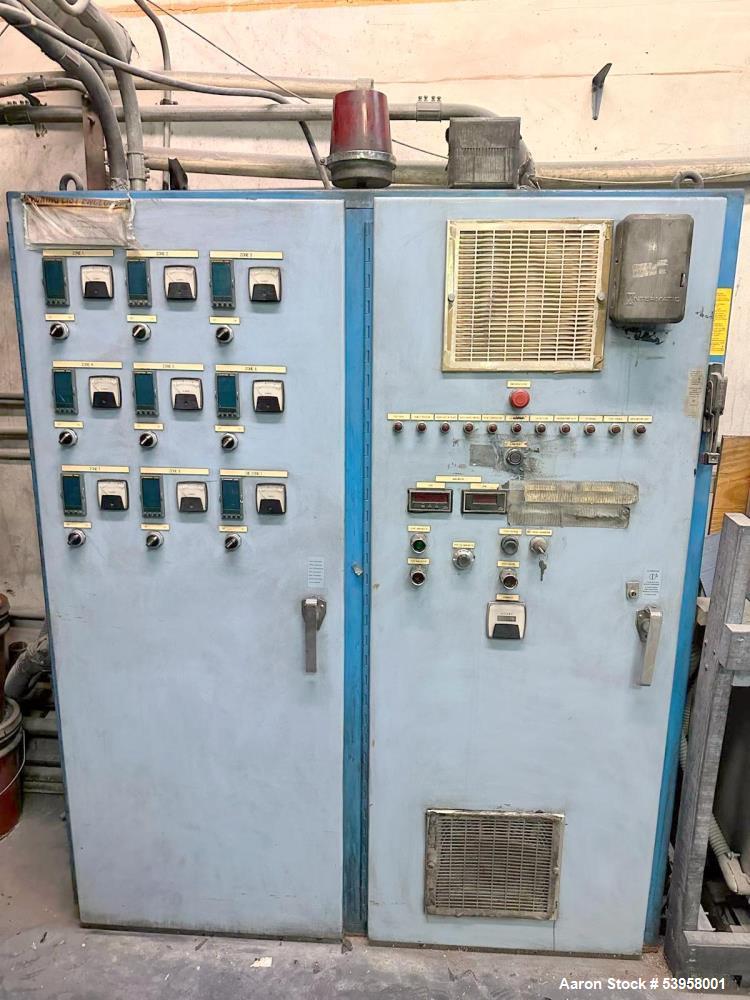

• Controls: Allen Bradley PLC

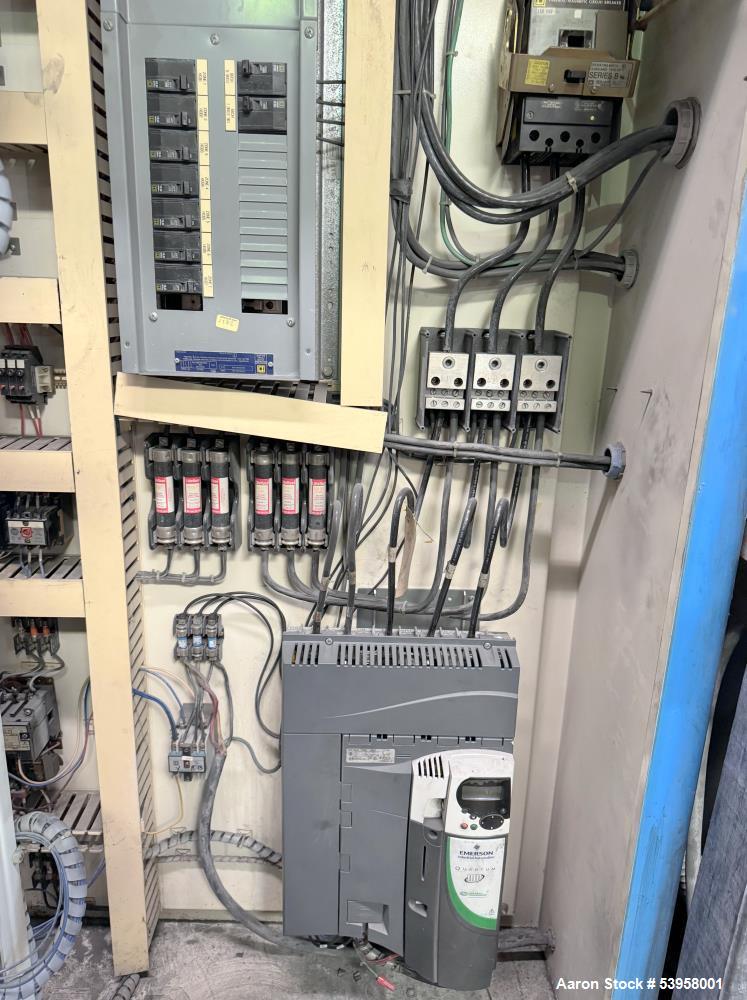

• Drive Module: Emerson Digitax ST Plus

Applications

• Polyolefins compounding

• Masterbatch production

• Filler and additive dispersion

• Thermoplastics blending

• Color concentrate processing

• Engineering plastics development

• Recycled plastics processing

• Heat-sensitive polymer compounding

• Laboratory or pilot scale trials

• Custom formulation testing

What Products Would This Be Used For?

• Polypropylene (PP) pellets

• Polyethylene (PE) masterbatches

• Flame retardant compounds

• Glass-filled nylon

• TPO (thermoplastic olefin) sheets

• Bioplastics blends

• PVC compounds

• Engineering thermoplastics (e.g., PBT, PC blends)

• Filled or foamed compounds

• Recycled material blends
