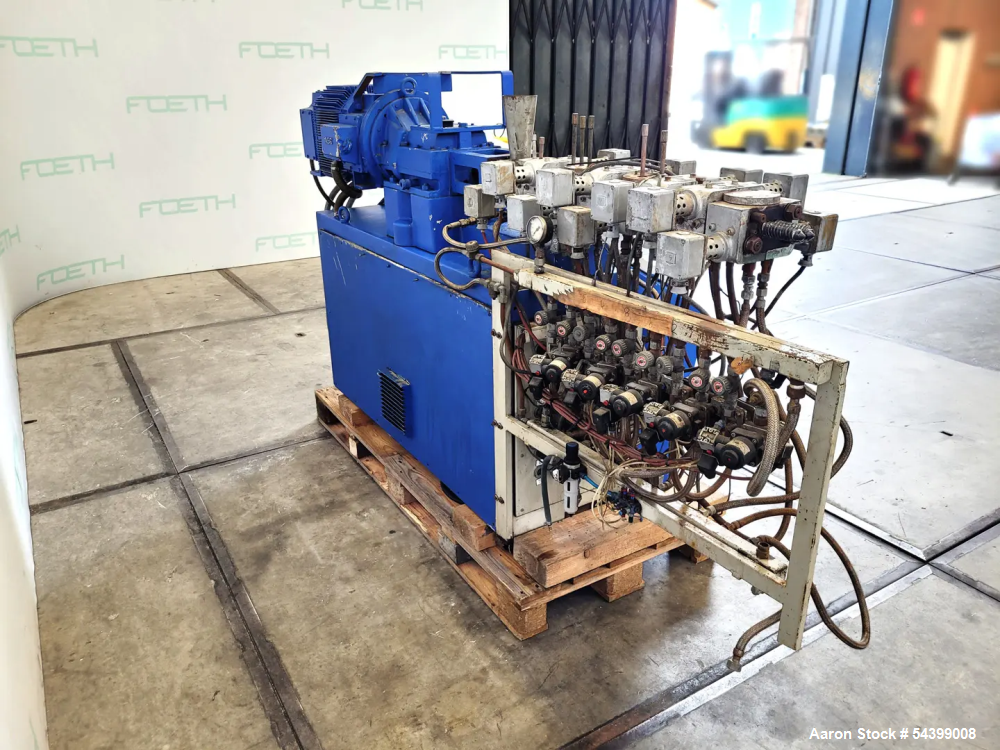

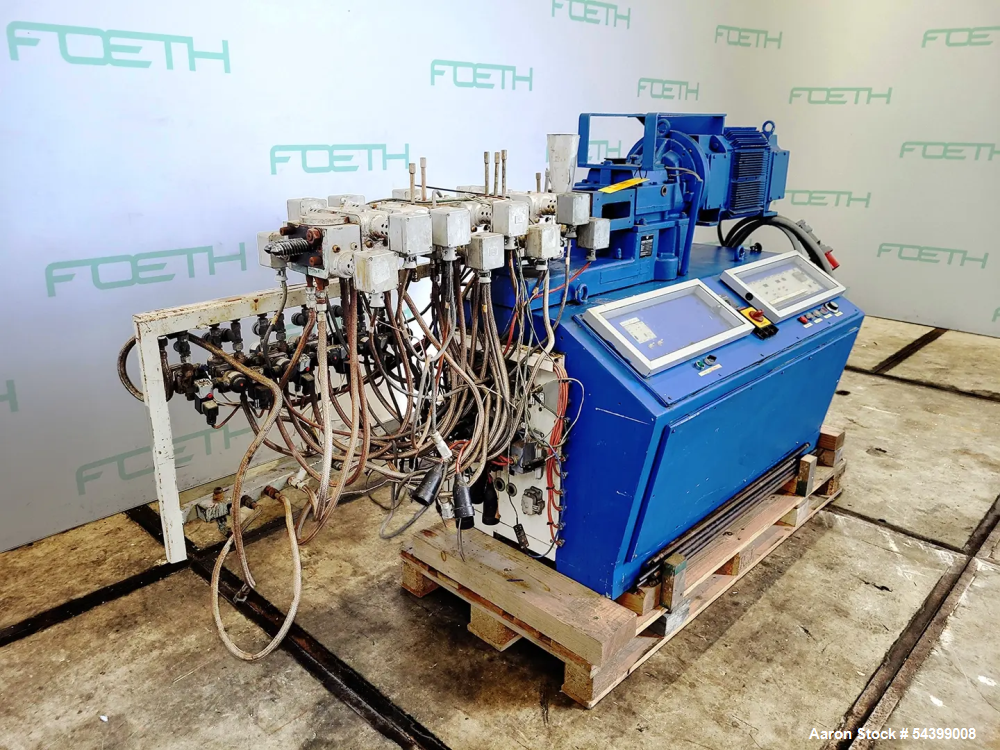

Used Coperion Werner & Pfleiderer ZSK 30-W9/2 Twin Screw Extruder – High-Speed Lab & Production Compounding System

Manufacturer: Coperion Werner & Pfleiderer
Model: ZSK 30-W9/2
Type: Twin Screw Extruder (Co-Rotating)
Condition: Used

Description

Used Coperion Werner & Pfleiderer ZSK 30-W9/2 Twin Screw Extruder, a compact, high-performance co-rotating twin screw system ideal for precision compounding, R&D, and small-scale production. Featuring 30 mm diameter screws and an extended 33.3:1 L/D ratio, this machine provides excellent mixing, dispersion, and process control.

The extruder includes 8 barrel sections (7 electrically heated and water-cooled) for accurate thermal management across processing zones. Powered by a 10.4 kW AC motor with gearbox, the system delivers high-speed operation up to 500 RPM, making it suitable for advanced formulations and high-shear applications.

Previously used in compounding, this unit is frame mounted and includes a control panel, offering a complete, ready-to-run solution for polymer processing environments.

Specifications

• Manufacturer: Coperion Werner & Pfleiderer
• Model: ZSK 30-W9/2
• Machine Type: Twin Screw Extruder (Co-Rotating)

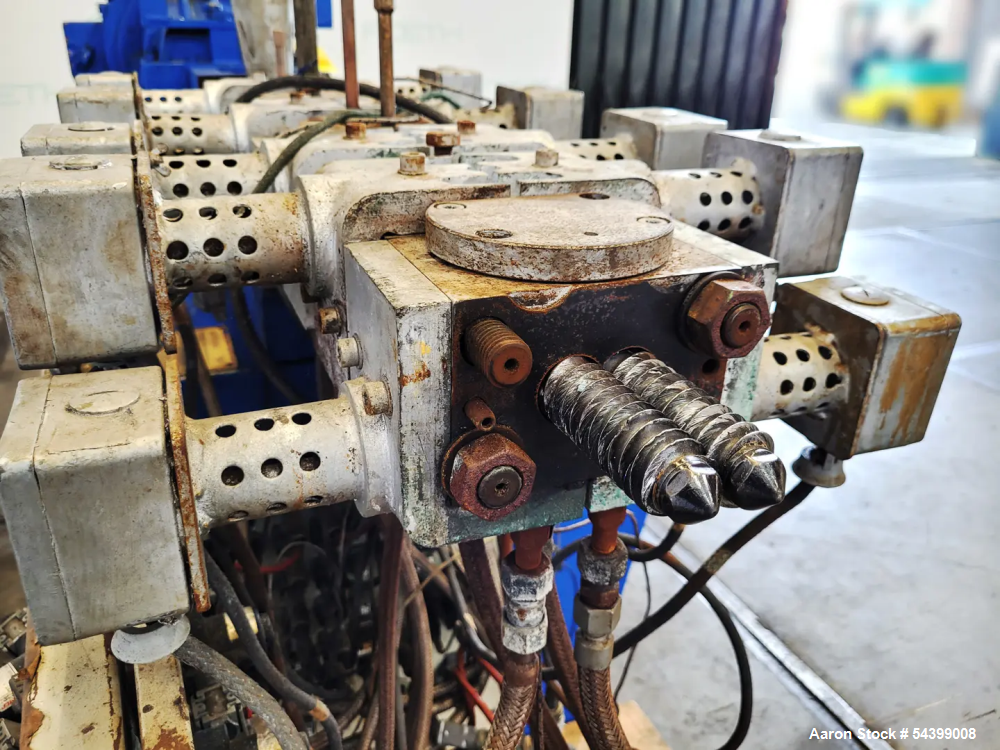

• Screw Diameter: (2) 30 mm
• Screw Configuration: Side-by-side, co-rotating
• L/D Ratio: 33.3:1
• Barrel Sections: 8 total
• Heated Barrels: 7 electrically heated
• Cooling: Water cooled
• Drive Motor: 10.4 kW AC motor
• Motor Power: 14 HP
• Voltage: 440 Volt
• Gearbox: Gear-driven
• Maximum Screw Speed: 500 RPM
• Mounting: Frame mounted
• Control System: Control panel included
• Previous Use: Compounding

Dimensions

• Extruder Size:
  • Length: 2800 mm
  • Width: 850 mm
  • Height: 1300 mm
• Weight: 1.1 tonnes

Applications

• Polymer compounding
• Masterbatch development
• Additive dispersion
• R&D and pilot-scale processing
• Engineering plastics formulation
• Color concentrate production
• Reactive extrusion
• Specialty compound development
• Pharmaceutical or food-grade polymer trials
• Small batch production

What might this be used for

• Developing new polymer formulations
• Producing small batches of compounds
• Testing additives and fillers
• Creating color masterbatch samples
• Compounding engineering-grade resins
• Research and development trials
• Scaling formulations from lab to production
• Mixing high-value specialty polymers
• Producing custom polymer blends
• Continuous pilot line processing

Products this machine would be used for

• Plastic pellets
• Masterbatch pellets
• Color concentrates
• Additive concentrates
• Engineering thermoplastics
• Specialty polymer blends
• Research-grade materials
• High-performance compounds
• Small production batches
• Custom plastic formulations
