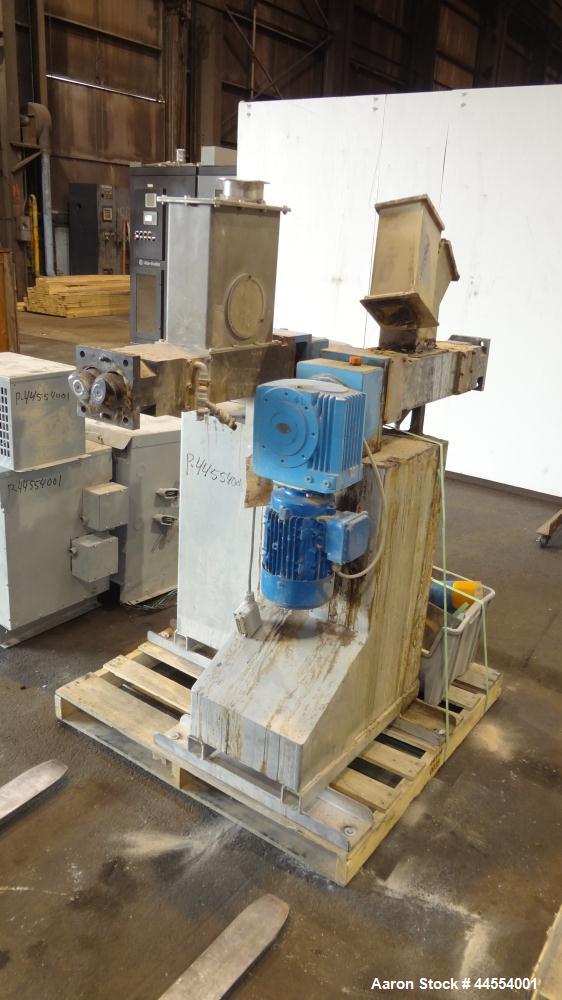

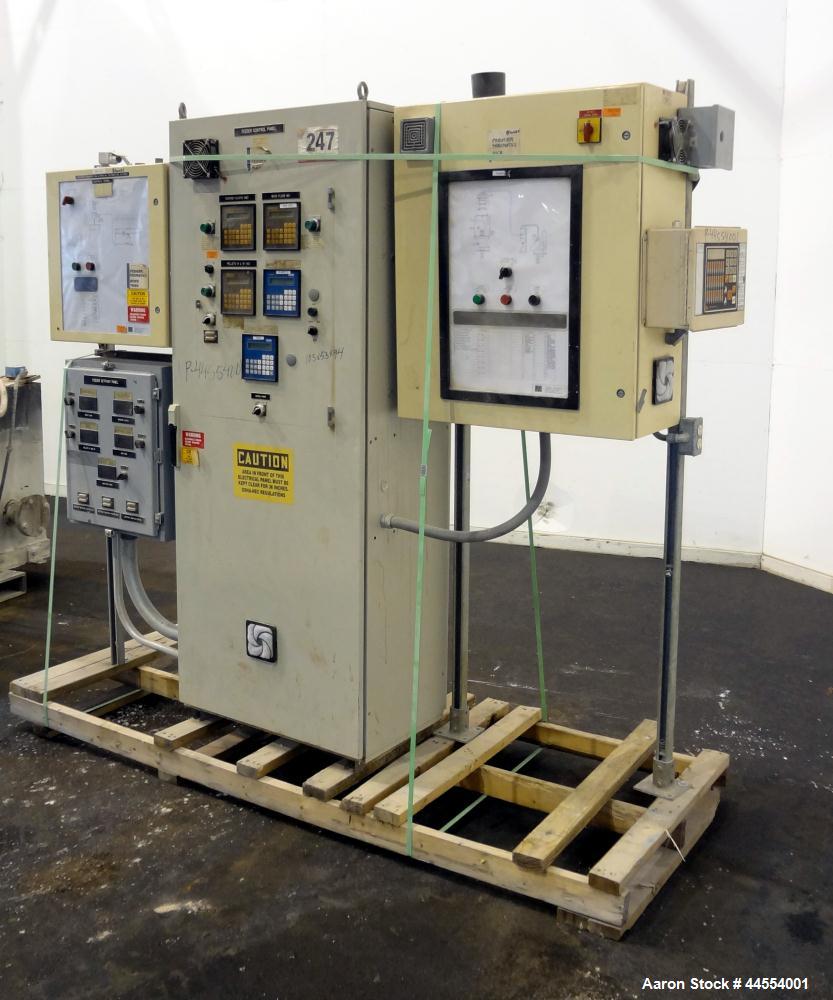

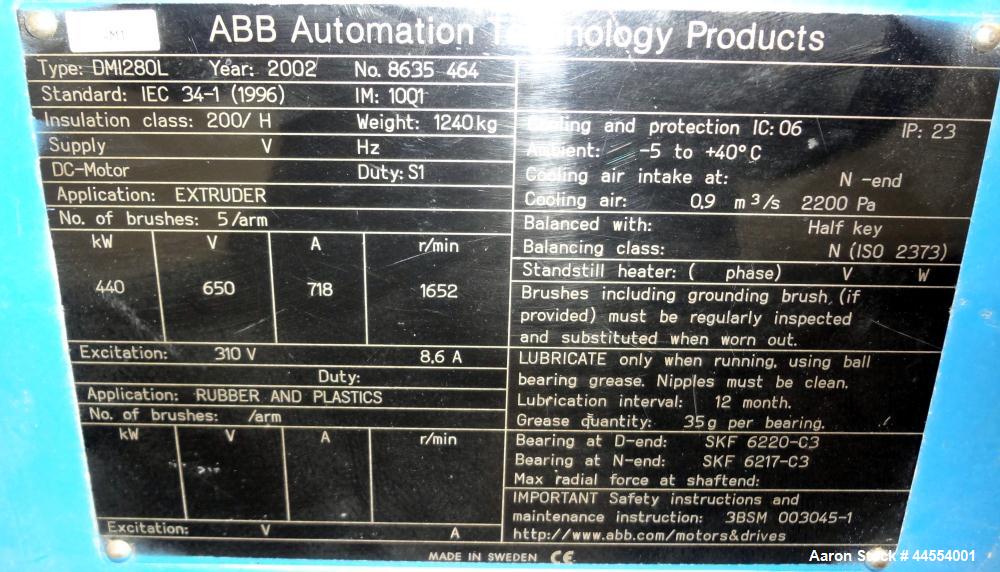

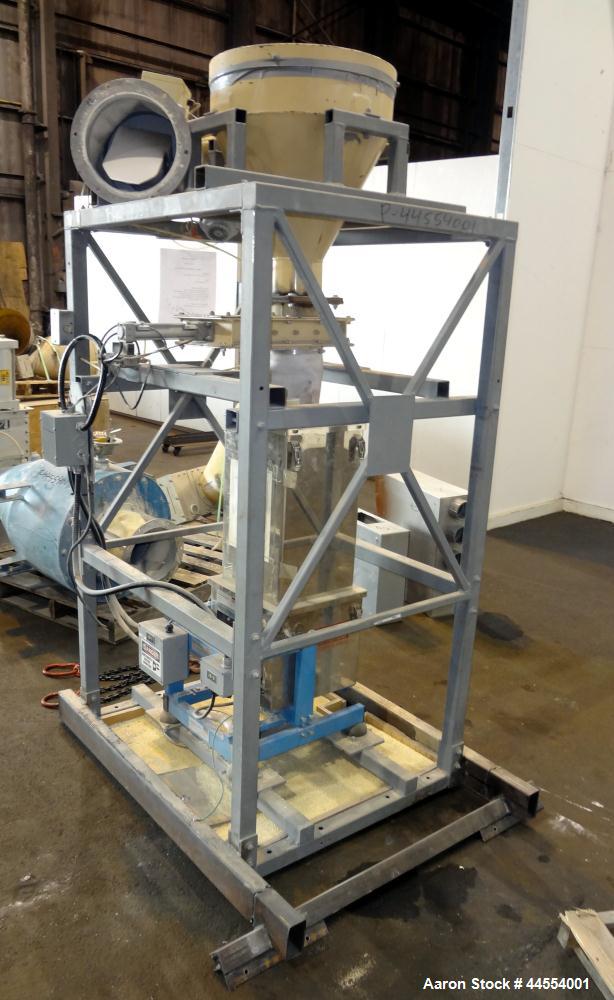

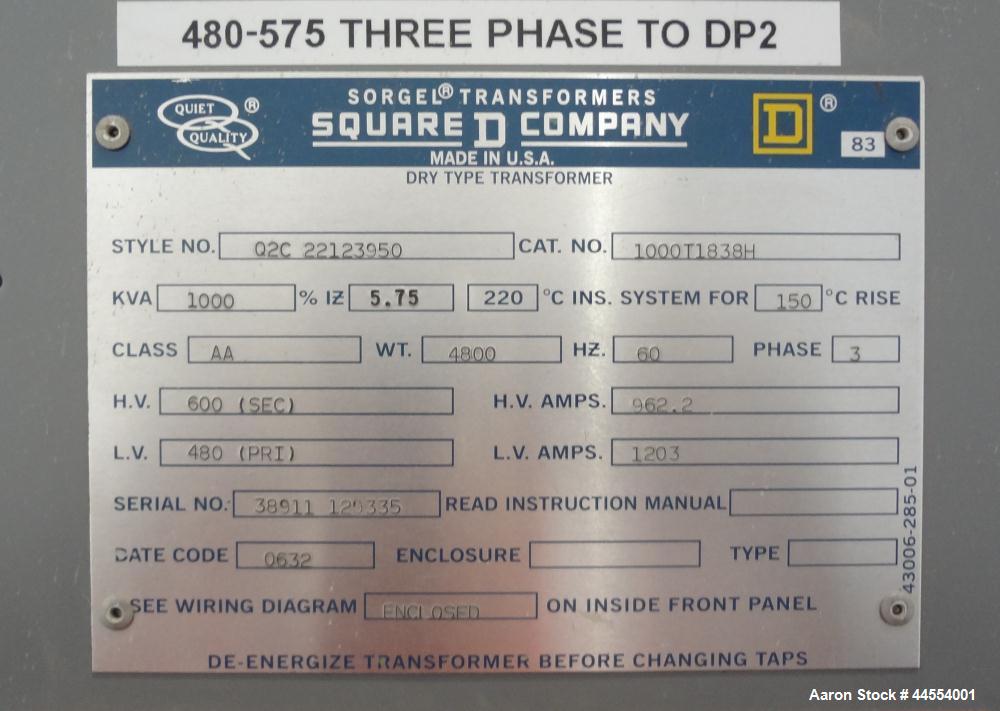

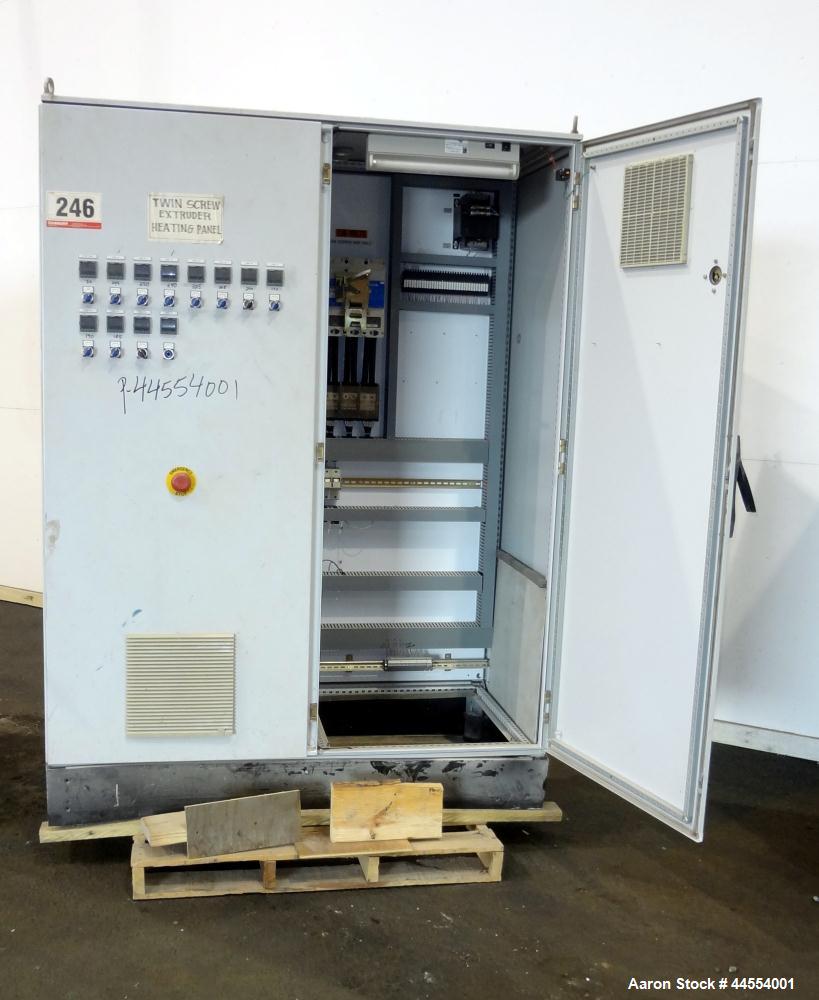

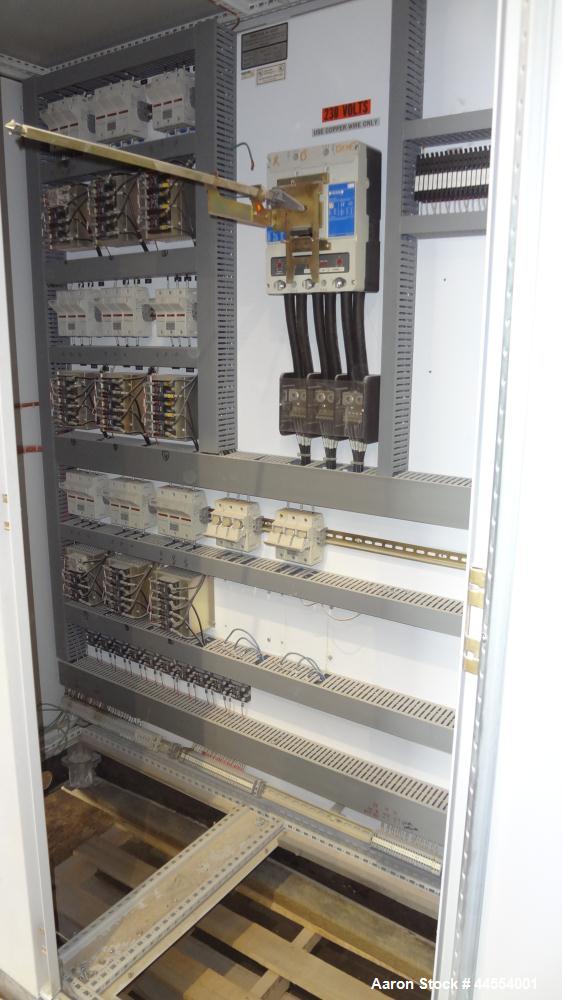

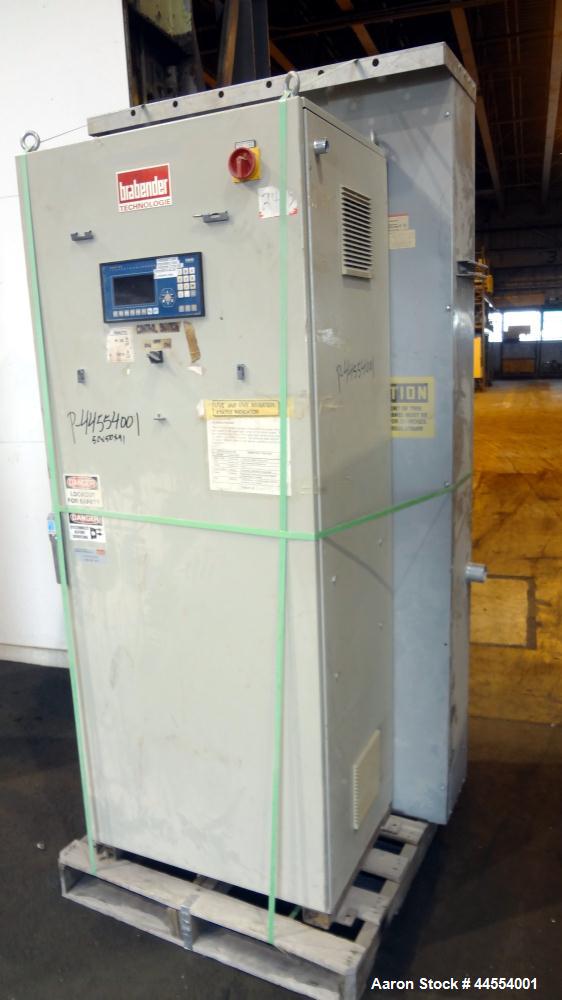

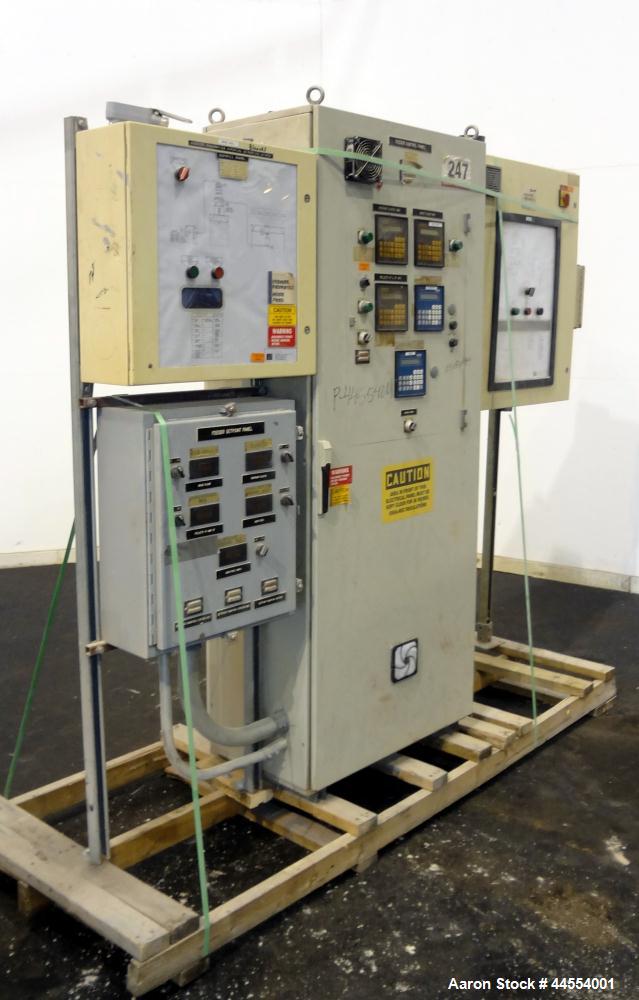

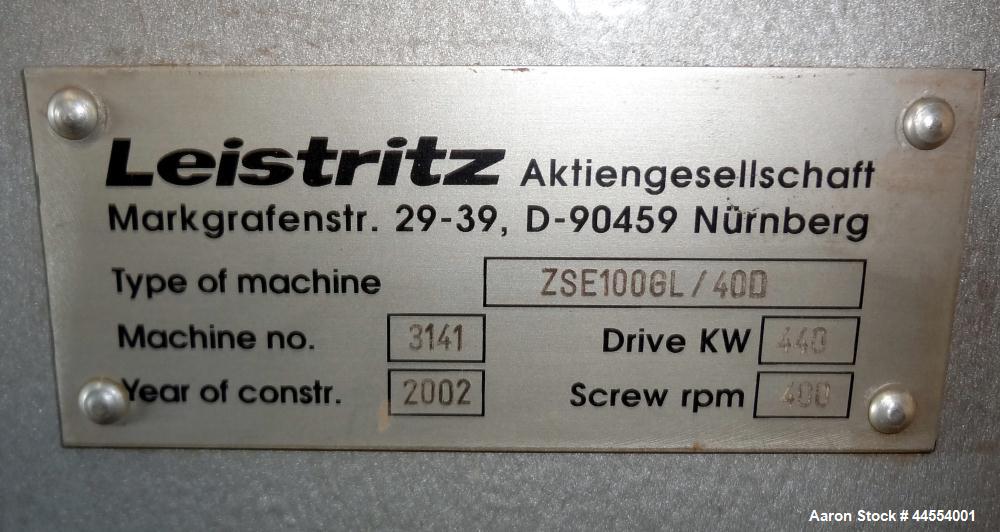

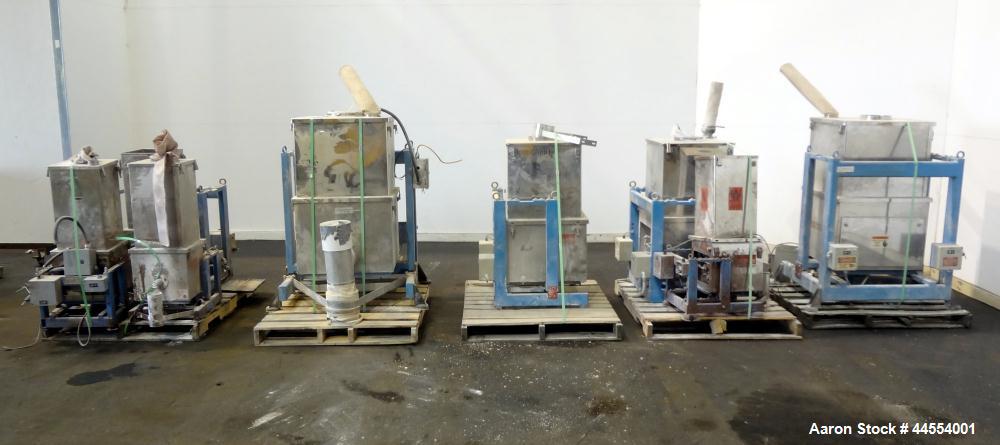

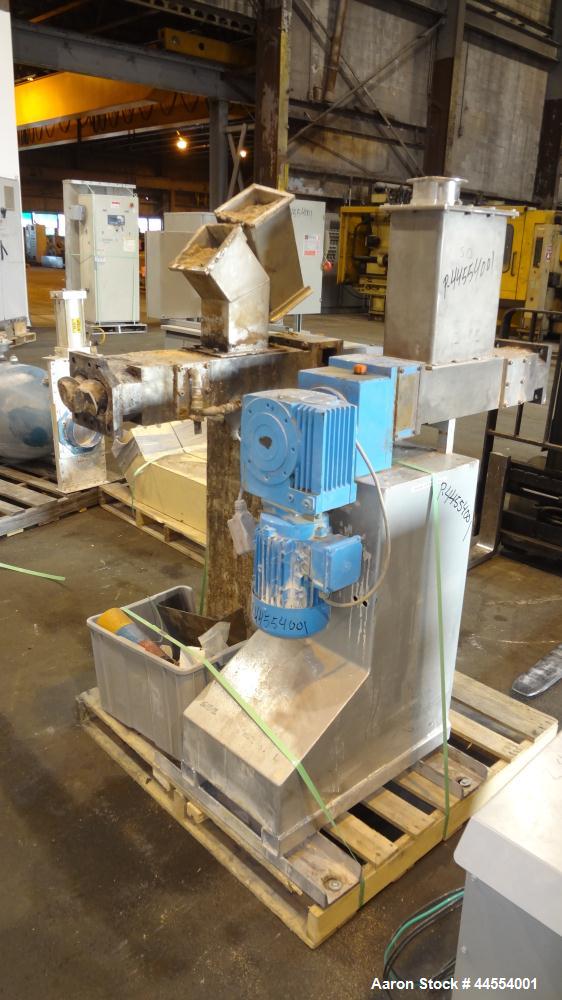

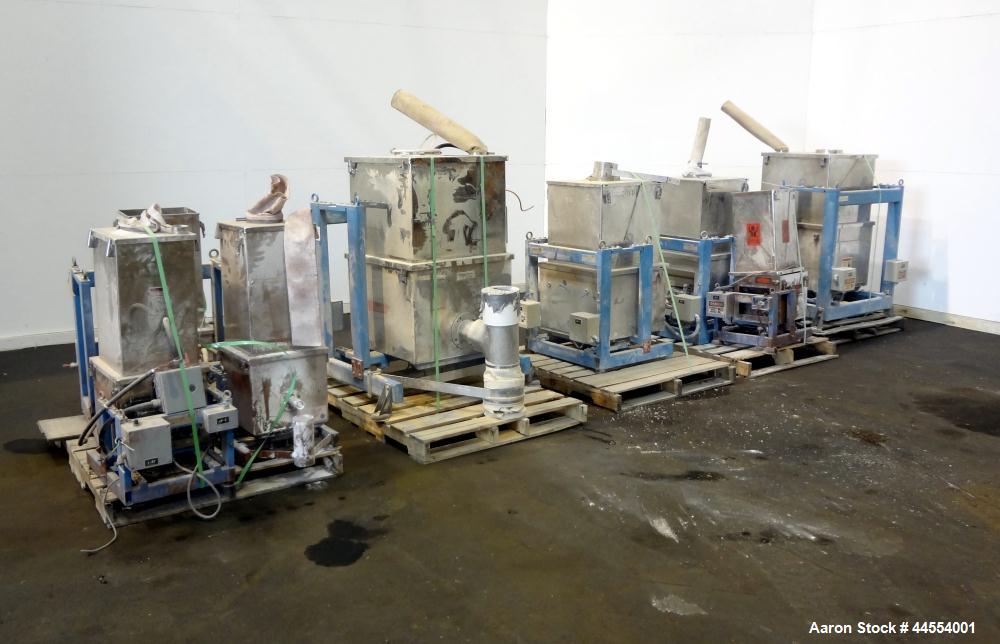

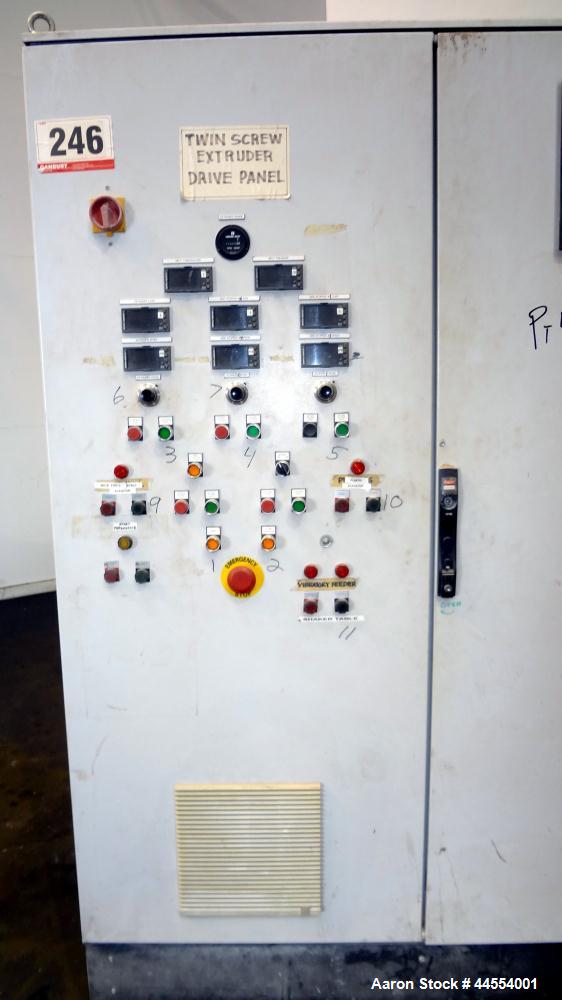

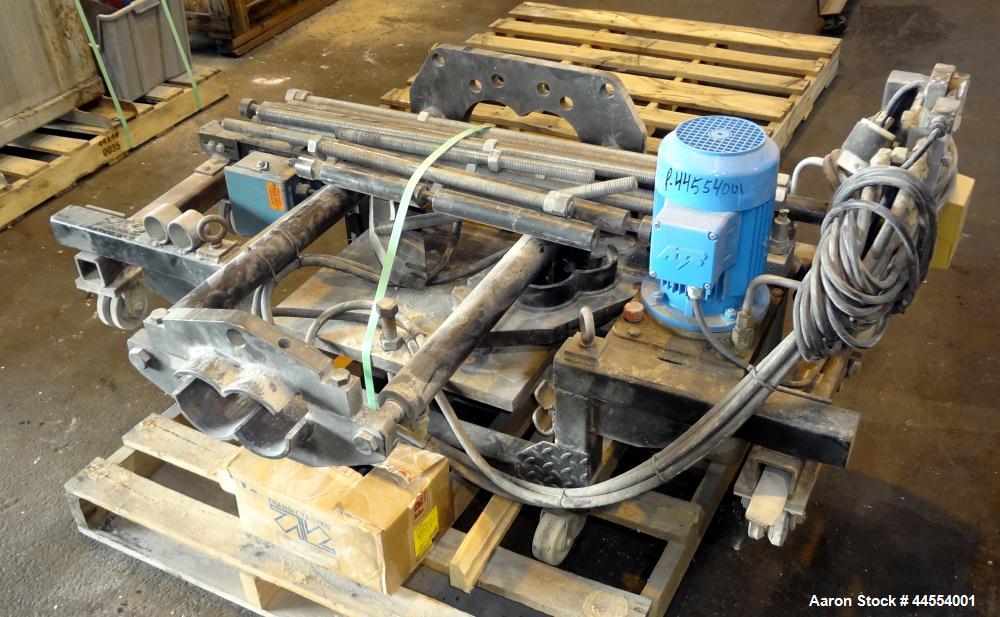

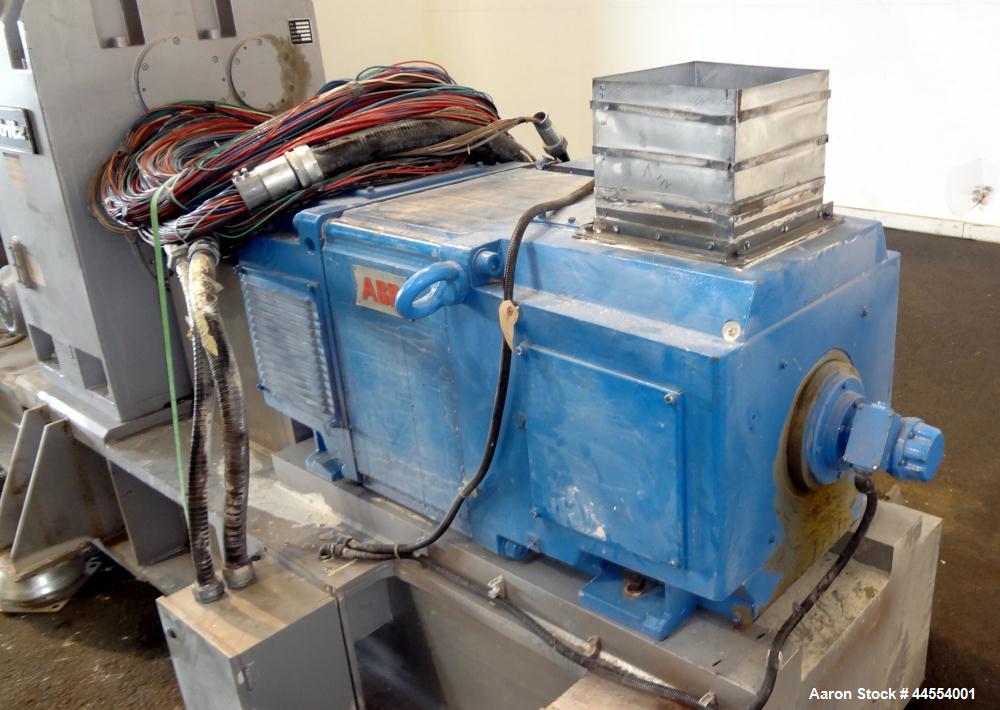

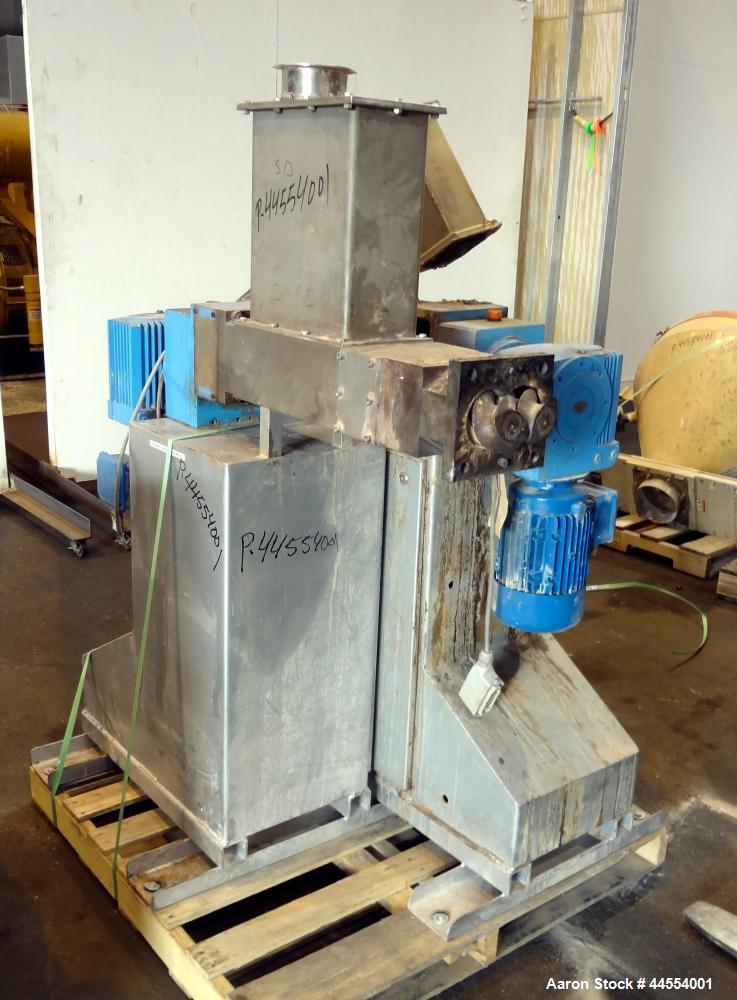

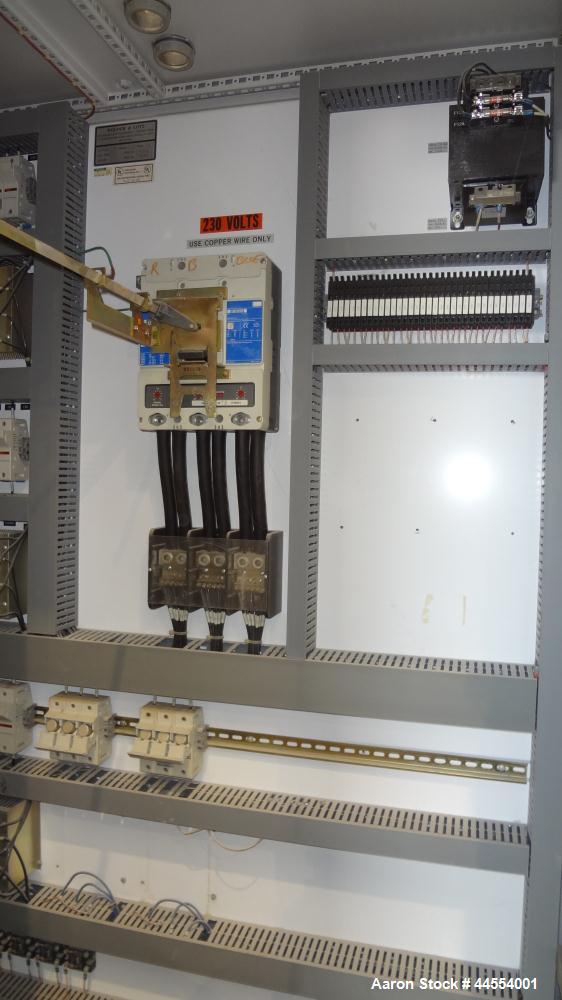

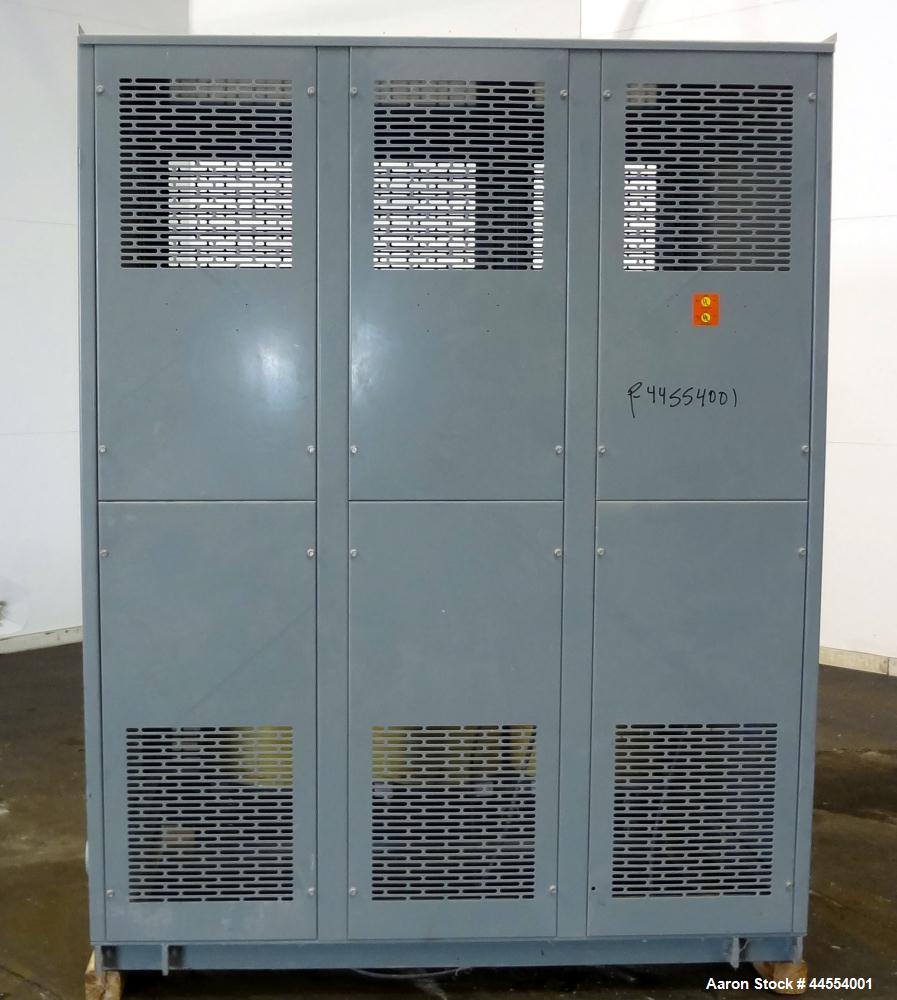

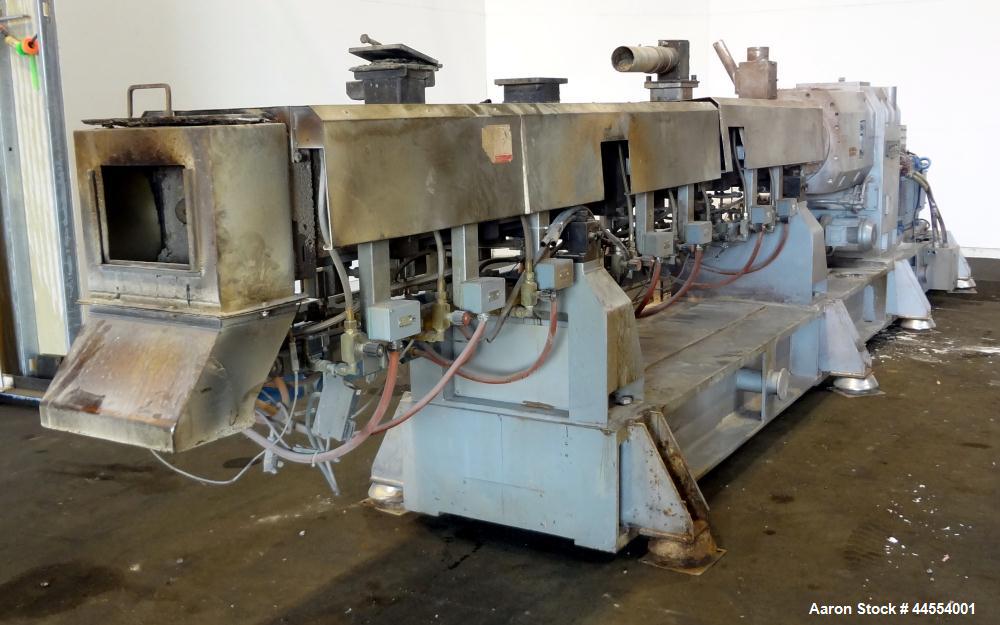

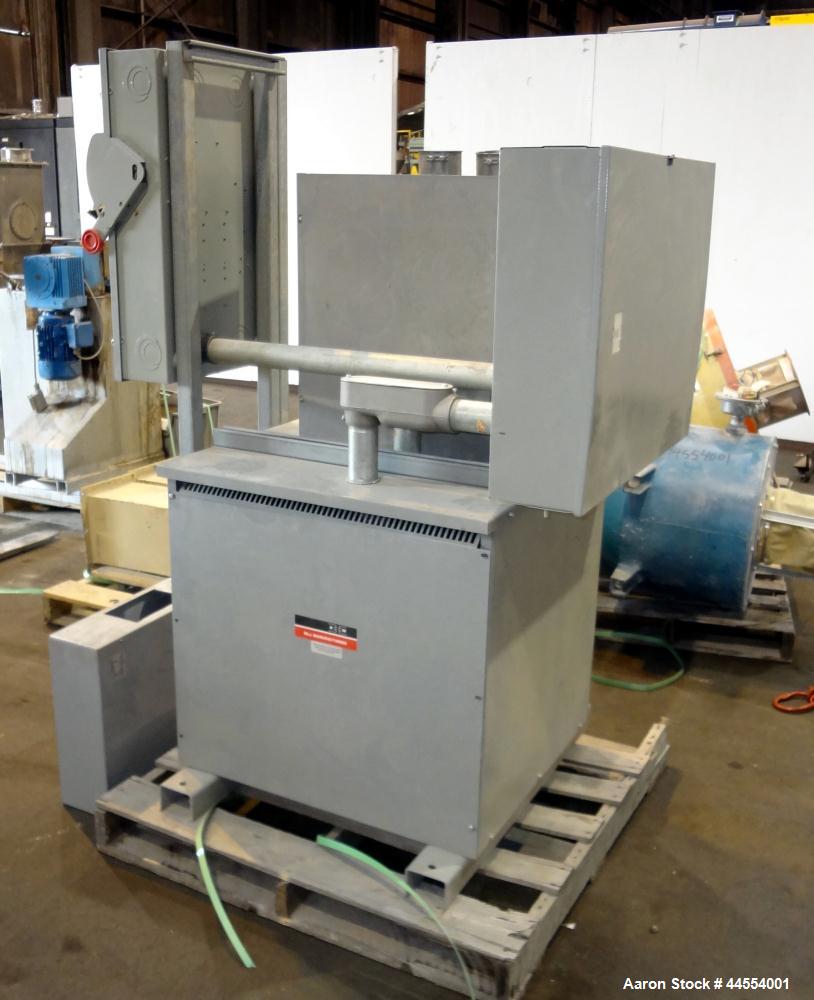

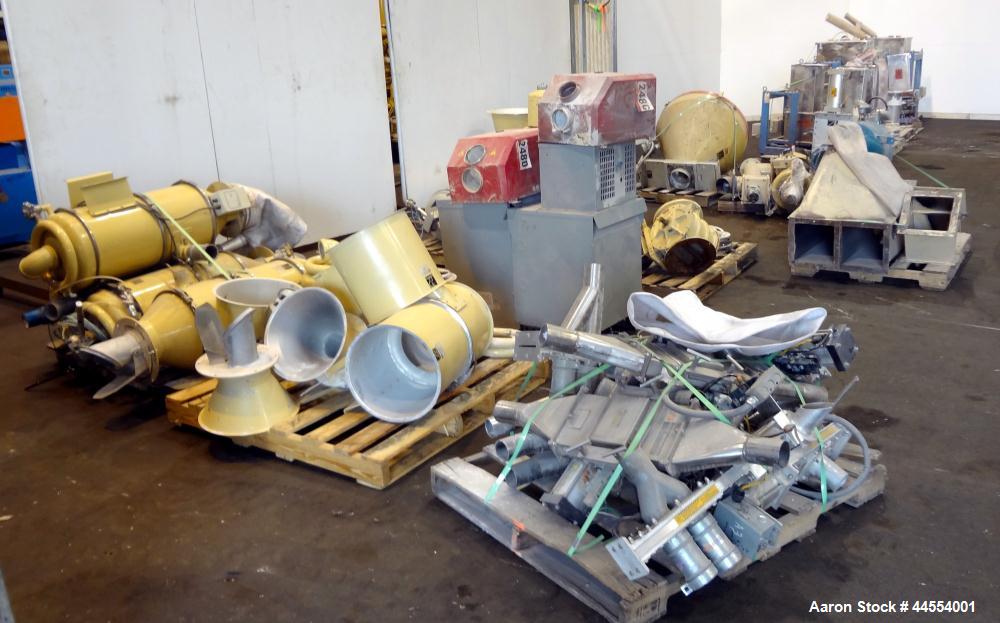

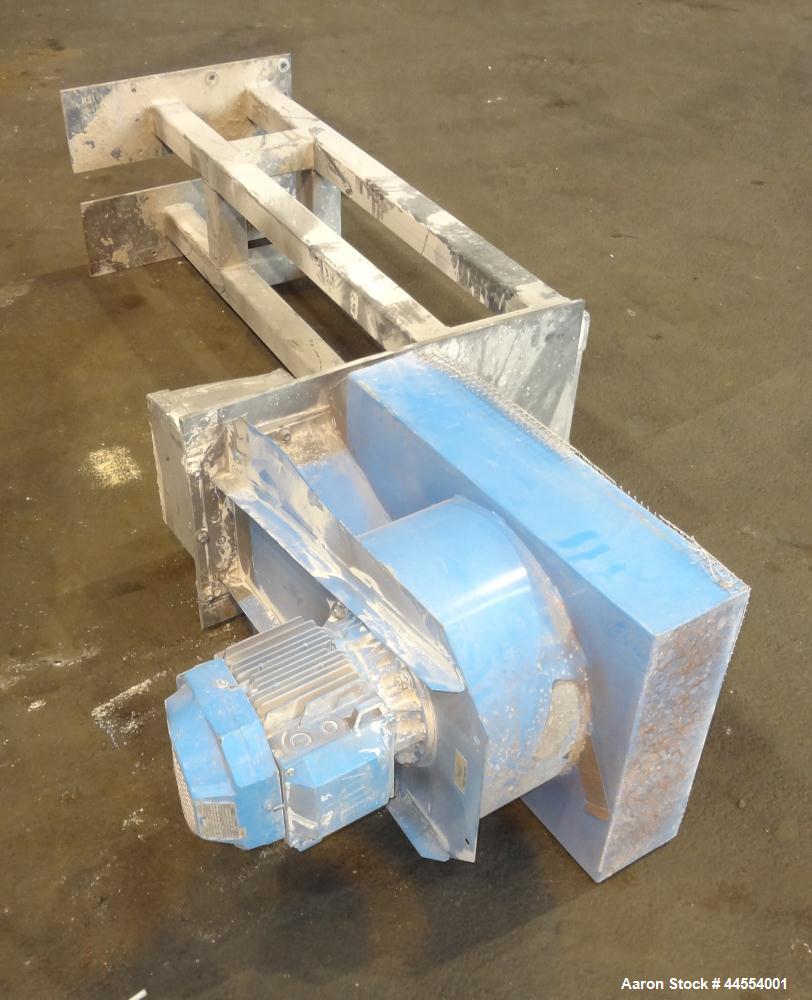

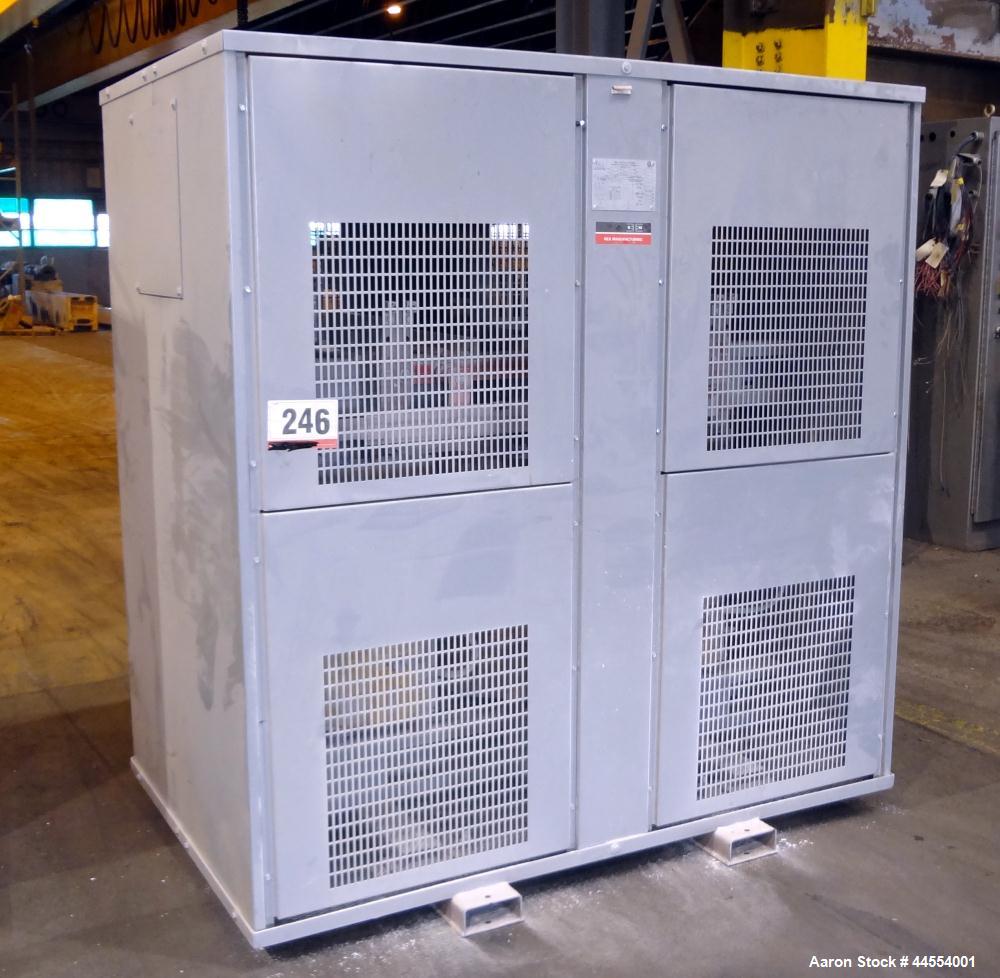

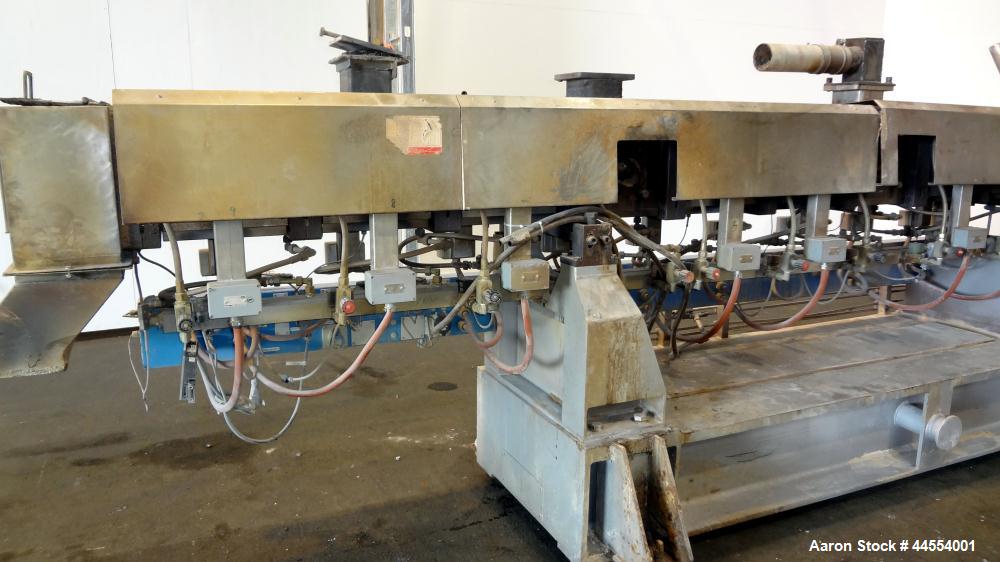

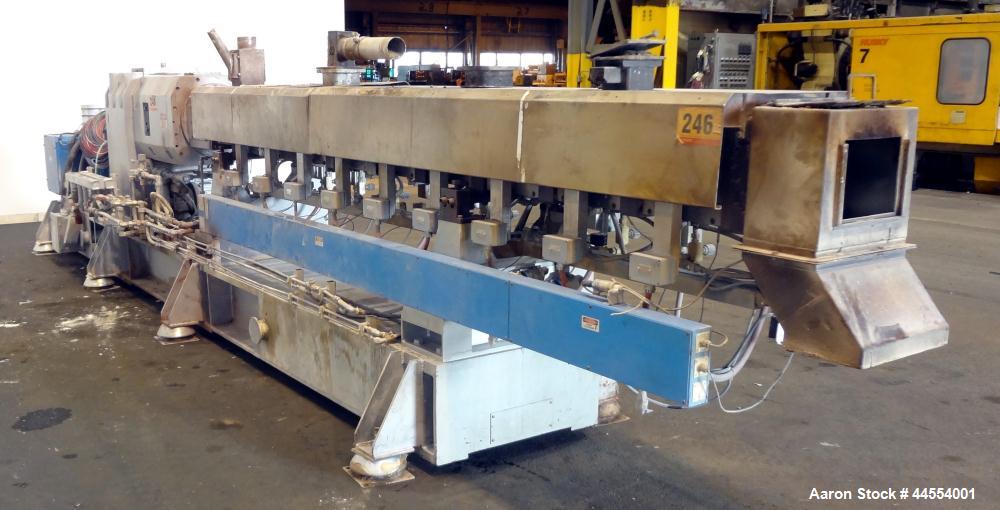

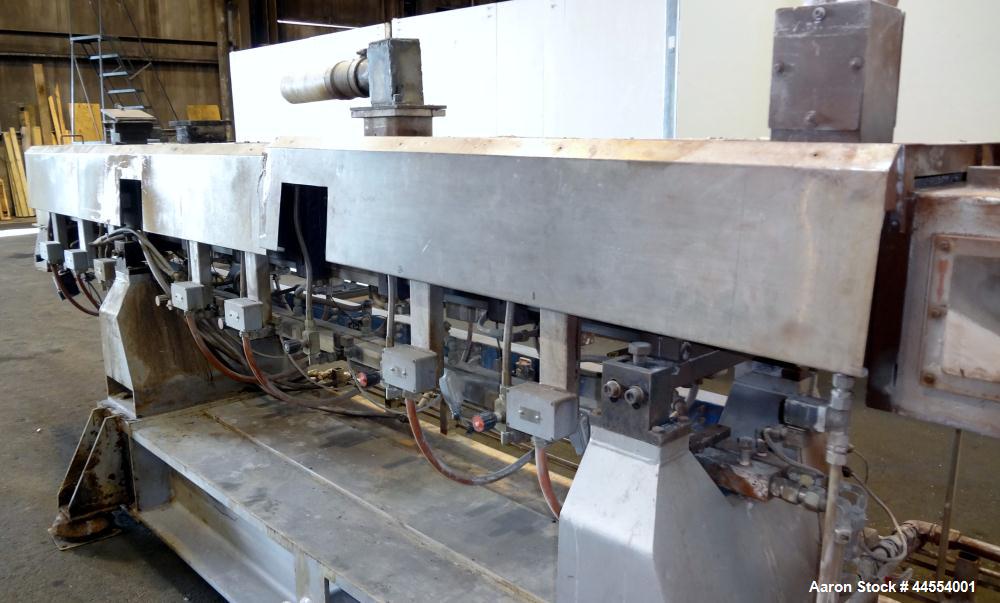

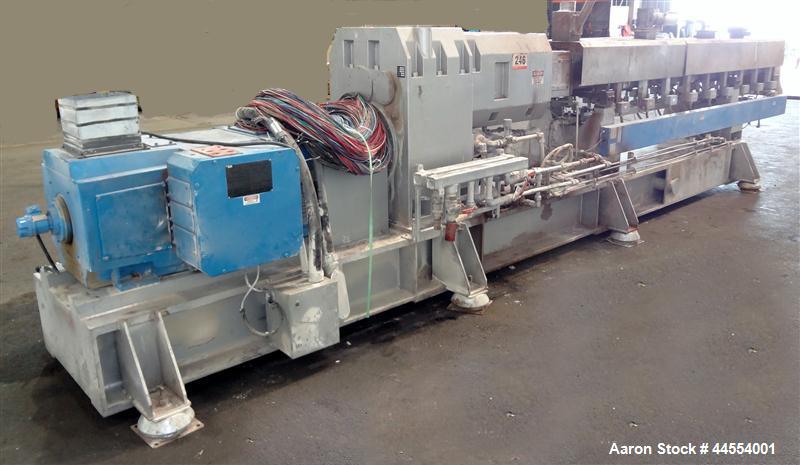

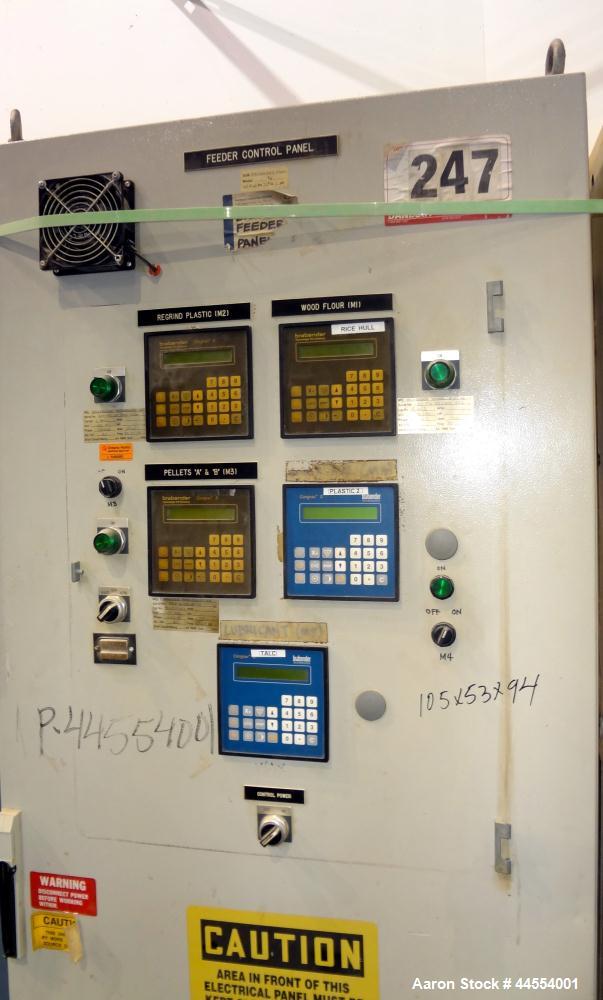

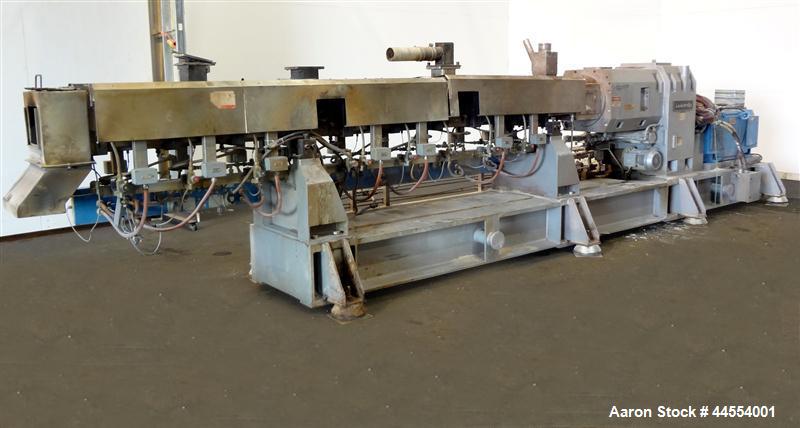

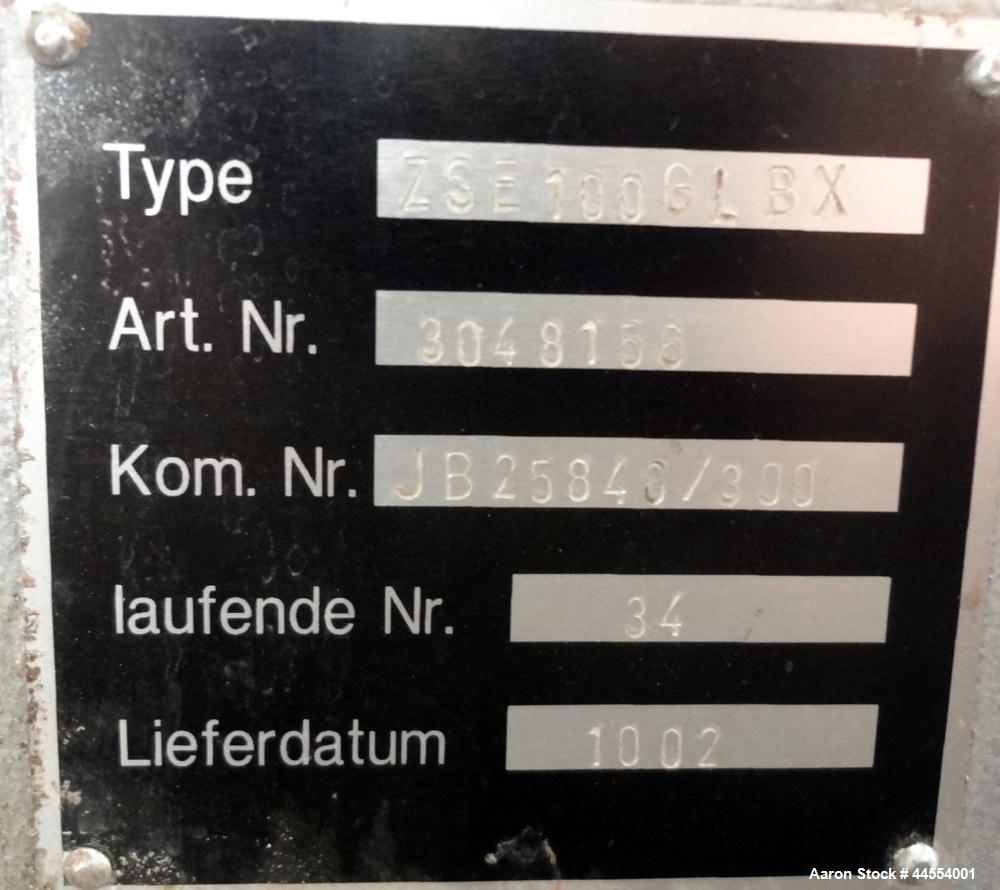

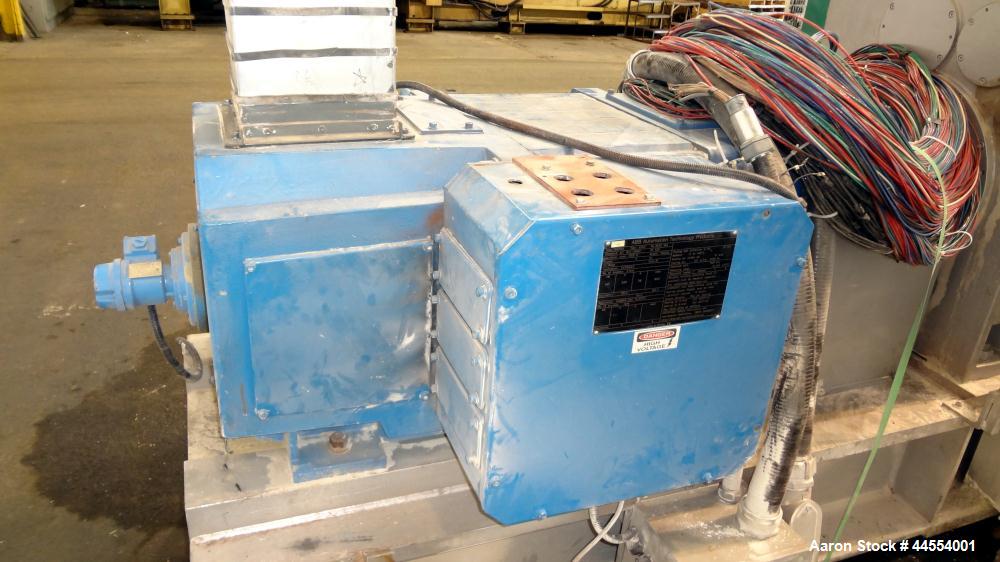

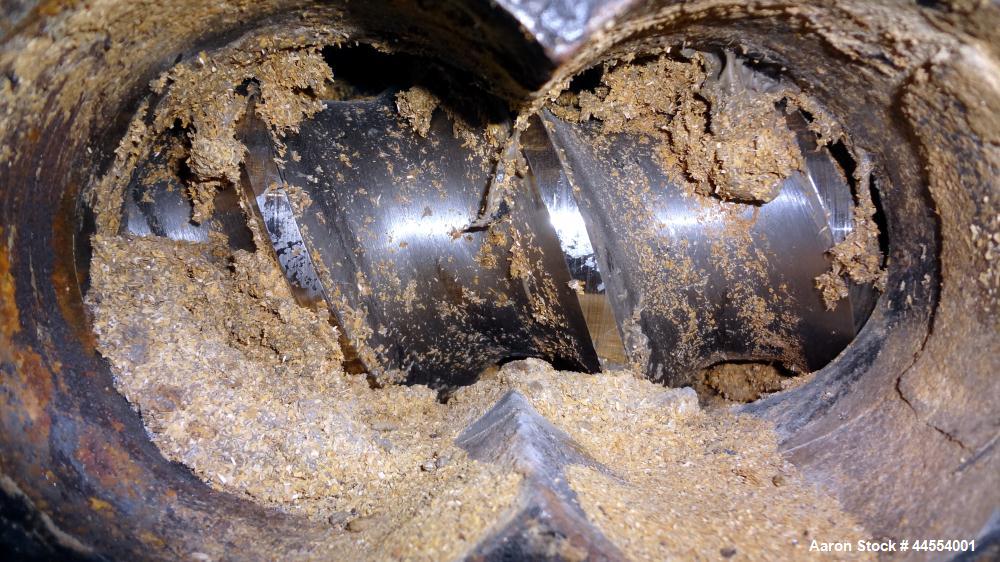

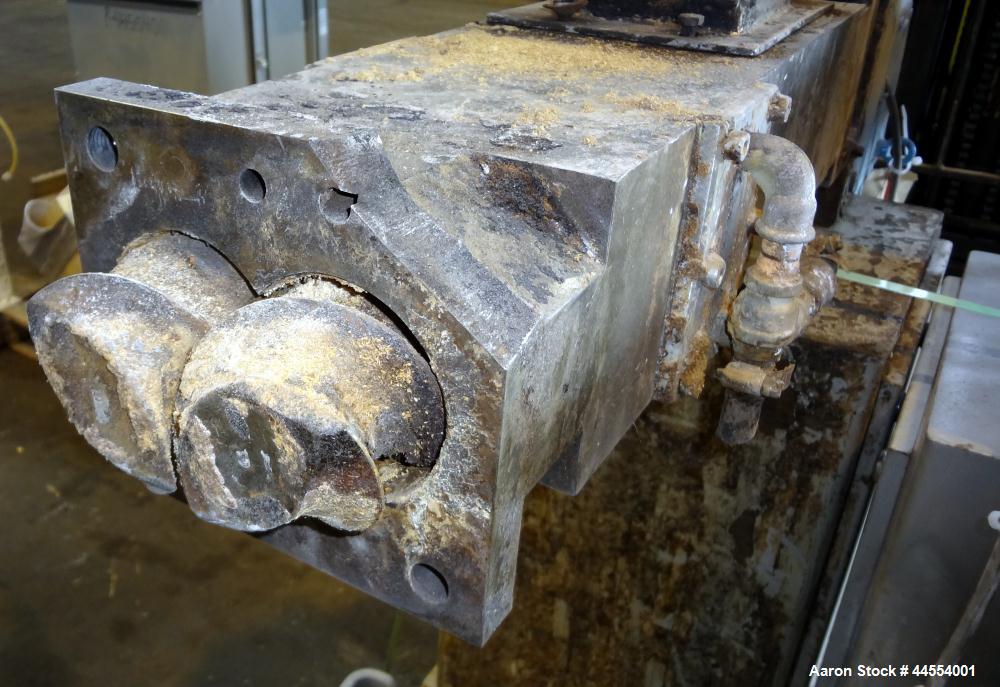

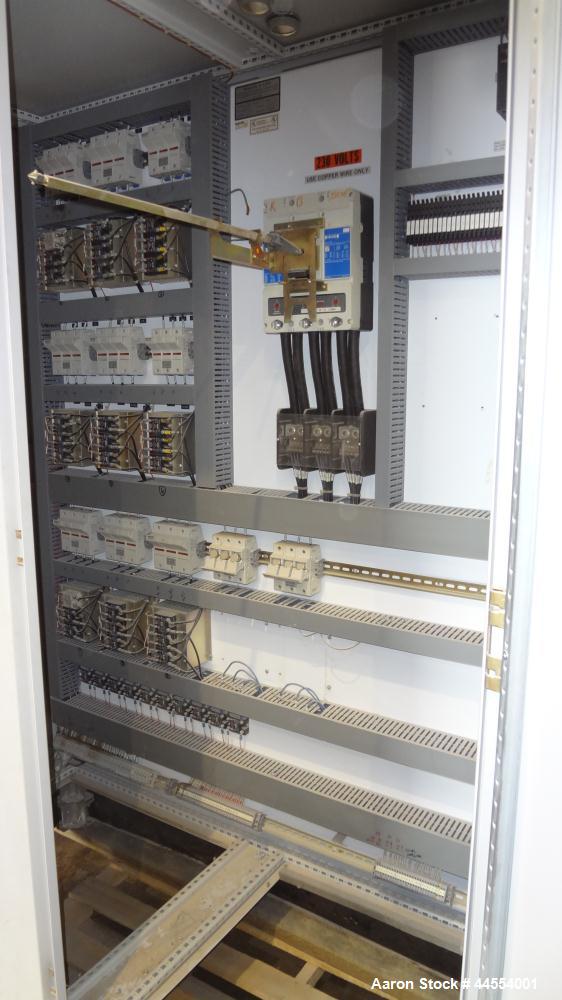

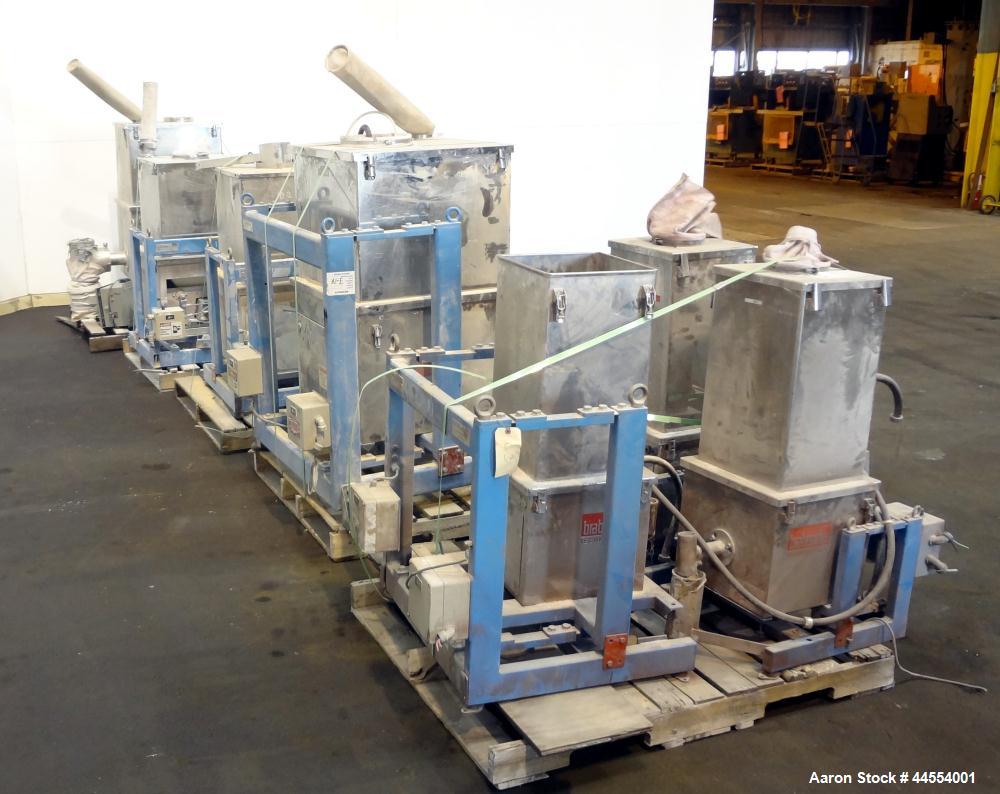

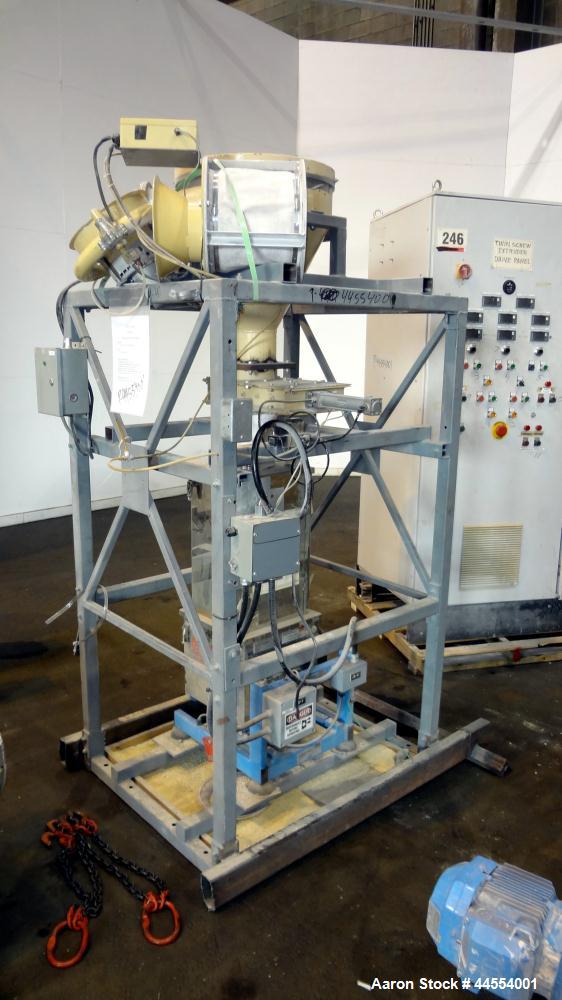

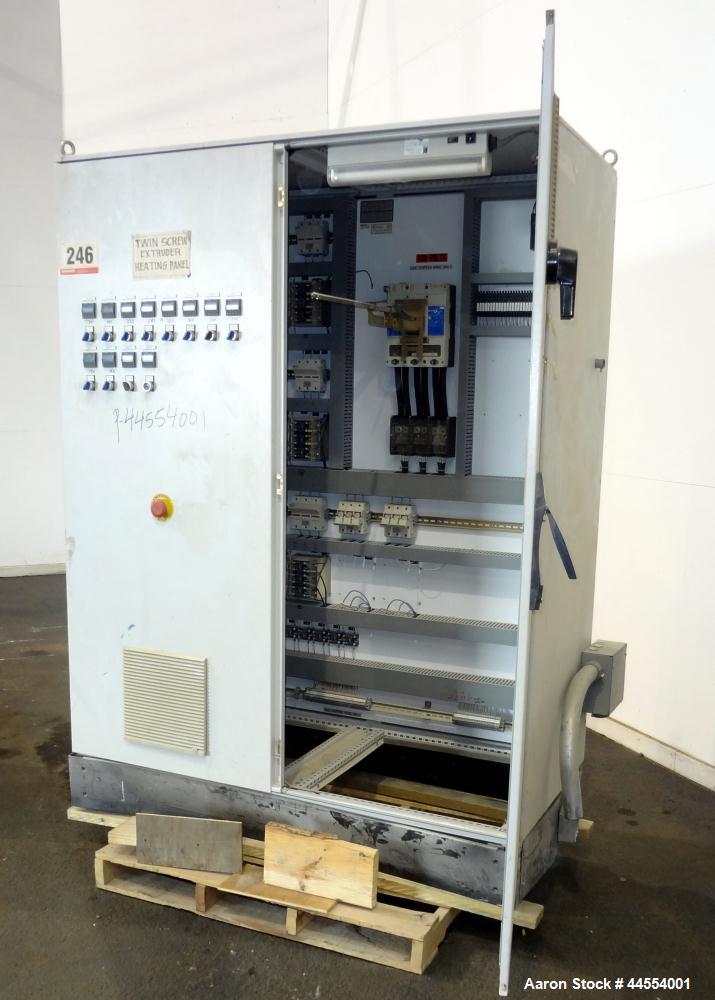

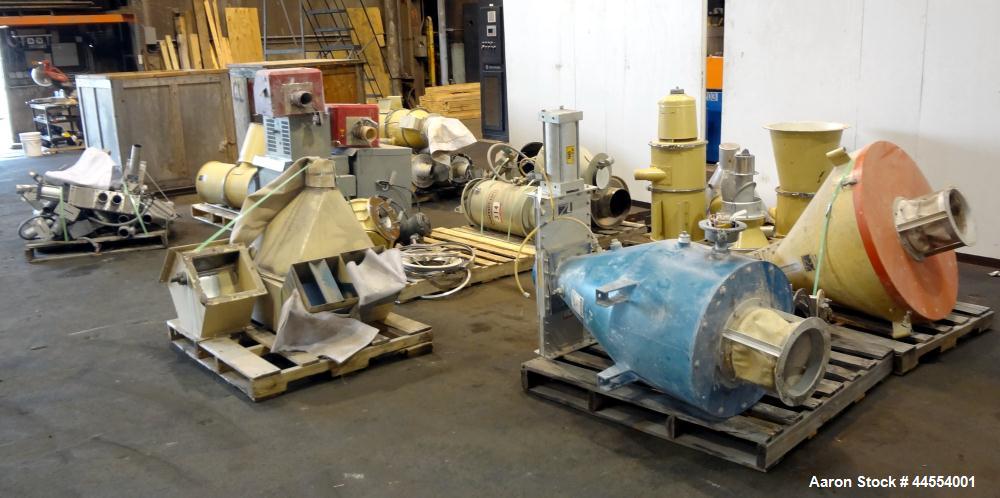

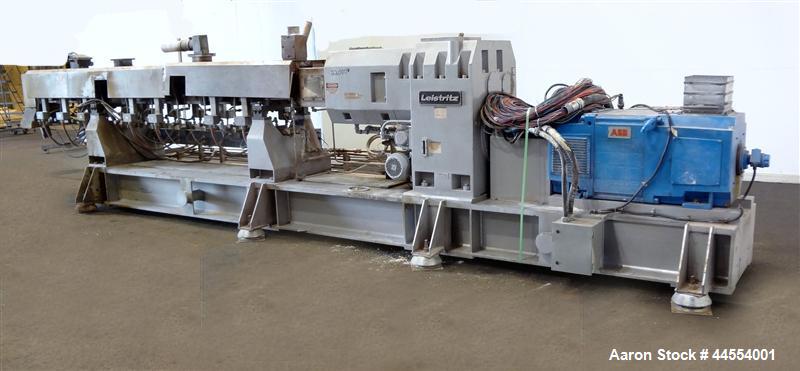

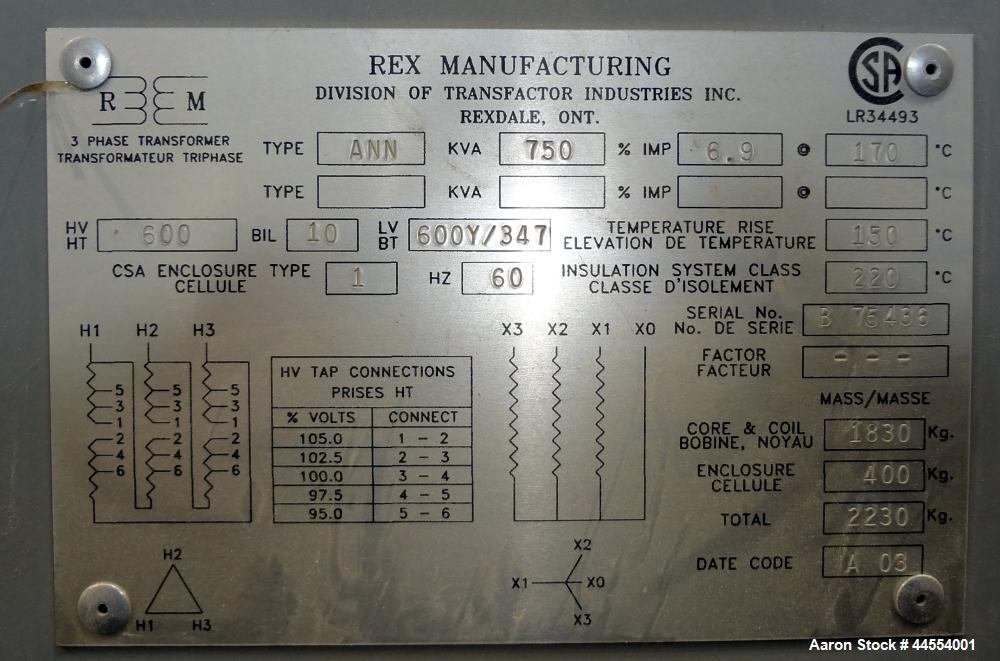

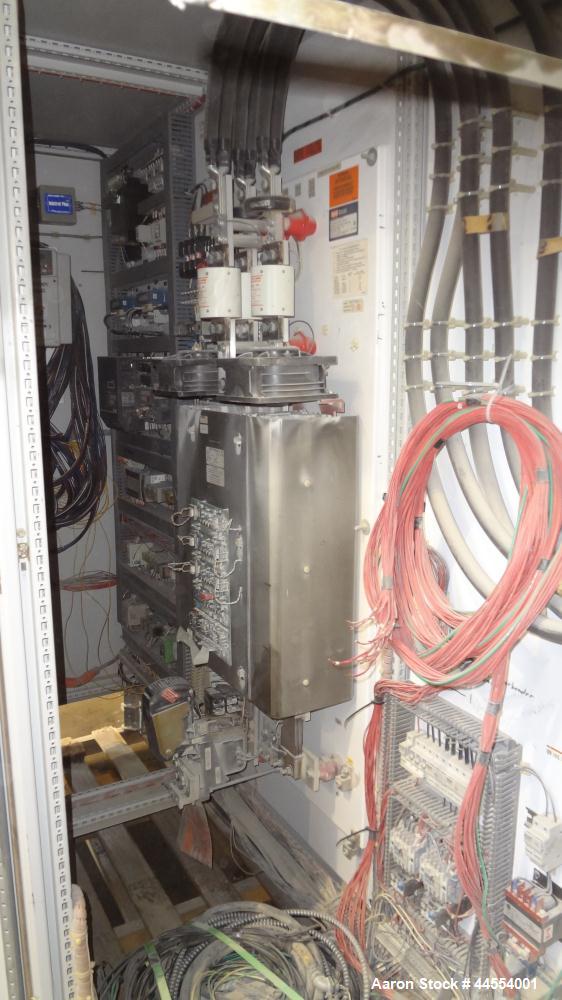

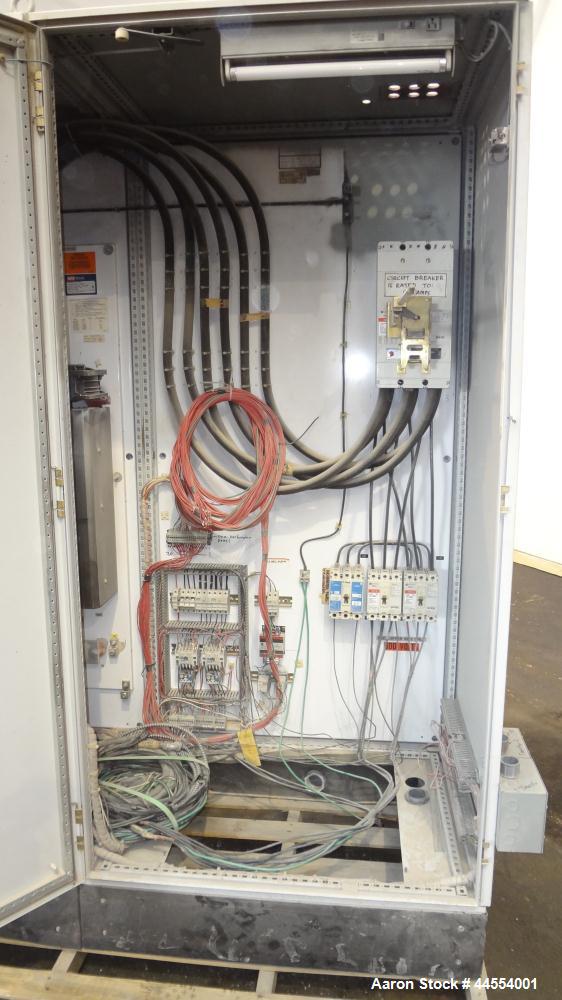

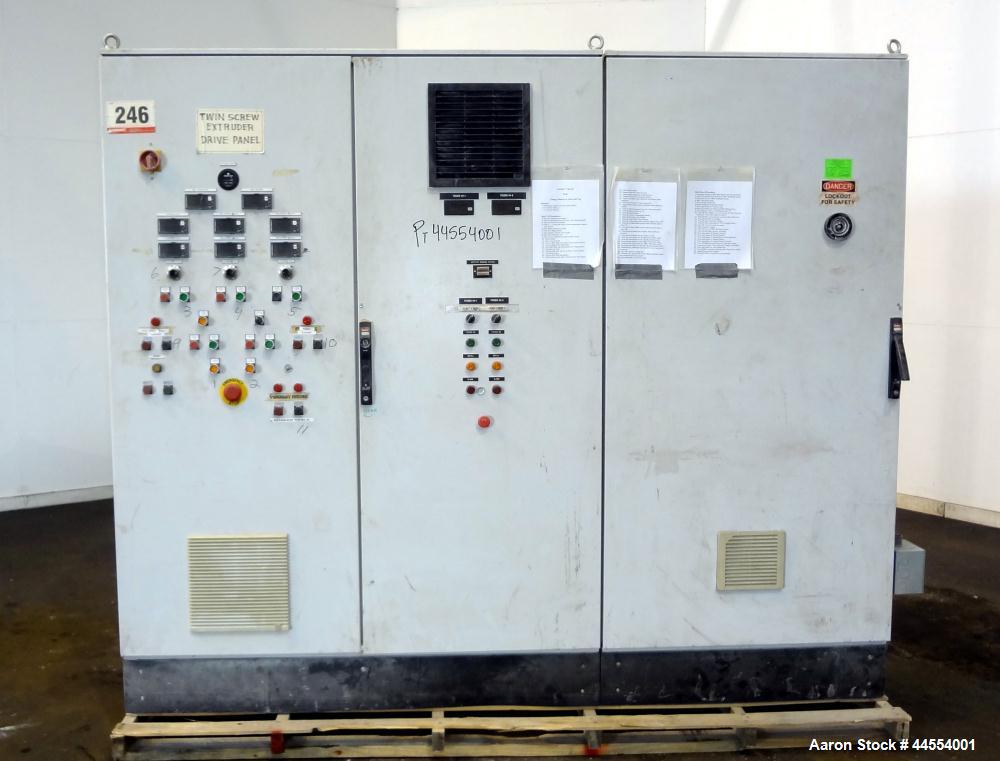

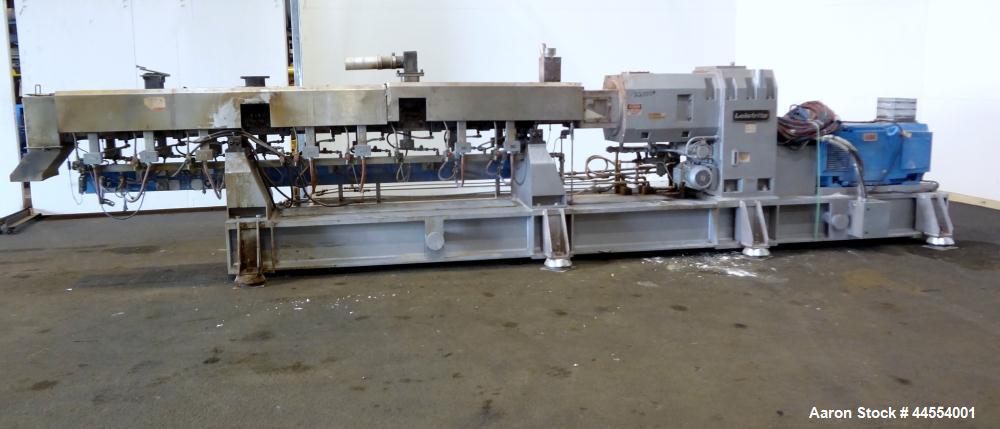

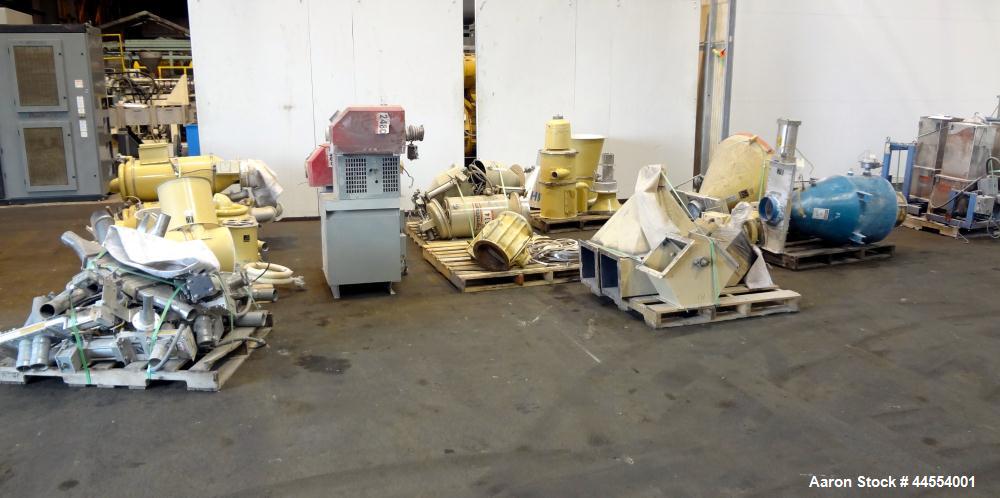

Used Leistritz 99.6mm Co-Rotating Twin Screw Extruder, Model ZSE100GL/40D, serial# 3141, built 2002. Approximately 40 to 1 L/D ratio. Electrically heated, water cooled. 9 Barrel zones, (1) top vented, (2) top vented, and with model LSB90 92mm co-rotating twin screw side feeders. (1) Water cooled feed zone. Maximum screw speed 400 rpm. Approximate 50-1/2" centerline height. Driven by a 440kw (589 hp), 650 volt, 1652 rpm motor thru a gearbox, model ZSE100GLBX, approximate 4.13 to 1, (1) control panel with Eurotherm controllers. Unit includes a feed system consisting of (2) Control & Metering feeders, model H33-FW120/200LIN, serial #s C3411, C3412, built 1997, (1) Brabender Technologies feeder, model H31-TW33/50, serial# BTI0202006, built 2002, (3) Brabender Technologies feeders, model H32-FW79/150, serial #s BTI990926, BTI990929, BTI990925, built 1999, (2) Brabender Technologies feeders, model DDW/H31/FW33/50, serial #s BTI0302003, BTI0302002 built 2003, feeder control panels, (1) 1000 kva, (1) 750 kva, (1) 112.5 kva, (1) 51 kva, (1) 27 kva, (1) 10 kva transformers, (1) hydraulic screw puller, and miscellaneous hoppers, and valves.
Used Leistritz 99.6mm Co-Rotating Twin Screw Extruder, Model ZSE100GL/40D, serial# 3141, built 2002. Approximately 40 to 1 L/D ratio. Electrically heated, water cooled. 9 Barrel zones, (1) top vented, (2) top vented, and with model LSB90 92mm co-rotating twin screw side feeders. (1) Water cooled feed zone. Maximum screw speed 400 rpm. Approximate 50-1/2" centerline height. Driven by a 440kw (589 hp), 650 volt, 1652 rpm motor thru a gearbox, model ZSE100GLBX, approximate 4.13 to 1, (1) control panel with Eurotherm controllers. Unit includes a feed system consisting of (2) Control & Metering feeders, model H33-FW120/200LIN, serial #s C3411, C3412, built 1997, (1) Brabender Technologies feeder, model H31-TW33/50, serial# BTI0202006, built 2002, (3) Brabender Technologies feeders, model H32-FW79/150, serial #s BTI990926, BTI990929, BTI990925, built 1999, (2) Brabender Technologies feeders, model DDW/H31/FW33/50, serial #s BTI0302003, BTI0302002 built 2003, feeder control panels, (1) 1000 kva, (1) 750 kva, (1) 112.5 kva, (1) 51 kva, (1) 27 kva, (1) 10 kva transformers, (1) hydraulic screw puller, and miscellaneous hoppers, and valves.
