Stock #
73584002

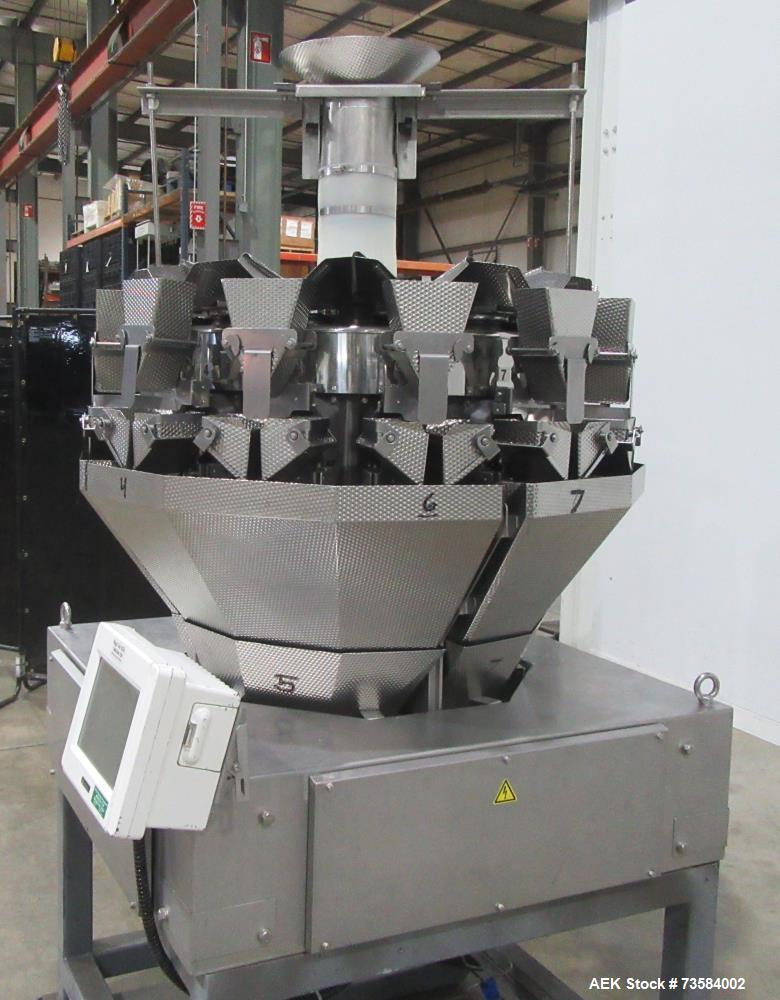

Used Ishida Model CCW-RZ-212P-D705-WP 12 Head Double Drop Dimpled/Embossed bucket combination scale, bucket elevator. 12 head split into 24 total buckets, stainless steel, combination, weigh scale system. Rated from 20 to 80 weighs per minute per side ( depending on materials and application). Has a weight capacity: 4 to 500 grams with accuracies of +/- 1 gram, maximum volume of 800cc (per single dump). Equipped with double-beam strain gauge load cell, radial feed trough, (12) 5" long x 4" wide x 5" deep stainless steel dimpled feed buckets and 6" long x 3-1/2" wide x 4" deep dimpled stainless steel weigh buckets (2 for each feed bucket) and 3 sets per each product stainless steel dimpled discharge chutes. Frazier & Son Model C 4" x 8" bucket elevator with vibratory feeder. Platform available at additional cost.
Used Equipment Facts About This Machine
Manufacturer Information
-
Manufacturer: Ishida Co., Ltd.
-
Model: CCW-RZ-212P-D705-WP
-
Machine Type: Multihead Combination Weigher / Weigh Scale System
-
Configuration: 12 Head Double Drop
-
Construction: Stainless Steel
-

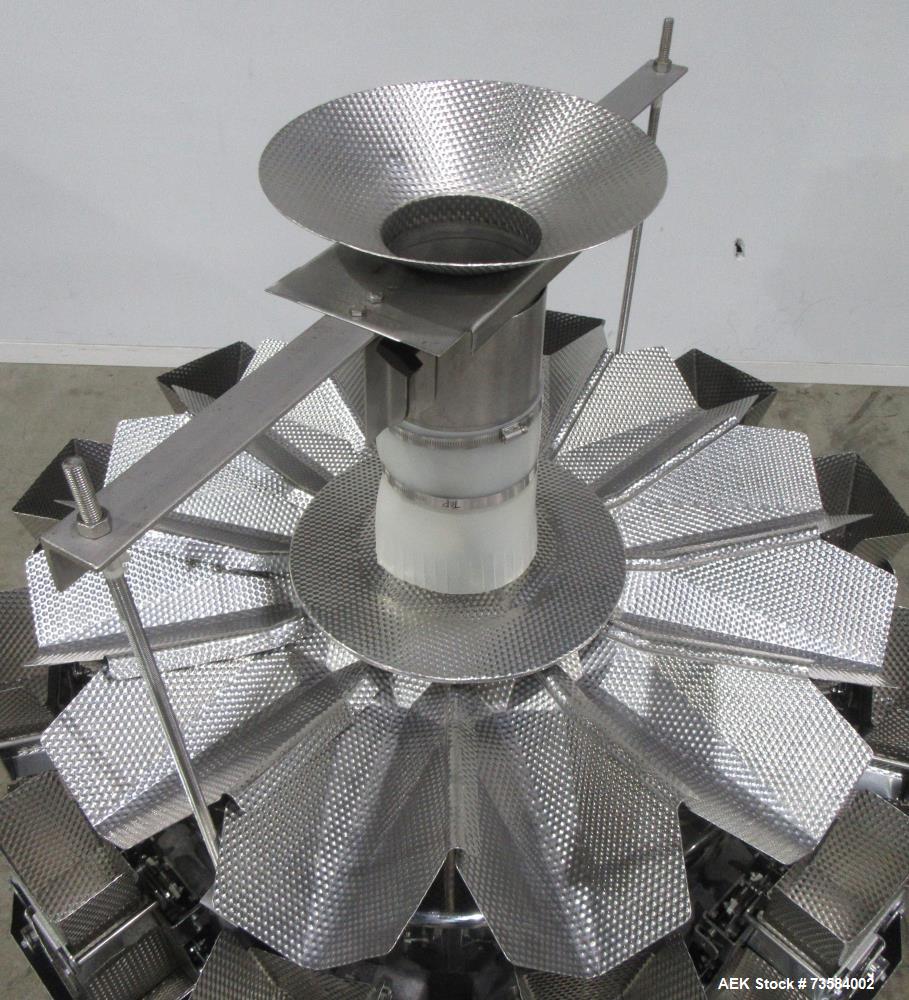

Feed System: Radial feed trough
-
Additional Equipment: Frazier & Son bucket elevator with vibratory feeder
Ishida is a global leader in multihead weighing technology and packaging automation, widely used in snack food, produce, frozen foods, confectionery, nutraceutical, and industrial packaging operations.
Description

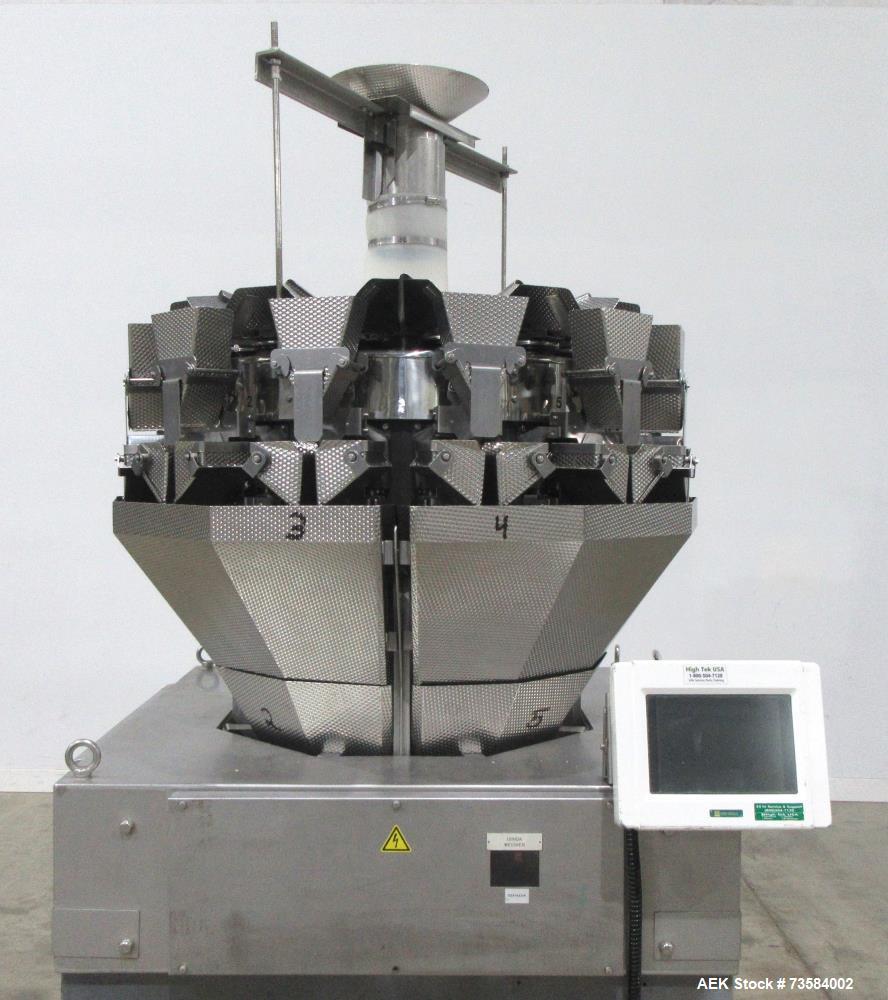

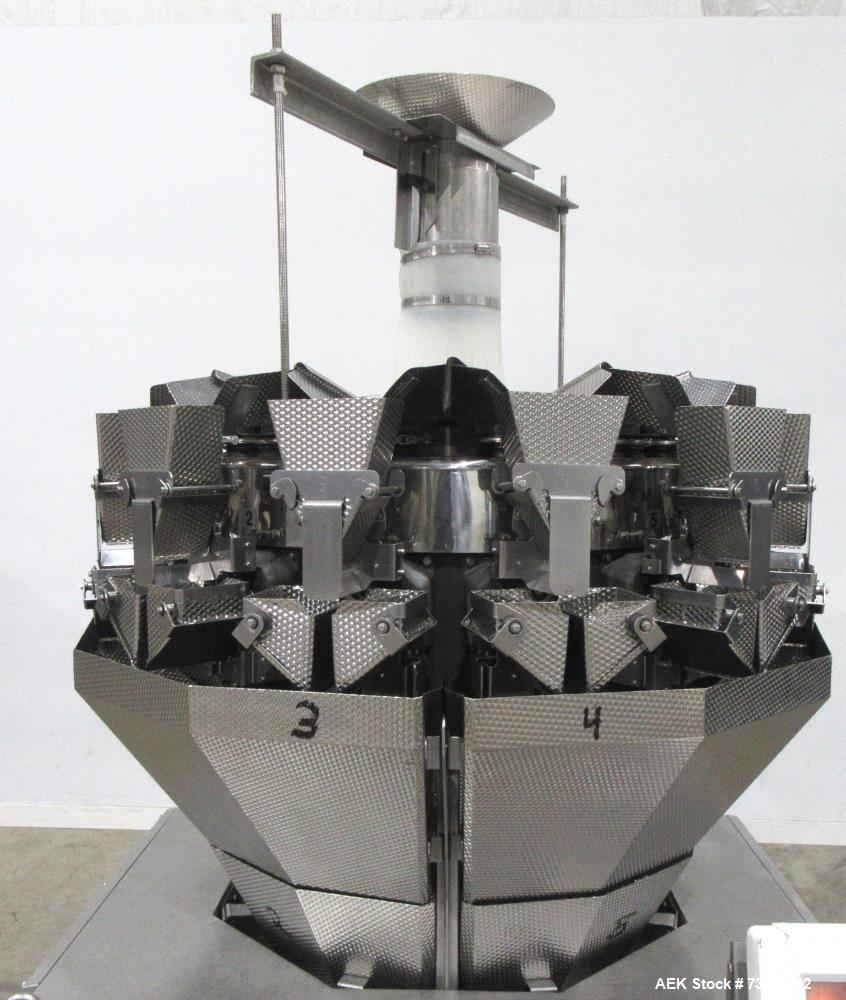

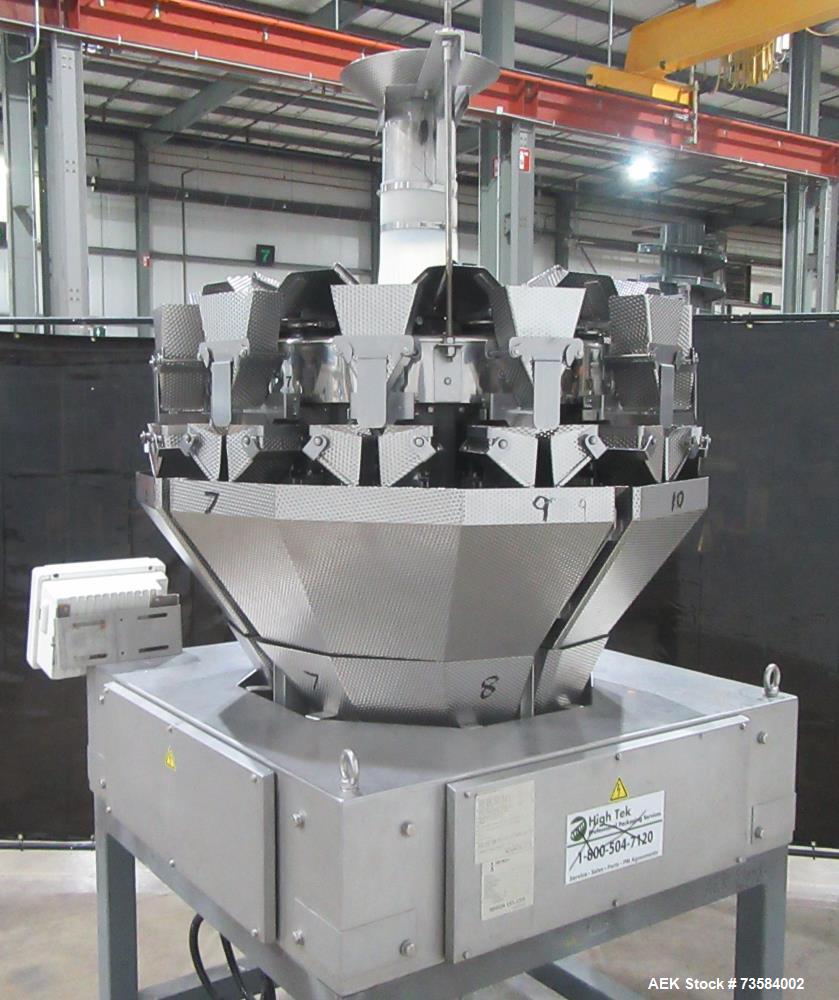

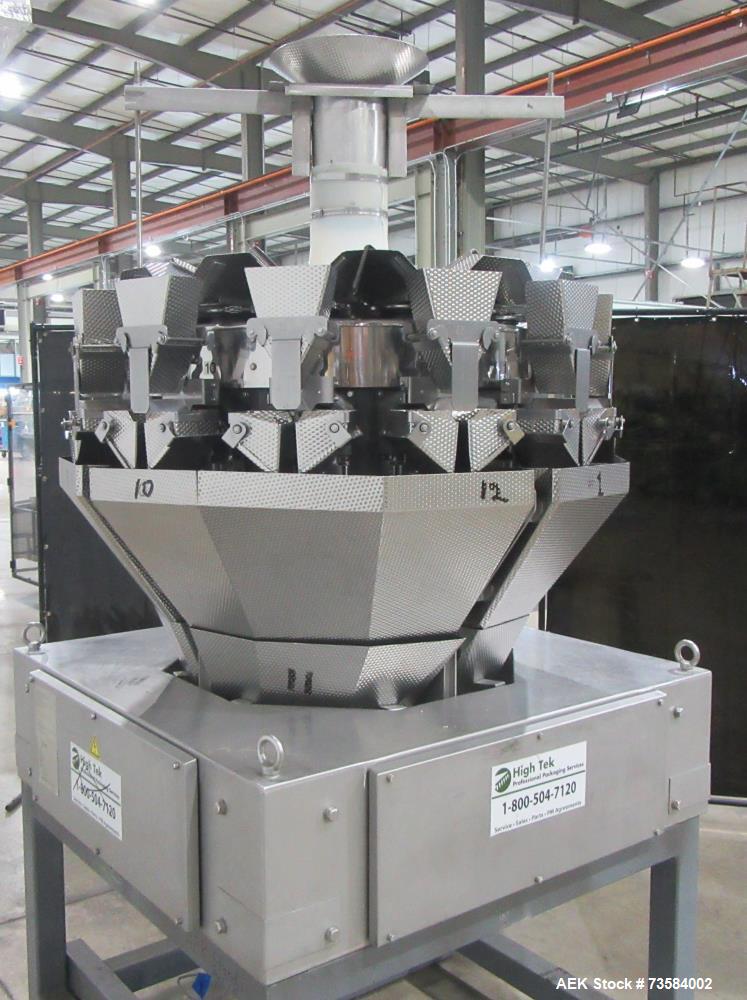

This used Ishida Model CCW-RZ-212P-D705-WP 12 Head Double Drop Combination Scale is designed for high-speed, accurate weighing of food and small product items prior to packaging. The scale is constructed from stainless steel and features dimpled/embossed buckets, making it suitable for products that require improved flow and reduced sticking.
The system is capable of 20 to 80 weighs per minute per side, depending on product characteristics and packaging configuration. The scale handles weights ranging from 4 grams to 500 grams with an accuracy of approximately ±1 gram.

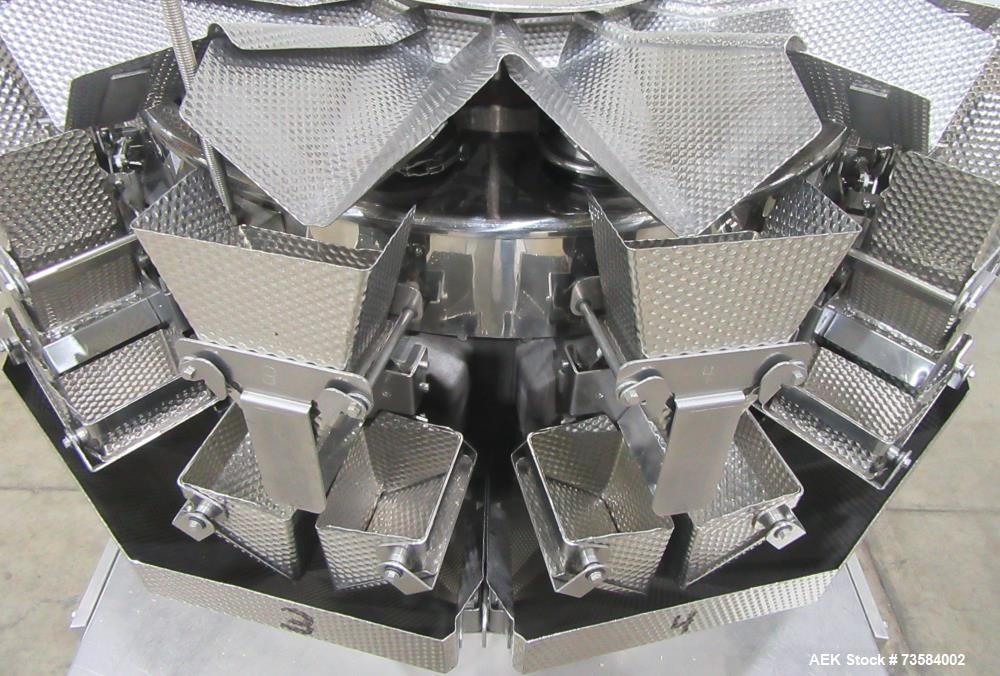

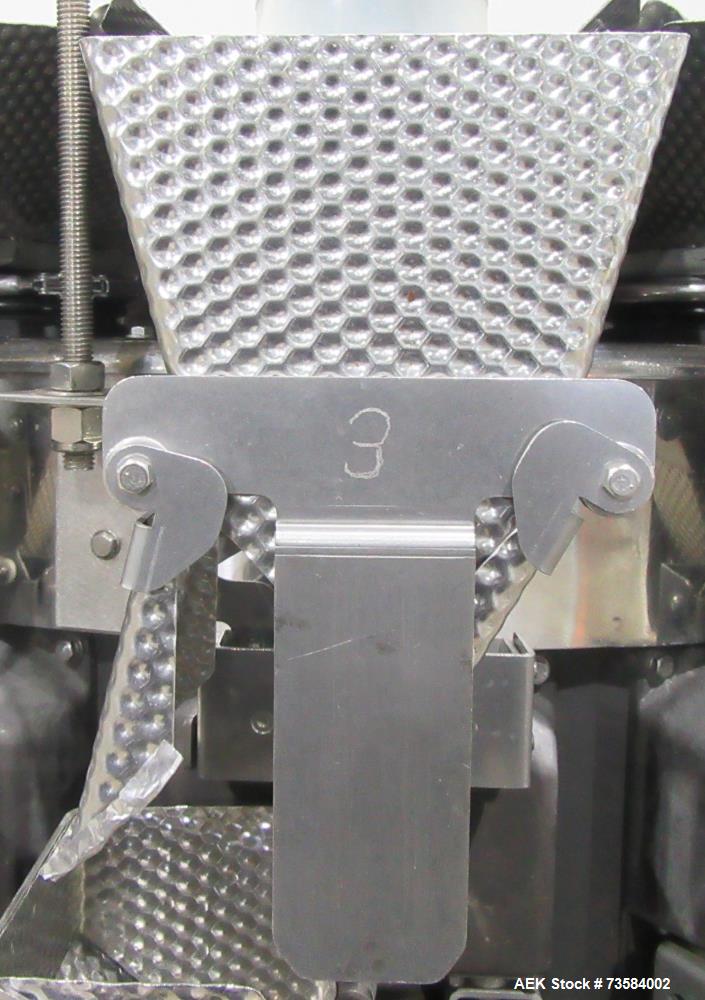

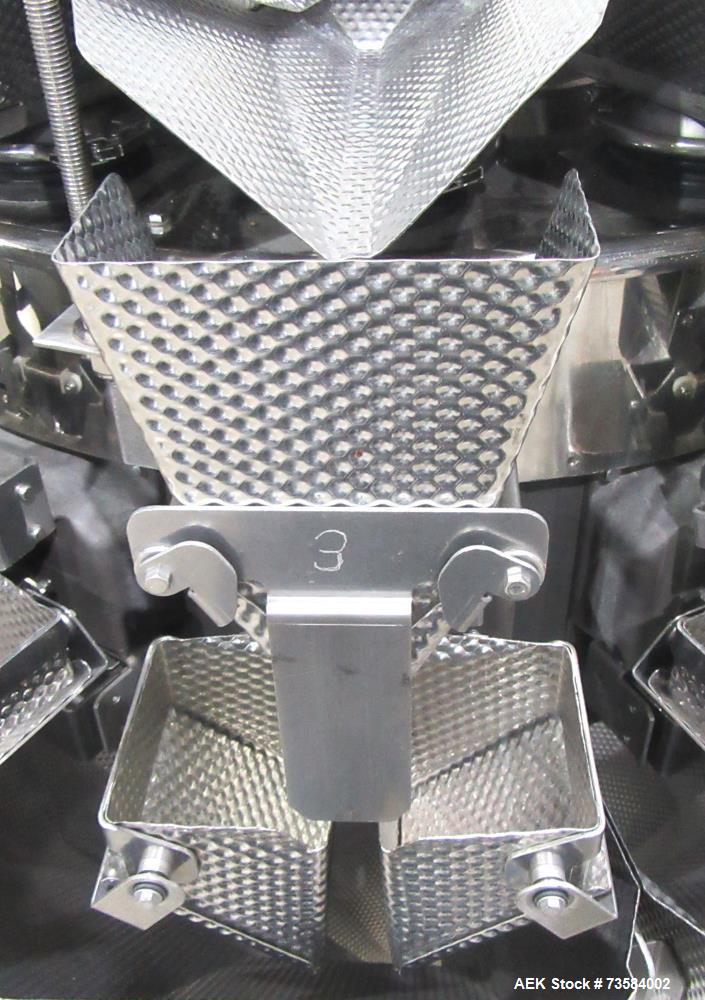

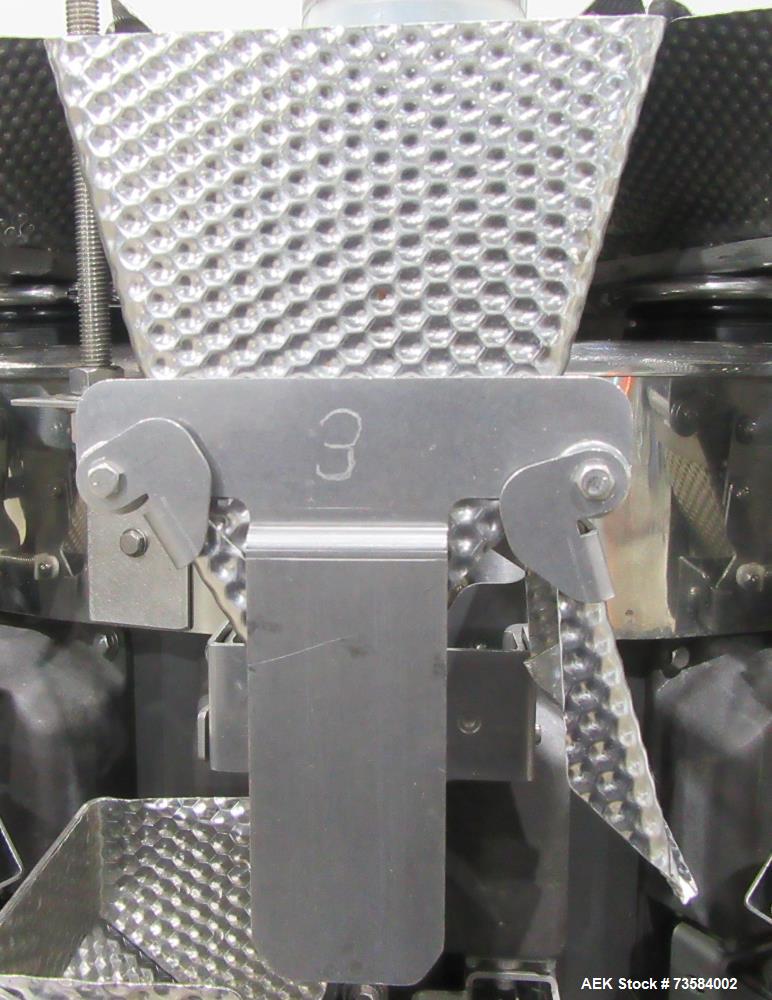

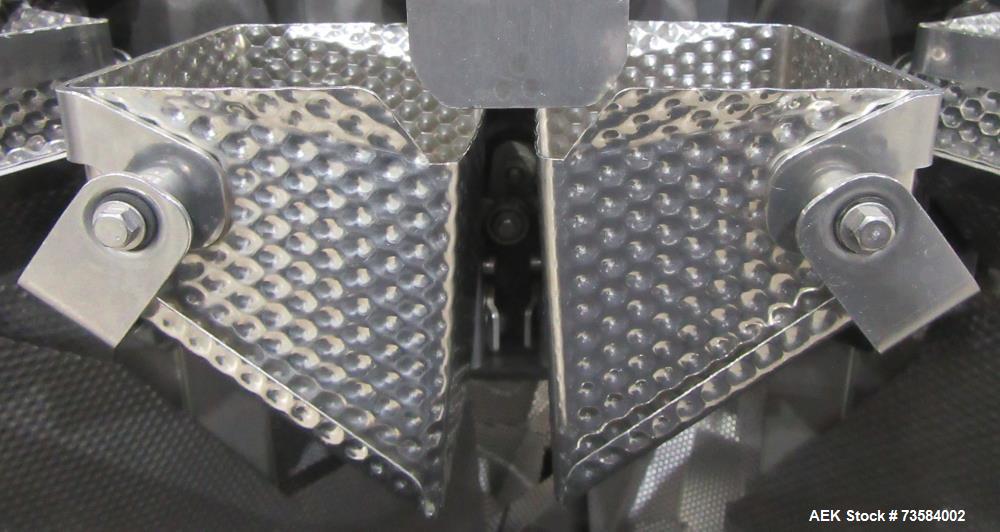

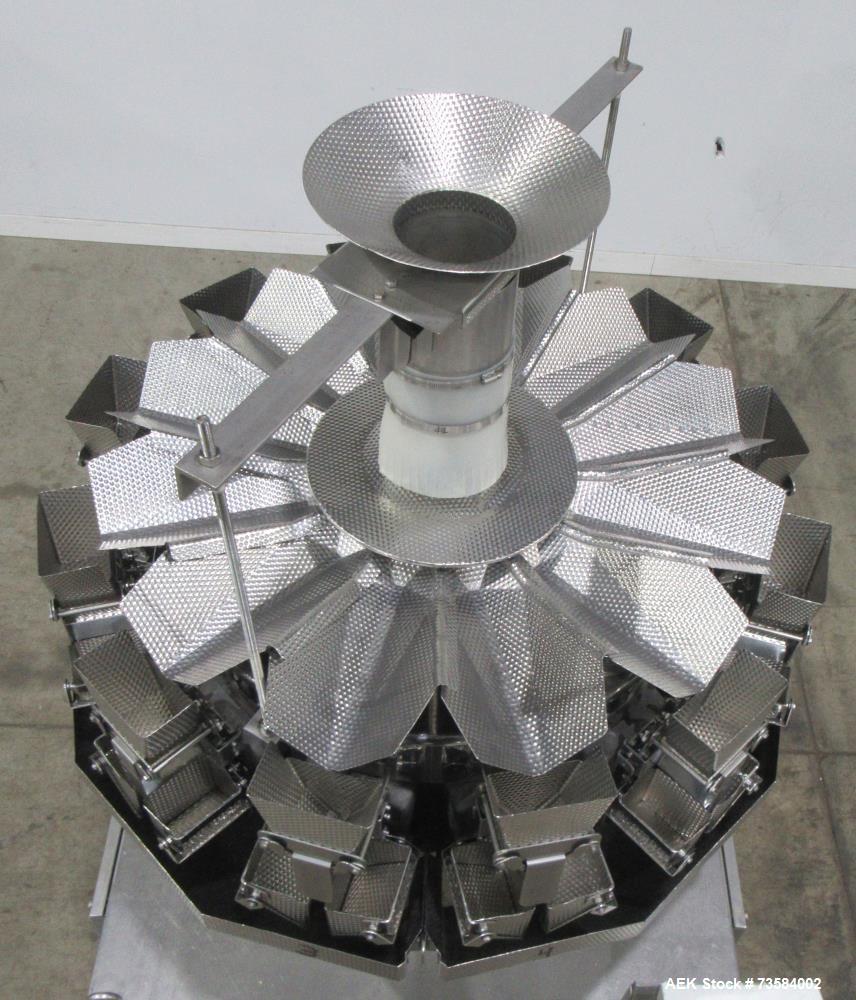

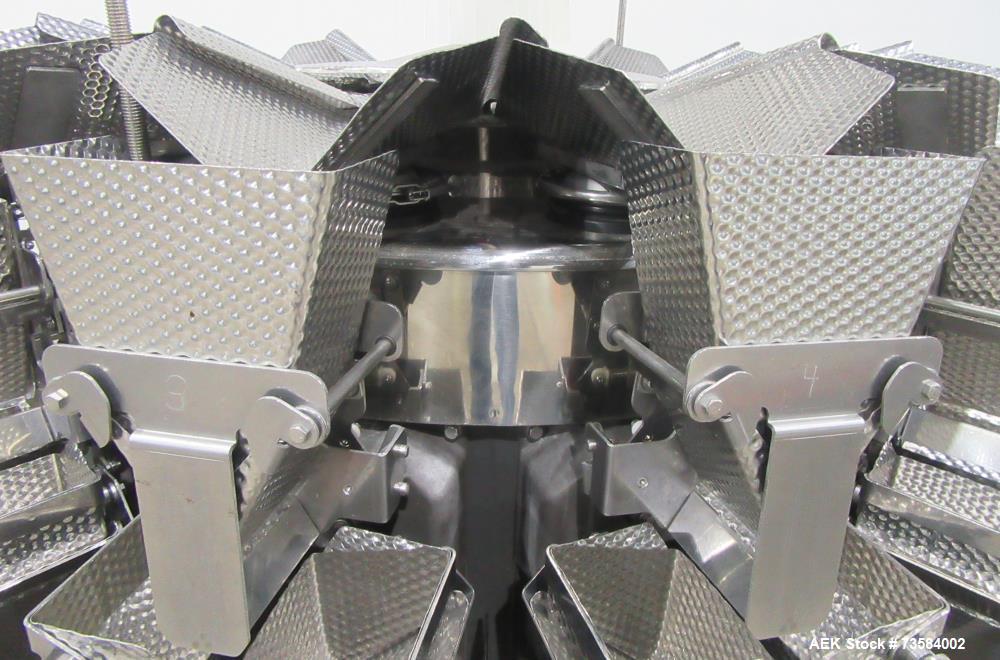

Each head includes dimpled stainless steel feed buckets and weigh buckets, designed to improve product movement and accuracy. The machine uses double-beam strain gauge load cells to ensure precise measurement during operation.

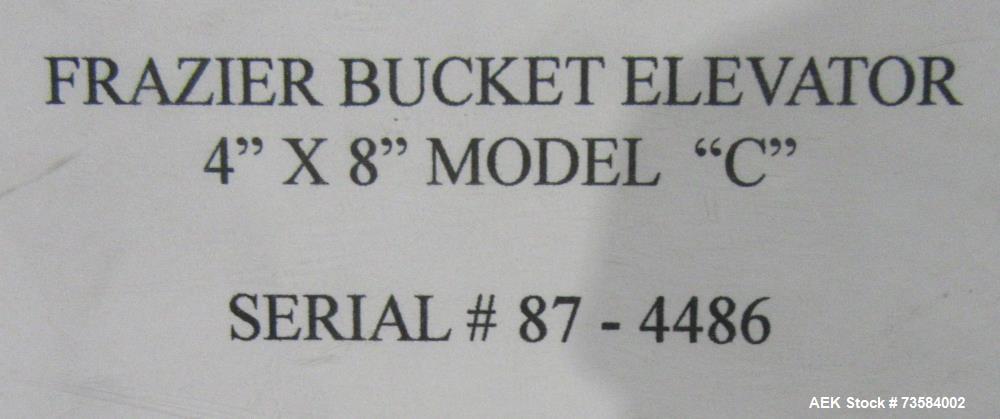

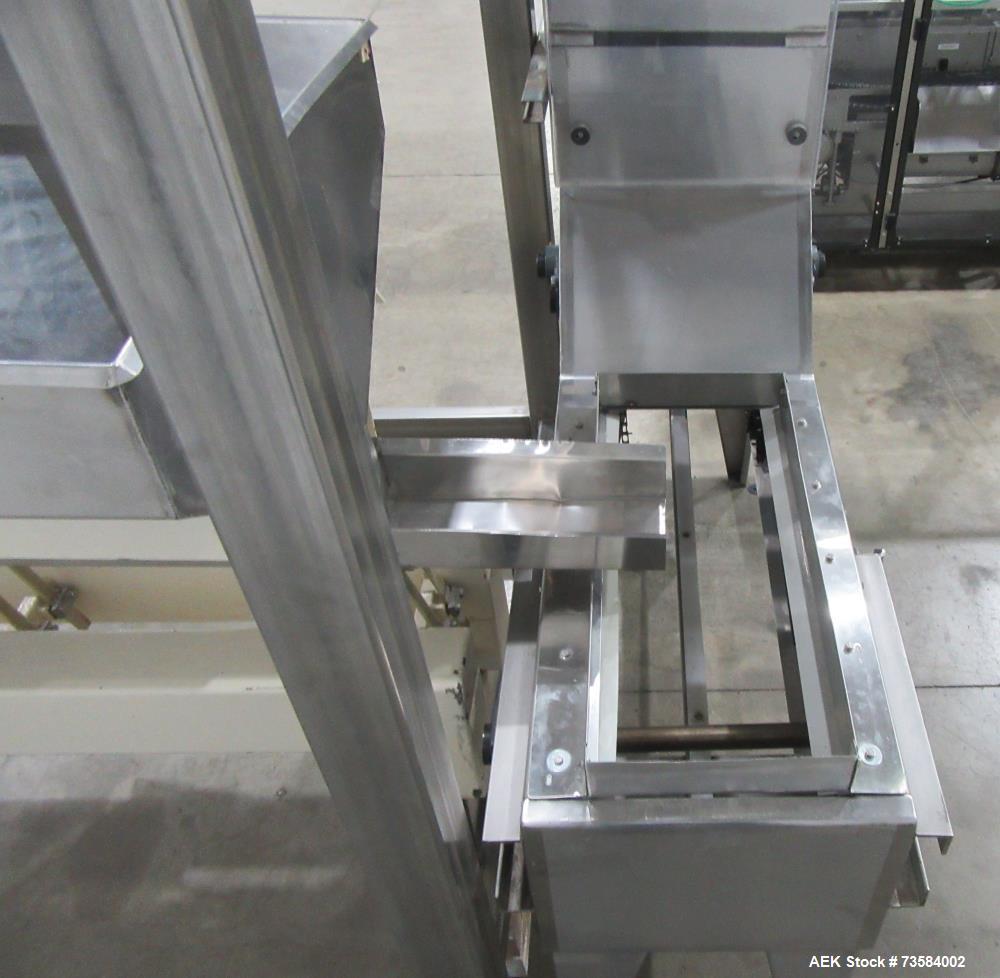

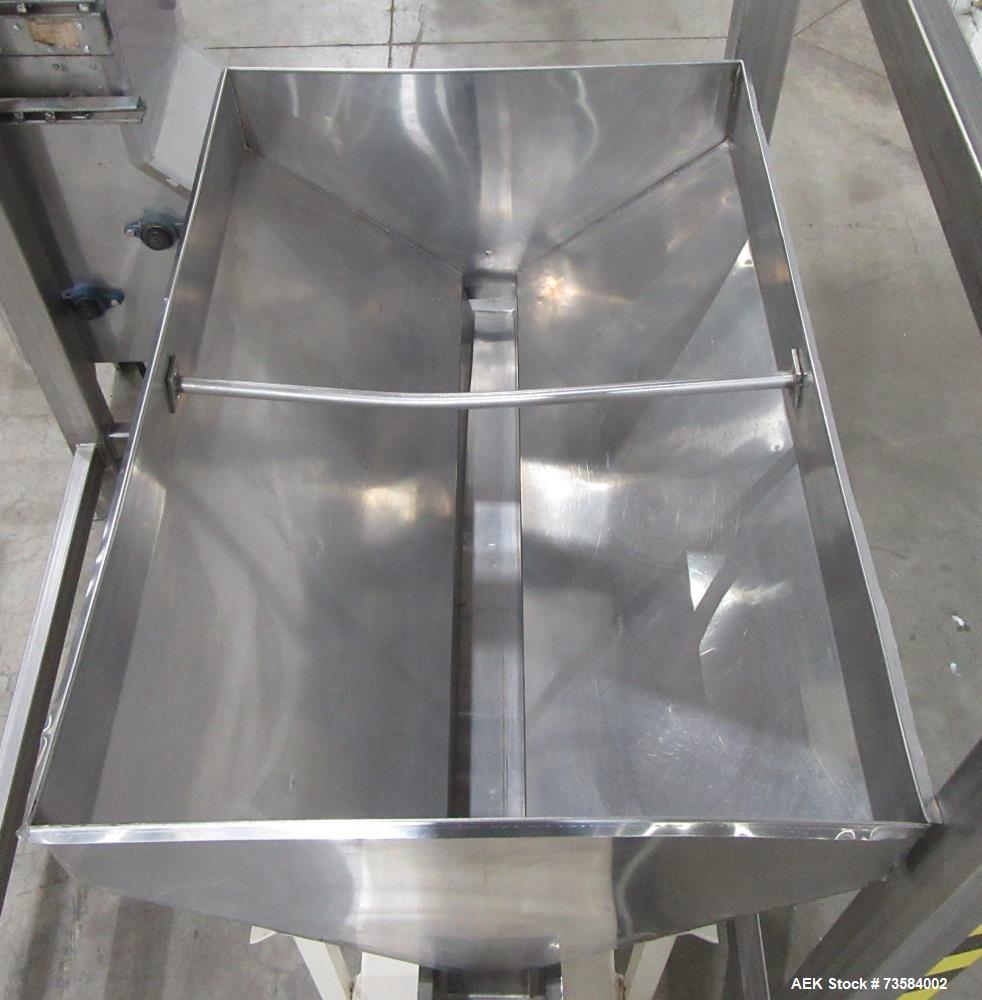

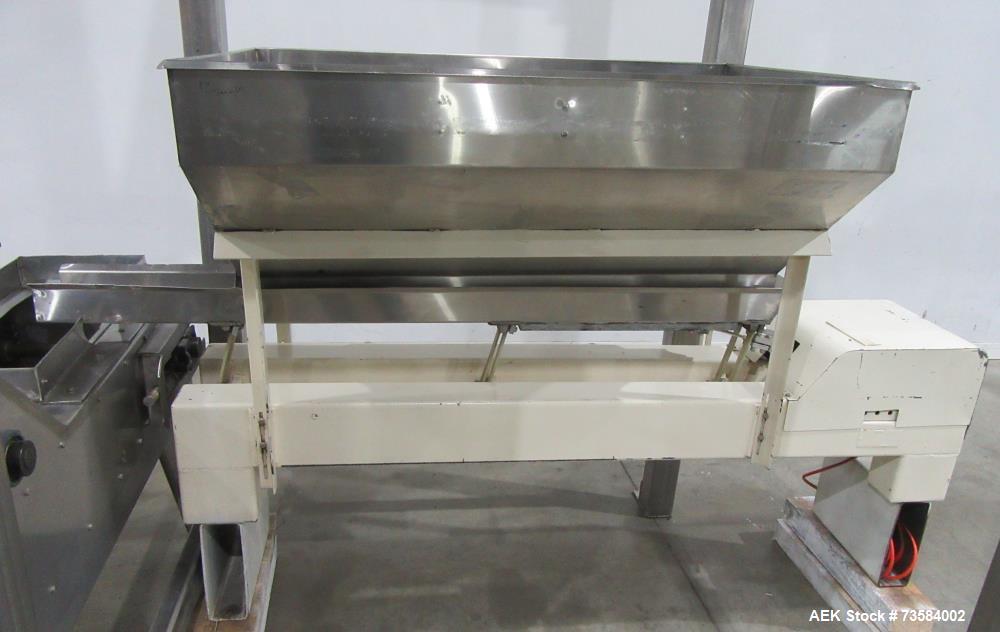

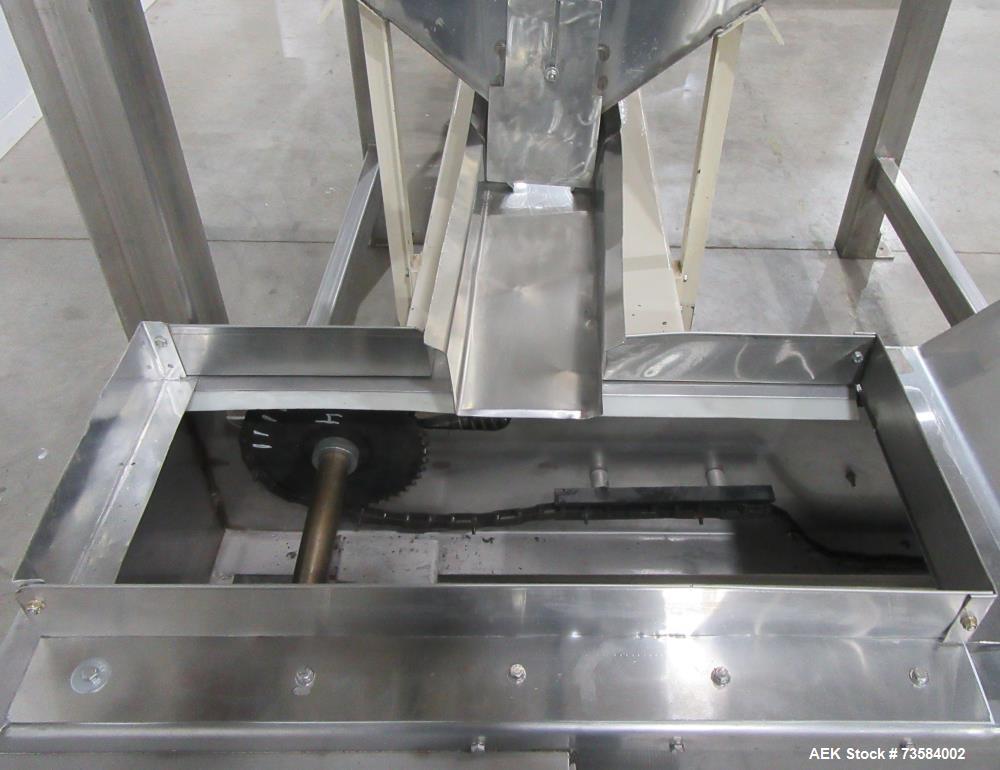

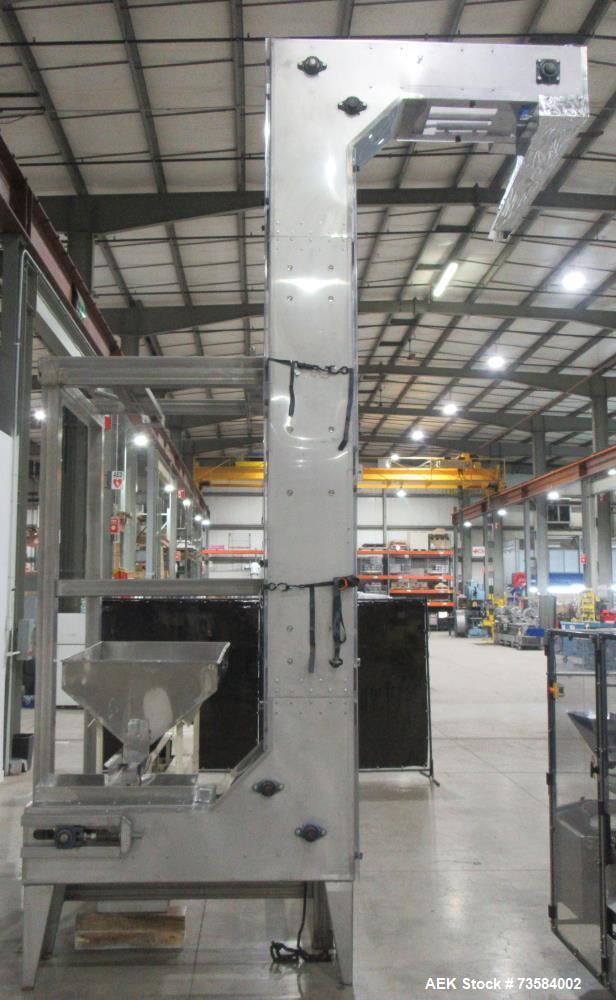

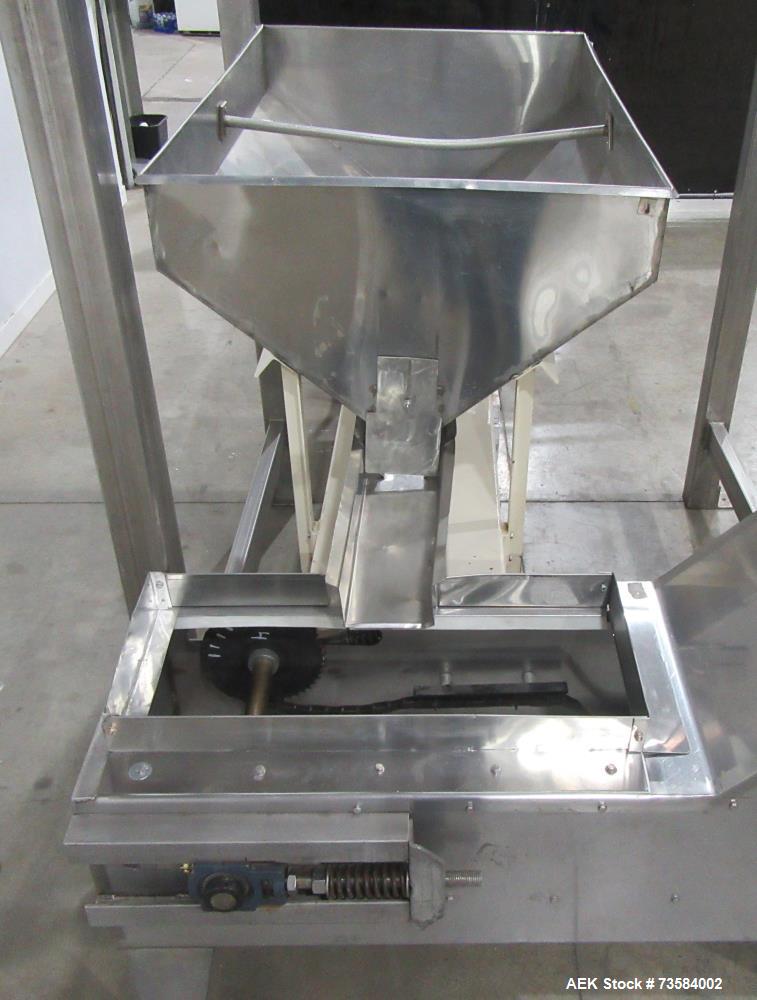

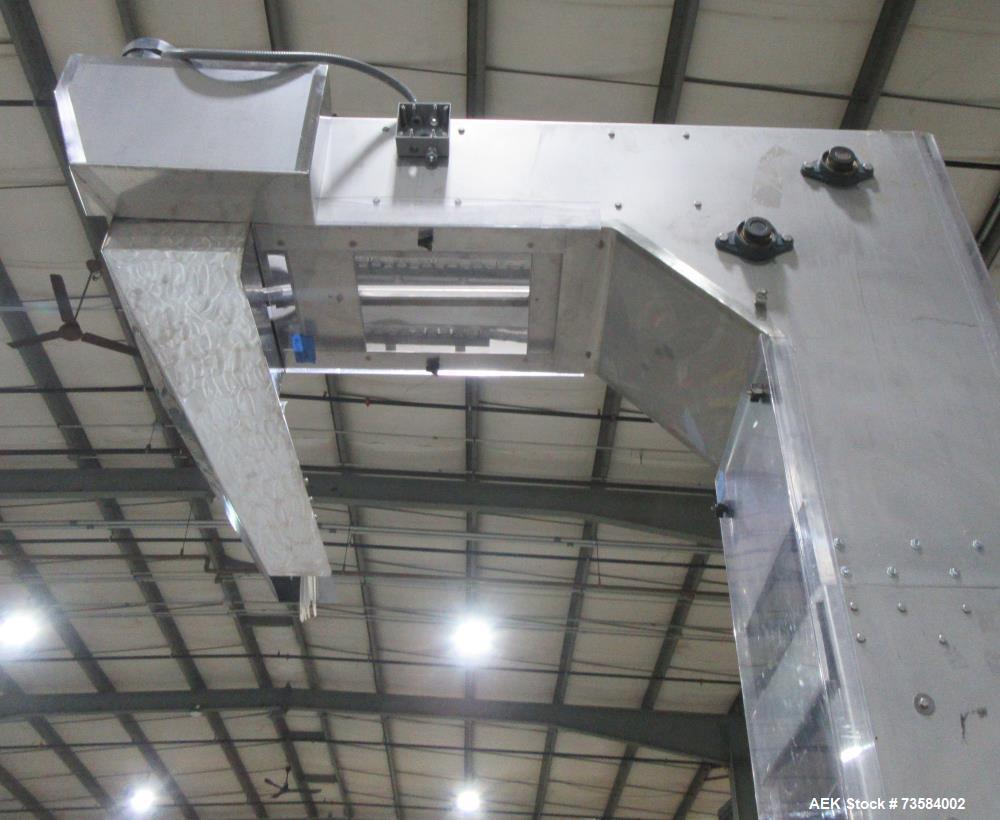

The system is supplied with a Frazier & Son Model C bucket elevator (4" x 8") with vibratory feeder, providing efficient product feeding to the scale. Platform available at additional cost.
This type of multihead weigher is commonly used in food processing plants, snack food packaging lines, produce packaging, frozen food processing, and contract packaging operations.
Specifications
General
-
Manufacturer: Ishida
-
Model: CCW-RZ-212P-D705-WP
-
Type: Multihead Combination Weigher
-
Number of Heads: 12
-
Configuration: Double Drop
Production Capacity
Weight Range
Volume Capacity
Weighing System
Buckets
-
Feed Buckets:
-
Weigh Buckets:
Discharge System
Product Feed Equipment
Construction
Applications
-
Snack food packaging
-
Produce packaging lines
-
Frozen food packaging
-
Nut and dried fruit packaging
-
Candy and confectionery packaging
-
Coffee and tea packaging
-
Nutraceutical packaging
-
Pet food packaging
-
Bakery ingredient weighing
-
Contract packaging operations
What Products Would This Be Used For
-
Potato chips
-
Nuts and trail mix
-
Frozen vegetables
-
Candy and chocolates
-
Coffee beans
-
Snack foods
-
Salad greens
-
Dried fruit
-
Pet treats
-
Granola and cereals
