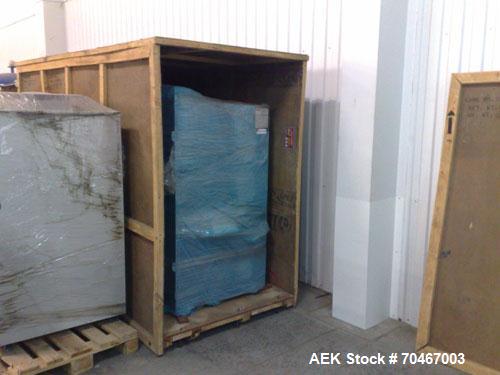

NEW-IMA Model Rotovac-210 Plus Thermoforming Machine

NEW-IMA Model Rotovac-210 Plus Thermoforming Machine. Capacity 16.4 feet/minute (5000 mm/min). Web width 8.27" (210 mm), PVC width 8.27" (210 mm), maximum 0.01" (0.25 mm) thick, aluminum width 8.11" (206 mm), maximum 0.008" (0.02 mm) thick. Across the web pack width maximum 8.11" (206 mm), along the web pack width 4.17" (106 mm). Hot forming with vacuum, depth PVC 0.4" (10 mm), pack size area 7.98" - 4.33" (202 x 110 mm). Forming material thickness PVC 0.01" - 0.012" (0.25 - 0.30 mm) thick, PVDC 0.012" - 0.014" (0.3 - 0.35 mm) thick, width 8.27" (210 mm), reel diameter 17.32" (440 mm). Sealing material thickness aluminum 0.008" (0.02 mm), width 8.11" (206 mm), reel diameter 9.84" (250 mm) with core of 3" (76 mm). 440V, 50 hz, 6 kva. Compressed air 87 psi (6 bar).
