Used Equipment Facts About This Machine
Manufacturer Information
-
Manufacturer: Wexxar Packaging (ProMach)
-
Model: WF-30
-
Equipment Type: Automatic Case Erector Sealer / Case Former with Tape Sealing
-
Case Opening Style: Pin and dome-style opening
-
Controls: Color touchscreen HMI
-
Electrical: 208V / 1-Phase / 60 Hz
Description
This used Wexxar Automatic Case Erector Sealer, Model WF-30, is a high-speed case forming and hot melt sealing system designed for efficient end-of-line packaging in manufacturing, warehousing, and distribution operations. The WF-30 uses a pin and dome-style case opening method for consistent case squaring and reliable forming performance.
The machine is capable of speeds up to 30 cases per minute, depending on case dimensions and corrugate quality. It features a Nordson hot melt glue system for fast, clean case sealing and strong bonds, making it ideal for high-throughput packaging lines.
A color touchscreen HMI provides user-friendly setup, adjustment, and diagnostics. The WF-30 supports a broad case size range suitable for many industries including food, beverage, consumer packaged goods, pharmaceuticals, and contract packaging.
Manufacturer Information
Wexxar Bel, part of ProMach, is a leading manufacturer of case erecting, sealing, and packaging automation equipment for the food, beverage, pharmaceutical, e-commerce, and consumer goods industries. Wexxar machines are widely recognized for their reliable case forming technology, durable construction, and high-speed automated packaging capabilities. Their equipment is designed to improve packaging line efficiency, reduce manual labor, and ensure consistent case sealing performance.
Description

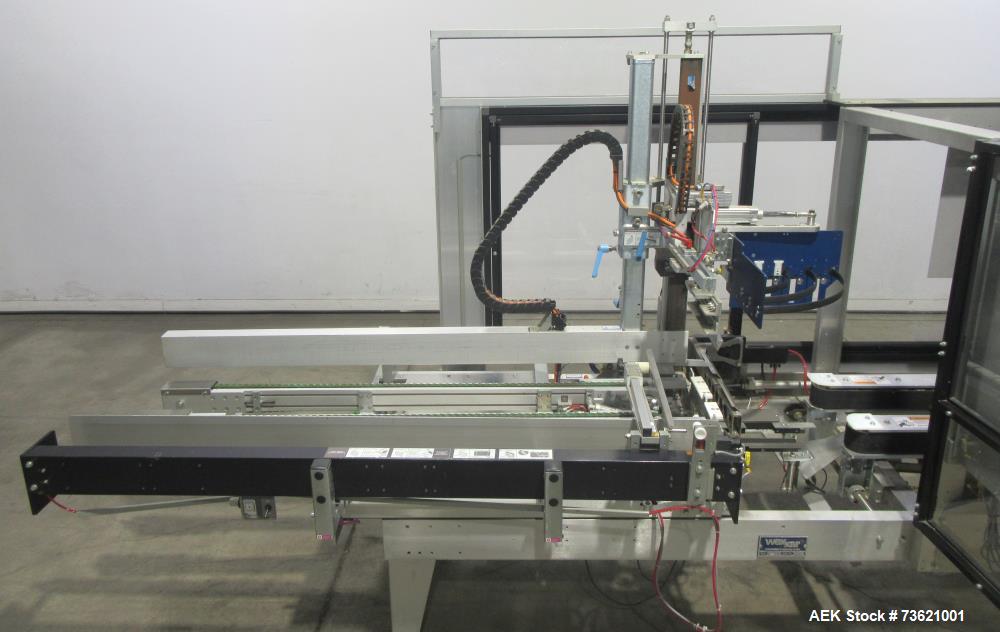

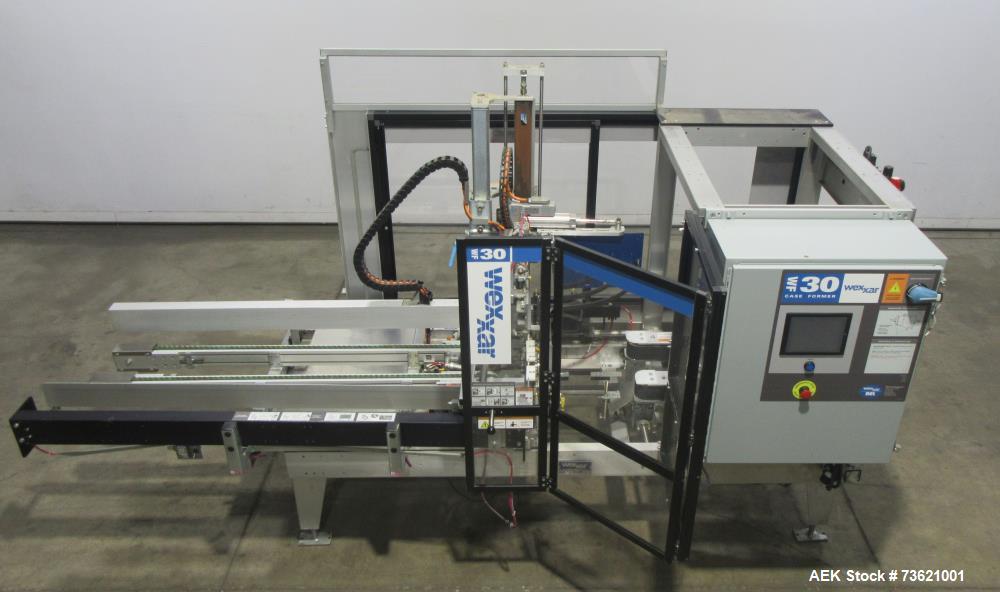

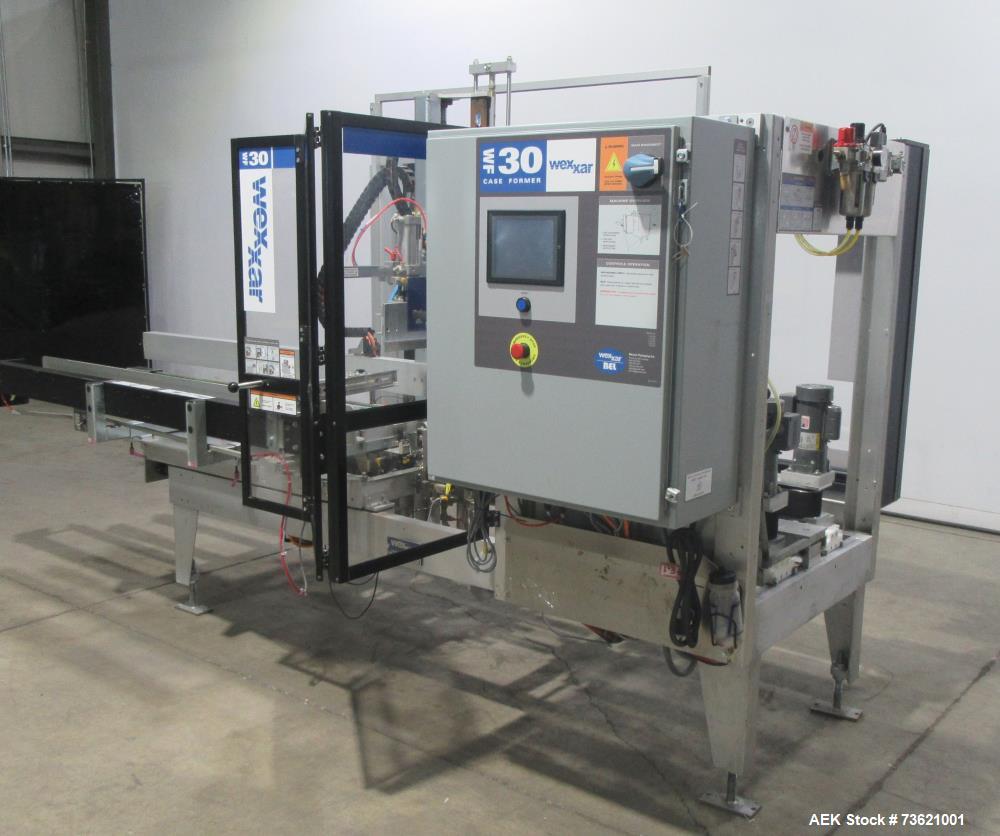

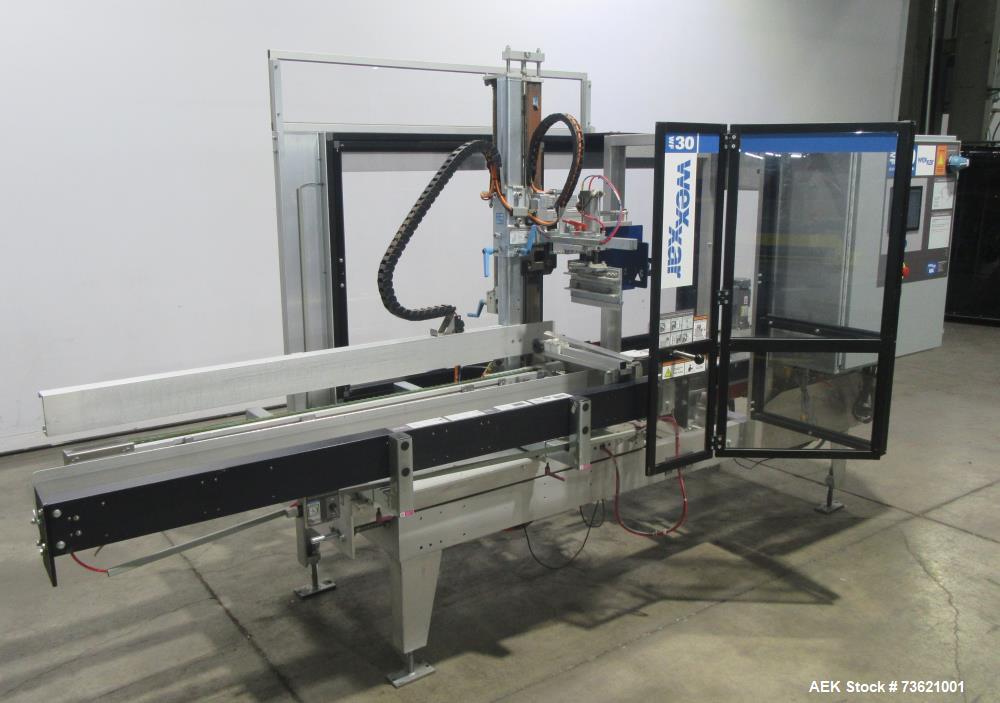

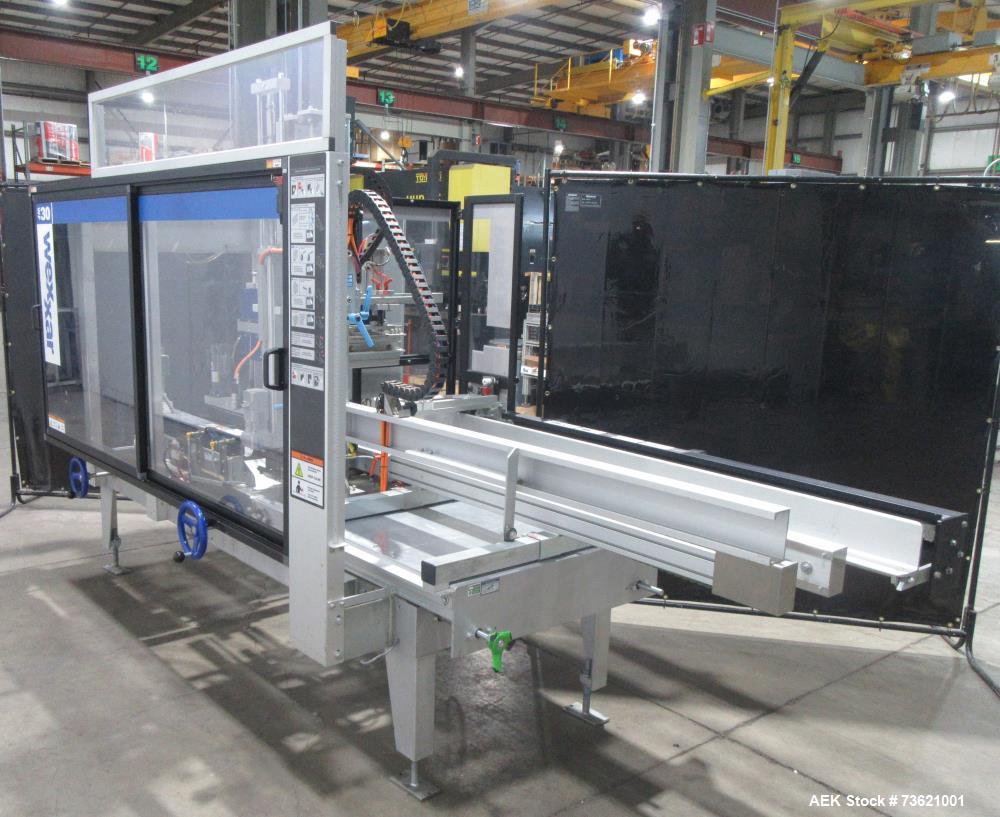

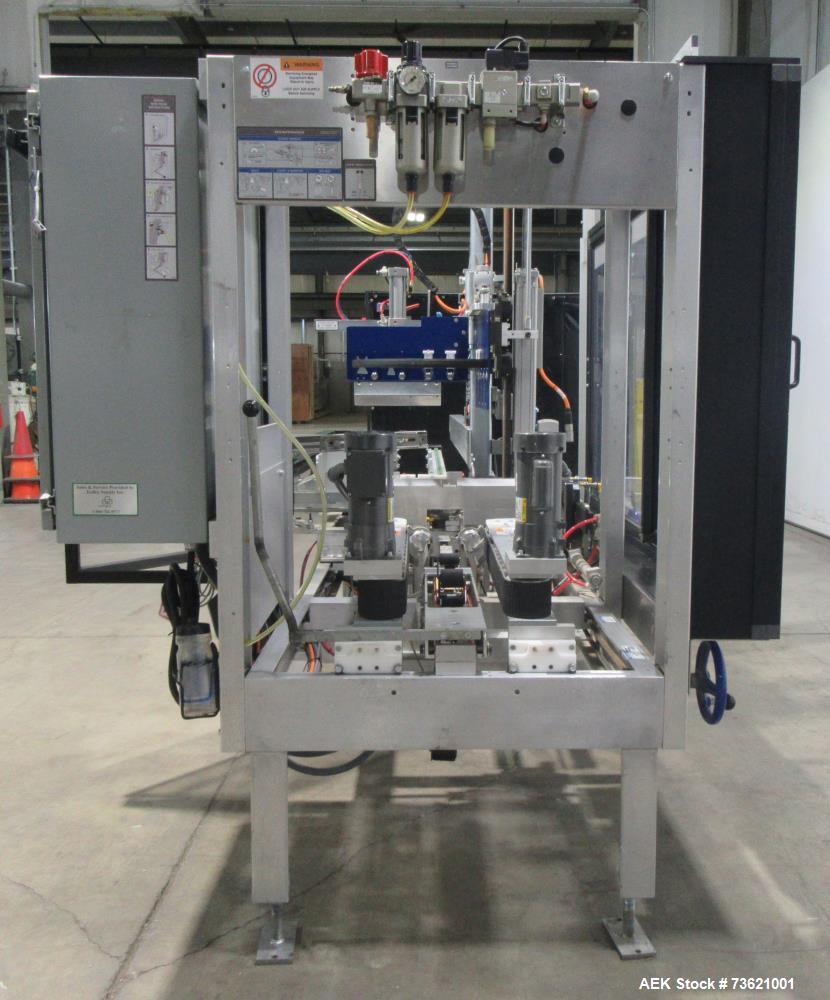

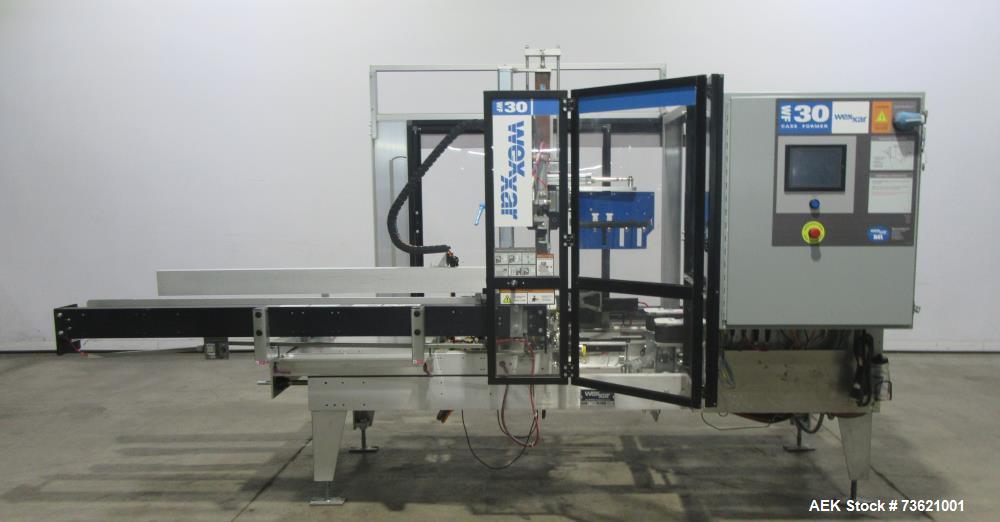

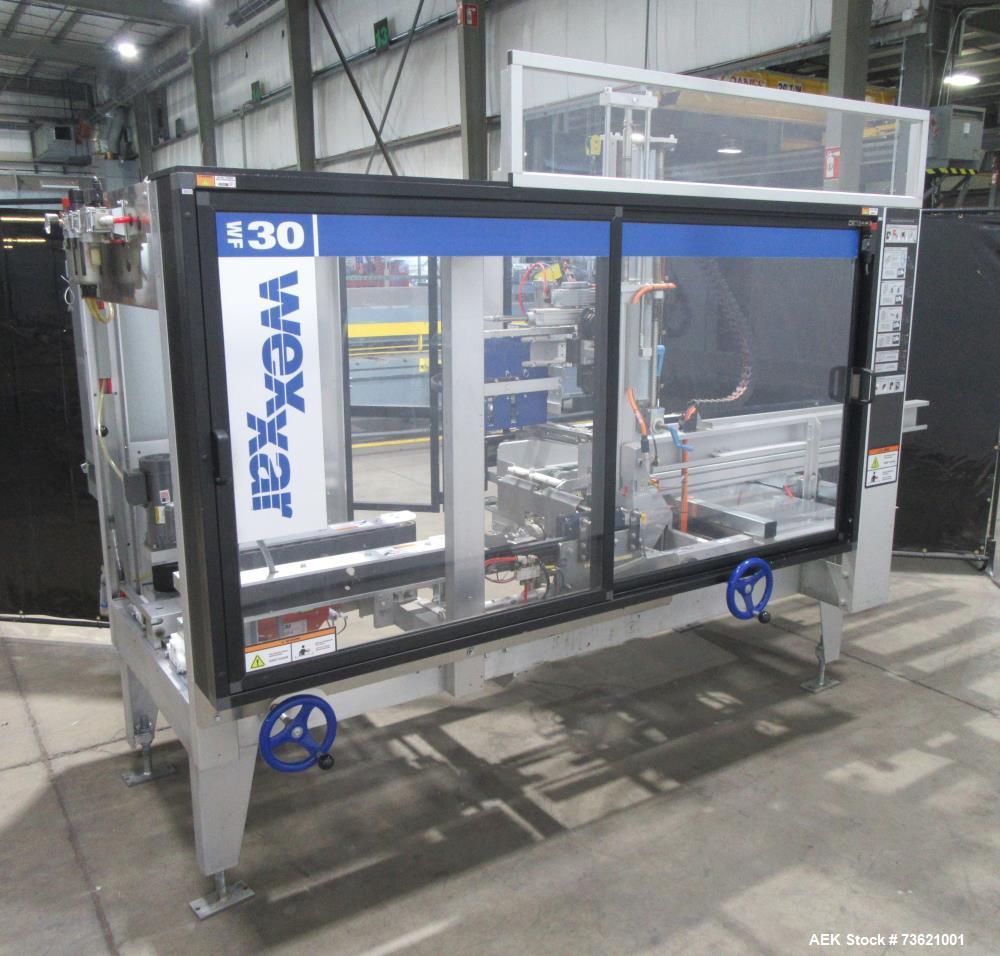

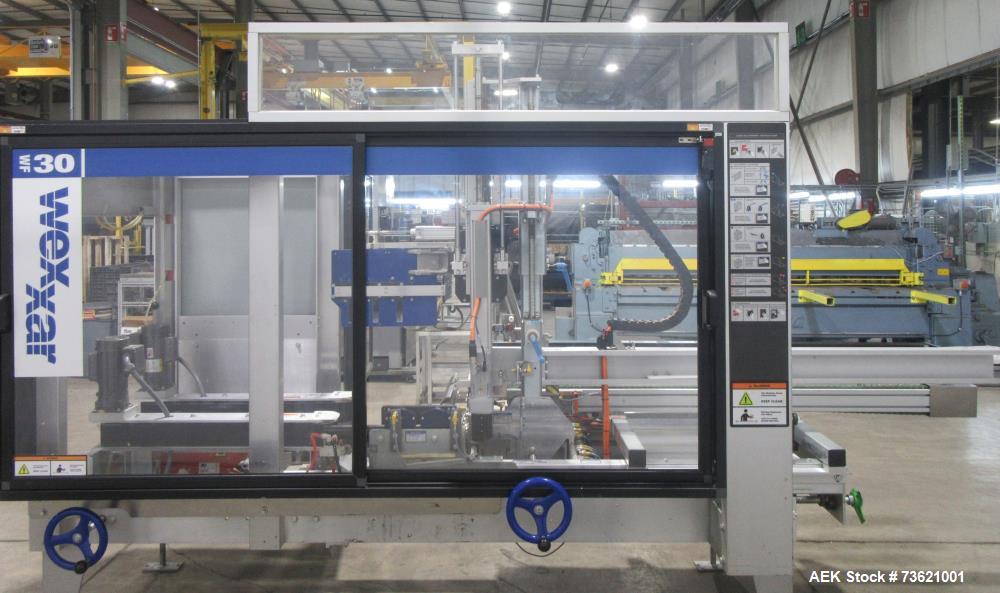

This used Wexxar automatic case erector sealer, Model WF-30T, is designed for reliable high-speed case forming and bottom sealing in automated packaging lines. The machine is capable of speeds of up to 30 cases per minute, depending on case size and application.
The unit accommodates a flexible range of case dimensions, handling lengths from 7.25" to 18", widths from 7.25" to 14", and heights from 6" to 15", making it suitable for a variety of carton sizes used in industrial packaging operations.

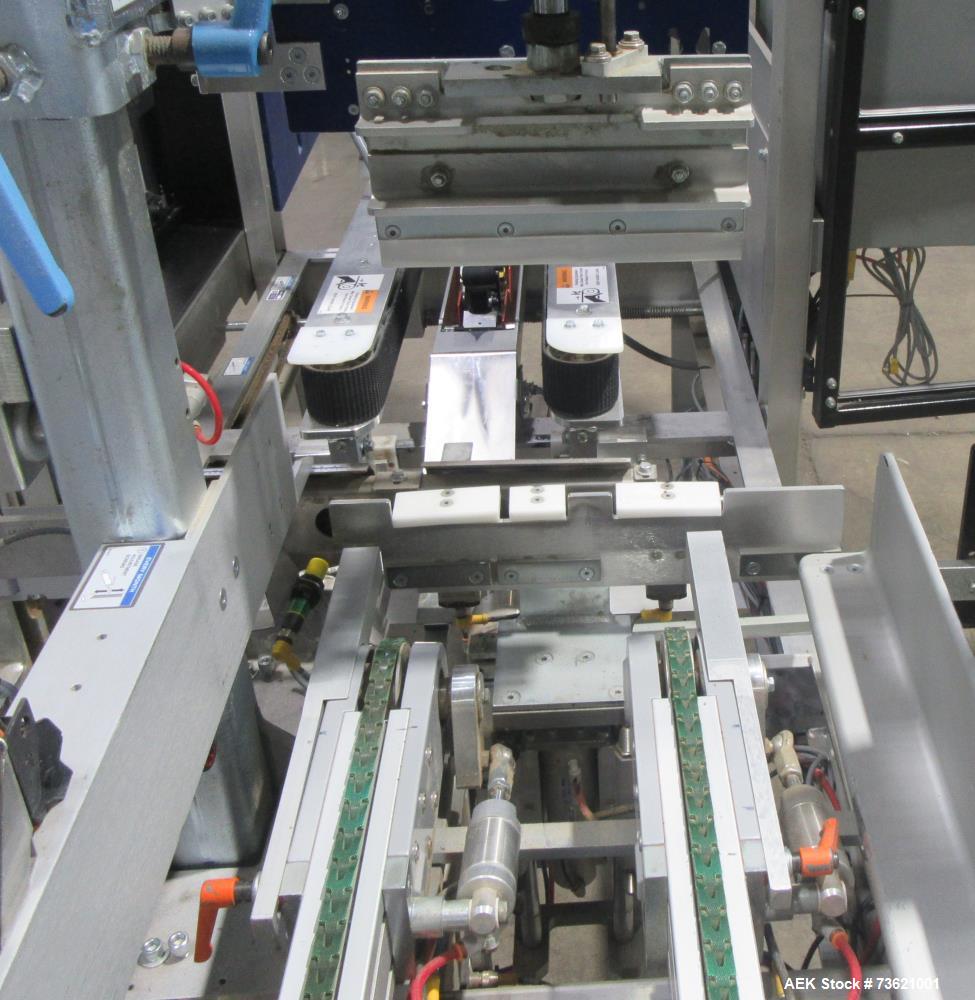

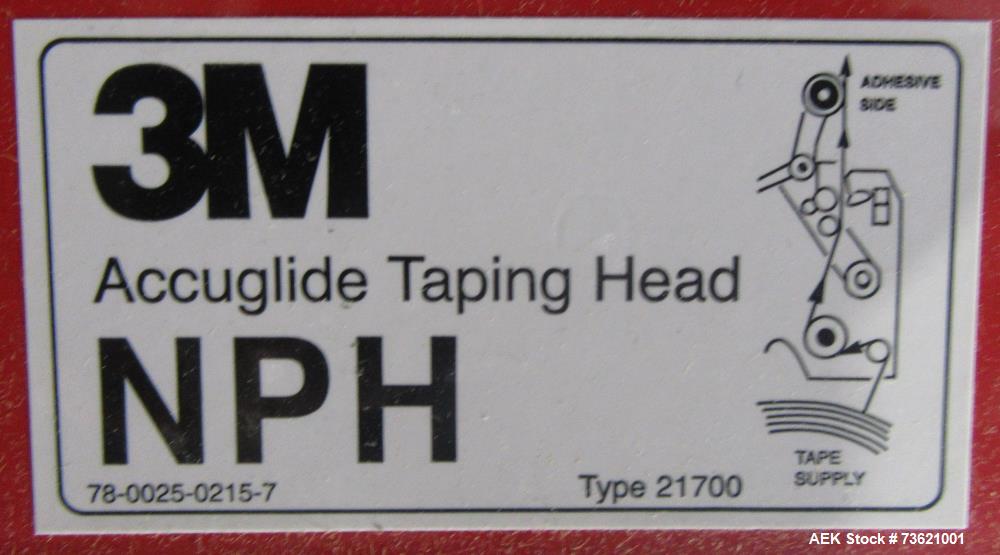

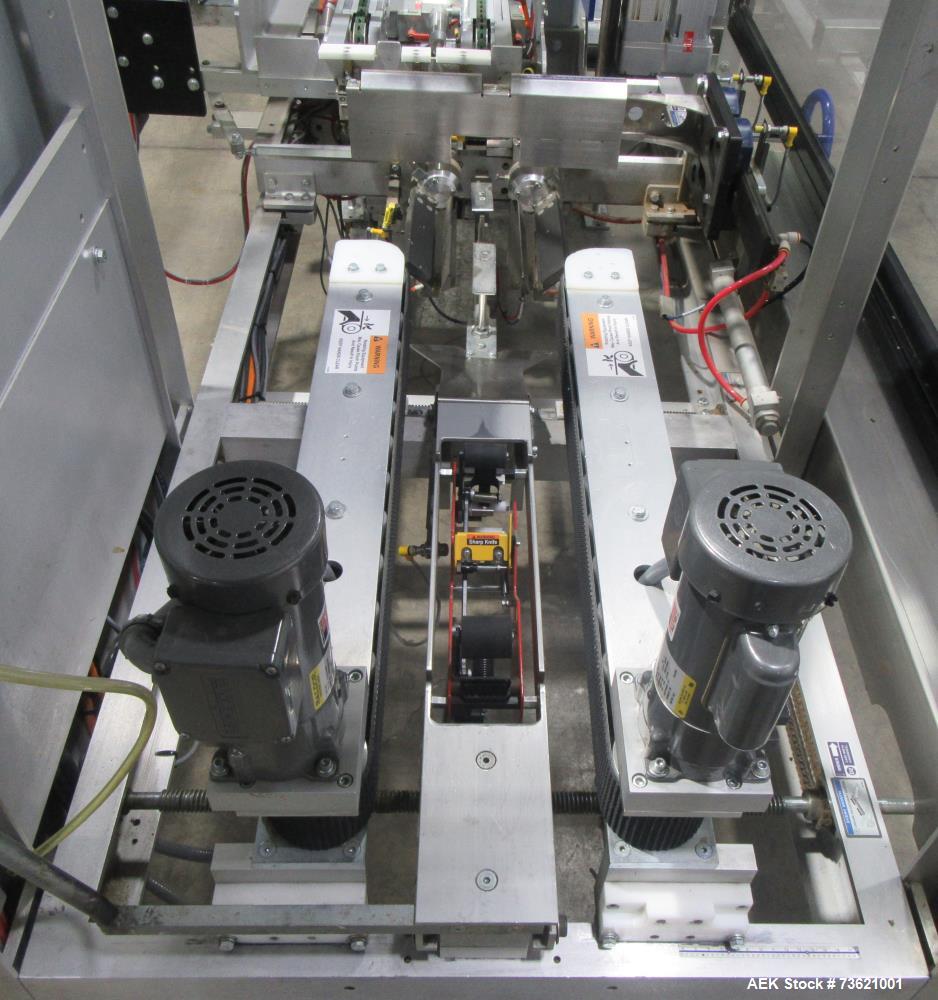

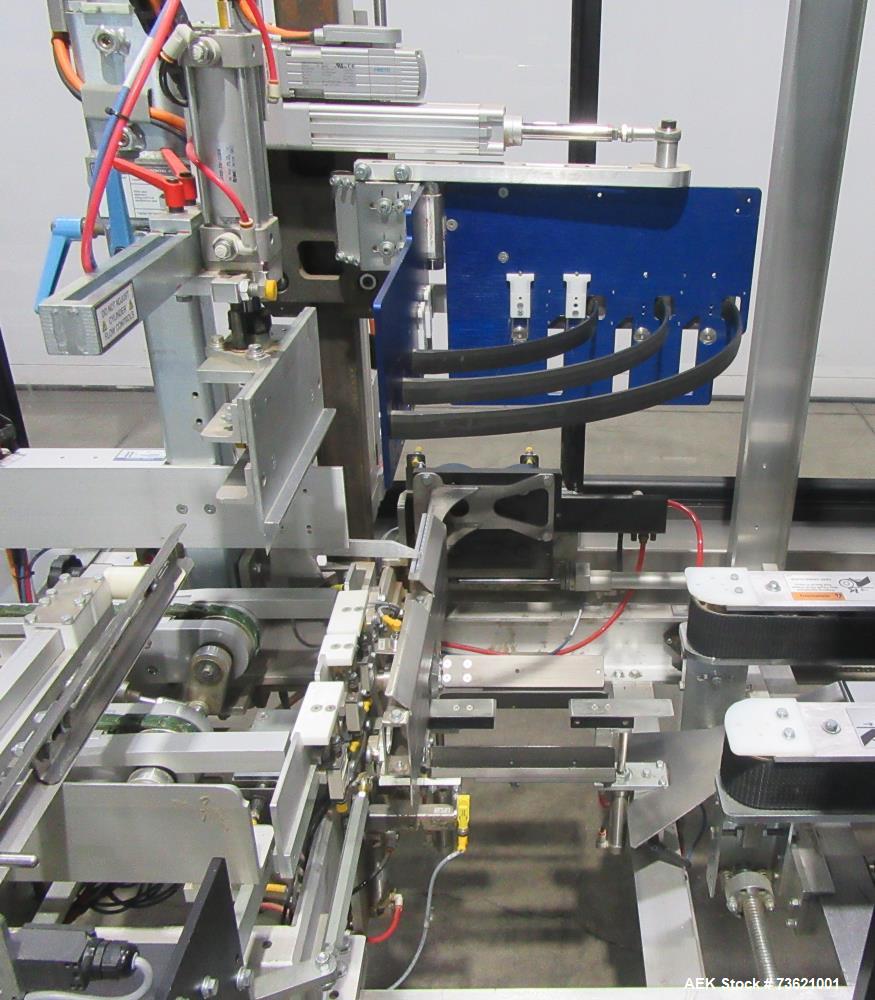

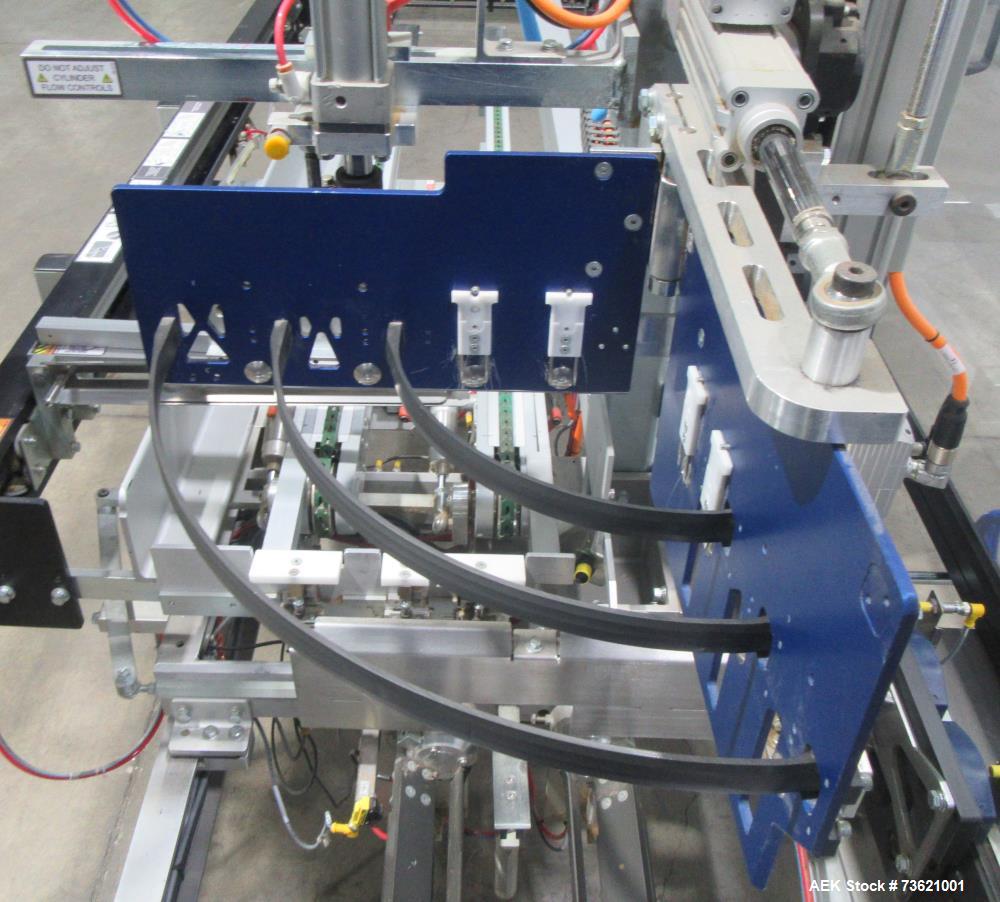

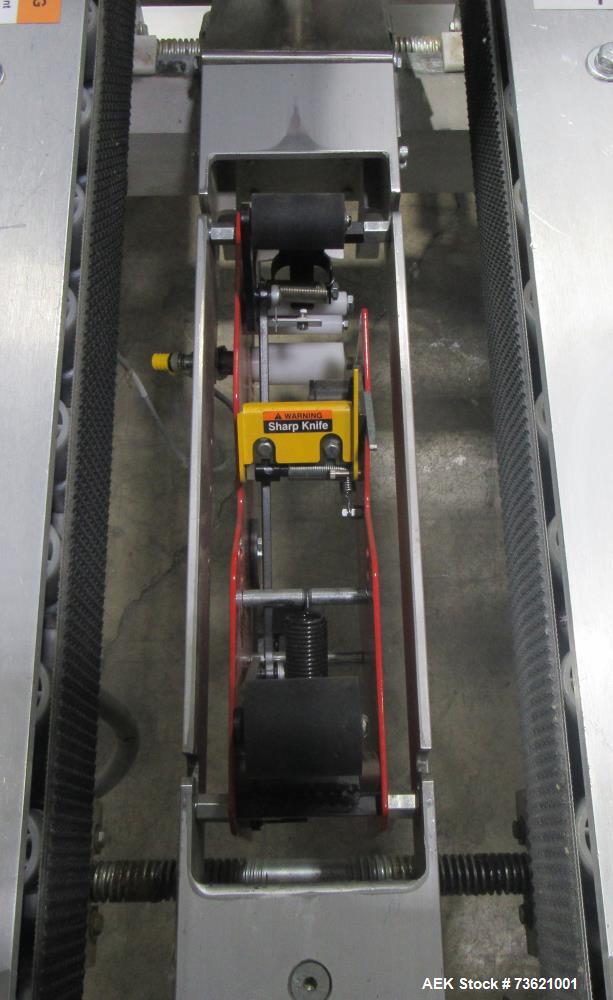

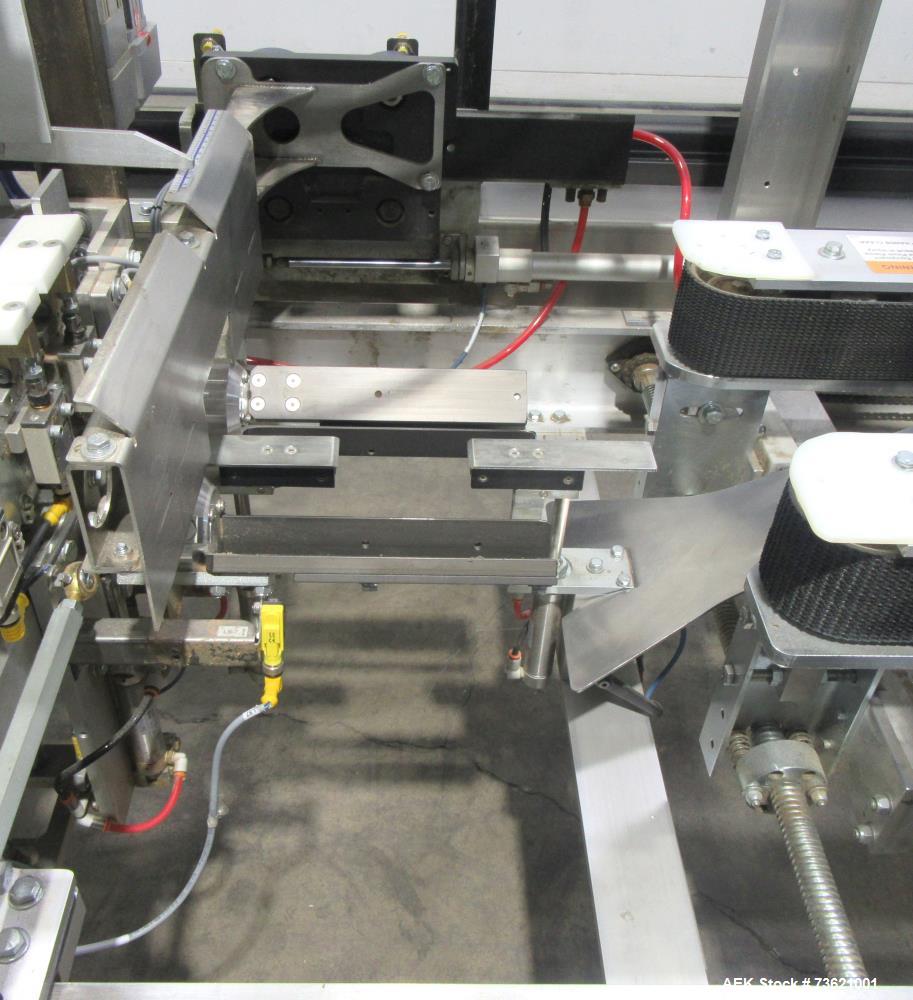

This case erector features a bottom 2-inch wide 3M Accuglide taping head, ensuring consistent and secure case sealing. The pin and dome-style opening mechanism efficiently forms cases for downstream packing operations.

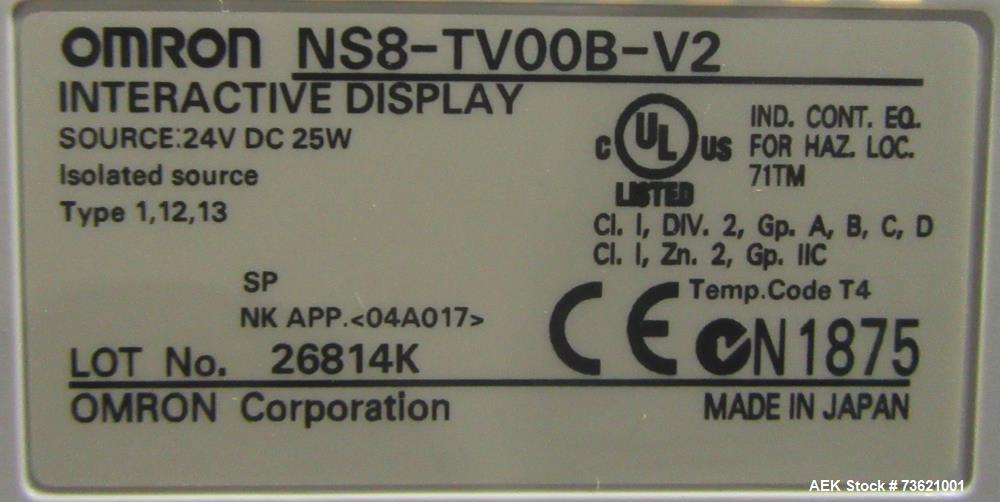

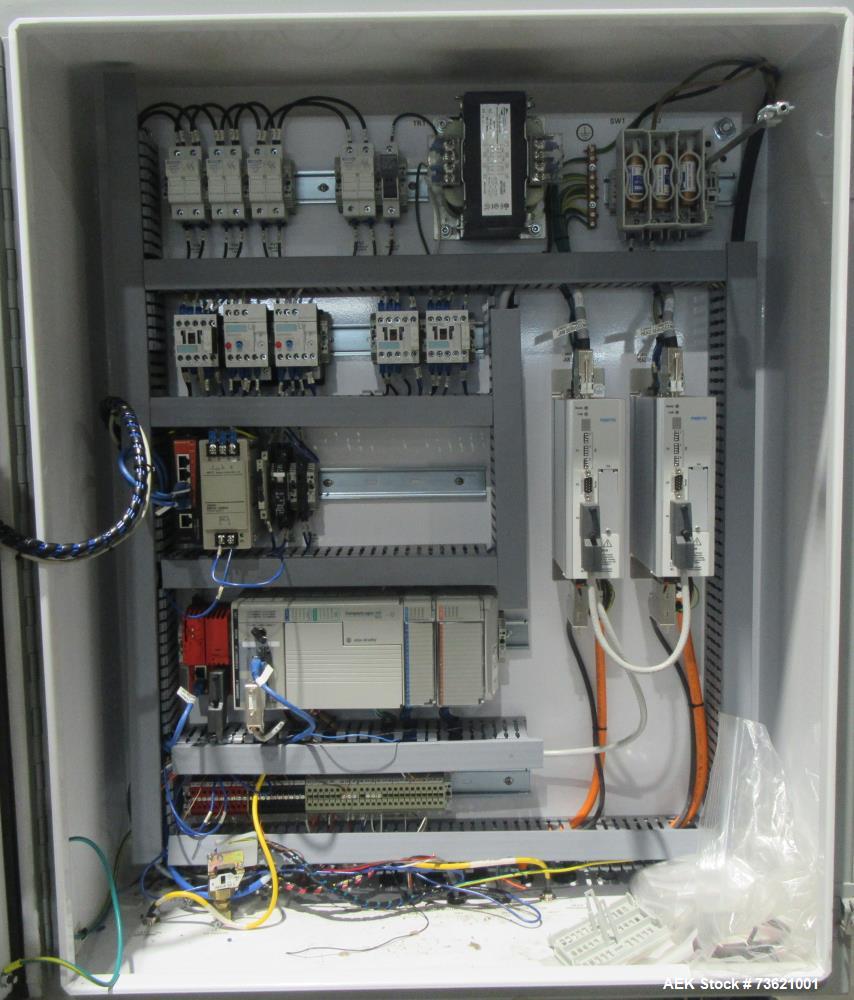

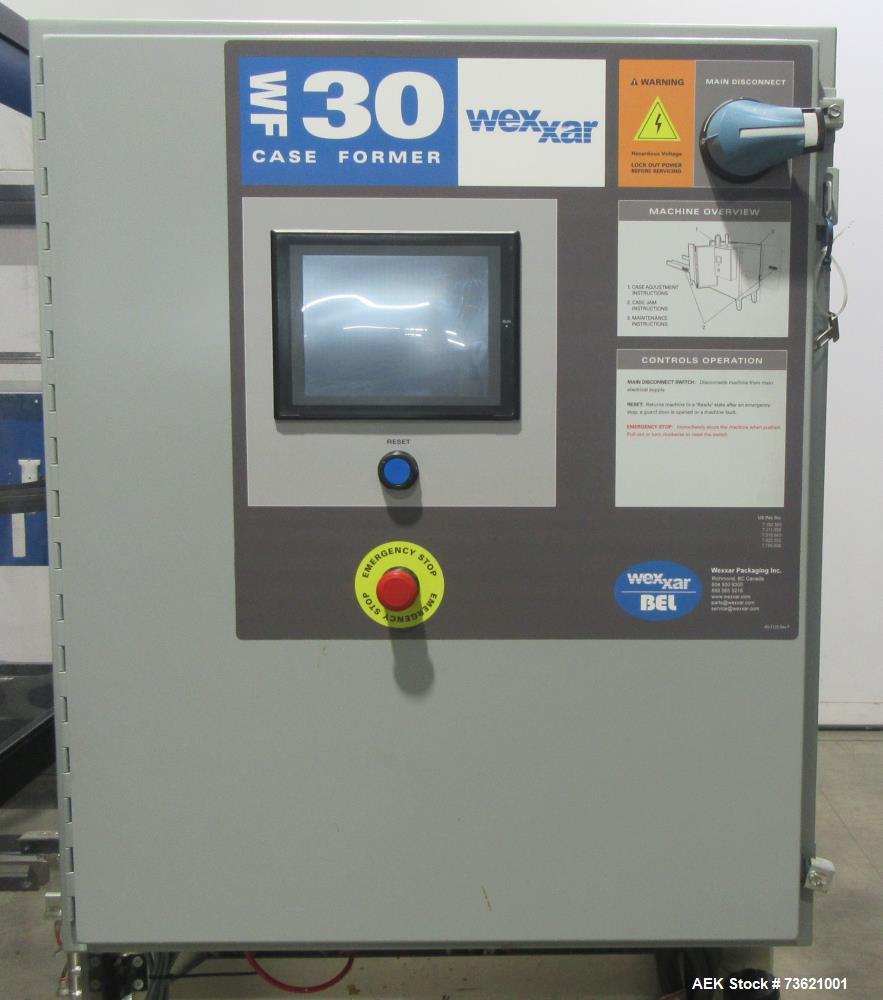

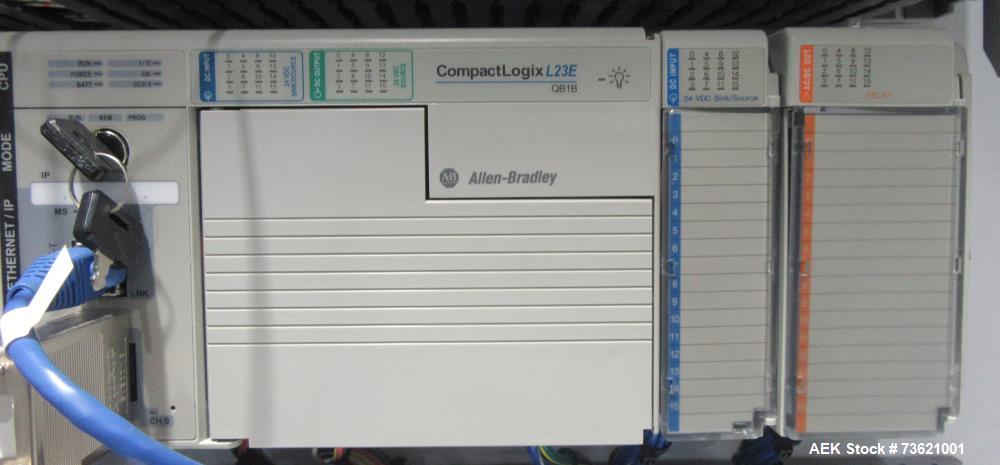

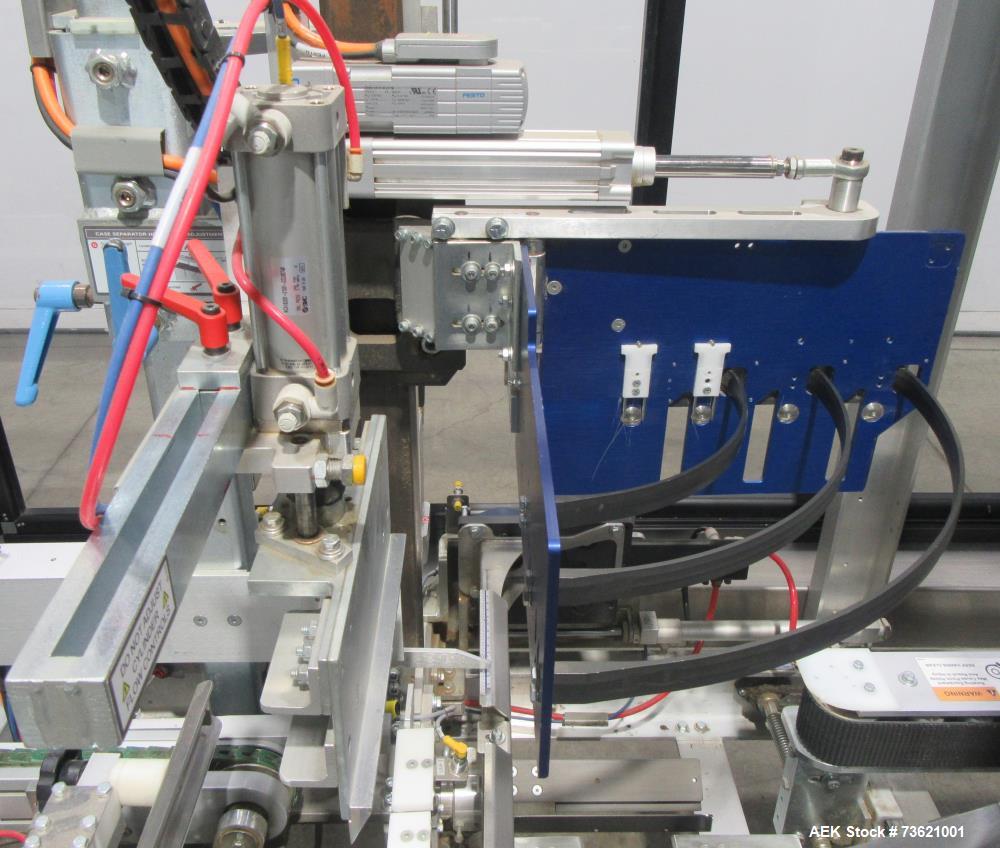

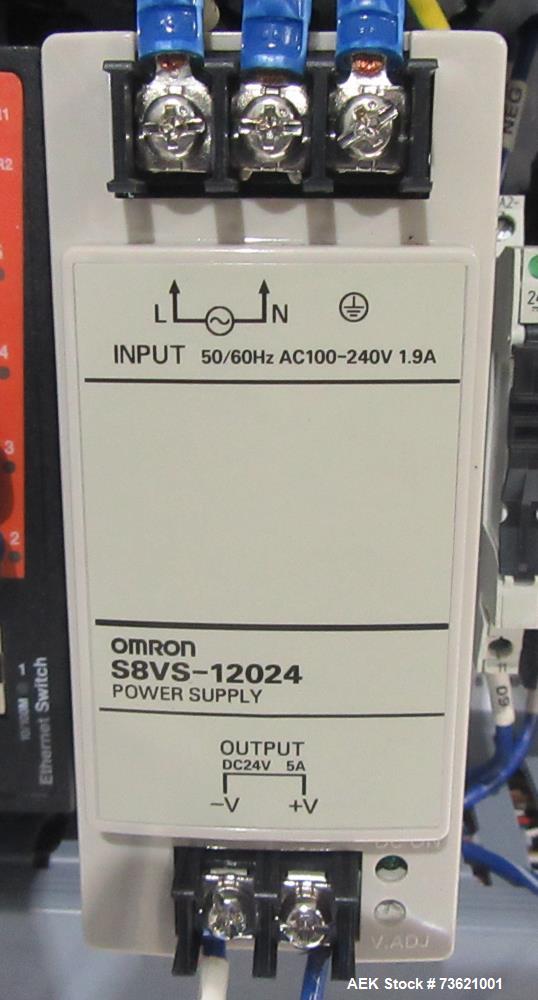

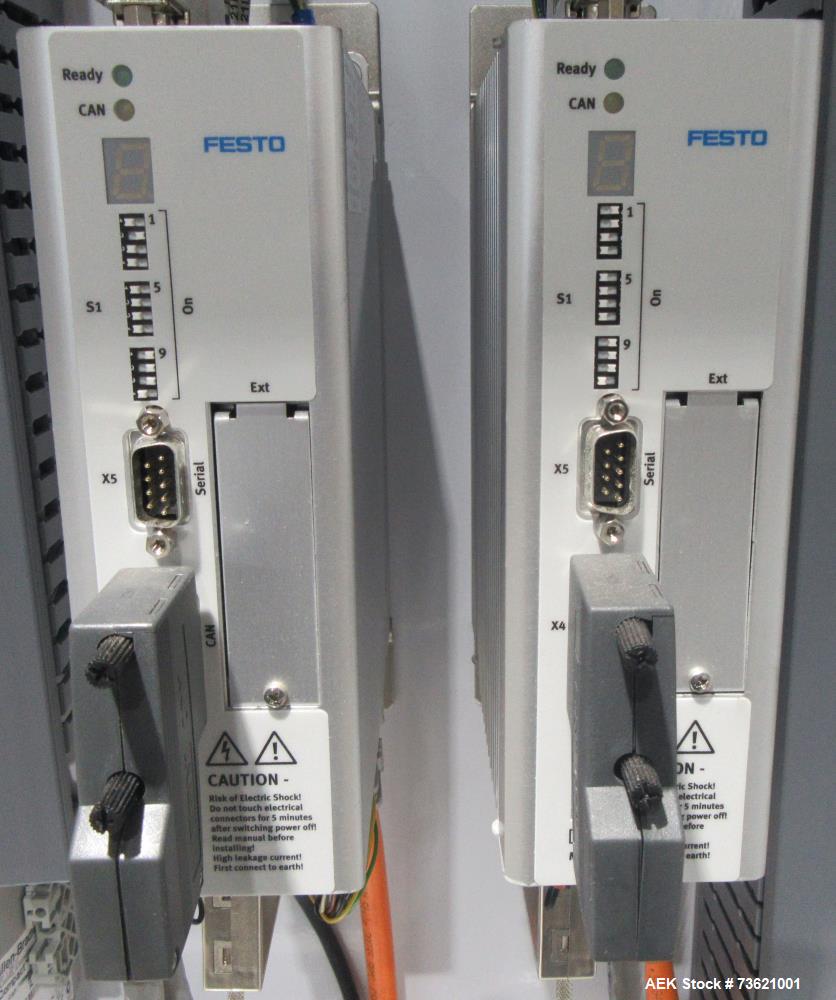

The system includes a modern control panel with Allen Bradley CompactLogix L23E PLC and Omron NS8-TV00B-V2 color touchscreen HMI, allowing intuitive control and monitoring of machine functions. The unit also incorporates two Festo drives for reliable motion control.

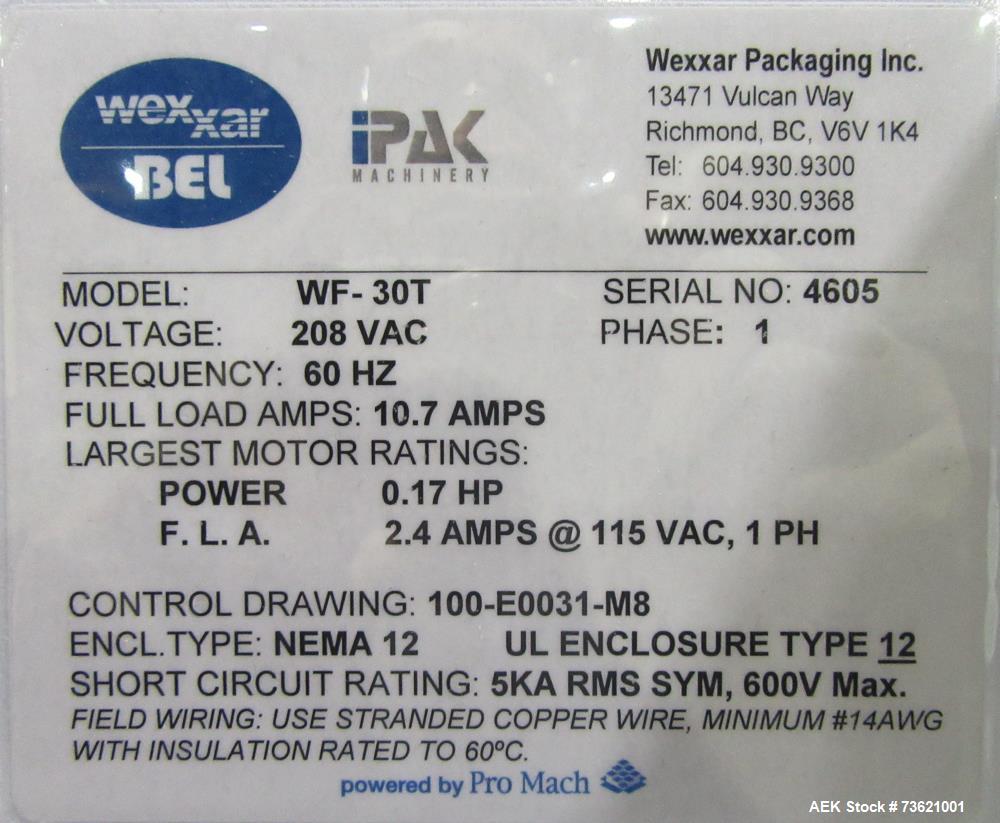

The machine operates on 208 Volt, single phase, 60 Hz power, drawing approximately 10.7 amps, making it suitable for many packaging line environments.
Specifications
| Specification |
Details |
| Manufacturer |
Wexxar |
| Model |
WF-30T |
| Machine Type |
Automatic Case Erector / Case Former |
| Maximum Speed |
Up to 30 Cases Per Minute |
| Case Length Range |
7.25" – 18" |
| Case Width Range |
7.25" – 14" |
| Case Height Range |
6" – 15" |
| Taping Head |
2" Wide 3M Accuglide Bottom Taping Head |
| Case Opening |
Pin & Dome Style |
| PLC |
Allen Bradley CompactLogix L23E |
| HMI |
Omron NS8-TV00B-V2 Color Touchscreen |
| Drives |
(2) Festo Drives |
| Electrical |
1 / 60 / 208 Volt |
| Amps |
10.7 Amp |
Applications
-
Automated packaging lines
-
Case forming and sealing operations
-
Distribution and fulfillment centers
-
Food and beverage packaging
-
Pharmaceutical packaging lines
-
Consumer goods packaging
Common Products This Machine Is Used For
-
Food cartons and packaged foods
-
Beverage cases
-
Consumer packaged goods
-
Household products
-
Pharmaceutical cartons
-
Personal care products
-
E-commerce shipping boxes
-
Industrial packaged products
-
Retail packaged items
-
Bulk packaged goods
