Used- Stainless Steel MTI-Mischtechnik Powder Turbo Mixer. T-arms, type H-3300 PH, 872 gallon

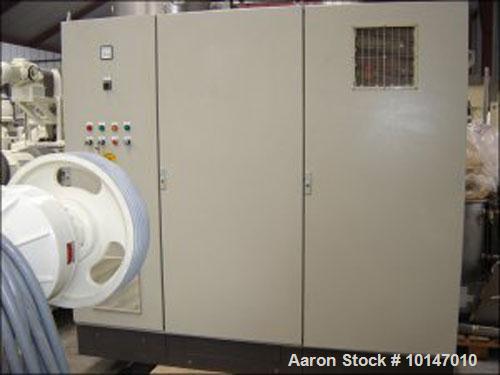

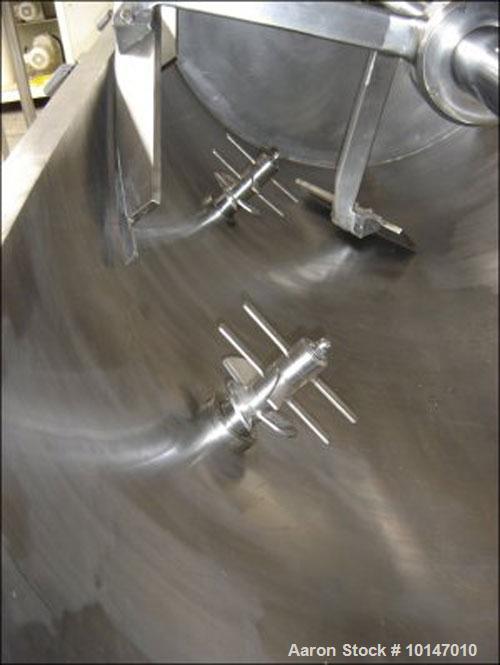

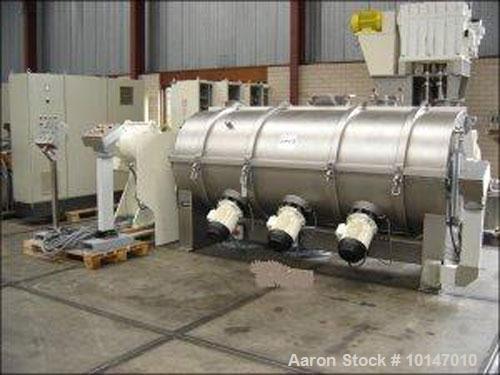

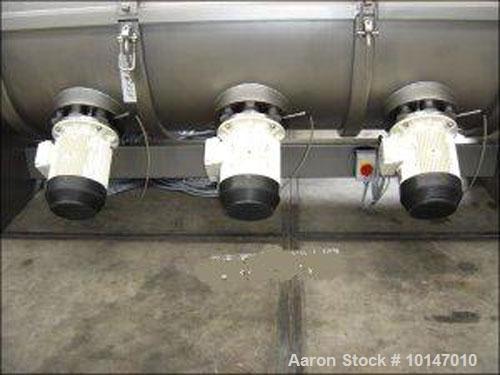

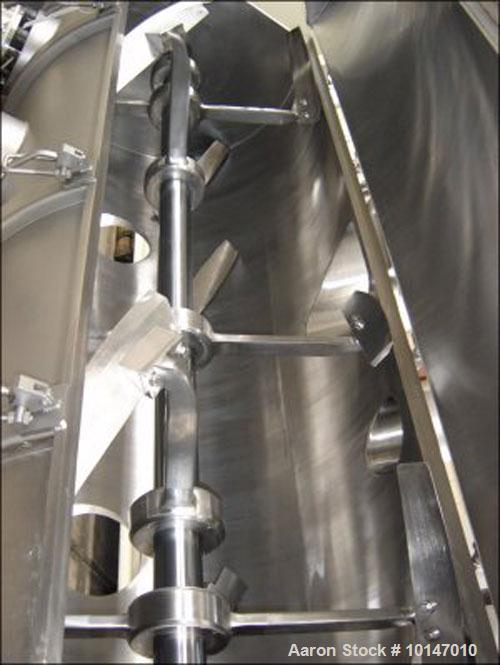

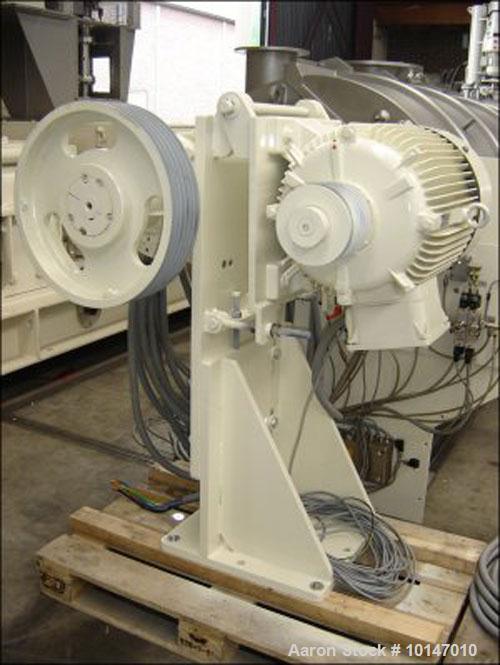

Used-MTI-Mischtechnik Powder Turbo Mixer. T-arms, type H-3300 PH, 304 stainless steel (1.4541), capacity 872 gallon (3300 liter), useful capacity 610 gallon (2310 liter), trough diameter 47" x 118" (1200 x 3000 mm), top connections 3x diameter 7.9" (200 mm), 1x diameter 15.7" (400 mm), outlet 2x diameter 11.8" (300 mm), outlet valves are missing, glands air purged. Motor 60 hp/45.0 kW, 415 volt, with lump breaker, motor 8.3 hp/11 hp (6.2/8.2 kW), 415 volt, speed lump breaker 1460/2900 rpm, with switchgear sizes 102" x 20" x 83" (2.6 x 0.5 x 2.1 m) and 39" x 12" x 59" (1.0 x 0.3 x 1.5 m). Floor space mixer without drive unit 12.5' x 5.3' (3.8 x 1.6 m), height 6' (1.8 m). Trough can be hinged open pneumatically for cleaning purposes.
