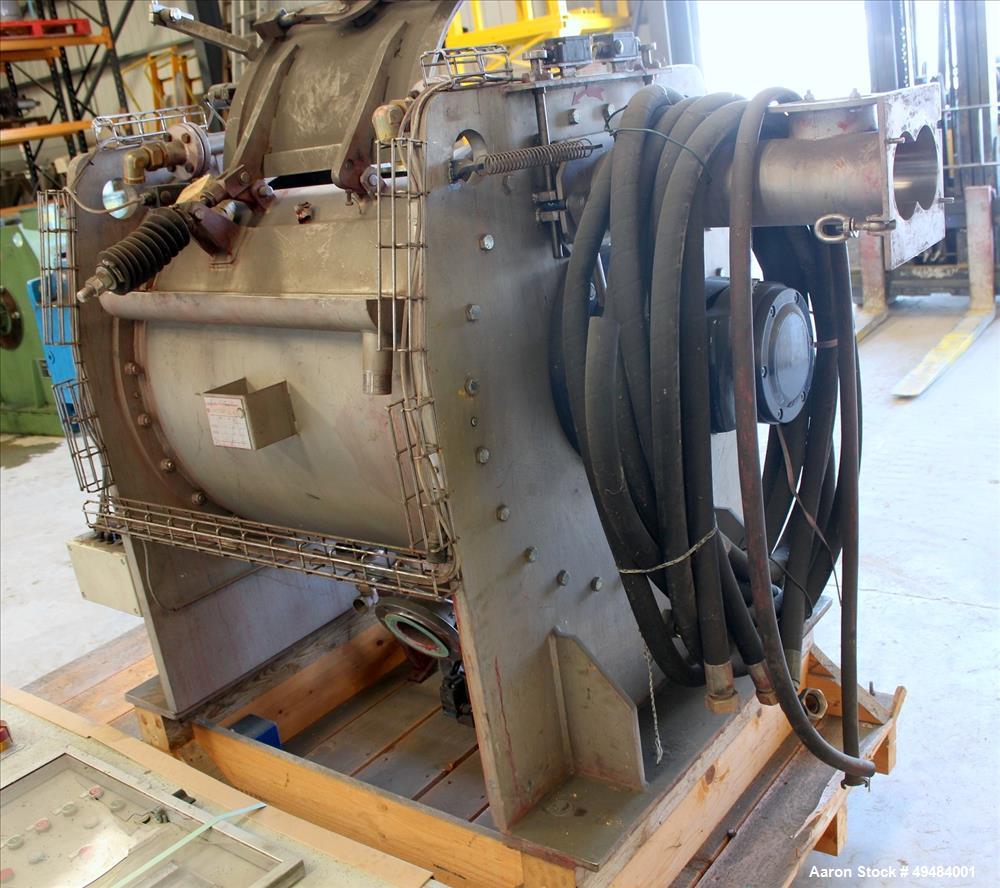

Used Drais Mannheim Plow Mixer/Dryer, Type TK 400-Turbu Kneter. Material of construction is 321 (1.4541) stainless steel on product contact parts. Stainless steel mixing body. Total capacity is 14.12 cubic feet (400 liter), Maximum working capacity 10.6 cubic feet (300 liter). Minimum working capacity 4.23 cubic feet (120 liter). Stainless steel double jacketed for heating/cooling rated at 90 psi (6 bar). Heating/cooling surface approximately 17 square feet (1.7 m2). Inside rated for 0 psi at 122 degree F (50 degree C). FM I Becker plows driven via a Stimrad-Aufsteckgetribe gearbox, Type H 2HH 5A by an 82.5HP/55Kw-400 volt AC/50cycle/3PH Non EX motor, Type K 11 R 250 M 4 KT-200H. Mixing speed 175 RPM. Twin screw feeder, driven by 0.55 KW / 0.83 HP - 400 volt AC / 50 cucle / 3 Ph motor, 3.9" (100 mm) bottom outlet valve. Inspection door with counter weights. Overall dimensions: 12' long x 34" width x 54" high (3700 mm long x 1050 mm width x 1650 mm high). Weight 5192 pounds (2360 kgs) empty. Serial # 55918.
Manufacturer | DraiswerkeDraiswerke |
Model | TK 400 |
Serial # | 55918 |
Category | MixersMixers |
Subcategory | Plow MixerPlow Mixer |
This used Drais Mannheim Plow Mixer/Dryer (Type TK 400-Turbu Kneter) is a high-performance mixing and drying system, built for intensive blending, homogenization, and thermal processing of powders, pastes, and other materials in chemical, pharmaceutical, food, and industrial applications.
Constructed from 321 stainless steel on product contact parts, this stainless steel mixing body has a total capacity of 400 liters (14.12 cubic feet), with a maximum working capacity of 300 liters (10.6 cubic feet) and a minimum working capacity of 120 liters (4.23 cubic feet).
The double-jacketed mixing chamber, rated at 90 psi (6 bar), provides efficient heating or cooling through a 17-square-foot (1.7 m²) heat transfer surface, making it ideal for temperature-sensitive processing. The interior is rated for 0 psi at 122°F (50°C).
This unit is powered by a high-performance 82.5 HP (55 kW), 400V AC, 50 Hz, 3-phase motor, driving the FM I Becker plows through a Stimrad-Aufsteckgetribe gearbox (Type H 2HH 5A), operating at 175 RPM for consistent mixing performance.
Additionally, a twin screw feeder (0.55 kW / 0.83 HP, 400V AC, 50 Hz, 3-phase motor) ensures controlled material feeding. The 3.9” (100mm) bottom outlet valve allows for efficient discharge, while an inspection door with counterweights provides easy access for cleaning and maintenance.
The unit measures 12’ long x 34” wide x 54” high (3700 mm x 1050 mm x 1650 mm) and weighs 5192 pounds (2360 kg) empty.
Pigments
Used Drais Mannheim Plow Mixer/Dryer, Type TK 400-Turbu Kneter. Material of construction is 321 (1.4541) stainless steel on product contact parts. Stainless steel mixing body. Total capacity is 14.12 cubic feet (400 liter), Maximum working capacity 10.6 cubic feet (300 liter). Minimum working capacity 4.23 cubic feet (120 liter). Stainless steel double jacketed for heating/cooling rated at 90 psi (6 bar). Heating/cooling surface approximately 17 square feet (1.7 m2). Inside rated for 0 psi at 122 degree F (50 degree C). FM I Becker plows driven via a Stimrad-Aufsteckgetribe gearbox, Type H 2HH 5A by an 82.5HP/55Kw-400 volt AC/50cycle/3PH Non EX motor, Type K 11 R 250 M 4 KT-200H. Mixing speed 175 RPM. Twin screw feeder, driven by 0.55 KW / 0.83 HP - 400 volt AC / 50 cucle / 3 Ph motor, 3.9" (100 mm) bottom outlet valve. Inspection door with counter weights. Overall dimensions: 12' long x 34" width x 54" high (3700 mm long x 1050 mm width x 1650 mm high). Weight 5192 pounds (2360 kgs) empty. Serial # 55918.
This used Drais Mannheim Plow Mixer/Dryer (Type TK 400-Turbu Kneter) is a high-performance mixing and drying system, built for intensive blending, homogenization, and thermal processing of powders, pastes, and other materials in chemical, pharmaceutical, food, and industrial applications.
Constructed from 321 stainless steel on product contact parts, this stainless steel mixing body has a total capacity of 400 liters (14.12 cubic feet), with a maximum working capacity of 300 liters (10.6 cubic feet) and a minimum working capacity of 120 liters (4.23 cubic feet).
The double-jacketed mixing chamber, rated at 90 psi (6 bar), provides efficient heating or cooling through a 17-square-foot (1.7 m²) heat transfer surface, making it ideal for temperature-sensitive processing. The interior is rated for 0 psi at 122°F (50°C).
This unit is powered by a high-performance 82.5 HP (55 kW), 400V AC, 50 Hz, 3-phase motor, driving the FM I Becker plows through a Stimrad-Aufsteckgetribe gearbox (Type H 2HH 5A), operating at 175 RPM for consistent mixing performance.
Additionally, a twin screw feeder (0.55 kW / 0.83 HP, 400V AC, 50 Hz, 3-phase motor) ensures controlled material feeding. The 3.9” (100mm) bottom outlet valve allows for efficient discharge, while an inspection door with counterweights provides easy access for cleaning and maintenance.
The unit measures 12’ long x 34” wide x 54” high (3700 mm x 1050 mm x 1650 mm) and weighs 5192 pounds (2360 kg) empty.
Manufacturer | Draiswerke |
Model | TK 400 |
Serial # | 55918 |
Category | Mixers |
Subcategory | Plow Mixer |
