Used Plow Mixers

Stock# 11059274

Used-Littleford Vacuum Plow Mixer/Dryer, 4000 Liter Capacity, Model VT-4000, 304 Stainless Steel. Approximately 54" diameter x 121" straight side with dished ends. Internal rated 15 PSI/VACUUM @ 250 degrees f., Stainless steel jacket rated for 75 psi at 250 deg.f. 6" diameter shaft, 8 bolt-on plow blades, 2 end scrapers, provision for 4 choppers, air purged main seals. Driven by a 50hp motor through gearbox. Various top openings. 6" diameter off-center bottom outlet. Unit mounted on carbon steel frame. Included VFD Control Panel. National Board# 1260. Serial# 11363.

Stock# 49938003

Used- Littleford Laboratory Mixer, Model M-5-G. Power: 120/230 V, 50/60 HZ, Phase 3; Permissible Operating Temperature 158 degree C. Permissible Operating Temperature Over Pressure: 5 bar. Includes: Change Parts, Blue Cart, Pallet Cover.

Stock# 52579001

Used- Processall Tilt-A-Mix Laboratory Processor / Plow Mixer, Model 4HV, 316 Stainless Steel contact parts. Total capacity 4 liter (1 gallon), 0.14 Cubic Feet, working capacity 2 liter, 0.07 cubic feet). 6" diameter x 9" straight side chamber with 3", (3) 1" openings. 4-1/2" long x 3/4" diameter shaft, driven by a 1.5hp 3/60/208-230v 1725rpm motor. Chopper driven by a 2hp 3/60/208/230v 3450rpm motor. Mounted control panel with toshiba VF-59 Inverter. Mounted on a 304 Stainless frame with casters. Serial# 193. (Mixing Plow Blade & Cover Missing).

Stock# 51779002

Used- Littleford Batch Type Plow Mixer, Type FM-130-D, 130 Liter, Stainless Steel. 3 Cubic feet working capacity, 4.6 total. Approximate jacketed chamber 20" diameter x 26" long. (2) Plows, (2) half plows, (2) end scrapers driven by a 10hp, 3/60/460 volt, 1770 rpm motor thru Falk drive, 8.908 to 1 ratio. Side entering chopper, 4-tier (4) blade, approximate 7" diameter driven by a 10hp, 3/60/460 volt, 3330 rpm motor. Chamber rated Full Vacuum at 32 to 320 Degrees F. Jacket rated 75 psi at 32 to 320 degrees F. XP Rated. Includes XP control panel. Openings top: 22" x 14" hinged clamp down cover with 8" inlet. Approximate 6-3/8" x 4-5/8" bottom outlet with manual valve. Mounted on frame. Serial# 42734-5223, National Board# SN5223, built 1999.

Stock# 44604001

Used- J.H. Day Plow Type Turbulent Mixer, 304 Stainless Steel. 3.5 Cubic feet total capacity. Non-jacketed chamber approximately 20" diameter x 22" straight side. 3" Diameter shaft with blades and end scrapers. Driven by a 7.5 hp, 3/60/230/460 volt, 1800 rpm Sterling variable Speed-trol motor. Includes a side entering pinned disc mill, driven by a 10 hp, 3/60/230/460 volt, 3490 rpm motor. Top access door with a charge port, 8" center bottom outlet with a manually operated plug valve. Includes a control panel. Mounted on a carbon steel frame.

Stock# 51466004

Used- Littleford Batch Laboratory Plow Mixer, Model FM130, Approximate 4.6 Total Cubic Feet Capacity, 304 Stainless Steel. 3.0 Cubic feet working. Approximate 20" diameter x 26" jacketed mixing chamber. Jacket rated 75 psi at 320 degrees F. Approximate 2" diameter shaft with (2) main plows and (2) side scraper plows. Driven by a 10 hp, 3/60/230/460 volt, 1760 rpm motor. Includes a chopper (missing blade) driven by a 10 hp, 3/60/230/460 volt, 3475 rpm motor. 10" Center bottom discharge with 7" long x 5" wide drop down outlet door, manually operated. Mounted on a carbon steel frame. Serial# 11535.

Stock# 47890001

Used- Lodige Batch Type Plow Mixer, Model FKM600D. 6 Cubic Feet Working Capacity (10 Total), 304 Stainless Steel. Non-jacketed mixing chamber approximate 32" diameter x 50" long. 4" Diameter shaft with (3) bolt on plows and (2) bolt on end scrappers. (2) Approximate 18" x 15-1/2" side access doors. Top openings (2) 12". 9" x 7" Bottom outlet with a manual operated door, air purge seals. Driven by an approximate 10 hp motor thru Falk reducer. Includes a control panel with an Allen-Bradley PanelView 600 and a SLC 5/04 CPU. Mounted on a carbon steel stand. Serial # 9046.

Stock# 49484001

Used- Drais Mannheim Plow Mixer/Dryer, Type TK 400-Turbu Kneter. Material of construction is 321 (1.4541) stainless steel on product contact parts. Stainless steel mixing body. Total capacity is 14.12 cubic feet (400 liter), Maximum working capacity 10.6 cubic feet (300 liter). Minimum working capacity 4.23 cubic feet (120 liter). Stainless steel double jacketed for heating/cooling rated at 90 psi (6 bar). Heating/cooling surface approximately 17 square feet (1.7 m2). Inside rated for 0 psi at 122 degree F (50 degree C). FM I Becker plows driven via a Stimrad-Aufsteckgetribe gearbox, Type H 2HH 5A by an 82.5HP/55Kw-400 volt AC/50cycle/3PH Non EX motor, Type K 11 R 250 M 4 KT-200H. Mixing speed 175 RPM. Twin screw feeder, driven by 0.55 KW / 0.83 HP - 400 volt AC / 50 cucle / 3 Ph motor, 3.9" (100 mm) bottom outlet valve. Inspection door with counter weights. Overall dimensions: 12' long x 34" width x 54" high (3700 mm long x 1050 mm width x 1650 mm high). Weight 5192 pounds (2360 kgs) empty. Serial # 55918.

Stock# 52235001

Used- Littleford Style "Batch Type" Plow Mixer 13 Cubic Feet Working Capacity (21.9 total), 304 Stainless Steel. Non-jacketed chamber approximate 30-7/8" diameter x 49" straight side. Approximate 3-1/2" Diameter shaft with welded plows and (2) end scrapers. Driven by a 20hp, 3/60/208-230/460 volt, 1770 rpm gear motor, 12.56:1 ratio. Air purge seals. Openings top" 14", 6", (2) front access doors. 7-1/4" x 9-1/4" Center bottom outlet with air operated door.

Stock# 49753001

Used- Lodige Plow Mixer, Model FKM600D. 321 Stainless Steel on product contact parts. Total capacity 21.18 cubic foot (600 liter), working capacity 14.13 cubic foot (400 liter). 26" (790 mm) diameter x 89" (2740 mm) straight side non-jacketed mixing bowl. Maximum mixing speed 132 rpm by an 11 KW-380 volt / 50 cycle / 3 Ph SEW motor. 2 x Choppers driven by 4Kw-220 / 380volt / 50cycle / 3Ph SEW motors. 2 x 17.6" x 15.6" (450 mm x 400 mm) inspection doors. 1 x 13.6" (350 mm) product inlet. 1 x 9.4" (240 mm) product outlet. Frame mounted on 6 legs. Includes control panel. Overall dimensions: 9' (2770 mm) long x 52" (1600 mm) width x 66" (2041 mm) high. Serial # 13207.

Stock# 52357001

Used- Morton Machine Plow Mixer, Model FKM600D, 321 Stainless Steel. Total capacity 21.18 cubic foot (600 liter), working capacity 14.13 cubic foot (400 liter). Approximately 790mm (31.1") diameter x 1240mm (48.8") long mixing chamber. Internal plows, driven by approximate 37kW (50hp) motor, thru gear box, 14:1 ratio. (2) 400 (15.75") x 450mm (17.7") side access doors. Openings top: 350mm (13.78"), 250mm (9.84"). 450mm (17.7") Center bottom outlet with 300 (11.8") x 240mm (9.45") sandwich type pneumatically operated door. Provision for side choppers. Mounted on frame.

Stock# 52357002

Used- Morton Machine Plow Mixer, Model FKM600D, 321 Stainless Steel. Total capacity 21.18 cubic foot (600 liter), working capacity 14.13 cubic foot (400 liter). Approximately 790mm (31.1") diameter x 1240mm (48.8") long mixing chamber. Internal plows, driven by approximate 37kW (50hp) motor, thru gear box, 14:1 ratio. (2) 400 (15.75") x 450mm (17.7") side access doors. Openings top: 350mm (13.78"), 250mm (9.84"). 450mm (17.7") Center bottom outlet with 300 (11.8") x 240mm (9.45") sandwich type pneumatically operated door. Provision for side choppers. Mounted on frame.

Stock# 79477

Used- American Process Cylindrical Plow Mixer, Model TD-24, Approximate 24 Cubic Feet Working Capacity, Stainless Steel. Non-jacketed chamber 30" diameter x 84" long, shaft with fixed plows and end scrapers. Driven by a 30 hp, 3/60/460 volt, 1780 rpm motor thru a Sew reducer, ratio 15.77 to 1. Openings top, (2) side access doors, center bottom outlet. Serial # 4433. Built 1995.

Stock# 79478

Used- American Process Cylindrical Plow Mixer, Model TD-24, Approximate 24 Cubic Feet Working Capacity, Stainless Steel. Non-jacketed chamber 30" diameter x 84" long, shaft with fixed plows and end scrapers. Driven by a 30 hp, 3/60/460 volt, 1780 rpm motor thru a Sew reducer, ratio 15.77 to 1. Openings top, (2) side access doors, center bottom outlet. Serial # 4431. Built 1995.

Stock# 70852

Used- Hagen & Rinau Unimix Plow Mixer/Dryer, Type HSM 800. Material of construction is 304 stainless steel (1.4541). 34" (900 mm) diameter x 51" (1300 mm) straight side mixing/drying chamber. Total capacity is 29 cubic feet (822 liter), net working capacity is 8.83-20.3 cubic feet (250-575 liter). Jacketed, inside rated for 45 psi (3 bar) at 212 deg F (100 deg C). 2 end scrapers and 4 Becker plows welded on a shaft. One (1) removable end. (1) 9.75" x 23.4" (250 mm x 600 mm) outlet. Driven via a gearbox by a 195 hp/130 kw, 1280 rpm, 400 volt/50 cycle/3 ph motor.

Stock# 52672001

Used- Littleford Day Batch Type Plow Mixer / Vacuum Dryer, Model FKM2000E. 49.4 Cubic Feet Working Capacity (70.6 Total), Stainless Steel. Internal rated Full vacuum at 32 to 330 degrees F. Jacketed mixing chamber approximate 50" diameter x 79" long. Jacket rated 90psi at 32 to 330 degrees F. Shaft with bolt on plows and bolt on end scrapers. (3) 10HP Side entering choppers. (1) Side access doors. (3) Top openings. Center bottom outlet. Includes control panel with an Allen-Bradley PanelView plus 1500 HMI. Mounted on (2) painted carbon steel legs. Serial# 43470-5850. 3/60/480 Volt.

Stock# 50722001

Used- Lodige Batch Type Plow Mixer, Model FKM-3000D-2MZ-2ZF. Inside 312 (1.4541) stainless steel, polished to corn 120 on product contact parts. Total capacity 105.9 cubic feet (3000 liter), working capacity 70.6 cubic feet (3000 liter). Approximately 48.8" (1250 mm) diameter x 115" (2900 mm) long jacketed mixing chamber. Rated for 75 psi (5 bar) at 316.4-degree F (158 degree C). Test pressure jacket 97.5 psi (6.5 bar). Approximately 4" (100 mm) diameter shaft with plows. (2) 21.06" x 15.6" (540 mm x 400) inspection doors, (2) 13.7" (350 mm) diameter product inlet, (2) 9.75" (250 mm) diameter openings for dust collector, (1) 9.4" (240 mm) diameter product center outlet. Driven via a gearbox by an 82.5 HP / 55 Kw-380 volt / 50 cycle / 3 Ph motor. Prepared for (4) Choppers driven by 8.25 HP / 5.5 Kw - 380 volt / 50 cycle / 3 Ph motors. Includes control panel. Previously used in the pharmaceutical industry.

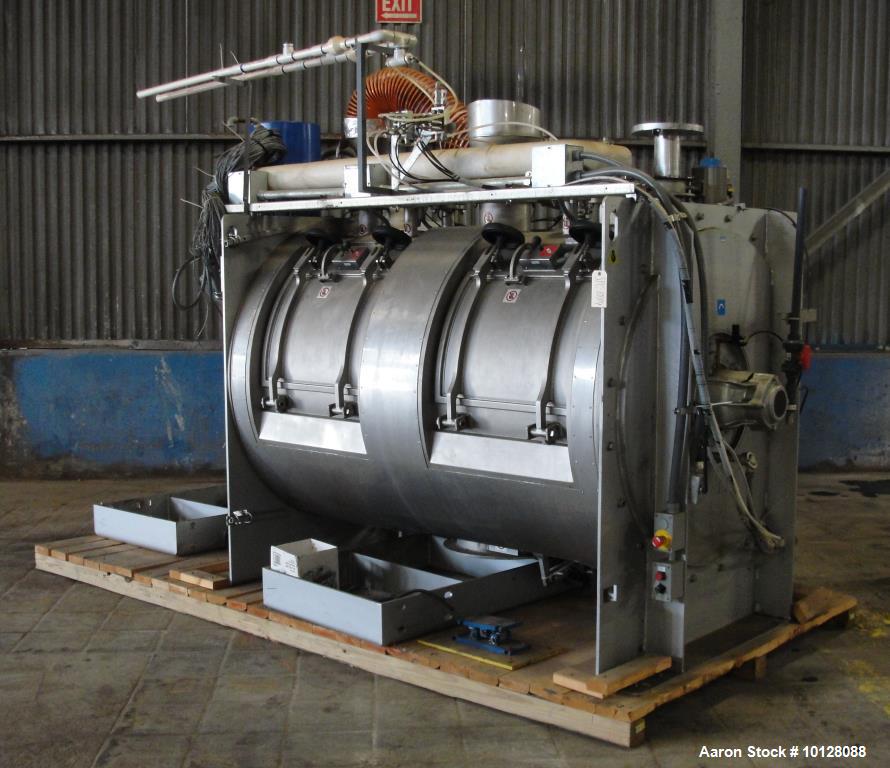

Stock# 52157001

Used- Mix S.R.L. Ploughshare / Plow Mixer, Model MXC2400, Stainless Steel, 85 Cubic Feet. Total capacity 2,400 liters (634 gallon), working capacity approximately 260 (68.68 gal) to 1750 liters (462 gal). Mixing chamber 50" diameter x 80" long. 304 Stainless steel jacket rated 2 bar (29 psi) at 4 to 38 degrees C (39.2 to 100.4 F). Approximate 4" diameter shaft with (4) bolt-on plows, and (2) bolt-on side scrapers. Plows driven by 22.2kW (29.7hp), 3/60/480 volt motor. Openings: 10", (4) 2", (2) 6", (2) 1". (2) 24" x 19" doors. 10-3/4" center bottom outlet with air operated discharge valve, (4) 2" side bottom outlets. Stainless Steel contact. Serial# C655.

Stock# 52157002

Used- Mix S.R.L. Ploughshare / Plow Mixer, Model MXC2400, Stainless Steel, 85 Cubic Feet. Total capacity 2,400 liters (634 gallon), working capacity approximately 260 (68.68 gal) to 1750 liters (462 gal). Mixing chamber 50" diameter x 80" long. 304 Stainless steel jacket rated 2 bar (29 psi) at 4 to 38 degrees C (39.2 - 100.4 f). Approximate 4" diameter shaft with (4) bolt on plows, and (2) bolt on side scrapers. Plows driven by 22.2kW (29.7hp), 3/60/480 volt motor. Openings: 10", (4) 2", (2) 6", (2) 1". (2) 24" x 19" doors. 10-3/4" Center bottom outlet with air operated discharge valve, (4) 2" side bottom outlets. Stainless Steel contact. Serial# C622.

Stock# 10151262

Used- Littleford Plow Mixer, Model FKM4200D. 148 Cubic foot total capacity, carbon steel. Jacket rated 75 PSI. Unit included (4) high speed choppers driven by 15 hp motors. Main unit driven by a 100 hp motor. Mounted on a carbon steel base. Built 1987. Serial # 11707. NB 1356.

Stock# 50536003

Used-Bachiller Horizontal Vacuum Plow Mixer/Dryer, type MHT 4200. Stainless steel-Polished. Total capacity 148.3 Cu ft (4200 liter). Working capacity 98.8 Cu. ft (2800 liter). Jacketed, inside rated for 30 PSI (2 Bar). Plow speed 87/43.3 RPM via a gearbox by an ABB MOTORS 172.5/117HP-115/78KW-380 volt-50cycle. 3 inspection doors with safety devices. Incl. bag filter, discharge flange with pneumatic valve, control panel and additional infrastructure. Previous used in a Pharmaceutical application.
