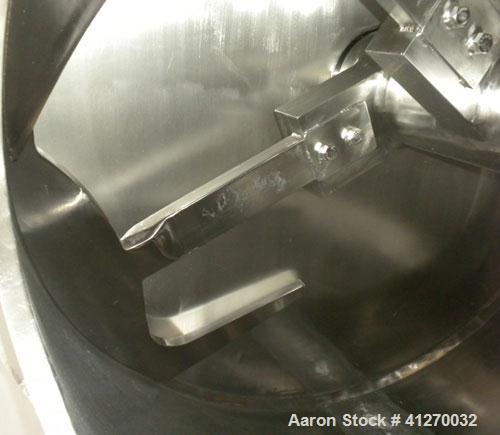

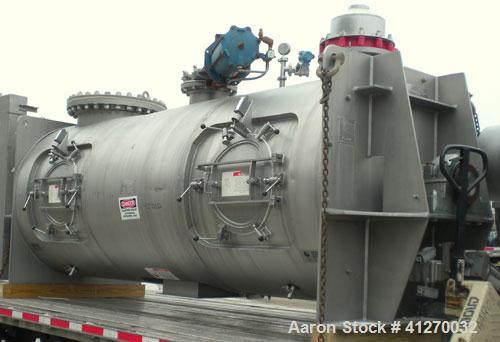

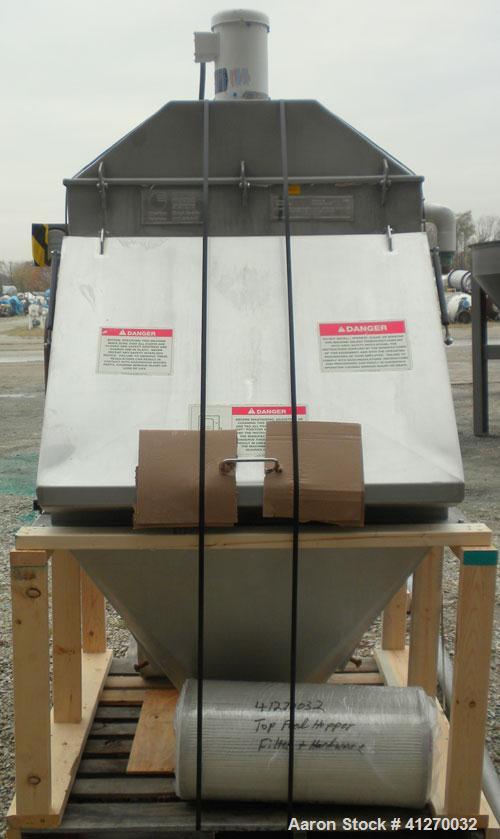

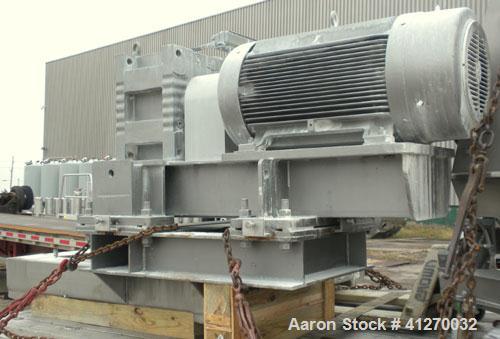

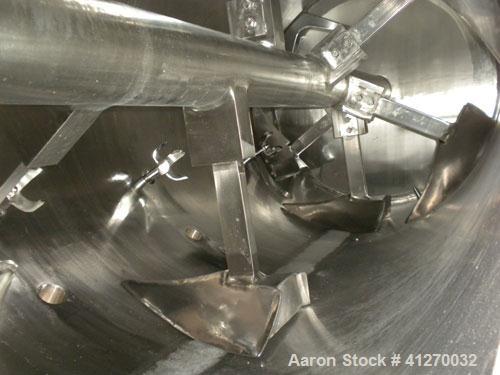

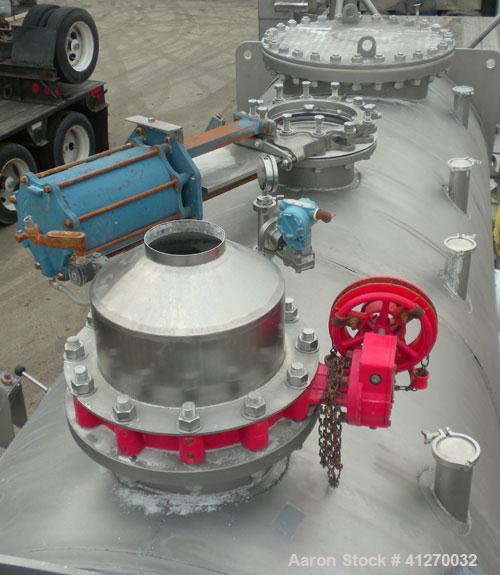

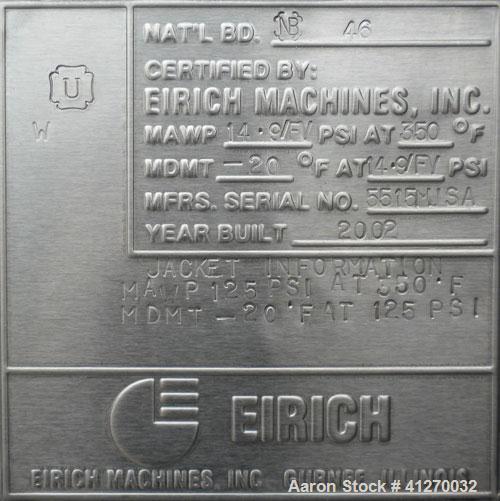

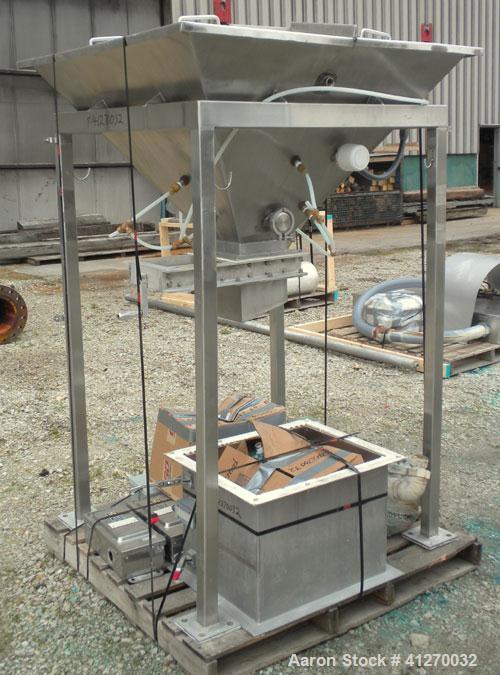

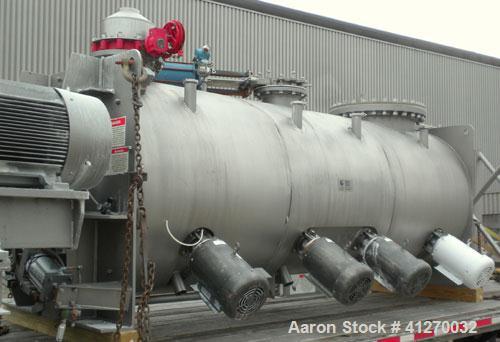

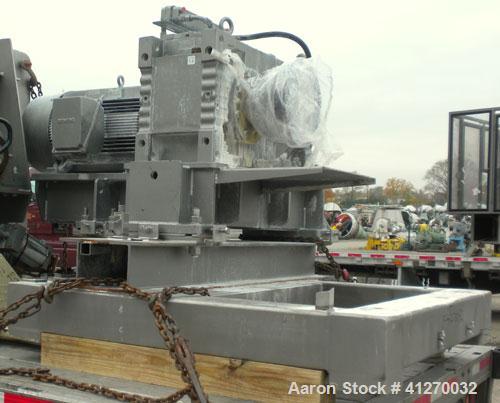

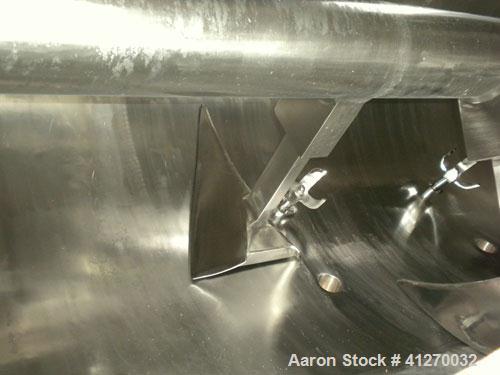

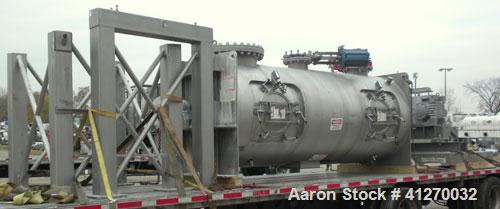

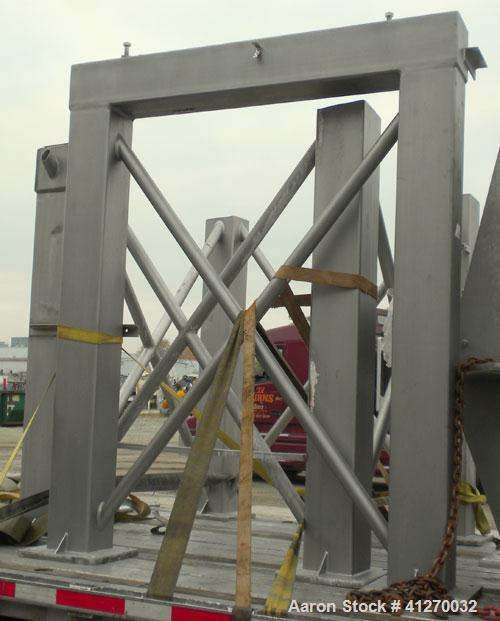

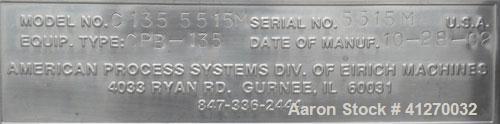

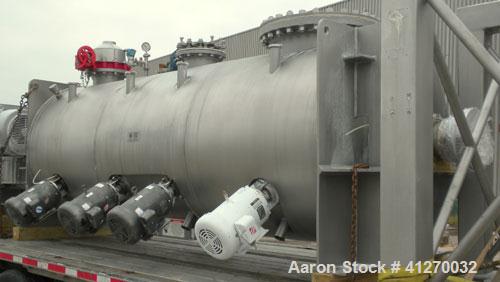

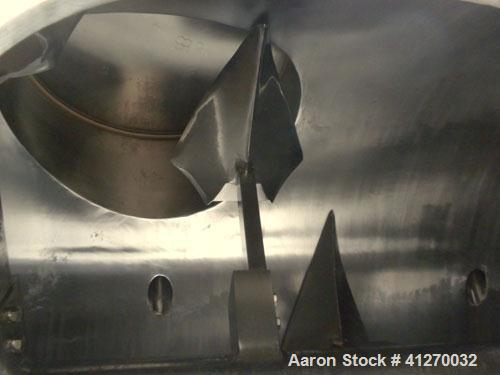

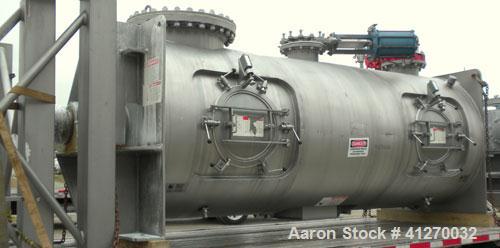

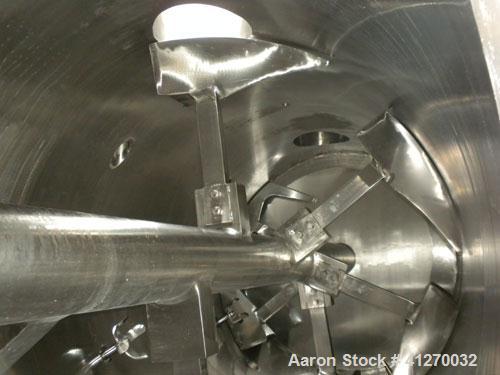

Used American Process Cylinrical Plow Mixer, Model CPB-135, 135 Cubic Feet Working Capacity (220 total), 304 Stainless Steel. 304 stainless steel jacket, chamber 56" diameter x 156" long, Internal rated 14.9 psi/FV at 350 deg.f., and –20 deg.f. at 14.9/FV psi. Jacket rated 125 psi at 350 deg.f., and –20 deg.f. at 125 psi. 8’’ diameter shaft with (10) bolt on plows, (2) end scapers. Driven by a 300 hp, 3/60/460 volt, 1785 rpm motor thru a Sew reducer, ratio 21.69 to 1. (4) Side entering choppers with a tulip blade, each driven by a 15 hp 3/60/230/460 volt, rpm motors. Openings top 1-1/2’’ tri-clamp, (4) 3‘’ tri-clamp, 12’’, 14’’, 30’’. (2) 20’’ x 20’’ side access doors, 12’’ center bottom outlet. Includes an American Process top mounted filtered bag dump station, model FBD-200, 304 stainless steel. Mounts on a stainless steel frame. Built 2002.
Used American Process Cylinrical Plow Mixer, Model CPB-135, 135 Cubic Feet Working Capacity (220 total), 304 Stainless Steel. 304 stainless steel jacket, chamber 56" diameter x 156" long, Internal rated 14.9 psi/FV at 350 deg.f., and –20 deg.f. at 14.9/FV psi. Jacket rated 125 psi at 350 deg.f., and –20 deg.f. at 125 psi. 8’’ diameter shaft with (10) bolt on plows, (2) end scapers. Driven by a 300 hp, 3/60/460 volt, 1785 rpm motor thru a Sew reducer, ratio 21.69 to 1. (4) Side entering choppers with a tulip blade, each driven by a 15 hp 3/60/230/460 volt, rpm motors. Openings top 1-1/2’’ tri-clamp, (4) 3‘’ tri-clamp, 12’’, 14’’, 30’’. (2) 20’’ x 20’’ side access doors, 12’’ center bottom outlet. Includes an American Process top mounted filtered bag dump station, model FBD-200, 304 stainless steel. Mounts on a stainless steel frame. Built 2002.
