Used- Jaygo Double Planetary / Multi-Shaft Mixer

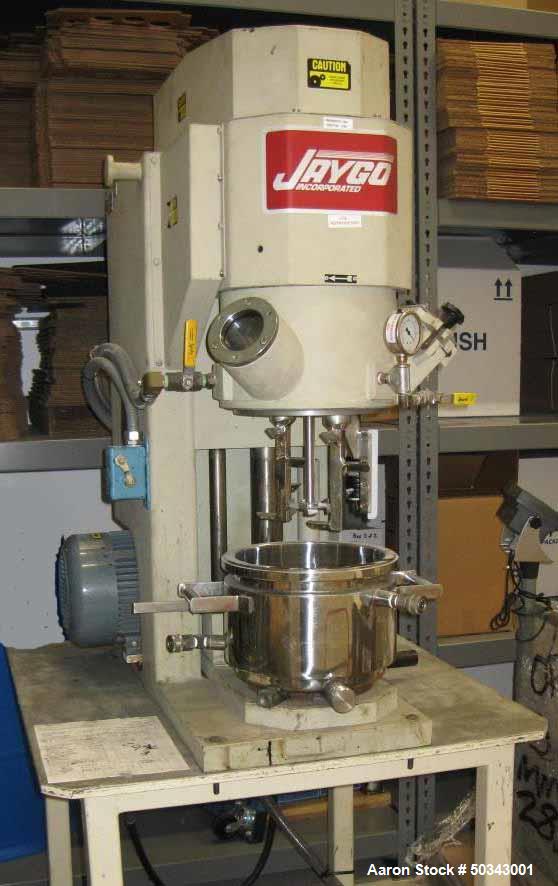

Used- Jaygo Planetary Mixer, Model MPVDV 10. 10 Liter Total Capacity, 304 Stainless Steel. Maximum working capacity 8 liters. Jacket mixing can rated 15 psi for heating or cooling. (2) Planetary blades, (1) scraper arm with Teflon blade driven by a 2 hp, 3/208-230/460 volt, 1200 rpm motor. Planetary gearbox speed range 20-100 rpm, blade speed range 60-300 rpm. (1) Center high speed/high shear dispersing impeller driven by a 2 hp, 3/208-230/460 volt,1800 rpm. High speed disperser speed range 600-3000 rpm. Hand operated crank wheel for raise / lower. Mounted on a painted carbon steel frame.

• Wet and Dry Mixing
• Wet and Dry Mixing, Blending, & Dispersion
