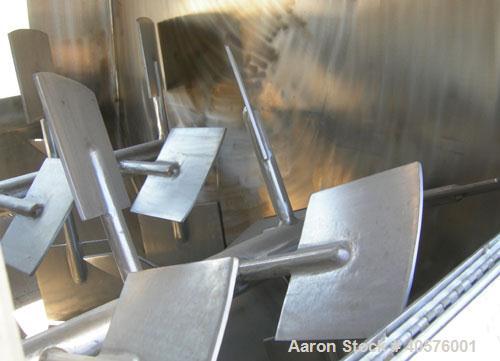

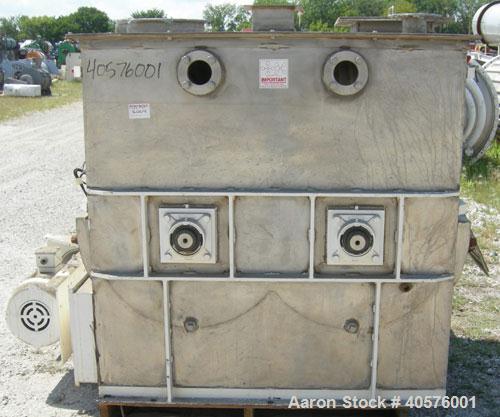

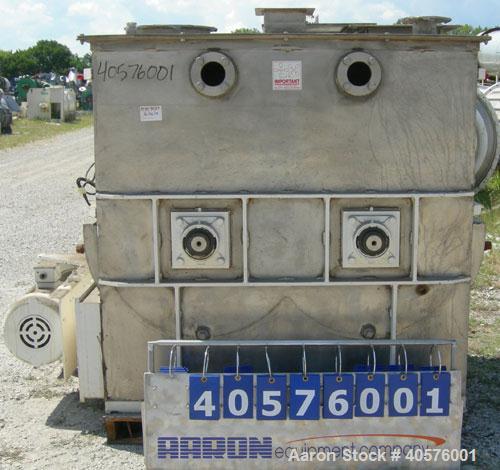

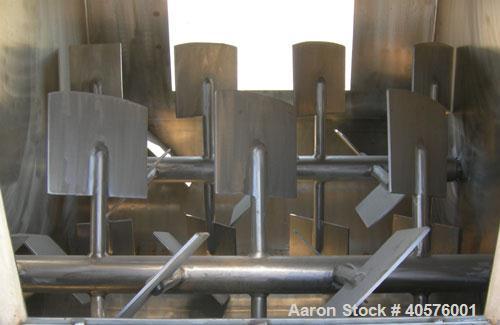

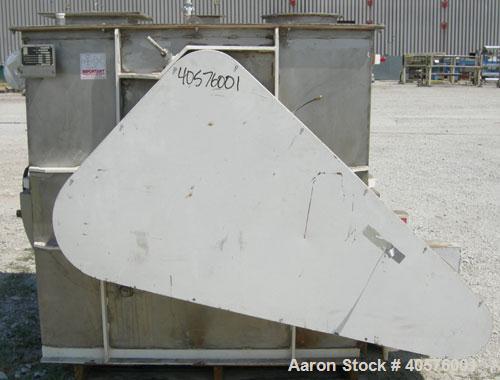

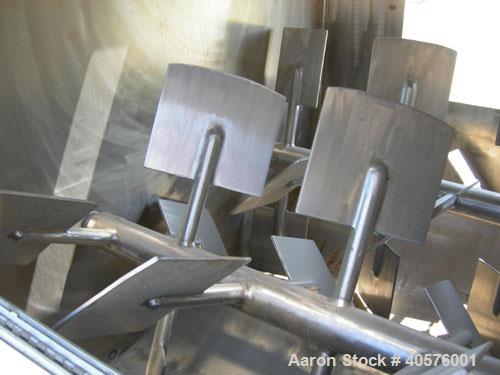

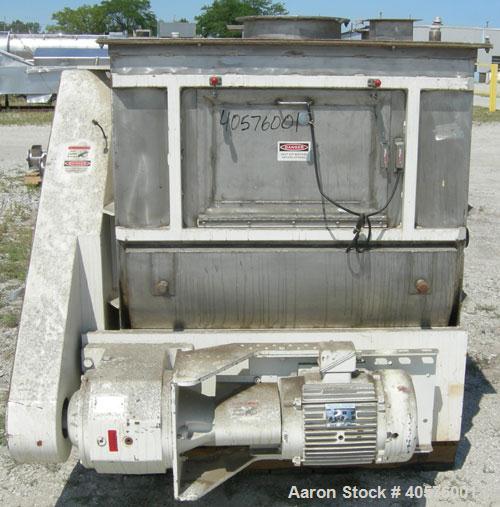

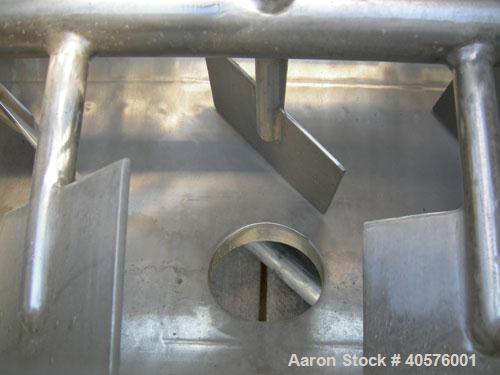

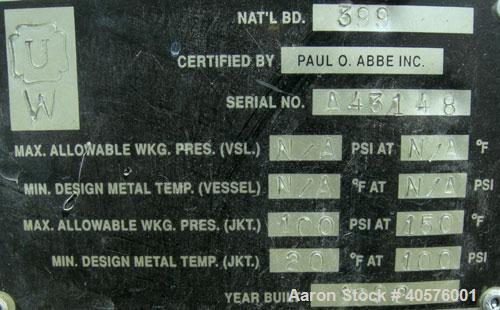

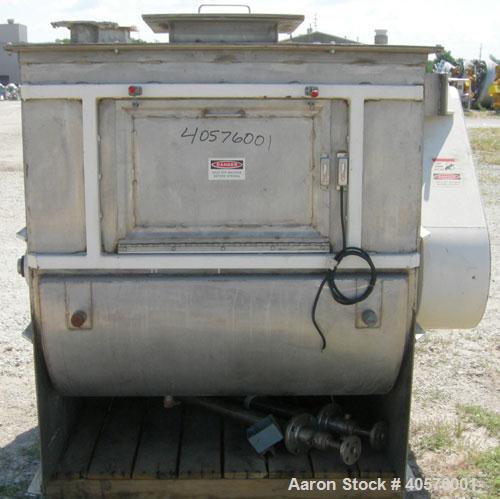

Used Paul O Abbe Twin Shaft Fluidizer, model AF500, 316 stainless steel. 17.7 cubic feet working capacity, 24.78 total. 316 stainless steel bottom jacketed trough 53 1/2" x 46" x approximately 37" deep, rated 100 psi at 150 deg F. (2) 3" diameter shafts with (28) 9" wide x 1/4'' thick paddles welded to 1 1/2'' diameter posts. Bolt on top cover with 3'', 12'', 5 1/2'' x 5 1/2'', 12'' x 12'' openings, (2) side access doors, 6'' off center bottom outlet. Driven by a 10 hp, 3/60/230/460 volt, 1725 rpm motor thru a reducer, ratio 23.25 to 1, output rpm 37.64.
Used Paul O Abbe Twin Shaft Fluidizer, model AF500, 316 stainless steel. 17.7 cubic feet working capacity, 24.78 total. 316 stainless steel bottom jacketed trough 53 1/2" x 46" x approximately 37" deep, rated 100 psi at 150 deg F. (2) 3" diameter shafts with (28) 9" wide x 1/4'' thick paddles welded to 1 1/2'' diameter posts. Bolt on top cover with 3'', 12'', 5 1/2'' x 5 1/2'', 12'' x 12'' openings, (2) side access doors, 6'' off center bottom outlet. Driven by a 10 hp, 3/60/230/460 volt, 1725 rpm motor thru a reducer, ratio 23.25 to 1, output rpm 37.64.
