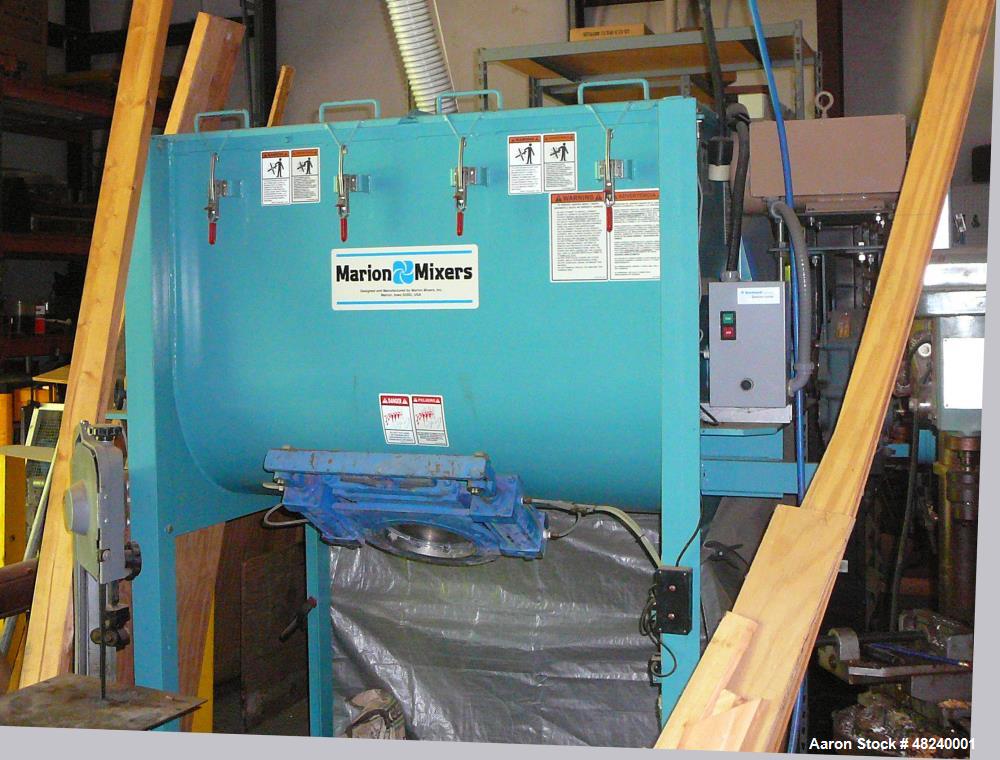

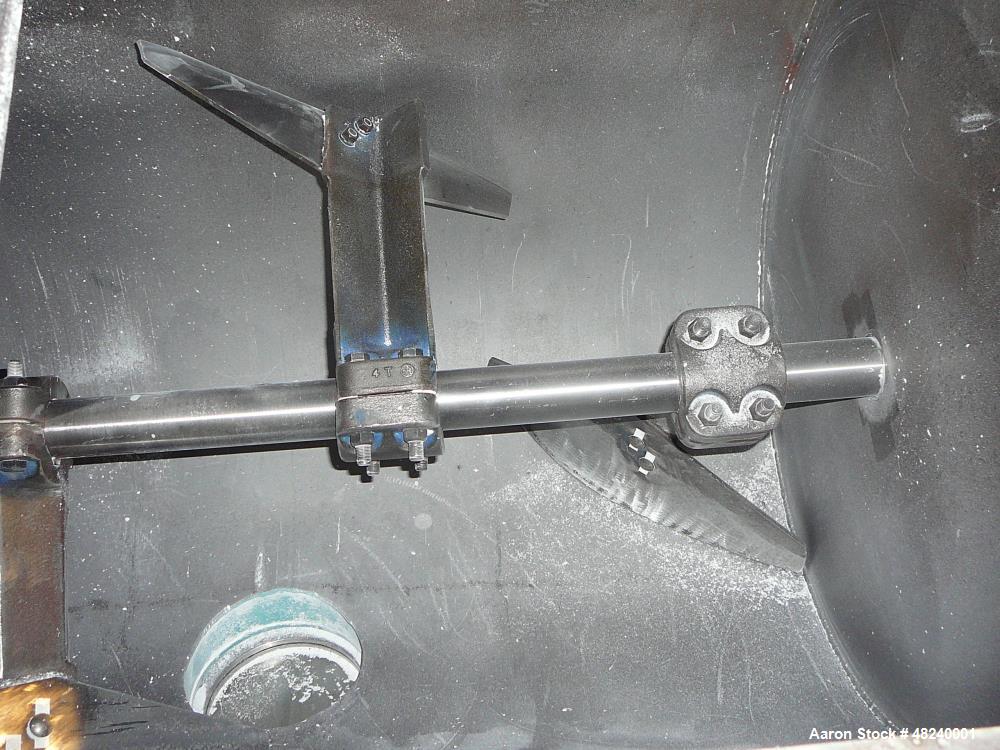

Used Marion Paddle Mixer, Model SPC-2748. Carbon steel. 15 cubic foot capacity. 27" inside diameter x 48" long. 7-ga. trough and 1/4" end plates; 2-7/8" diameter solid mainshaft with bolted cast arms/adjustable paddle blades, pillow block ball bearings Style B" inside/outside oil felt packing mainshaft seals. 5" diameter pneumatic actuated knife-gate discharge valve, 30. Tangent offset discharge position. 12-ga. split and hinged access doors, with 24" x 18" hinged access door at end opposite drive, safety grate under access door, safety proximity limit switch actuated by grate removal and drive end cover. 351 stainless steel toggle clamps on access door. Four (4) caster pads on end plates. 5 hp TEFC motor, 1ph, 60hz, 1800 rpm, 230/460V, #184 T Frame 1B V-belt drive, 4.0SH/6.6SDS, BX-59" belts, 1.3 S. F., 22.0 C.D. Dodge TDT-325 shaft-mounted reducer. 24.71 to 1 ratio, center bottom discharge. Bolted arms. Last used in a food powder application.
Used Marion Paddle Mixer, Model SPC-2748. Carbon steel. 15 cubic foot capacity. 27" inside diameter x 48" long. 7-ga. trough and 1/4" end plates; 2-7/8" diameter solid mainshaft with bolted cast arms/adjustable paddle blades, pillow block ball bearings Style B" inside/outside oil felt packing mainshaft seals. 5" diameter pneumatic actuated knife-gate discharge valve, 30. Tangent offset discharge position. 12-ga. split and hinged access doors, with 24" x 18" hinged access door at end opposite drive, safety grate under access door, safety proximity limit switch actuated by grate removal and drive end cover. 351 stainless steel toggle clamps on access door. Four (4) caster pads on end plates. 5 hp TEFC motor, 1ph, 60hz, 1800 rpm, 230/460V, #184 T Frame 1B V-belt drive, 4.0SH/6.6SDS, BX-59" belts, 1.3 S. F., 22.0 C.D. Dodge TDT-325 shaft-mounted reducer. 24.71 to 1 ratio, center bottom discharge. Bolted arms. Last used in a food powder application.
