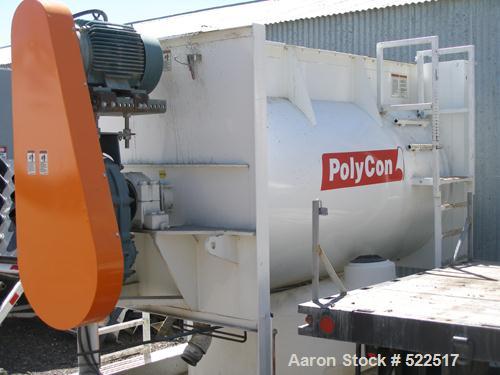

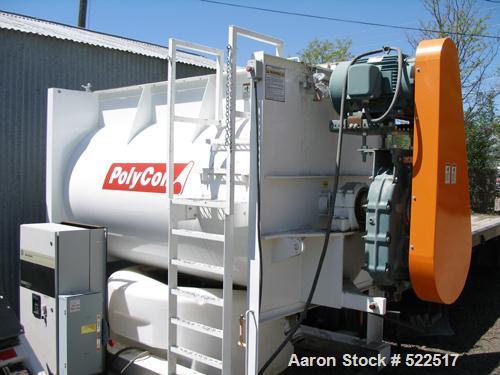

Unused-UNUSED: Marion model HPC-5496 semi-cylindrical batch mixer, carbon steel. 54" diameter x 8'0", 101 cubic foot mixing capacity. 1/4" thick rolled trough 300 deg, 1/4" ends, 4-5/16" solid main shaft with bolted cast arms and standard inner/outer adjustable paddle blades arranged for end discharge. 4-5/16" pillow block bearings. End plate wipers. Adjustable stuffing box seals. 4" butterfly valve. 12 gauge cover with 27" x 24" hinged access door at drive end. Structural legs mounted on wide flange beamskid, 24" discharge height. 40 hp TEFC motor, 3 ph, 60 hz, 230/460 volts. Dodge TXT-926 shaft mounted reducer. 25.66:1 ratio, 24.6 rpm output.
Unused-UNUSED: Marion model HPC-5496 semi-cylindrical batch mixer, carbon steel. 54" diameter x 8'0", 101 cubic foot mixing capacity. 1/4" thick rolled trough 300 deg, 1/4" ends, 4-5/16" solid main shaft with bolted cast arms and standard inner/outer adjustable paddle blades arranged for end discharge. 4-5/16" pillow block bearings. End plate wipers. Adjustable stuffing box seals. 4" butterfly valve. 12 gauge cover with 27" x 24" hinged access door at drive end. Structural legs mounted on wide flange beamskid, 24" discharge height. 40 hp TEFC motor, 3 ph, 60 hz, 230/460 volts. Dodge TXT-926 shaft mounted reducer. 25.66:1 ratio, 24.6 rpm output.
