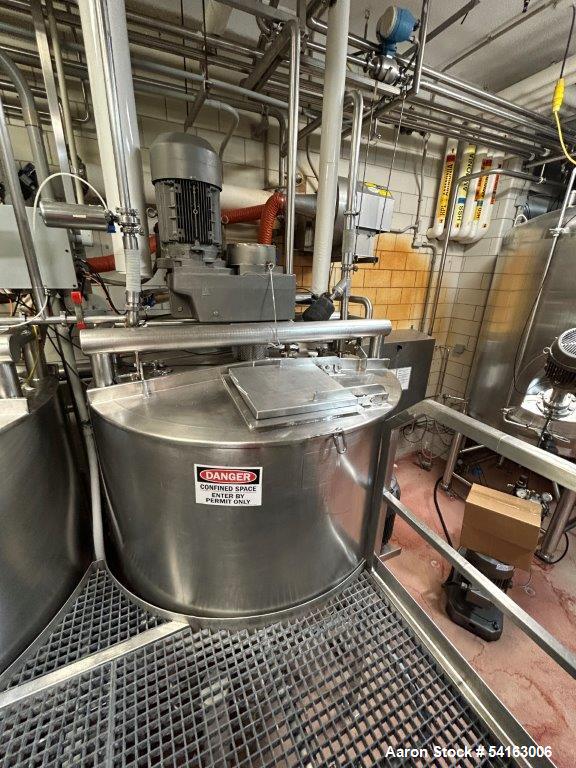

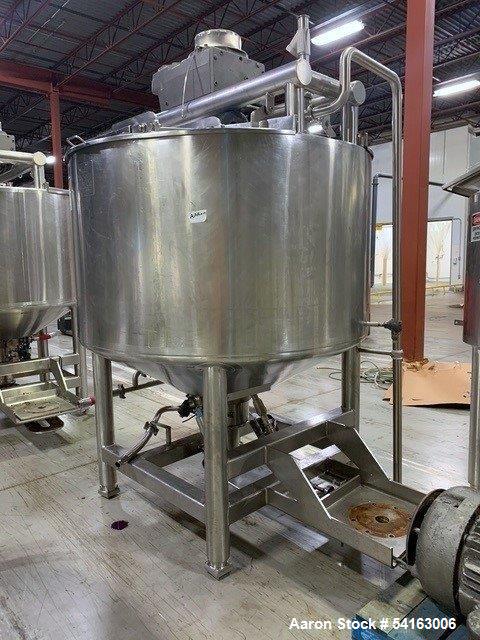

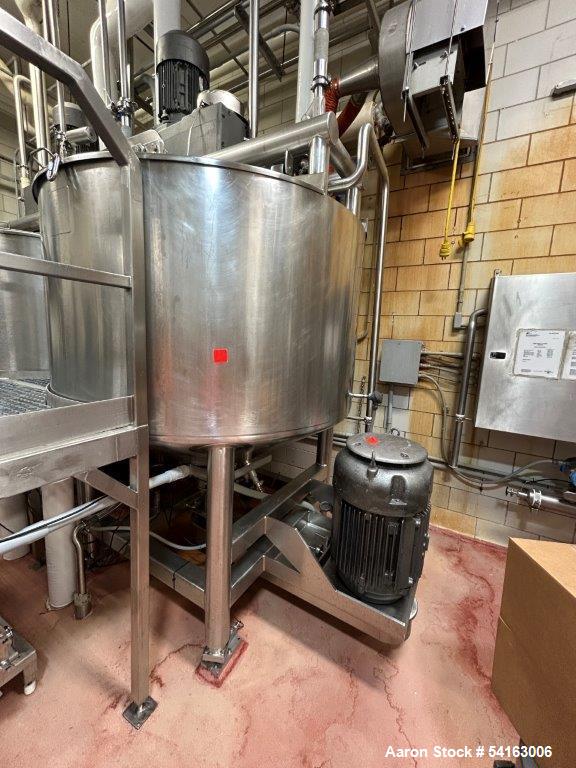

Walker 500 Gallon Jacketed Liquefier with Dual Motion Mixing System

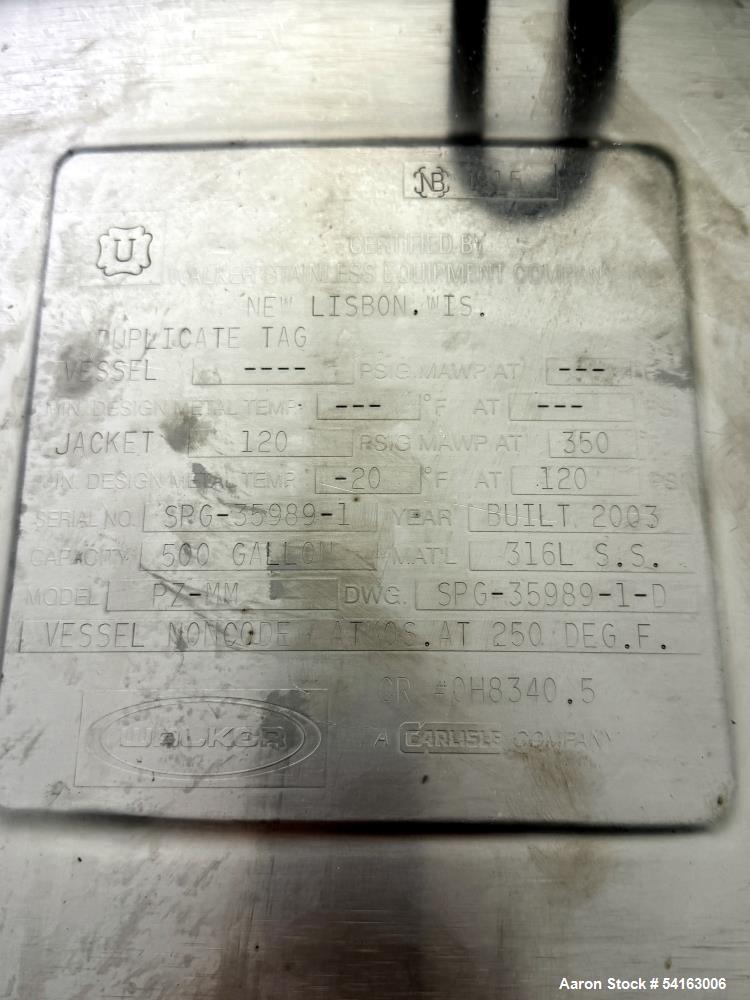

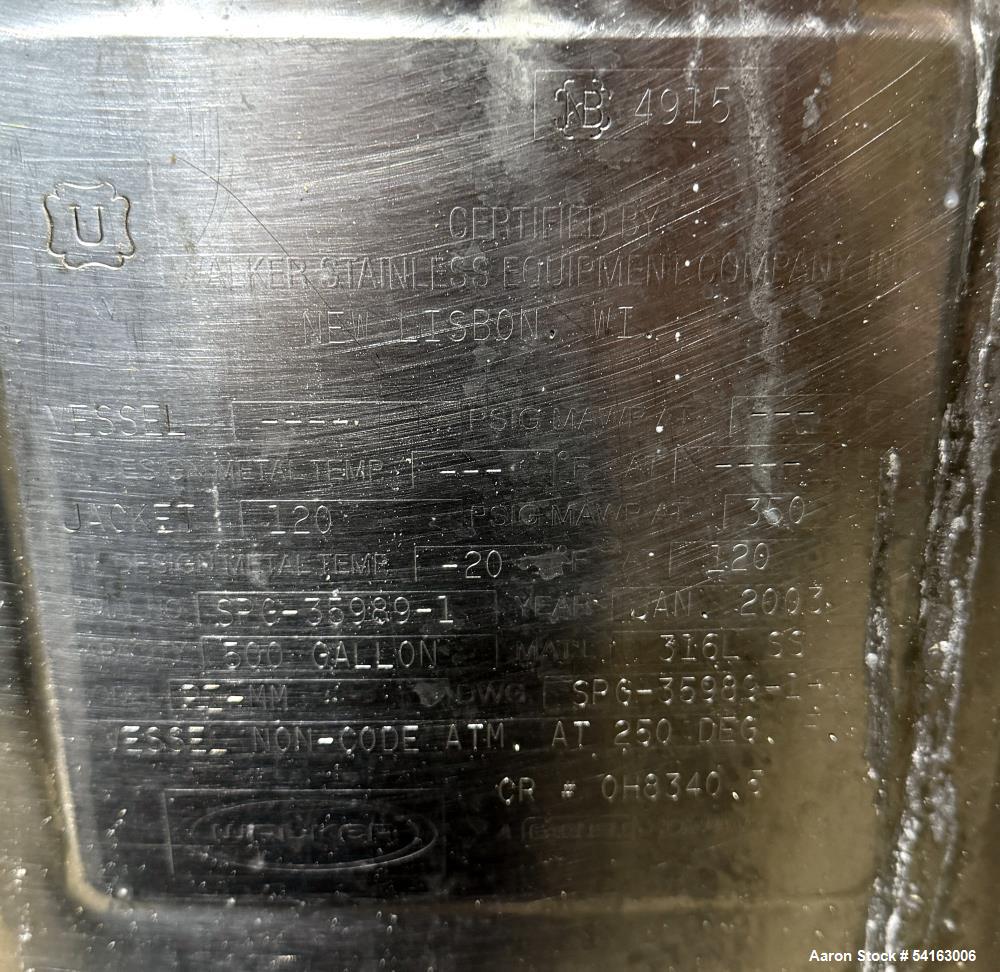

Manufacturer Information

• Manufacturer: Walker

• Model: PZ-MM

• Equipment Type: Jacketed Liquefier / Multi-Motion Mixer

• Capacity: 500 Gallons

• Material of Construction: 316L Stainless Steel

• Year Built: 2003

• Serial Number: SPG-35989-1

• National Board #: 4915

Description

This used Walker Model PZ-MM stainless steel liquefier / multi-motion mixer is a heavy-duty, sanitary processing vessel designed for intensive mixing, melting, and liquefaction of viscous or heat-sensitive products. Constructed of 316L stainless steel, the unit is ideal for food, pharmaceutical, cosmetic, and specialty chemical applications.

The vessel features a jacket rated to 120 PSI for precise thermal control across a wide temperature range. Mixing is accomplished through a top-mounted agitator with scraper/sweep blades for sidewall and bottom cleaning, combined with a bottom-entering liquefier to provide high shear and efficient product turnover. This dual-motion design ensures uniform heating, prevents product buildup, and delivers consistent batch quality.

Specifications

Vessel

• Capacity: 500 gallons

• Orientation: Vertical

• Top Design: Flat open top with agitator bridge

• Bottom: Slight coned bottom

• Internal Diameter: Approx. 64 inches

• Straight Side Height: Approx. 38 inches

• Material: 316L stainless steel

Jacket

• Maximum Allowable Pressure: 120 PSI

• Temperature Rating: -20°F to 350°F

Agitation System

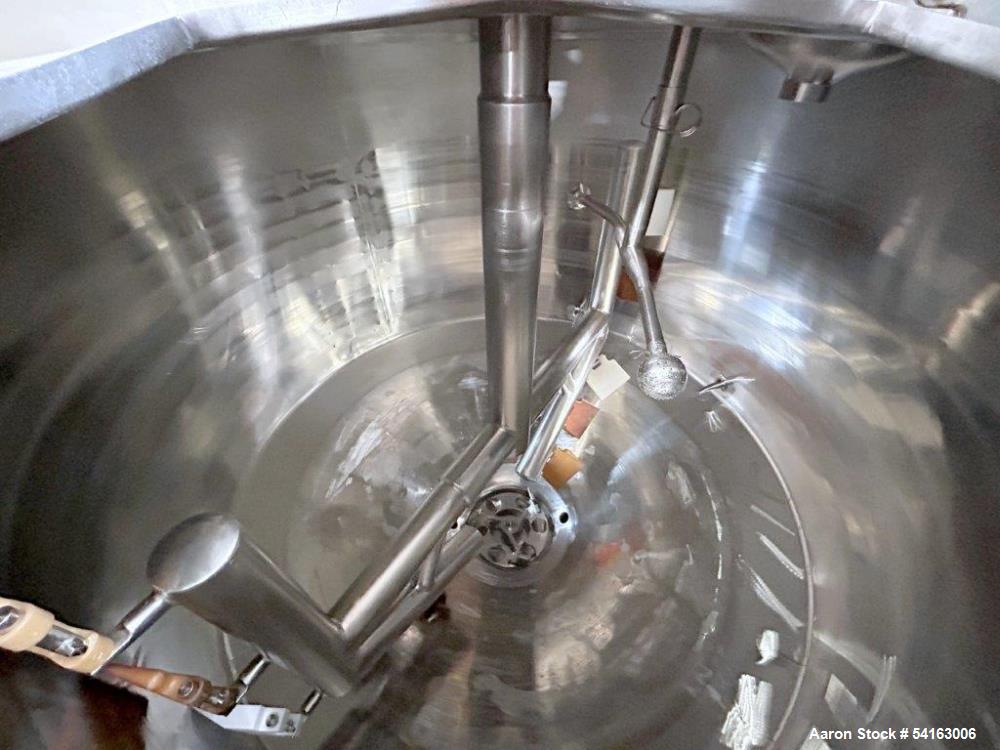

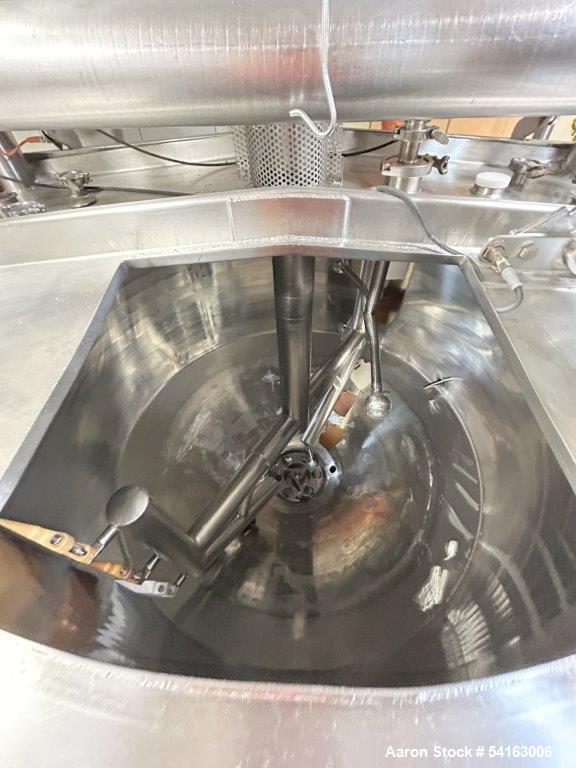

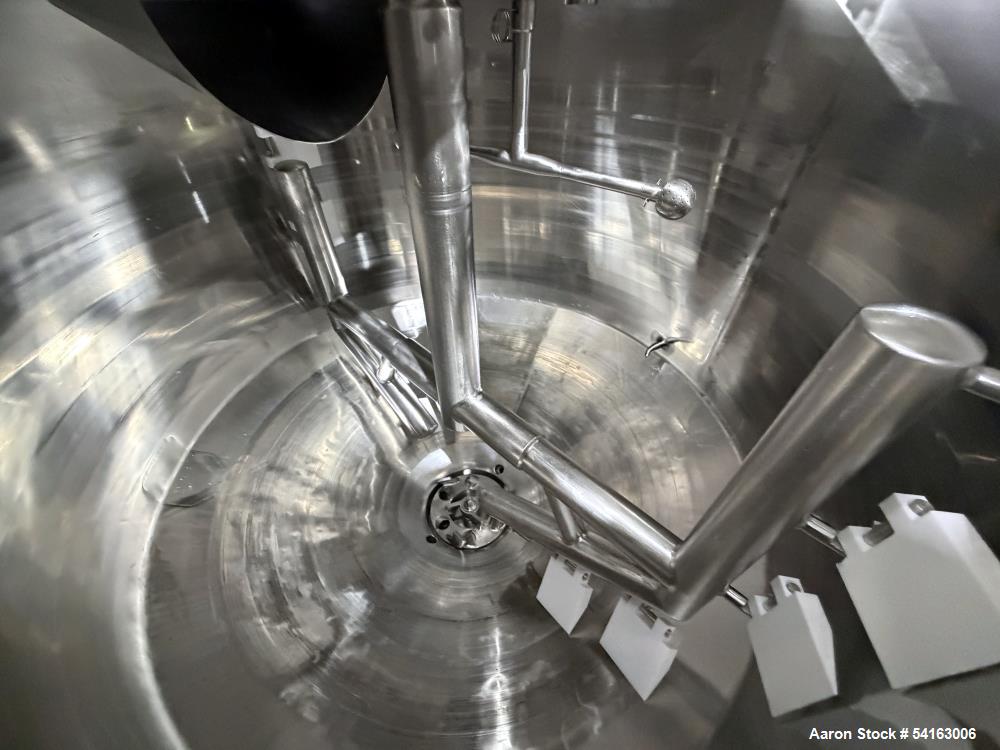

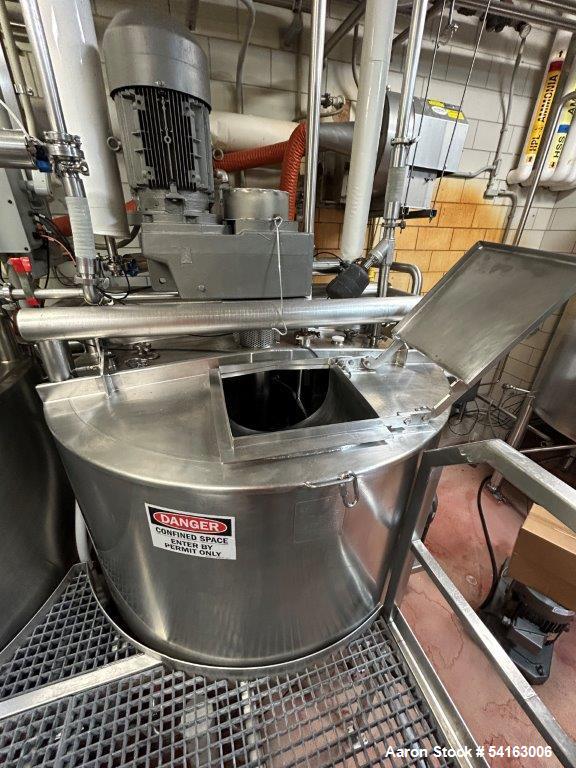

• Top-Mounted Agitator:

  • Scraper / sweep blades (sidewall and bottom)

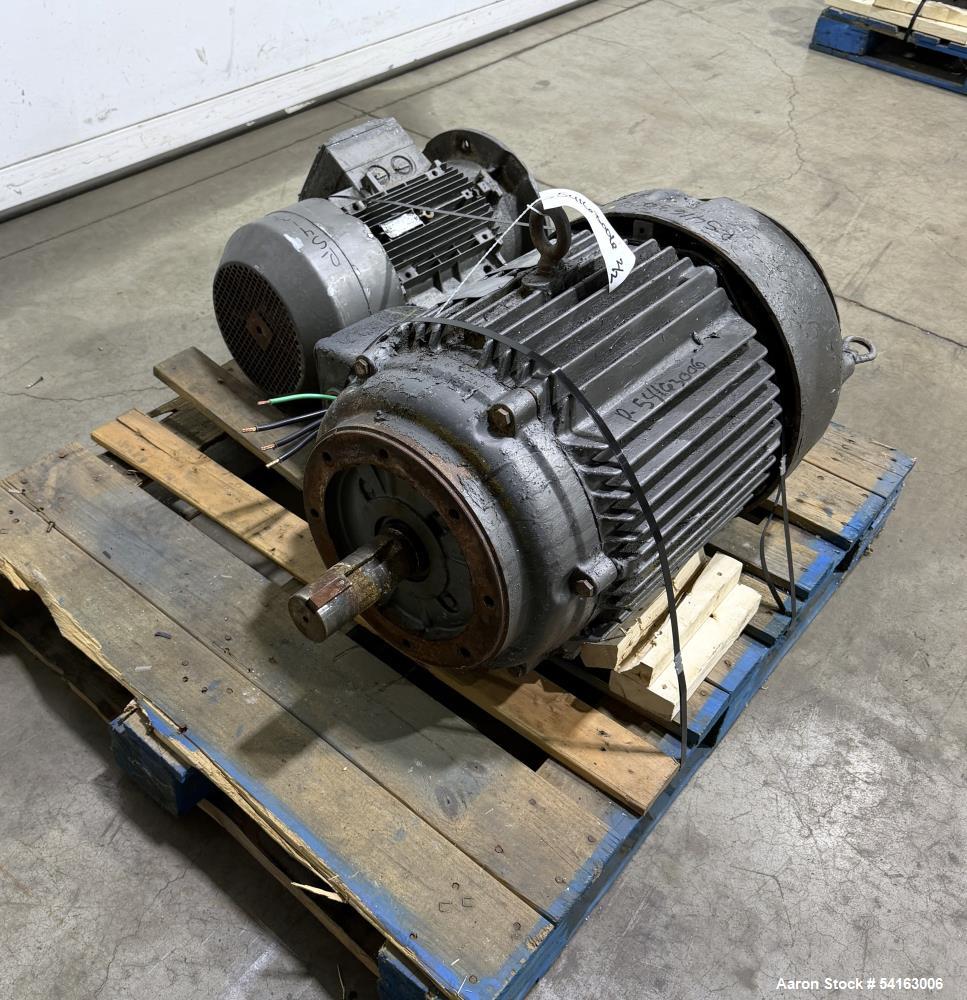

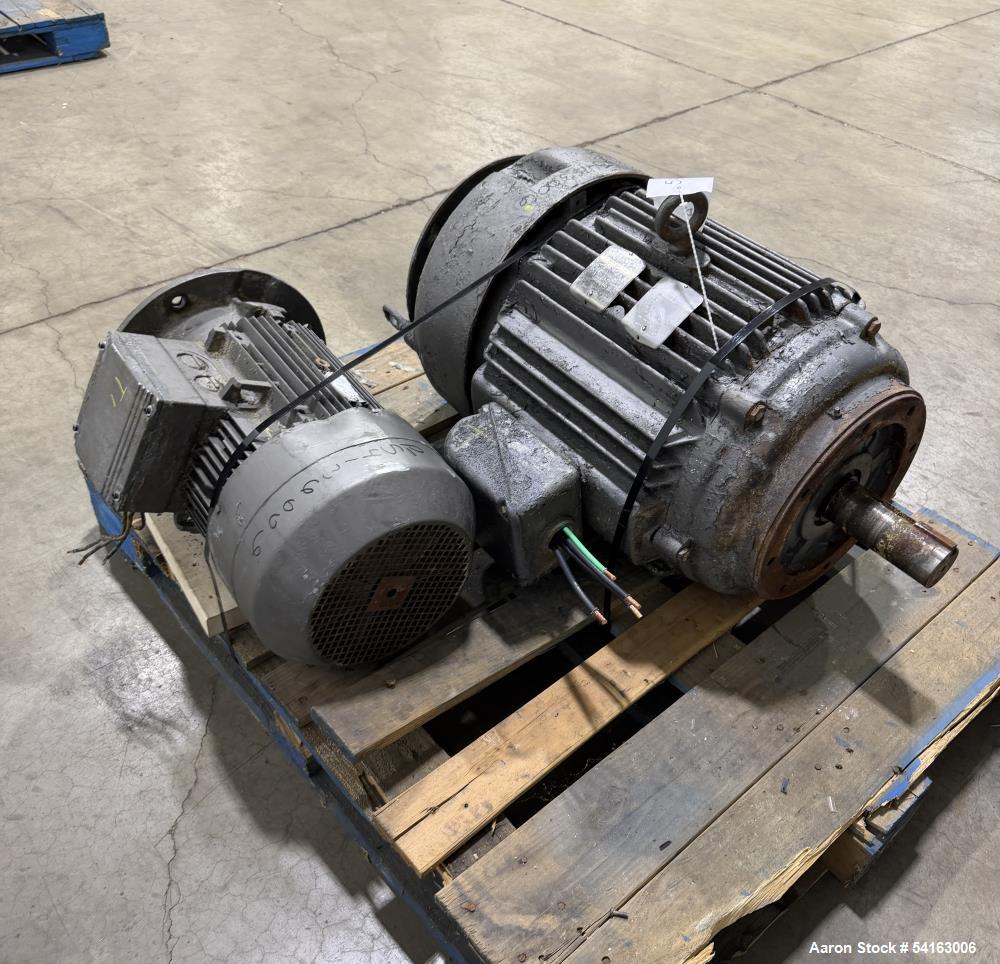

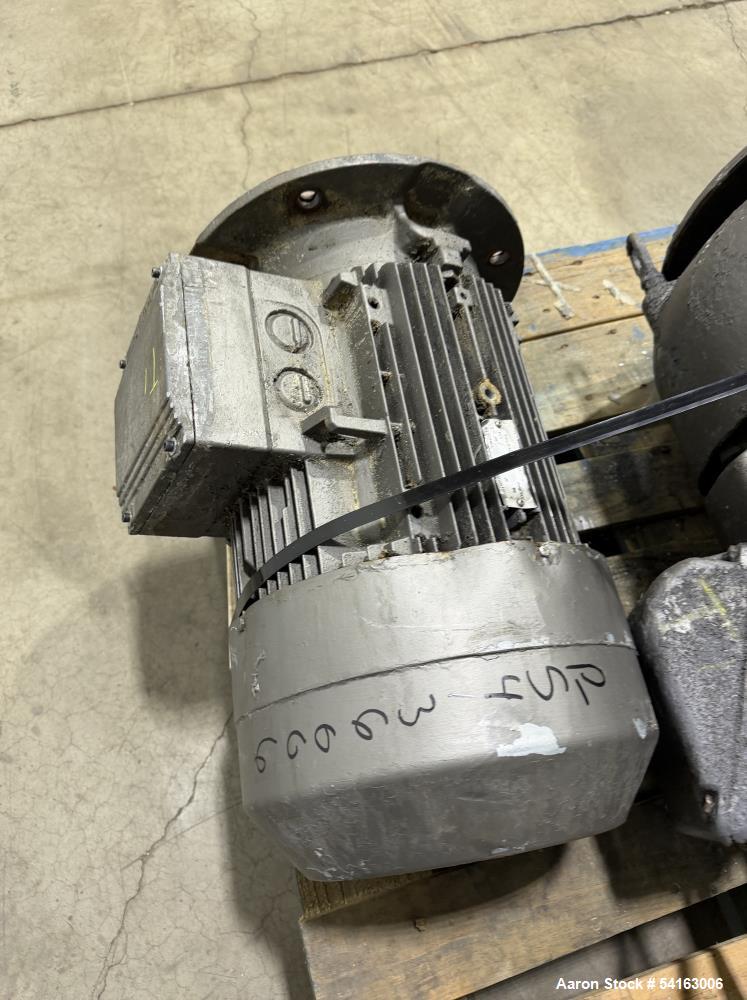

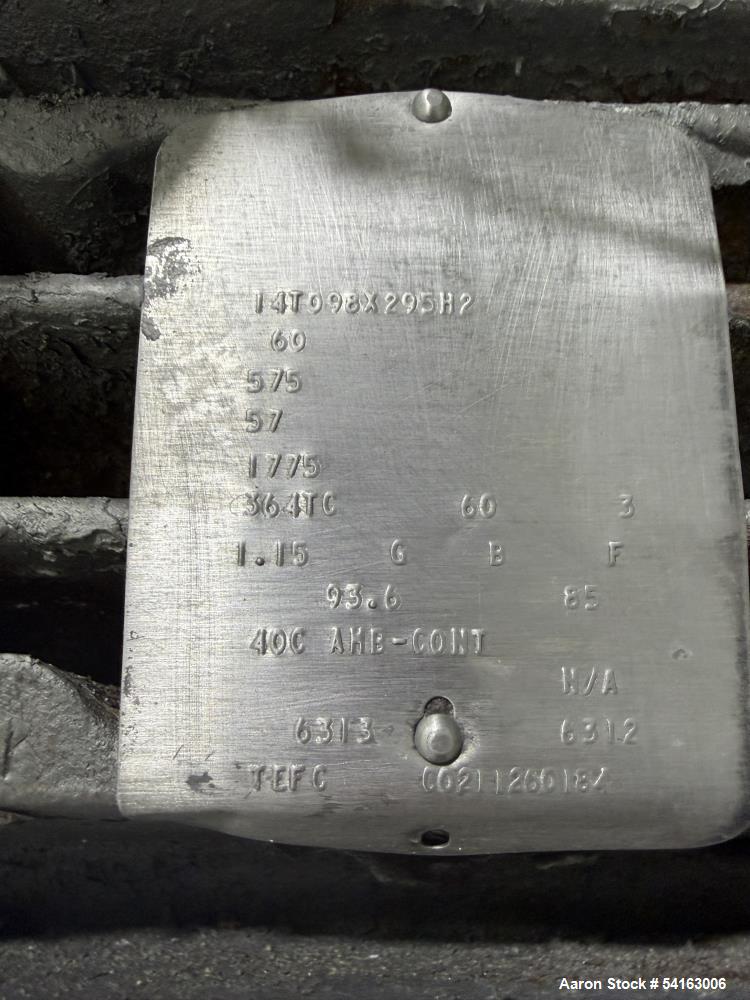

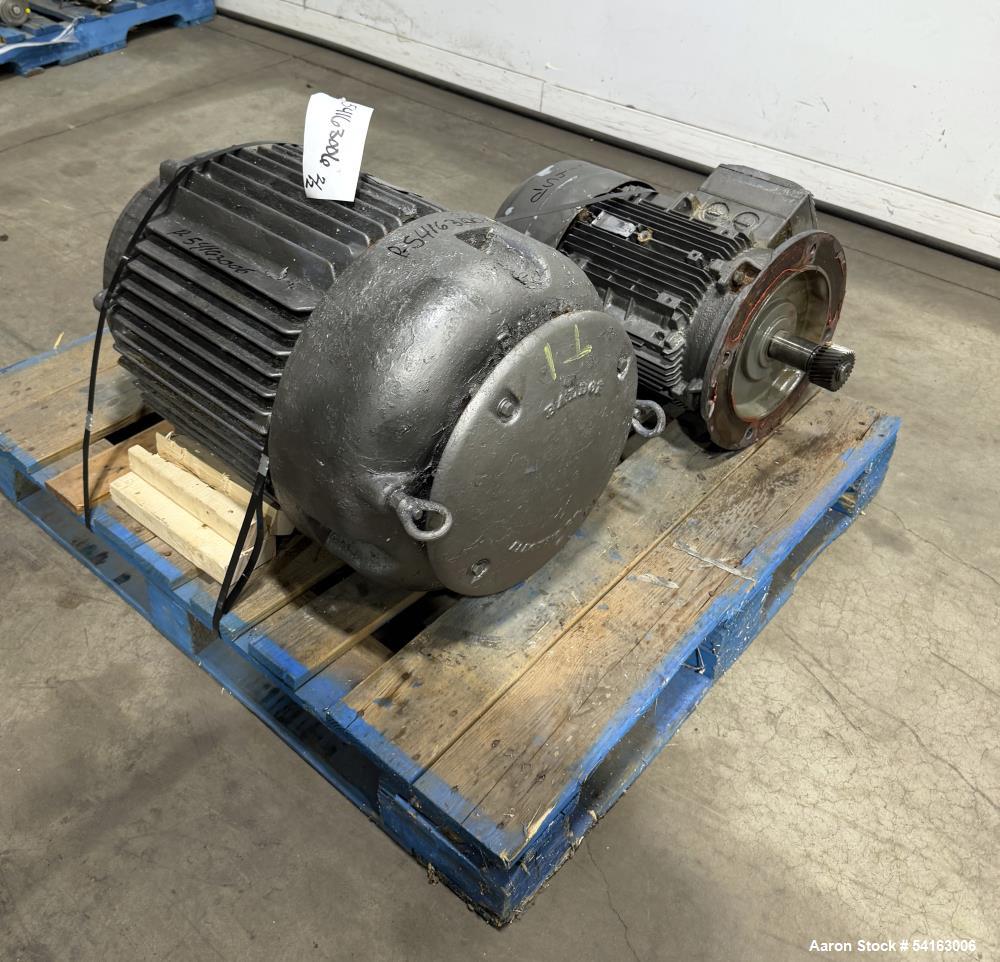

  • Motor: Approx. 60 HP

  • Electrical: 3/60/575V

  • Motor Speed: 1775 RPM

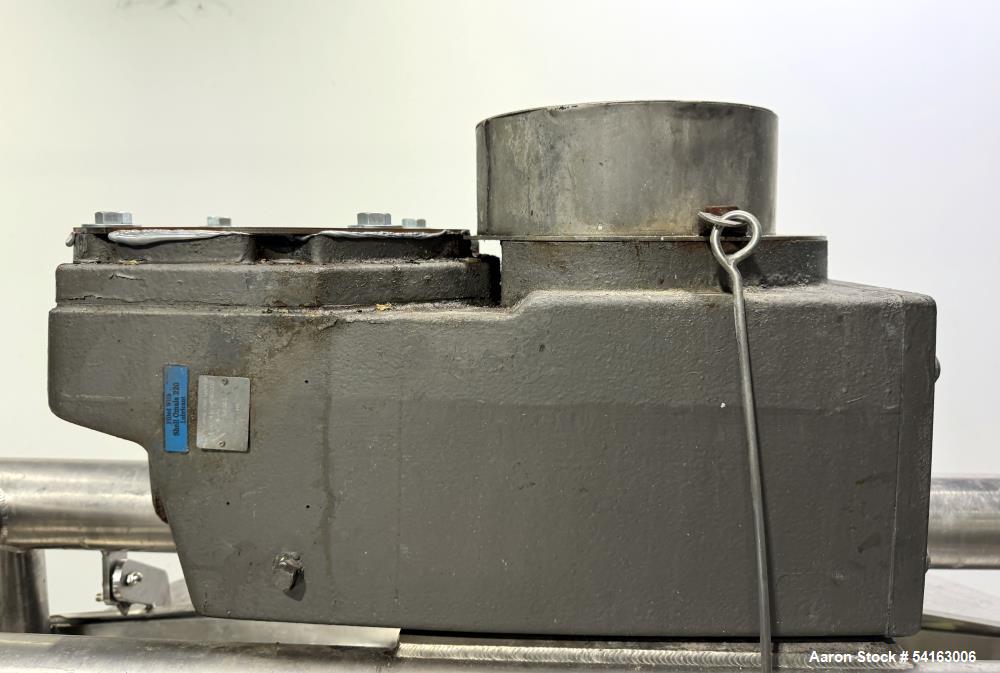

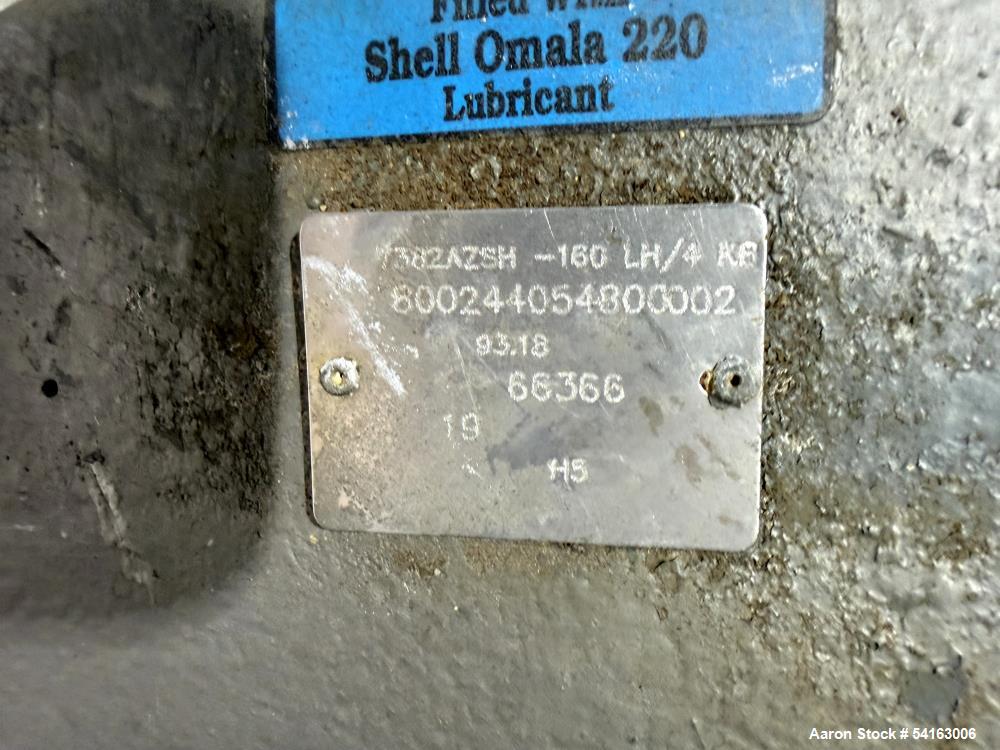

  • Gear Reducer Ratio: 93.18:1

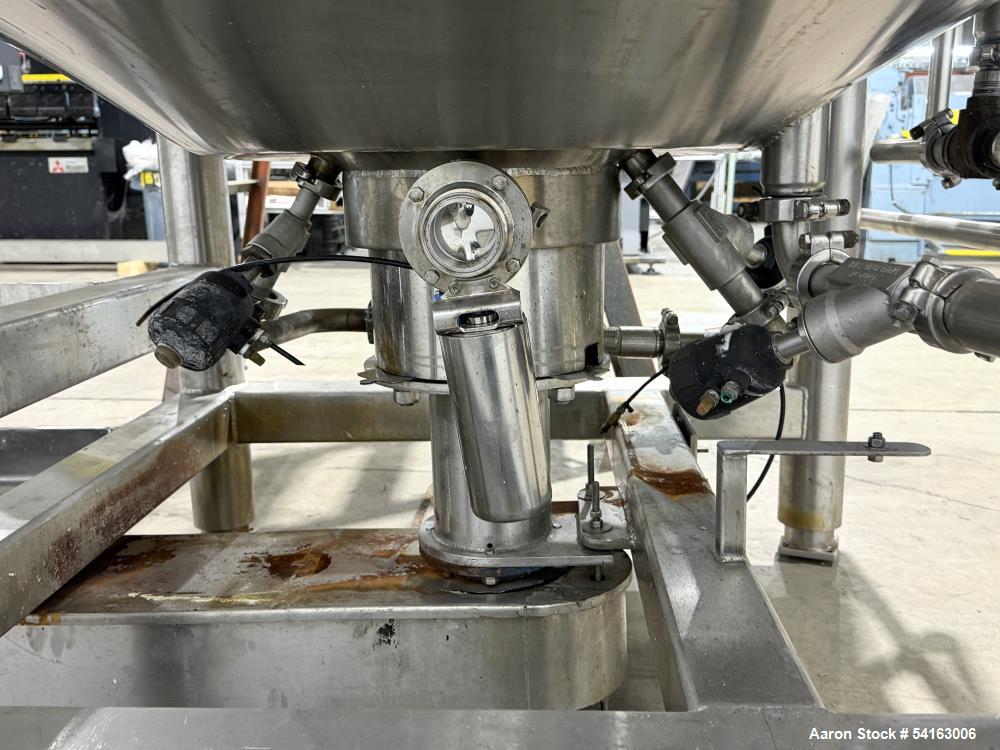

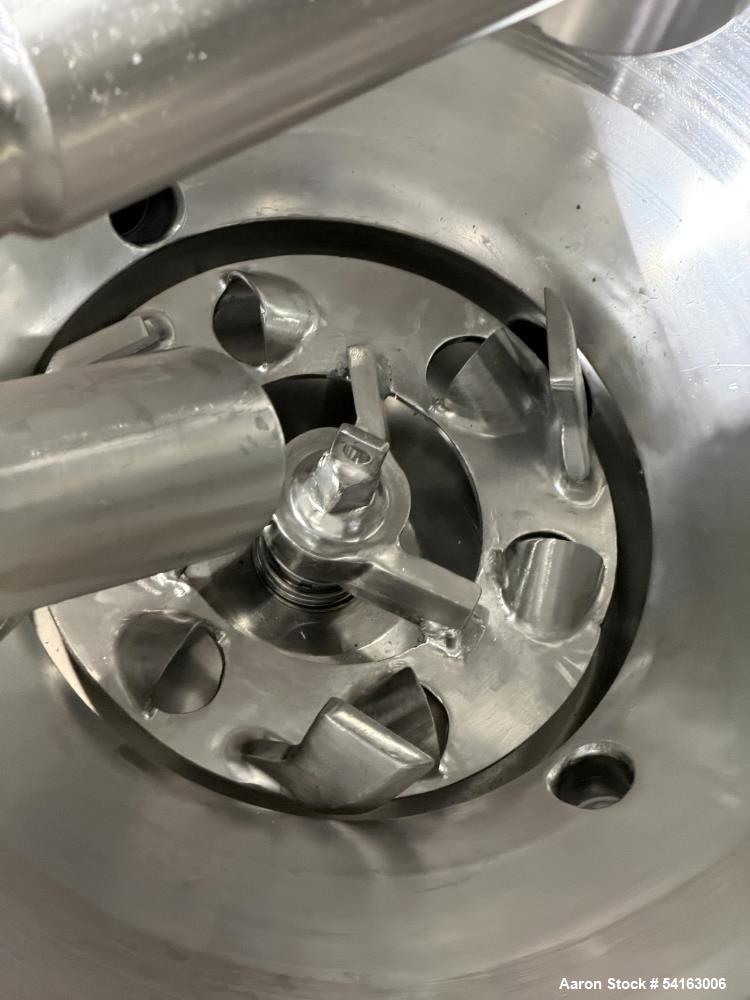

• Bottom-Entering Liquefier:

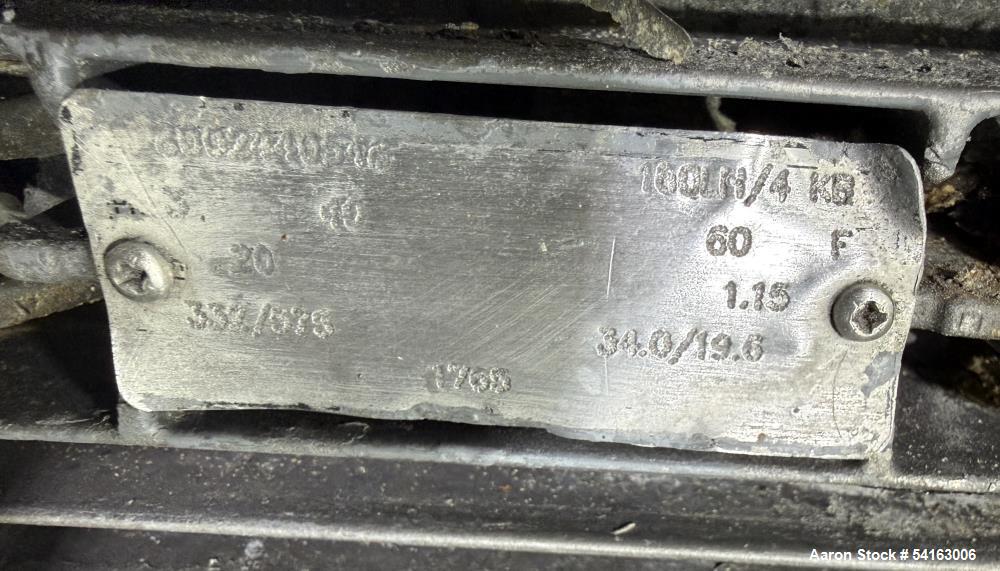

  • Motor: 20 HP

  • Electrical: 3/60/332/575V

  • Motor Speed: 1765 RPM

Connections & Openings

• Top Openings:

  • 4" agitator opening

  • 3-1/2"

  • 3"

  • 2-1/2"

  • (2) 2"

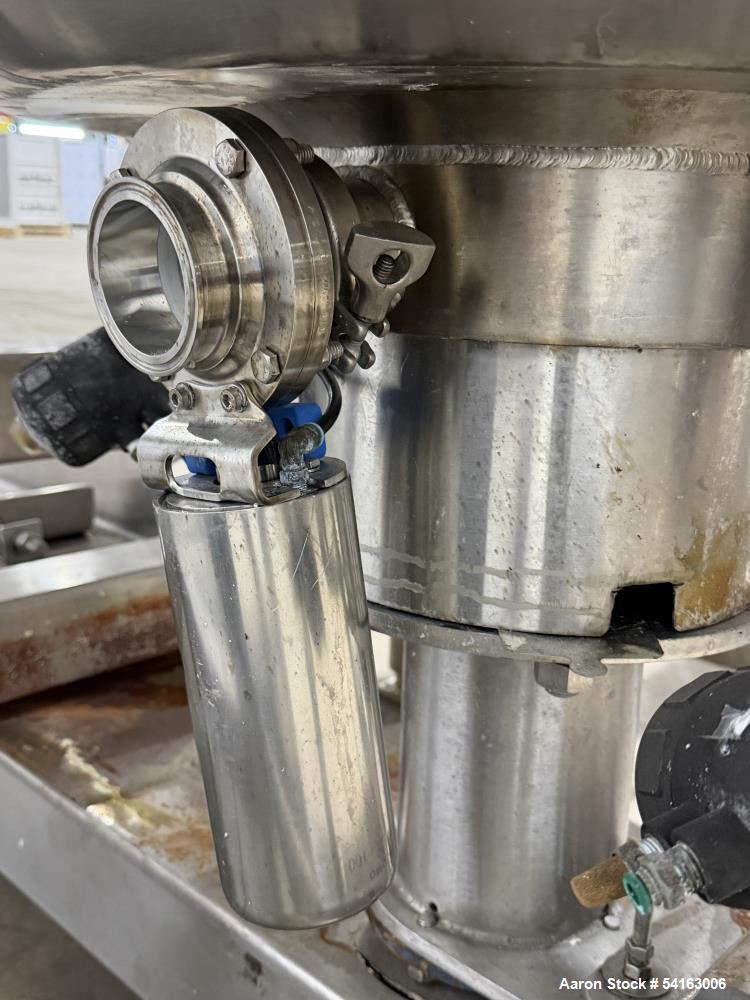

• Outlet: 2-1/2" side bottom outlet with valve

• Discharge Height: Approx. 24 inches

Cleaning

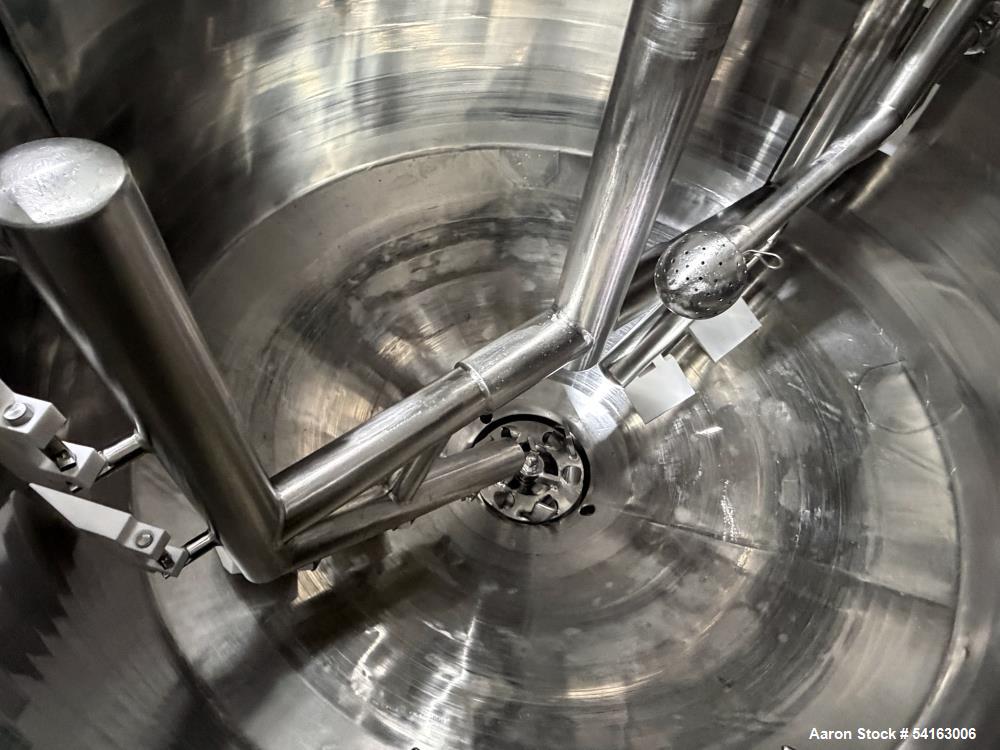

• (2) Spray balls for CIP cleaning

Applications

• Liquefaction of solids

• High-viscosity mixing

• Melting and blending operations

• Sanitary batch processing

• Temperature-controlled mixing

What Might This Be Used For

• Melting fats, waxes, or resins

• Processing creams, gels, and ointments

• Blending viscous food products

• Pharmaceutical compounding

• Cosmetic formulation mixing

• Specialty chemical processing

Products This Machine Is Commonly Used For

• Chocolate and confectionery products

• Sauces and pastes

• Lotions and creams

• Ointments and gels

• Adhesives

• Waxes and emulsions

• Nutraceutical formulations

• Specialty chemical blends

• Heat-sensitive products

• High-viscosity slurries
