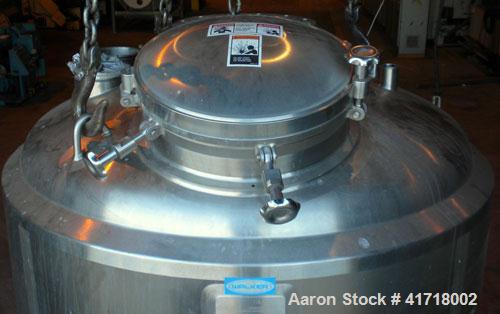

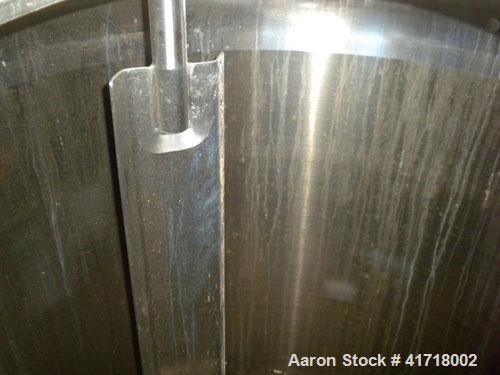

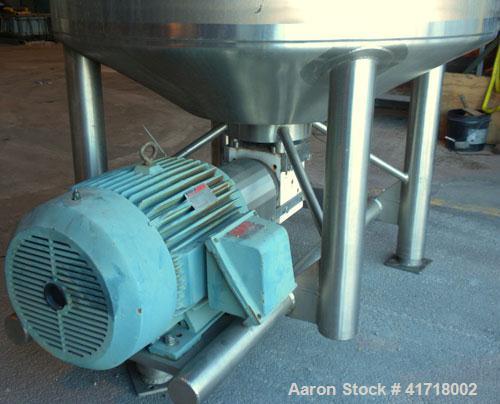

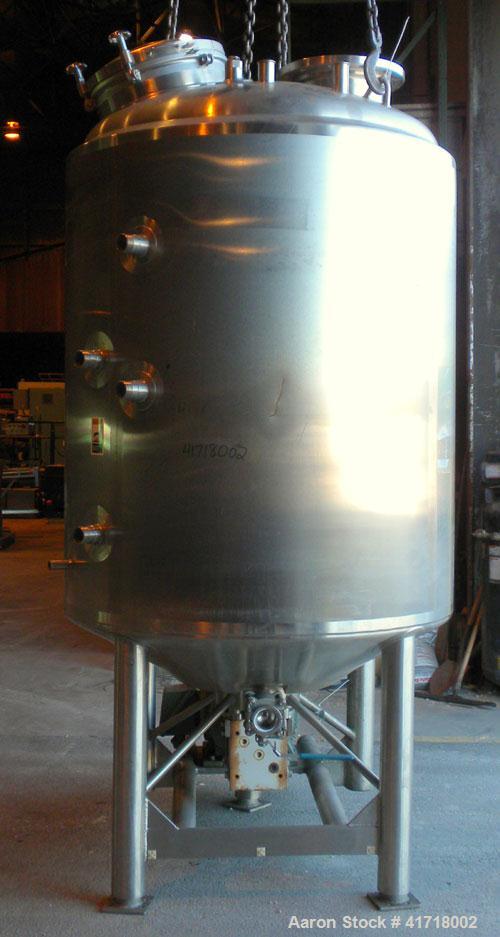

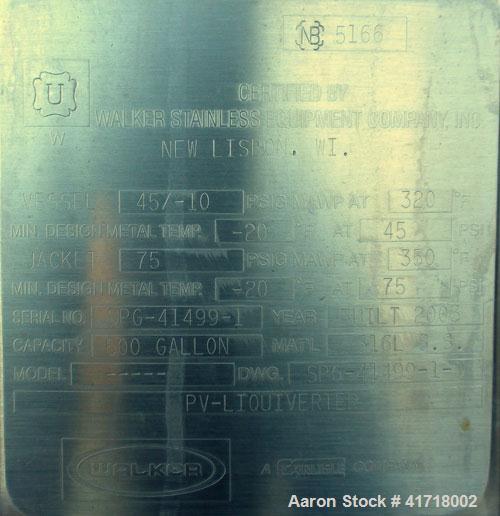

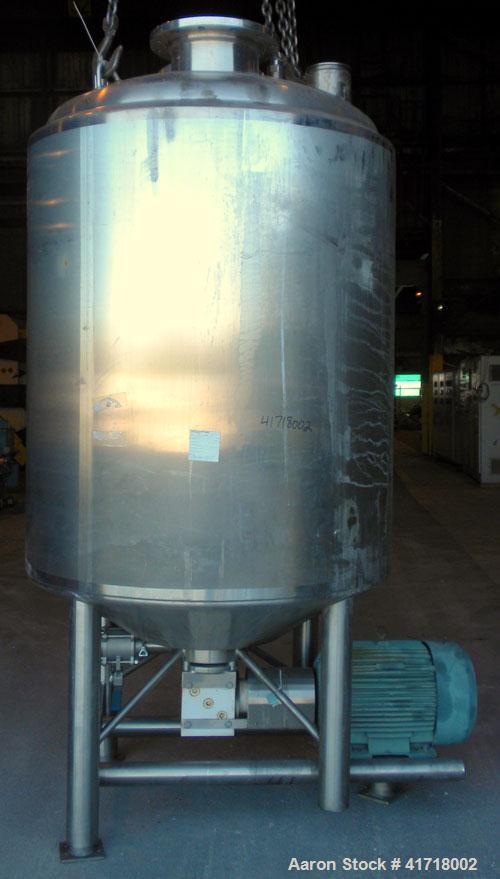

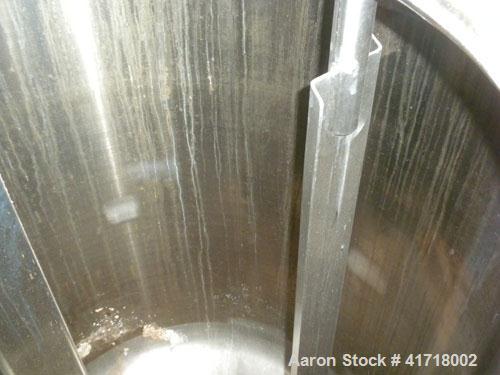

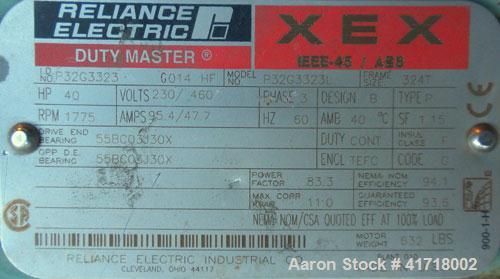

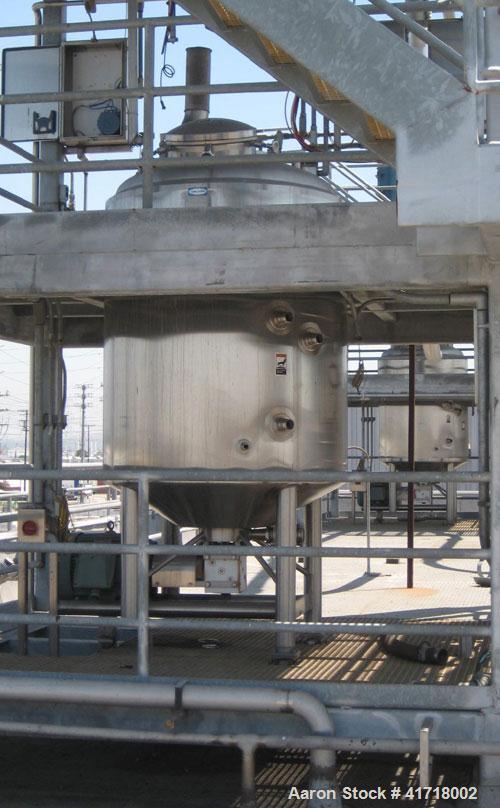

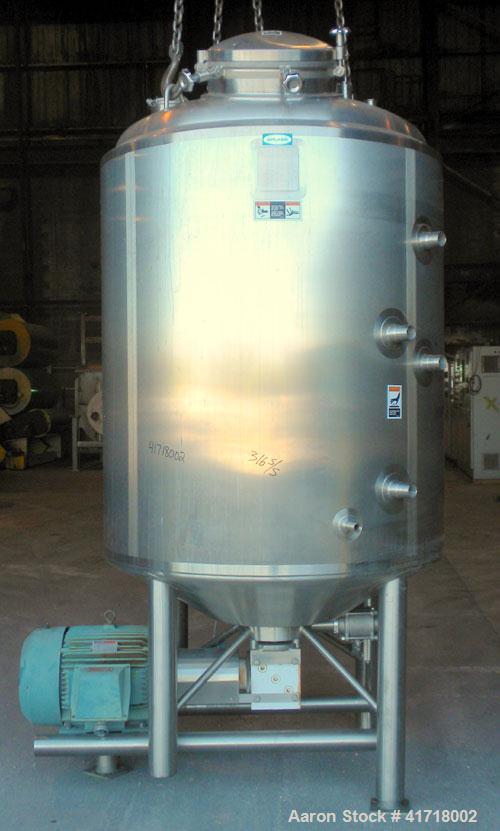

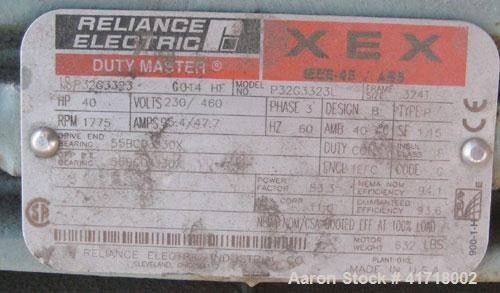

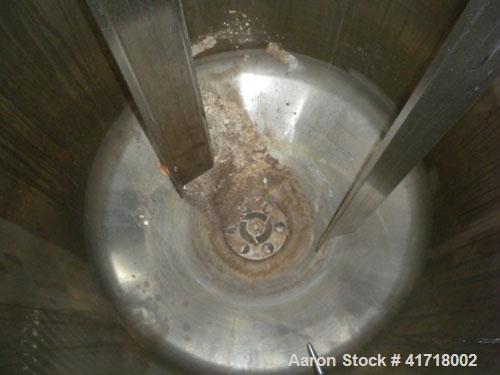

Used Walker Stainless Liquifier, 500 Gallon, model PV-Liquiverter, 316L stainless steel, vertical. Jacketed tank 52'' diameter x 60'' straight side, dished top, coned bottom. #4 Sanitary internal rated 45/-10 psi at 320 deg F and 20 deg F at 45 psi. 42'' section of side wall channel jacket rated 75 psi at 350 deg F and 20 deg F at 75 psi. Insulated with 2'' fiberglass and 304 stainless steel sheathing. Bottom entering 11-1/2'' diameter impeller, driven by a 40 hp, 3/60/230/460 volt, 1775 rpm motor thru a reducer, no ratio. (2) Top mounted adjustable and removable baffles. Openings: top (2) 2'' tri-clamp, 3'' tri-clamp, (2) 6'' tri-clamp, 12'' flange, 20'' manway with cover; 3'' tri-clamp tangential bottom outlet, approximately 23'' discharge height. (4) 2'' threaded jacket inlets. Mounted on 4 stainless steel legs. Built 2003.
Used Walker Stainless Liquifier, 500 Gallon, model PV-Liquiverter, 316L stainless steel, vertical. Jacketed tank 52'' diameter x 60'' straight side, dished top, coned bottom. #4 Sanitary internal rated 45/-10 psi at 320 deg F and 20 deg F at 45 psi. 42'' section of side wall channel jacket rated 75 psi at 350 deg F and 20 deg F at 75 psi. Insulated with 2'' fiberglass and 304 stainless steel sheathing. Bottom entering 11-1/2'' diameter impeller, driven by a 40 hp, 3/60/230/460 volt, 1775 rpm motor thru a reducer, no ratio. (2) Top mounted adjustable and removable baffles. Openings: top (2) 2'' tri-clamp, 3'' tri-clamp, (2) 6'' tri-clamp, 12'' flange, 20'' manway with cover; 3'' tri-clamp tangential bottom outlet, approximately 23'' discharge height. (4) 2'' threaded jacket inlets. Mounted on 4 stainless steel legs. Built 2003.
