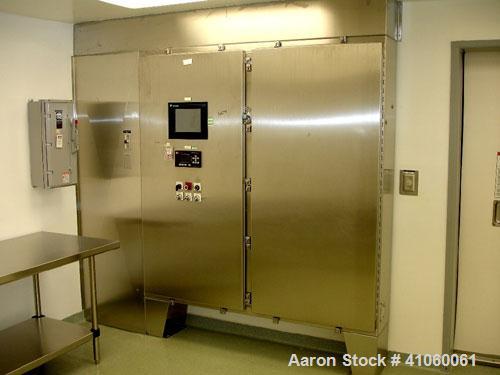

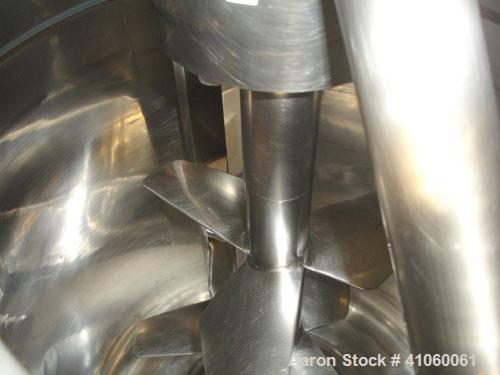

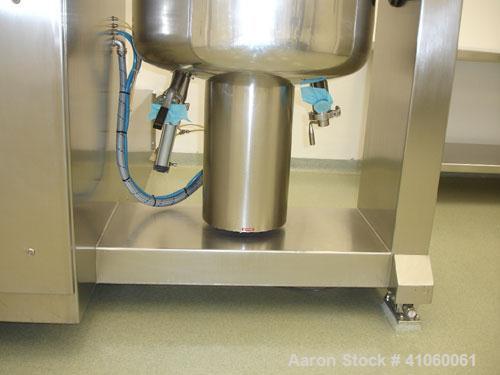

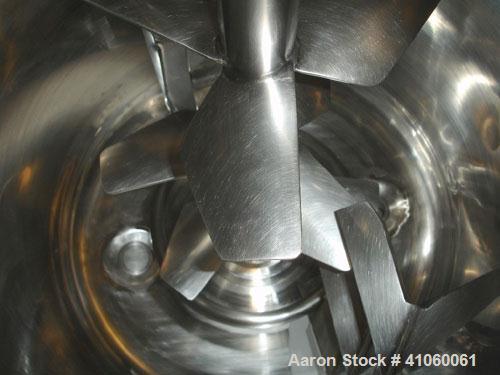

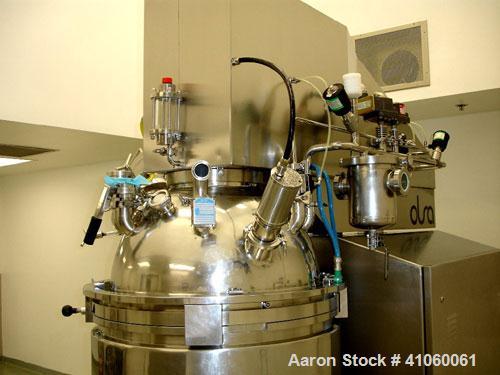

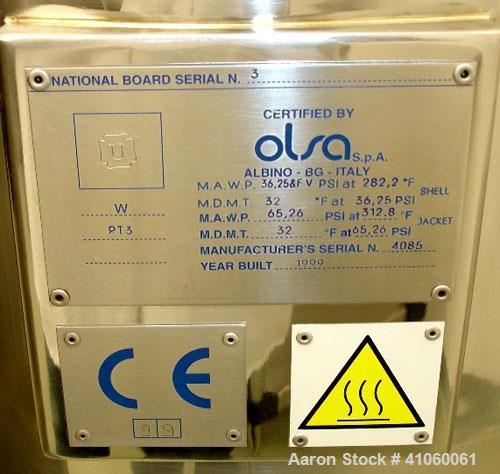

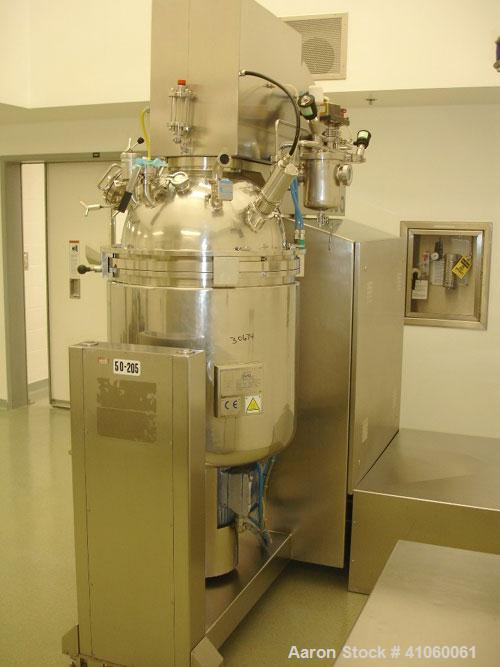

Used Ross/Olsa Vacuum Mixer Homogenizer, Model MACEF PH 150. 30 to 150 liter working capacity, 190 total, 316L stainless steel. Approximately 24.80" diameter x 20.43" straight side. Domed removable top cover, dished bottom. 320 grit mirror finish internal rated 36.25 psi/FV at 32 to 282.2 deg F, 304 stainless steel jacket rated 65.26 psi at 32 to 312deg F. Outer anchor agitator with side wall scrapers driven by .95/1.25 kw motor, approximately 11-43 rpm. Inner counter-rotating blade driven by .44/.59 kw motor, approximately 20-86 rpm. Bottom mounted toothed rotor/stator homogenizing turbine driven by 2.2/2.9 kw motor, approximately 750-3000 rpm. Floor mounted with hydraulic lifting head and tilting bowl. Includes a control panel with Allen-Bradley SLC 500 series PLC. Serial #4085, National Board #3, built 1999.
