Used Homogenizer Mixers

Stock# 13705059

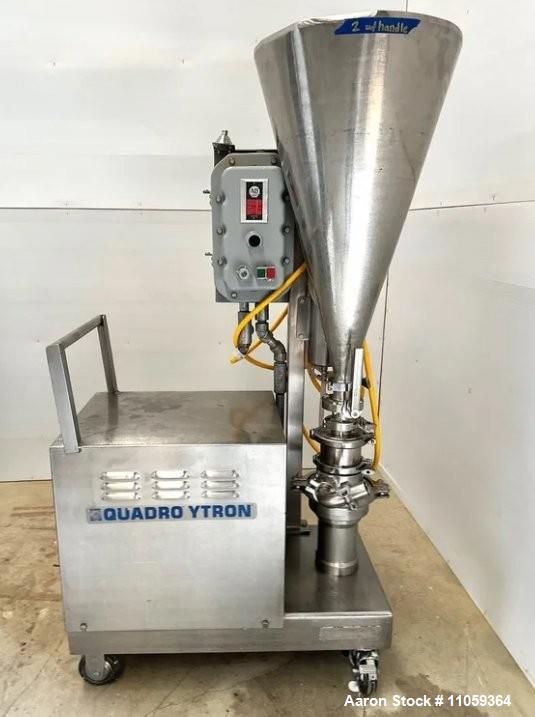

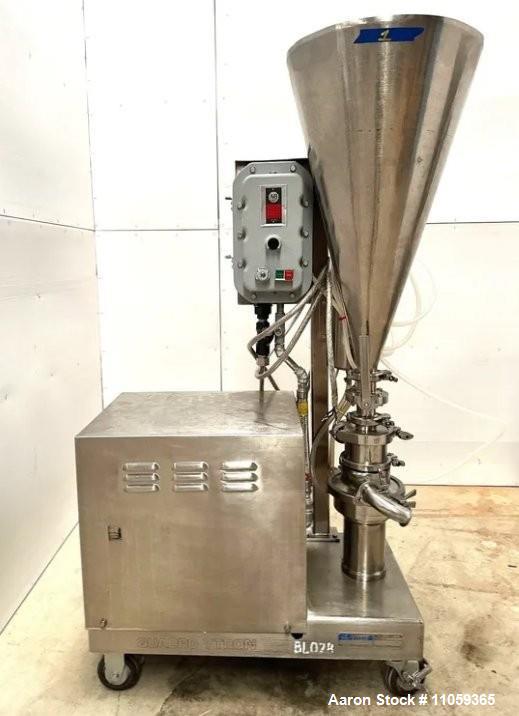

Used- Model ZC-1 Quadro Ytron Blender System. Sanitary 316 Stainless Steel Quadro Model # ZC-1 Ytron Blender System. Type 316 sanitary stainless steel construction. Unit consists of Quadro Model ZC-1 Ytron Blender, driven by 7.5 hp, 3/60/ 230- 460 Volt, 3600 rpm, TEFC motor, with Waukesha Model 25 DO Positive Displacement Pump with drive and Waukesha Centrifugal Pump, rated app. 15-40 GPM liquid and 60 pounds per minute, powder depending on product.

Stock# 11585021

Used- Brogli Multi Homo Mixer. Stainless Steel contacts. Model Multi Homo, Type MH10C. 10 liter working capacity. 0.28 kw/0.37 kw motor, 3 phase 60 cycle, 208 volt. Triple motion agitator. Anchor Hi/Lo Scraper. Spiral Agitators. Homogenizer. Top mounted light. Mixer bowl rated 25 psi. Full vacuum at 400 degrees F. Jacket rated 43.5 psi at 400 degrees F. Serial Number WO2762. Built 1987. Bowl mounted on castors with manual lift. Vacuum pump inside control cabinet. Controls. Serial Number 2762. Pharmaceutical Mixer, internal polished.

Stock# 48681

Used- Tokushukika Kogyco Co Ltd Agi-Homo Mixer, Model 20-50. 20 Gallon (75 liter) working capacity. 316 Stainless steel polished interior. Stainless steel jacketed rated to 40 psi (2.6 bar). Tiltable bowl 18-1/2" (476 mm) diameter x 18-1/2" (476 mm) deep. Counter rotating paddle agitator with end scrapers. 0.4 kw (0.6 hp) 220 volt. In combination with homo mixer. 2-3/4" (97 mm) diameter turbine blade, 1.5 kw (2.25 hp) 220 volt. Hemi bottom. Dish top with hydraulic tilt. 0.75 kw (1.12 hp) 220 volt. 1-1/2" (41 mm) cbo with shut-off valve. Unitized with separate control panel and starters. New 1990.

Stock# 10147102

Used-Brogli MH-300 C Mixer/Homogenizer, 304 stainless steel. Total capacity 6.6 gallons (25 liters), working capacity 5.3 gallons (20 liters), vessel diameter 13.6" x 10.8" (345 x 275 mm). Vessel mounted on wheels with dished bottom and flat top side. Working pressure vacuum, jacketed, working pressure 14.5 psi (1 bar), test pressure 37.7 psi (2.6 bar), with propeller spiral "Helix" stirrer, with anchor stirrer "scraper stirrer". Motor 0.24/0.32 hp, 0.18/0.24 kW, speed mixing shaft anchor 0.33/0.79 hp, 0.25/0.37 kW, with switch.

Stock# 40037107

Used- Ross Inline Lab Mixer Emulsifier, Model ME400L. Approimately 3" diameter x 2" long horizontal chamber. Driven by a 1/2 hp, 3/60/208-230/460 volt, 3150 rpm motor.

Stock# 40037477

Used- Kinematica Polytron Lab Size Homo Mixer, Model PTDEX, stainless steel. Jacketed bowl 8'' diameter x 9'' deep. Driven by a 2 hp, 3/60/230/460 volt, 3520 rpm motor.

Stock# 44747005

Used- Quadro Y-Tron Y Jet High Speed Disperser, Model Y3, Stainless Steel. Driven by a 3hp, 3/60/208-230/460 volt, 1770 rpm motor, serial# Y3-0109, built 1998. Includes an approximate 200 gallon 304 stainless steel tank, 32" diameter x 60" straight side, flat top with 1/2 hinged cover, dished bottom. Side openings 6" drive, 3". 2" Center bottom outlet. Mounted on 3 stainless steel legs.

Stock# 45053316

Used- Ross Homogenizer / High Shear Mixer, Stainless Steel. Driven by a 5 hp motor. Serial # 41958.

Stock# 68869

Used- Brogli-Molto-Mat-Universal Mixer/Homogenizer, Type MMU20. Stainless steel construction, polished on product contact parts. 0.7 cubic foot (20 liter) working capacity, jacketed and rated for vacuum. Complete with agitator and Reeves drive. Carbon steel frame.

Stock# 50430001

Used- Charles Ross High Shear Mixer, HSM 401SC/10, Horizontal, Stainless Steel. Driven by a 10 hp, 3/60/230/460 volt, 3500 RPM direct drive AC tech speed control. Includes S.L.I.M. solids, liquid injection manifold. (3) 1-1/2" Diameter tri-clamps ports. Stainless steel hopper 24" diameter x 20" deep. 2" Tri-clamp fittings with reducer to 1-1/2". Portable on base with casters. Serial# 103298.

Stock# 48336001

Used- Quadro Ytron Z Single-Pass Emulsifier / Homogenizer, Model Z3, 316 Stainless Steel. Approximate capacity 100 Gallons per minute. Approximate 6-1/2" diameter x 6" deep chamber, 2" tri-clamp inlet/outlet. Requires rotor and stator assembly (NOT INCLUDED). Driven by a 20 hp, 3/60/208-230/460 volt, 3520 rpm motor. No manufacturers tag.

Stock# 45053315

Used- Ross Homogenizer / High Shear Mixer, Model HSM525, Stainless Steel. Driven by a 25 hp motor. Serial# 108496...

Stock# 11059117

Used- Quadro Y-Tron Model Z5 Multi-row Toothed Rotor-Stator Mixer. (3) Stage unit. Rated up to 300 GPM. Stator gap size in 0.5mm. Driven by 40 HP, 230/460 volt, 1775 rpm, WEG inverter duty/severe duty motor. Designed for high-shear process applications such as immiscible phase emulsifying/homogenizing, wet grinding, deagglomeration and fine solids dispersing. Sanitary construction. Built in 2013. Includes spare seal kit and bearings.

Stock# 13705051

Used- Quadro Ytron Model Z-5 Inline Mixer/ Emulsifier. 3- stage, sanitary, 316 SS Quadro Ytron Model Z-5 Inline Mixer/ Emulsifier. 3- stage rotor/ stator set , 3" inlet and 3" outlet, sanitary type 316 stainless steel construction. Rated up to 300 GPM dependant on product characteristics, mechanical seal with lubricator. Driven by 40 hp, 3/60/208-230-380- 460 volt, 1750/ 1455 rpm motor. Mounted on stainless steel base with casters, with spare rotor/ stator set. Built 2010. (Like New)
