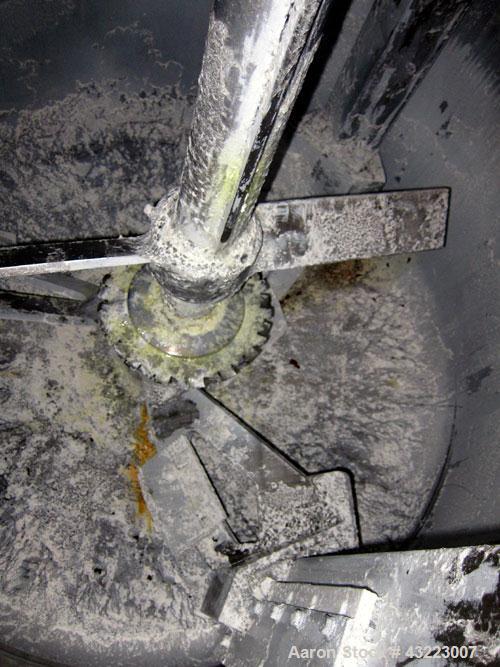

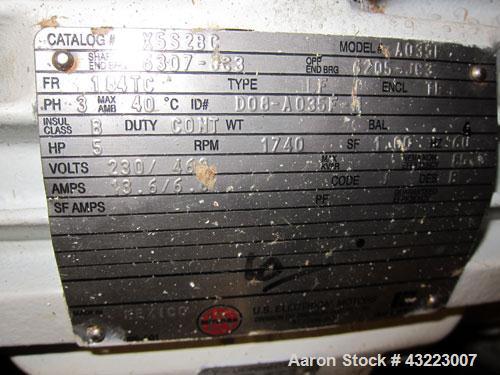

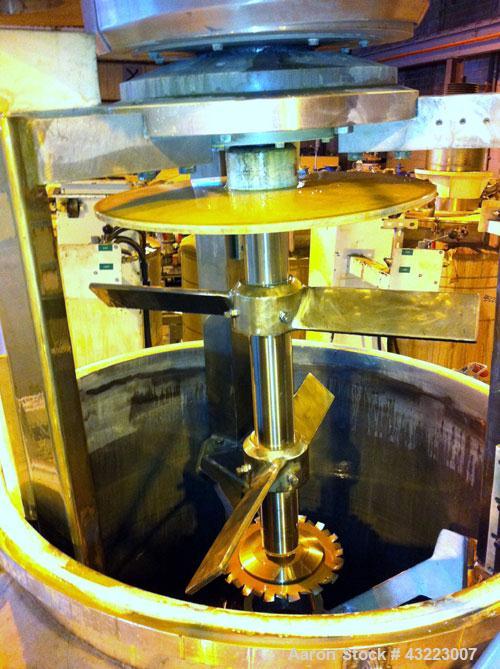

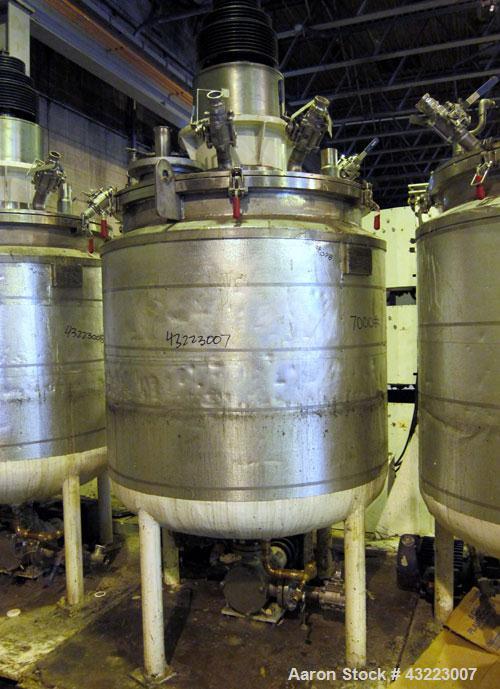

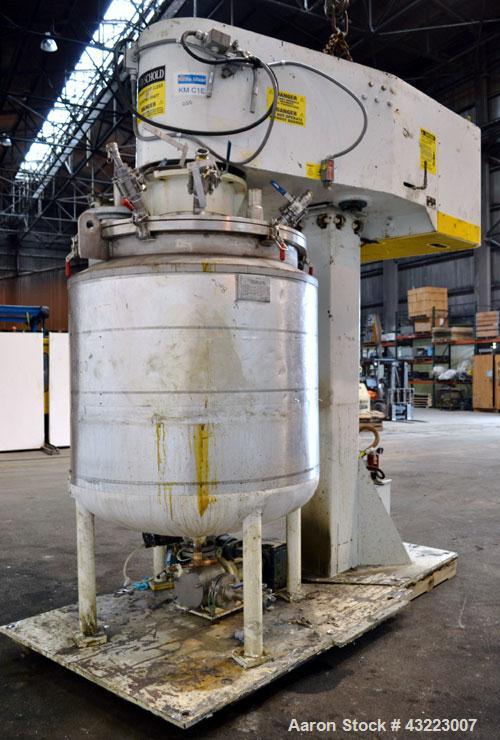

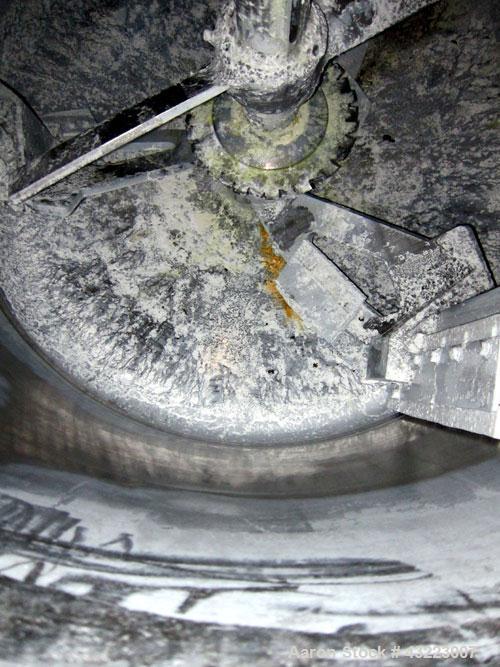

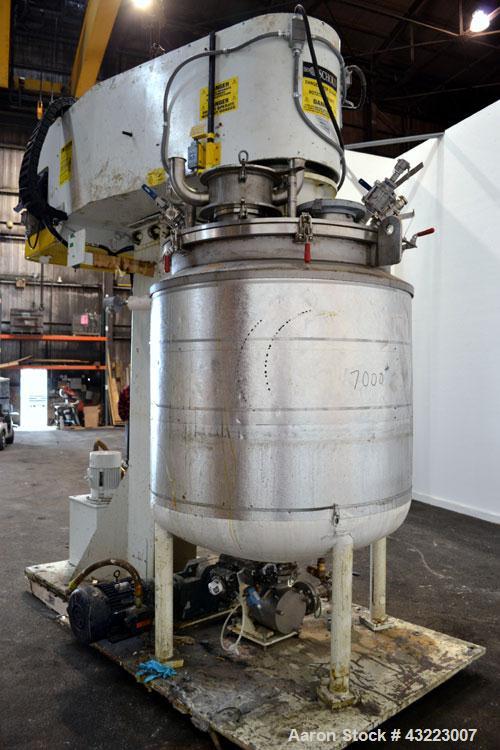

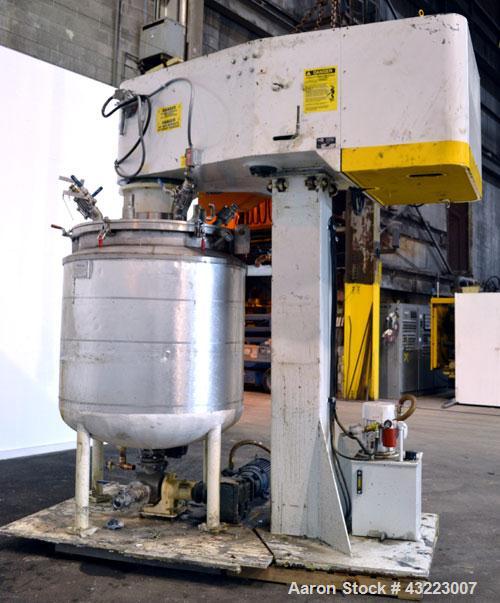

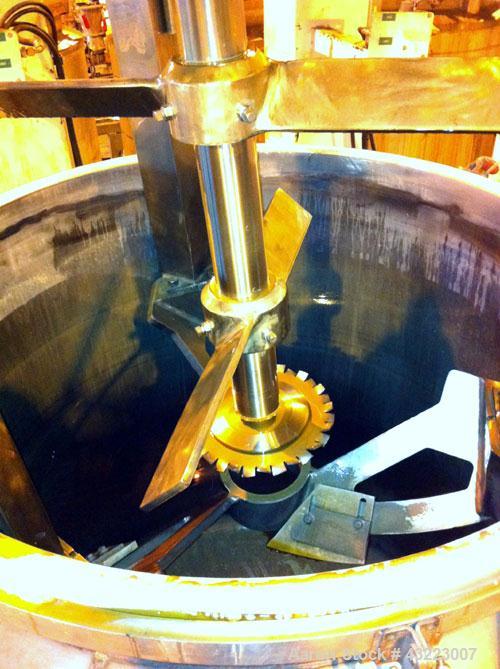

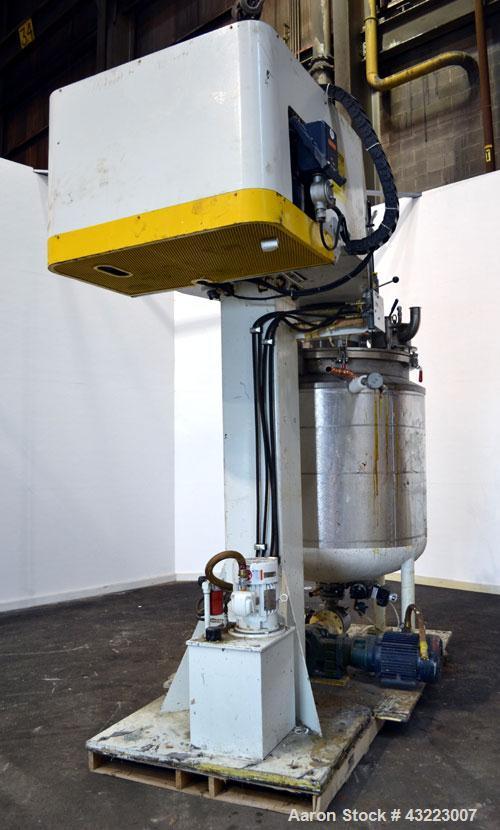

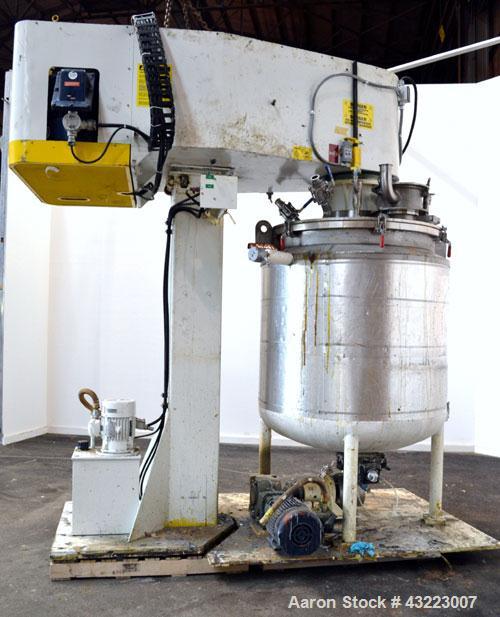

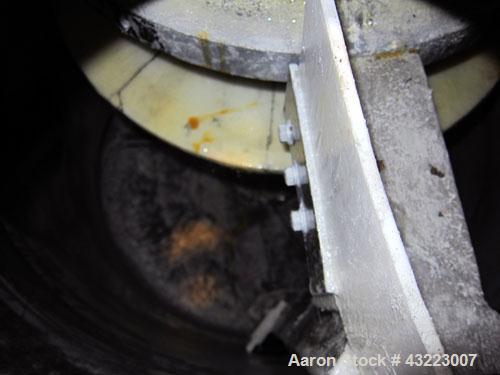

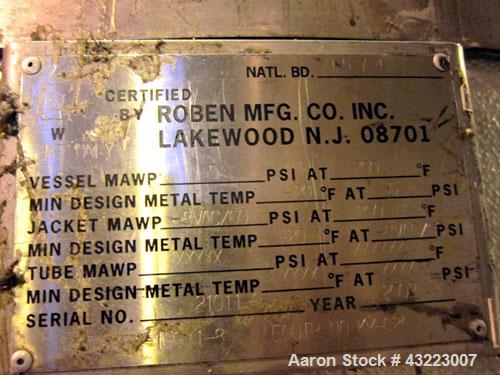

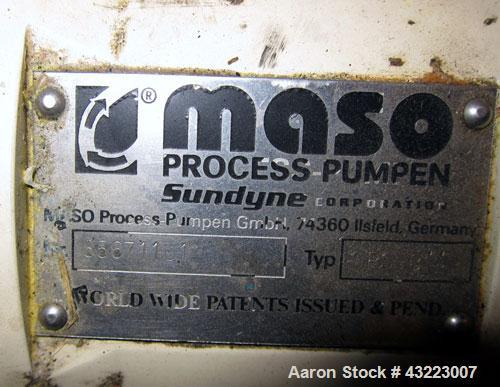

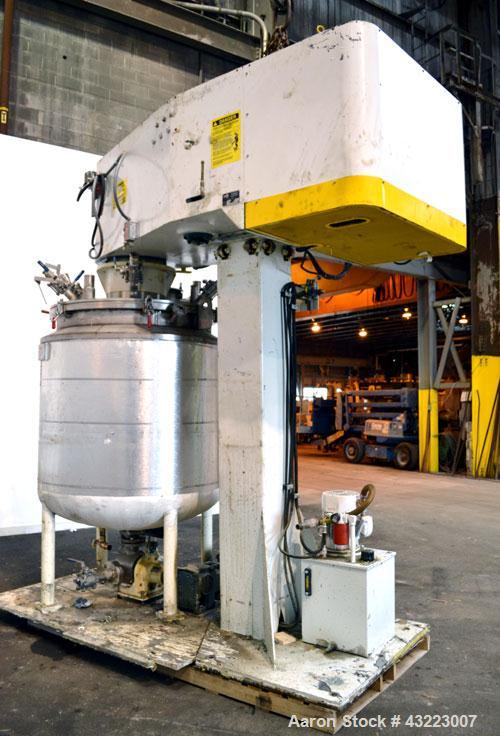

Used Schold Concentric Triple Shaft Tri-axial Disperser, 304 Stainless Steel. (1) High speed shear blade, driven by a 40 hp, 3/60/230/460 volt, 1800 rpm XP motor, speed range 0-1750 rpm, (1) Intermediate speed bar turbine blades, driven by a 15hp, 3/60/230/460 volt, 1200 rpm XP motor, speed range 0-600 rpm, (1) Low speed Anchor type blade with scrapers, driven by a 10 hp, 3/60/230/460 volt, 1800 rpm XP motor, speed range 0-30 rpm. 5 hp, 3/60/230/460 volt, 1740 rpm XP hydraulic lift, 60" rise, 189" overall lift height. Includes a Roben kettle, 350 gallon, 304 stainless steel, vertical. 46" Diameter x 46" straight side, Flat clamp on top, dished bottom. Internal rated 5 psi at –20 to 250 degrees F., carbon steel jacket rated –8VAC/60 psi at –20 to 250 degrees F. 3’’ Center bottom outlet, mounted on 4 carbon steel legs. National Board# 9574, serial# 21011-6, built 2002. (1) Maso-Sine discharge pump, model SPS-3’’, stainless steel. Approximate capacity (0.45) Liter per revolution, maximum particle size 25mm, viscosity over 1.000.000 CP. Driven by a 7-1/2hp, 3/60/208-230/460 volt, 1760 rpm XP motor thru a reducer, ratio 6.69 to1, serial# 856711U1.
Used Schold Concentric Triple Shaft Tri-axial Disperser, 304 Stainless Steel. (1) High speed shear blade, driven by a 40 hp, 3/60/230/460 volt, 1800 rpm XP motor, speed range 0-1750 rpm, (1) Intermediate speed bar turbine blades, driven by a 15hp, 3/60/230/460 volt, 1200 rpm XP motor, speed range 0-600 rpm, (1) Low speed Anchor type blade with scrapers, driven by a 10 hp, 3/60/230/460 volt, 1800 rpm XP motor, speed range 0-30 rpm. 5 hp, 3/60/230/460 volt, 1740 rpm XP hydraulic lift, 60" rise, 189" overall lift height. Includes a Roben kettle, 350 gallon, 304 stainless steel, vertical. 46" Diameter x 46" straight side, Flat clamp on top, dished bottom. Internal rated 5 psi at –20 to 250 degrees F., carbon steel jacket rated –8VAC/60 psi at –20 to 250 degrees F. 3’’ Center bottom outlet, mounted on 4 carbon steel legs. National Board# 9574, serial# 21011-6, built 2002. (1) Maso-Sine discharge pump, model SPS-3’’, stainless steel. Approximate capacity (0.45) Liter per revolution, maximum particle size 25mm, viscosity over 1.000.000 CP. Driven by a 7-1/2hp, 3/60/208-230/460 volt, 1760 rpm XP motor thru a reducer, ratio 6.69 to1, serial# 856711U1.
