Myers Engineering Single Shaft Disperser

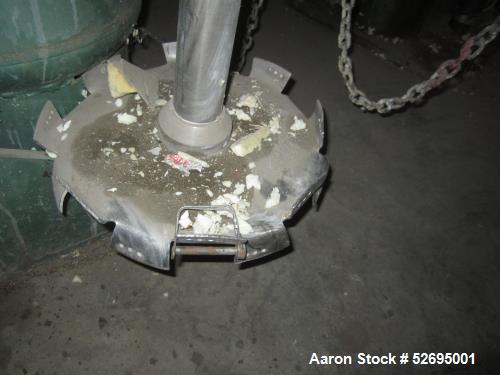

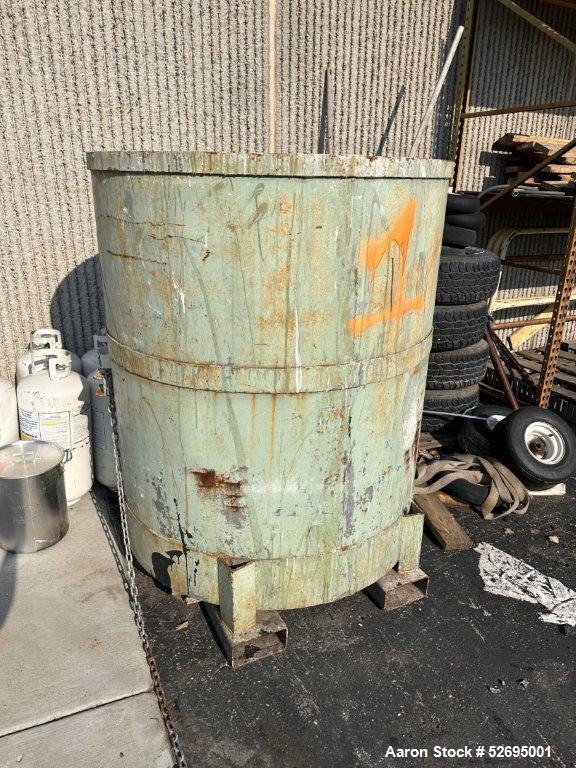

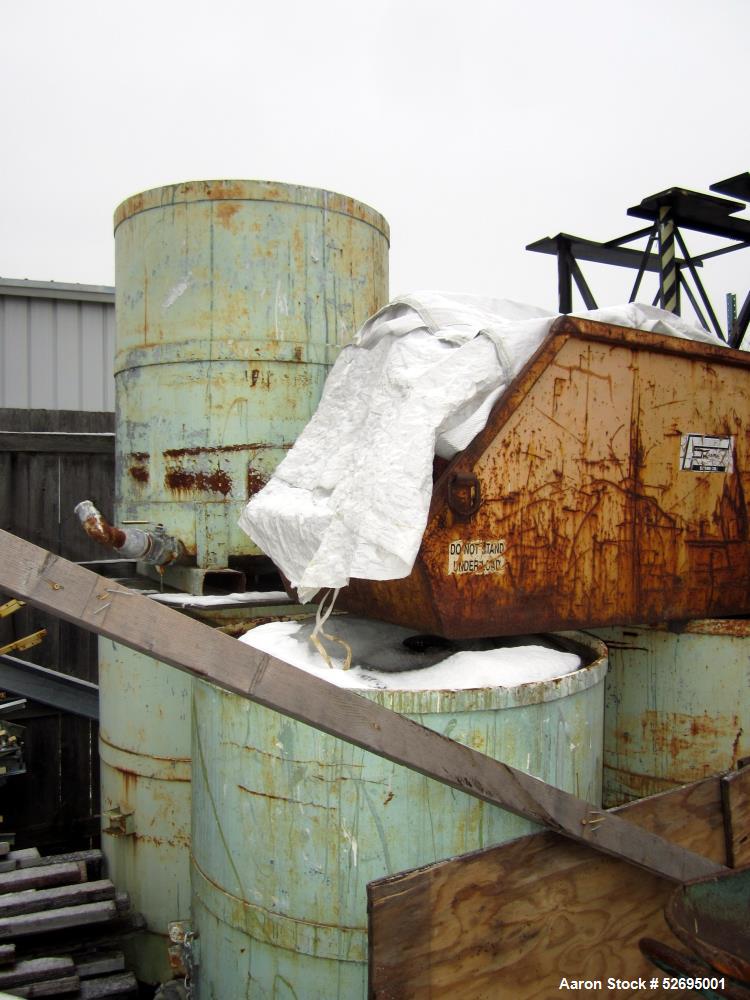

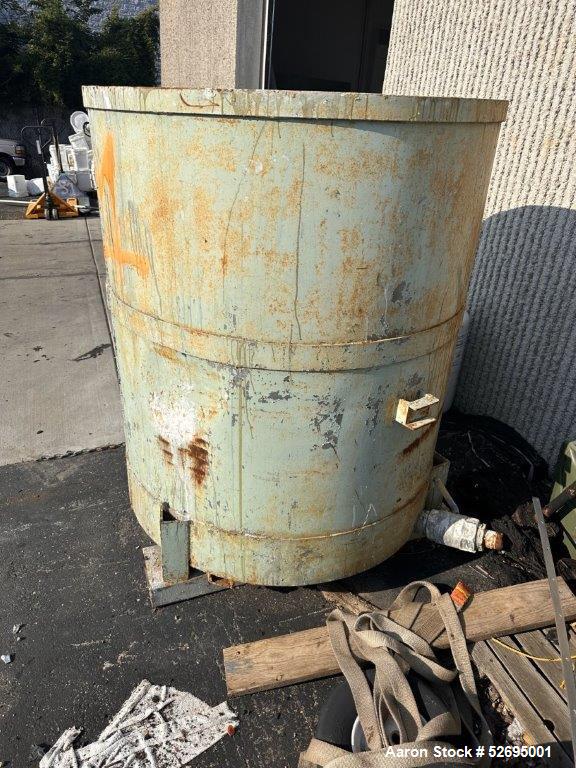

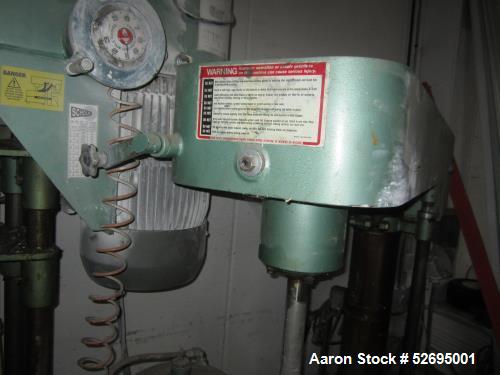

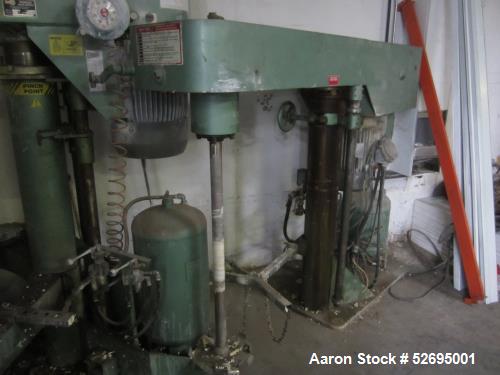

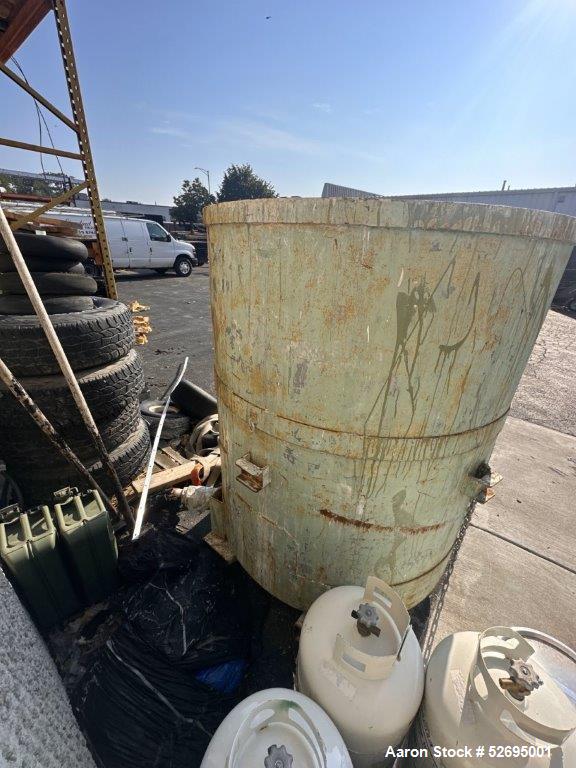

Used Myers Engineering Single Shaft Disperser, Model 800A-30. 2-1/4" diameter x 46" long 304 stainless steel shaft with a 14" diameter 304 stainless steel saw tooth blade. 360 Degree rotation. Air over oil lift with an approximate 48" rise, overall raised height approx 122''. Manually adjustable speed range. Driven by a 30 hp, 3/60/480 volt, 1760 rpm XP motor. Base mounted. Includes approx 450 gal carbon steel mixing can. Can measures 48" dia x 56" straight side. Distance of mixer blade to ground is 8".
| Manufacturer | MyersMyers |
| Model | 800A-30 |

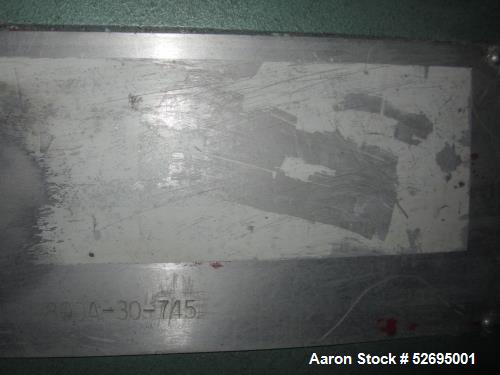

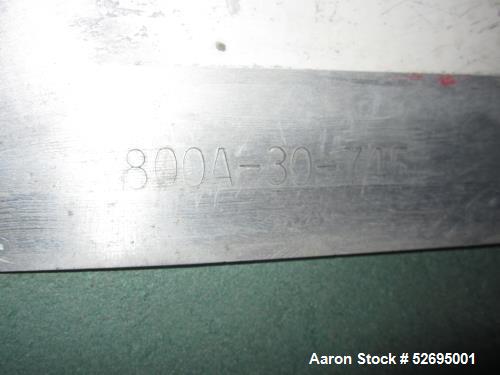

| Serial # | 745 |
| Category | MixersMixers |
| Subcategory | Disperser MixerDisperser Mixer |
Used - Myers Engineering Single Shaft Disperser, Model 800A-30
30 HP | 14" Saw Tooth Blade | 450 Gallon Can | Air Over Oil Lift
Overview
This Used Myers Engineering Single Shaft Disperser, Model 800A-30, is a robust, industrial-grade disperser designed for mixing and dispersion of high-viscosity materials. Featuring a 2-1/4" diameter x 46" long 304 stainless steel shaft and a 14" diameter saw tooth disperser blade, it ensures efficient shear and mixing action for a variety of applications.
The air over oil lift provides an approximate 48" rise, with a 360-degree rotation for easy positioning. Driven by a 30 HP explosion-proof motor, this unit is base mounted and includes a 450-gallon carbon steel mixing can.
Key Specifications
- Manufacturer: Myers Engineering
- Model: 800A-30
- Shaft: 2-1/4" Diameter x 46" Long, 304 Stainless Steel
- Blade: 14" Diameter Saw Tooth, 304 Stainless Steel

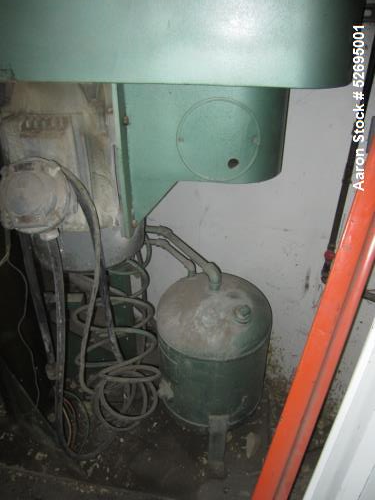

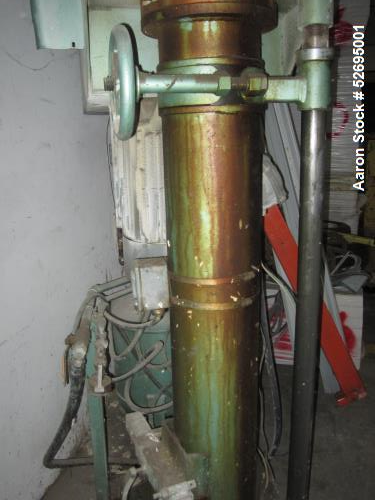

- Lift System: Air Over Oil with Approx. 48" Rise
- Maximum Raised Height: Approx. 122"
- Rotation: 360 Degrees
- Speed Range: Manually Adjustable
- Main Drive Motor:
- 30 HP
- 3 Phase / 60 Hz / 480 Volt
- 1760 RPM
- Explosion Proof (XP)
- Mounting: Base Mounted

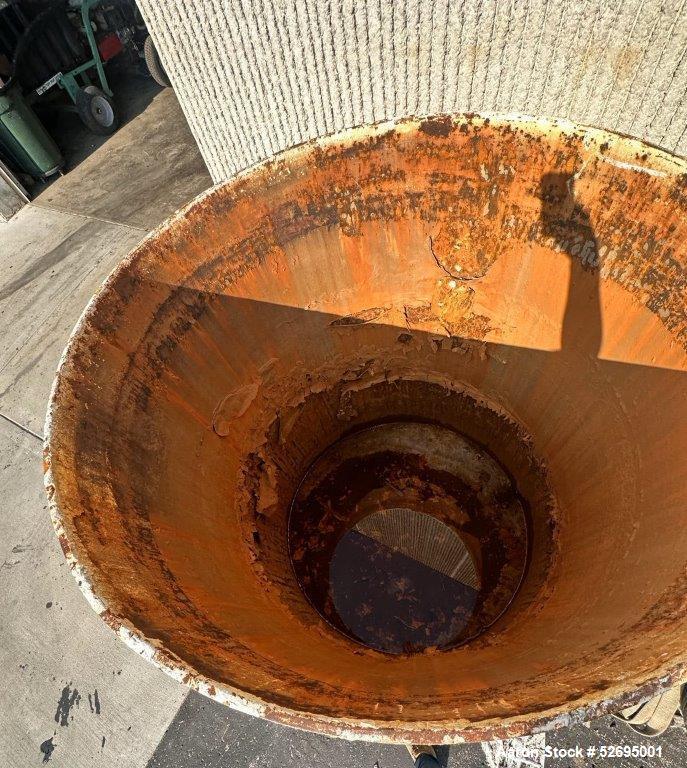

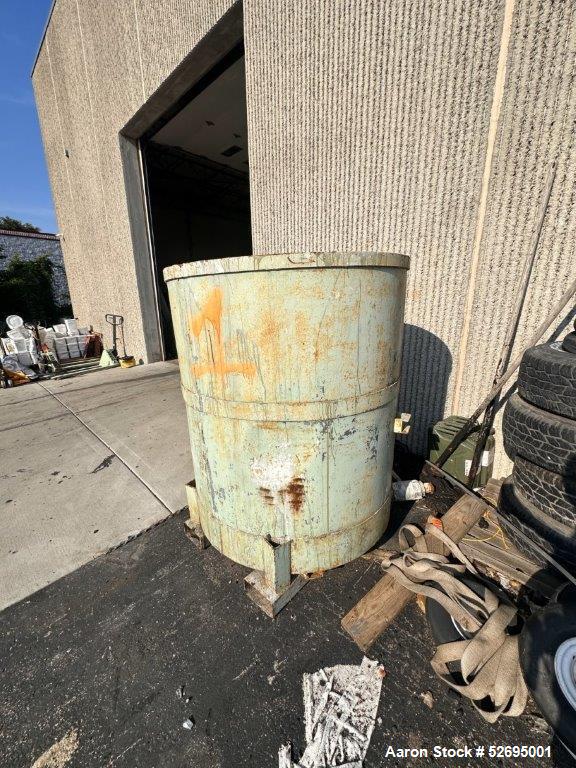

- Mixing Can:
- Capacity: Approx. 450 Gallons
- Material: Carbon Steel
- Dimensions: 48" Diameter x 56" Straight Side
- Blade Clearance from Ground: 8"
Features & Benefits
- Heavy-Duty Disperser – Engineered for industrial mixing and dispersing of medium to high viscosity materials
- High Shear Blade – 14" saw tooth disperser blade designed for effective material breakdown and homogenization
- Versatile Lift System – Air over oil hydraulic lift provides smooth and controlled vertical movement with a 48" rise
- Full Rotation Capability – 360-degree rotation offers easy maneuvering and flexibility in operation
- Explosion-Proof Motor – 30 HP XP motor suitable for hazardous environments
- Large Batch Capacity – Includes 450-gallon carbon steel mixing vessel for substantial production volumes
- Manually Adjustable Speed – Offers control over mixing speed to suit various applications
Applications
- Paints & Coatings
- Adhesives & Sealants
- Inks & Pigments
- Chemical Processing
- Cosmetic Creams & Gels
- Pharmaceutical Products
- Resins & Polymers
Industries Served
- Paint & Coatings Industry
- Chemical Manufacturing
- Pharmaceuticals & Nutraceuticals
- Cosmetics & Personal Care
- Adhesives & Sealants
- Industrial Materials Processing
- Single shaft disperser, Myers 800A-30, industrial mixer
- 30 HP disperser, Myers Engineering disperser with lift, saw tooth blade disperser
- Used Myers Engineering Model 800A-30 single shaft disperser with 30 HP explosion-proof motor, 450-gallon carbon steel tank with high shear saw tooth blade mixer, industrial disperser with air over oil lift and 360-degree rotation for paints, coatings, adhesives
Used Myers Engineering Single Shaft Disperser, Model 800A-30. 2-1/4" diameter x 46" long 304 stainless steel shaft with a 14" diameter 304 stainless steel saw tooth blade. 360 Degree rotation. Air over oil lift with an approximate 48" rise, overall raised height approx 122''. Manually adjustable speed range. Driven by a 30 hp, 3/60/480 volt, 1760 rpm XP motor. Base mounted. Includes approx 450 gal carbon steel mixing can. Can measures 48" dia x 56" straight side. Distance of mixer blade to ground is 8".
Used - Myers Engineering Single Shaft Disperser, Model 800A-30
30 HP | 14" Saw Tooth Blade | 450 Gallon Can | Air Over Oil Lift
Overview
This Used Myers Engineering Single Shaft Disperser, Model 800A-30, is a robust, industrial-grade disperser designed for mixing and dispersion of high-viscosity materials. Featuring a 2-1/4" diameter x 46" long 304 stainless steel shaft and a 14" diameter saw tooth disperser blade, it ensures efficient shear and mixing action for a variety of applications.
The air over oil lift provides an approximate 48" rise, with a 360-degree rotation for easy positioning. Driven by a 30 HP explosion-proof motor, this unit is base mounted and includes a 450-gallon carbon steel mixing can.
Key Specifications
- Manufacturer: Myers Engineering
- Model: 800A-30
- Shaft: 2-1/4" Diameter x 46" Long, 304 Stainless Steel
- Blade: 14" Diameter Saw Tooth, 304 Stainless Steel
- Lift System: Air Over Oil with Approx. 48" Rise
- Maximum Raised Height: Approx. 122"
- Rotation: 360 Degrees
- Speed Range: Manually Adjustable
- Main Drive Motor:
- 30 HP
- 3 Phase / 60 Hz / 480 Volt
- 1760 RPM
- Explosion Proof (XP)
- Mounting: Base Mounted
- Mixing Can:
- Capacity: Approx. 450 Gallons
- Material: Carbon Steel
- Dimensions: 48" Diameter x 56" Straight Side
- Blade Clearance from Ground: 8"
Features & Benefits
- Heavy-Duty Disperser – Engineered for industrial mixing and dispersing of medium to high viscosity materials
- High Shear Blade – 14" saw tooth disperser blade designed for effective material breakdown and homogenization
- Versatile Lift System – Air over oil hydraulic lift provides smooth and controlled vertical movement with a 48" rise
- Full Rotation Capability – 360-degree rotation offers easy maneuvering and flexibility in operation
- Explosion-Proof Motor – 30 HP XP motor suitable for hazardous environments
- Large Batch Capacity – Includes 450-gallon carbon steel mixing vessel for substantial production volumes
- Manually Adjustable Speed – Offers control over mixing speed to suit various applications
Applications
- Paints & Coatings
- Adhesives & Sealants
- Inks & Pigments
- Chemical Processing
- Cosmetic Creams & Gels
- Pharmaceutical Products
- Resins & Polymers
Industries Served
- Paint & Coatings Industry
- Chemical Manufacturing
- Pharmaceuticals & Nutraceuticals
- Cosmetics & Personal Care
- Adhesives & Sealants
- Industrial Materials Processing
| Manufacturer | Myers |
| Model | 800A-30 |
| Serial # | 745 |
| Category | Mixers |
| Subcategory | Disperser Mixer |
- Single shaft disperser, Myers 800A-30, industrial mixer
- 30 HP disperser, Myers Engineering disperser with lift, saw tooth blade disperser
- Used Myers Engineering Model 800A-30 single shaft disperser with 30 HP explosion-proof motor, 450-gallon carbon steel tank with high shear saw tooth blade mixer, industrial disperser with air over oil lift and 360-degree rotation for paints, coatings, adhesives
