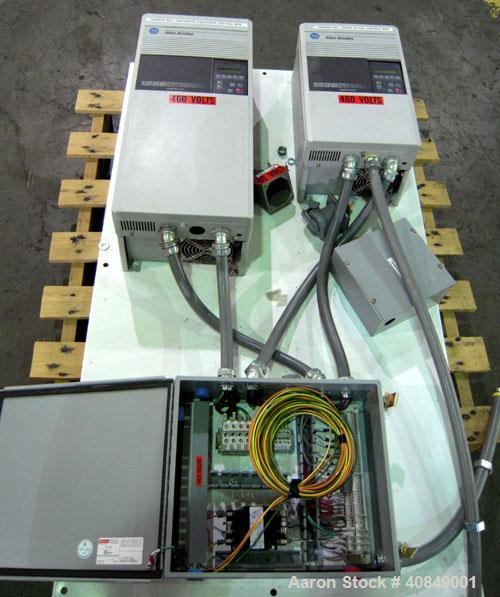

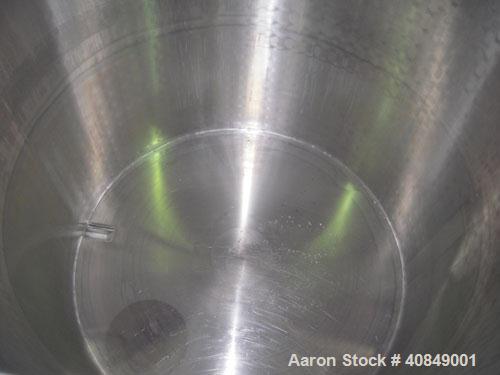

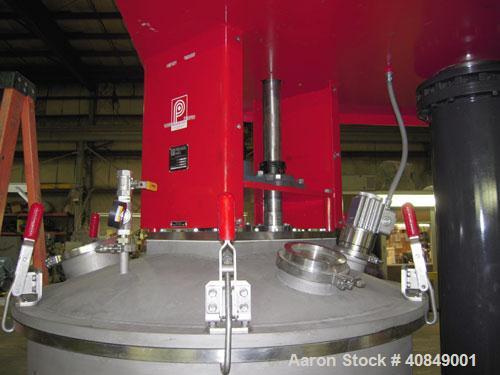

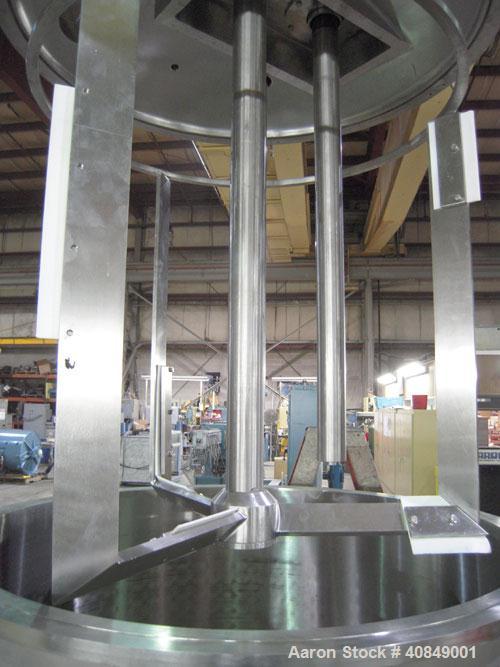

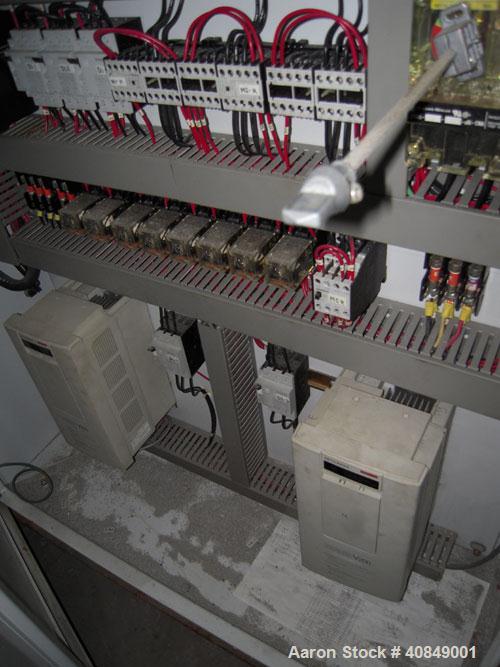

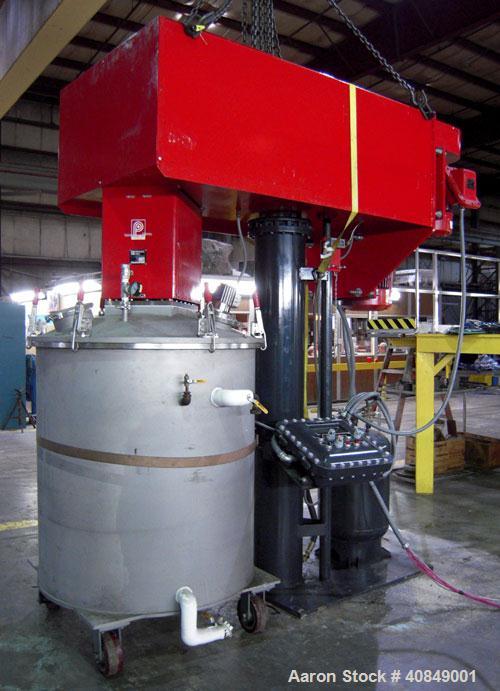

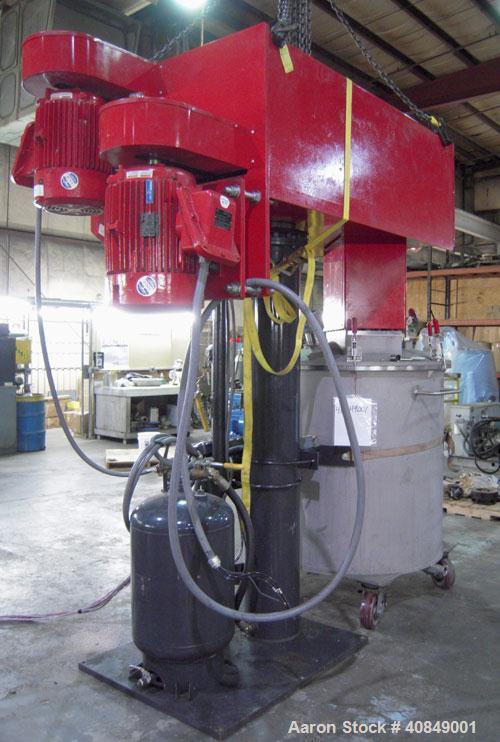

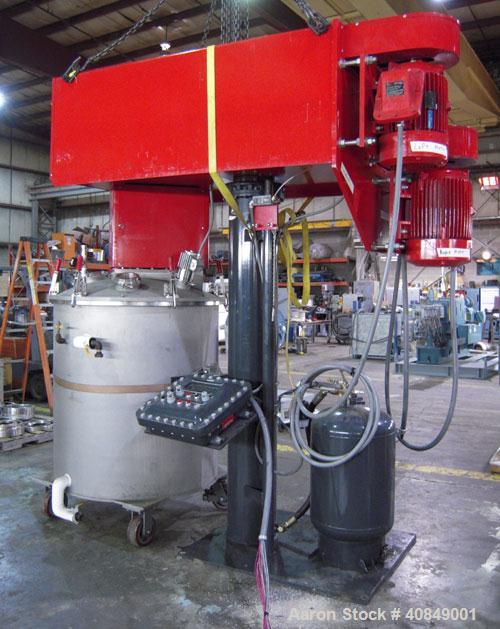

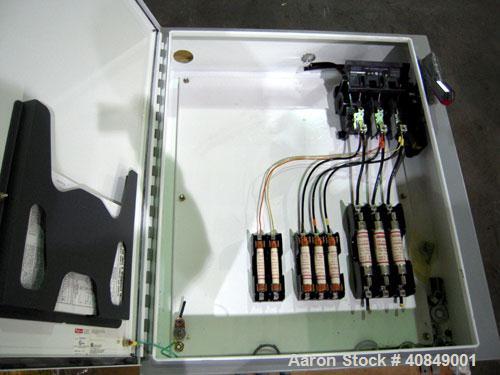

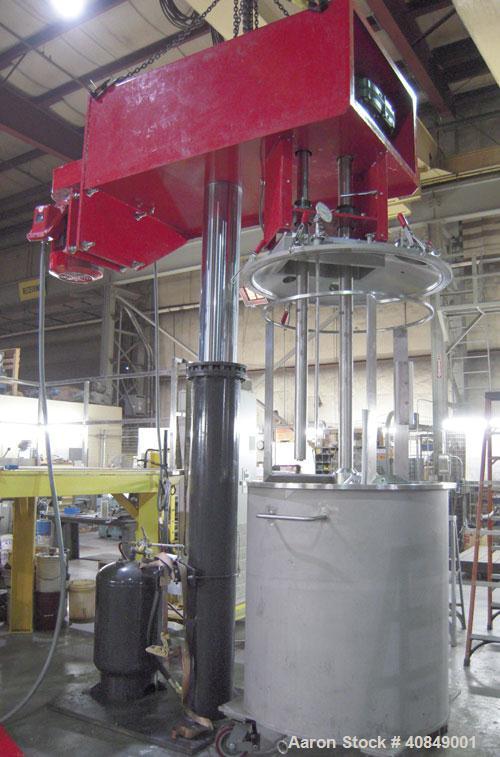

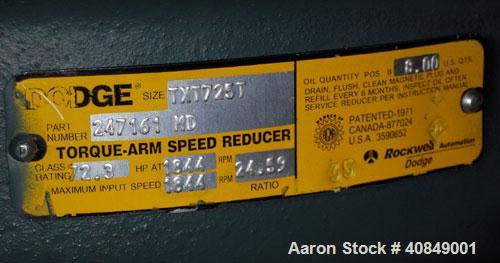

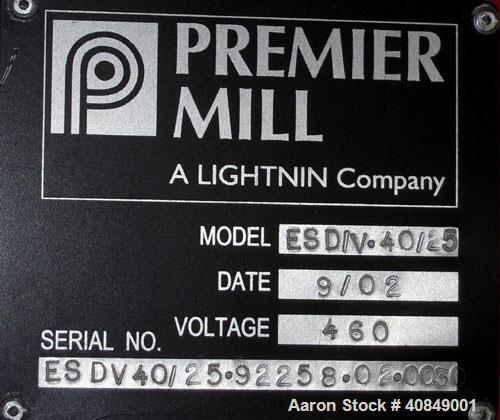

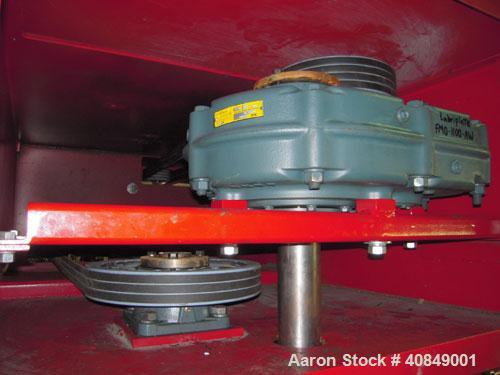

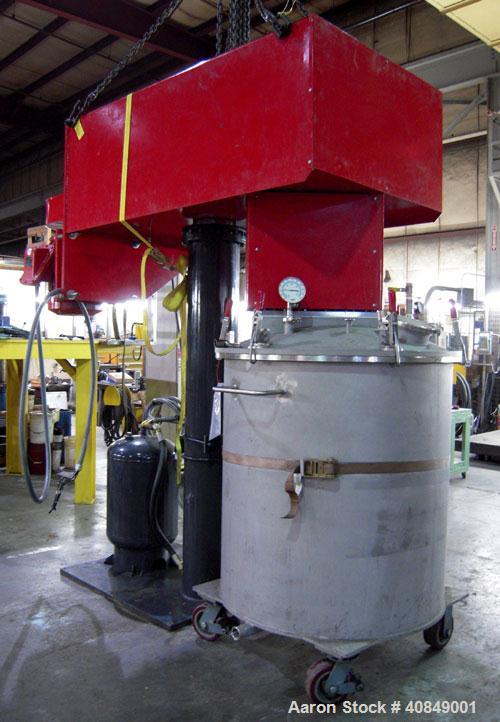

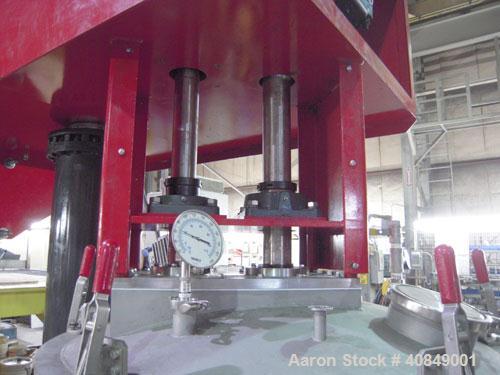

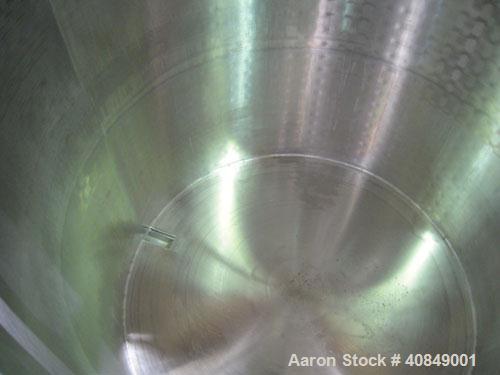

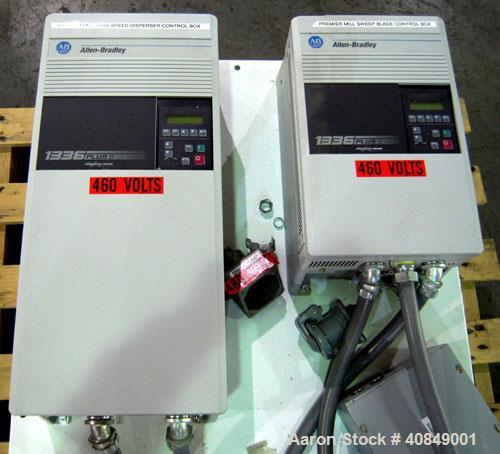

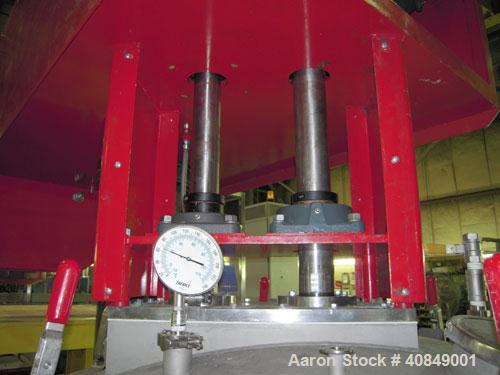

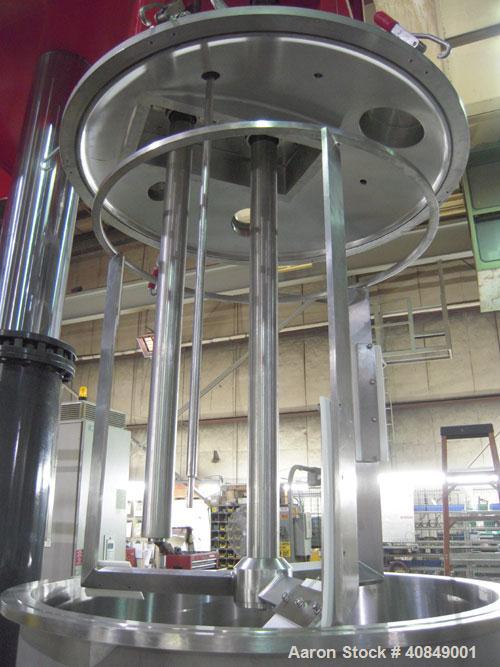

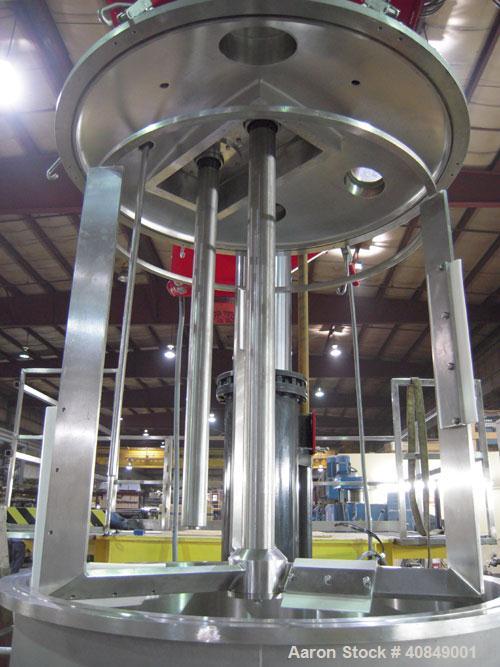

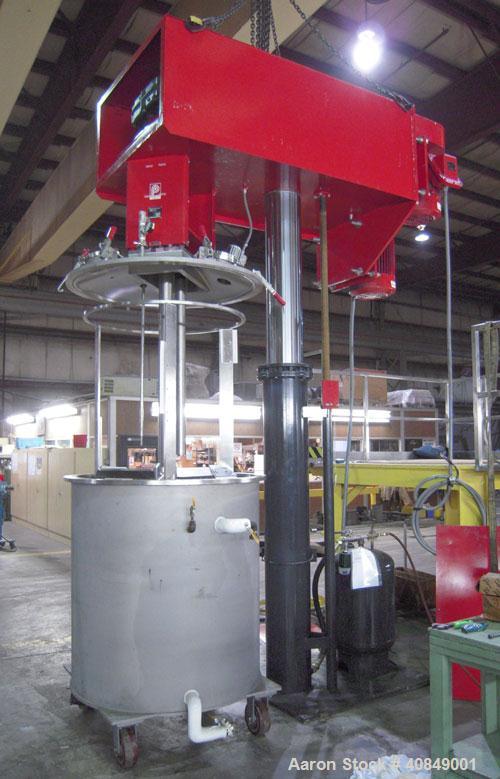

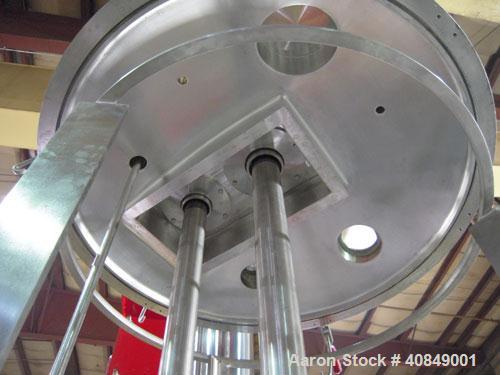

Used Premier Mill Corp Prem-A-Mix ESD Dual Shaft Disperser, Model ESD/V-40/25, 304 stainless steel. 138 to 275 gallon batch size. Jacketed mixing can 45" diameter x 50" straight side, tested internal to full vacuum and jacket to 100 psi, 2" tri-clamp side bottom outlet, mounted on casters. (1) High speed shaft (no blade), driven by a 40 hp, 3/60/230/460 volt, 1762 rpm XP motor, approximately 1391 rpm. (1) High efficiency sweep blade with scrapers driven by a 25 hp, 3/60/208-230/460 volt, 1770 rpm XP motor thru a Dodge reducer, ratio 24.59 to 1, approximately 44 rpm. Top vacuum hood. Openings: (2) 1" tri-clamp, 2" tri-clamp, 4" tri-clamp with light, 6" tri-clamp, 8" tri-clamp. Air over oil lift, approximate 172 1/2" raised height. Includes (2) Allen Bradley 1336 Plus II VFD controllers and an XP operators panel. Base mounted. Built 2002.
