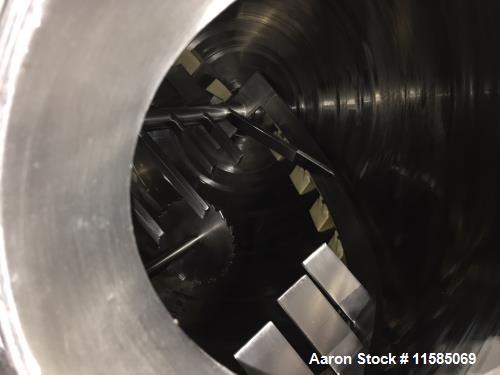

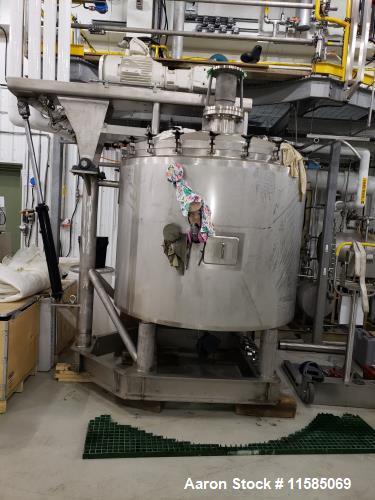

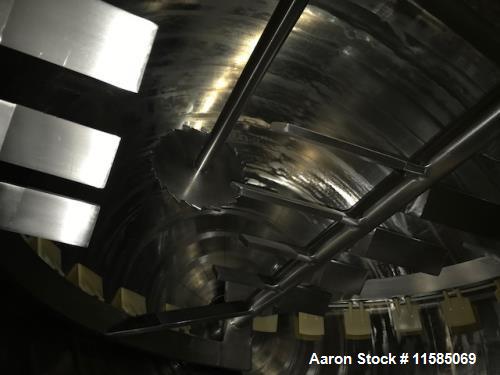

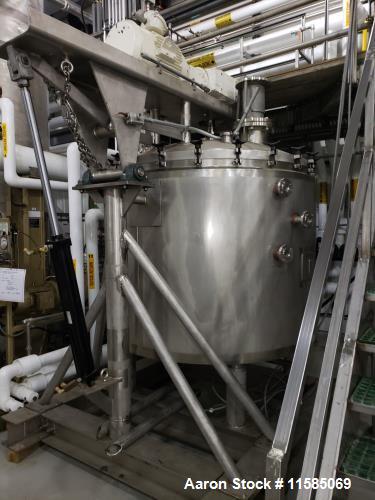

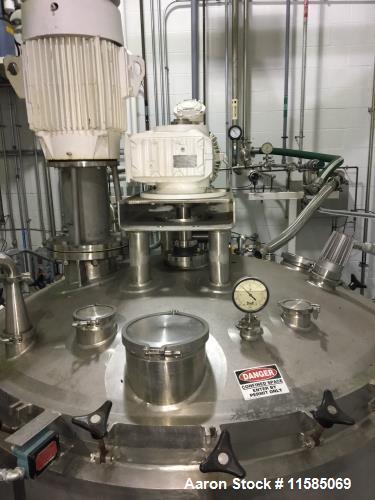

Used Lee Industries Approximately 500 Gallon Stainless Steel Mixing Vacuum Kettle. Model Number: 500D10T. Material of Construction: 316 stainless steel. Jacketed - ASME stamped for 100 psig @ 338 F. 1 " NPT inlet/outlet 2 temperature control zones - 1 zone for bottom of tank, 1 zone for sidewall. Internal Pressure Rating: full vacuum / 15 psig. Mixer has (2) agitators - Wiper blade with internal tines to assist in bulk mixing. Sweep Scraper Wiper blade has PTFE wall scrapers. Motor: 10 HP 460 VAC inverter-duty rated. Gearbox designed for 28 RPM maximum output. High speed disperser, 12" Cowles sawtooth style impeller. Motor: 20 HP 460 VAC inverter- duty rated for Class I Division I environment. High speed disperser is located off-center. Multiple process nozzles on mixer head - sanitary (Tri-Clamp) design (1) 3" discharge with air-actuated valve (1) 8" nozzle (1) 4" nozzle (3) 3" nozzles (1) 2" nozzle (2) 1" nozzles (1) 8" sightglass (1) 4" lightport with LJ Star light. Hydraulic lift package to allow mixer lid to be lifted from bowl Type J thermocouple Flush bottom. All electrical components are designed for a hazardous class I division I rated area. Built 2002.
Used Lee Industries Approximately 500 Gallon Stainless Steel Mixing Vacuum Kettle. Model Number: 500D10T. Material of Construction: 316 stainless steel. Jacketed - ASME stamped for 100 psig @ 338 F. 1 " NPT inlet/outlet 2 temperature control zones - 1 zone for bottom of tank, 1 zone for sidewall. Internal Pressure Rating: full vacuum / 15 psig. Mixer has (2) agitators - Wiper blade with internal tines to assist in bulk mixing. Sweep Scraper Wiper blade has PTFE wall scrapers. Motor: 10 HP 460 VAC inverter-duty rated. Gearbox designed for 28 RPM maximum output. High speed disperser, 12" Cowles sawtooth style impeller. Motor: 20 HP 460 VAC inverter- duty rated for Class I Division I environment. High speed disperser is located off-center. Multiple process nozzles on mixer head - sanitary (Tri-Clamp) design (1) 3" discharge with air-actuated valve (1) 8" nozzle (1) 4" nozzle (3) 3" nozzles (1) 2" nozzle (2) 1" nozzles (1) 8" sightglass (1) 4" lightport with LJ Star light. Hydraulic lift package to allow mixer lid to be lifted from bowl Type J thermocouple Flush bottom. All electrical components are designed for a hazardous class I division I rated area. Built 2002.
