Used Equipment Facts About This Machine
Manufacturer
Lee Industries
Product Overview

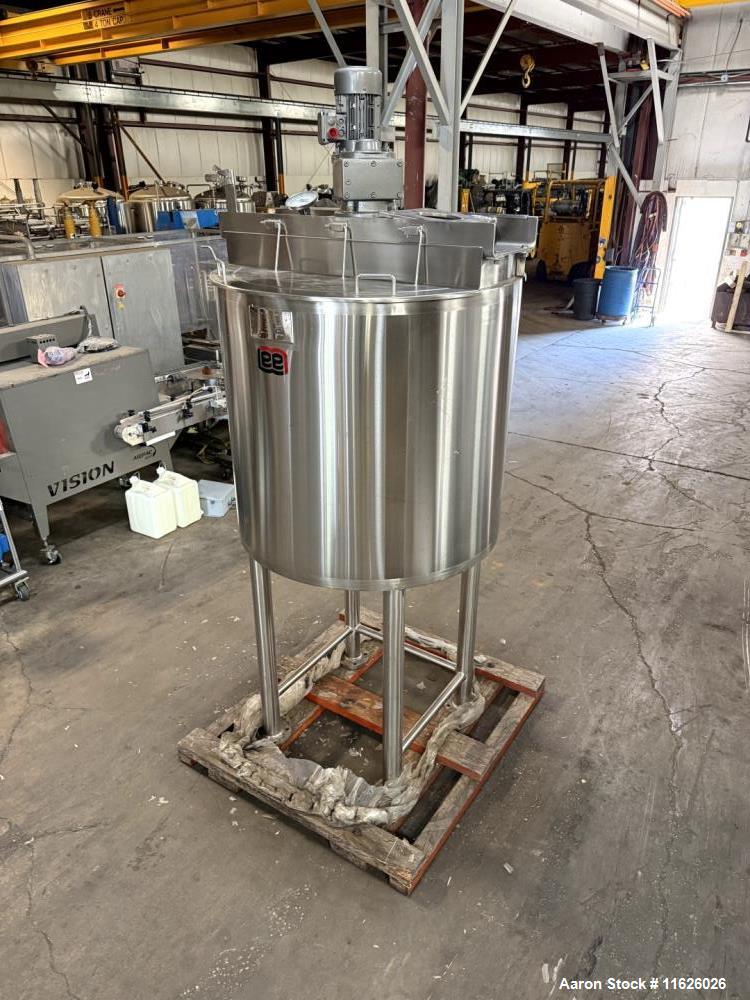

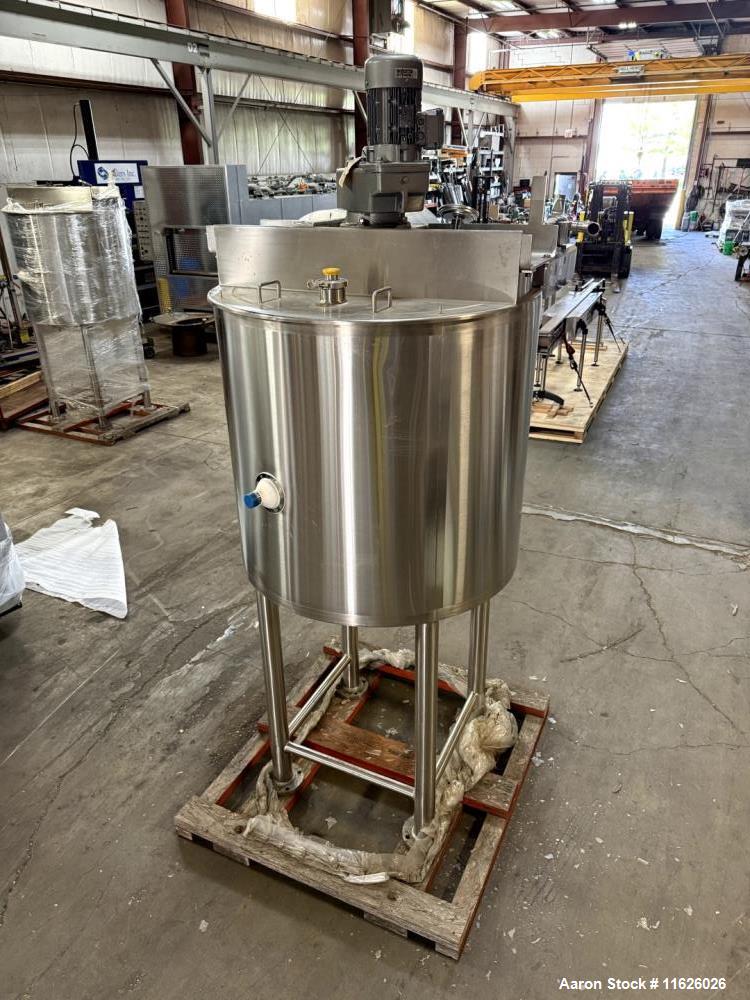

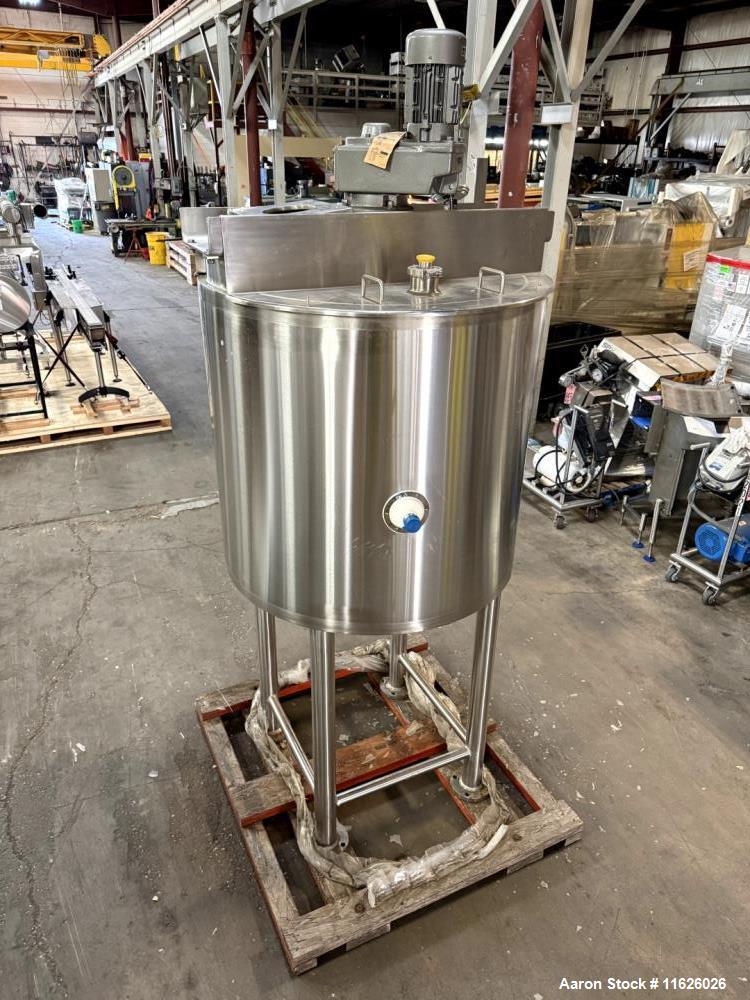

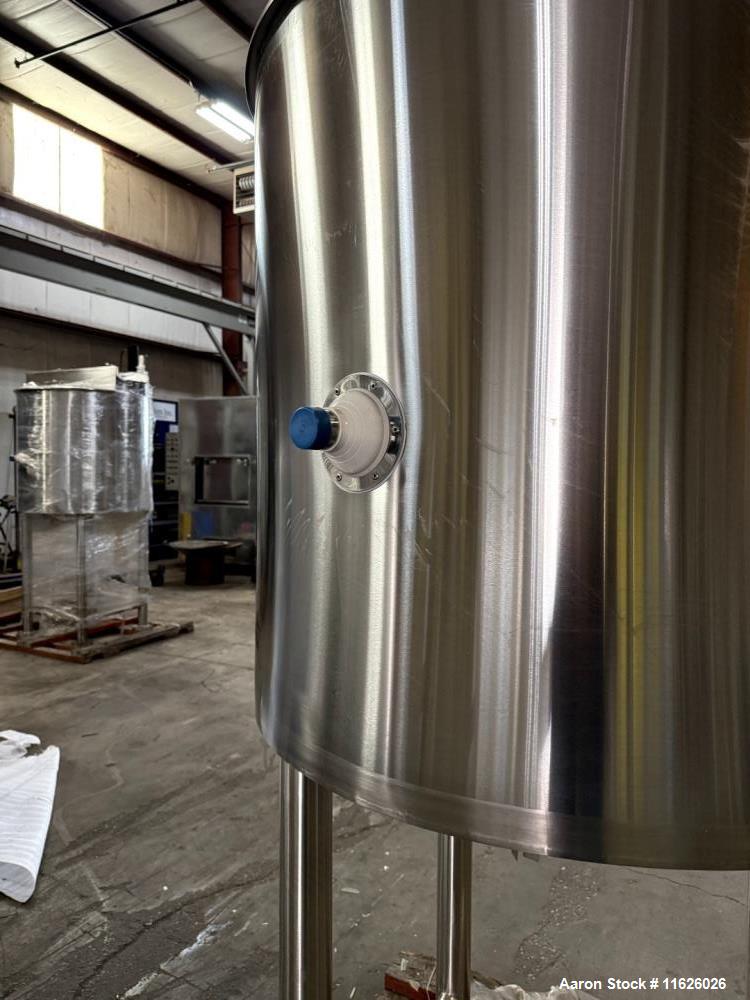

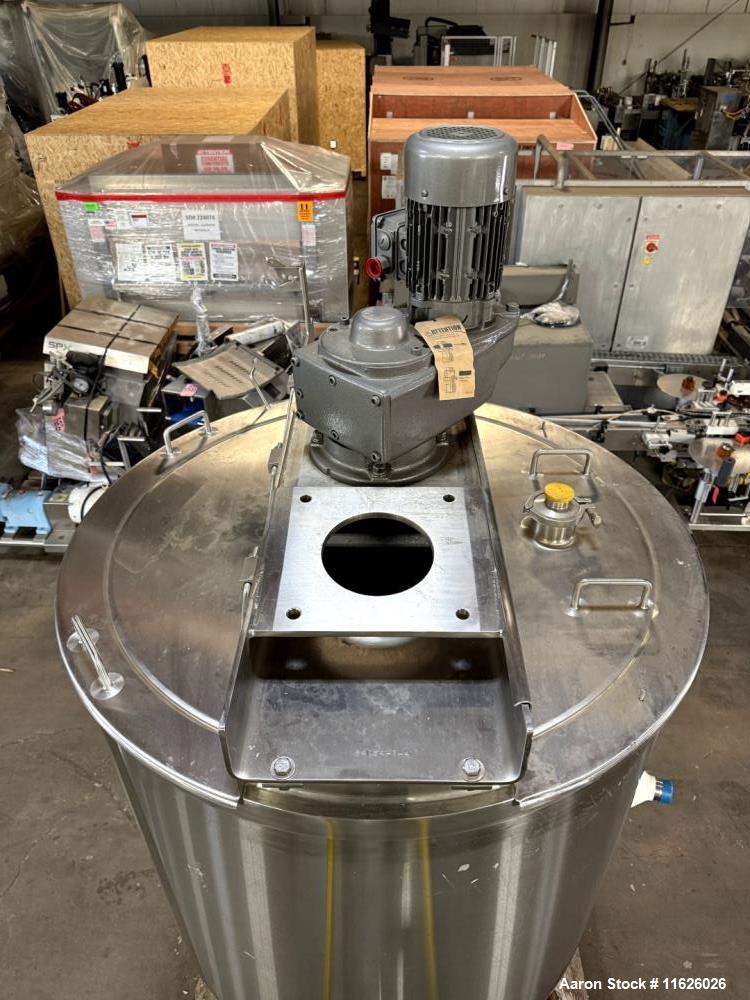

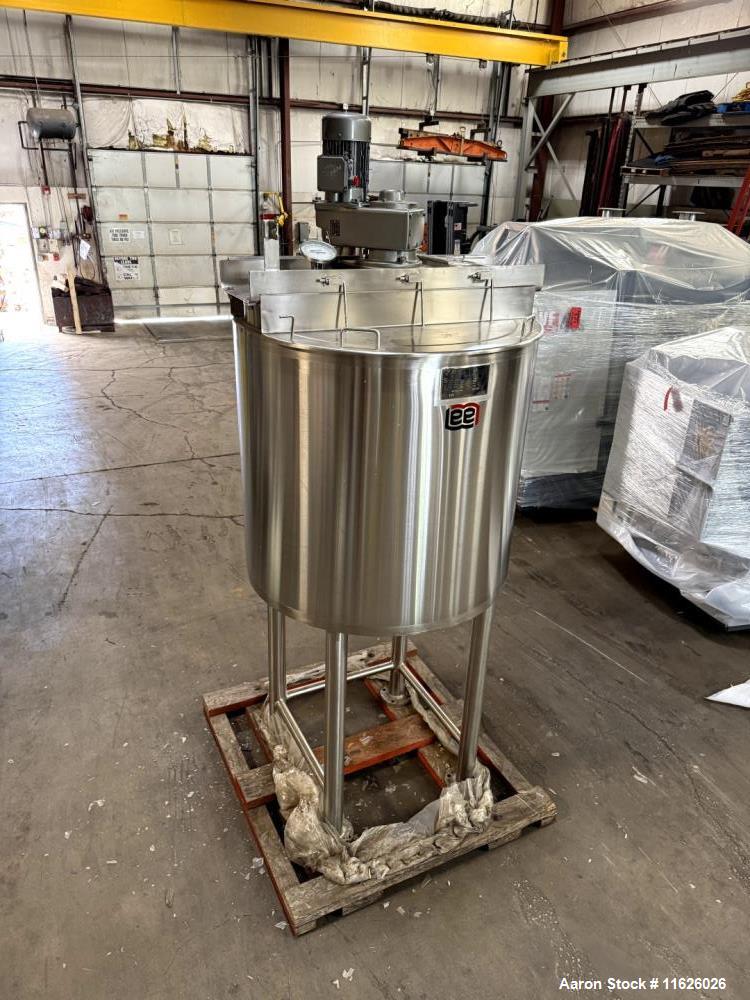

The Used Lee 150-Gallon Stainless Steel Jacketed Kettle, Model RA-150, is a heavy-duty sanitary processing vessel designed for heating, cooling, mixing, and blending viscous or temperature-sensitive products. Constructed of 316 stainless steel, this kettle is well suited for food, pharmaceutical, cosmetic, chemical, and specialty processing applications requiring corrosion resistance and hygienic product contact surfaces.

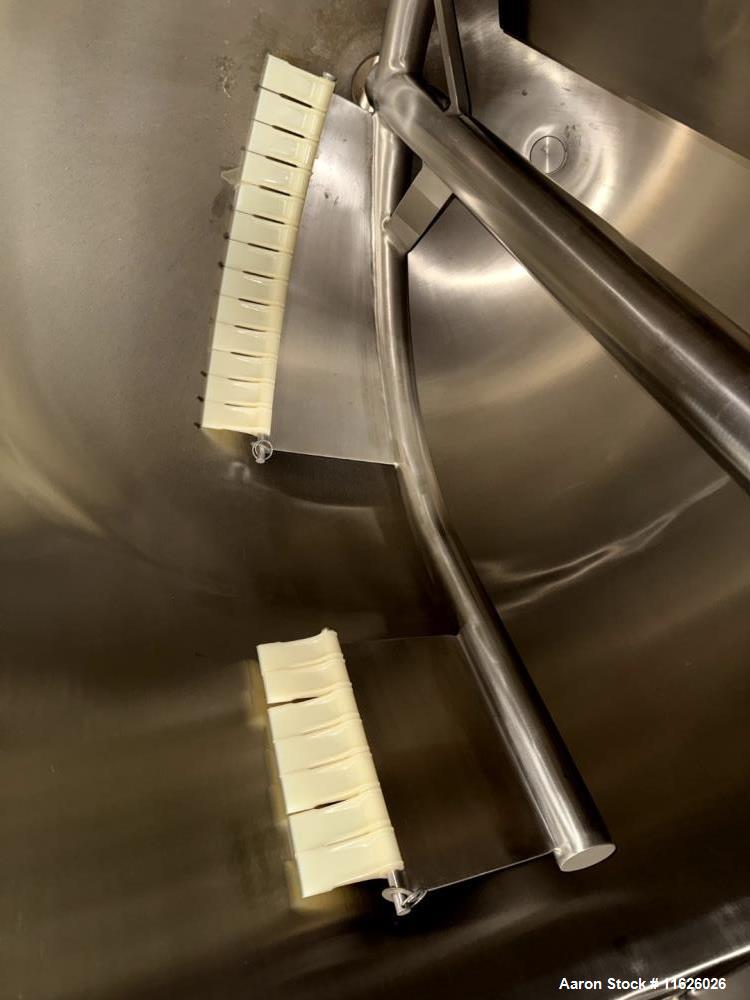

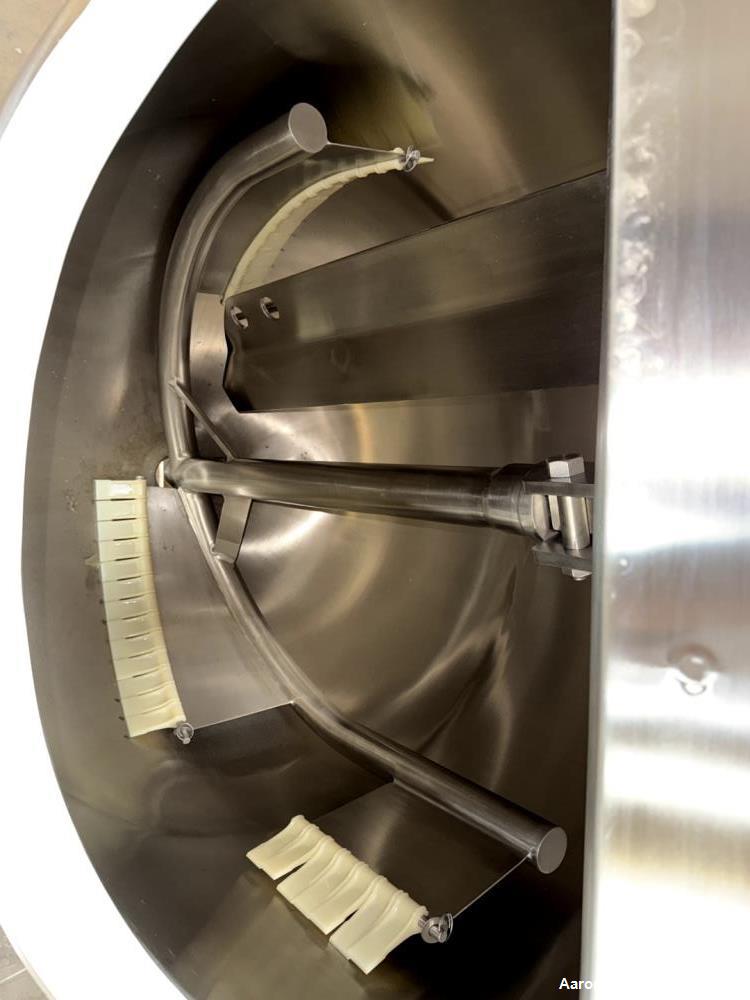

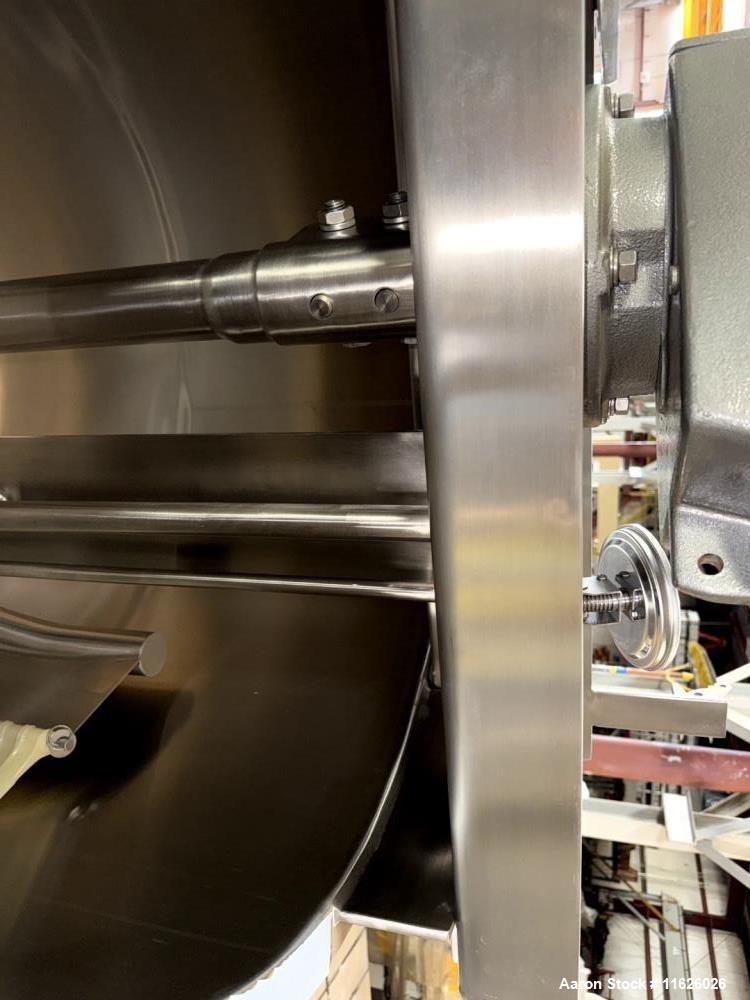

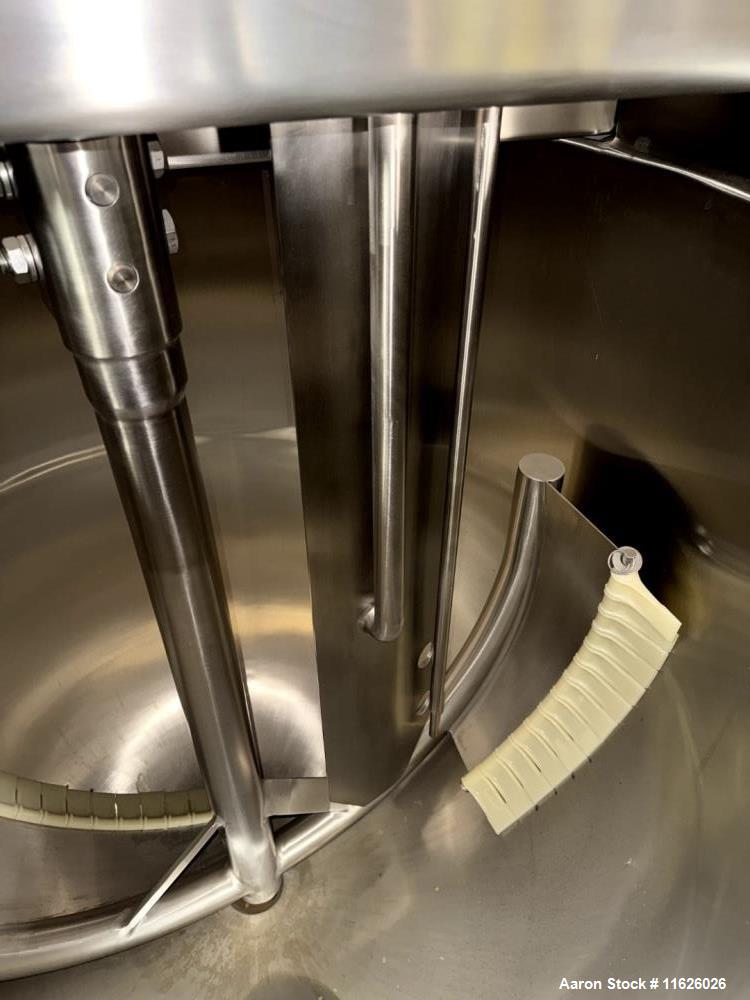

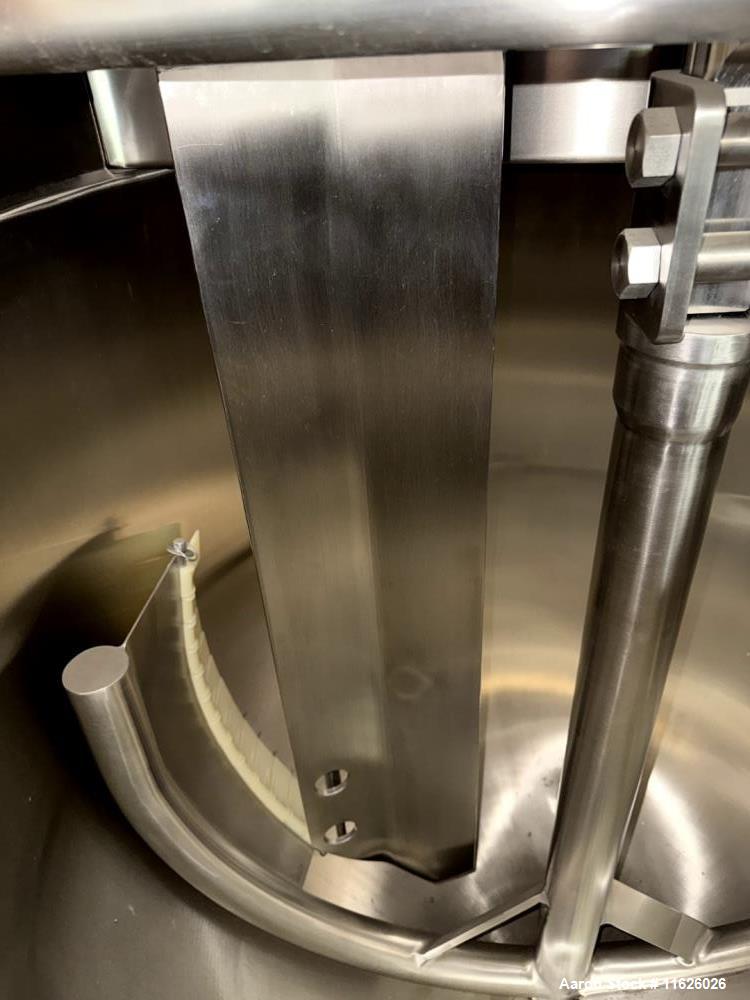

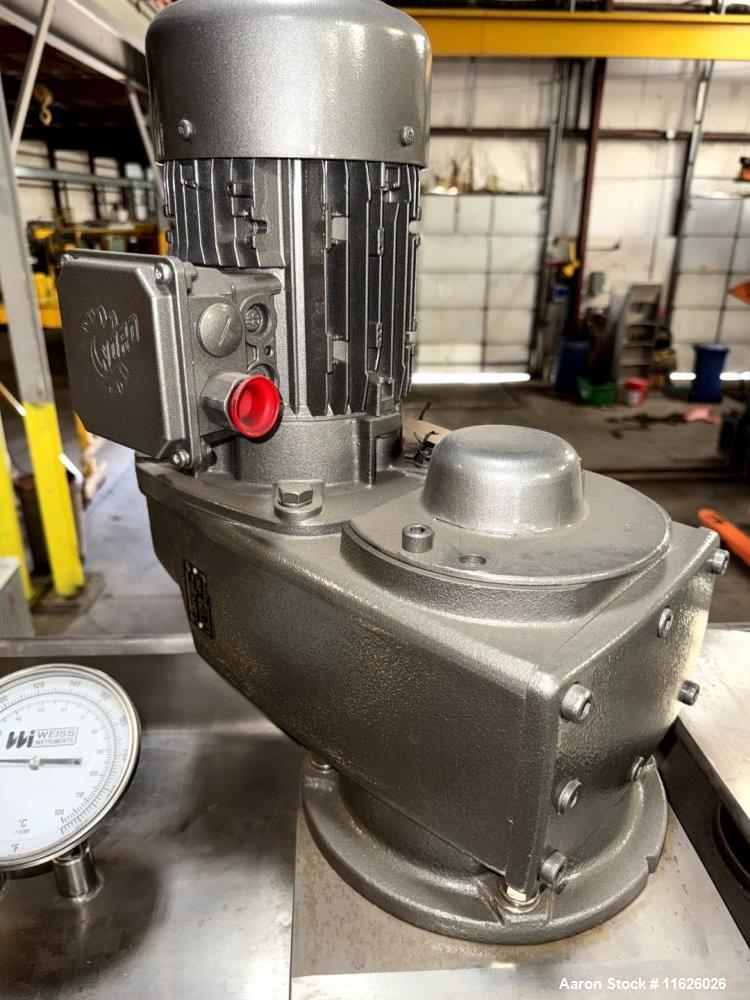

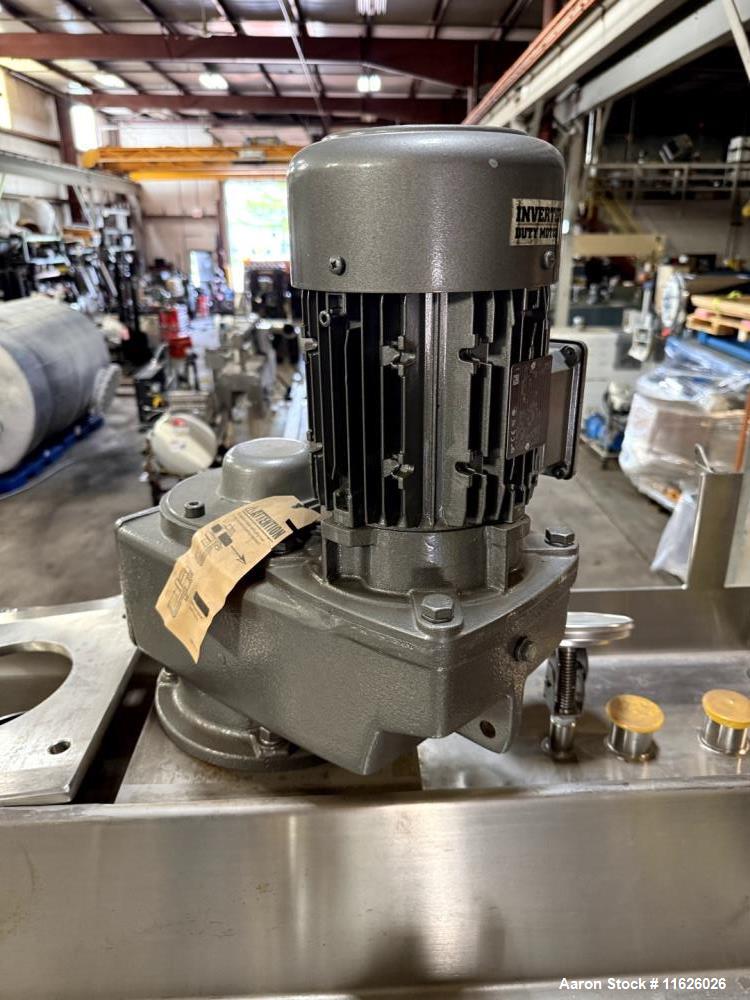

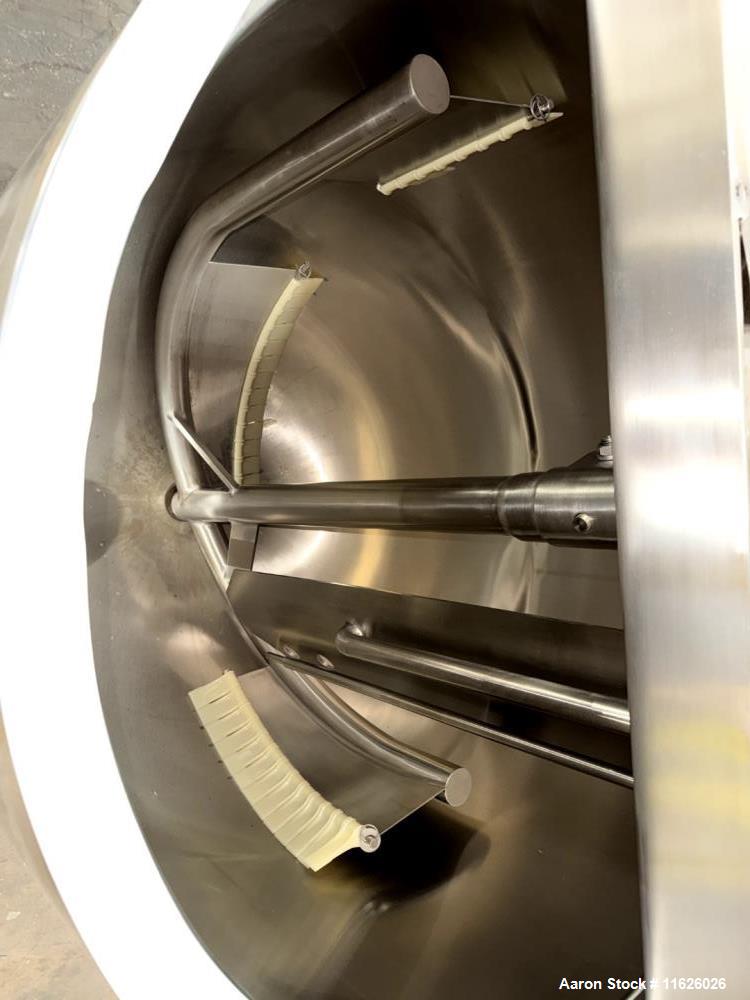

The vessel features a 90 PSI rated jacket suitable for operation from approximately -20°F to 332°F, allowing the kettle to support both heating and cooling processes when connected to an appropriate utility system. A single-motion scrape surface agitator with a 1.5 HP drive helps maintain product movement along the vessel wall, improve heat transfer, and reduce product buildup during processing.

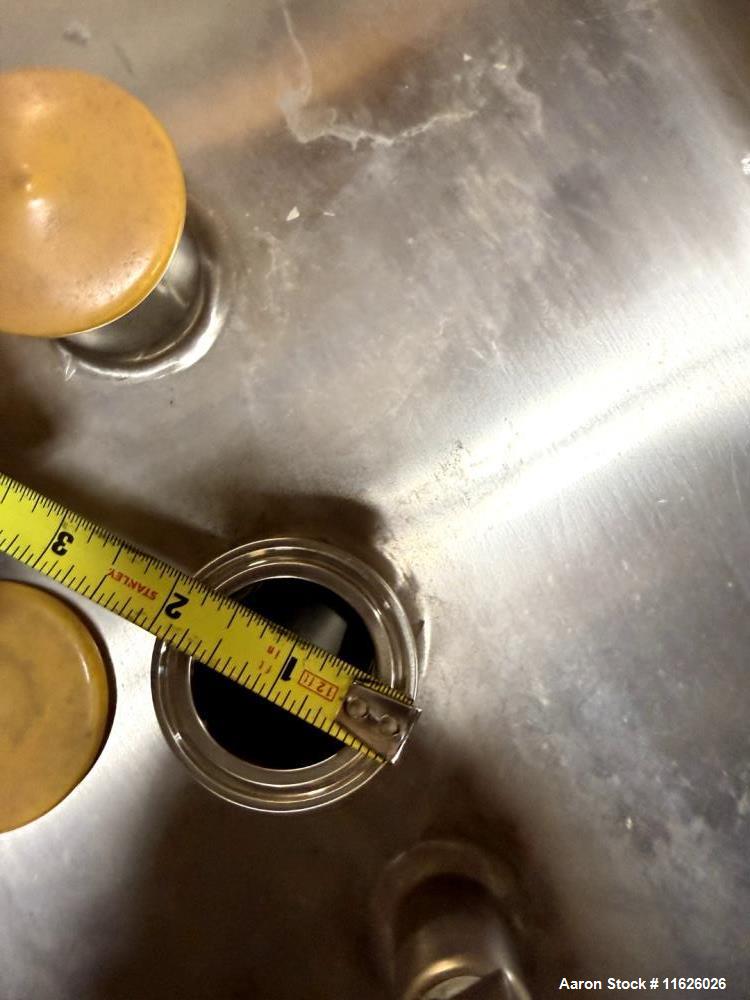

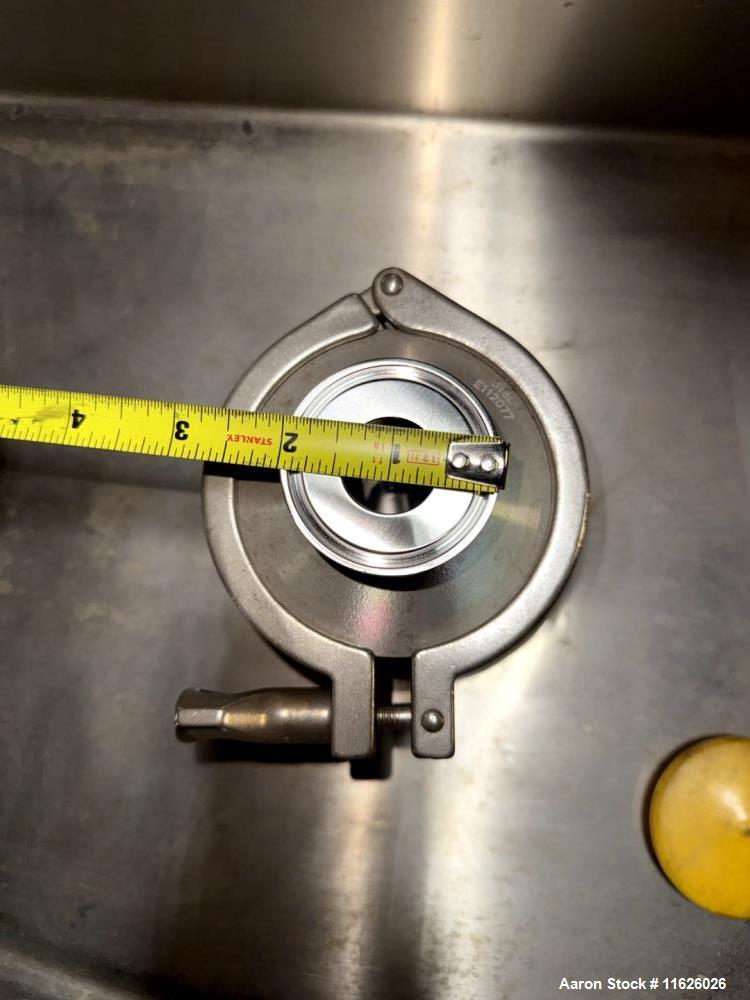

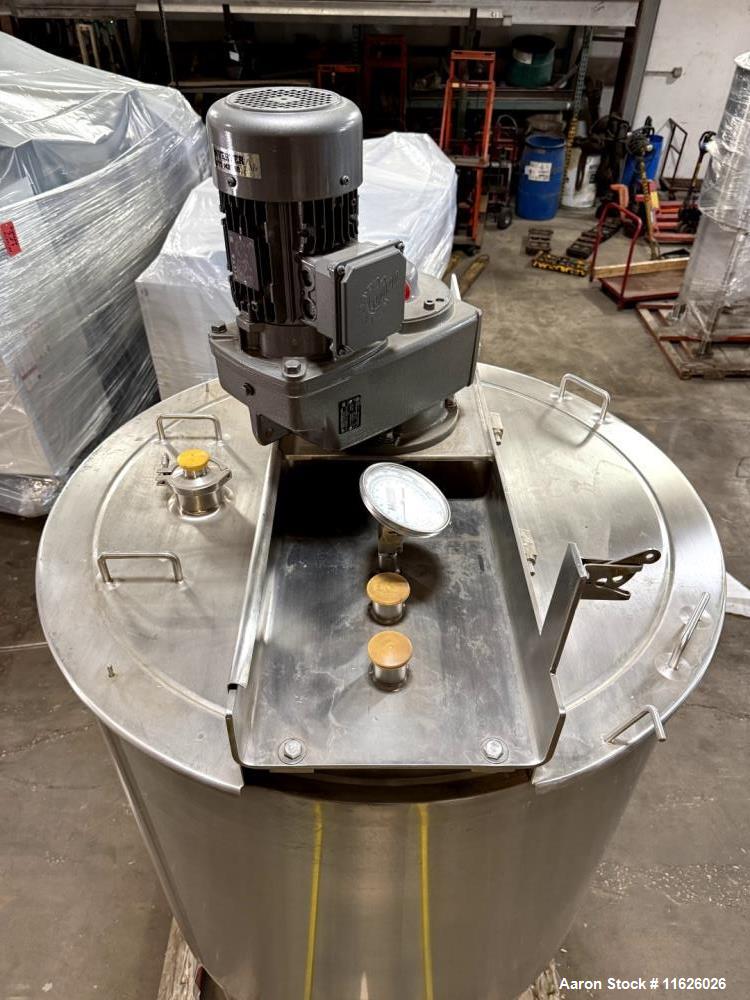

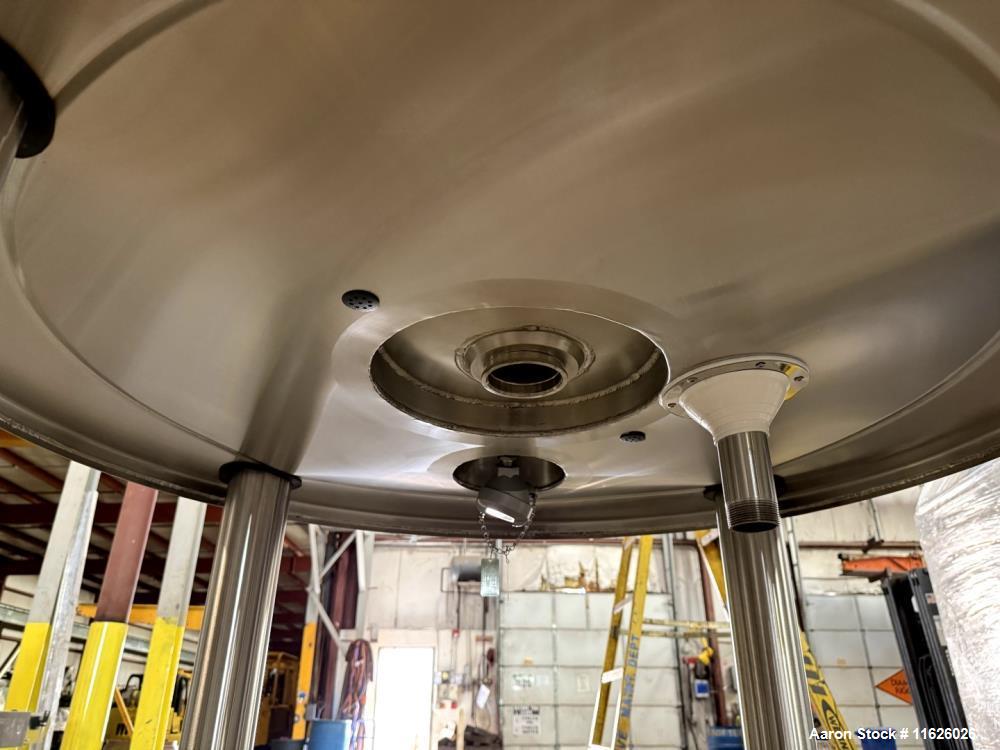

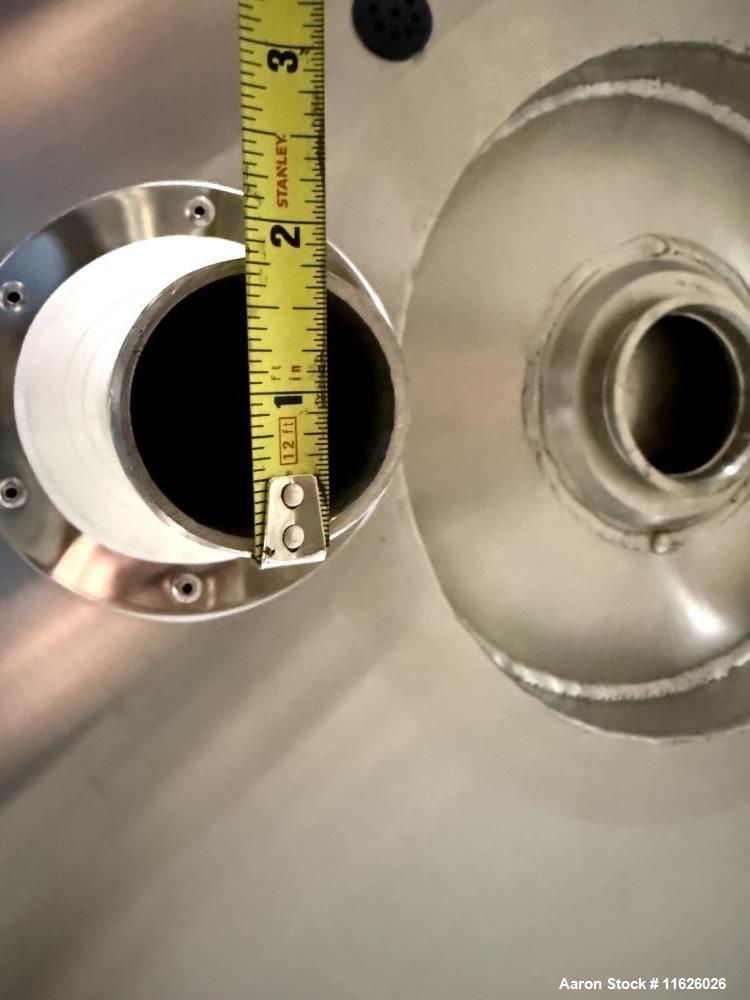

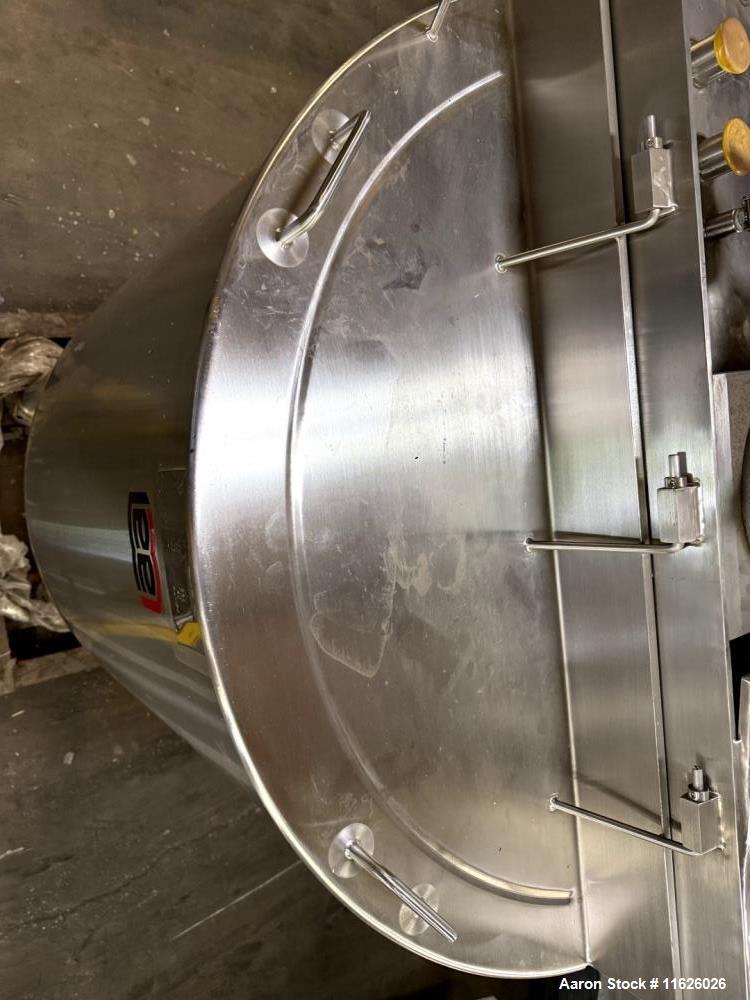

Additional features include a baffle, two-piece cover, thermometer, sprayball, and a 2.5-inch center-bottom ferrule designed for a Cherry-Burrell valve. The valve is not included. Built in 2014, this Lee RA-150 offers a versatile sanitary processing solution for batch production environments.
Specifications
| Specification |
Details |
| Manufacturer |
Lee Industries |
| Model |
RA-150 |
| Condition |
Used |
| Equipment Type |
Jacketed Processing Kettle |
| Nominal Capacity |
150 Gallons |

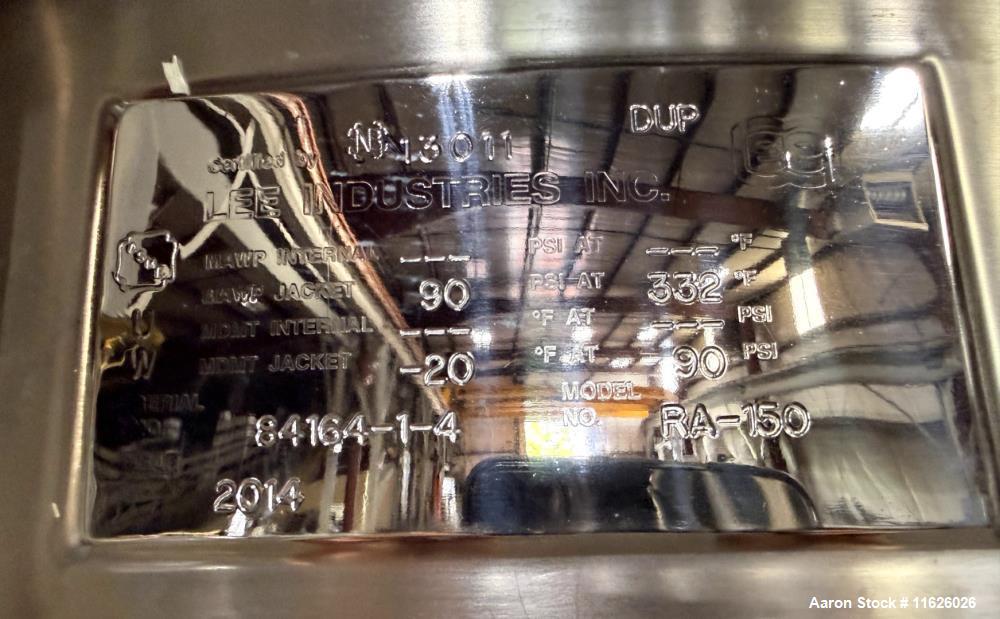

| Serial Number |
84164-1-4 |
| Construction |
316 Stainless Steel |
| Inside Diameter |
42 in. |
| Inside Depth |
40.5 in. |
| Jacket Pressure Rating |
90 PSI |
| Maximum Jacket Temperature |
332°F at 90 PSI |
| Minimum Jacket Temperature |
-20°F at 90 PSI |
| Agitation |
Single-Motion Scrape Surface Agitator |

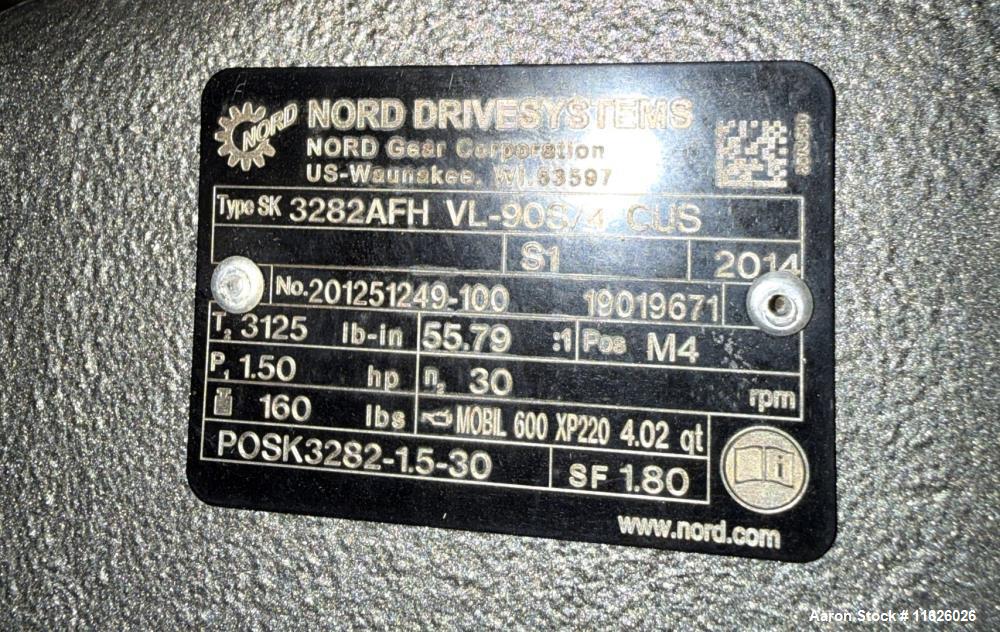

| Agitator Drive |

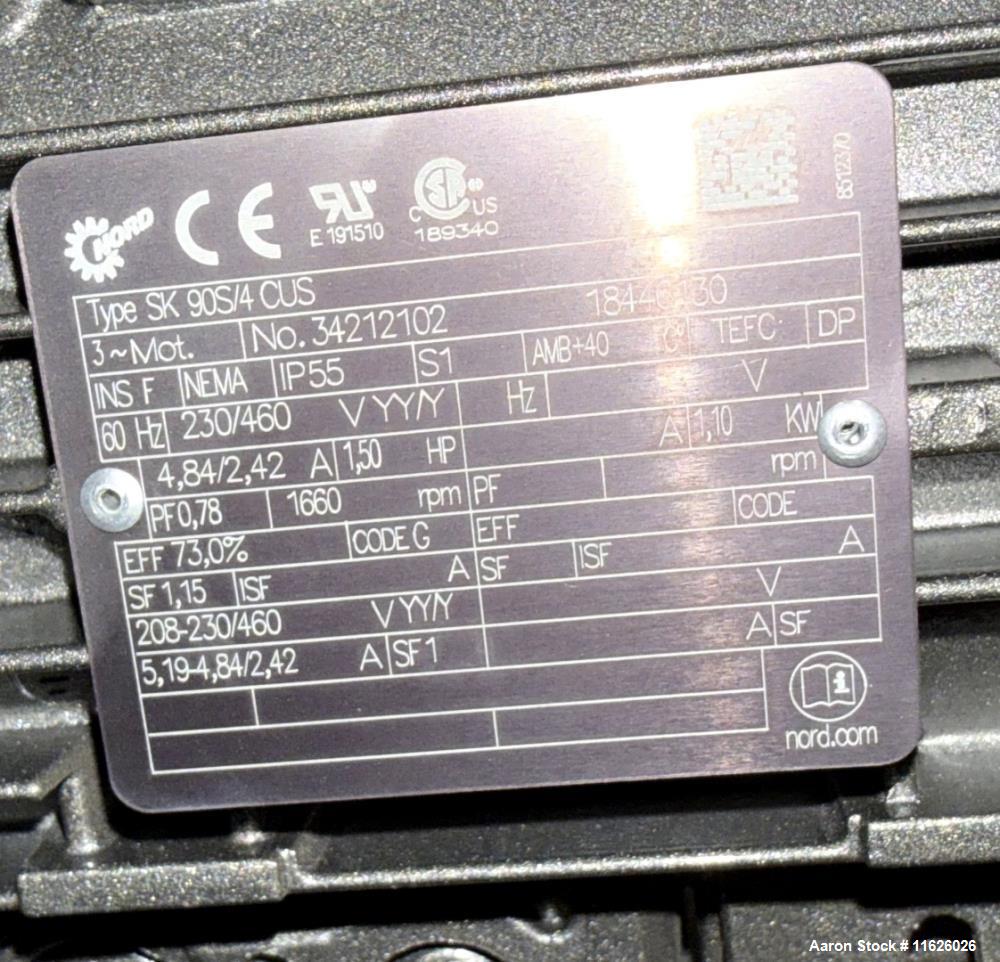

1.5 HP |

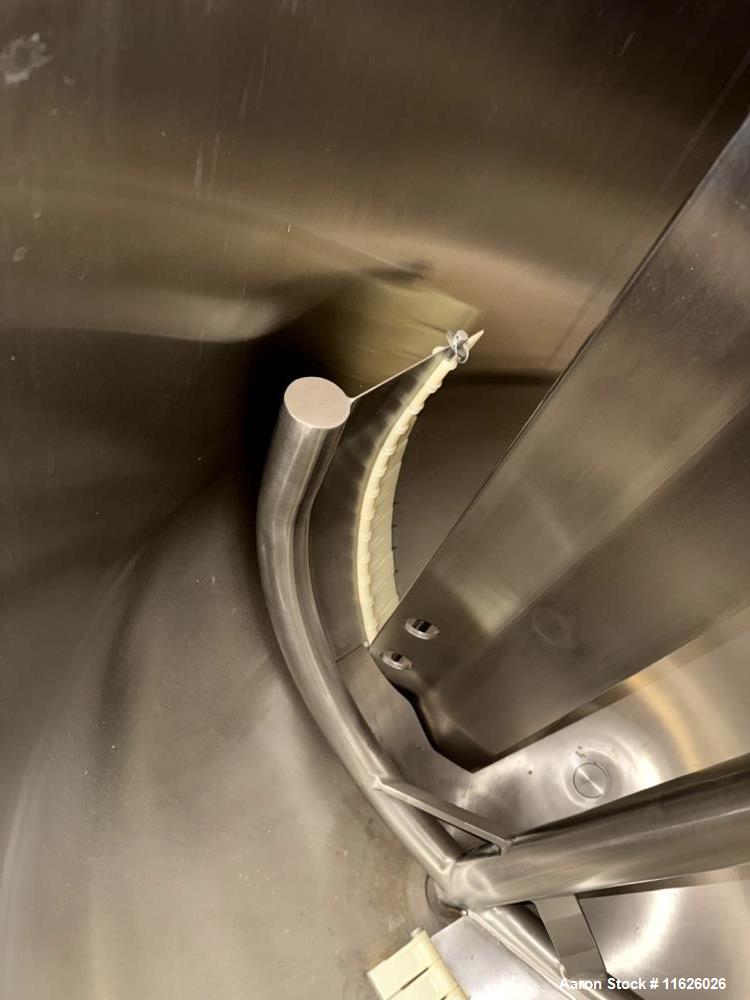

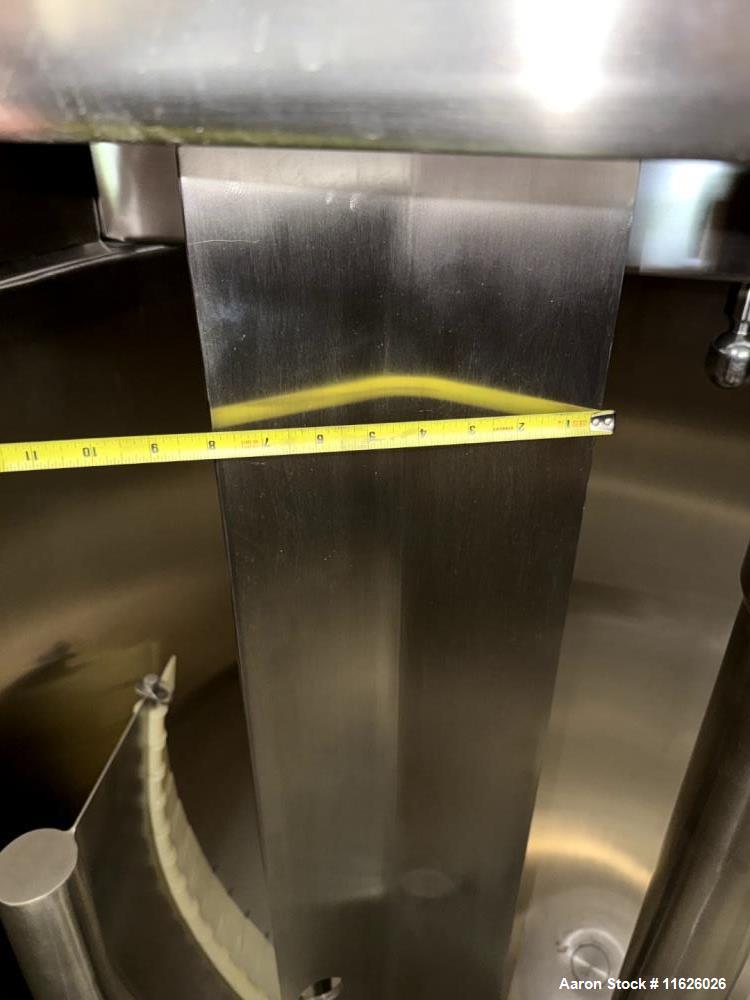

| Baffle |
Included |
| Cover |

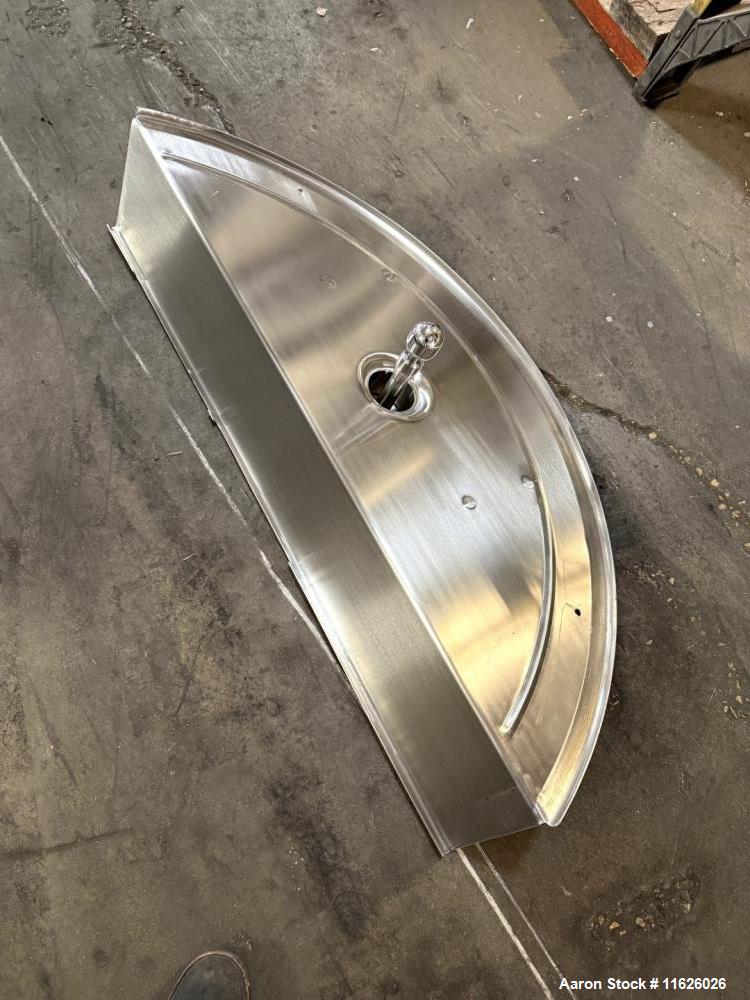

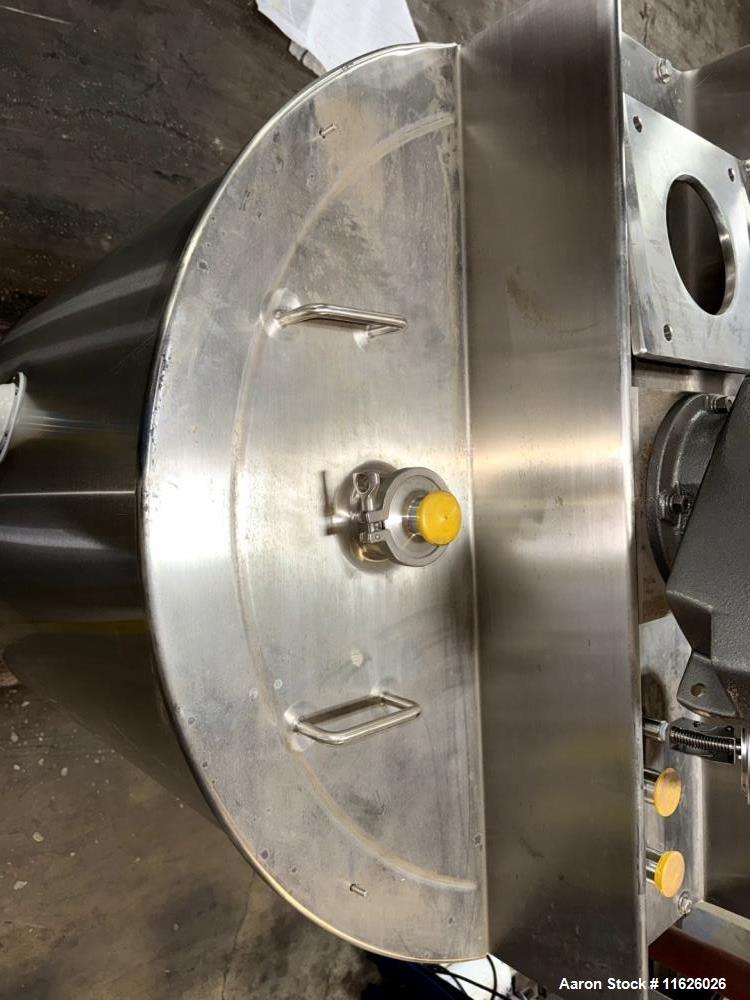

Two-Piece Cover |
| Outlet |

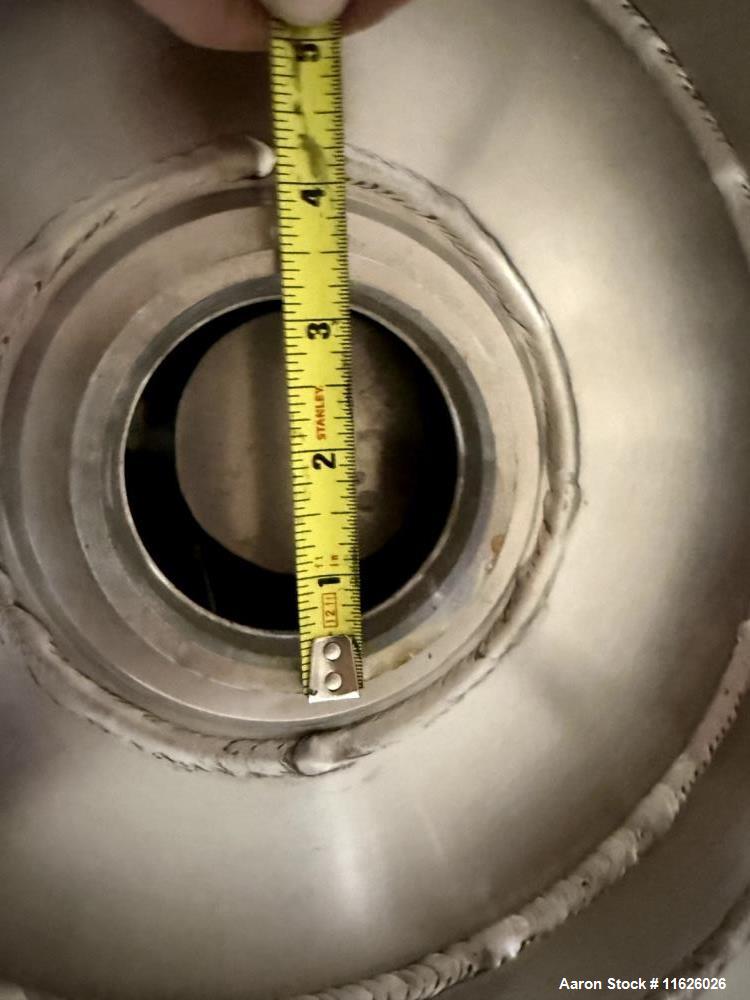

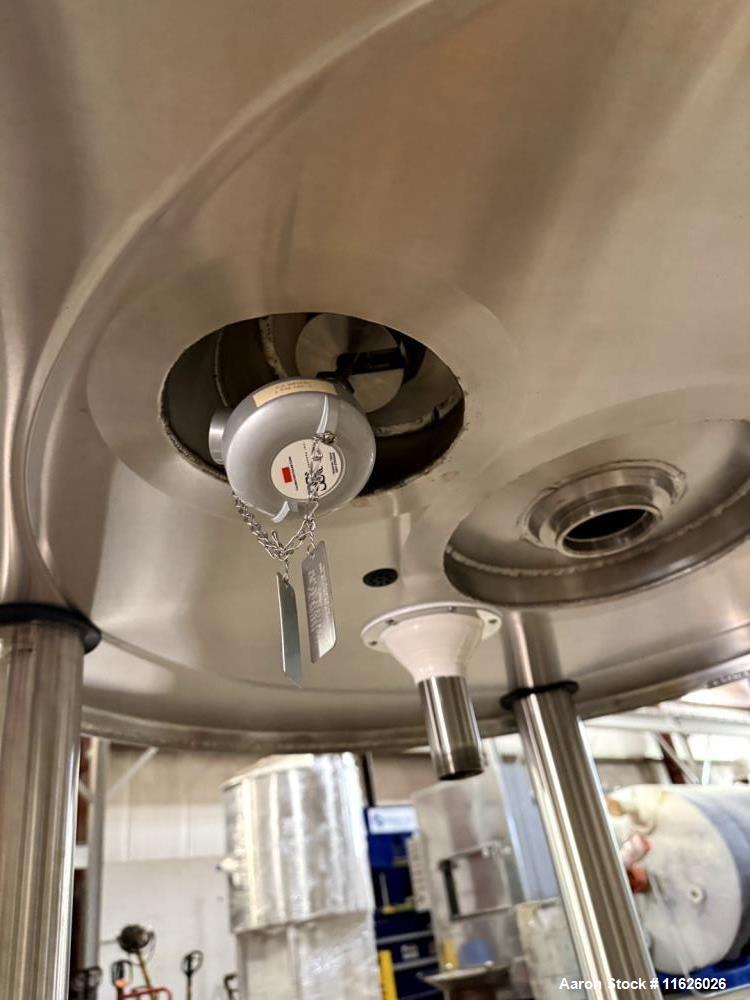

Center-Bottom, 2.5 in. Ferrule |
| Valve Connection |
Designed for Cherry-Burrell Valve |
| Valve Included |
No |

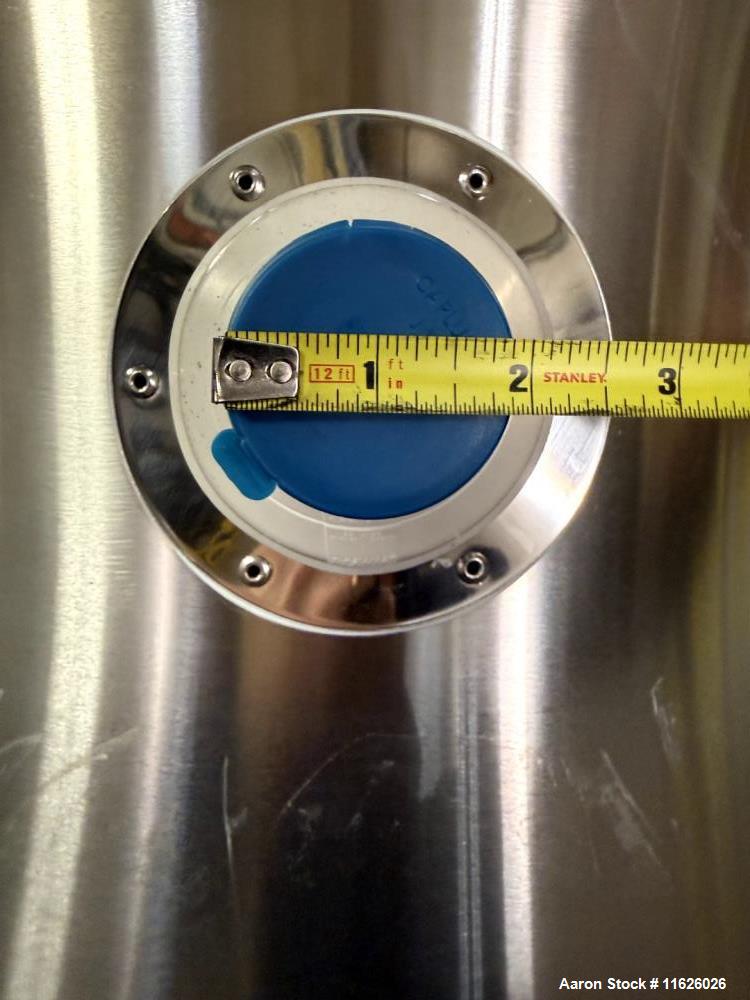

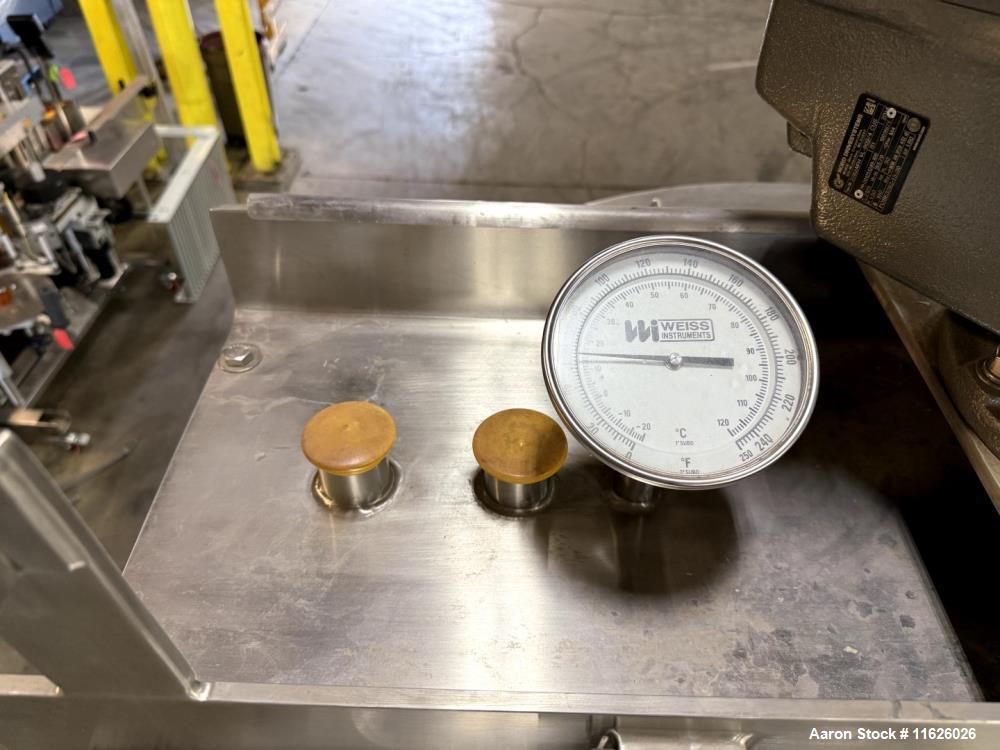

| Thermometer |
Included |

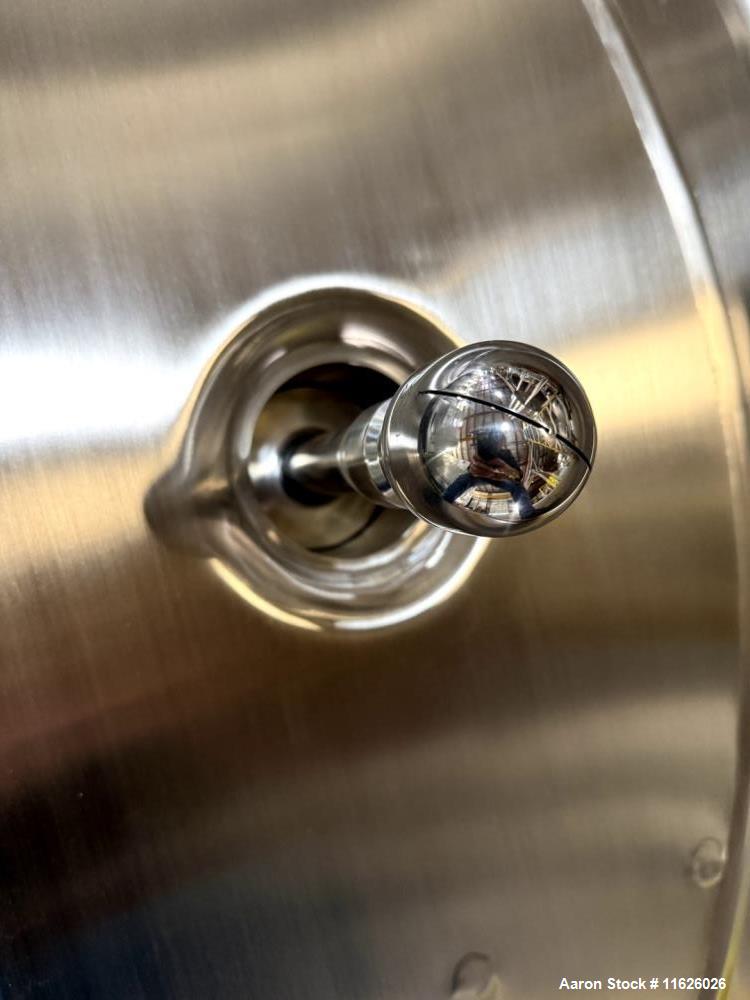

| Sprayball |
Included |
| Build Year |
2014 |
Features
- 150-gallon processing capacity
- 316 stainless steel construction
- Jacketed for heating or cooling
- Jacket rated for 90 PSI
- Operating temperature range from approximately -20°F to 332°F
- Single-motion scrape surface agitation
- 1.5 HP agitator drive
- Internal baffle
- Two-piece sanitary cover
- Center-bottom discharge
- 2.5-inch outlet ferrule
- Thermometer included
- Sprayball included
- Built in 2014
- Suitable for sanitary batch processing
Applications
The Lee RA-150 kettle is commonly used for:
- Product heating
- Product cooling
- Batch mixing
- Sauce processing
- Soup production
- Syrup processing
- Cream and lotion manufacturing
- Pharmaceutical compounding
- Cosmetic processing
- Chemical blending
- Viscous product processing
- Sanitary food production
Common Industries
- Food processing
- Beverage manufacturing
- Pharmaceutical production
- Cosmetics manufacturing
- Personal care products
- Chemical processing
- Nutraceutical manufacturing
- Dairy processing
- Contract manufacturing
- Specialty product processing
Products This Kettle Is Used For
- Sauces and dressings
- Soups and broths
- Syrups
- Jams and preserves
- Creams and lotions
- Ointments
- Gels
- Adhesives
- Specialty chemicals
- Food concentrates
- Personal care formulations
- Pharmaceutical compounds
Frequently Asked Questions
- What is the capacity of this kettle?
The Lee RA-150 has a nominal capacity of 150 gallons.
- What material is the kettle constructed from?
The vessel is constructed of 316 stainless steel, making it suitable for sanitary and corrosive processing applications.
- Is the kettle jacketed?
Yes. The jacket is rated for 90 PSI and is suitable for heating or cooling service from approximately -20°F to 332°F.
- What type of agitation is included?
The kettle features a single-motion scrape surface agitator driven by a 1.5 HP motor, along with an internal baffle.
- Is the discharge valve included?
No. The kettle has a 2.5-inch center-bottom ferrule designed for a Cherry-Burrell valve, but the valve is not included.
- Can Aaron Equipment assist with shipping and logistics?
Yes. Aaron Equipment can help coordinate rigging, crating, freight, export documentation, and domestic or international shipping for kettles and other industrial process equipment.
