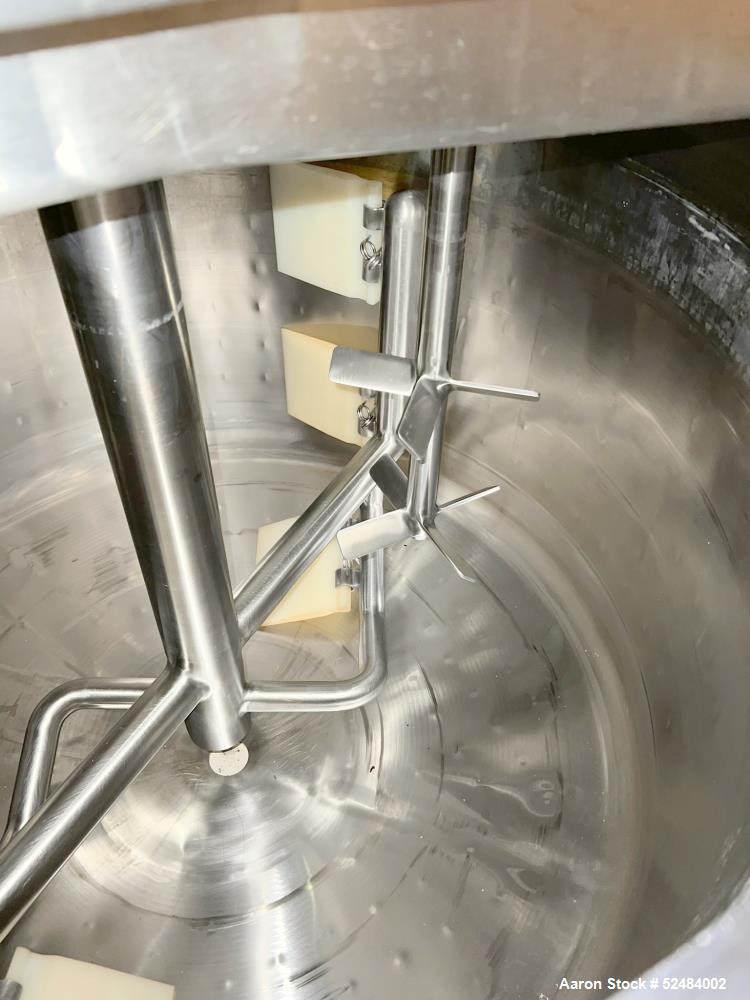

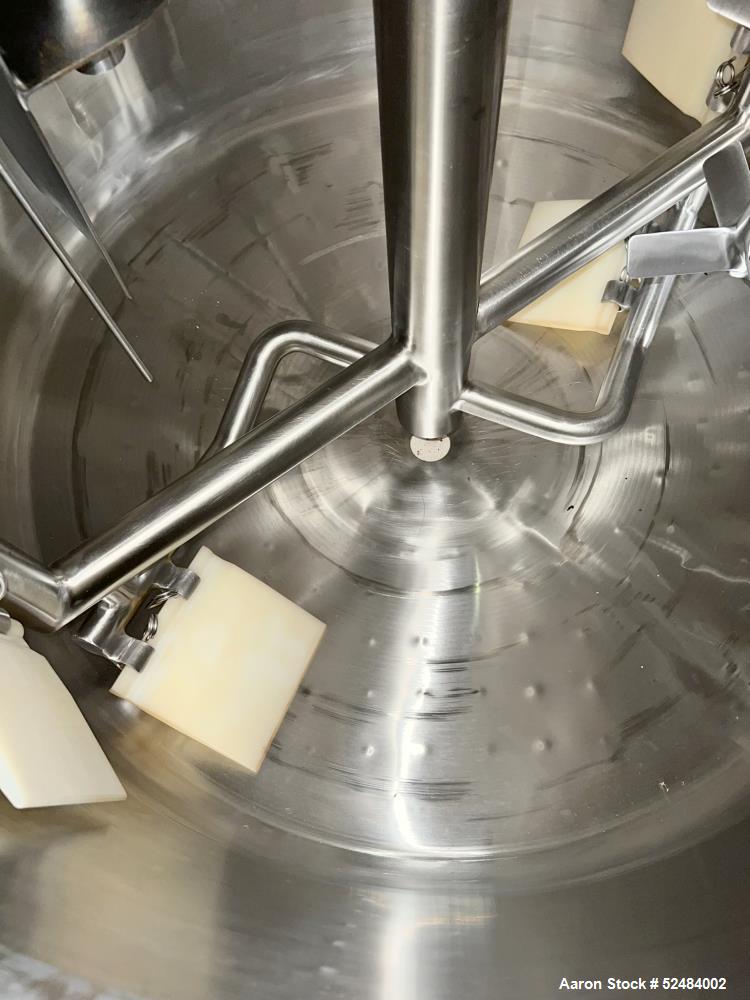

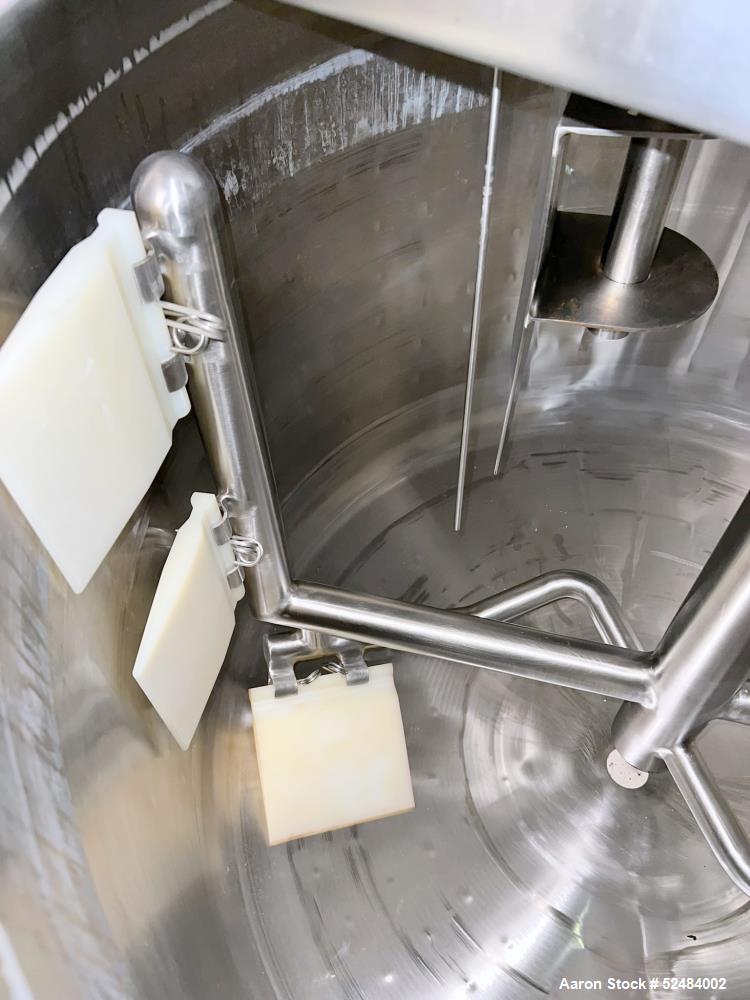

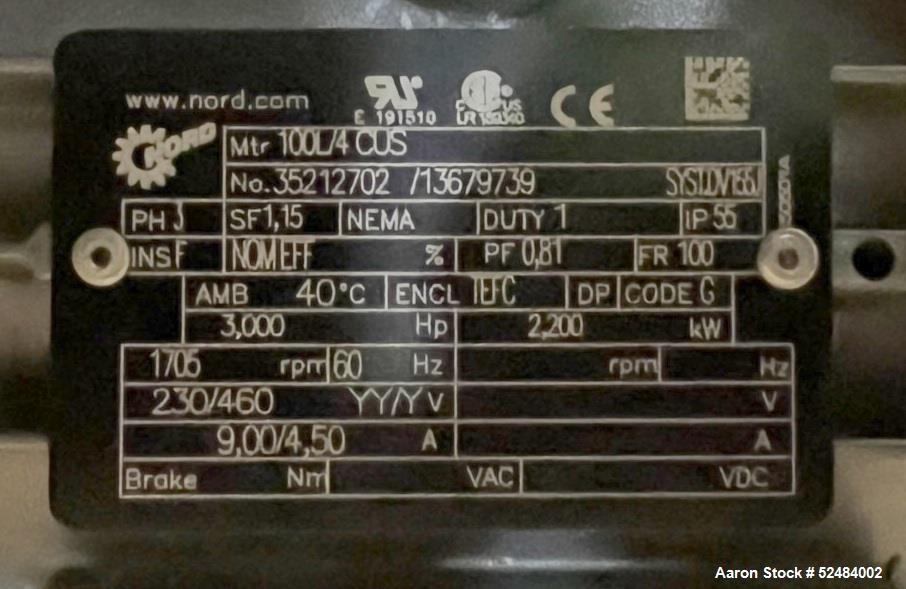

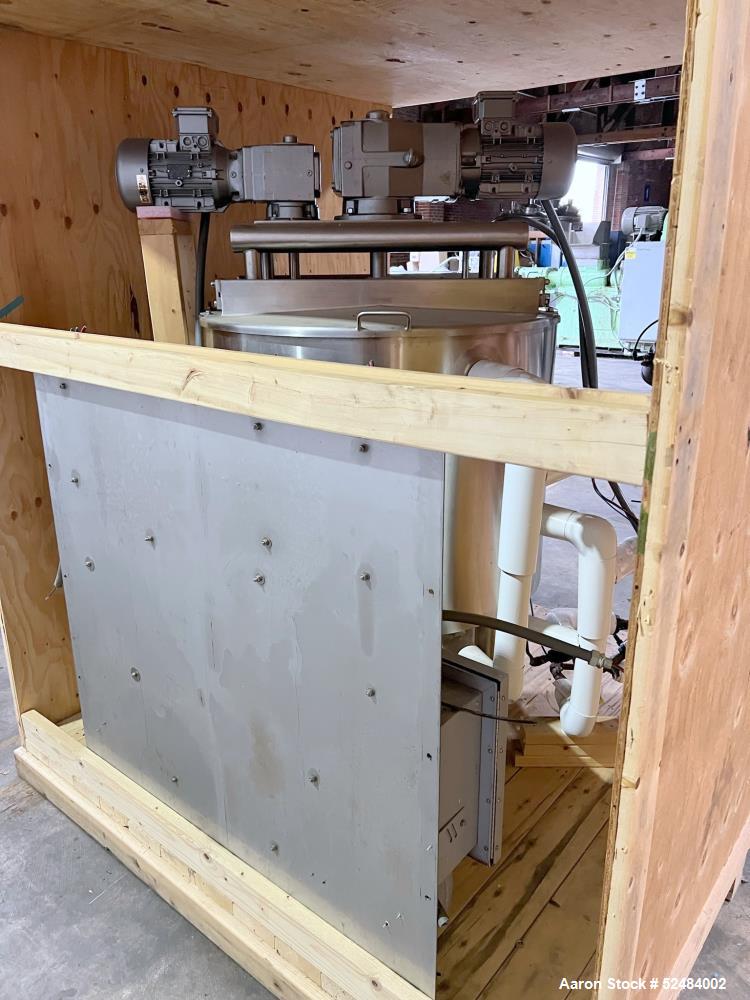

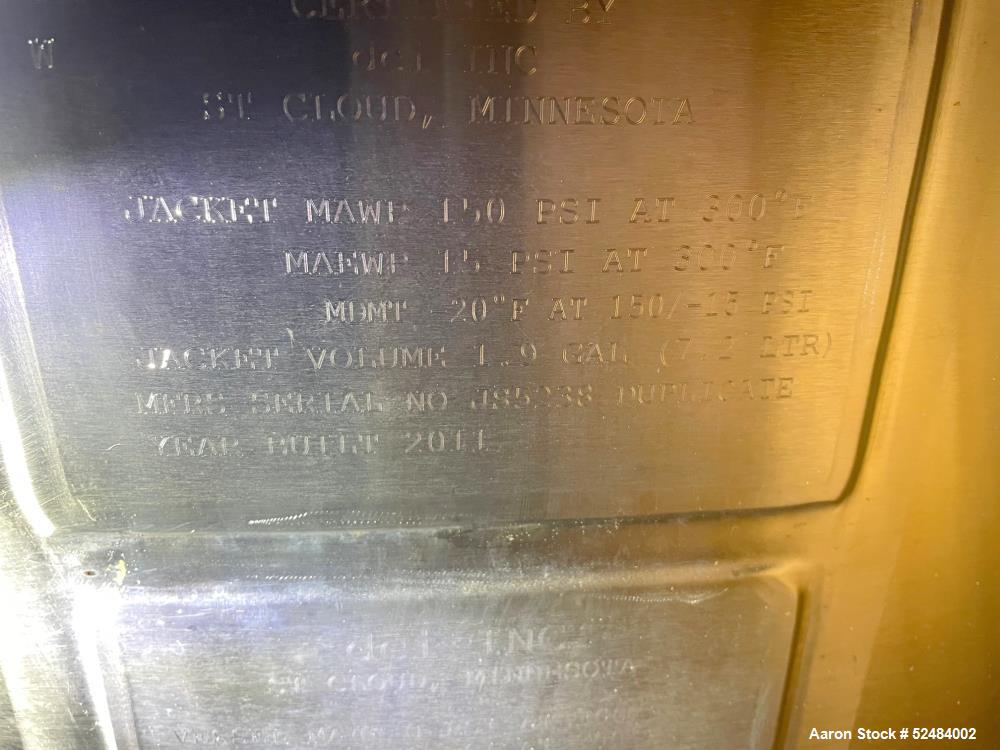

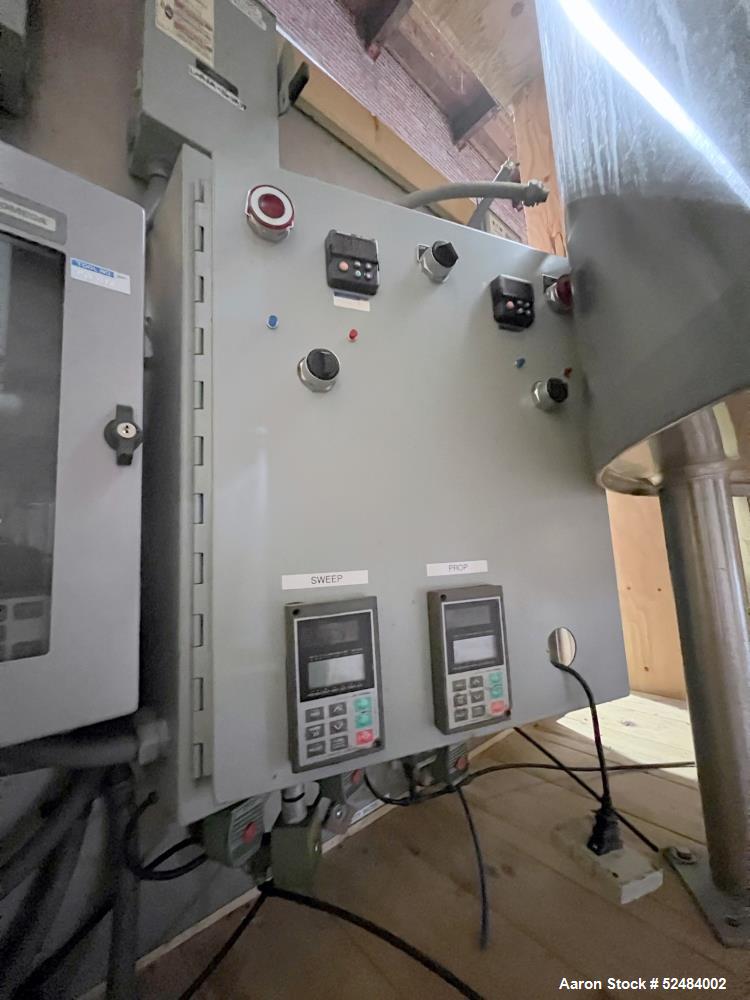

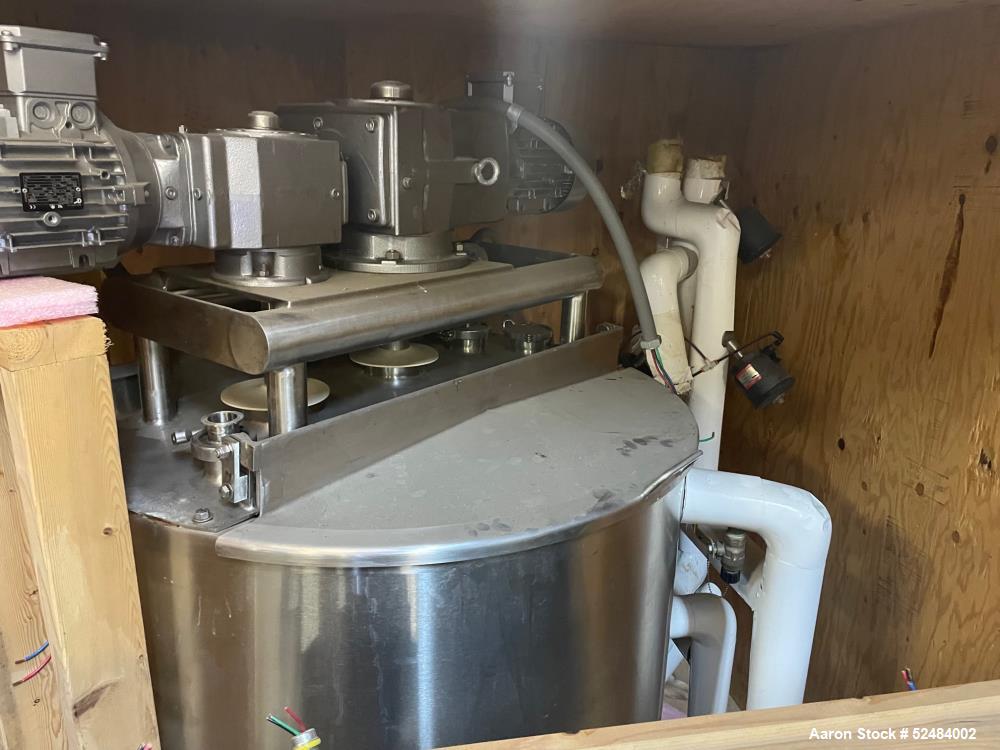

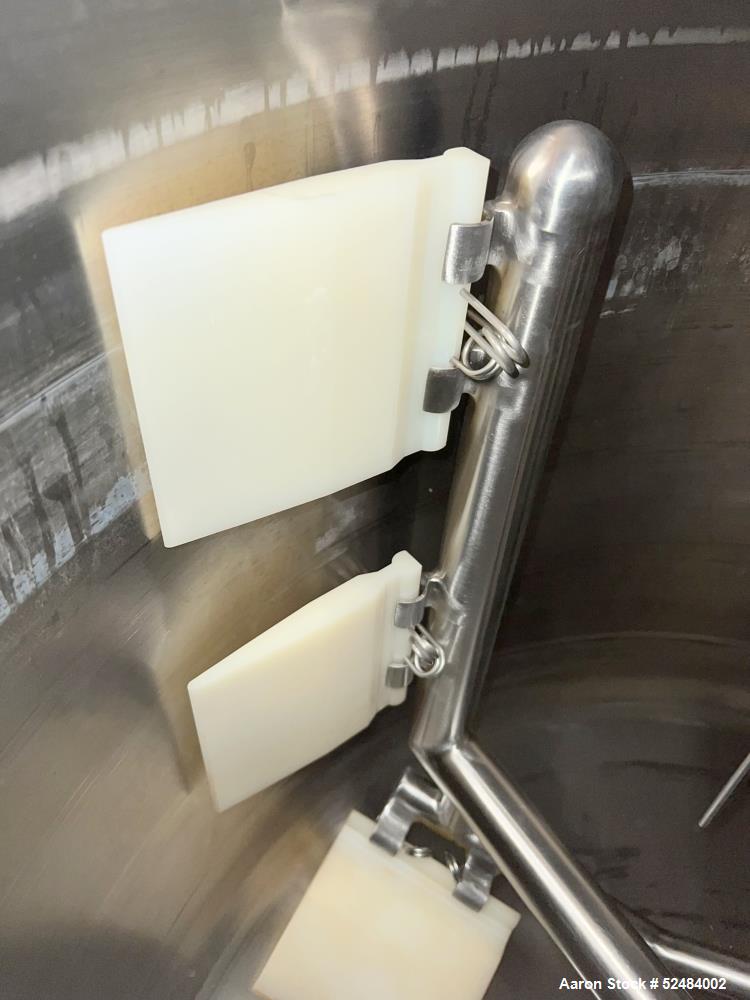

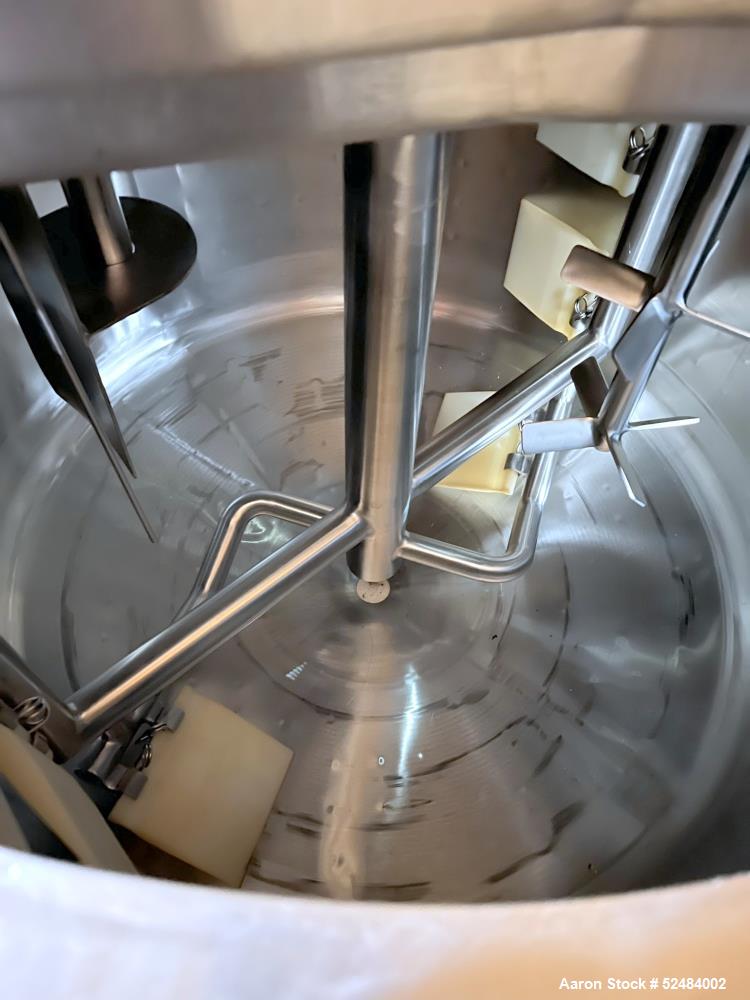

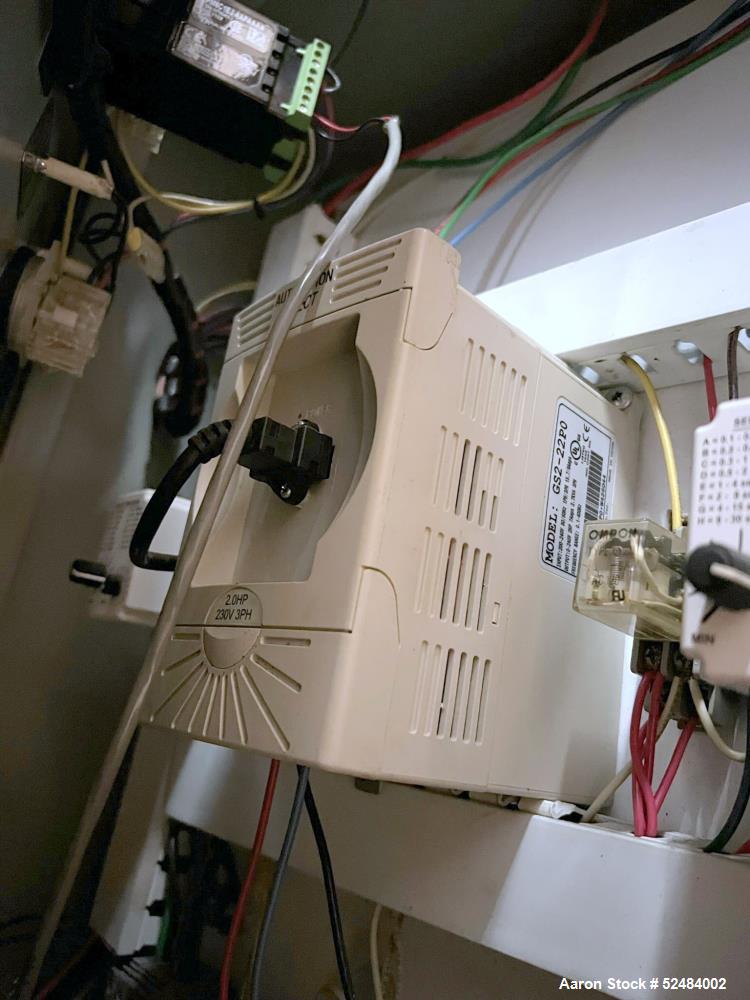

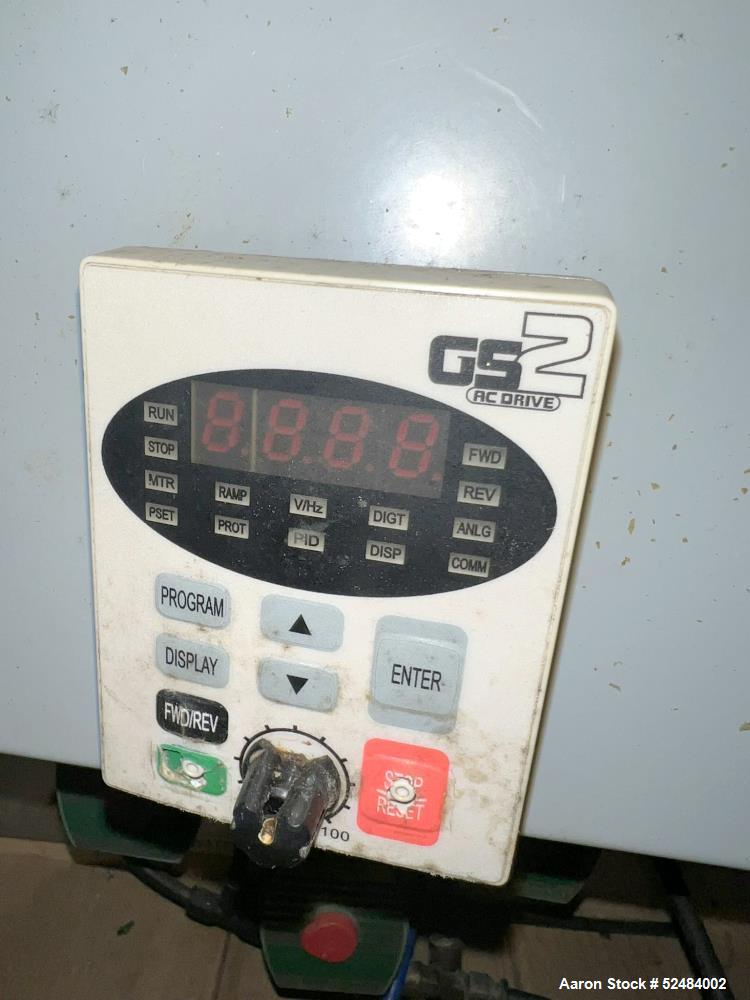

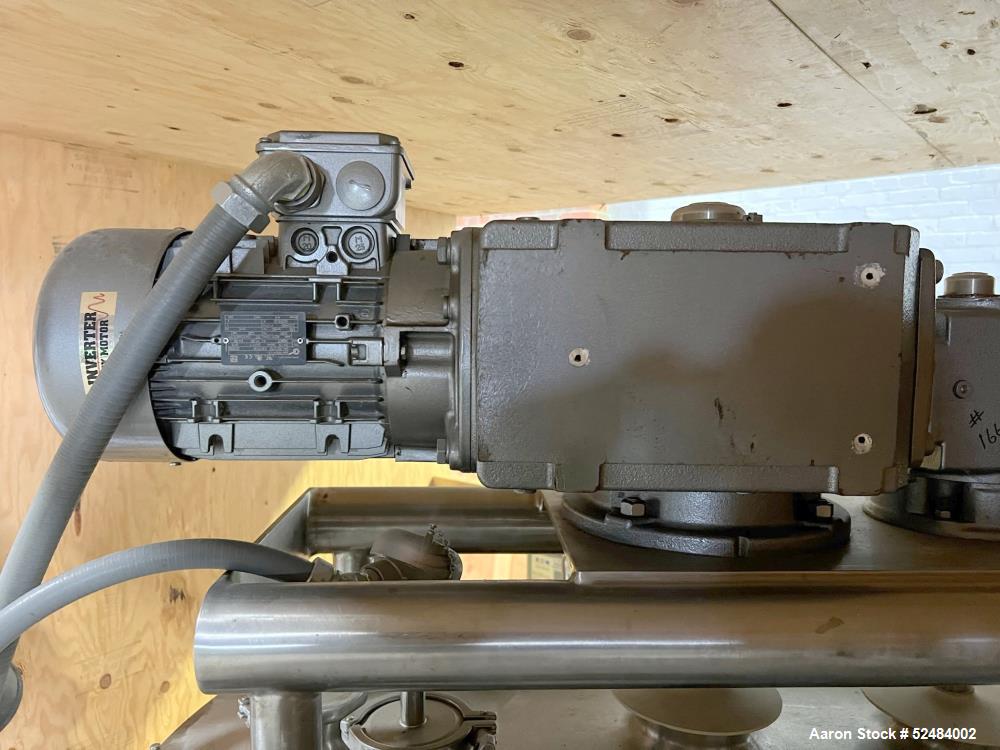

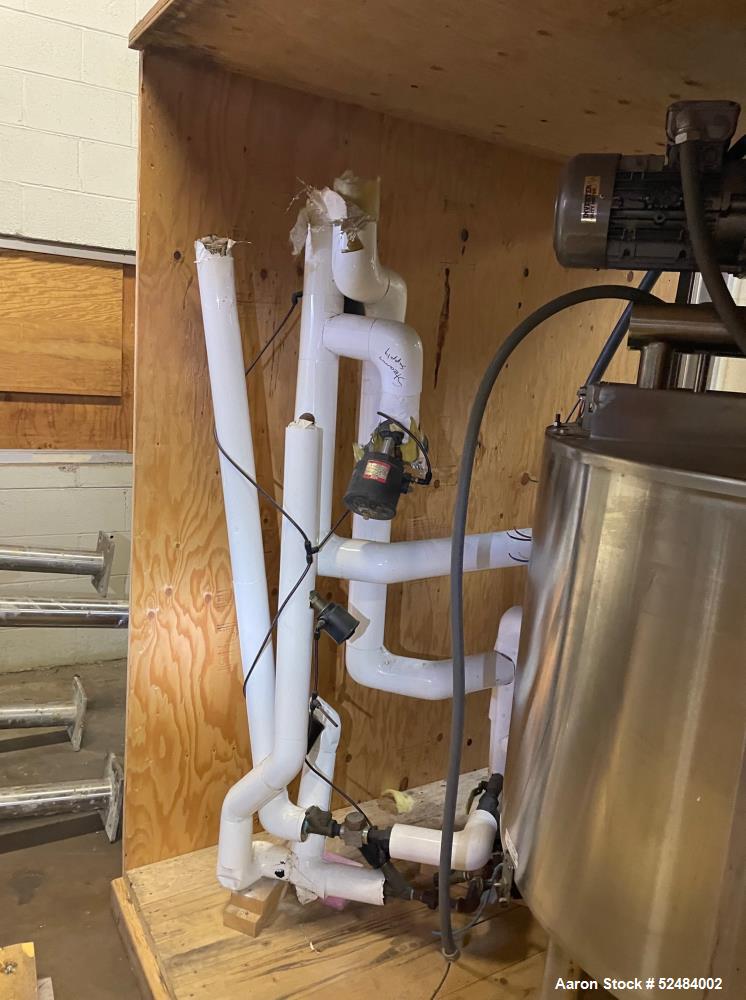

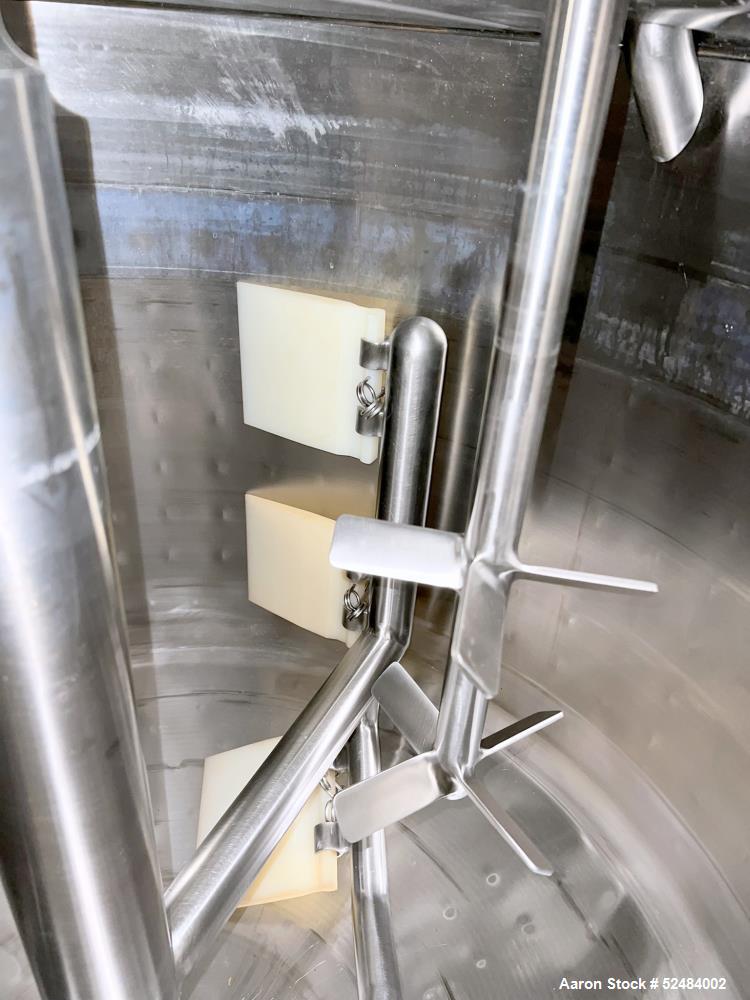

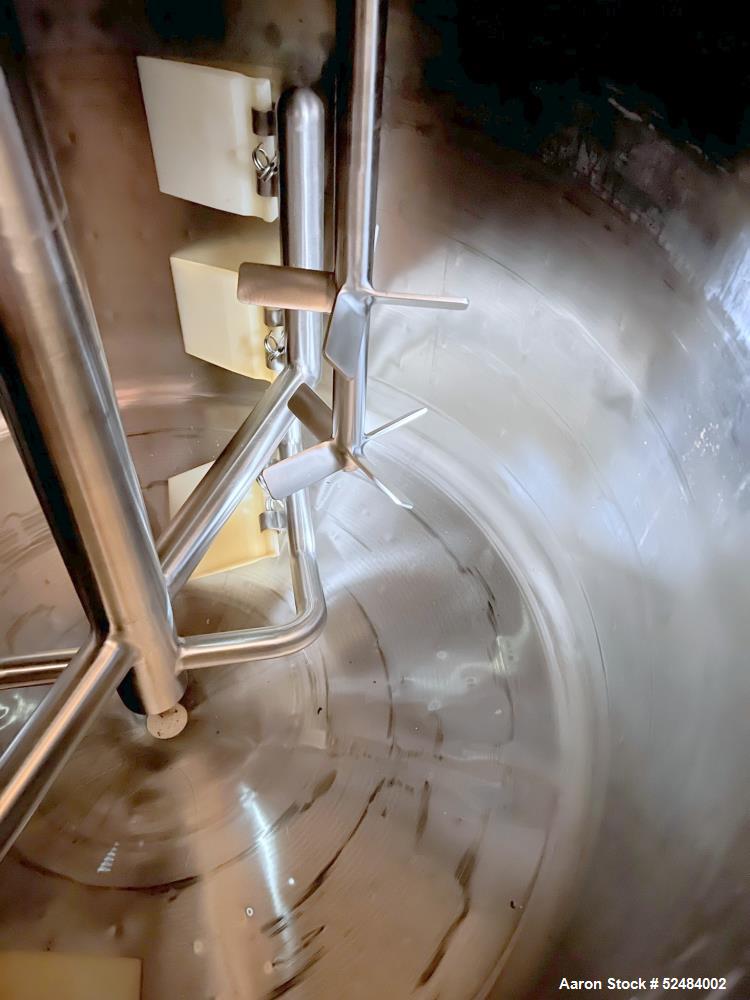

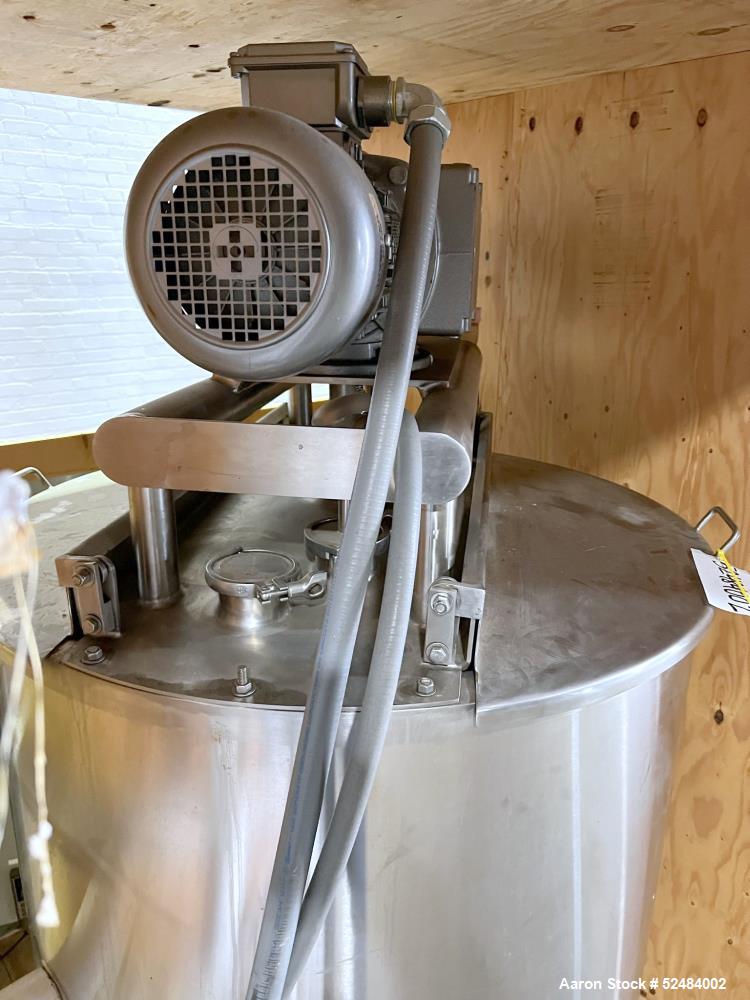

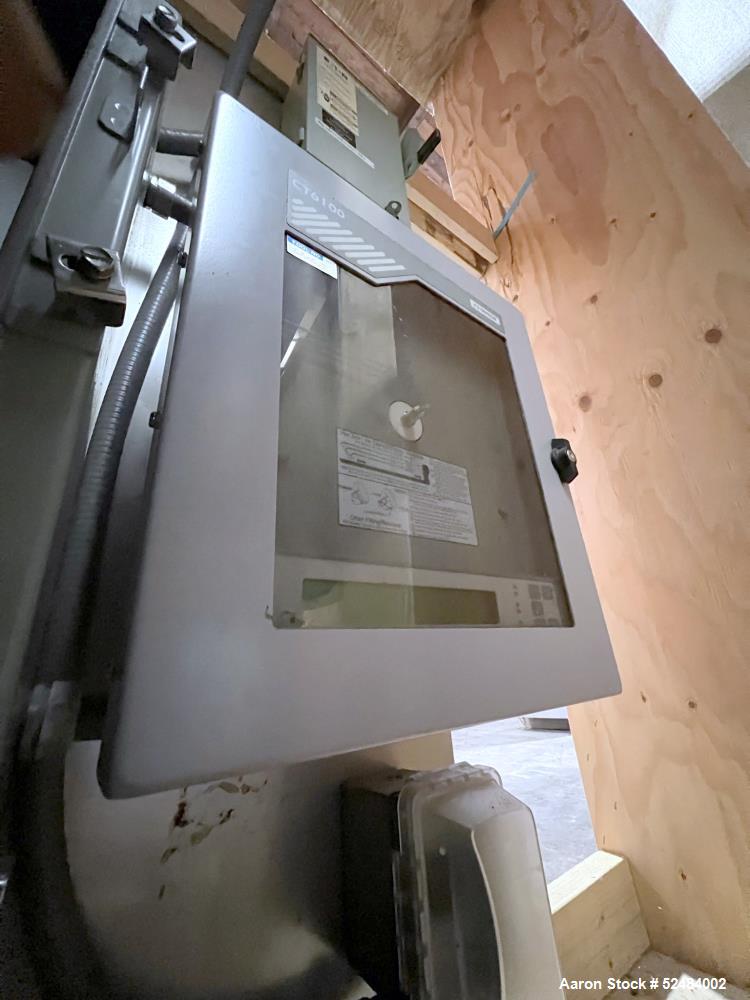

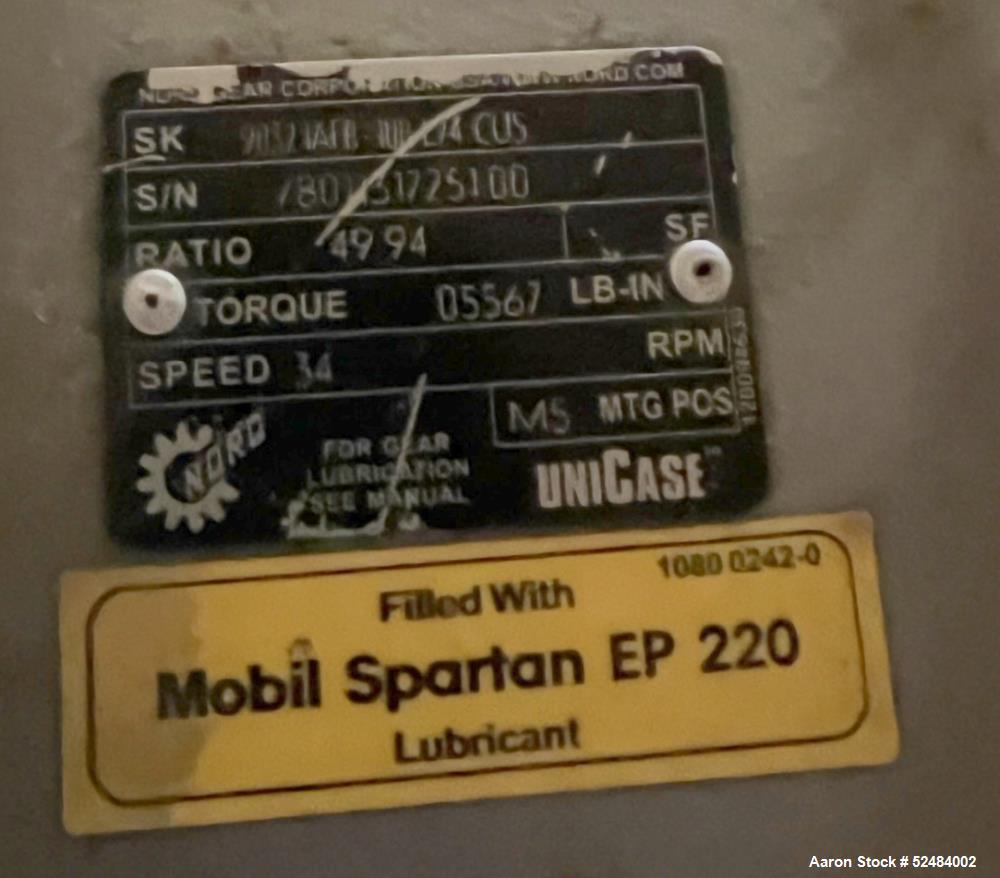

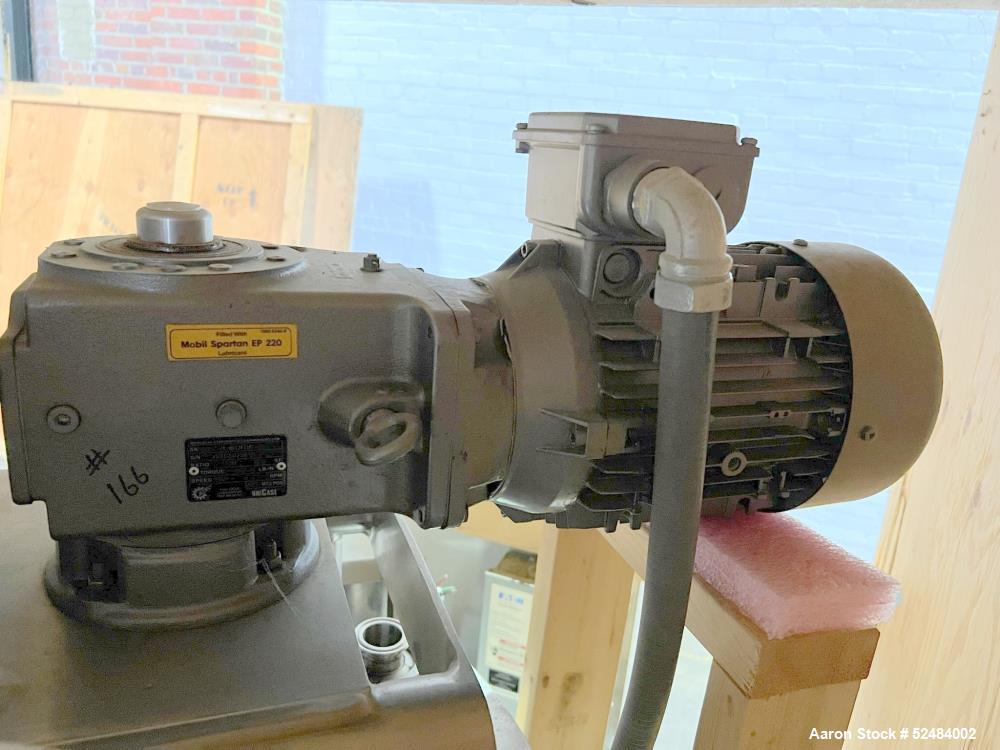

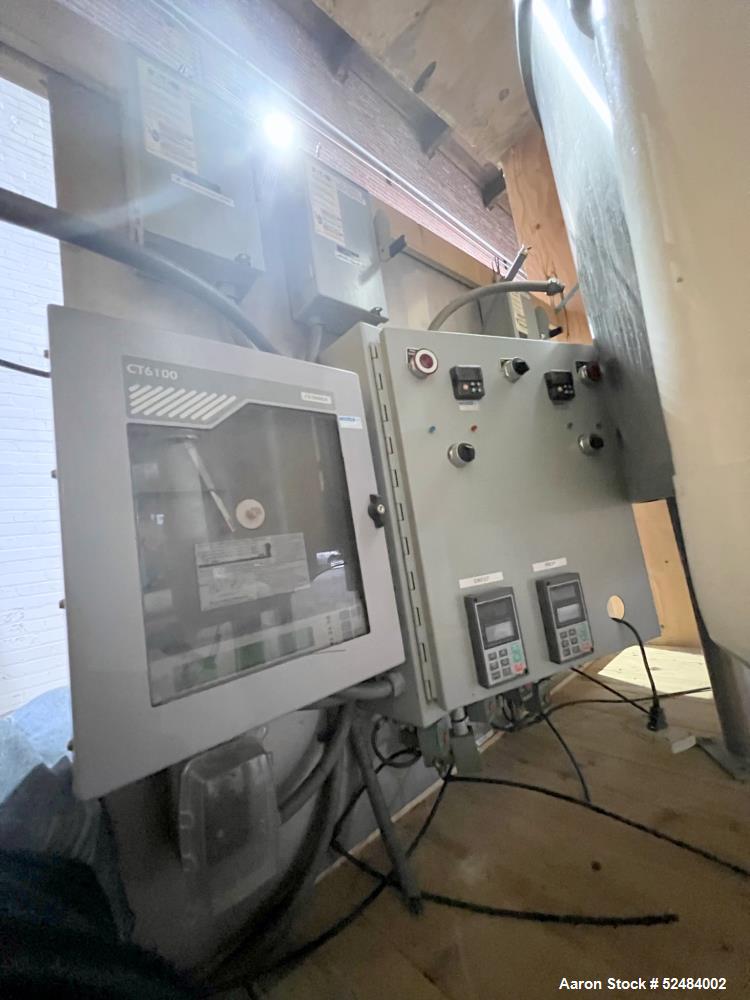

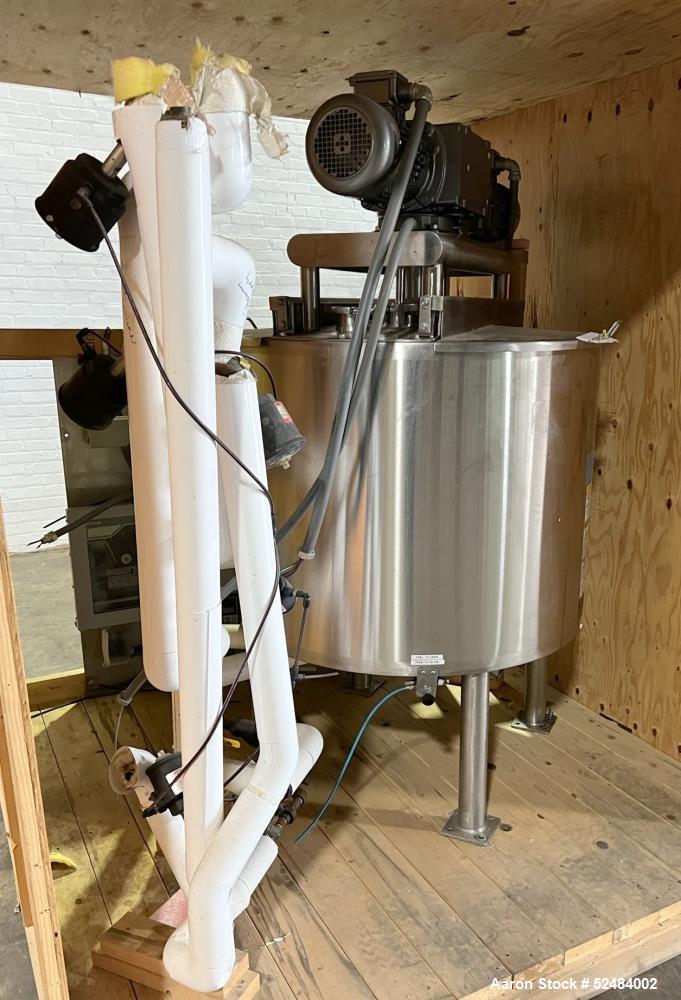

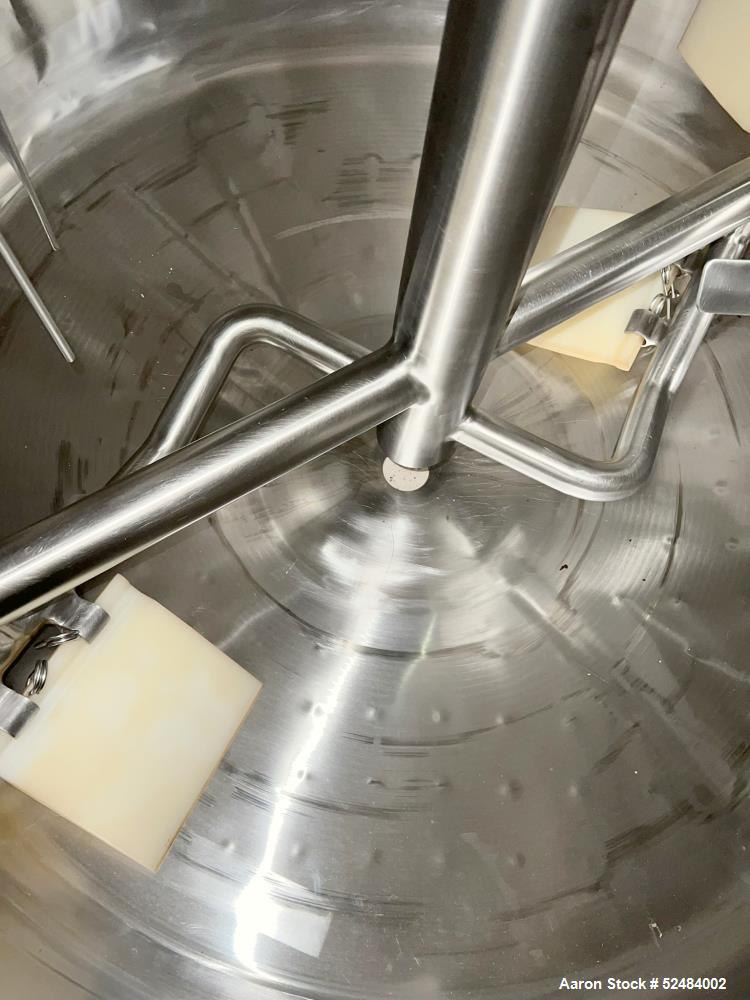

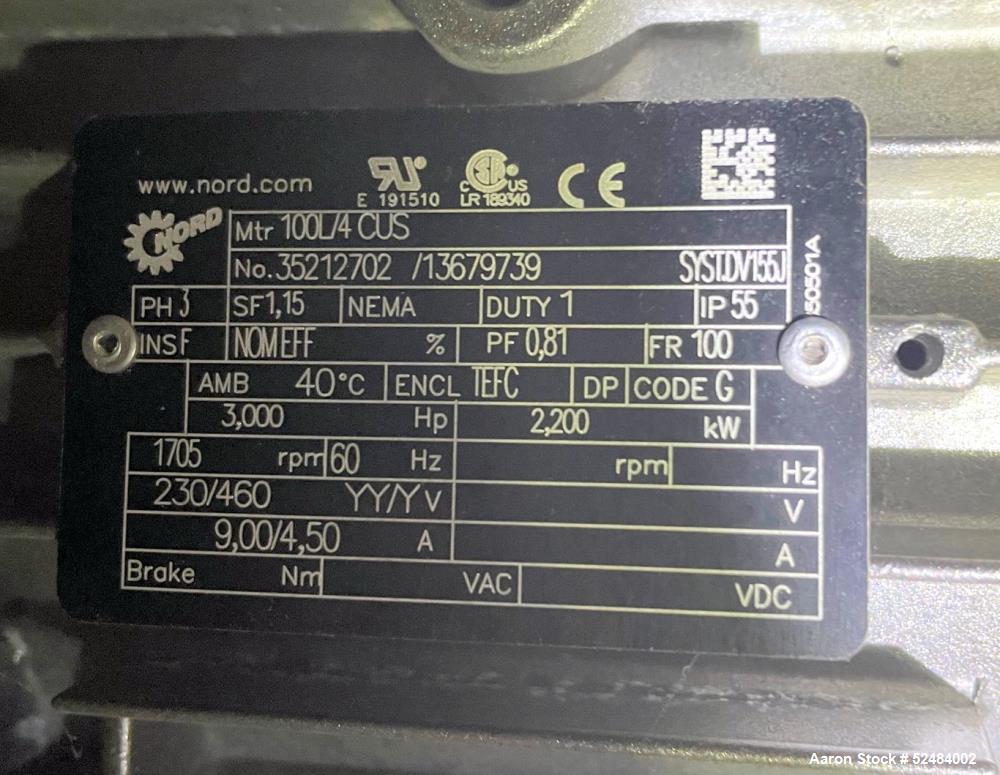

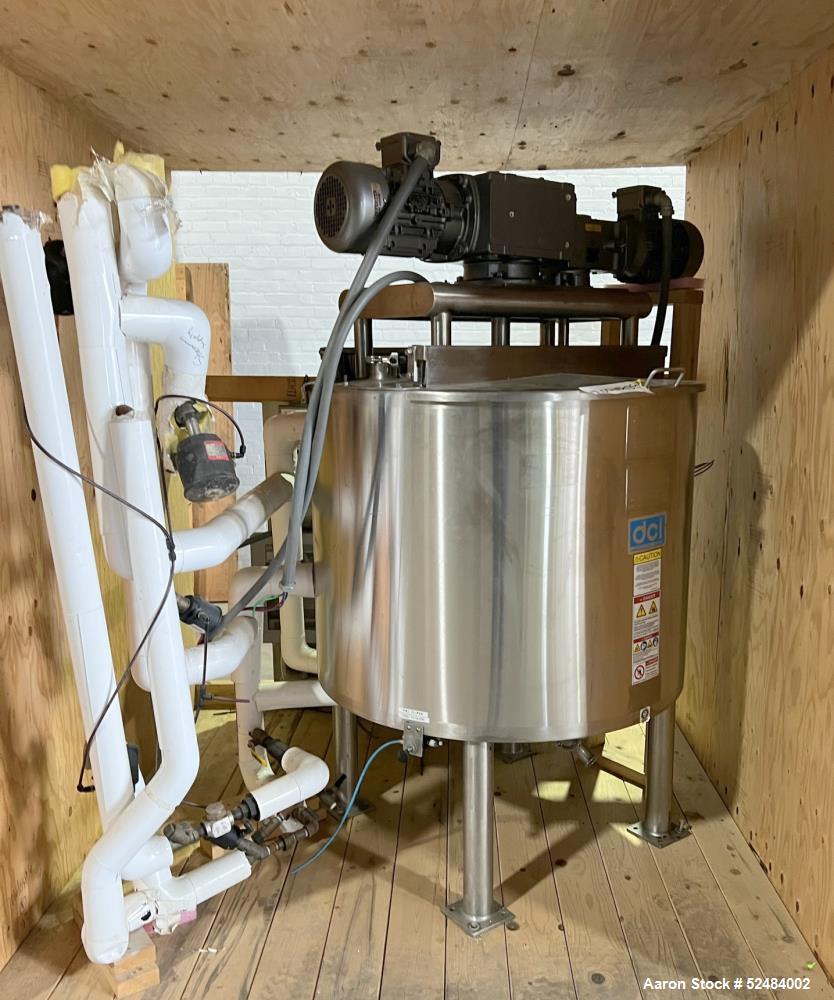

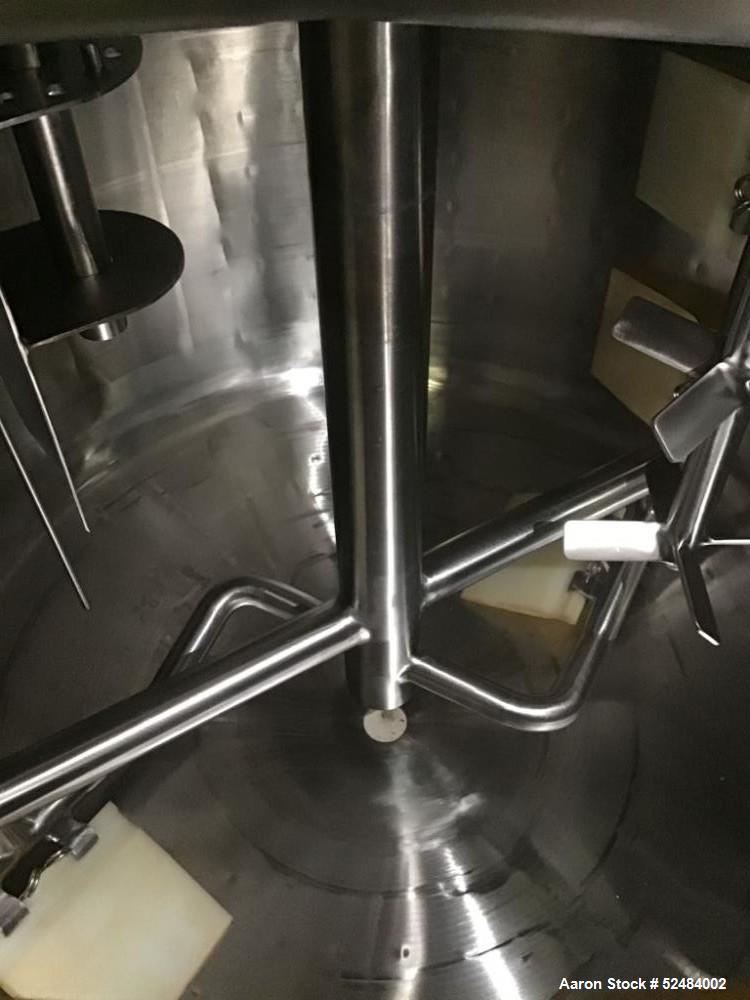

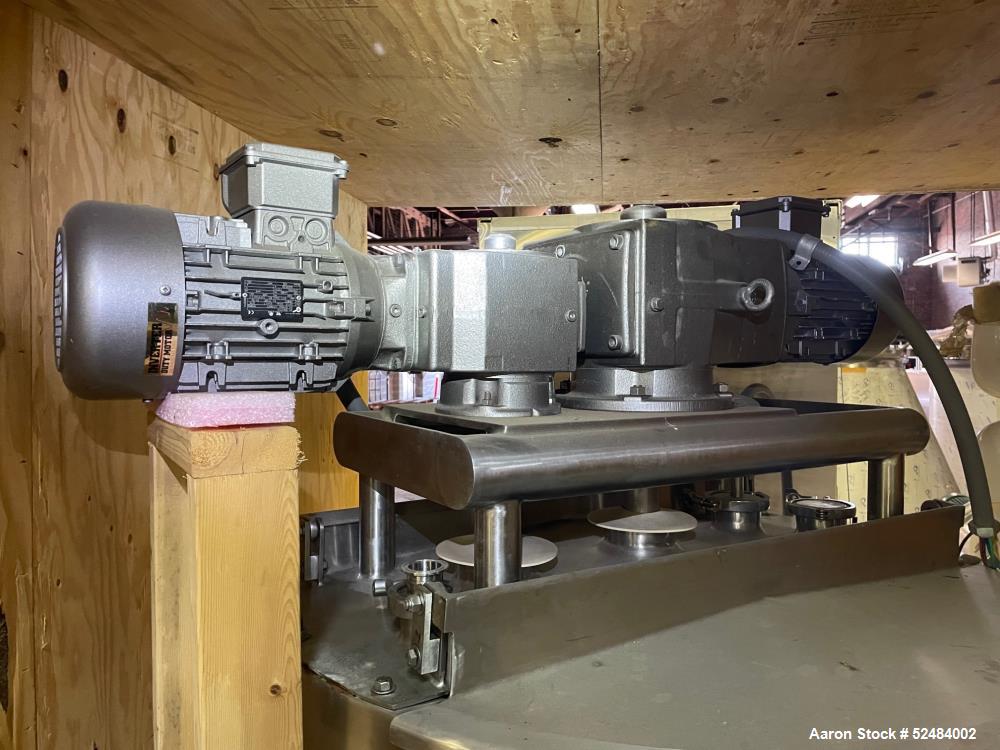

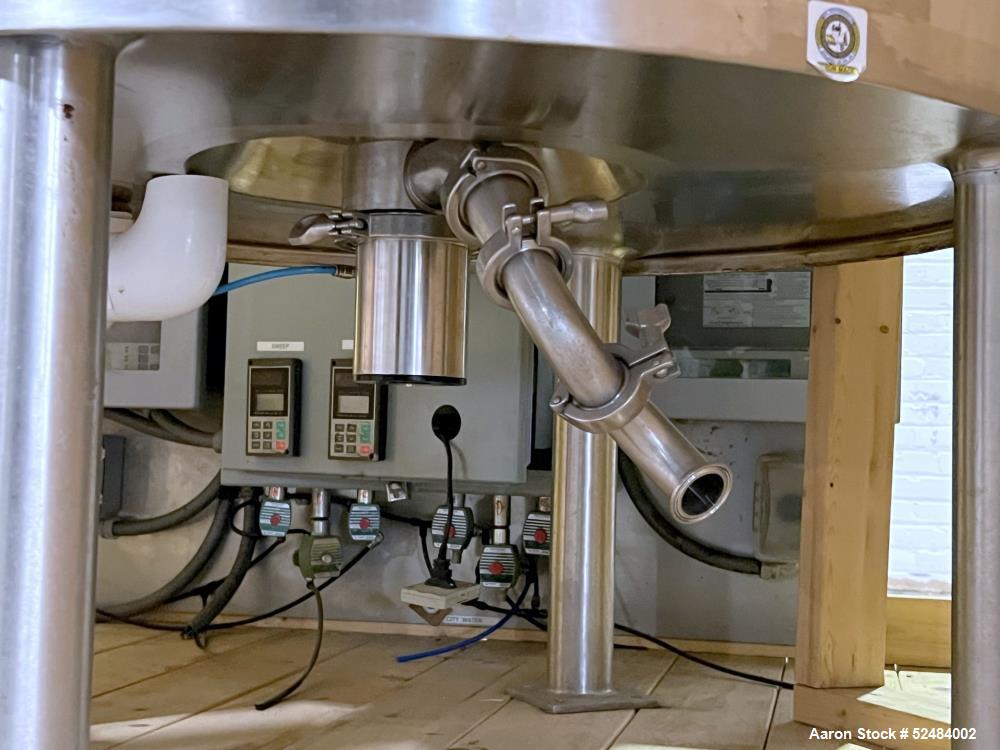

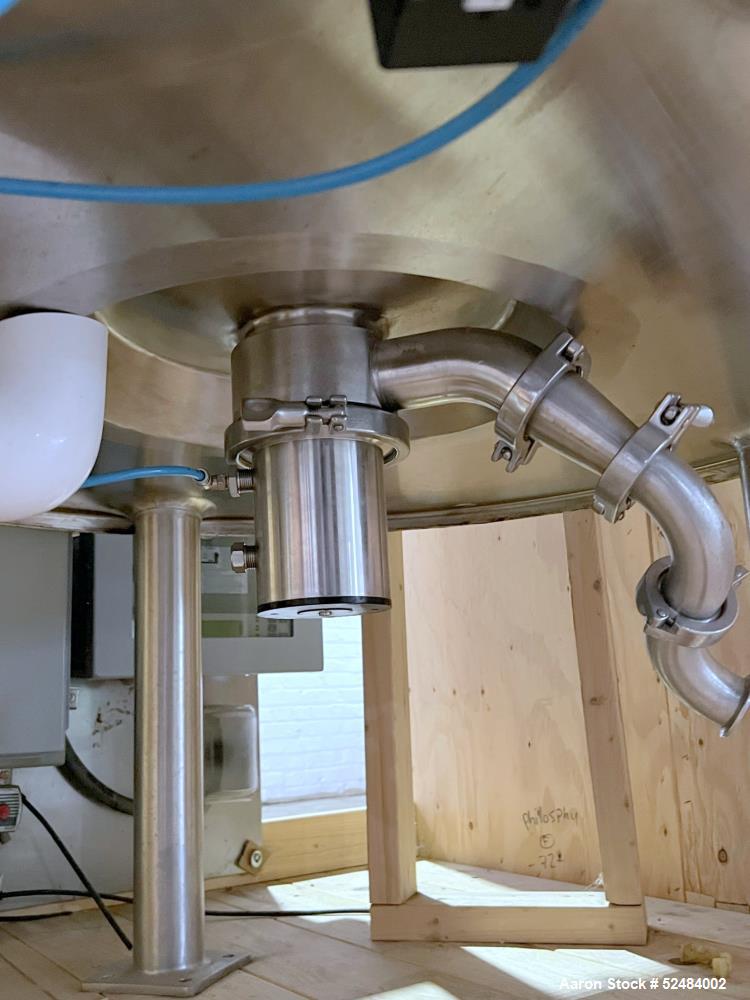

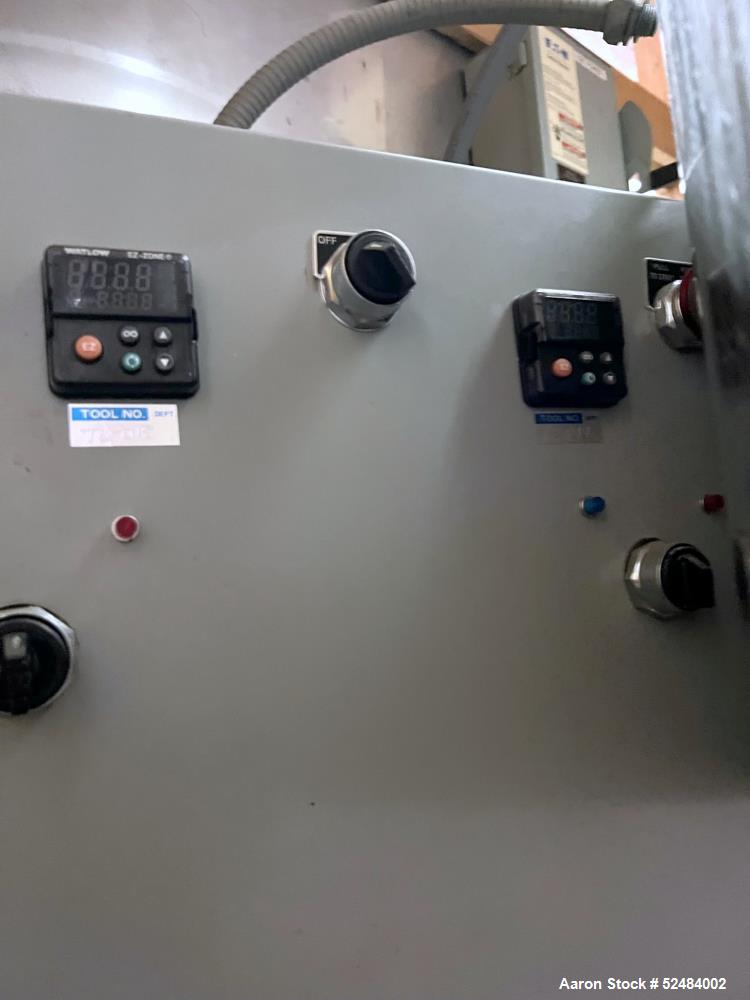

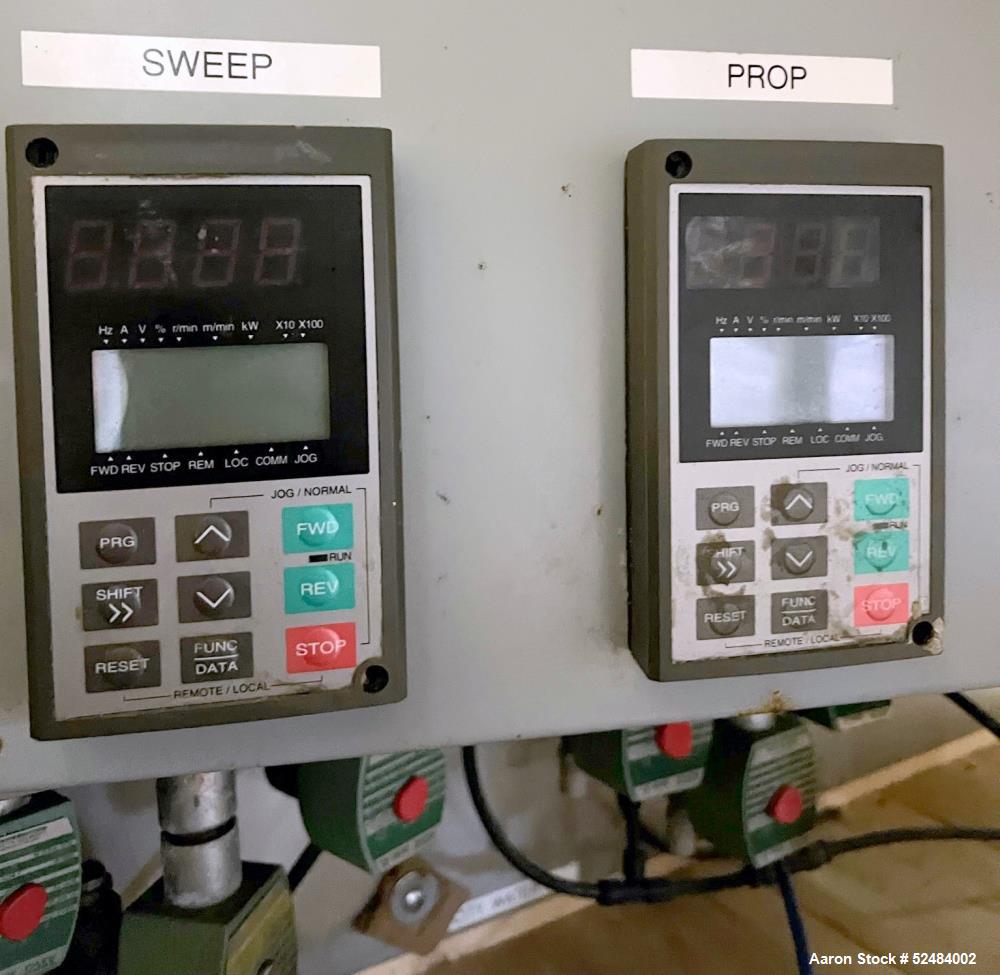

Used DCI Jacketed Mix Kettle, 100 Gallon (378L), 316 Stainless Steel. Approximate 36" diameter x 24" straight side. (2) 1/3 Hinged Covers. Flat top, cone bottom. SB443 Alloy dimple jacket rated 150psi at -20 to 300 degrees F. Top agitator bridge with dual agitation to include anchor style agitator with side & bottom teflon scrapers (3" diameter shaft), driven by a 3hp, 3/60/230/460 volt, 1705rpm gear motor, 34rpm output (49.94 ratio). Offset bar type agitator, 1-1/4" diameter x 20" long shaft with 3"l x 1-3/8"w x 1/8" thick bars, driven by 3hp, 3/60/230/460 volt, 1705 rpm gear motor, 322rpm output (5.30 ratio). 304 Stainless steel sheathing with 2" chloride-free ceramic fiber insulation on shell & bottom head. Openings top: (2) 3", (1) 2". 2" Center bottom outlet with air operated valve, approximate 18" discharge height. Controls for agitators. Mounted on 4 legs. Serial# JS5238, National Board# 8427.
Used DCI Jacketed Mix Kettle, 100 Gallon (378L), 316 Stainless Steel. Approximate 36" diameter x 24" straight side. (2) 1/3 Hinged Covers. Flat top, cone bottom. SB443 Alloy dimple jacket rated 150psi at -20 to 300 degrees F. Top agitator bridge with dual agitation to include anchor style agitator with side & bottom teflon scrapers (3" diameter shaft), driven by a 3hp, 3/60/230/460 volt, 1705rpm gear motor, 34rpm output (49.94 ratio). Offset bar type agitator, 1-1/4" diameter x 20" long shaft with 3"l x 1-3/8"w x 1/8" thick bars, driven by 3hp, 3/60/230/460 volt, 1705 rpm gear motor, 322rpm output (5.30 ratio). 304 Stainless steel sheathing with 2" chloride-free ceramic fiber insulation on shell & bottom head. Openings top: (2) 3", (1) 2". 2" Center bottom outlet with air operated valve, approximate 18" discharge height. Controls for agitators. Mounted on 4 legs. Serial# JS5238, National Board# 8427.
