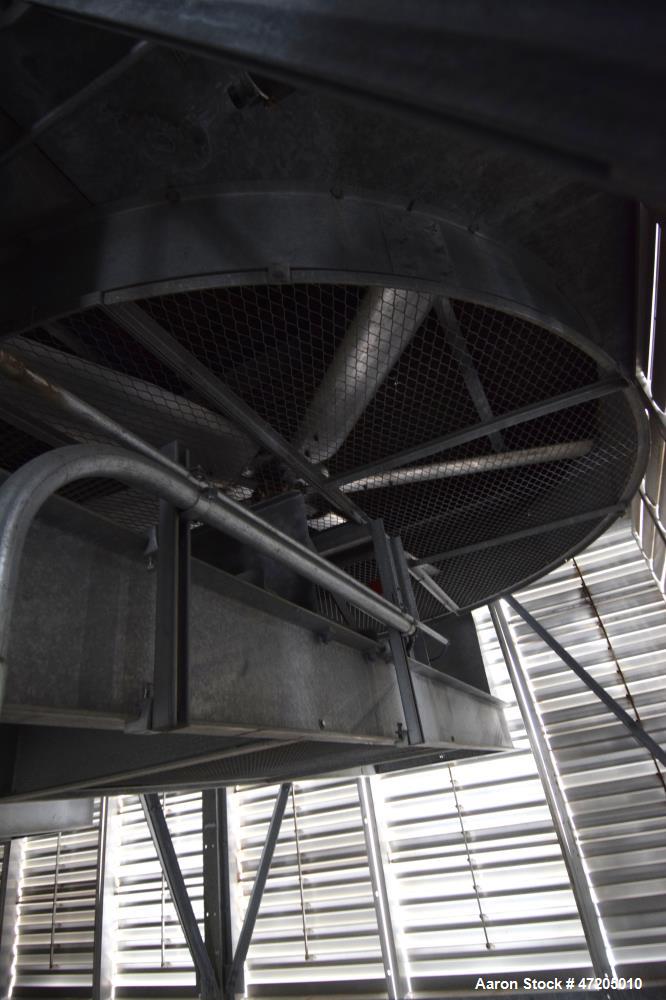

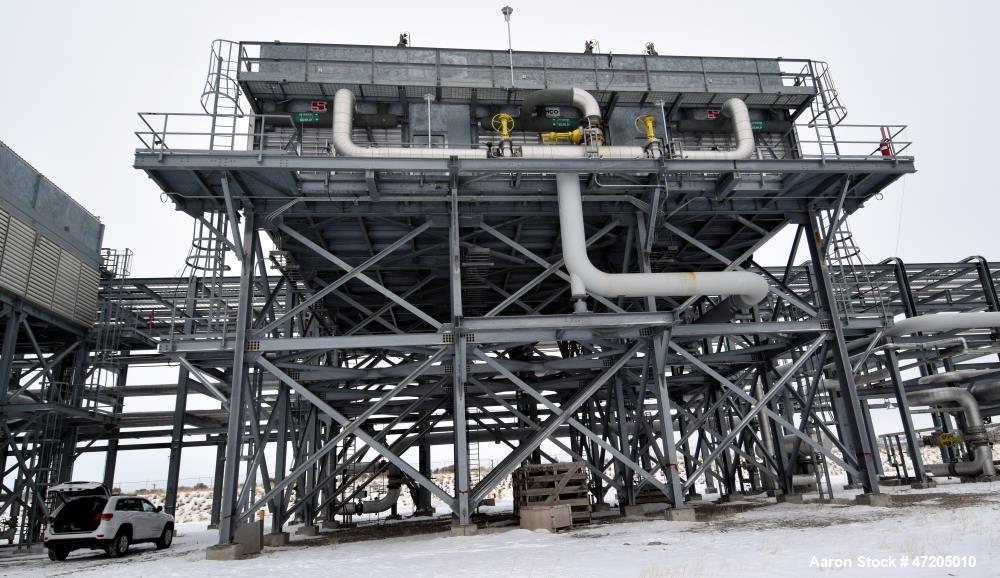

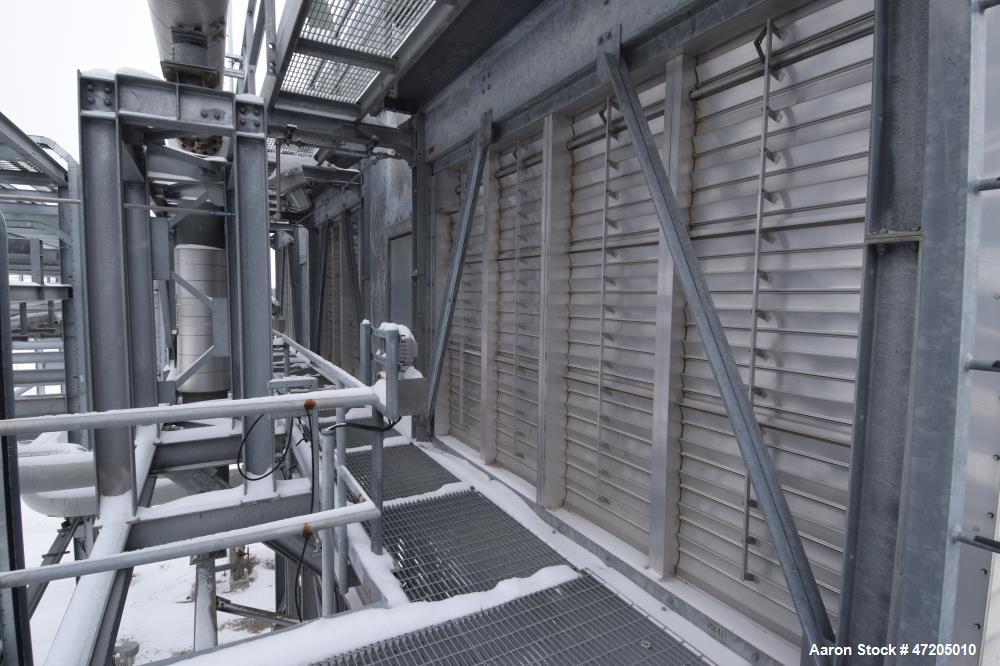

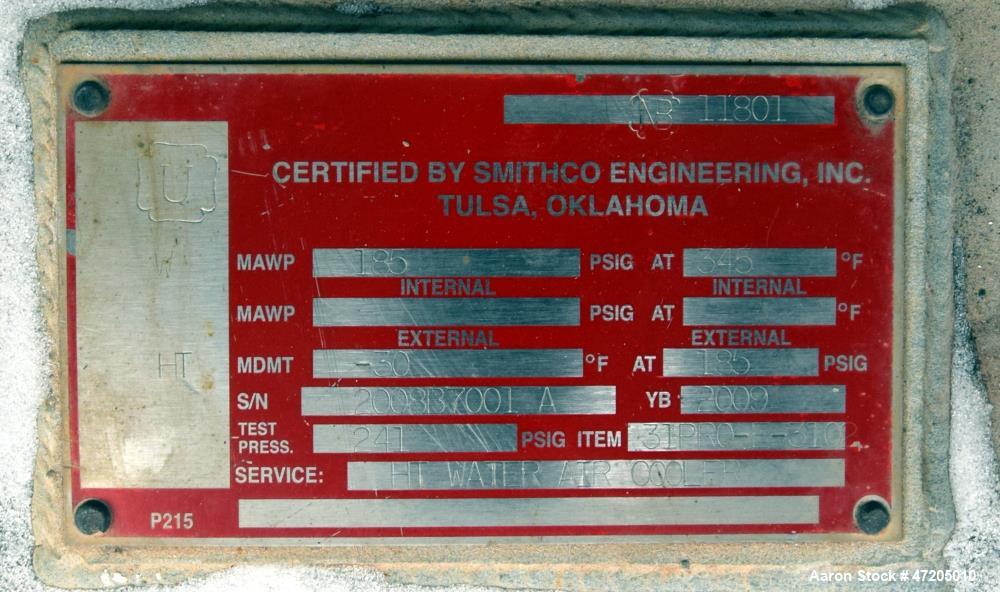

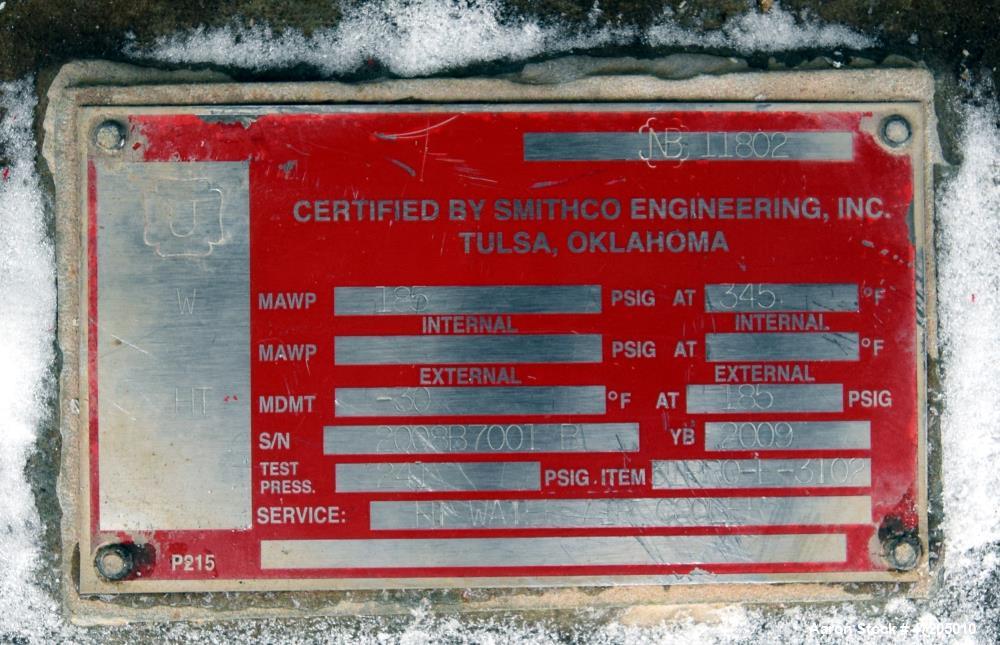

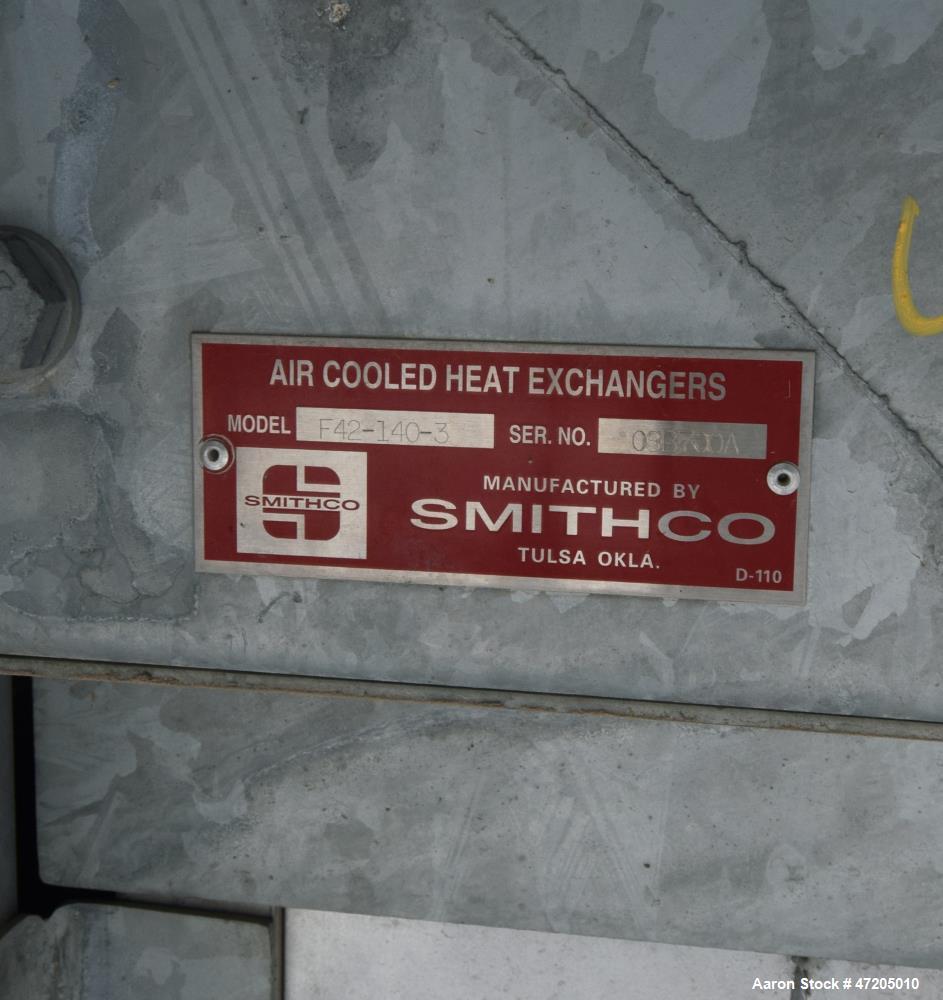

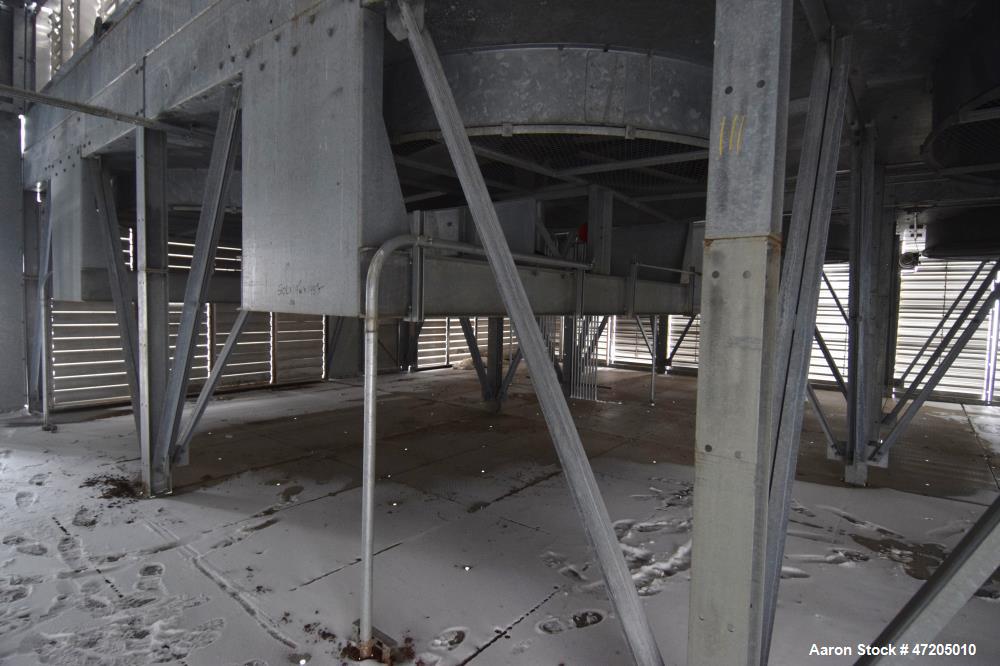

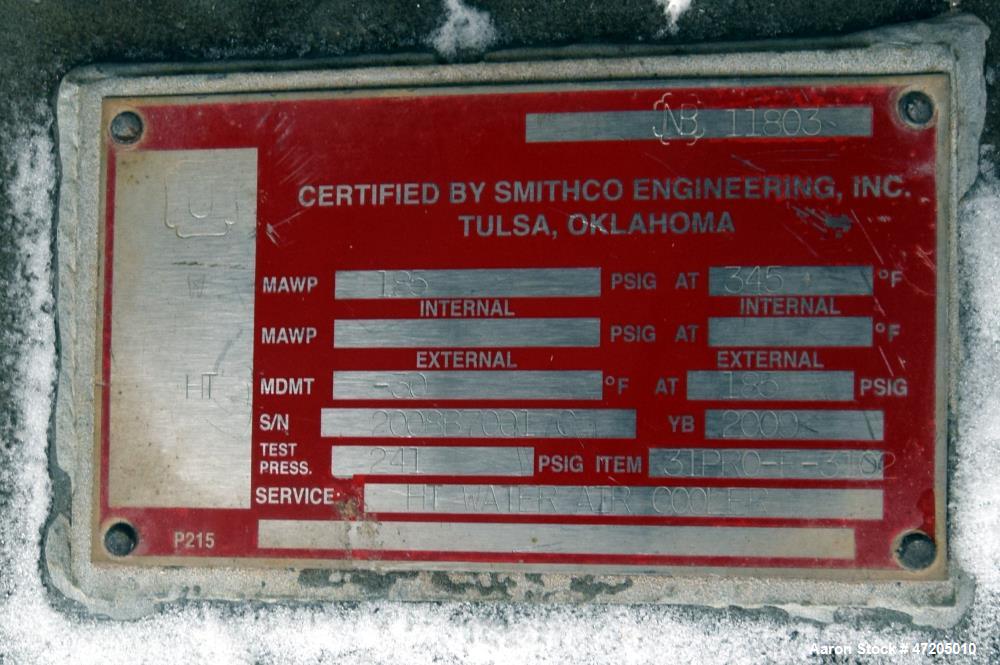

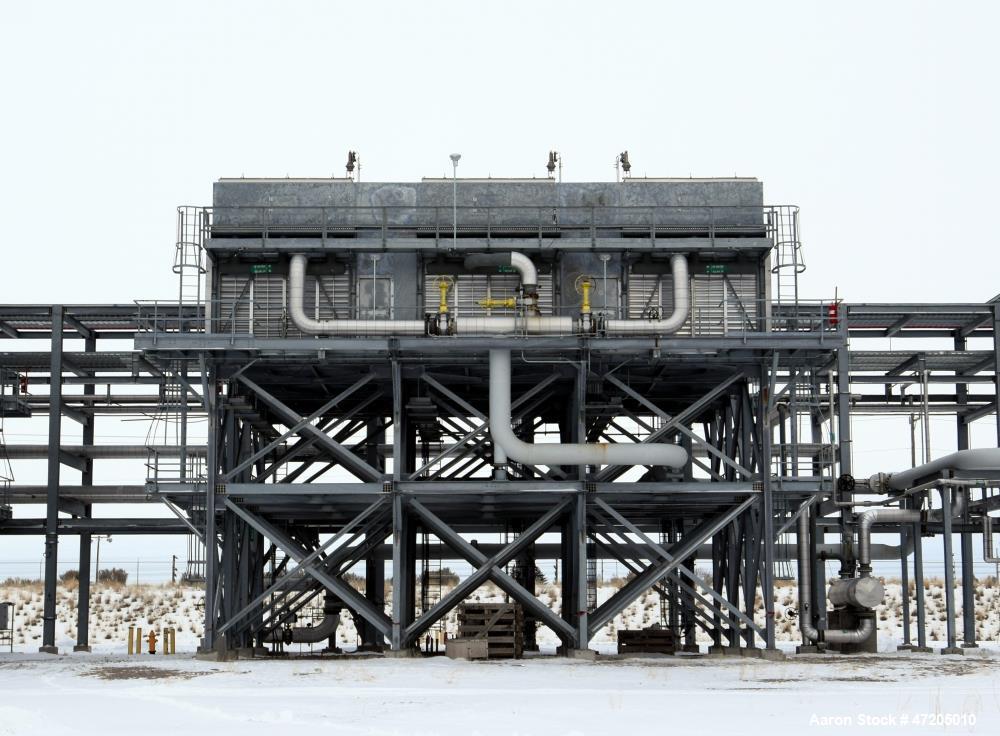

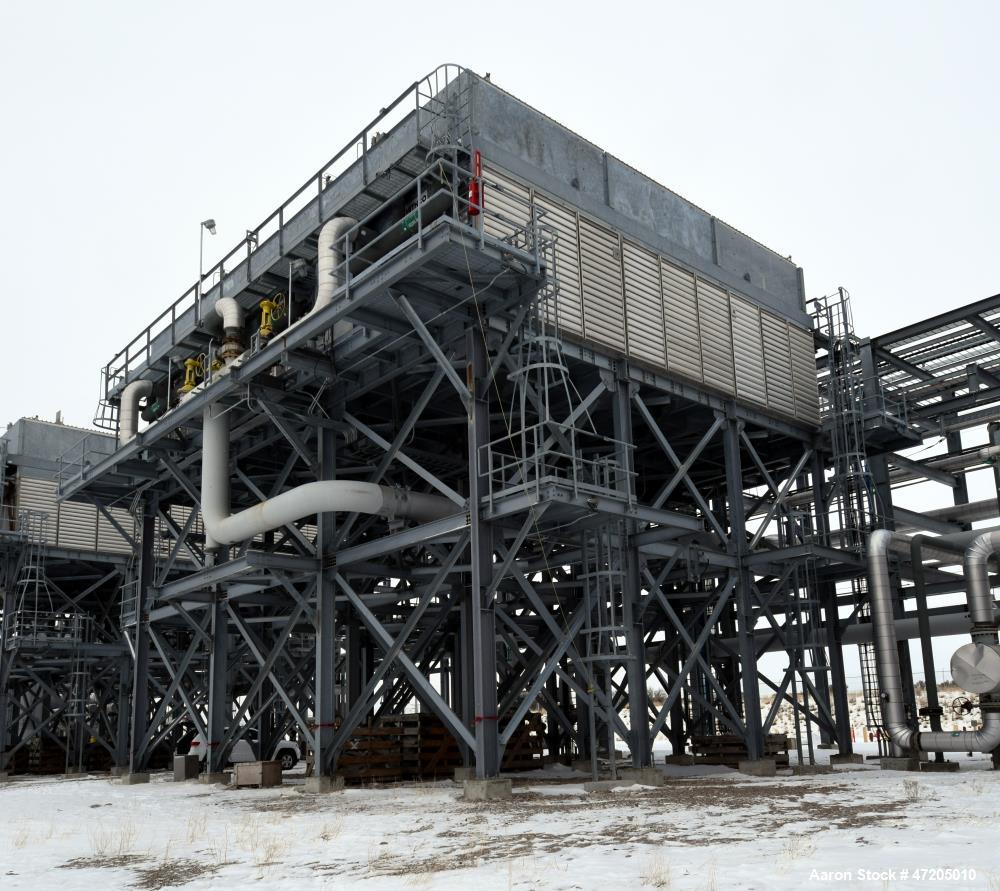

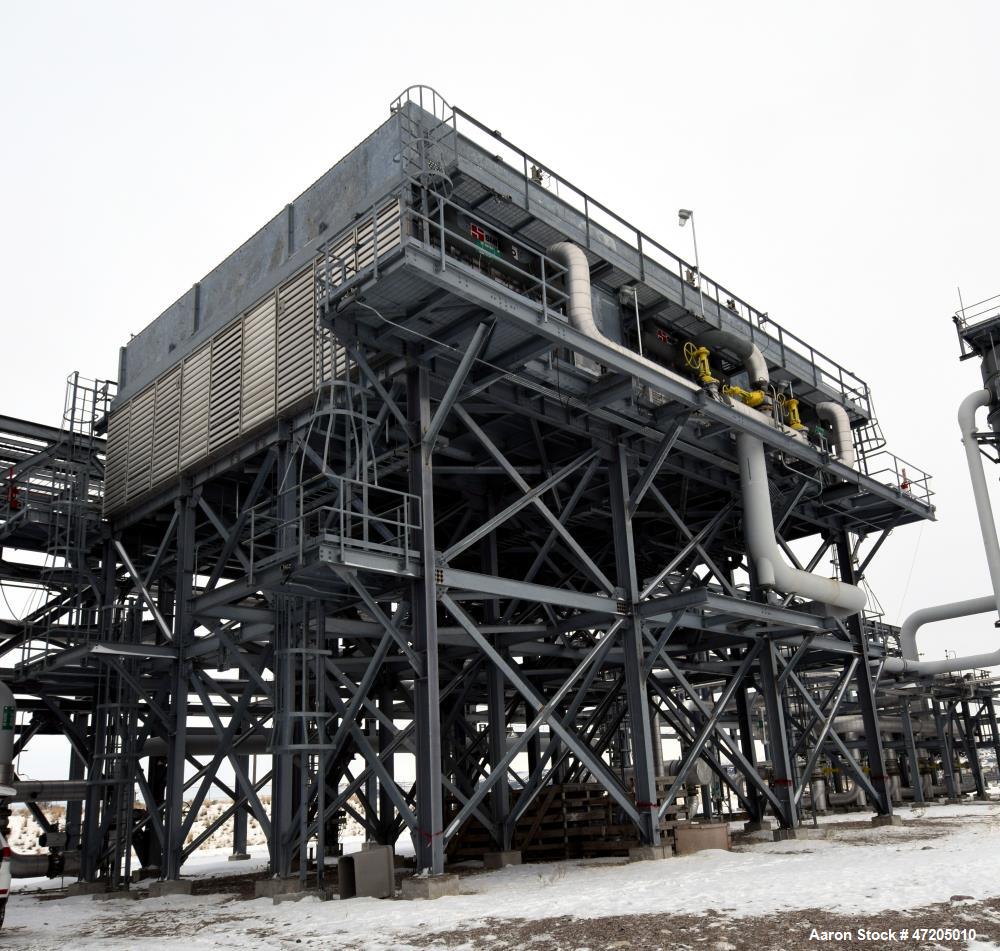

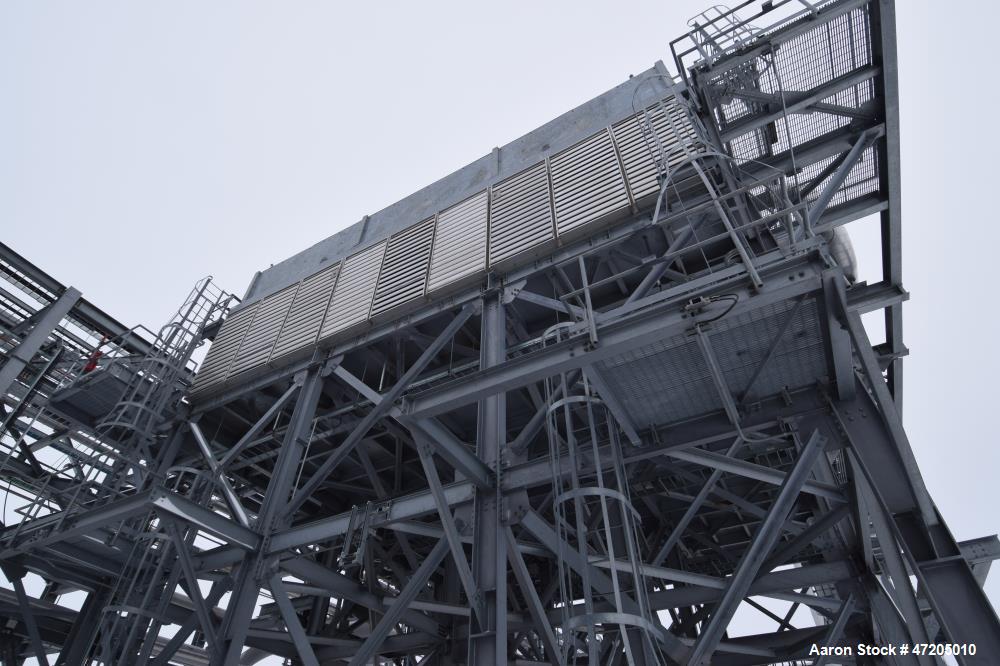

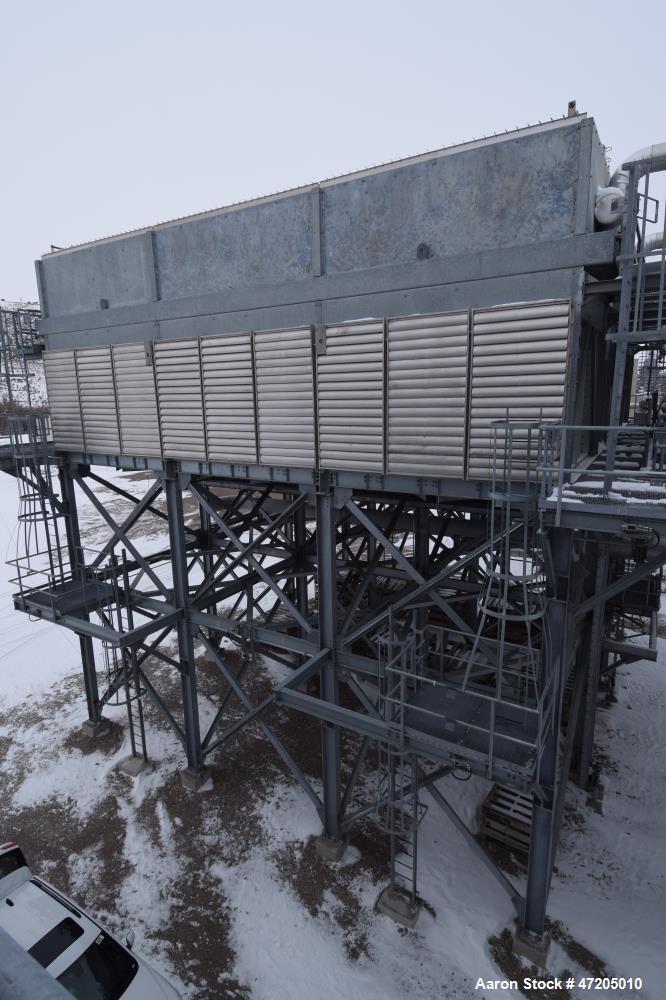

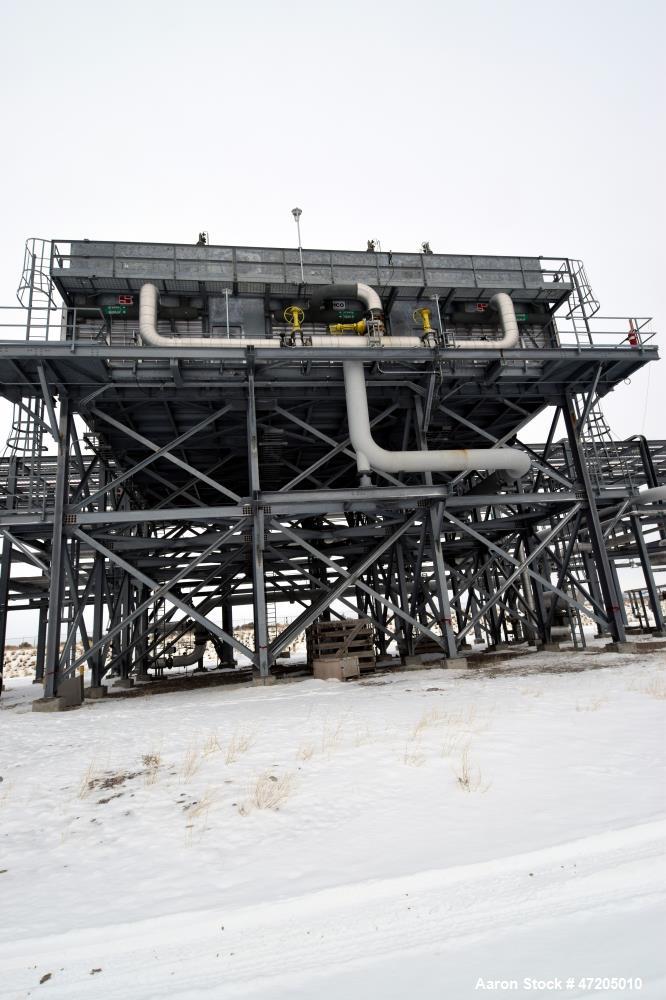

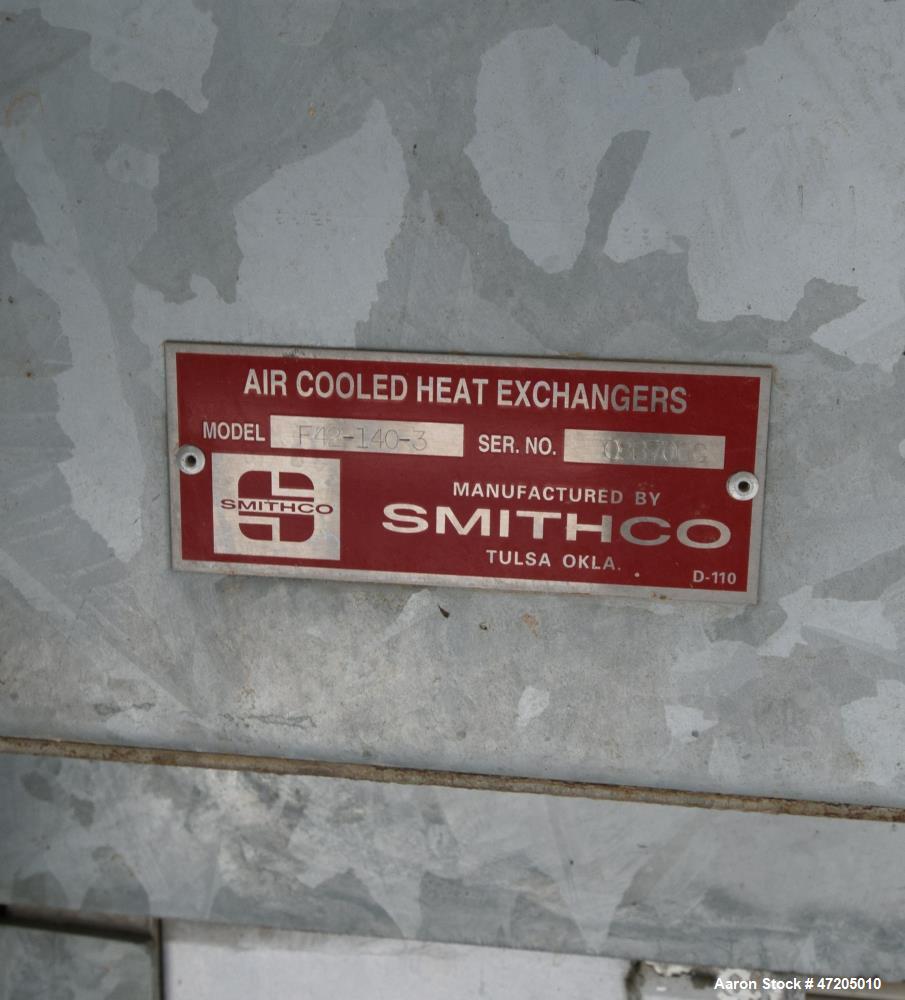

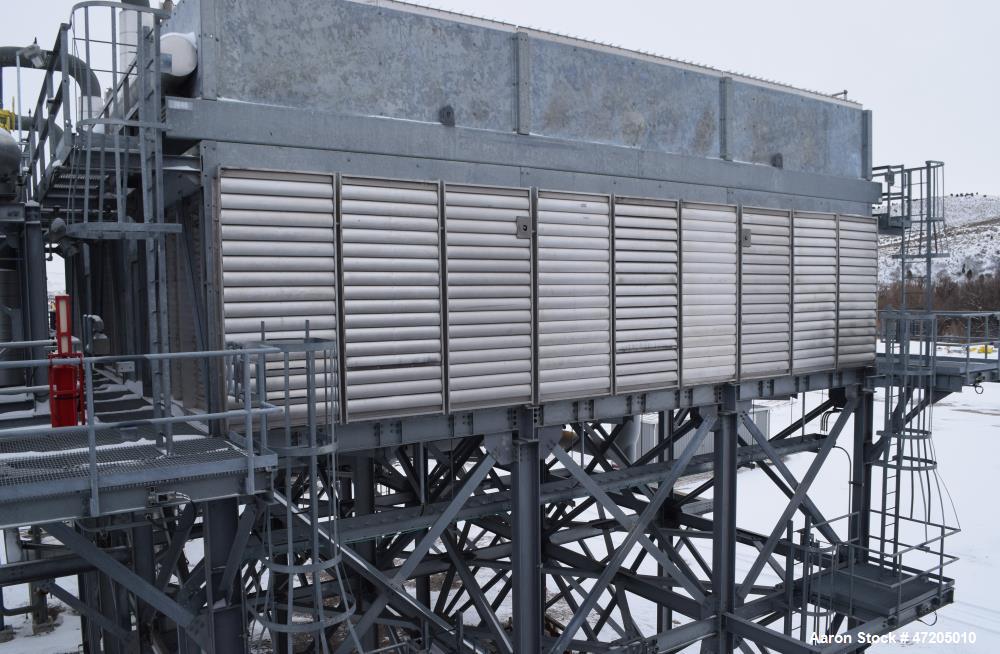

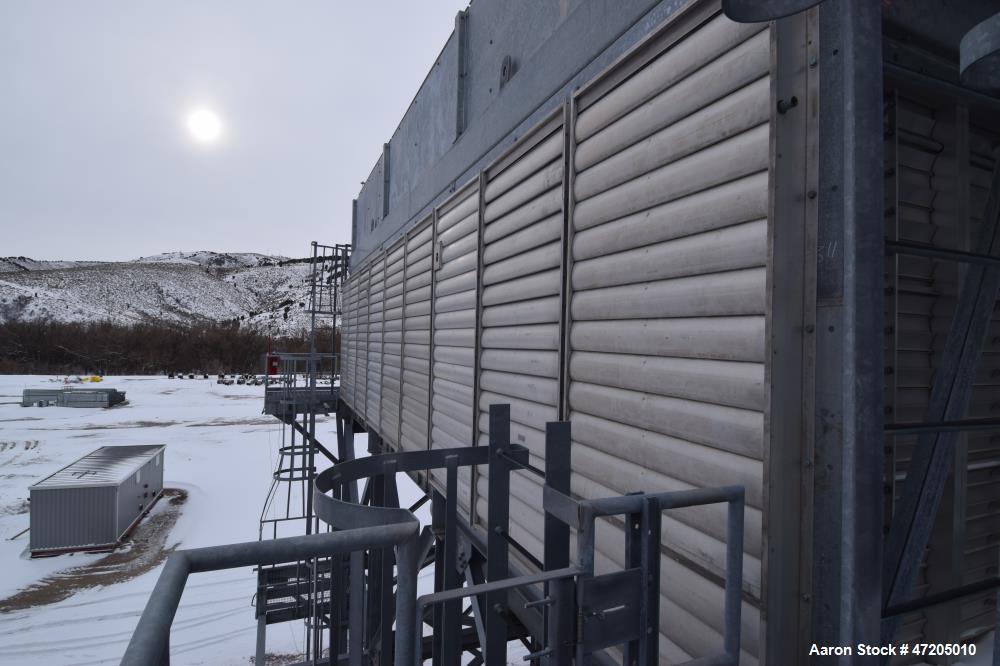

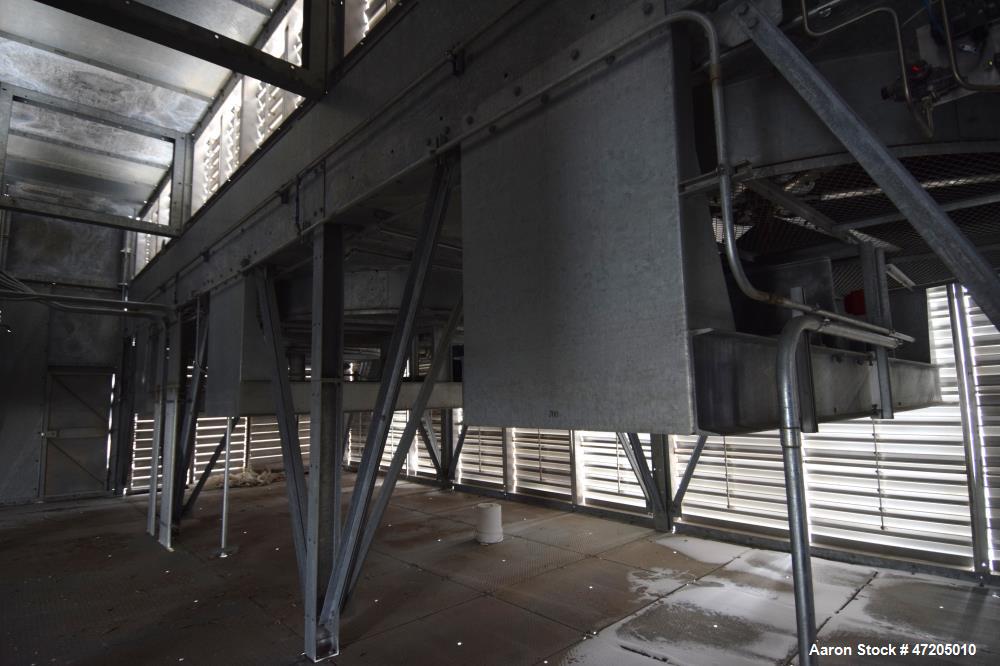

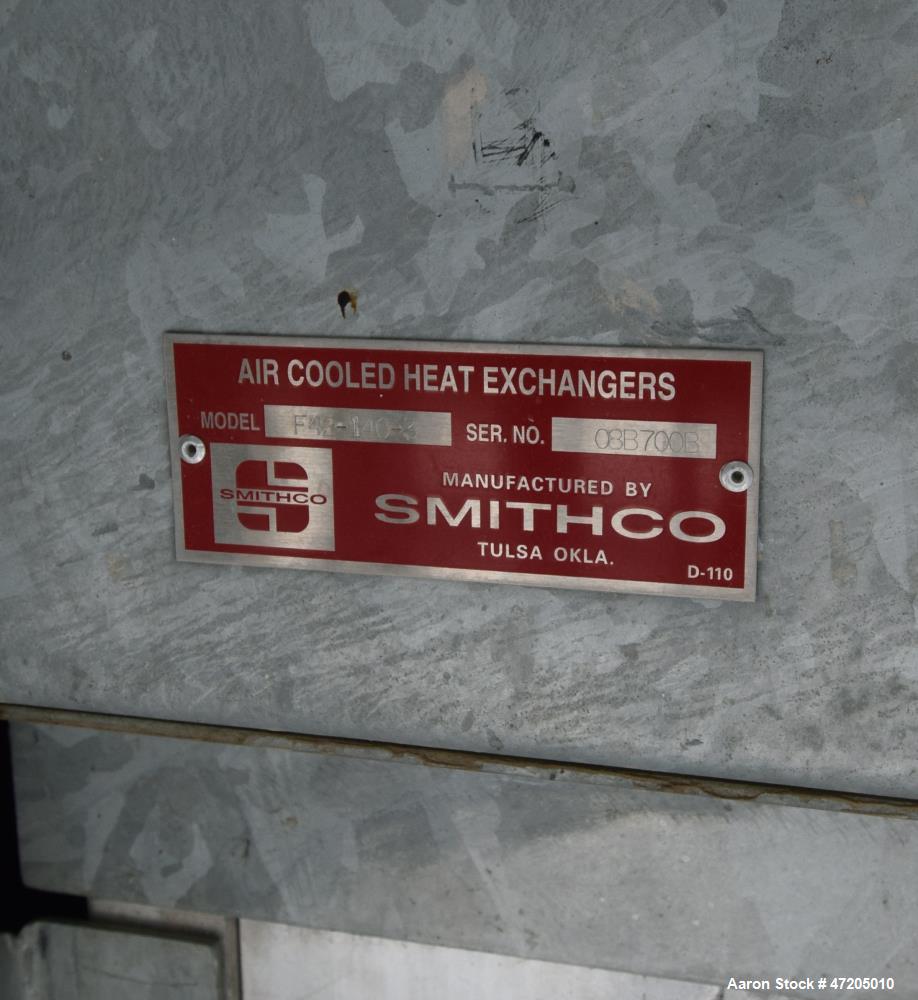

Unused- Smithco Engineering Air Cooler Fin Fan Heat Exchanger System, Total 9,441 Square Feet, Carbon Steel. System consists of: (3) Model F42-140-3 Air Cooled heat exchangers, each 3147 square feet. 121,000,000 BTU per hour, water input and output rated 3,263,000 pounds per hour. Each bundle size 14' wide x 46' long, single pass. (286) 1" Diameter x 46' long carbon steel tubes in each bundle rated 185 psi at -30 to 345 degrees F. Each bay has (3) 11' diameter, 6-blade fans, driven by 30hp, 3/60/460 volt, 1750 rpm motor, with reducer, 7.12 to 1 ratio. Mounted on a galvanized frame. Serial# 2008B-7001-A, 2008B-7001-B, 2008B-7001-C, National Board# 11801, 11802, 11803, built 2009.
Unused- Smithco Engineering Air Cooler Fin Fan Heat Exchanger System, Total 9,441 Square Feet, Carbon Steel. System consists of: (3) Model F42-140-3 Air Cooled heat exchangers, each 3147 square feet. 121,000,000 BTU per hour, water input and output rated 3,263,000 pounds per hour. Each bundle size 14' wide x 46' long, single pass. (286) 1" Diameter x 46' long carbon steel tubes in each bundle rated 185 psi at -30 to 345 degrees F. Each bay has (3) 11' diameter, 6-blade fans, driven by 30hp, 3/60/460 volt, 1750 rpm motor, with reducer, 7.12 to 1 ratio. Mounted on a galvanized frame. Serial# 2008B-7001-A, 2008B-7001-B, 2008B-7001-C, National Board# 11801, 11802, 11803, built 2009.
