Manufacturer Information

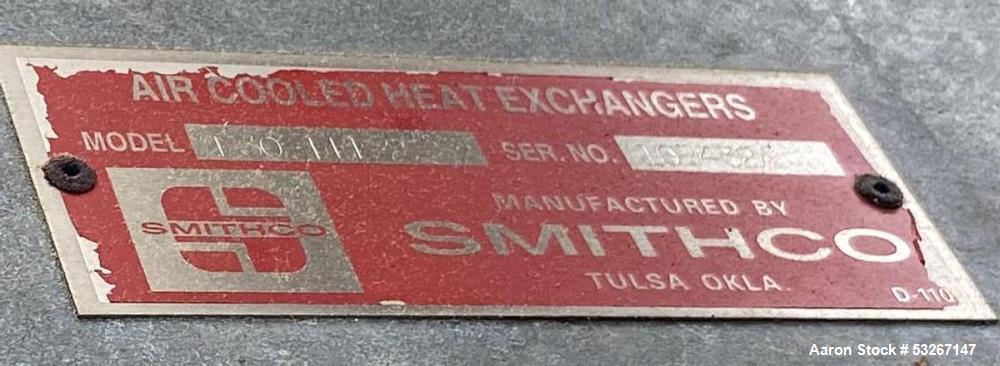

Manufacturer: Smithco Manufacturing
Model: 1F30-111-2
Serial Number: 108432-B
Equipment Type: Multi-Bundle Fin-Fan Cooler / Air-Cooled Heat Exchanger
Configuration: Four (4) Process Bundles
Year Built: 2010
Construction: Galvanized Steel Structure with 304 Stainless Steel Tubes
Condition: Used

Description

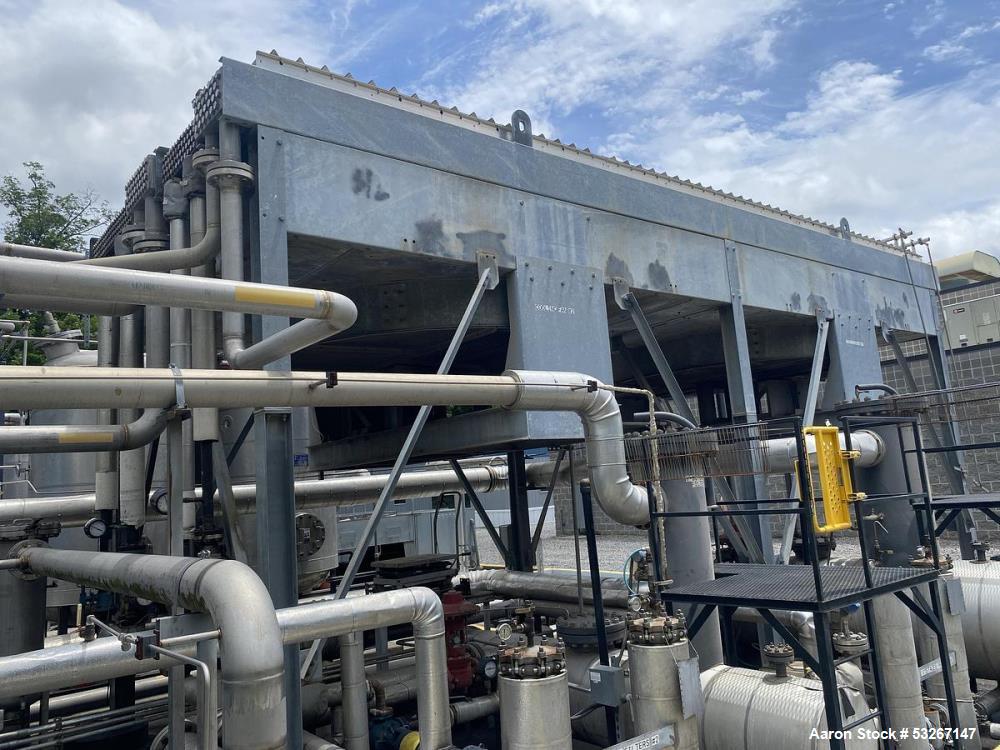

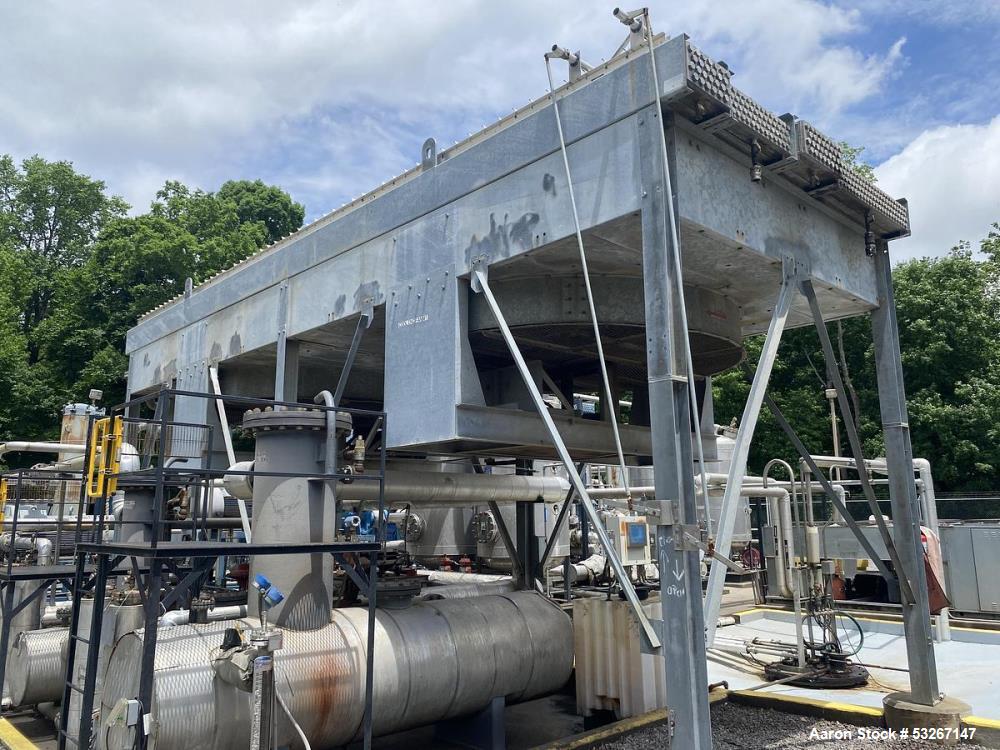

Available for sale is a used Smithco Model 1F30-111-2 Four-Bundle Fin-Fan Cooler Package, designed for heavy-duty natural gas and lube oil cooling applications in upstream, midstream, petrochemical, refinery, power generation, and industrial processing facilities.

This air-cooled heat exchanger system incorporates four independent cooling bundles, consisting of two lube oil coolers and two natural gas coolers, mounted within a galvanized structural frame. Heat rejection is accomplished through two large 10-foot diameter COFIMCO axial flow fans, delivering approximately 122,800 ACFM of airflow.

Each bundle features 304 stainless steel tubes with L-tension aluminum fins, providing excellent heat transfer performance while maintaining corrosion resistance and durability. The system offers substantial cooling surface area and is rated for operating temperatures from -20°F to 350°F.

With an overall footprint of approximately 31.5 feet long x 11.1 feet wide x 12.67 feet high and a shipping weight of approximately 22,800 pounds, this package is ideal for gas compression stations, natural gas processing facilities, turbine lubrication systems, compressor cooling applications, and industrial utility operations.

Specifications

General Information

• Manufacturer: Smithco Manufacturing
• Model: 1F30-111-2
• Serial Number: 108432-B
• Equipment Type: Fin-Fan Cooler Package
• Configuration: Four Bundle Air-Cooled Heat Exchanger
• Year Built: 2010
• Condition: Used

Overall Dimensions

• Length: 31.5 Feet
• Width: 11.1 Feet
• Height: 12.67 Feet

Weight

• Approximate Weight: 22,800 Pounds

Bundle Configuration

Lube Oil Cooler #1

Connections

• 3" 300# Inlet
• 3" 300# Outlet

Tubes

• Quantity: 98
• Tube Size: 1"
• Material: 304 Stainless Steel
• Length: 30 Feet
• Configuration: 4 Rows, 2-Pass

Fins

• Type: L-Tension Aluminum

Rating

• 330 PSIG
• -20°F to 350°F

Surface Area

• Bare Surface Area: 770.3 Sq. Ft.
• Extended Surface Area: 16,310 Sq. Ft.

Natural Gas Cooler CLR-1

Connections

• 6" 300# Inlet
• 6" 300# Outlet

Tubes

• Quantity: 34
• Tube Size: 1.25"
• Material: 304 Stainless Steel
• Length: 30 Feet
• Configuration: 4 Rows, 2-Pass

Fins

• Type: L-Tension Aluminum

Rating

• 300 PSIG
• -20°F to 350°F

Surface Area

• Bare Surface Area: 334 Sq. Ft.
• Extended Surface Area: 6,542 Sq. Ft.

Lube Oil Cooler #2

Connections

• 2" 300# Inlet
• 2" 300# Outlet

Tubes

• Quantity: 54
• Tube Size: 1"
• Material: 304 Stainless Steel
• Length: 30 Feet
• Configuration: 4 Rows, 2-Pass

Fins

• Type: L-Tension Aluminum

Rating

• 450 PSIG
• -20°F to 350°F

Surface Area

• Bare Surface Area: 424.4 Sq. Ft.
• Extended Surface Area: 8,986 Sq. Ft.

Natural Gas Cooler CLR-2

Connections

• 4" 300# Inlet
• 4" 300# Outlet

Tubes

• Quantity: 26
• Tube Size: 1.25"
• Material: 304 Stainless Steel
• Length: 30 Feet
• Configuration: 4 Rows, 2-Pass

Fins

• Type: L-Tension Aluminum

Rating

• -20°F to 350°F

Surface Area

• Bare Surface Area: 255.4 Sq. Ft.
• Extended Surface Area: 5,003 Sq. Ft.

Fan System

Axial Flow Fans

Quantity

• Two (2)

Manufacturer

• COFIMCO

Model

• 49 5000

Diameter

• 10 Feet

Blade Configuration

• Five (5) Aluminum Blades Per Fan

Blade Pitch

• Adjustable Pitch
• 10° Blade Angle

Motor Size

• 20 HP Each

Electrical Requirements

• 460 Volt
• 3 Phase
• 60 Hertz

Drive Type

• Belt Driven Speed Reducer

Airflow Capacity

• 122,800 ACFM

Construction Features

• Galvanized Structural Framework
• 304 Stainless Steel Tube Construction
• Aluminum L-Tension Fins
• Multi-Service Cooling Package
• Air-Cooled Design
• Industrial Outdoor Service Configuration

Applications

• Natural gas cooling
• Compressor station cooling
• Lube oil cooling
• Gas transmission systems
• Midstream processing
• Petrochemical facilities
• Refinery operations
• Power generation plants
• Turbine lubrication systems
• Pipeline operations
• Industrial utility systems
• Process cooling applications

Products This Equipment Would Be Used For

• Natural gas
• Compressor discharge gas
• Lube oil
• Turbine oil
• Hydraulic oil
• Process fluids
• Petrochemical streams
• Hydrocarbon gases
• Utility fluids
• Industrial lubricants
• Process cooling circuits
• Energy production systems

Frequently Asked Questions

• What type of equipment is this?
  This is a four-bundle air-cooled fin-fan heat exchanger package designed for natural gas and lube oil cooling applications.
• How many cooling bundles are included?
  The unit contains four bundles consisting of two lube oil coolers and two natural gas coolers.
• What material are the tubes constructed from?
  All process tubes are fabricated from 304 stainless steel.
• What type of fins are installed?
  The bundles utilize L-tension aluminum fins for enhanced heat transfer efficiency.
• How many fans are included?
  The package includes two 10-foot diameter COFIMCO axial flow fans.
• What is the airflow capacity?
  The system is rated for approximately 122,800 ACFM.
• What temperature range is the cooler designed for?
  The bundles are rated for operation from -20°F to 350°F.
• What are the pressure ratings of the bundles?
  Depending on the bundle, pressure ratings range from 300 PSIG to 450 PSIG.
• What industries commonly use fin-fan coolers?
  Natural gas processing, pipeline transmission, petrochemical plants, refineries, compressor stations, and power generation facilities commonly utilize fin-fan cooling systems.
• What are the advantages of air-cooled heat exchangers?
  Air-cooled systems eliminate cooling water requirements, reduce operating costs, minimize environmental impact, and simplify installation.
• Can Aaron Equipment assist with shipping and logistics?
  Yes, Aaron Equipment can coordinate inspections, dismantling, rigging, transportation, export documentation, and worldwide logistics services.
• Does Aaron Equipment buy and sell used heat exchangers and utility equipment?
  Yes, Aaron Equipment actively purchases and sells used fin-fan coolers, heat exchangers, chillers, compressors, utility systems, and complete industrial facilities worldwide.
