Manufacturer Information

Manufacturer: Smithco Manufacturing
Model: 1F11-80-1
Equipment Type: Fin-Fan Cooler / Air-Cooled Heat Exchanger
Year Built: 2010
Construction: 304 Stainless Steel Tubes with Aluminum Fins
Condition: Used

Description

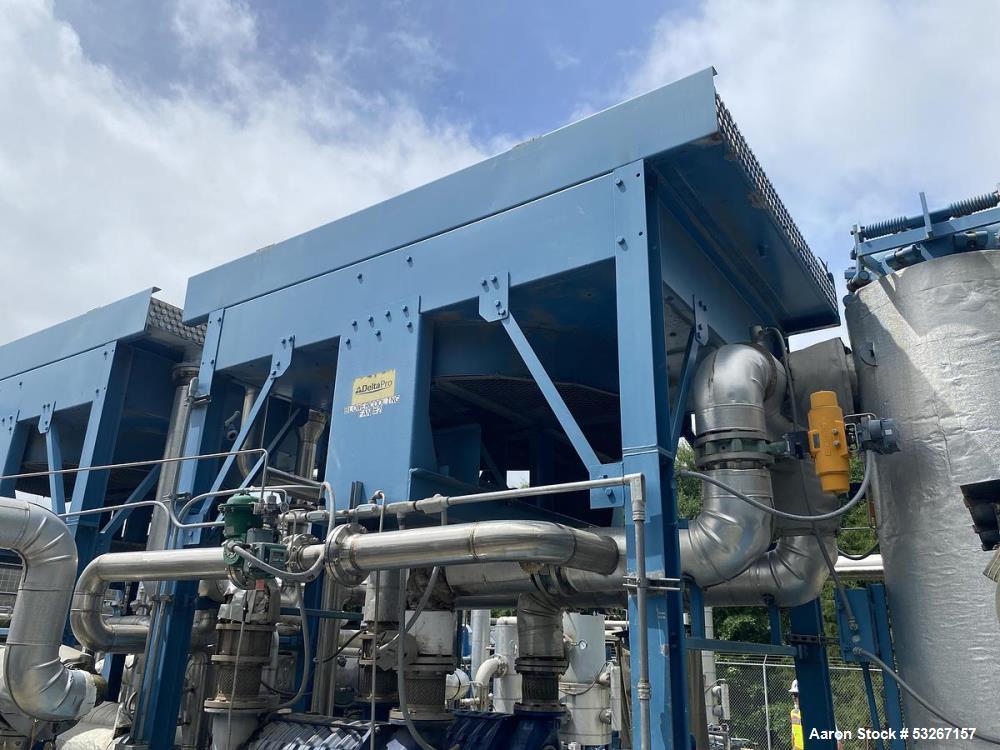

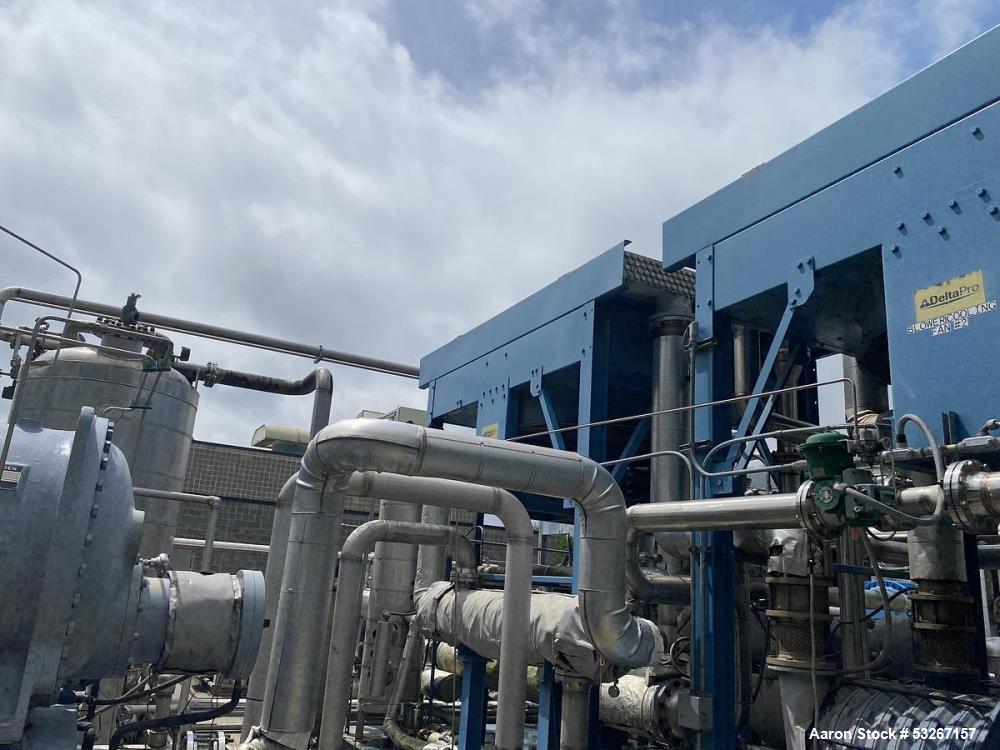

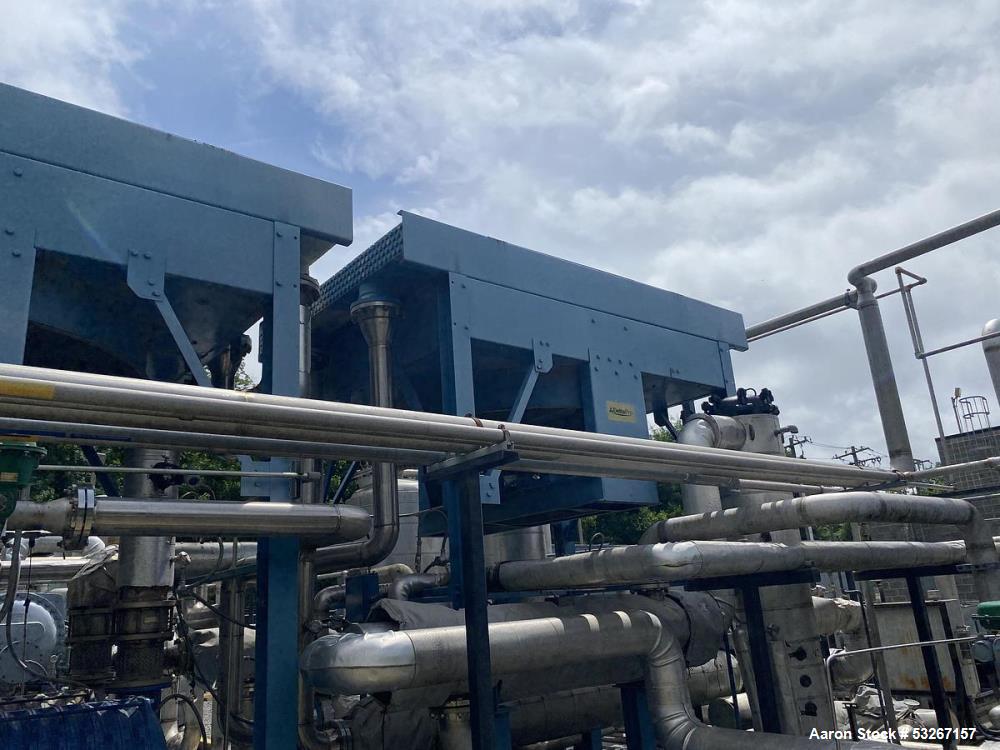

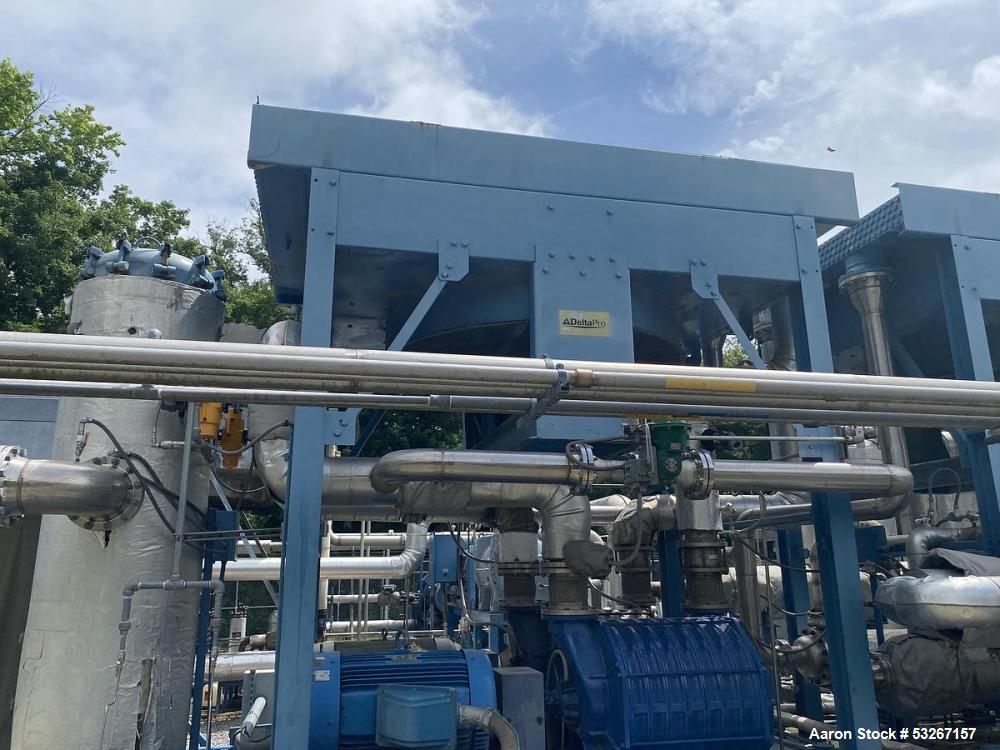

Available for sale is a used Smithco Model 1F11-80-1 Fin-Fan Cooler, engineered for industrial process cooling, gas cooling, liquid cooling, and heat rejection applications. This air-cooled heat exchanger utilizes a large finned tube bundle and a high-capacity COFIMCO axial fan to provide efficient heat transfer without the need for cooling water or cooling tower infrastructure.

The unit features 162 stainless steel tubes arranged in a 4-row, 2-pass configuration, each measuring approximately 11 feet long. The bundle utilizes L-tension aluminum fins to maximize heat transfer surface area and cooling efficiency.

Airflow is provided by a 7-foot diameter COFIMCO fan driven by a 10 HP motor, delivering approximately 62,000 ACFM. The fan incorporates adjustable-pitch aluminum blades, allowing airflow optimization for varying operating conditions.

Mounted within a painted carbon steel structure, this compact fin-fan cooler is ideal for compressor stations, gas processing plants, petrochemical facilities, refineries, power plants, and industrial manufacturing operations requiring dependable air-cooled heat exchange.

Specifications

General Information

• Manufacturer: Smithco Manufacturing
• Model: 1F11-80-1
• Equipment Type: Fin-Fan Cooler
• Year Built: 2010
• Condition: Used

Overall Dimensions

• Length: Approximately 12.5 Feet
• Width: Approximately 8.0 Feet
• Height: Approximately 7.0 Feet

Weight

• Approximate Weight: 6,000 Pounds

Heat Exchanger Bundle

Tube Configuration

• Quantity: 162 Tubes
• Tube Diameter: 1 Inch
• Tube Material: 304 Stainless Steel
• Tube Length: 11 Feet
• Configuration: 4 Rows
• Pass Arrangement: 2-Pass

Fin Design

• Fin Type: L-Tension Aluminum
• High Efficiency Heat Transfer Surface

Process Connections

Inlet

• 10 Inch
• ANSI 300# Flange

Outlet

• 10 Inch
• ANSI 300# Flange

Pressure & Temperature Ratings

Maximum Working Pressure

• 50 PSIG

Temperature Range

• -20°F to 350°F

Fan System

Fan Manufacturer

• COFIMCO

Fan Model

• 2134-4-24L/B3T

Fan Quantity

• One (1)

Fan Diameter

• 7 Feet

Blade Configuration

• Four (4) Aluminum Blades

Blade Adjustment

• Adjustable Pitch
• 10° Blade Angle

Airflow Capacity

• 62,000 ACFM

Drive System

Fan Motor

• 10 HP
• 460 Volt
• 3 Phase
• 60 Hertz

Drive Type

• Belt Driven Speed Reducer

Structural Construction

• Painted Carbon Steel Frame
• Outdoor Industrial Service Design
• Air-Cooled Operation
• Heavy-Duty Support Structure

Applications

• Natural gas cooling
• Process gas cooling
• Compressor aftercooling
• Lube oil cooling
• Industrial process cooling
• Petrochemical processing
• Refinery operations
• Power generation facilities
• Pipeline compressor stations
• Utility cooling systems
• Chemical processing
• Manufacturing operations

Products This Equipment Would Be Used For

• Natural gas
• Process gases
• Compressor discharge gas
• Lube oil
• Hydraulic fluids
• Industrial liquids
• Petrochemical products
• Utility fluids
• Process streams
• Industrial lubricants
• Cooling circuits
• Energy production systems

Frequently Asked Questions

• What type of equipment is the Smithco 1F11-80-1?
  It is an air-cooled fin-fan heat exchanger designed for industrial process cooling applications.
• How many tubes are installed in the bundle?
  The bundle contains 162 stainless steel tubes.
• What material are the tubes made from?
  The tubes are constructed from 304 stainless steel.
• What type of fin system is used?
  The unit utilizes L-tension aluminum fins to maximize heat transfer efficiency.
• What size are the process connections?
  The exchanger features 10-inch ANSI 300-pound inlet and outlet connections.
• What is the maximum pressure rating?
  The unit is rated for 50 PSIG operation.
• What temperature range can the exchanger handle?
  The exchanger is rated from -20°F to 350°F.
• What is the airflow capacity of the fan system?
  The COFIMCO fan delivers approximately 62,000 ACFM.
• What motor drives the fan?
  The fan is powered by a 10 HP, 460V, 3-phase motor.
• What industries commonly use fin-fan coolers?
  Natural gas processing, petrochemical plants, compressor stations, refineries, power generation facilities, and industrial manufacturing operations commonly utilize fin-fan coolers.
• Can Aaron Equipment assist with shipping and logistics?
  Yes, Aaron Equipment can coordinate inspections, dismantling, rigging, transportation, export documentation, and worldwide logistics services.
• Does Aaron Equipment buy and sell used heat exchangers and utility equipment?
  Yes, Aaron Equipment actively purchases and sells used fin-fan coolers, heat exchangers, chillers, compressors, utility systems, and complete industrial facilities worldwide.
