Unused Arbin RBT3202 Regenerative Battery Testing System – 2 Channels | 100kW/Channel | ±500A | 0–200V | 480V | Serial# 224319

DOWNLOAD ALL PHOTOS FOR THIS ITEM WITHOUT AARON WATERMARK

Stock # 53110002

Unused- Arbin Regenerative Battery Testing System, Model RBT3202. 3/50/60/480 Volt, 98 amp, 81000 VA. Number of Channels: 2 CH. Voltage Charge Envelope: 0V to 200V. Voltage Discharge Envelope: 9V to 200V. I/V Channel Current Ranges: 1st Current Range: -500A to +500A, 2nd Current Range: -250A to +250A, 3rd Current Range: -125A to +125A. Maximum Power Per Channel: 100000W (continuous). Maximum Power Per Chassis: 142000W (continuous). Chassis Dimension (inch): 37W x 62D x 73H. Serial# 224319.

SPECIFICATIONS

Model	RBT3202
Serial #	224319
Category	General EquipmentGeneral Equipment
Subcategory	General EquipmentGeneral Equipment

Used Equipment Facts About This Machine

Manufacturer Information:

Brand: Arbin Instruments
Model: RBT3202
Type: Regenerative Battery Testing System
Serial Number: 224319
Year Built: Unused (Recent model)

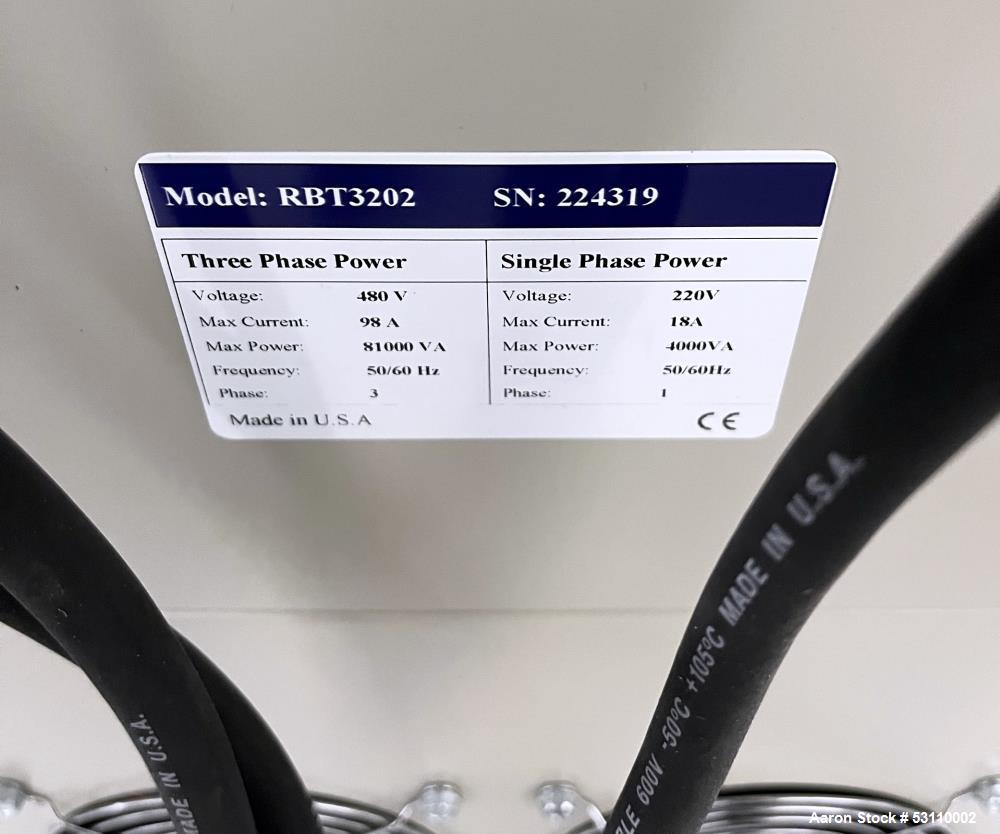

Power Requirement: 3 Phase, 50/60 Hz, 480V, 98A
Condition: Unused

Description:

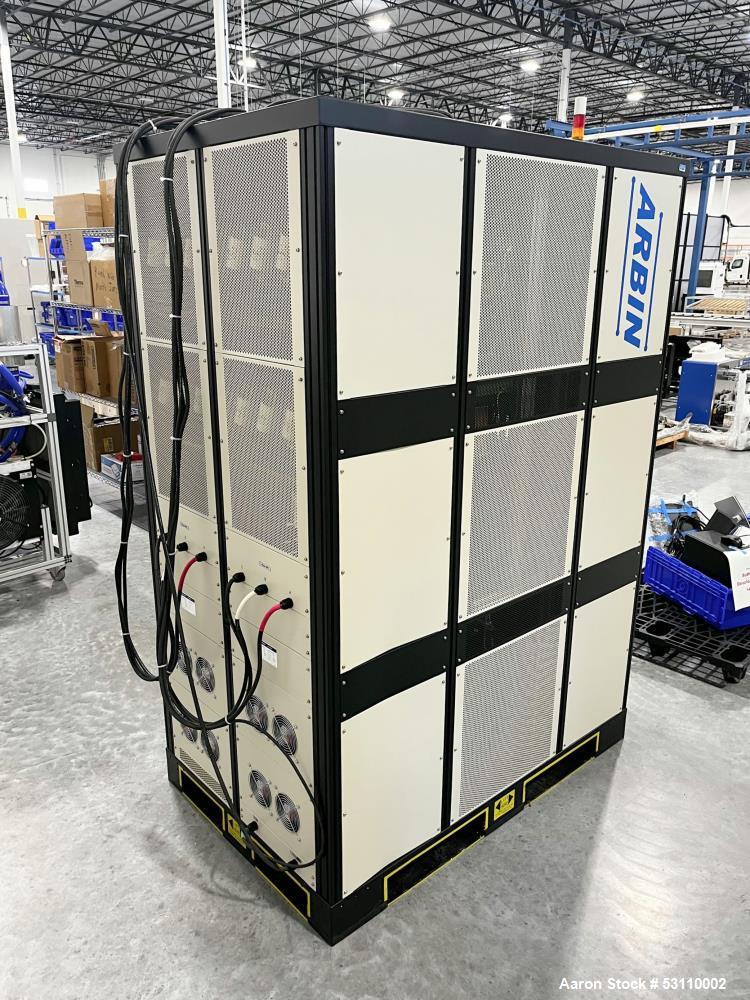

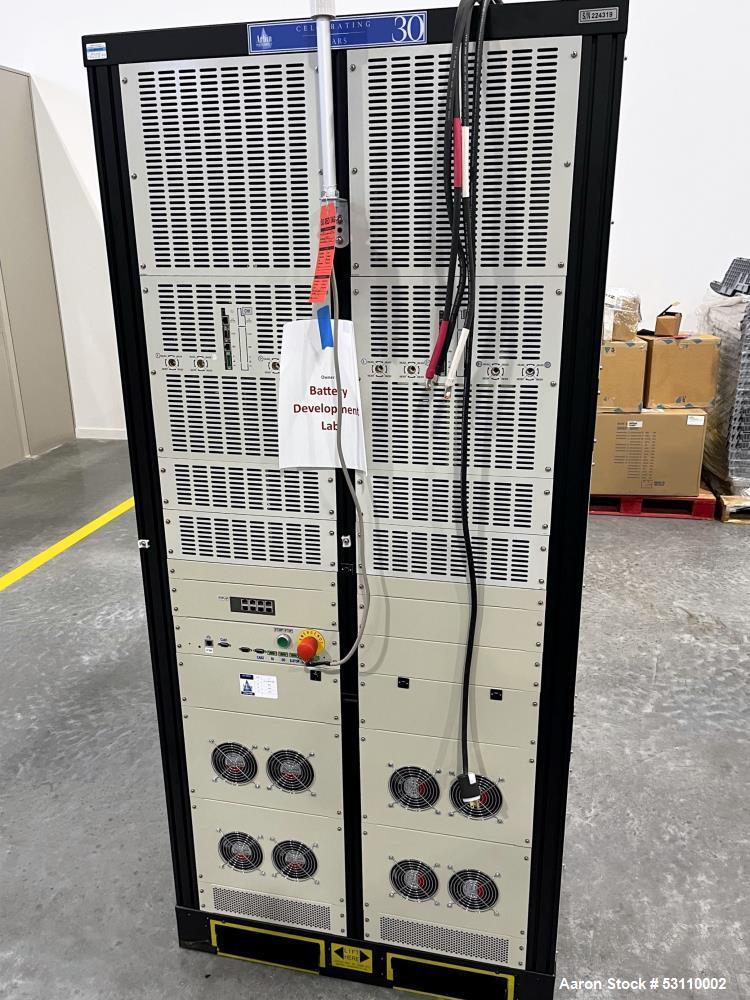

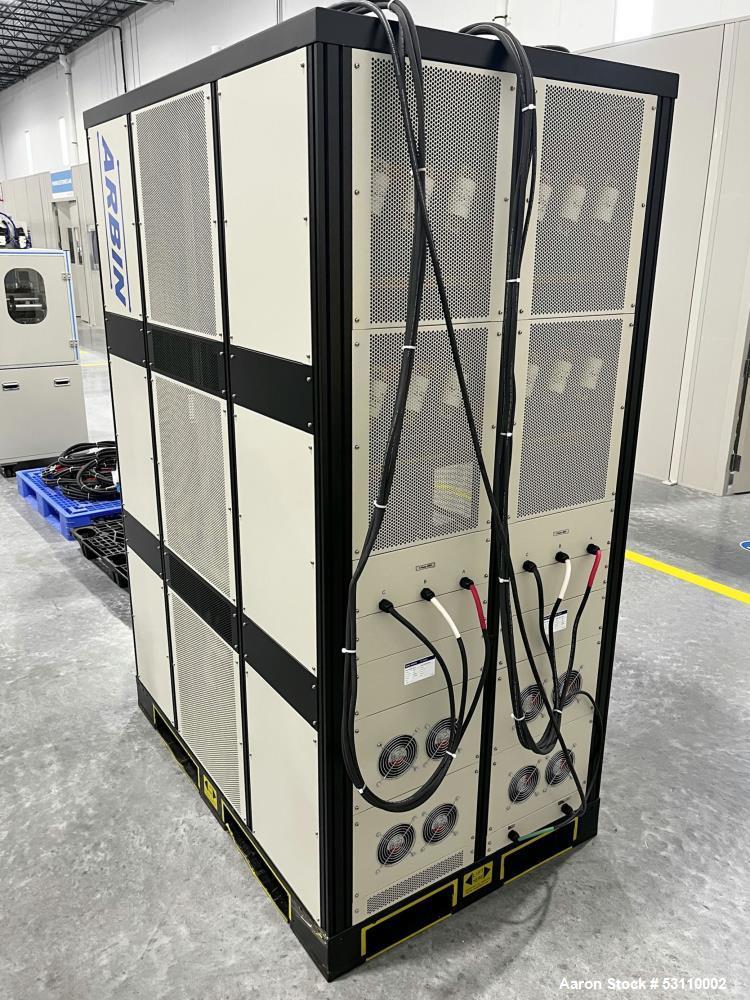

This Unused Arbin RBT3202 Regenerative Battery Testing System is a high-power, dual-channel battery test platform engineered for advanced energy storage R&D and production testing. With up to 100,000W continuous power per channel, it is capable of handling high-voltage, high-current battery modules and packs, including electric vehicle (EV), grid-scale energy storage, and aerospace systems.

The system features full regenerative power handling, allowing recovered energy from discharge cycles to be returned to the grid—drastically reducing energy usage and heat generation. It supports voltage ranges from 0–200V for charging and 9–200V for discharging, with multiple programmable current ranges up to ±500A.

This unit includes a compact, high-efficiency chassis measuring 37" W x 62" D x 73" H and is ideal for labs or OEM testing environments focused on lithium-ion, solid-state, and high-voltage battery systems.

Specifications:

Model: RBT3202
Serial #: 224319
Power Input: 3 Phase / 50/60 Hz / 480V, 98A
Number of Channels: 2 Independent Channels
Voltage Ranges:
- Charge: 0V to 200V
- Discharge: 9V to 200V
Current Ranges per Channel:
- ±500A
- ±250A
- ±125A
Power Output:
- Max per Channel: 100,000W (continuous)
- Max per Chassis: 142,000W (continuous)
Chassis Dimensions: 37” W x 62” D x 73” H
Condition: Unused

Features:

Regenerative energy recovery reduces operating cost and heat
Multi-range bidirectional current control up to ±500A
High voltage support for battery modules, packs, or systems
Continuous 100kW per channel with 2-channel simultaneous testing
Grid feedback-compatible – lowers facility power draw
Modular architecture for integration into scalable battery test labs
Real-time monitoring and data logging with Arbin's control interface
Compact, heavy-duty chassis suitable for R&D and production environments
Ideal for EV, stationary storage, aerospace, and high-capacity battery applications

Applications:

EV Battery Pack Testing (Charging/discharging, life cycle, load simulation)
High-Voltage Battery Modules: Lithium-ion, LFP, solid-state, and hybrid chemistries
Grid Storage and BESS Testing: Energy density and charge/discharge profiling
Aerospace and Defense: High-current, regenerative system validation
Battery QC/QA Testing in high-throughput production environments
Cycle life studies and durability testing at high current loads
Thermal management validation for high-capacity battery systems

What might this be used for?

Testing EV battery modules and packs under realistic fast-charge and regenerative braking profiles
Simulating high-current, high-voltage usage cycles in a controlled lab environment
Performing multi-channel, high-power discharge/charge cycles for cell validation
Supporting large-format battery development and compliance testing
Reducing operational costs by returning power to the grid during battery discharge
Evaluating thermal behavior and efficiency of advanced battery systems
Accelerating R&D timelines for cutting-edge battery chemistry innovations
Replacing aging, inefficient test rigs with next-gen regenerative systems
Expanding testing capacity in a scalable, rack-based layout
Supporting regulatory compliance testing under ISO/UL/IEC protocols
