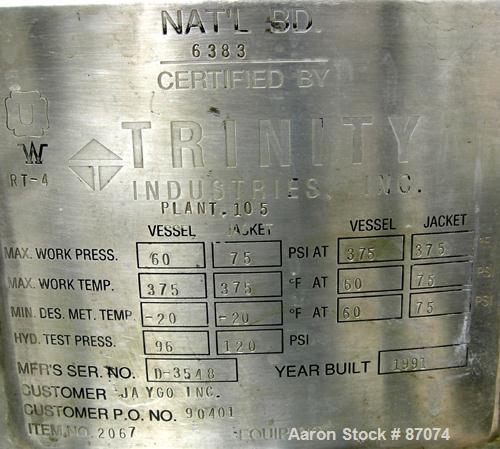

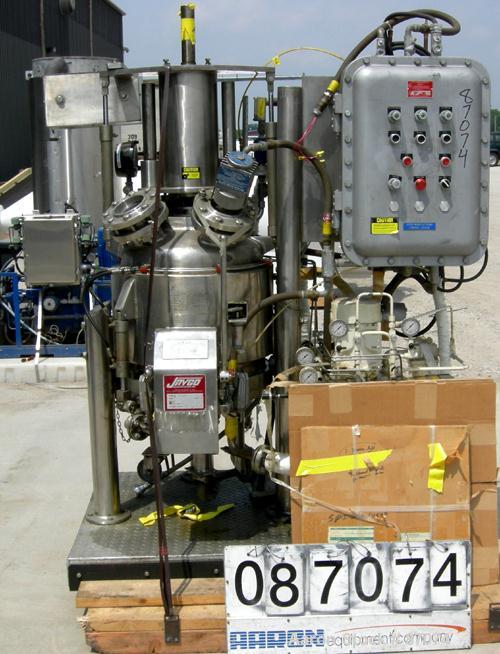

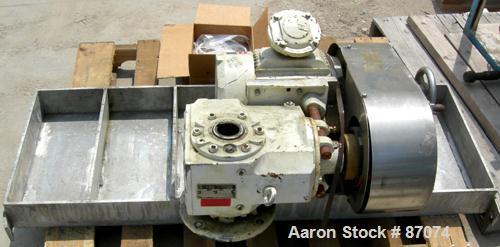

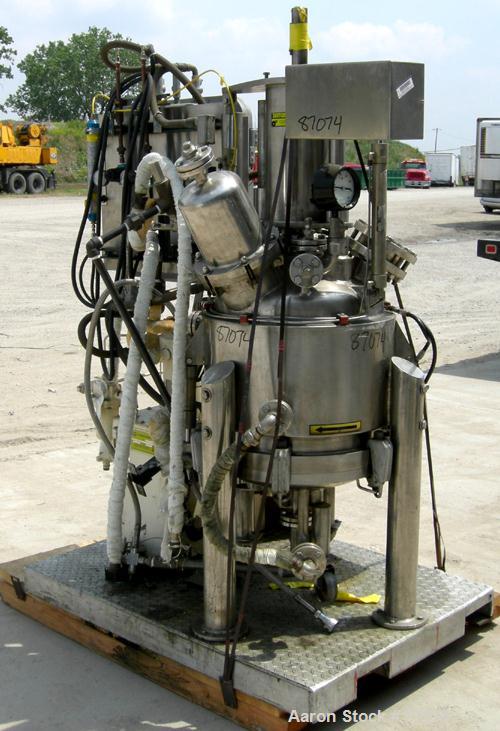

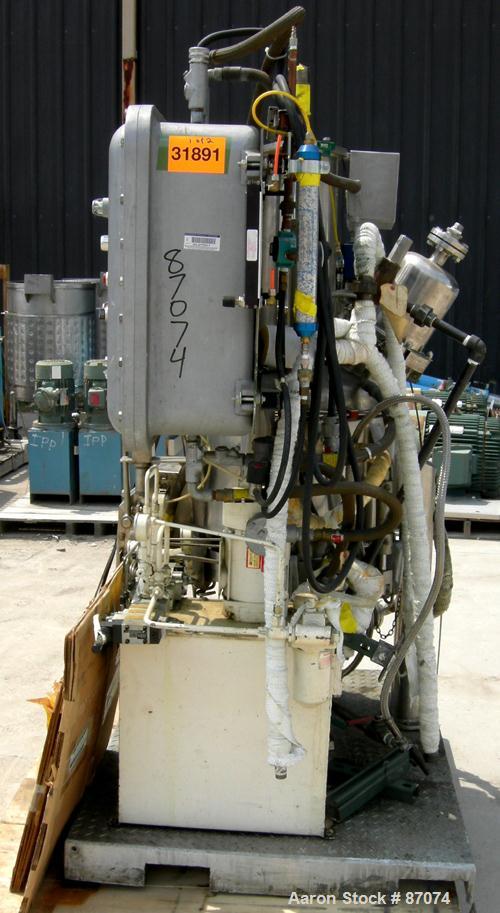

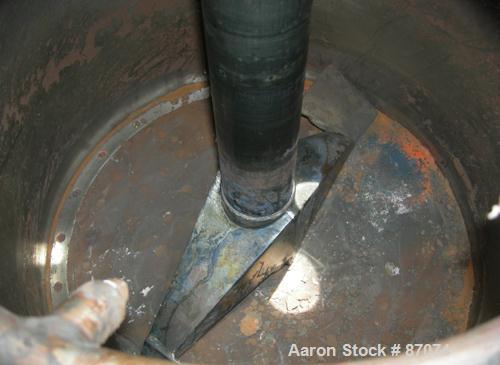

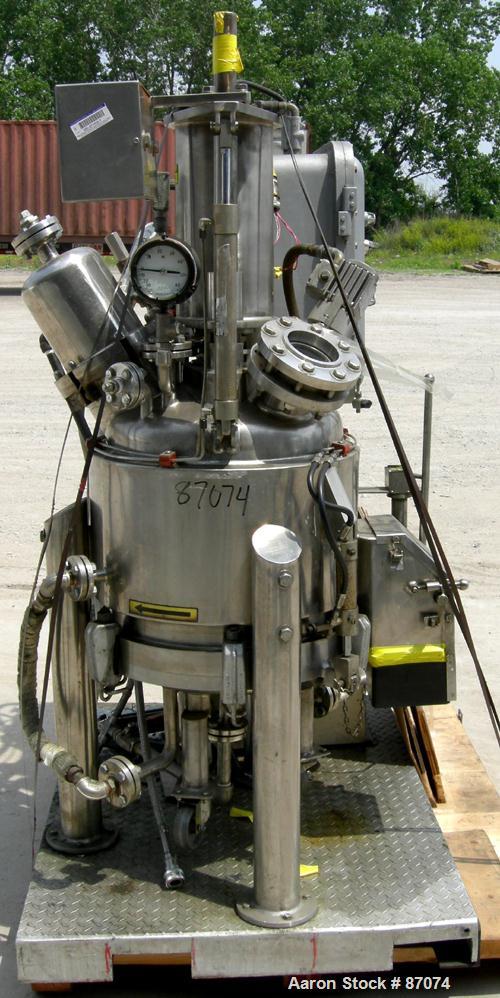

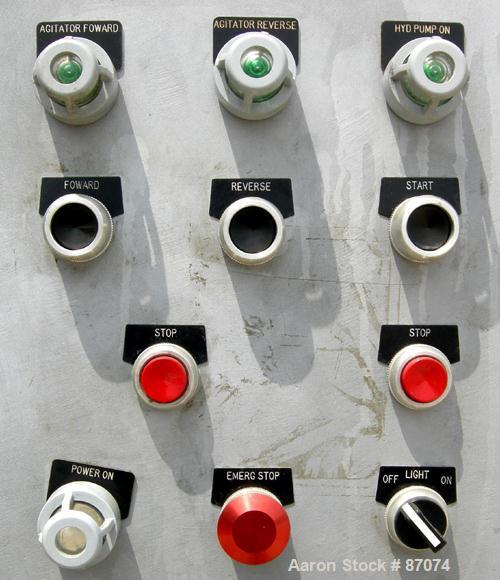

Used Jaygo Agitated Pressure Filter Dryer, Model APF-100. 316L Stainless steel product contact areas. Approximate (.08) square meter, nominal capacity 100 liters. Vessel 21.15" diameter x 19" deep, internal rated 60 psi at 375 degree F, 304L stainless steel jacket rated 75 psi at 375 degree F. Dished top, dished jacketed bolt-on bottom with 1" outlet, filter screen and 3 legs with casters. Internal wash ring, approximate 20" diameter double bottom agitator blade, driven by a 3 hp, 3/60/230/460 volt, 1755 rpm XP varispeed motor thru a SEW reducer, ratio 50.55:1, approximately 10-60 rpm, 12" upstroke. Openings: top 1/2", 3/4", 1", (2) 4" sight glass, 8" hand hole; side bottom outlet with door. Unit includes 1.5 hp hydraulic power pack, XP control boxes. Unitized on a common frame.
Used Jaygo Agitated Pressure Filter Dryer, Model APF-100. 316L Stainless steel product contact areas. Approximate (.08) square meter, nominal capacity 100 liters. Vessel 21.15" diameter x 19" deep, internal rated 60 psi at 375 degree F, 304L stainless steel jacket rated 75 psi at 375 degree F. Dished top, dished jacketed bolt-on bottom with 1" outlet, filter screen and 3 legs with casters. Internal wash ring, approximate 20" diameter double bottom agitator blade, driven by a 3 hp, 3/60/230/460 volt, 1755 rpm XP varispeed motor thru a SEW reducer, ratio 50.55:1, approximately 10-60 rpm, 12" upstroke. Openings: top 1/2", 3/4", 1", (2) 4" sight glass, 8" hand hole; side bottom outlet with door. Unit includes 1.5 hp hydraulic power pack, XP control boxes. Unitized on a common frame.
