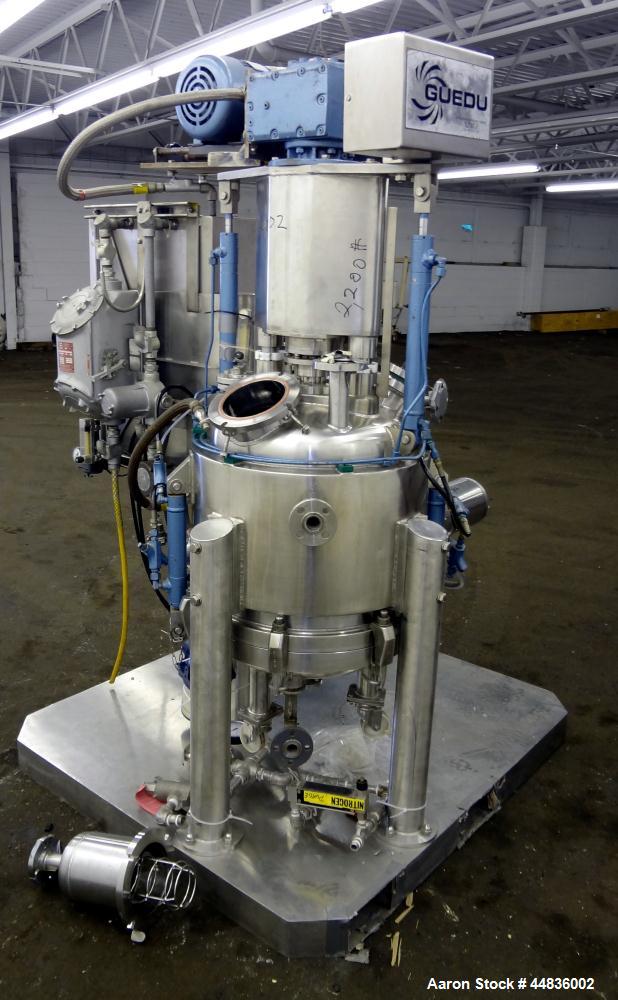

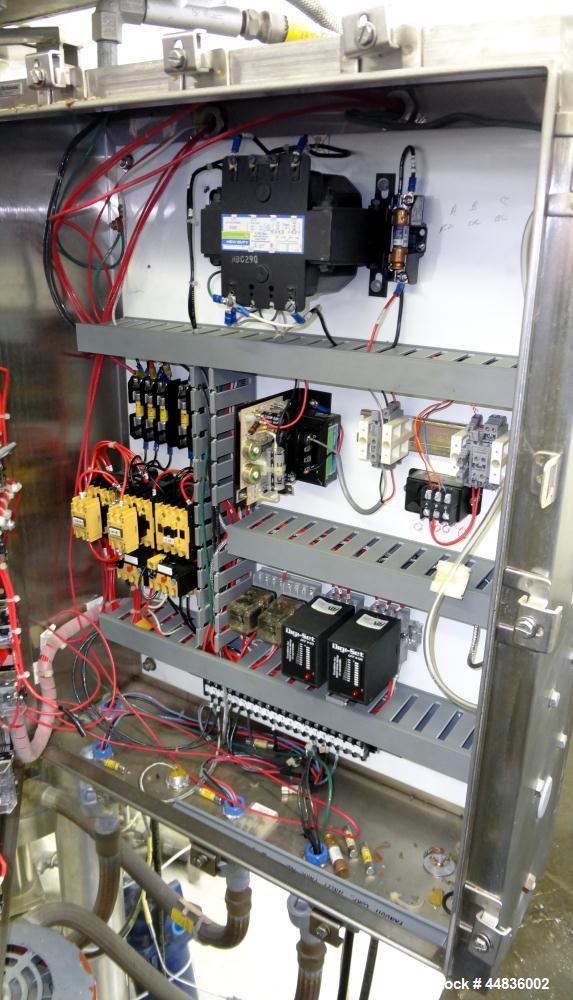

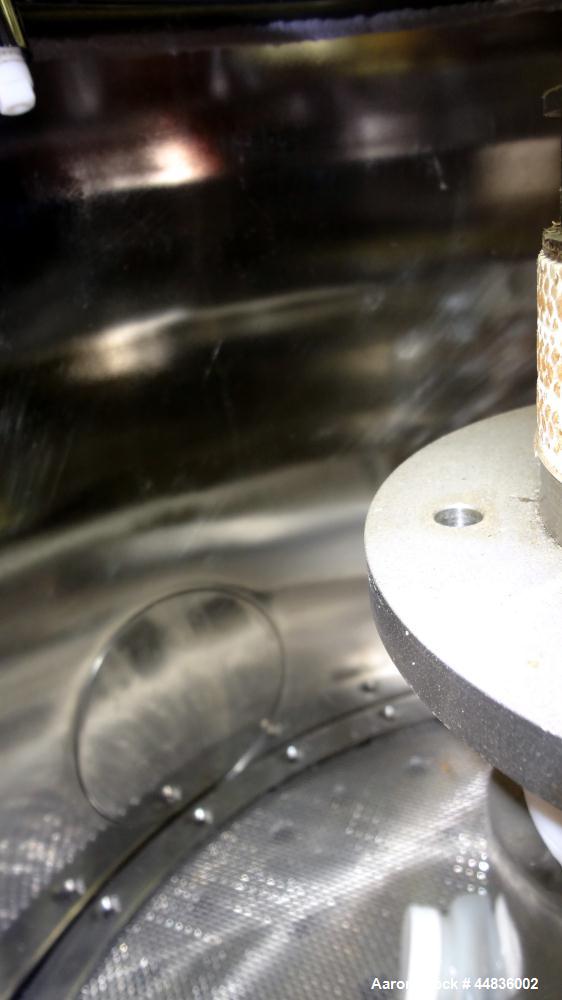

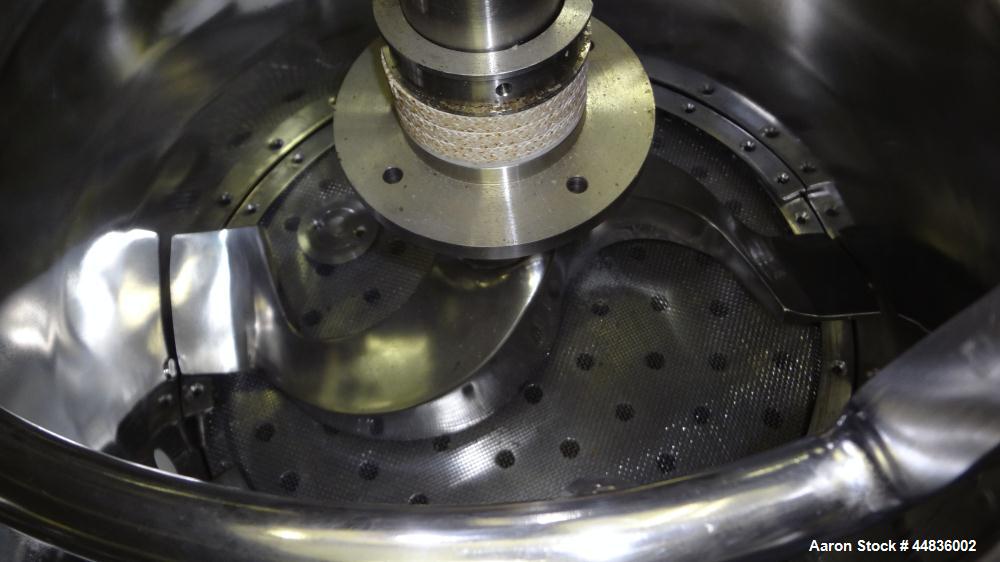

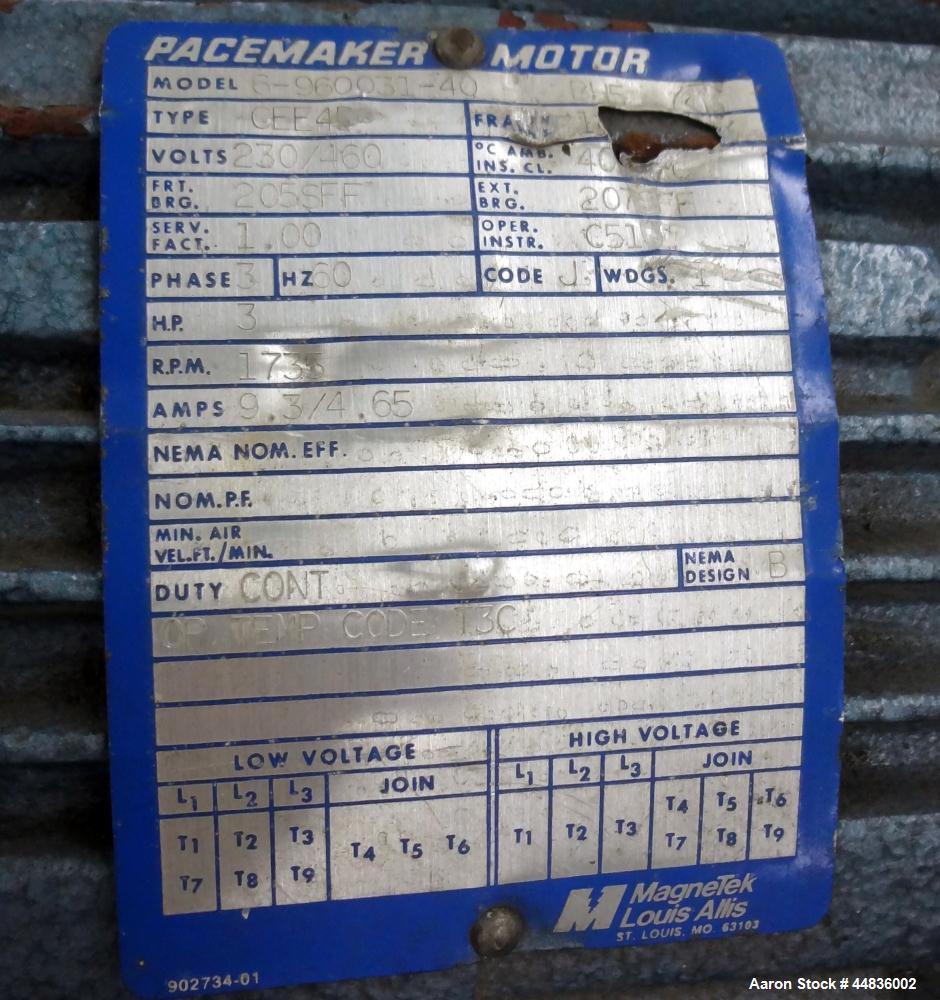

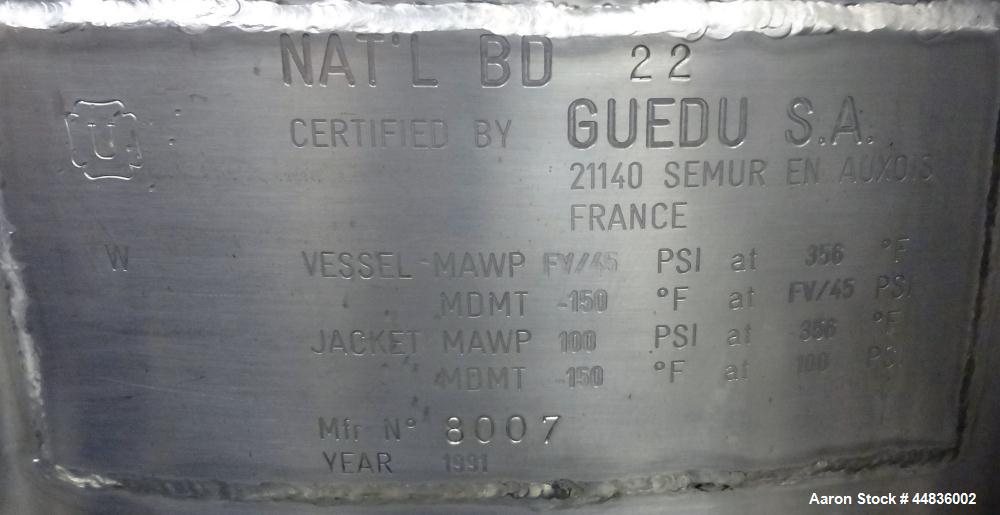

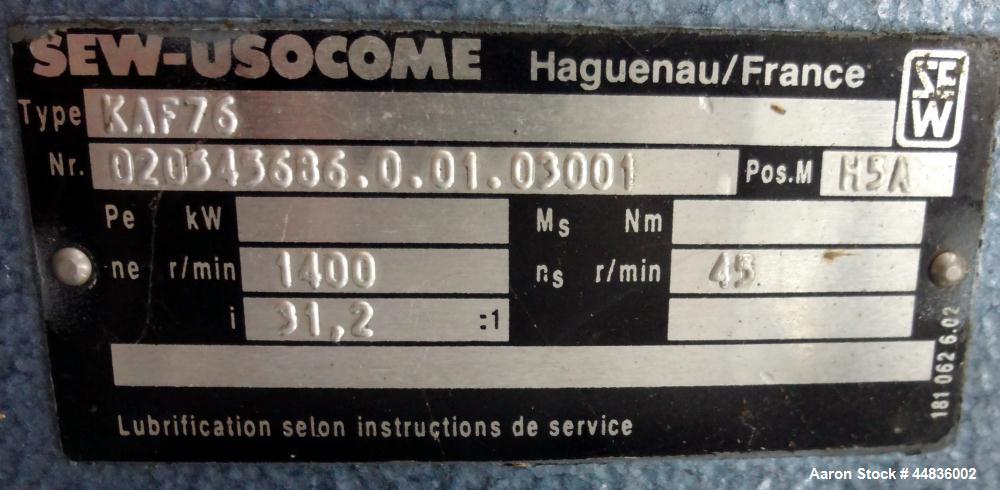

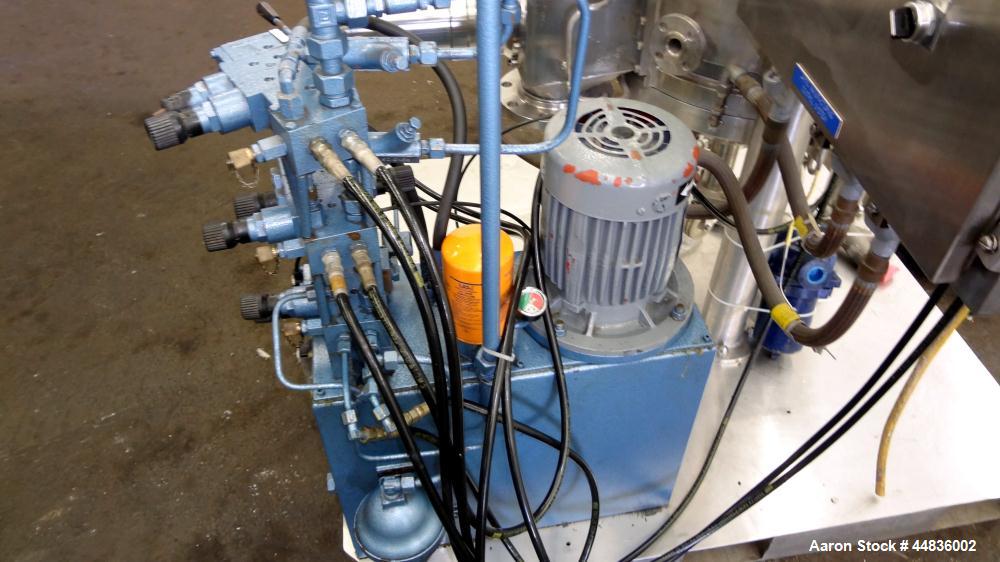

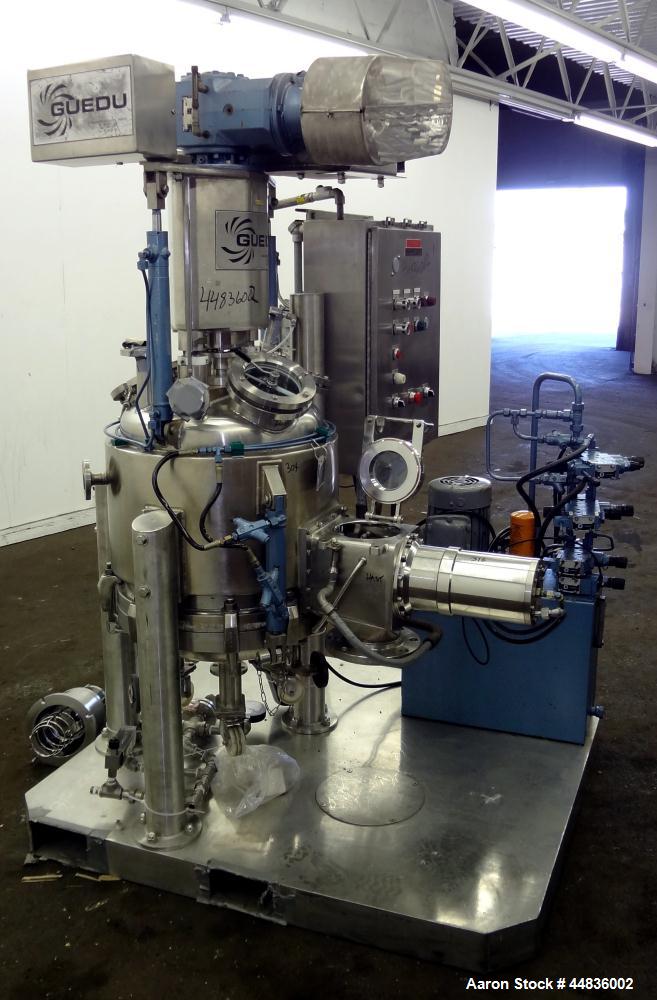

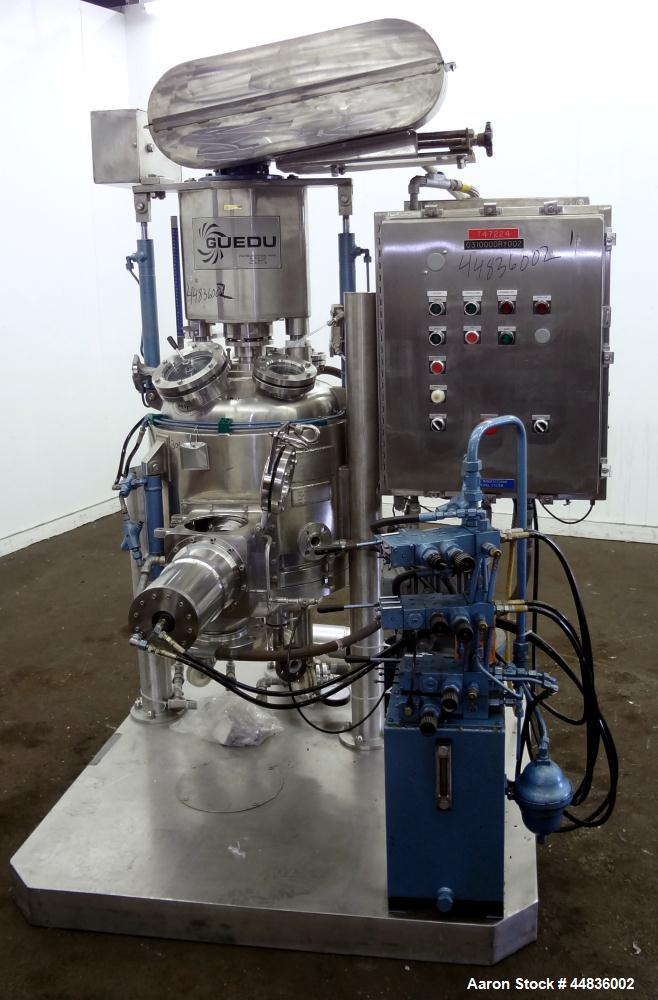

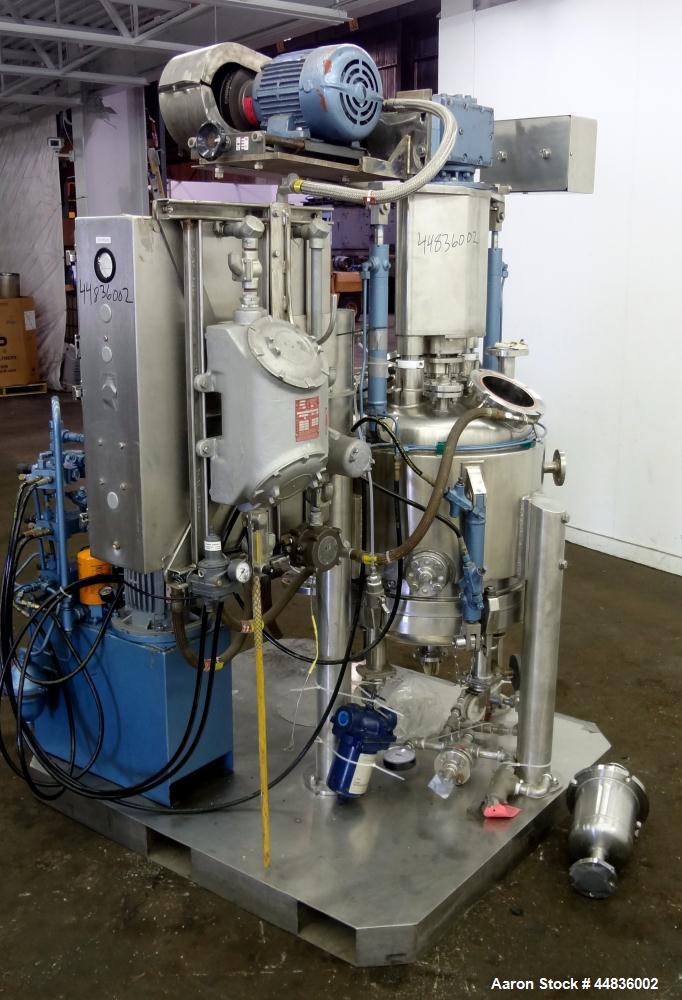

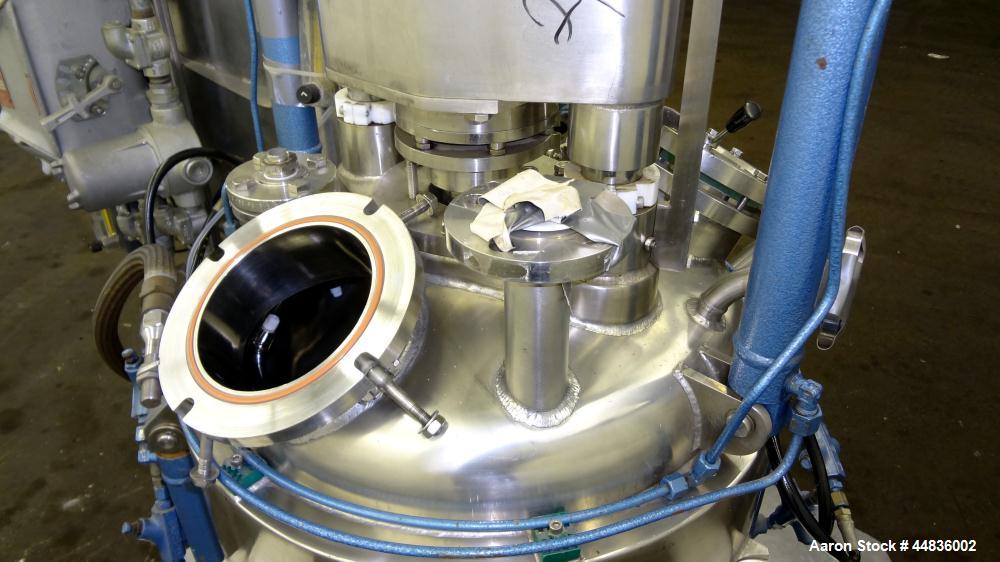

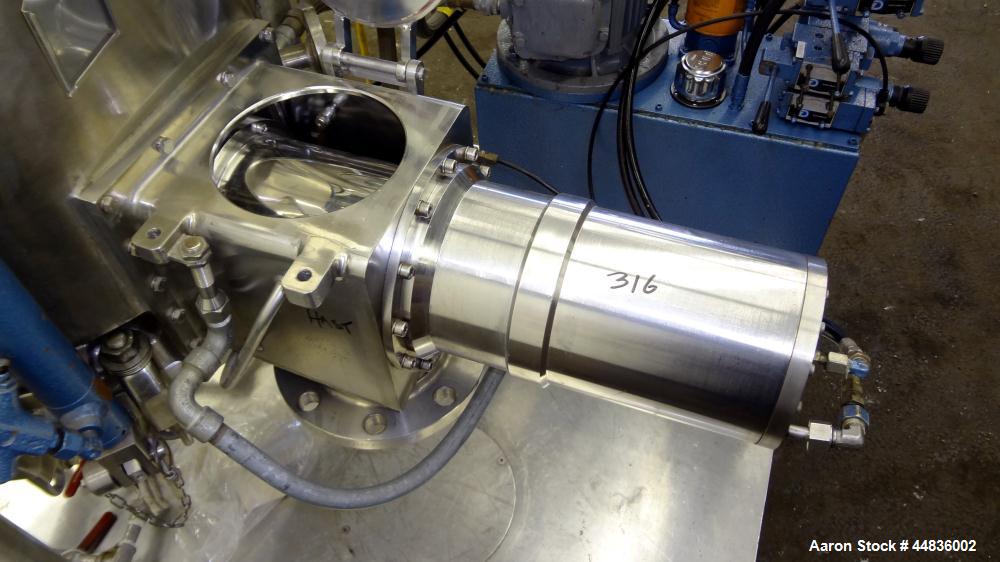

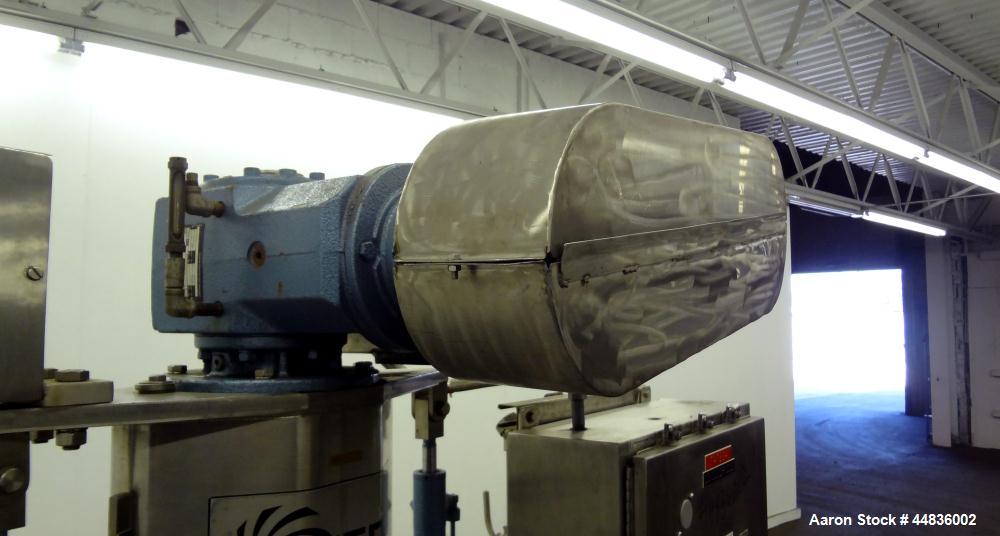

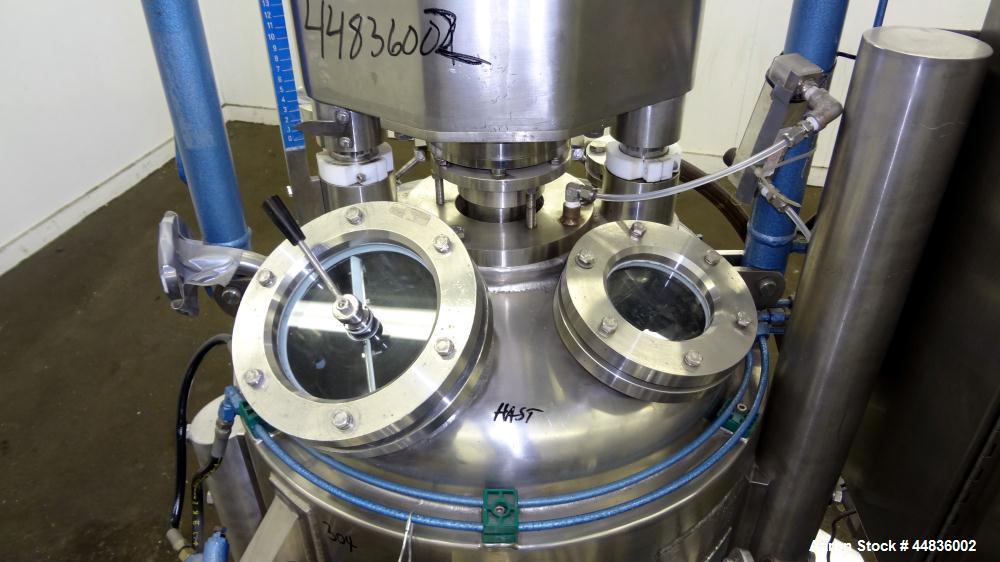

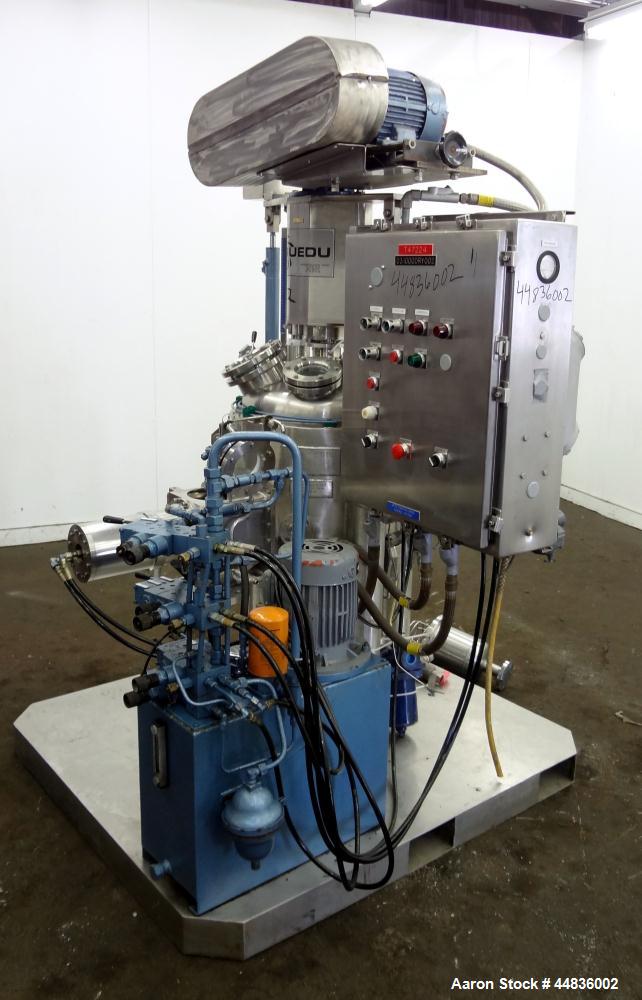

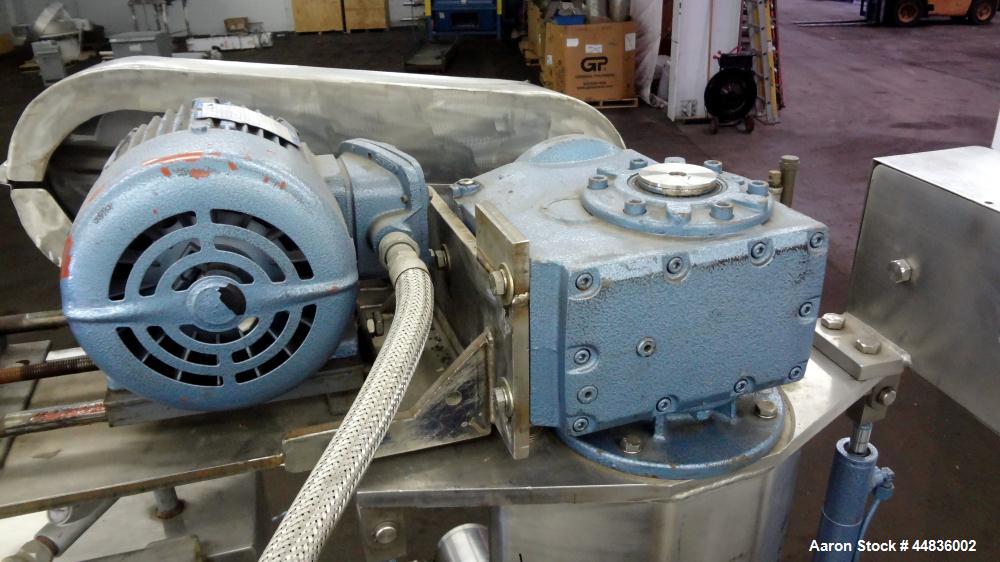

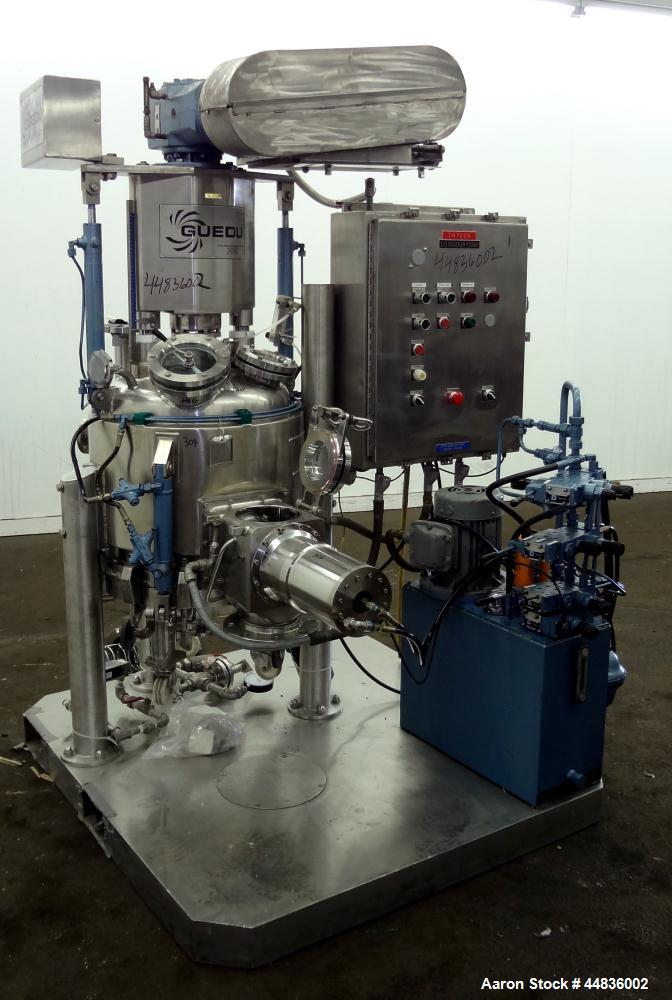

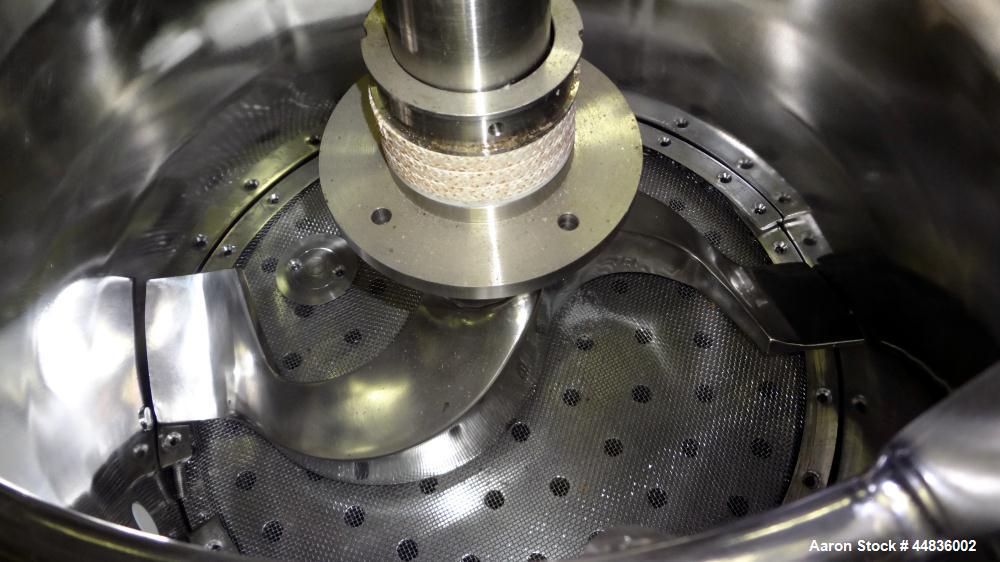

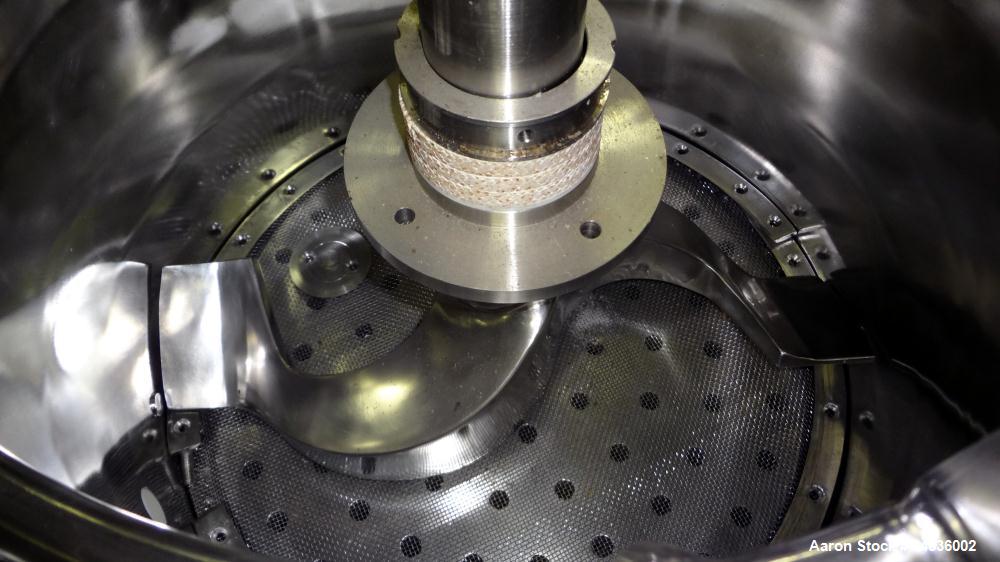

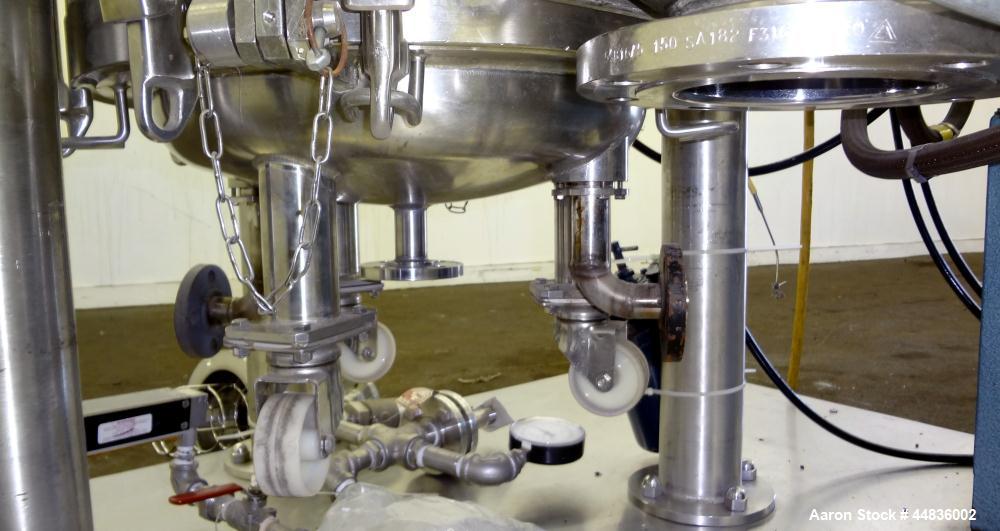

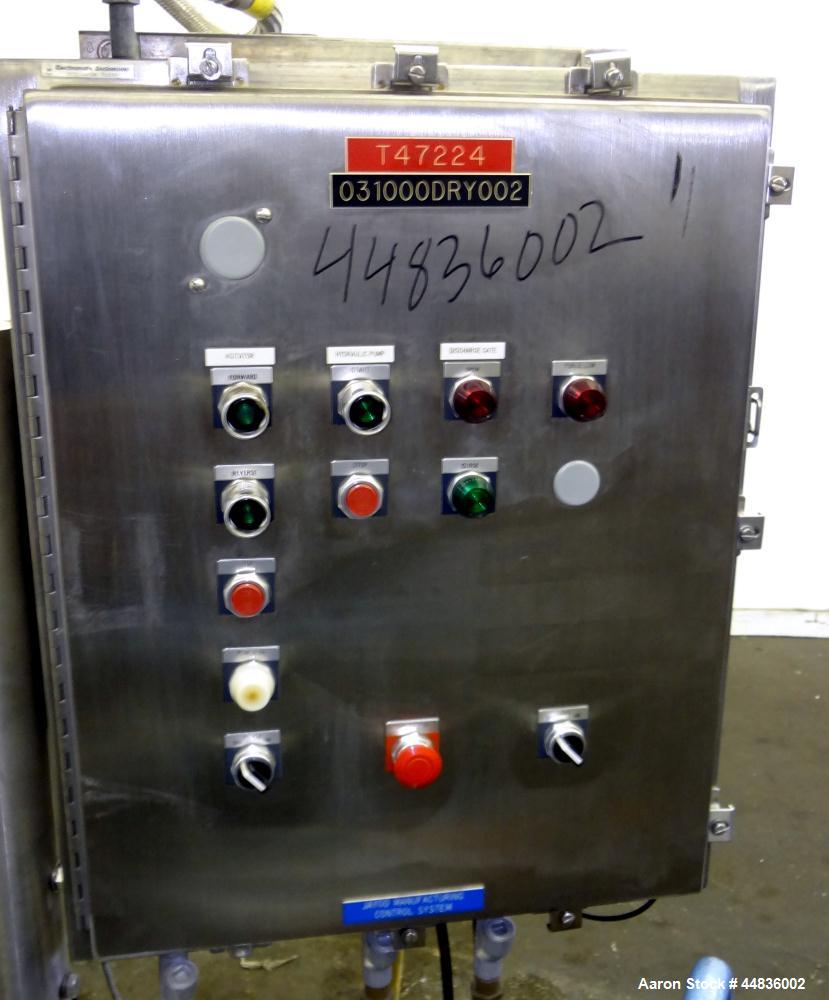

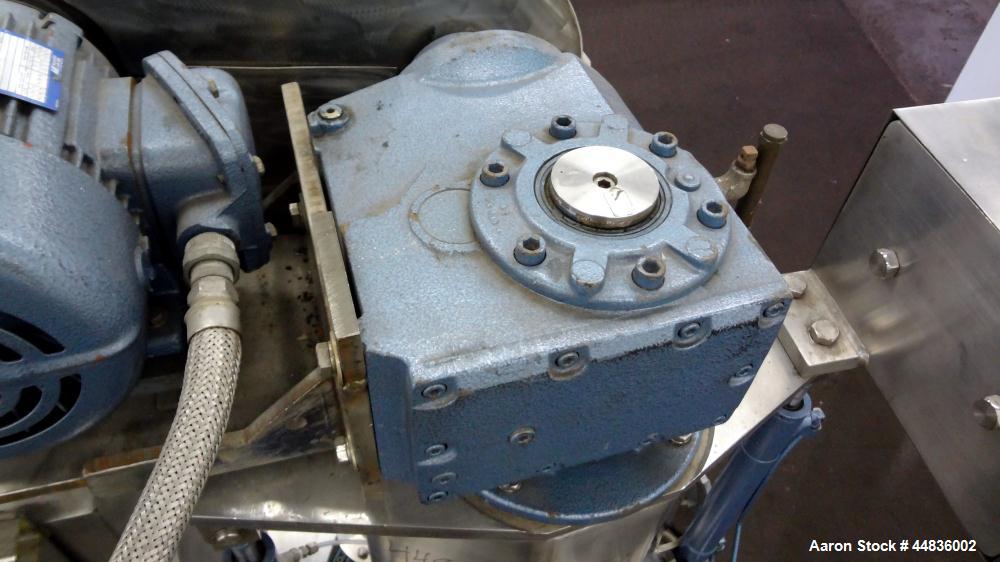

Used Guedu Pilot Agitated Filter Dryer, (0.15) Square Meter, Hastelloy C22. Approximate 21.625" diameter x 16" straight side. Dished top, flat removable jacketed bottom with filter plate. Internal rated Full Vacuum/45 psi at -150 to 356 degrees F. 316L Stainless steel 1/2 pipe coil jacket rated 100 psi at -150 to 356 degrees F. Telescoping 2 blade agitator, driven by a 3 hp, 3/60/230/460 volt, 1735 rpm gear motor, ratio 31.2 to 1, with power pack for raise and lowering. Openings top 1", 2", 4" sight glass, 6" sight glass with wiper, 6" hand hole with filter. Side bottom outlet with a plug valve. Mounted on (3) stainless steel legs, and a stainless steel base. Includes a control panel. Serial# 8007, National Board# 22, built 1991.
Used Guedu Pilot Agitated Filter Dryer, (0.15) Square Meter, Hastelloy C22. Approximate 21.625" diameter x 16" straight side. Dished top, flat removable jacketed bottom with filter plate. Internal rated Full Vacuum/45 psi at -150 to 356 degrees F. 316L Stainless steel 1/2 pipe coil jacket rated 100 psi at -150 to 356 degrees F. Telescoping 2 blade agitator, driven by a 3 hp, 3/60/230/460 volt, 1735 rpm gear motor, ratio 31.2 to 1, with power pack for raise and lowering. Openings top 1", 2", 4" sight glass, 6" sight glass with wiper, 6" hand hole with filter. Side bottom outlet with a plug valve. Mounted on (3) stainless steel legs, and a stainless steel base. Includes a control panel. Serial# 8007, National Board# 22, built 1991.
