Used-Littleford Model VT-3000-D (4Z) Batch Vacuum Mixer/Dryer, 106 cubic foot capacity. Type 316 stainless steel contact pa...

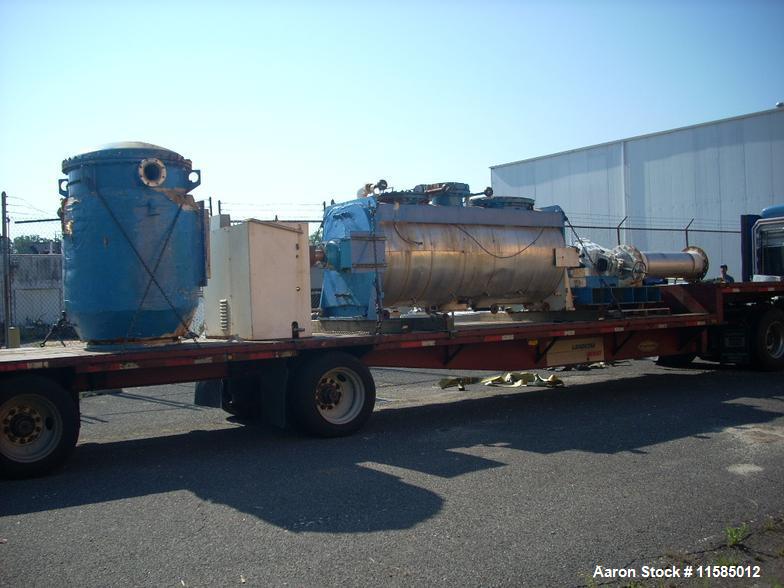

Used-Littleford Model VT-3000-D (4Z) Batch Vacuum Mixer/Dryer, 106 cubic foot capacity. Type 316 stainless steel contact parts. Interior of vessel and all contact parts are polished. Vacuum capable internal. Becker mixing tools with head scrapers. Main shaft is hollow with rotary union connection for heating/cooling media, main shaft has double mechanical seals. Jacket rated 100 psi, labyrinth design on vessel drum, heads jacketed with bolt on panel coil. 150 hp TEFC motor, 3 phase, 460 volt, 60 cycle, 1780 rpm. Faulk hydraulic gear drive model 1120FC2AS providing 0-45 rpm. Charge port 15 1/2" ID located top center of vessel. Sampling valve 1-1/2" manually operated, capable of sampling under vacuum. Top mounted pulse back filter: 100 sq ft pulse type T316 stainless steel dust collector by MAC, jacketed, rated 100 psi @ 325 deg F; min design temp -20 deg F @ 100 psi. Dust collector model 36RT21, built 1989. Thermocouple port on back of mixer. Vent port 30" ID top of mixer. Discharge port 15-1/2" ID with pneumatically operated valve. Access port 20" with manway lid. Sight glass 6" on top of unit. Unit has (4) chopper ports, (4) chopper motors 10/5 hp, 3 phase, 60 cycle, 460 volt, 3520/1775 rpm, Class 1 Division 1 Group D. Includes seal lube system for main shaft and (4) chopper seals. System includes reservoir with sight glass, circulation pump, heat exchanger, filter, flow switch, and other instrumentation including pressure and temperature gauges. Built 1989.
