Used Krauss Maffei Mixer Vacuum Dryer MT. Model MT 1/200. Serial # 7098. National Board # 21424. Constructed of 316L stainless steel. Interior has polished surface. Conical vessel has a capacity of 49.43 cuft with working volume of 35.3 cuft. Dryer uses an 8" diameter inclined orbiting screw, driven by a 10 hp drive to gently agitate product while drying. Can dry particles up to 5 mm in size. Vessel is rated for Full Vacuum/150 psi @ 450 f on jacket and internal. Acutal drying temperature maximum is 302 f. The top has an 18" manway with 6" sight glass, 18" flanged fitting, 4" sight glass, (2) 3" flanged fittings, (2) 2" flanged fittings, 6" flanged fittings and (2) 1" threaded fitting for the top jacket. The side has (2) 2" flanged fittings for the body jacket. The bottom has a 10" flanged discharge fitting with pneumatically operated flush mount valve and (2) 1" threaded fittings for bottom jacket.
Manufacturer | Krauss MaffeiKrauss Maffei |
Model | MT 1/200 |
Serial # | 7098 |
Category | Dryers - Drying EquipmentDryers - Drying Equipment |
Subcategory | Rotary Vacuum DryersRotary Vacuum Dryers |
Krauss-Maffei (Krauss Maffei Process Technology)
A global leader in advanced process equipment, Krauss-Maffei designs high-precision drying, mixing, and separation systems for pharmaceuticals, chemicals, and specialty materials. Their MT series vacuum dryers are highly regarded for gentle, efficient drying of heat-sensitive solids.

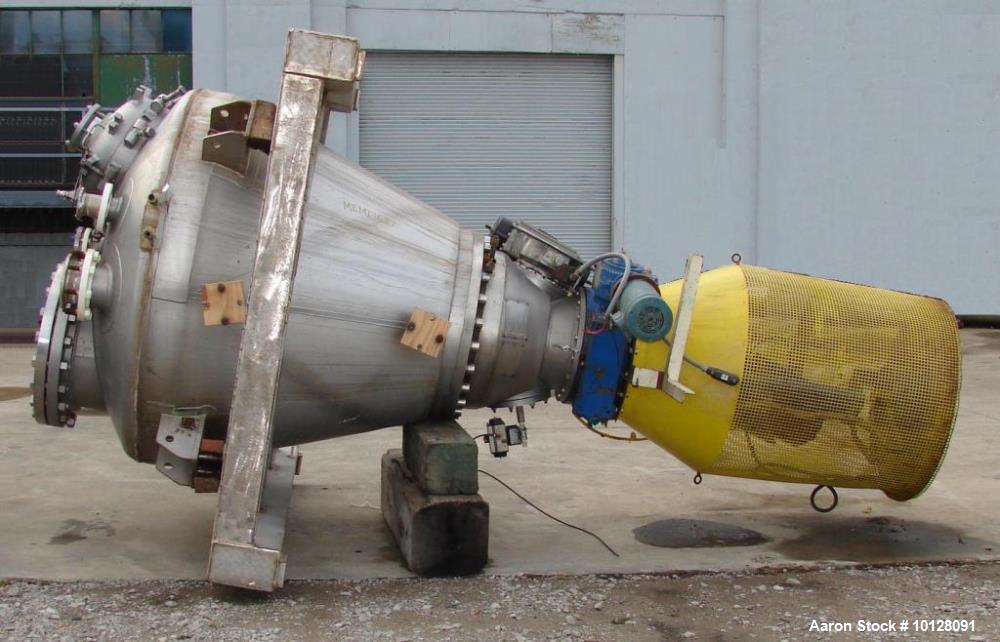

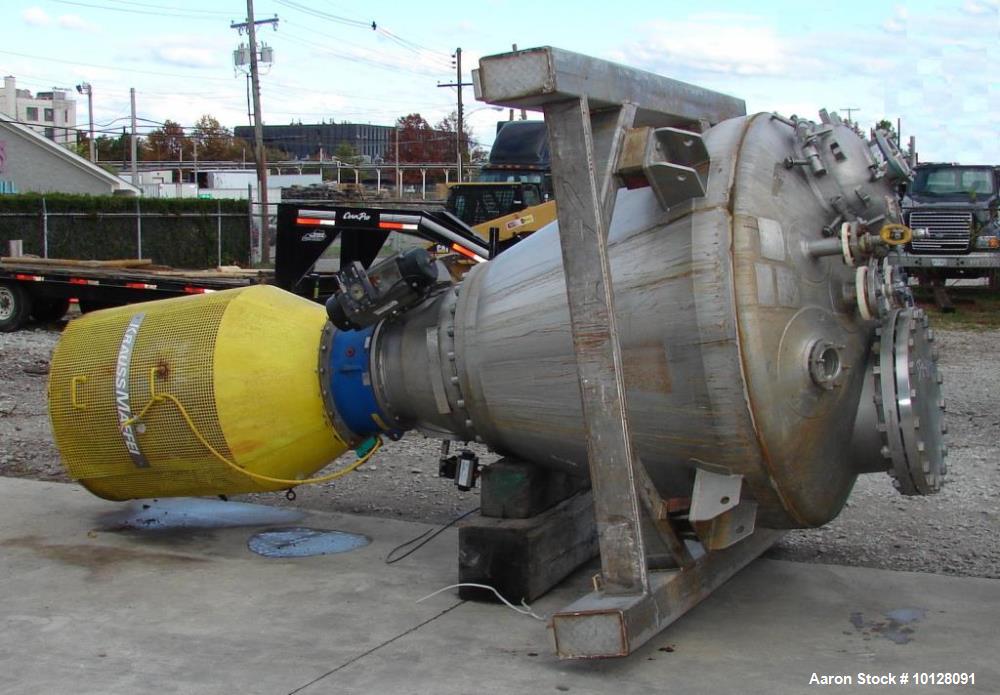

This Krauss-Maffei MT 1/200 vacuum mixer dryer is a conical screw dryer constructed from 316L stainless steel with a polished interior and rated for full vacuum and 150 PSI at 450°F (internal and jacket). The vessel features a 49.43 cu.ft. total capacity and a 35.3 cu.ft. working volume, making it ideal for vacuum drying of powders, granules, and moist solids up to 5mm in size.

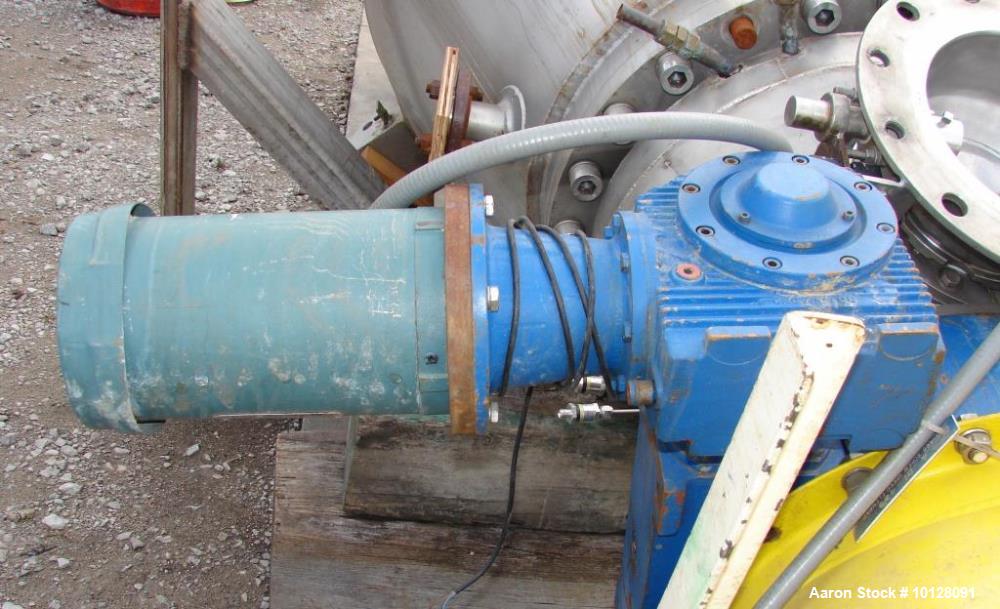

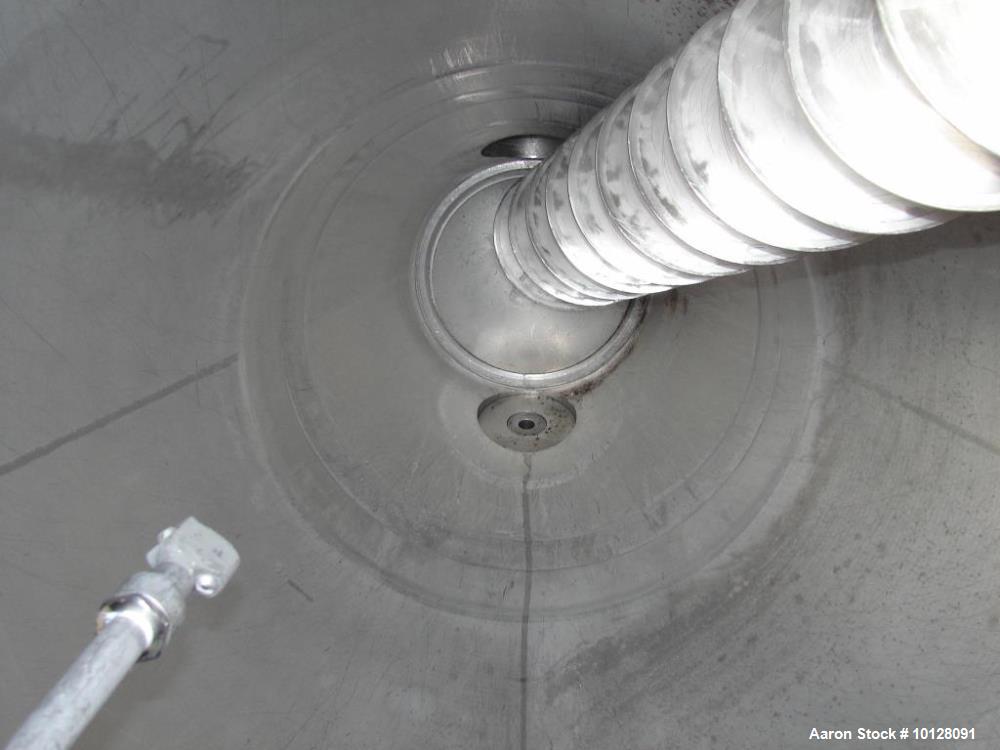

An 8" diameter inclined orbiting screw, powered by a 10 HP drive, provides gentle agitation during the drying cycle. The unit includes a large 10" flanged discharge with flush-mount pneumatic valve, multiple flanged and threaded connections, and jacketed zones on the top, side, and bottom for precise thermal control.
Model: MT 1/200
Serial #: 7098
National Board #: 21424
Construction: 316L Stainless Steel, polished interior
Total Capacity: 49.43 cu.ft.
Working Volume: 35.3 cu.ft.
Drying Temperature (Max): 302°F (150°C)
Pressure Ratings (Jacket & Internal):
Full Vacuum / 150 PSI @ 450°F
Agitation System:
Type: 8" inclined orbiting screw
Motor: 10 HP

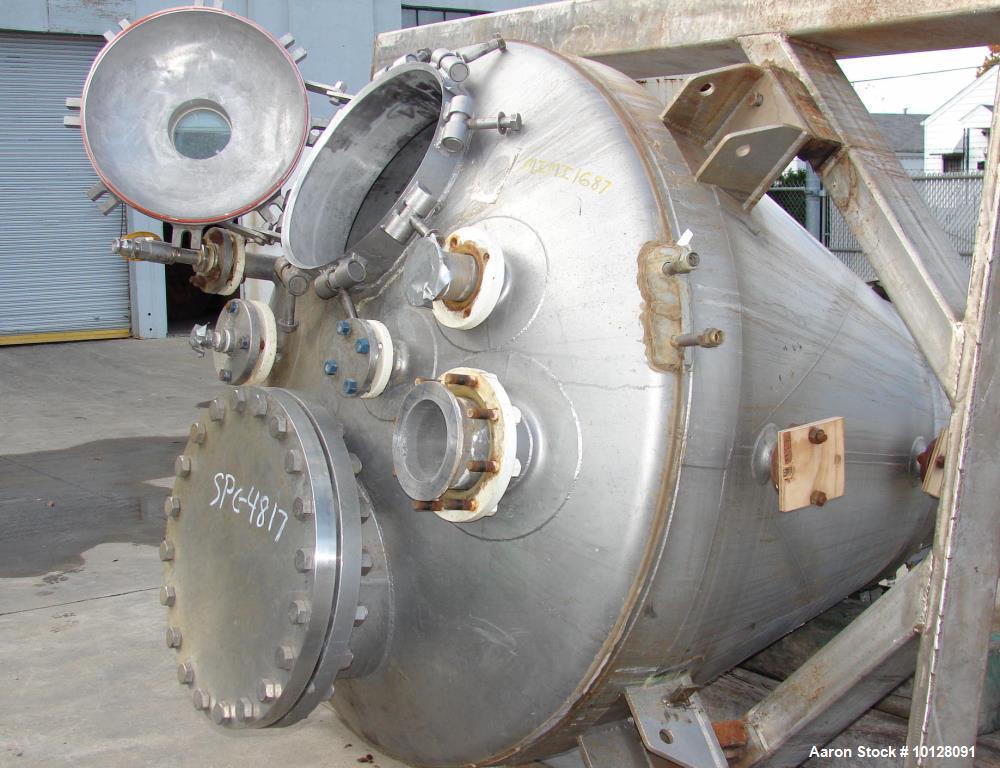

Top Connections:
(1) 18" manway
(1) 6" sight glass
(1) 18" flanged fitting
(1) 4" sight glass
(2) 3" flanged fittings
(2) 2" flanged fittings
(1) 6" flanged fitting
(2) 1" threaded fittings (top jacket)
Side Connections:
(2) 2" flanged fittings (body jacket)
Bottom Connections:

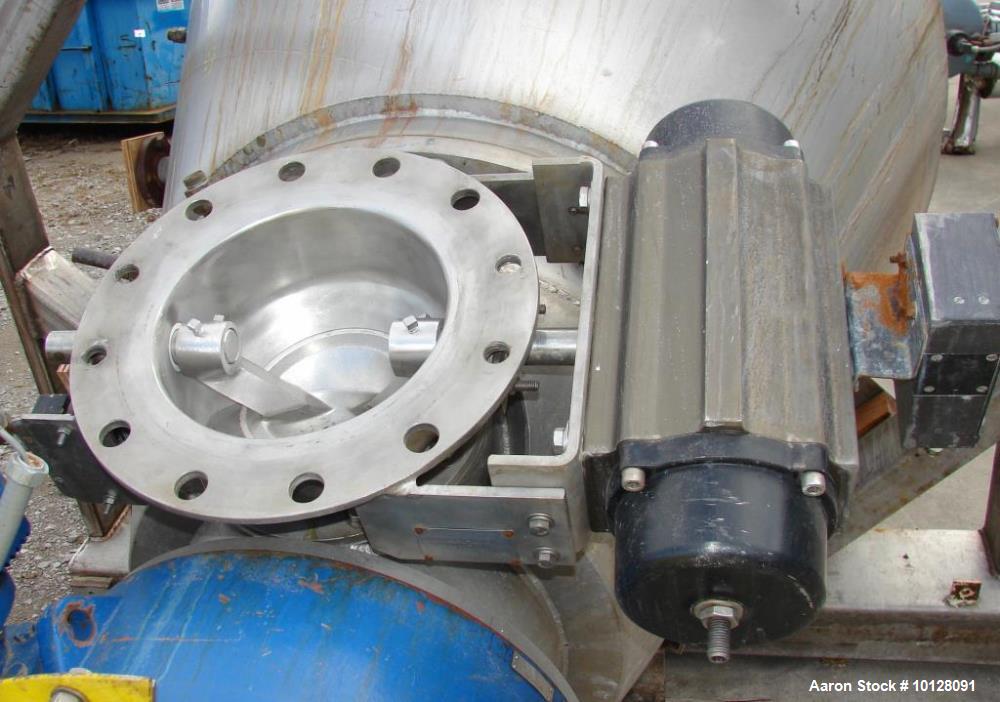

(1) 10" flanged discharge
(1) Pneumatically operated flush-mount valve
(2) 1" threaded fittings (bottom jacket)
Condition: Used, excellent for heat-sensitive product drying
