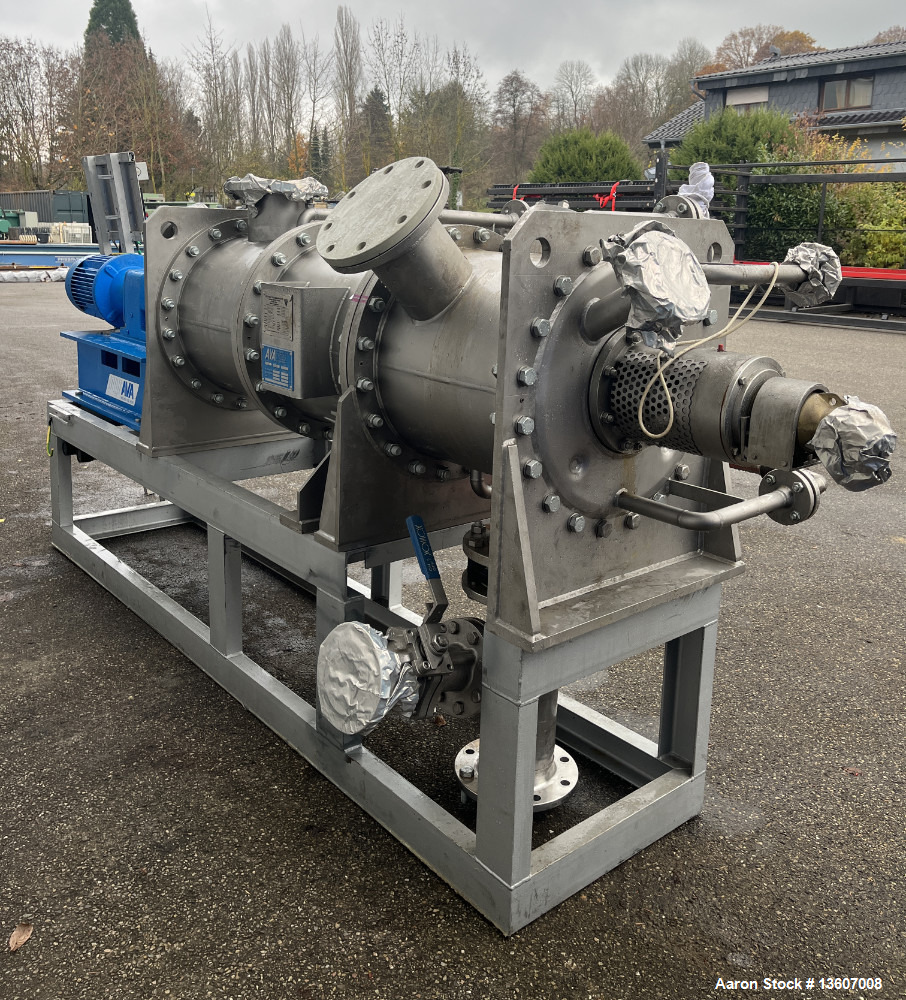

AVA-Holland Merten GmbH Rotary Vacuum Paddle Dryer, type HTK 200.

Manufacturer Information:

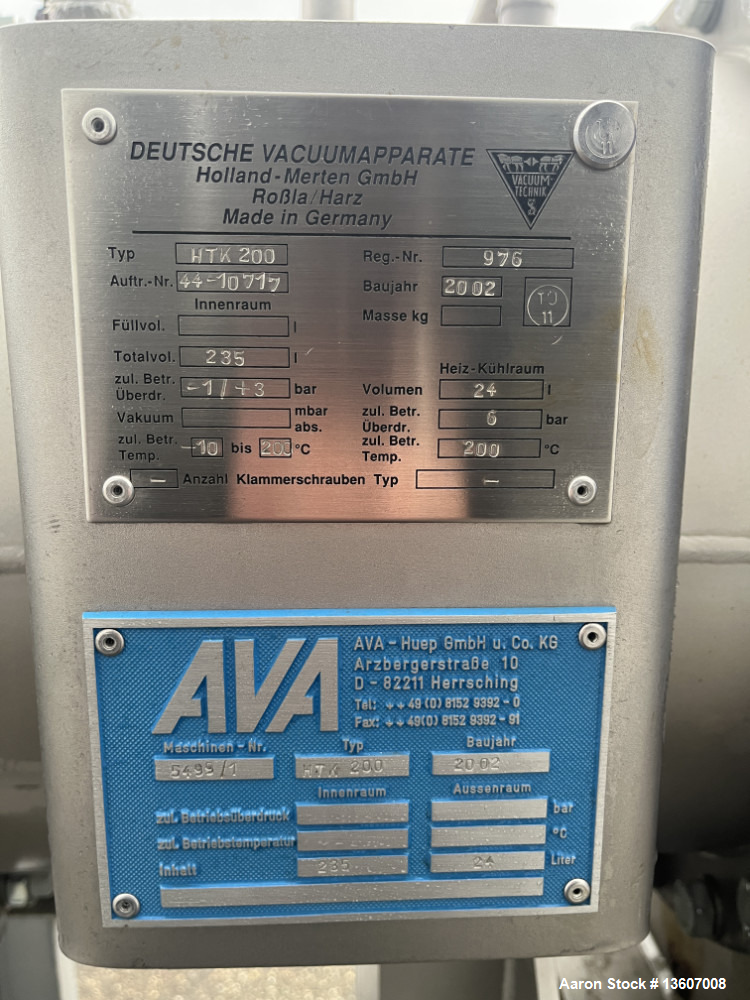

• Manufacturer: AVA-Holland Merten GmbH
• Model: HTK 200
• Condition: Used (Reported in Good Condition)
• Serial Number: 5499/2
• Year Built: 2002

Manufacturing Data:

Dryer Vessel Specifications:

• Type: Rotary Vacuum Paddle Dryer
• Material (Product Contact Parts): 316Ti (1.4571) Stainless Steel
• Total Capacity: 8.3 cu. ft. (235 liters)
• Working Capacity: 5.5 cu. ft. (156.66 liters)
• Double Jacketed: Yes

Pressure & Temperature Ratings:

• Internal Pressure: Full Vacuum & 45 PSI (-1 to 3 Bar)
• Jacket Pressure: 90 PSI (6 Bar)
• Operating Temperature: 266°F (130°C)
• Design Temperature: 392°F (200°C)

Agitator & Heating System:

• Agitator Type: Heated Shaft with Paddles
• Speed: 107 RPM

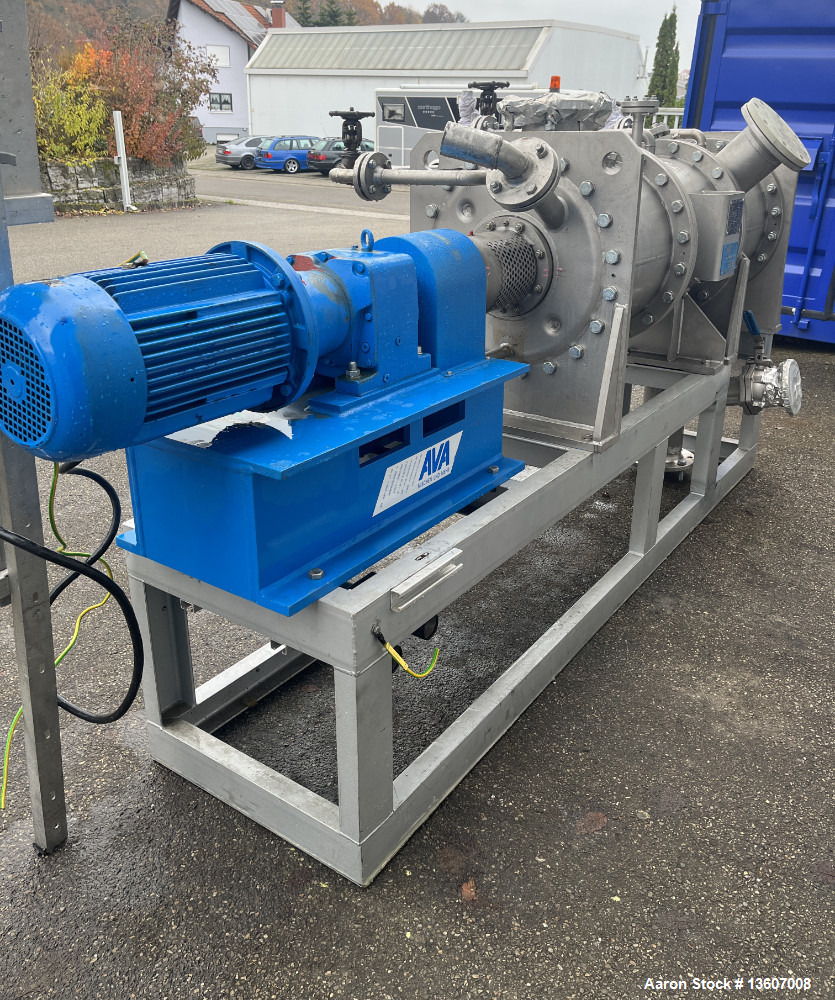

• Motor: 5.5 kW EExdellCT4 Explosion-Proof Motor
• Drive System: Gearbox-Driven
• Heating System: Maier Heater for Shaft Heating
• Mechanical Seal: Included

Frame & Dimensions:

• Frame Mounted: Yes
• Overall Dimensions:
  • Length: 111 inches (3400 mm)
  • Width: 36 inches (1100 mm)
  • Height: 49 inches (1500 mm)
• Weight: Approx. 1.6 Tonnes

Previous Use:

• Pilot Plant for Solid Phase Modification of Wood

Description:

The Used AVA-Holland Merten HTK 200 Rotary Vacuum Paddle Dryer is a high-performance drying system, designed for low-temperature, high-efficiency vacuum drying applications. Constructed with 316Ti stainless steel contact surfaces, this dryer ensures corrosion resistance and durability in chemical, pharmaceutical, and industrial material processing.

With a total capacity of 8.3 cubic feet (235 liters) and a working capacity of 5.5 cubic feet (156.66 liters), this double-jacketed vacuum dryer provides efficient heat transfer and uniform drying. The heated agitator shaft (driven at 107 RPM via a gearbox and a 5.5 kW explosion-proof motor) ensures continuous mixing, improving drying efficiency and preventing material build-up.

The unit is rated for full vacuum and 45 PSI (-1/3 bar) internally, while the jacket operates at 90 PSI (6 bar), making it suitable for vacuum drying, solvent recovery, and temperature-sensitive materials.

Equipped with a Maier heating system for the shaft, a mechanical seal, and a frame-mounted design, this unit is a turnkey solution for vacuum drying in pharmaceutical, chemical, and food production industries.

Specifications:

• Capacity: 8.3 cu. ft. (235 liters) total, 5.5 cu. ft. (156.66 liters) working
• Material: 316Ti (1.4571) Stainless Steel (Product Contact Parts)
• Jacket: Double Jacketed
• Pressure Ratings:
  • Internal: Full Vacuum & 45 PSI (-1 to 3 Bar)
  • Jacket: 90 PSI (6 Bar)
• Temperature Ratings:
  • Operating: 266°F (130°C)
  • Design: 392°F (200°C)
• Agitator & Drive System:
  • Heated Shaft with Paddles
  • Speed: 107 RPM
  • Motor: 5.5 kW EExdellCT4 Explosion-Proof Motor
  • Gearbox-Driven
  • Mechanical Seal Included
• Heating System: Maier Heater for Shaft Heating
• Frame Mounted: Yes
• Overall Dimensions: 111" L x 36" W x 49" H (3400 mm x 1100 mm x 1500 mm)
• Weight: 1.6 Tonnes
• Condition: Used, Good Working Condition

Applications:

• Pharmaceutical Powder & API Drying
• Chemical Processing & Solvent Recovery
• Food & Nutraceutical Ingredient Drying
• Heat-Sensitive Material Drying Under Vacuum
• Battery & Energy Storage Material Processing
• Polymers, Resins, and Specialty Chemical Drying
• Biotech and Laboratory Research Drying
• Solid Phase Modification of Materials

What Products Would This Be Used For?

• Active Pharmaceutical Ingredients (APIs) & Fine Chemicals
• Solvent-Based & Heat-Sensitive Chemical Drying
• Food Additives & Nutraceutical Powders
• Battery Materials & Energy Storage Components
• Biotech & Laboratory Research Substances
• Polymer Resins, Adhesives, & Coatings
• Industrial Powders & High-Purity Materials
• Specialty Graphite & Solid Phase Modified Materials
