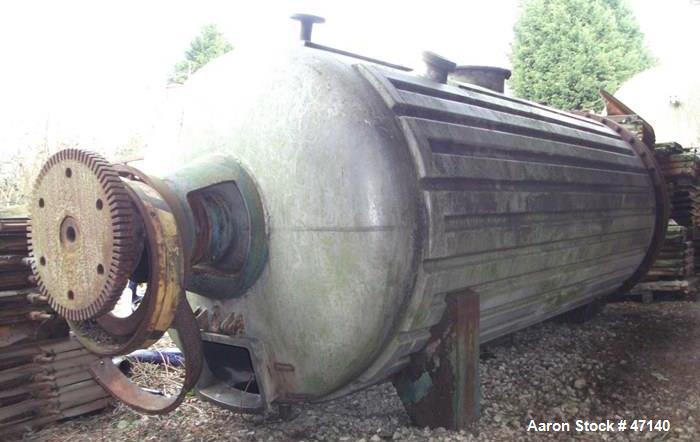

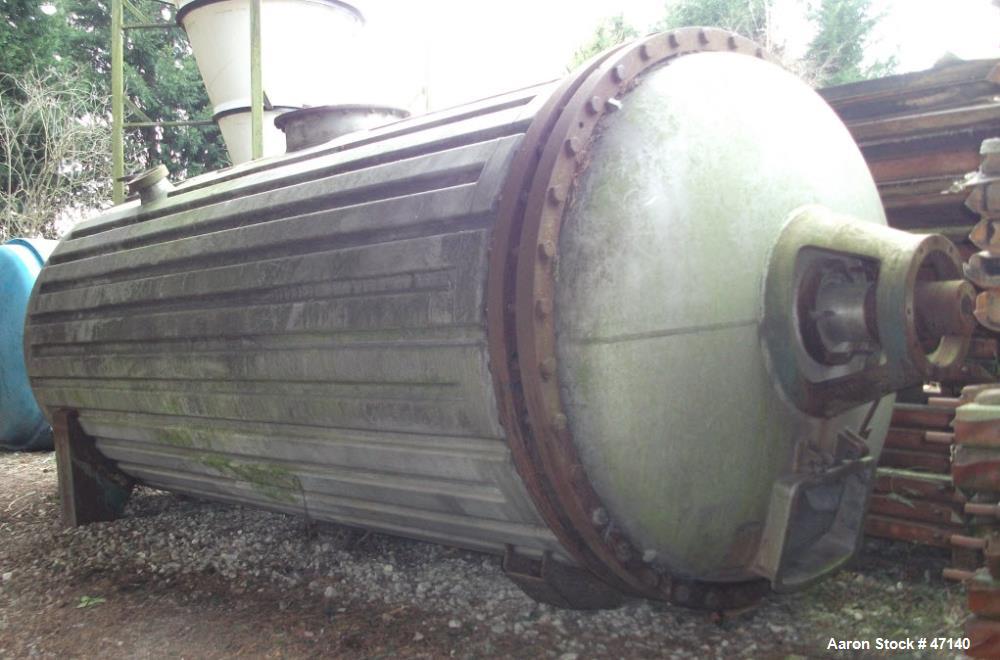

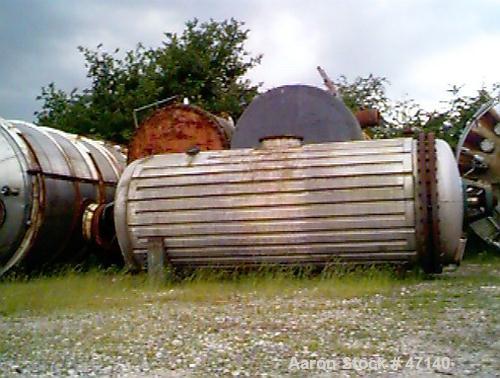

Used - Buss Paddle Rotary Vacuum Dryer (6000L) – Stainless Steel, Industrial-Grade

Manufacturer Information:

• Manufacturer: Buss
• Model: Paddle Rotary Vacuum Dryer
• Condition: Used
• Material Construction: 316L Stainless Steel
• Capacity: 6000 liters (211 cubic feet)

Manufacturing Data:

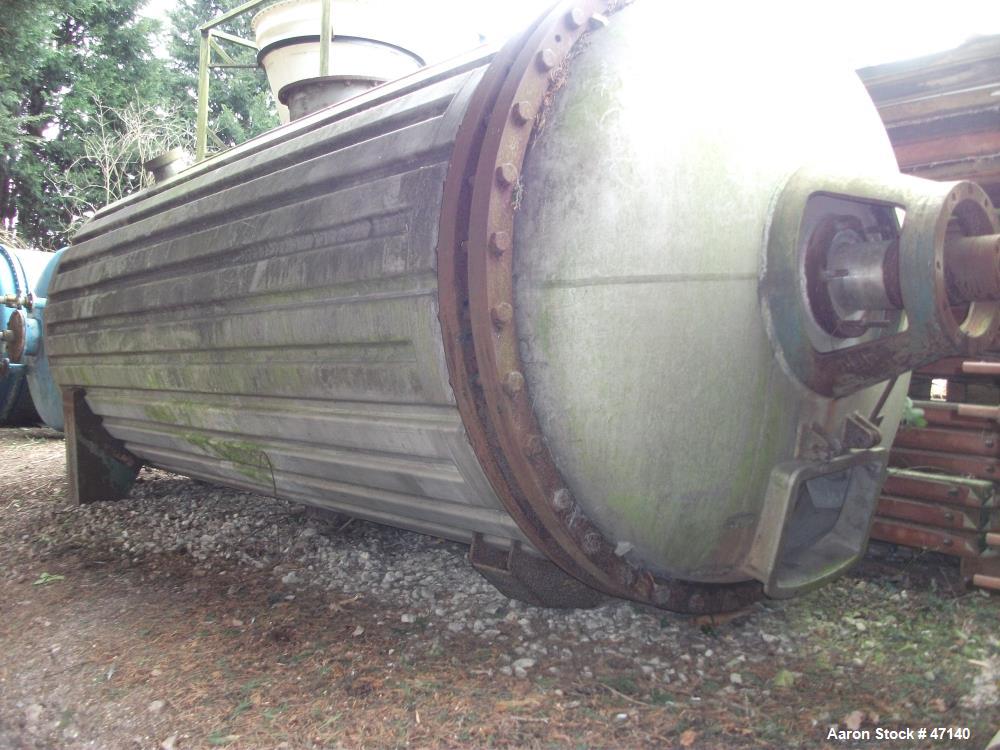

• Drum Dimensions: 1600mm (62.99") diameter x 4100mm (161.42") long

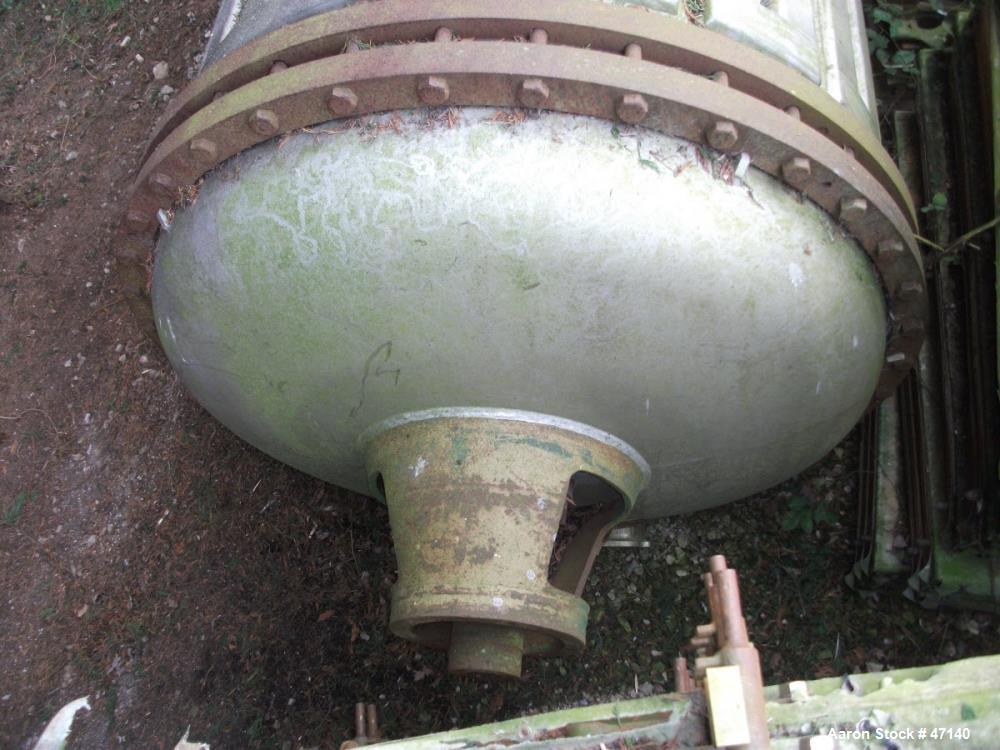

• Design: Dished ends for enhanced durability
• Vacuum Jacket Rating: 2 bar
• Material Contact Parts: 316L stainless steel

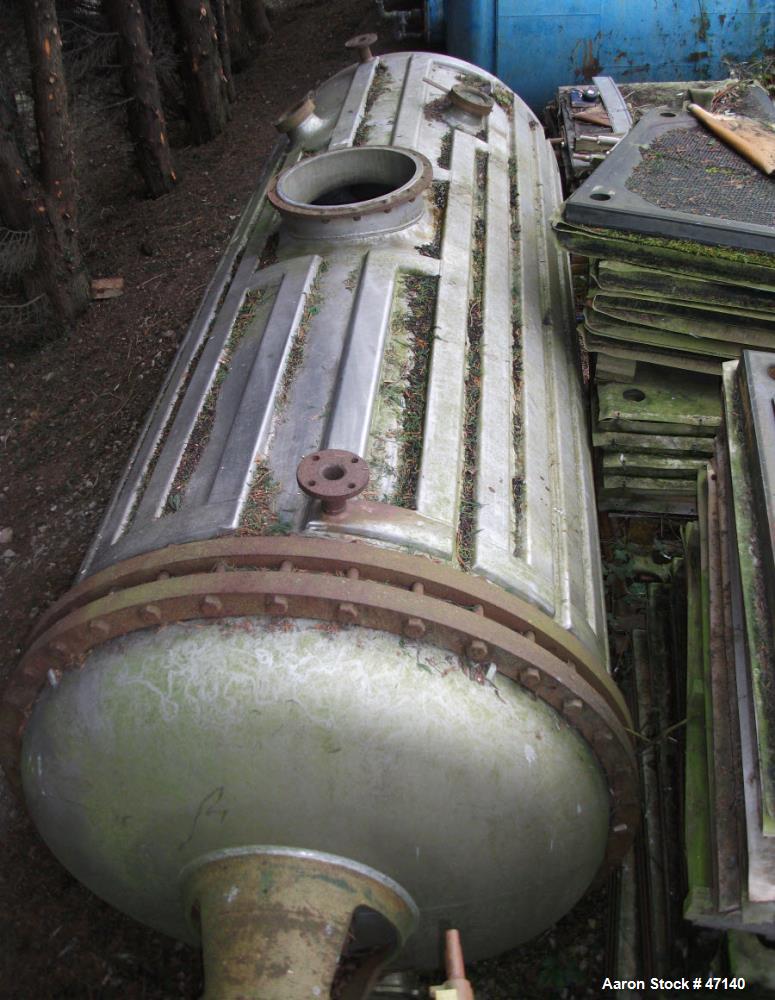

• Openings:
  • Top: 18”
  • Sightglass: (2) 4-3/4”
  • Side Inspection Doors: (2) 11” x 15”
• Outlet: 9-1/2” center plug valve

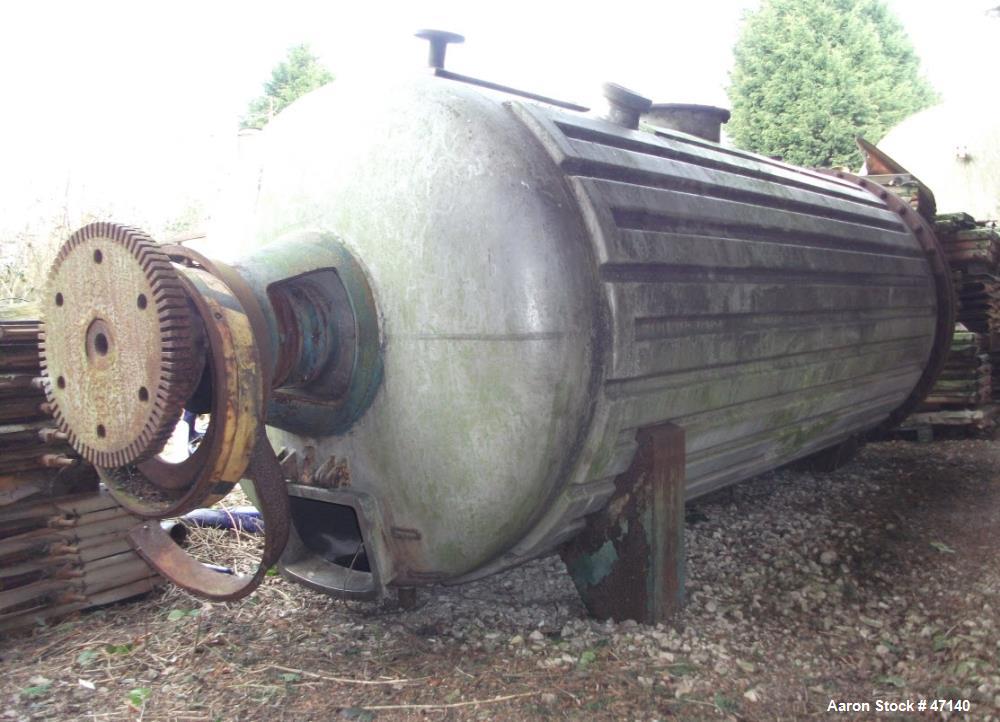

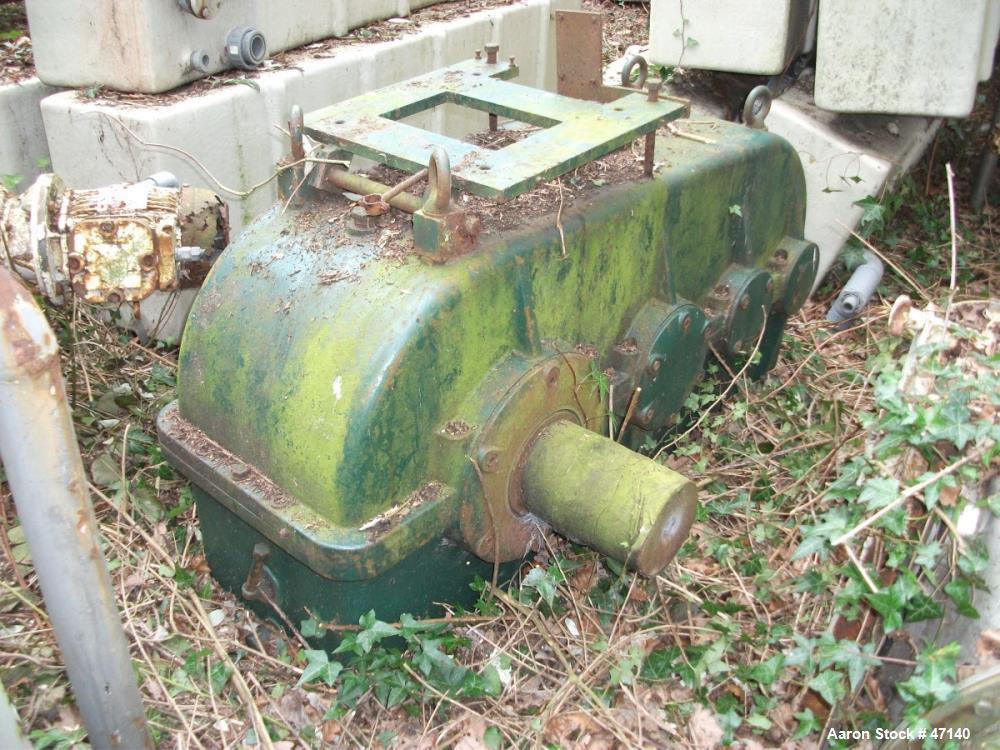

• Drive System: 11 kW, 6 RPM fixed gear motor drive
• Configuration: Bare shafted

Description:

The Buss Paddle Rotary Vacuum Dryer (6000L) is an industrial-grade drying system designed for efficient vacuum drying of heat-sensitive and high-purity materials. Constructed with 316L stainless steel contact parts, it ensures corrosion resistance and compliance with strict sanitary standards. The rotary vacuum technology enables uniform heat distribution, preventing product degradation while maintaining optimal drying efficiency.

The large-capacity (211 cubic feet) vacuum dryer features a 2-bar rated internal vacuum jacket, multiple access points for inspection, and a 9-1/2” center plug valve outlet for controlled material discharge. Powered by an 11 kW, 6 RPM fixed gear motor drive, it provides consistent mixing and drying performance for various industrial applications.

Specifications:

• Capacity: 6000 liters / 211 cubic feet
• Construction Material: 316L stainless steel
• Drum Size: 1600mm (62.99") diameter x 4100mm (161.42") long
• Vacuum Jacket Rating: 2 bar
• Opening Ports:
  • Top: 18”
  • Sightglass: (2) 4-3/4”
  • Side Inspection Doors: (2) 11” x 15”
• Outlet: 9-1/2” center plug valve
• Drive System: 11 kW, 6 RPM fixed gear motor
• Configuration: Bare shafted

Applications:

The Buss Paddle Rotary Vacuum Dryer is ideal for industrial drying applications in multiple sectors, including:

• Pharmaceuticals – Drying active pharmaceutical ingredients (APIs)
• Food Processing – Dehydrating food additives, flavorings, and proteins
• Chemical Industry – Drying specialty chemicals, catalysts, and powders
• Biotechnology – Processing enzymes and bio-based compounds
• Metallurgy & Minerals – Drying metal powders and fine minerals
• Plastics & Polymers – Moisture removal from polymer resins

What Products Would This Be Used For?

• Pharmaceuticals and active ingredients
• Food powders and protein concentrates
• Chemical powders and catalysts
• Enzymes and bio-based materials
• Metal powders and fine minerals
• Polymer resins and specialty compounds
