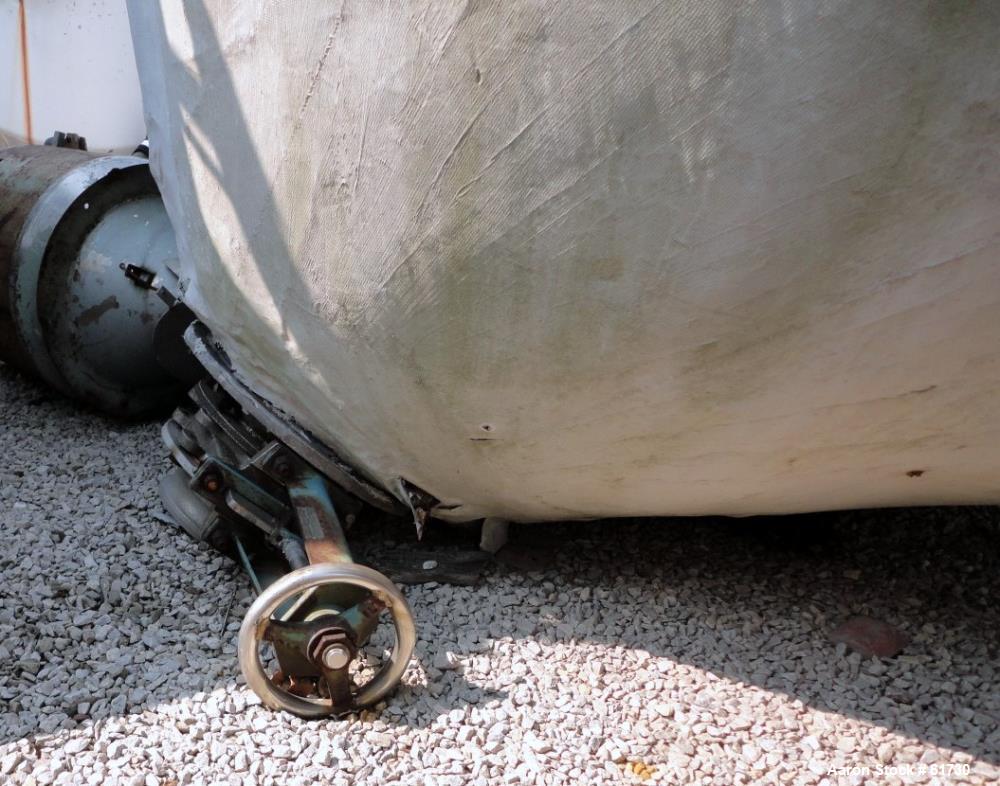

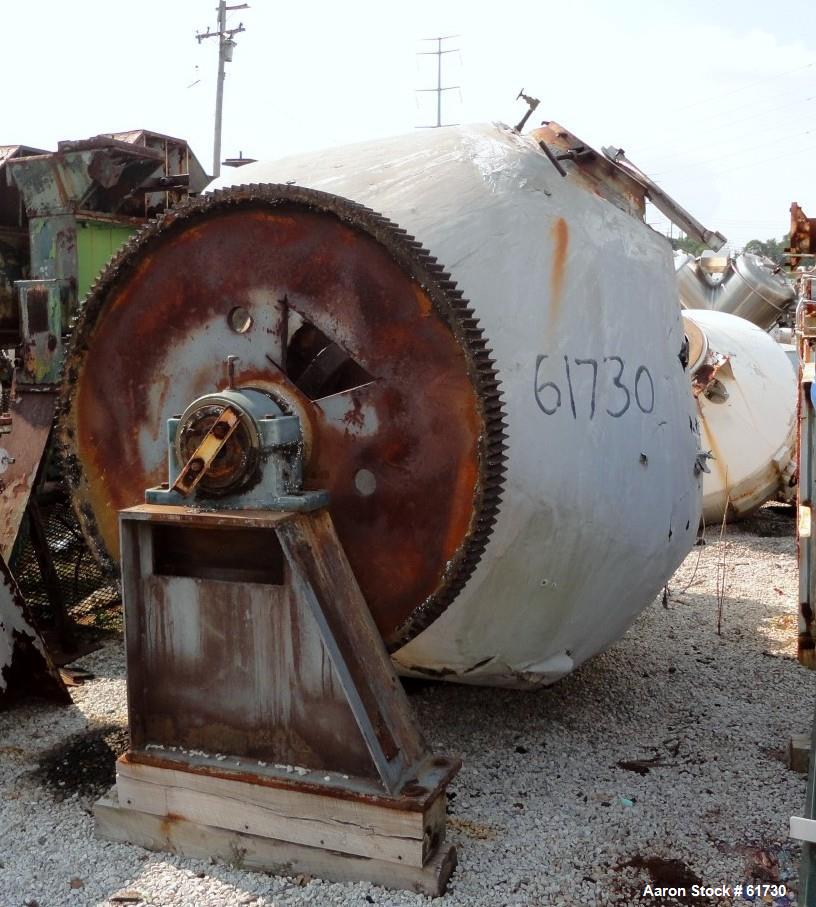

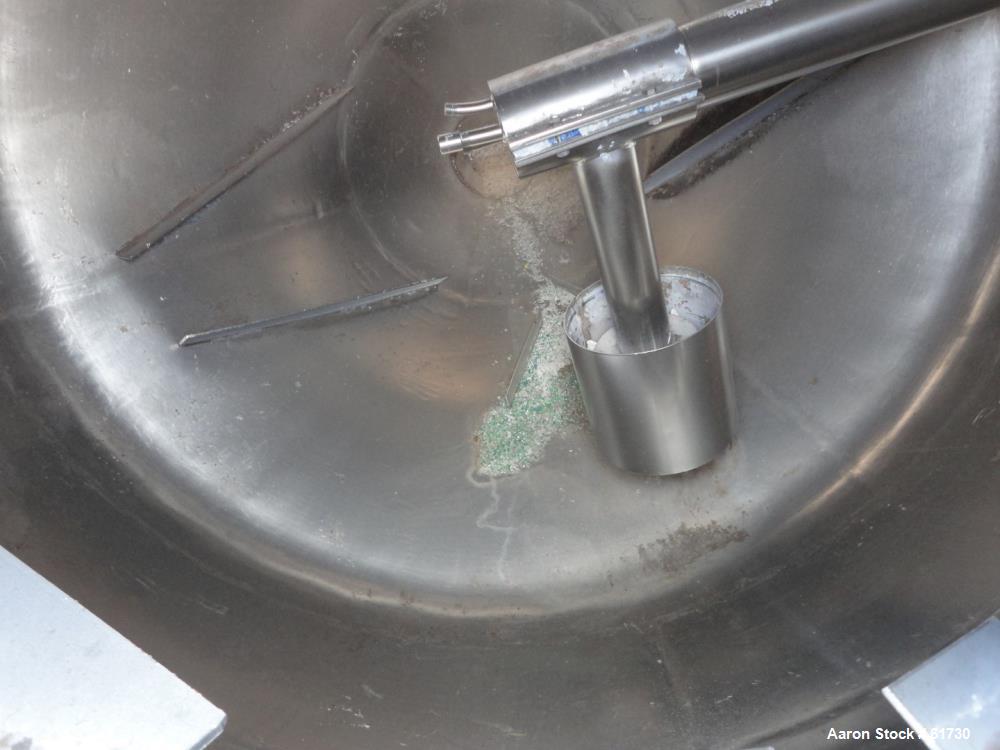

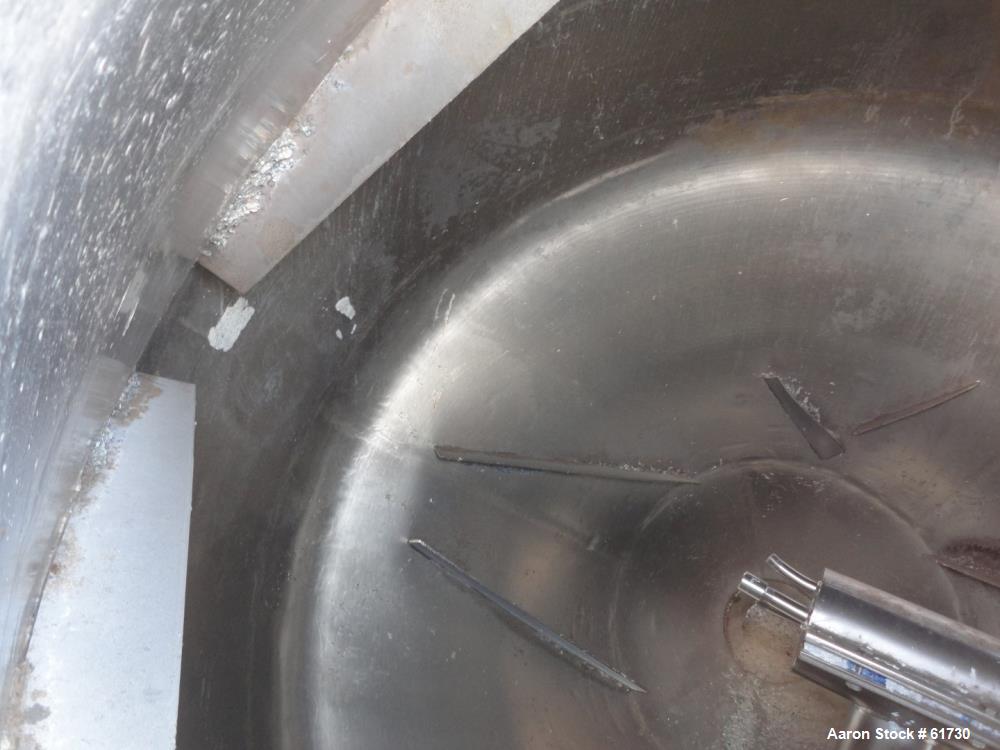

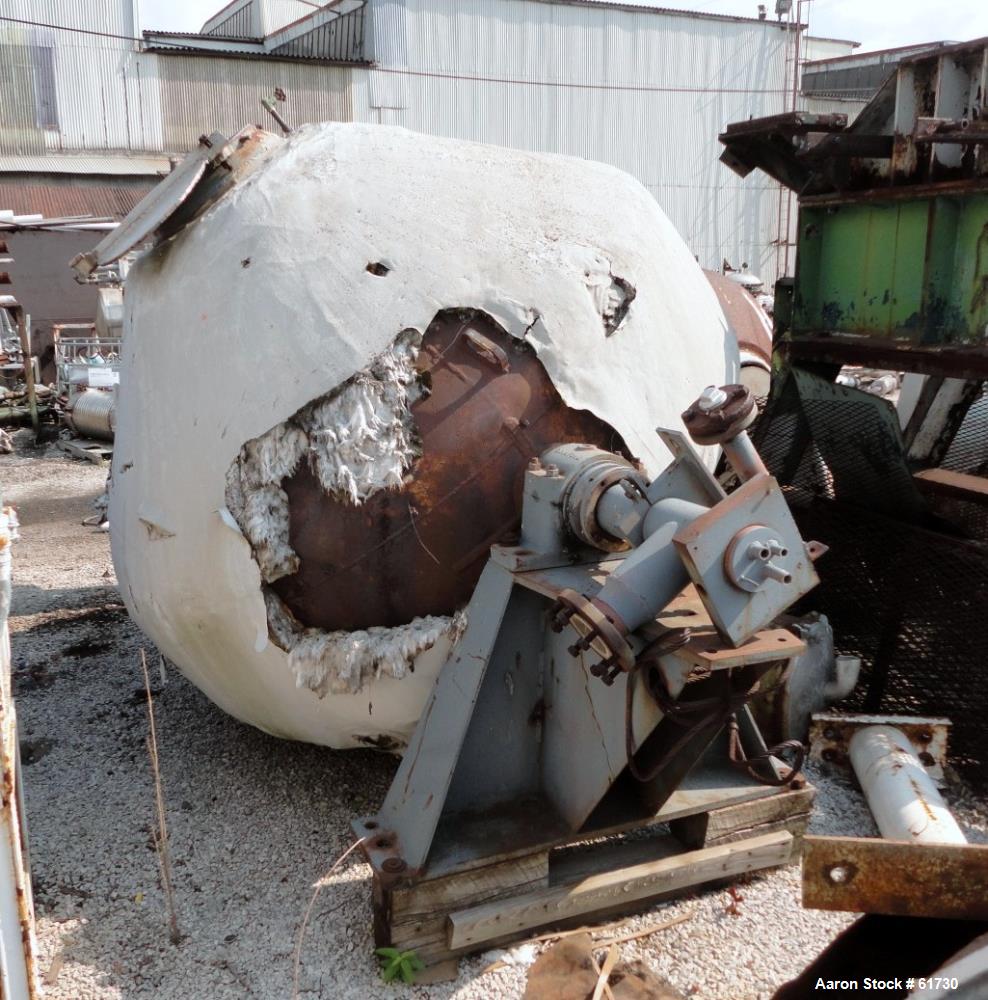

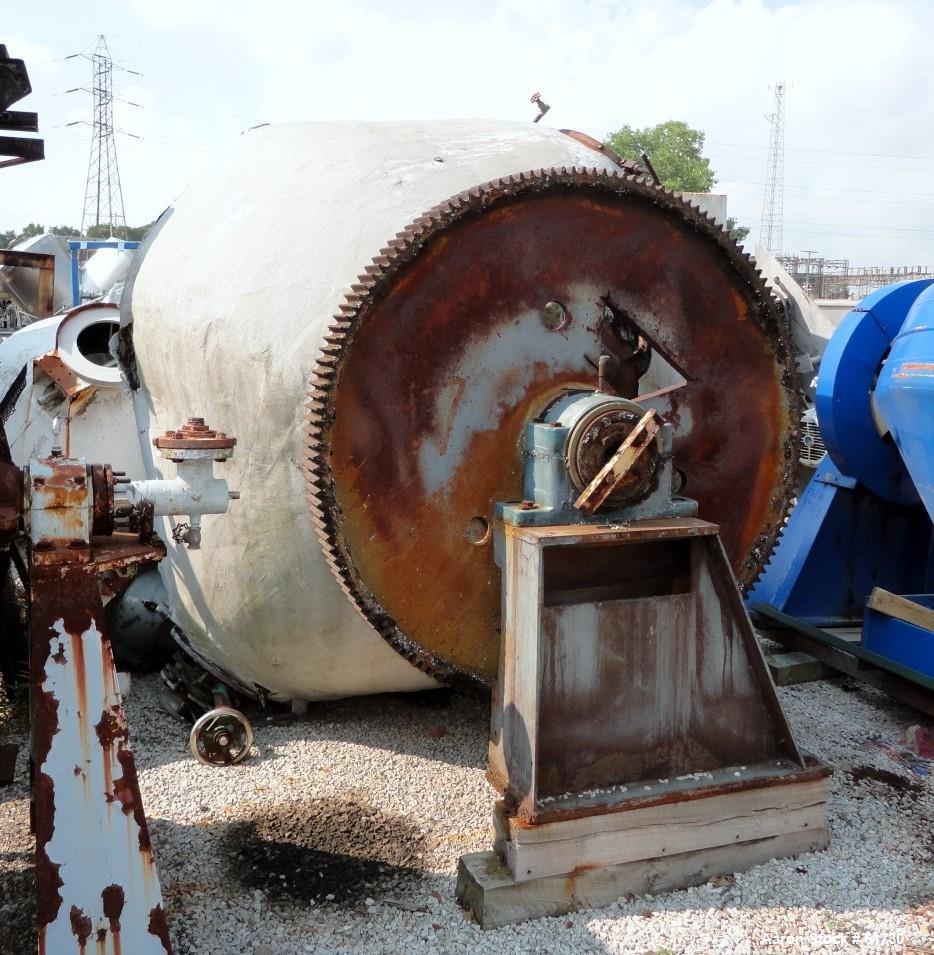

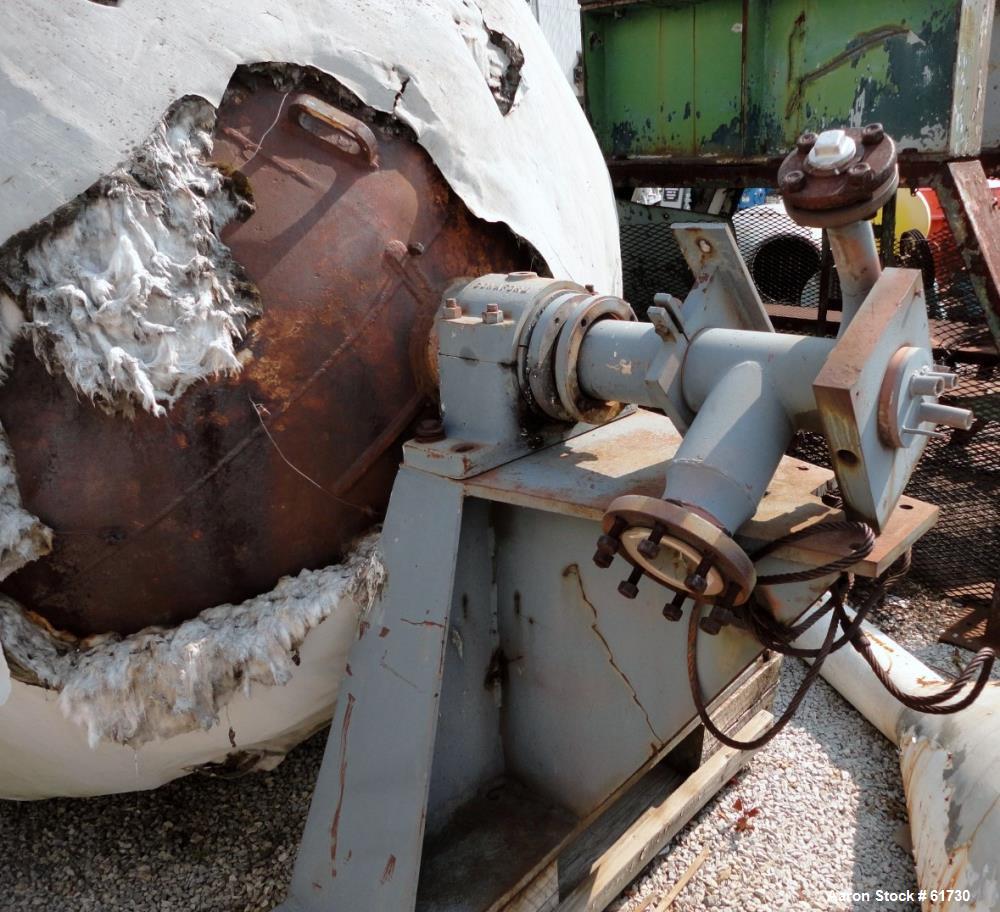

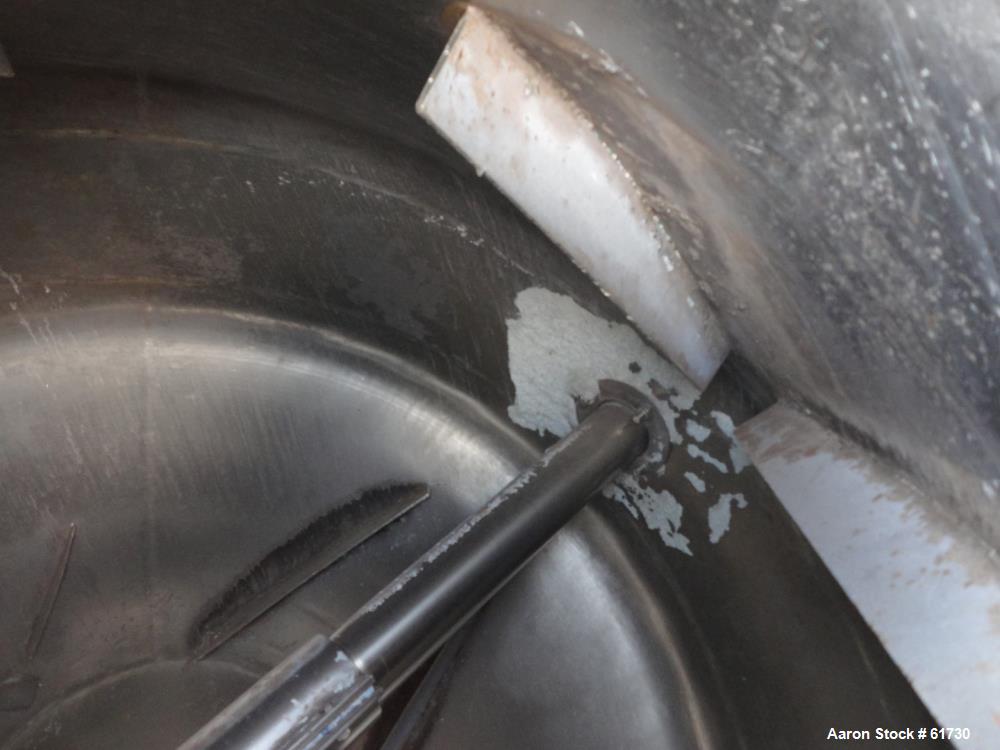

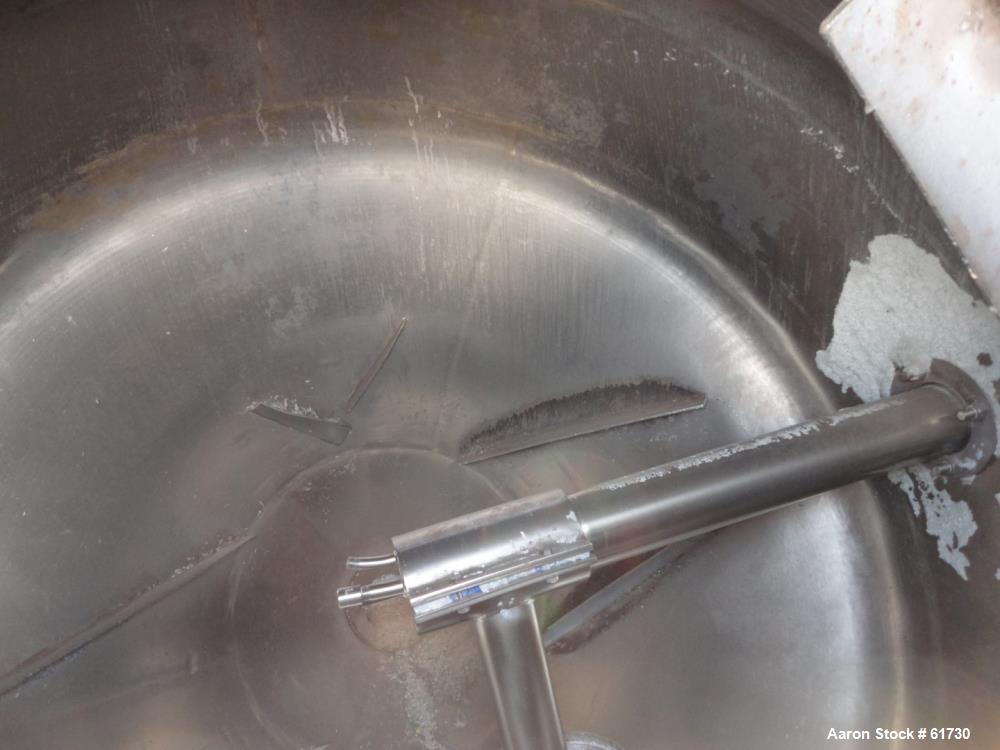

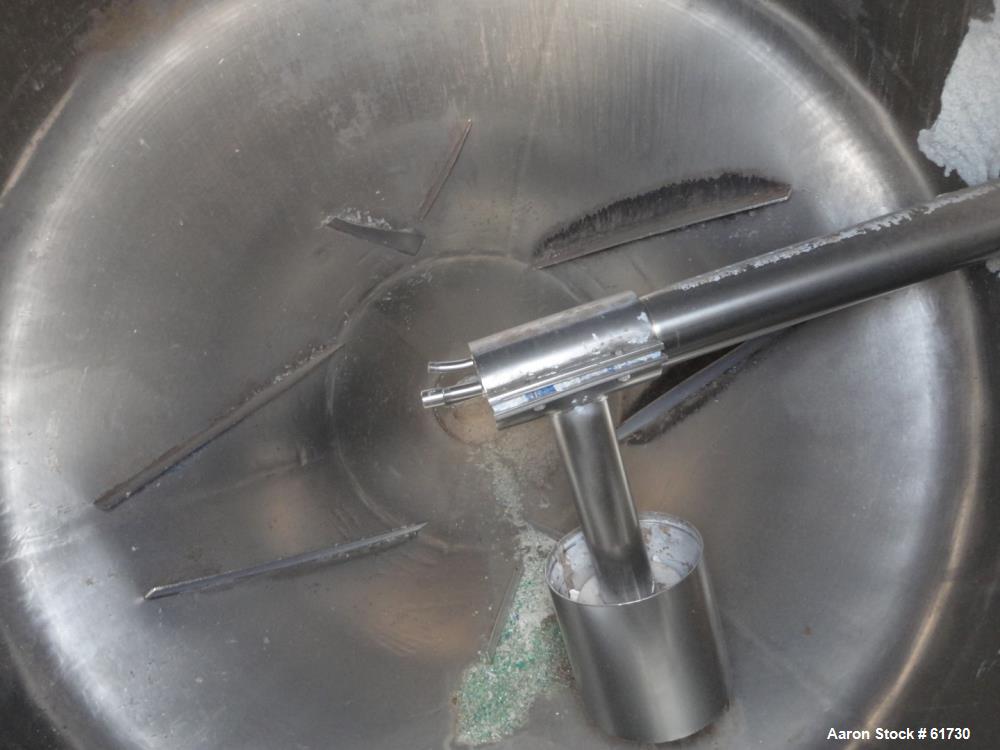

Used Patterson Industries Double Cone Vacuum Dryer, 132 Cubic Feet Working Capacity, 304 Stainless Steel. 7'6" Diameter x 16" straight side x 52" cones, rated FV at 250 degree F, carbon steel jacket rated 15 psi at 250 degree F. 16" discharge opening, 12" hand operated slide gate discharge valve, bull gear drive 10 hp 208-220/440/1745 rpm (with electric brake). Thru Westinghouse gearbox ratio 57:5 giving 30 rpm output. Equipped with Stokes vacuum pump Model 212-11 with 7.5 hp 230/460 motor, displacement 150 cfm, input 3" flange, output 2" NPT.
Used Patterson Industries Double Cone Vacuum Dryer, 132 Cubic Feet Working Capacity, 304 Stainless Steel. 7'6" Diameter x 16" straight side x 52" cones, rated FV at 250 degree F, carbon steel jacket rated 15 psi at 250 degree F. 16" discharge opening, 12" hand operated slide gate discharge valve, bull gear drive 10 hp 208-220/440/1745 rpm (with electric brake). Thru Westinghouse gearbox ratio 57:5 giving 30 rpm output. Equipped with Stokes vacuum pump Model 212-11 with 7.5 hp 230/460 motor, displacement 150 cfm, input 3" flange, output 2" NPT.
