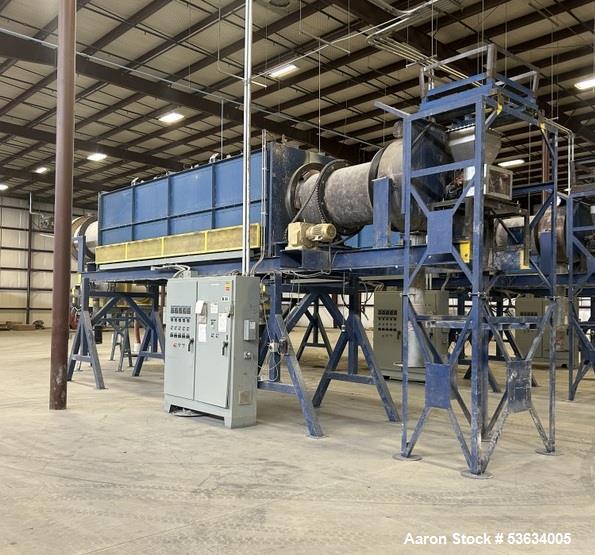

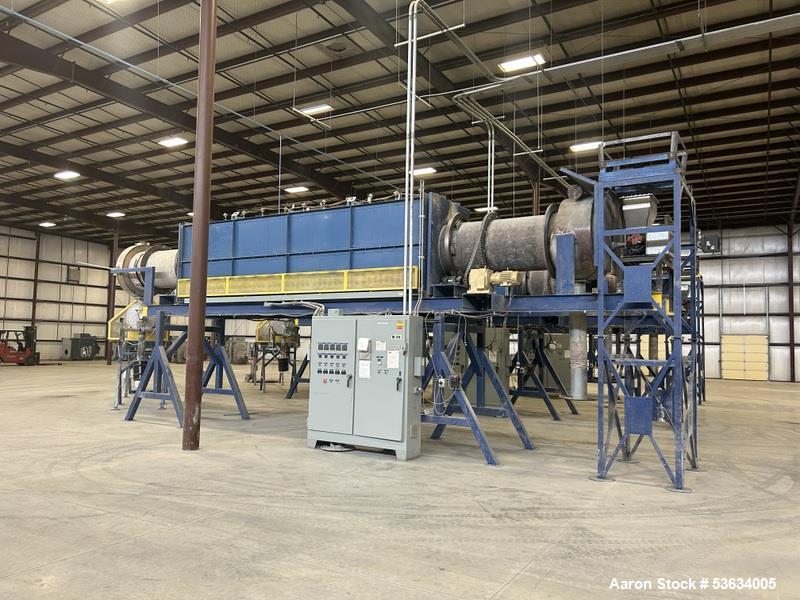

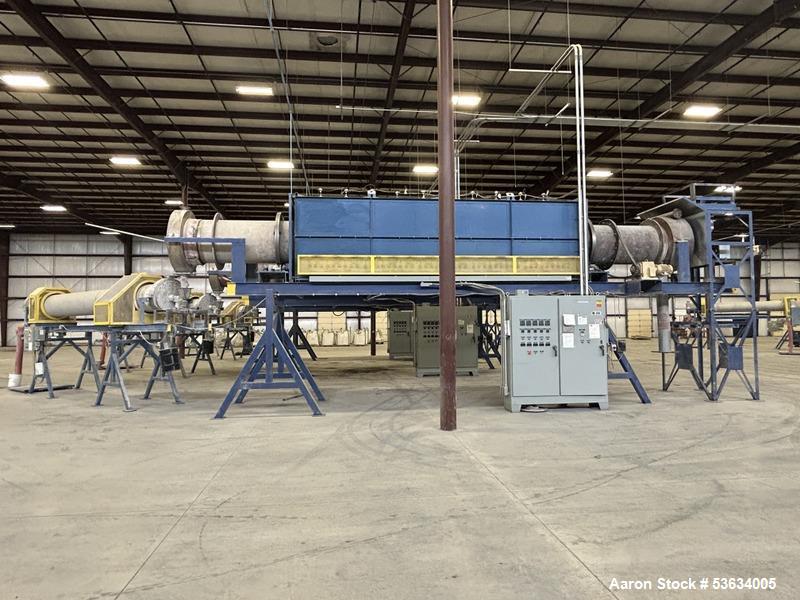

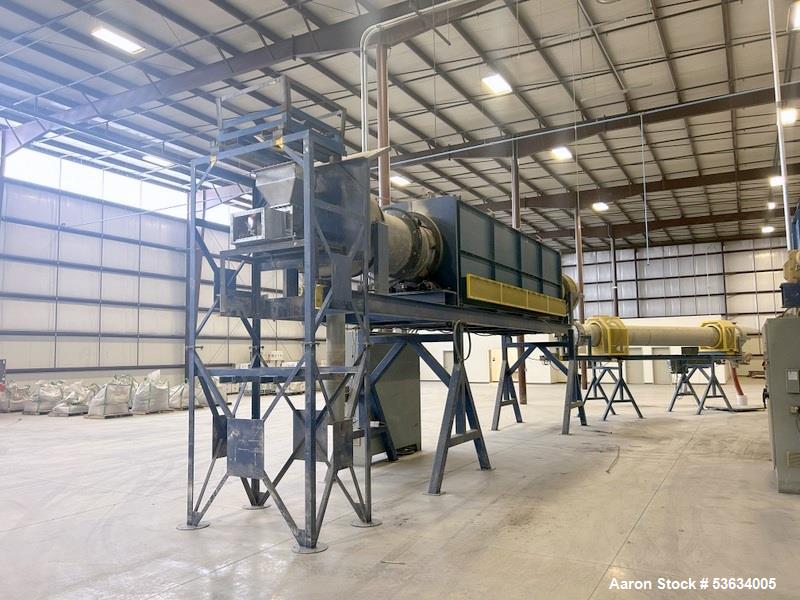

Used Thermal Processing Solutions Electrically Heated Rotary Calciner & Rotary Cooler. Consisting of: 36 inch diameter Indirectly Heated Electric Rotary Calciner. Convective Rotary Cooler 24" diameter X 21-0". The Calciner is approximately 36" diameter X 20 heated furnace zone X 35 long overall; 21-0" RA253MA furnace section that extends 6" out of each end of the furnace, and 300 series stainless steel ends, suitable for 1000 degree C operation. The cylinder has seal welded Blanchard ground fixed seal rings if an upgrade to a bellows type seal is needed; These are welded/X-ray inspected as per ASME Sec VIII unstamped vessel construction; Furnace casing is 9" thick Fiberfrax 2200 Dura blanket modules; Zone divider walls are Fiberfrax board; (2) thermocouple assemblies per zone; Heating elements are SiC ceramic, 1600 degrees C continuous duty construction; Heating element access is available on the sides of the furnace. Calciner is complete with freestanding 500 amp power/control panels using Watlow SCRs , F4 PID loop controllers with communication options and EZZone; Watlow High Limit controllers, each monitoring an independent furnace thermocouple in each zone; Includes variable slope support stands with an SCR drive and a dc variable speed screw conveyor; Calciner is set up to discharge directly into a 24" diameter x 21ft indirect convective Cooler, then optionally into a Kason Screener into a bulk bag and oversize/foreign object container.
Used Equipment Facts About This Machine
Manufacturer Information
- Built to ASME Sec VIII standards (unstamped vessel construction)
- High-temperature operation up to 1000°C
- Premium materials: RA253MA furnace section, 300 series stainless steel ends
- Engineered for durability with Fiberfrax 2200 Dura blanket modules
Manufacturing Data
Description
This electrically heated rotary calciner and convective rotary cooler system is designed for industrial thermal processing applications requiring precise temperature control and indirect heating. The calciner’s high-performance design enables uniform material heating, while the convective cooler efficiently cools processed materials for further handling. Equipped with state-of-the-art heating technology, thermocouple monitoring, and a robust power/control system, this unit is ideal for demanding thermal processing environments.
Specifications
-

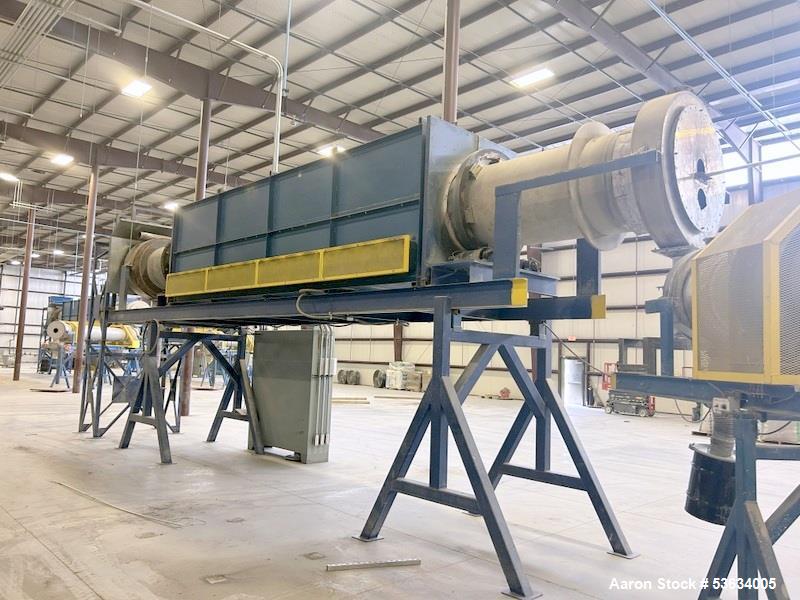

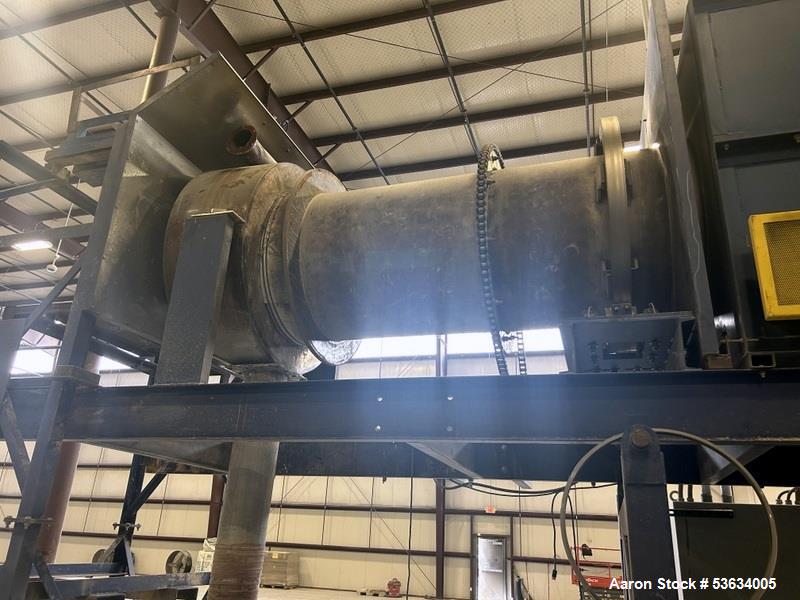

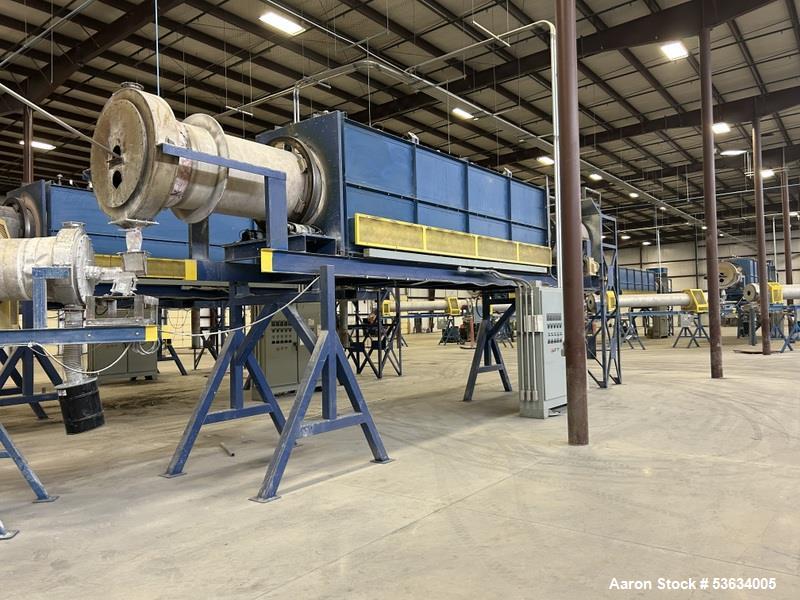

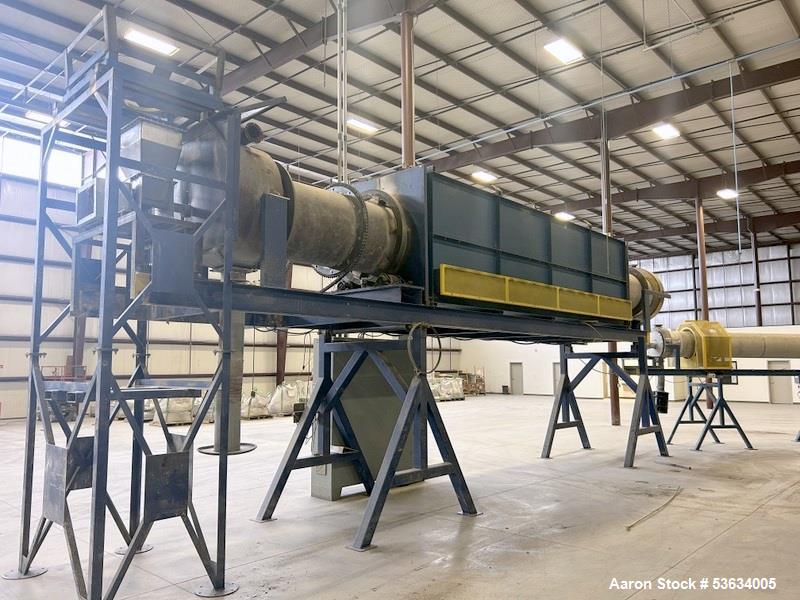

Calciner:
- Diameter: 36 inches
- Heated furnace zone length: 20 feet
- Overall length: 35 feet

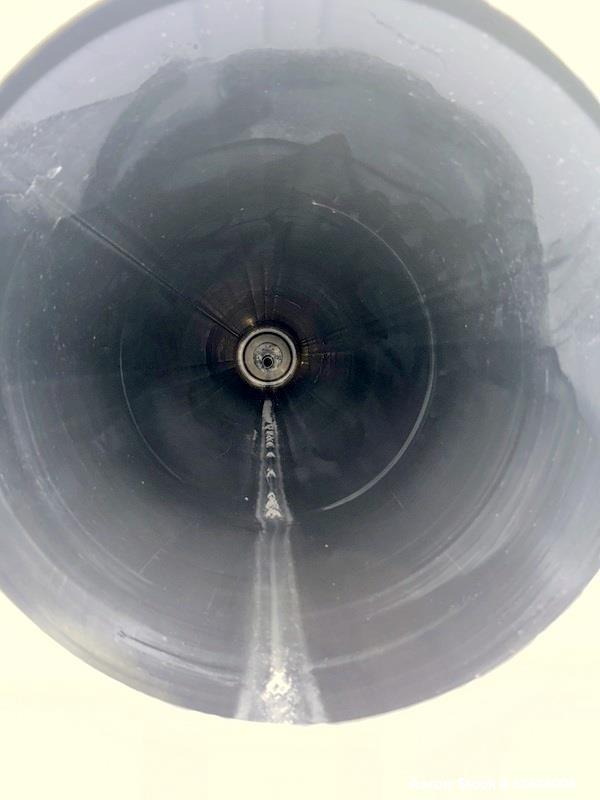

- Material: RA253MA furnace section, 300 series stainless steel ends
- Temperature rating: Up to 1000°C
- Fiberfrax 2200 Dura blanket insulation (9" thick)
-

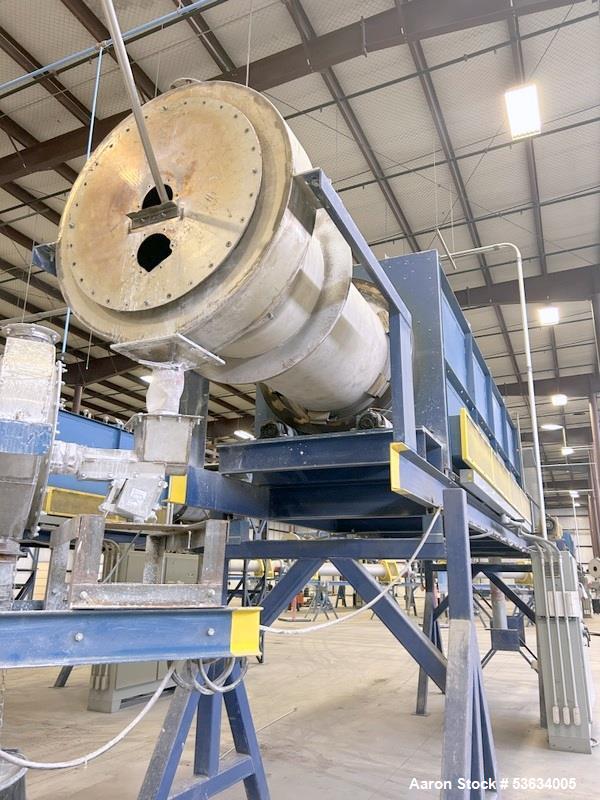

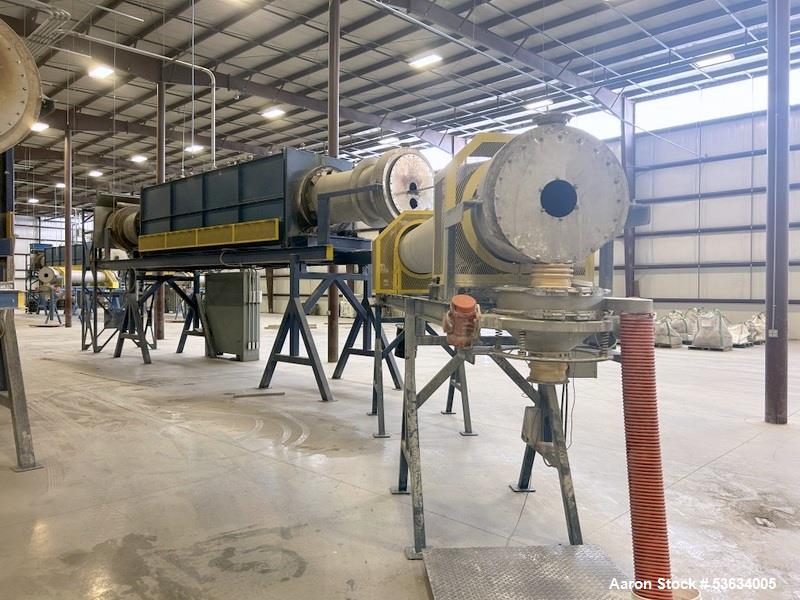

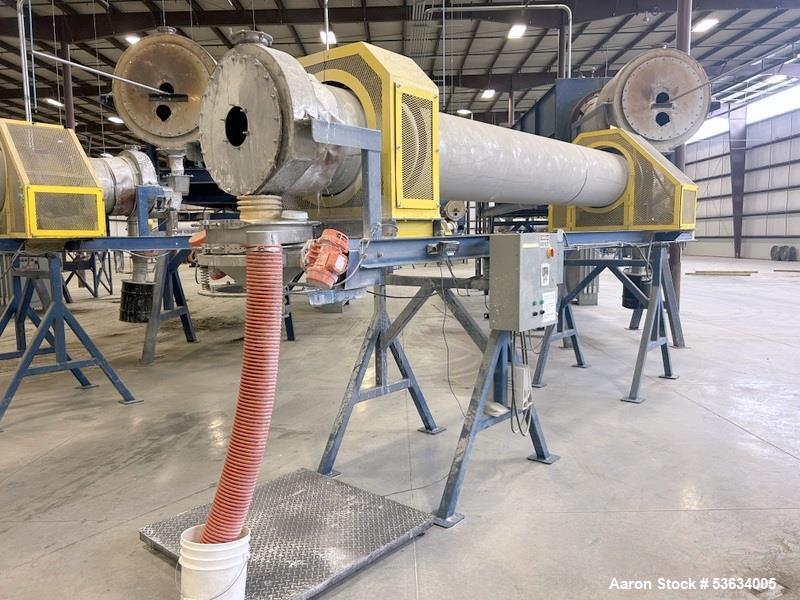

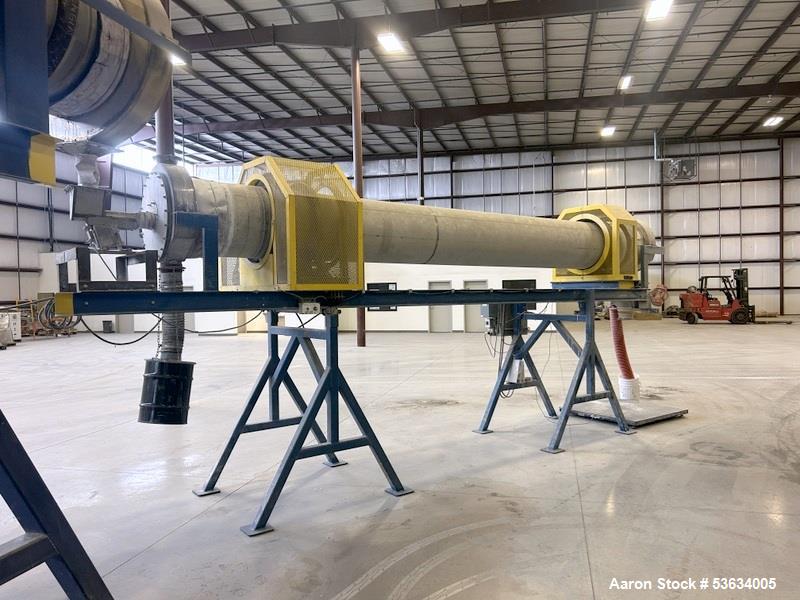

Cooling System:
- Diameter: 24 inches
- Length: 21 feet
- Indirect convective cooling
-

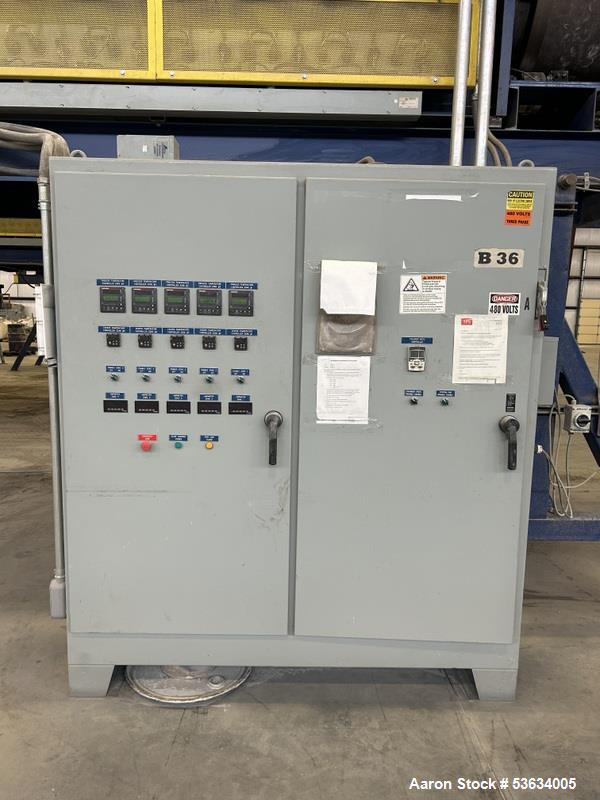

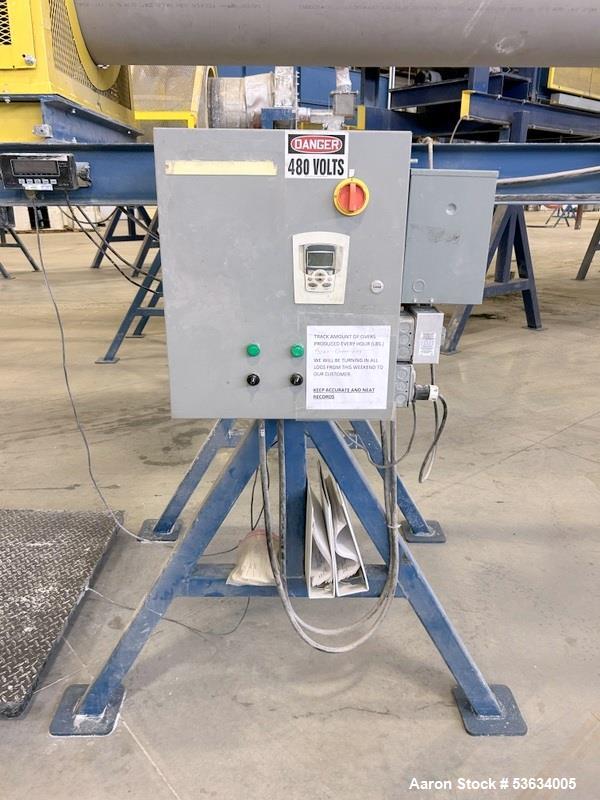

Power & Control:
- 500-amp power/control panel
- Watlow SCRs with F4 PID loop controllers and EZZone integration

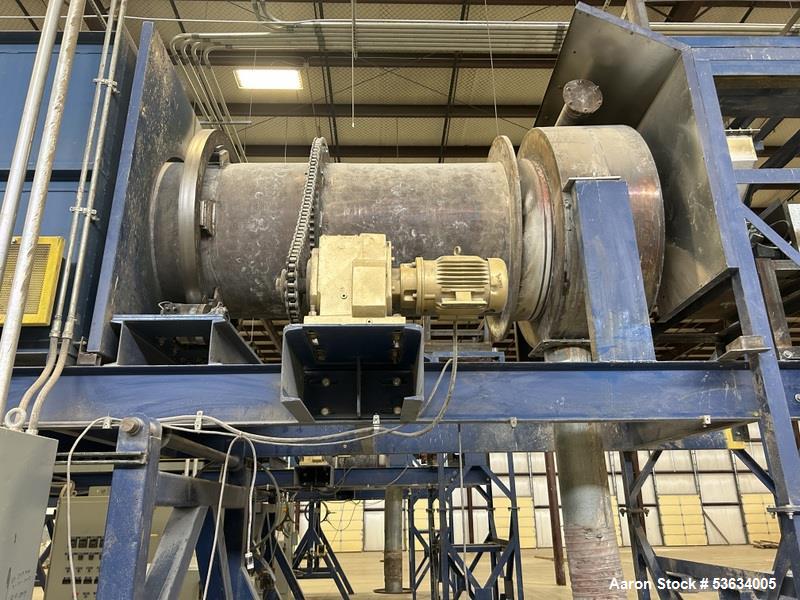

- Variable slope support stands with SCR drive

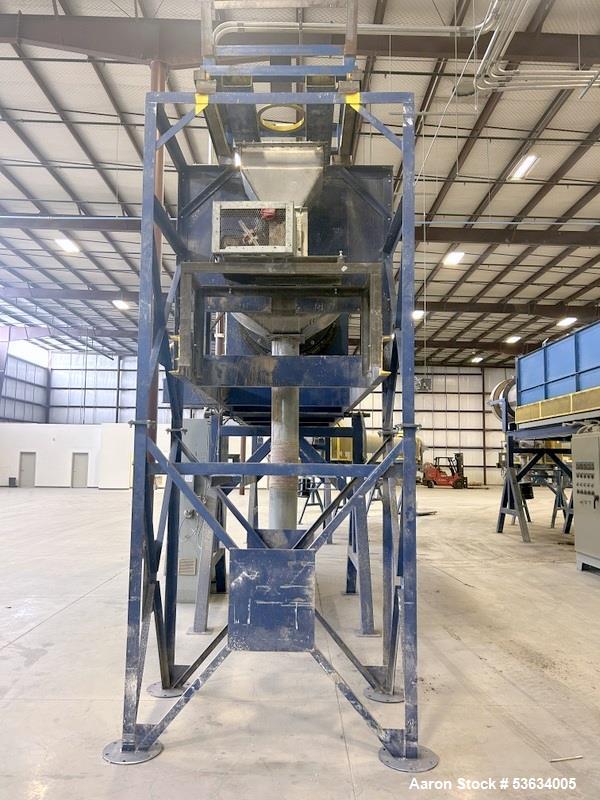

- DC variable speed screw conveyor
Applications
This rotary calciner and cooler system is widely used in industries requiring precise thermal processing, including:
- Powdered metal processing
- Ceramic and catalyst production
- Chemical and specialty material calcination
- Activated carbon production
- Metal oxide reduction
- Lithium battery material processing
- Pharmaceutical drying and calcination
- Food and feed ingredient processing
Compatible Products
- Rotary kilns & calciners
- Screw conveyors & feeders
- Kason Screeners & vibratory separators
- Bulk bag handling systems
- High-temperature process furnaces
