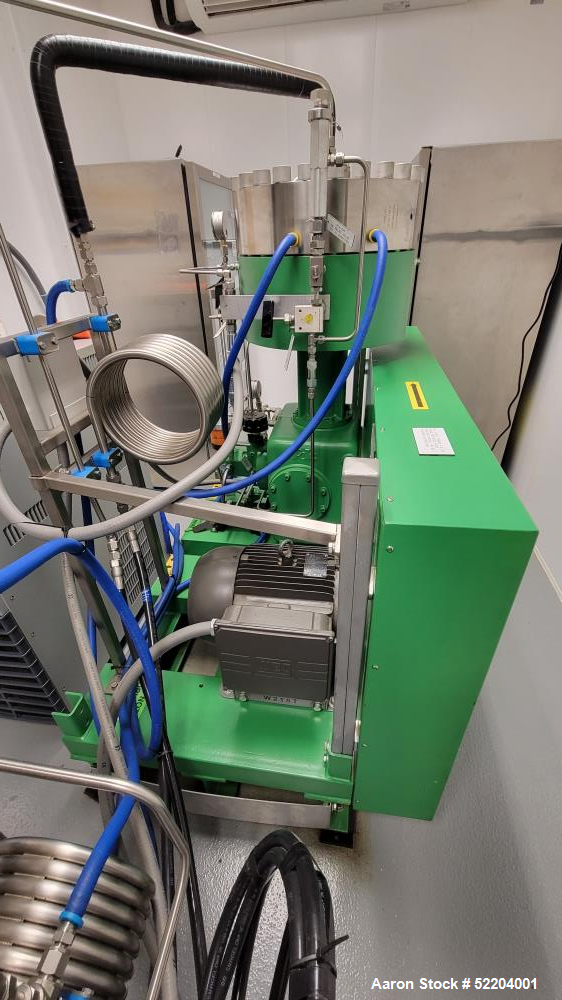

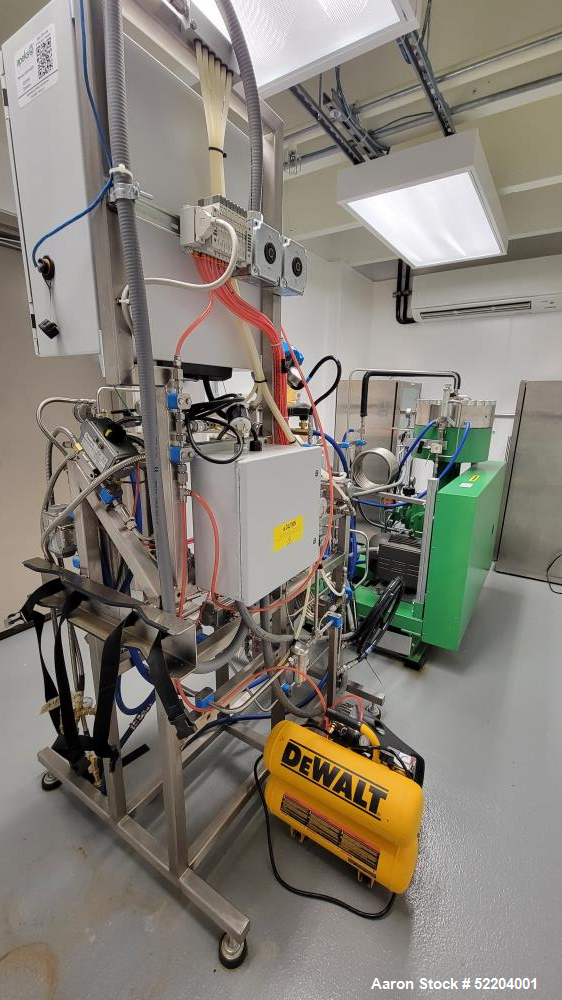

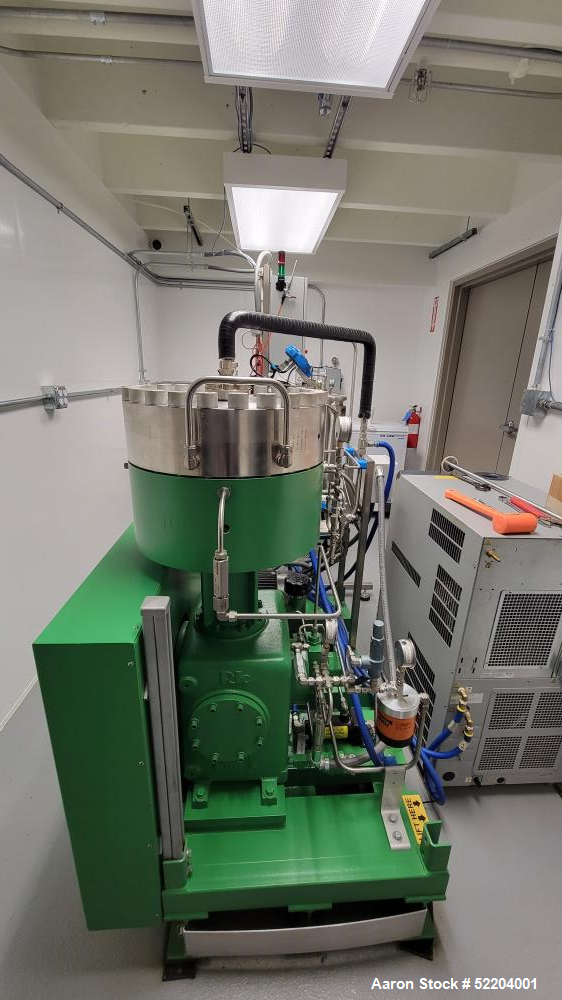

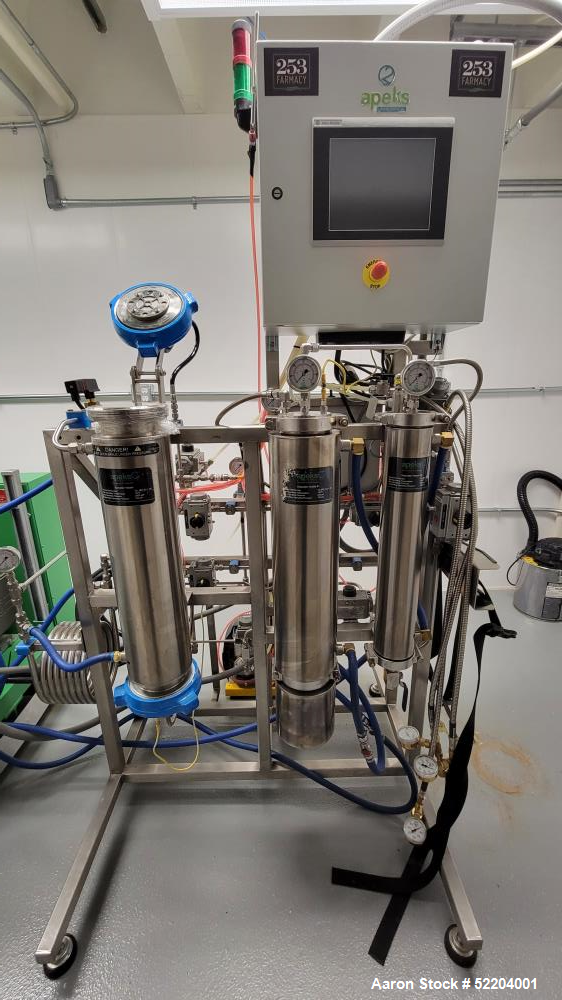

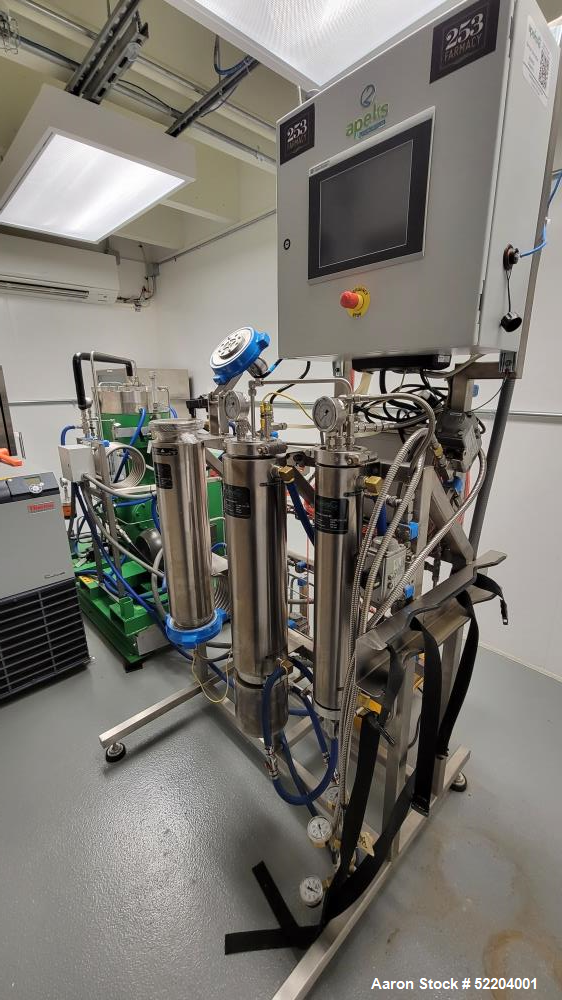

Used - Apeks Transformer CO2 Extraction Machine; 5L Vessel expandable to 20L vessel; maximum pressure = 2000 psi (137 bar); Temperature max 160F (71C); 304 stainless steel. Vessel interior is polished to food grade level; Hammer Union Closures; Sealing mechanism spring energized cup seal ; integral filters on closure heads. 20 micron; Temperature measurement internal K type thermocouple senses actual extraction temperature; non-isolable spring loaded safety relief valve prevents accidental over-pressurization; CO2 Recirculation Pump; Electric motor driven diaphragm compressor; Flowrate 1.0-2.1 kg/min; hydraulically actuated diaphragm; all wetted parts are 316 stainless steel; 1 separator bank on each unit; Maximum pressure = 600 psi (41 bar); Temperature max160F (71C); FDA sanitary style bolted closures; Sealing mechanism sanitary gasket, cured silicone; Separation Mechanism; Valveless Expansion Technology (VET) flow path from extractor to 1st separator is continuous diameter with no constrictions. Separation occurs in 1st separator utilizing centrifugal separation and depressurization; tube in tube style Heat Exhangers; Recirculating chiller/heater; Temperature range: -10C to 50C (14F to 158F); System operational range: 60F-140F; Fully automatic Programmable Logic Controller (PLC) touch screen interface with first level safety functionality and user programmable pressure, temperature and time. Also has built in hour and maintenance timers, and alarm log.
Used - Apeks Transformer CO2 Extraction Machine; 5L Vessel expandable to 20L vessel; maximum pressure = 2000 psi (137 bar); Temperature max 160F (71C); 304 stainless steel. Vessel interior is polished to food grade level; Hammer Union Closures; Sealing mechanism spring energized cup seal ; integral filters on closure heads. 20 micron; Temperature measurement internal K type thermocouple senses actual extraction temperature; non-isolable spring loaded safety relief valve prevents accidental over-pressurization; CO2 Recirculation Pump; Electric motor driven diaphragm compressor; Flowrate 1.0-2.1 kg/min; hydraulically actuated diaphragm; all wetted parts are 316 stainless steel; 1 separator bank on each unit; Maximum pressure = 600 psi (41 bar); Temperature max160F (71C); FDA sanitary style bolted closures; Sealing mechanism sanitary gasket, cured silicone; Separation Mechanism; Valveless Expansion Technology (VET) flow path from extractor to 1st separator is continuous diameter with no constrictions. Separation occurs in 1st separator utilizing centrifugal separation and depressurization; tube in tube style Heat Exhangers; Recirculating chiller/heater; Temperature range: -10C to 50C (14F to 158F); System operational range: 60F-140F; Fully automatic Programmable Logic Controller (PLC) touch screen interface with first level safety functionality and user programmable pressure, temperature and time. Also has built in hour and maintenance timers, and alarm log.
