Unused Howden ExVel Turbo Fan HBXrG-20/675-LG0 – High-Performance Industrial Fan

Manufacturer Information:

• Manufacturer: Howden
• Model: ExVel HBXrG-20/675-LG0
• Condition: Unused
• Year Built: 2020
• Serial #: NFF00019-10

Manufacturing Data:

Performance Ratings:

• Maximum Inlet Volume:
  • 3.18 m³/s
  • 6,738.99 ACFM
• Maximum Pressure Rise:
  • 290.96 kPa
  • 42.20 PSI
• Maximum Inlet Temperature:
  • 176.7°C (350.1°F)
• Maximum Outlet Temperature:
  • 196.0°C (384.8°F)
• Maximum Impeller Power:
  • 1,196 kW
  • 1,603.9 HP
• Nominal Operating Speed: 5,681 RPM
• Design Temperature: 230°C (446°F)
• Design Pressure: 1,878 kPa(a) (272.2 PSI)

Control & Monitoring System:

• Siemens 1500 Series PLC – Precision process control
• Bently Nevada 3500 Monitor System – Advanced vibration monitoring and protection

Description:

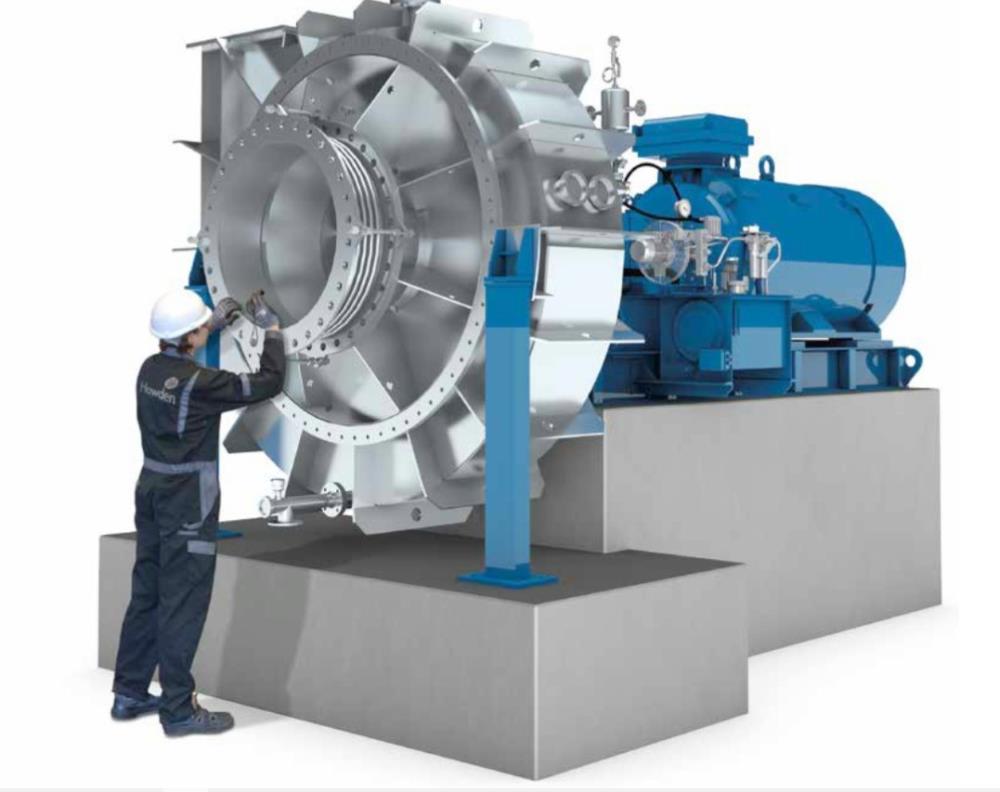

The Howden ExVel Turbo Fan HBXrG-20/675-LG0 is a high-capacity, high-speed industrial turbo fan, designed for extreme performance in high-temperature and high-pressure environments. With a maximum impeller power of 1,196 kW (1,603.9 HP) and a nominal speed of 5,681 RPM, this unit is built for demanding airflow applications in industries such as power generation, petrochemical processing, and heavy manufacturing.

Equipped with a Siemens 1500 Series PLC for precision control and a Bently Nevada 3500 monitoring system, this fan offers real-time system diagnostics, vibration protection, and enhanced operational safety.

Designed for temperatures up to 230°C (446°F) and pressures up to 1,878 kPa (272.2 PSI), the Howden ExVel Turbo Fan is ideal for high-efficiency airflow management in extreme operating conditions.

Specifications:

• Max Inlet Volume: 3.18 m³/s (6,738.99 ACFM)
• Max Pressure Rise: 290.96 kPa (42.20 PSI)
• Temperature Limits:
  • Inlet: 176.7°C (350.1°F)
  • Outlet: 196.0°C (384.8°F)
  • Design Temp: 230.0°C (446.0°F)
• Design Pressure: 1,878 kPa (272.2 PSI)
• Max Impeller Power: 1,196 kW (1,603.9 HP)
• Operating Speed: 5,681 RPM
• Control System: Siemens 1500 Series PLC
• Monitoring System: Bently Nevada 3500

Applications:

• Power generation and industrial air handling
• Petrochemical and refining processes
• High-temperature gas circulation and exhaust management
• Industrial ventilation and forced draft systems
• Turbocharging and high-speed gas compression

Potential Uses:

• Waste heat recovery and exhaust gas processing
• Industrial combustion air supply systems
• High-temperature air movement in heavy manufacturing
• Cooling air circulation in high-pressure environments
• Forced draft applications in power plants and refineries
