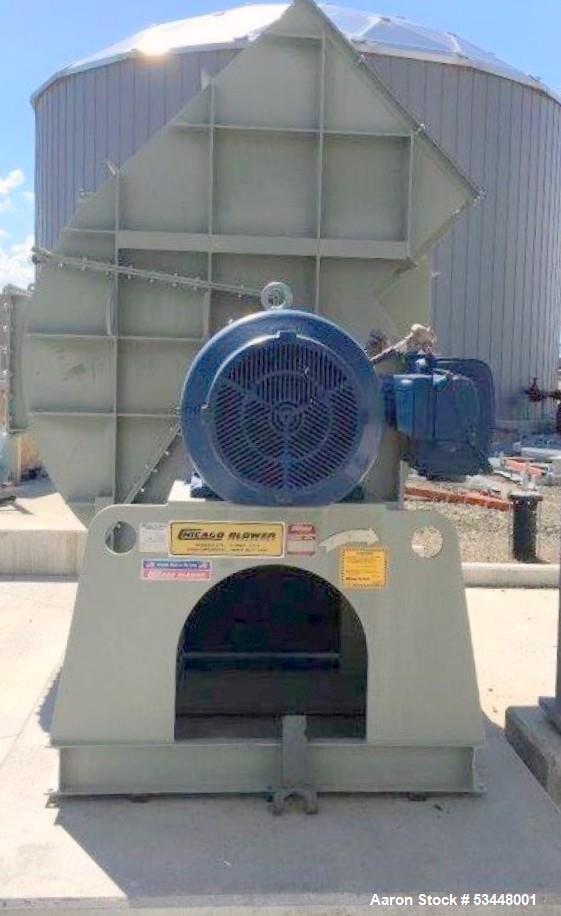

Used Chicago Blower Recycle Heater FD Fan – 150 HP, Heavy-Duty Industrial Fan

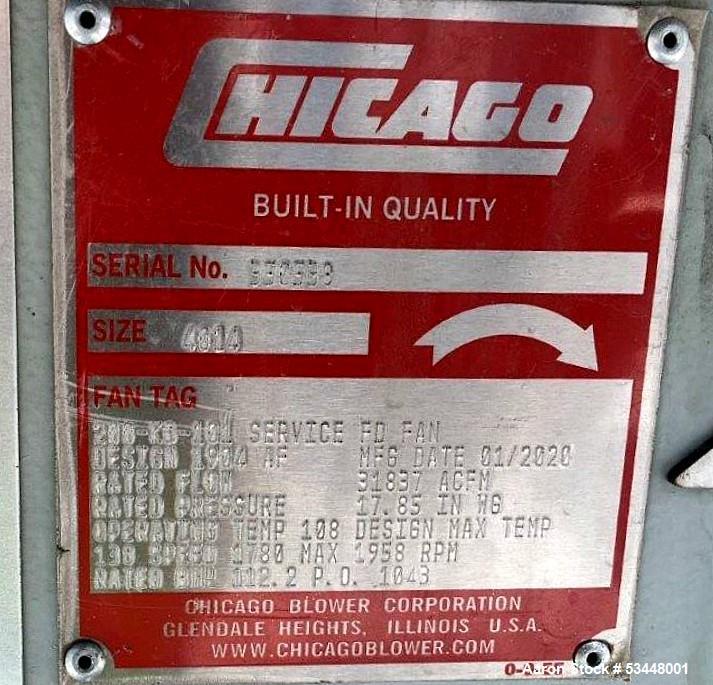

Manufacturer Information:

• Manufacturer: Chicago Blower
• Model: 200-KB-101
• Condition: Used
• Year Built: 2020

Manufacturing Data:

Fan Specifications:

• Model: 4014D/1904
• Type: Heavy-Duty Airfoil Blade Wheel
• Arrangement: 7Si
• Inlet Box Position: 0
• Discharge Type: TH (Top Horizontal) or BH (Bottom Horizontal)
• Rotation: CW (Clockwise)
• Width: 110%

Motor Specifications:

• Power: 150 HP
• Speed: 1800 RPM
• Frame: 447T
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Voltage: 460V, 3-Phase, 60 Hz
• Torque Type: Variable Torque
• Standard Compliance: IEEE-841
• Bearings:
  • Insulated DE (Drive End) & NDE (Non-Drive End) Bearings
• Space Heater: 120V Space Heater Winding RTD’s (2/Phase)
• Bearing RTD’s: Integrated in Common JB

Silencer Specifications:

• Model: Aeroacoustic SilentFlow Model IB
• Design: Vertical with lifting lugs
• Additional Features:
  • Inlet screen
  • Rainhood
  • Velocity tube
• Inlet Silencer Connections: (2) 1-1/2" 300# plugged TW connections

Added Components:

• Vibration Probe/Switch:
  • Model: Metrix ST5491E-021-002-00
  • LCD Indicator: Yes
  • Loop Powered Output: 4-20 mA, Proportional to Velocity
  • Interface: Compatible with PLC, DCS, & 4-20mA Monitors
  • Measurement Range: 1 IPS Full Scale
  • Mounting: 1/4" NPT Stud
  • Certifications: CSA/NRTL/C for Class I, Div 1, Groups C-D and Class II, Div 1, Groups E-G
  • Filter Range: High (1500 Hz), Low (2 Hz)

Description:

The Chicago Blower Recycle Heater FD Fan (Model 200-KB-101) is a high-performance, heavy-duty industrial fan system designed for airflow control, ventilation, and process heating applications. Equipped with a 150 HP, 1800 RPM TEFC motor, this unit delivers high-efficiency airflow with a variable torque drive.

The system includes an Aeroacoustic SilentFlow Model IB silencer with a rainhood, inlet screen, and velocity tube, ensuring optimal noise reduction and efficiency. Additionally, the Metrix vibration probe/switch provides real-time monitoring and safety compliance, making this fan suitable for industrial environments requiring precise airflow control and vibration monitoring.

Built in 2020, this high-capacity blower fan is an excellent solution for manufacturing plants, refineries, and process heating operations.

Specifications:

• Fan Type: Heavy-duty, airfoil blade wheel
• Motor: 150 HP, 1800 RPM, 460V, 3-Phase, 60 Hz
• Frame Size: 447T
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Silencer Model: Aeroacoustic SilentFlow IB
• Additional Monitoring: Metrix Vibration Probe/Switch (ST5491E-021-002-00)
• Certifications: CSA/NRTL/C, Class I, Div 1, Groups C-D, Class II, Div 1, Groups E-G
• Year Built: 2020

Applications:

• Industrial ventilation and process heating
• Combustion air supply for boilers and furnaces
• Refinery and chemical plant operations
• Airflow control in large-scale manufacturing plants
• Dust and fume extraction systems

Potential Uses:

• Boiler and furnace combustion air supply
• Industrial drying and heat treatment systems
• High-capacity airflow applications in power plants
• Process heating and cooling applications in industrial environments
• Air circulation for large-scale manufacturing facilities
