Used Vendome 1,000 Gallon Stainless Steel Jacketed Processor | Scrape Agitator | Dual-Zone Heat | 100 PSI

🏭 Manufacturer Information

Manufacturer: Vendome Copper & Brass Works
Type: Jacketed Processor Tank with Scrape Agitation
Capacity: 1,000 Gallons
Material: Stainless Steel
National Board #: 898
Serial #: 2004-01Z-1
Condition: Used (cosmetic denting to insulation skin, otherwise in good condition)
Power Requirements: 230/460V, 3 Phase

📦 Product Description

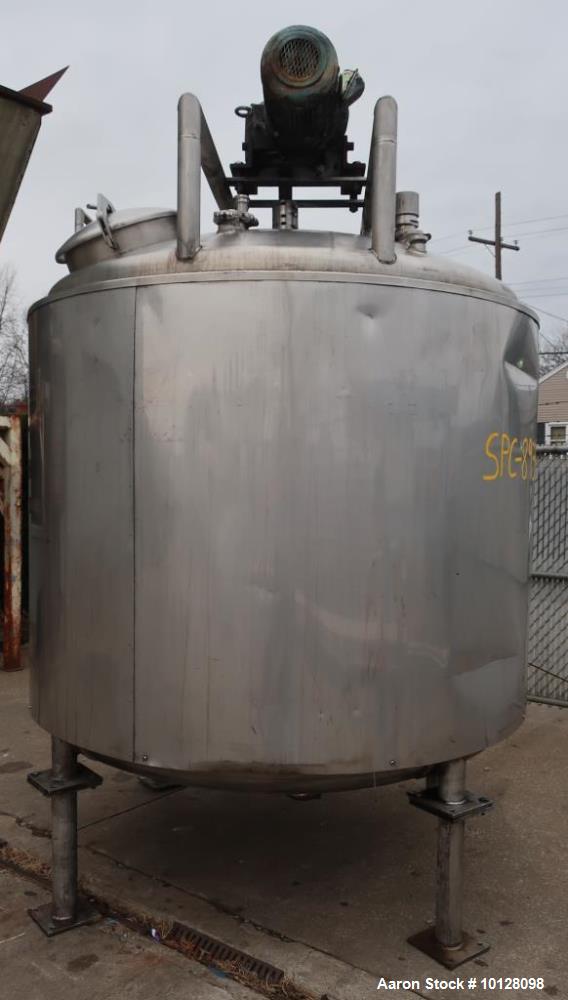

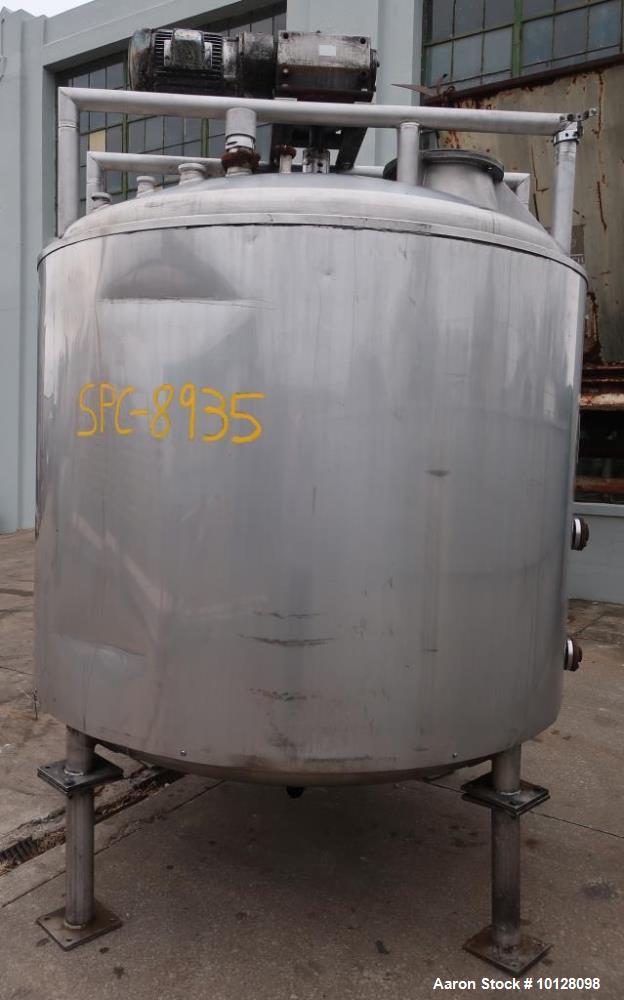

This Used Vendome 1,000 Gallon Jacketed Processor is built for demanding thermal and mixing applications across food, pharmaceutical, and cosmetic industries. Constructed from stainless steel with a dished bottom and domed top, it includes a side-mounted scrape agitator driven by a 5 HP gear-reduced motor, delivering effective agitation of viscous products.

The dual-zone dimple jacket is rated for 100 PSI at 338°F, offering reliable heat transfer through two separate inlet/outlet ports (2" each per zone). The tank includes comprehensive top access via an 18" hinged manway, multiple tri-clamp and flanged nozzles, and an internal spray ball for CIP cleaning. Though it has minor cosmetic dents on the outer jacket skin, it is structurally sound and ready for sanitary production use.

⚙️ Technical Specifications

• Capacity: 1,000 Gallons

• Material: Stainless Steel

• Top: Domed

• Bottom: Dished

• Shell Pressure Rating: Atmospheric

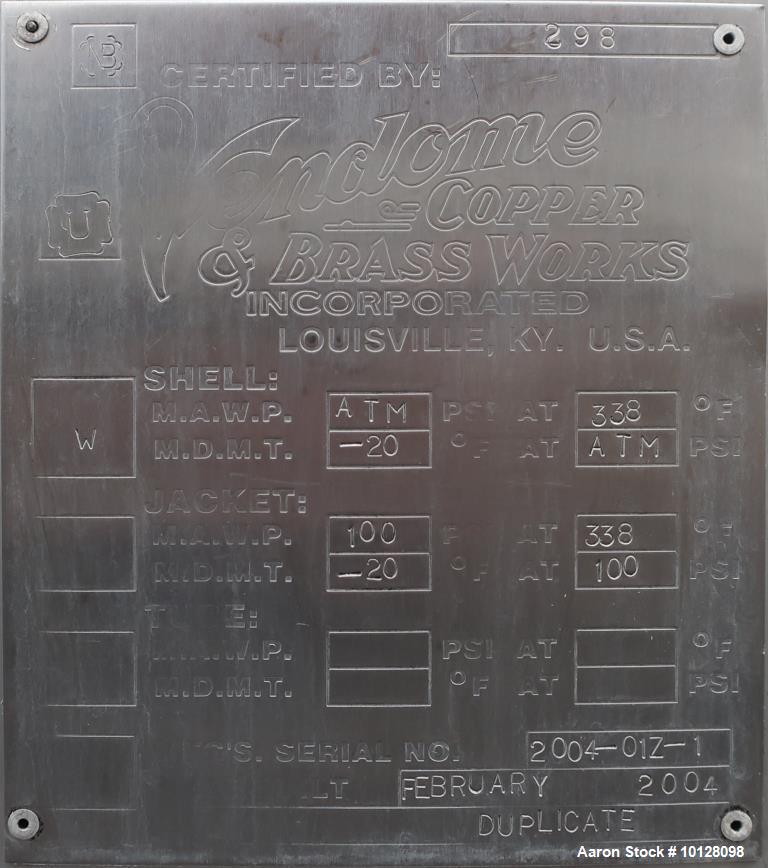

• Jacket Rating: 100 PSI @ 338°F

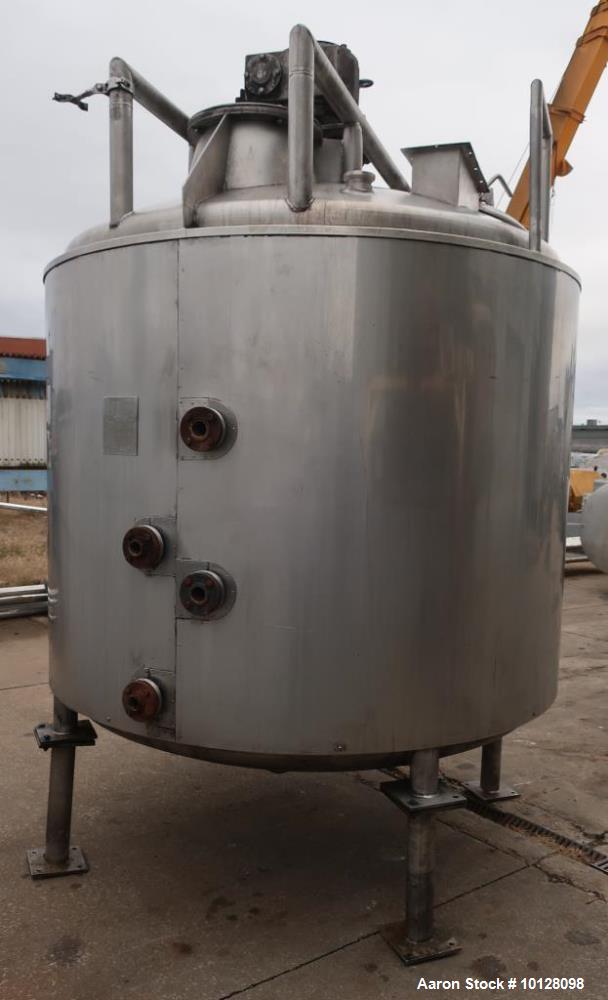

• Jacket Zones: 2 heating zones

  • Each with 2" inlet and outlet

• Dimensions:

  • Outside Diameter: 72"

  • Straight Side Height: 63"

• Agitation System:

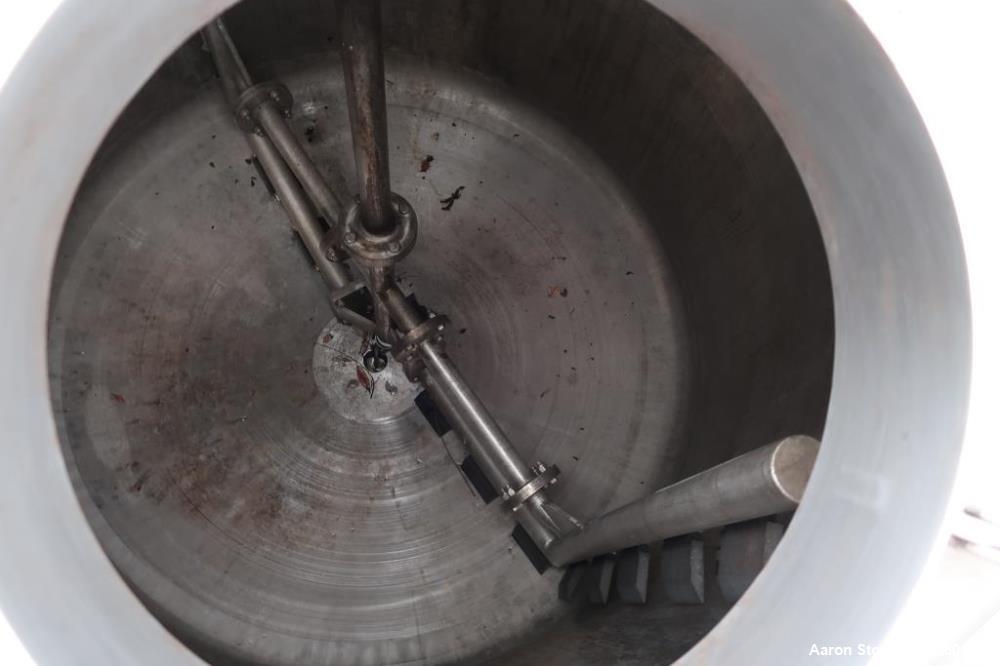

  • Side Scrape Agitator

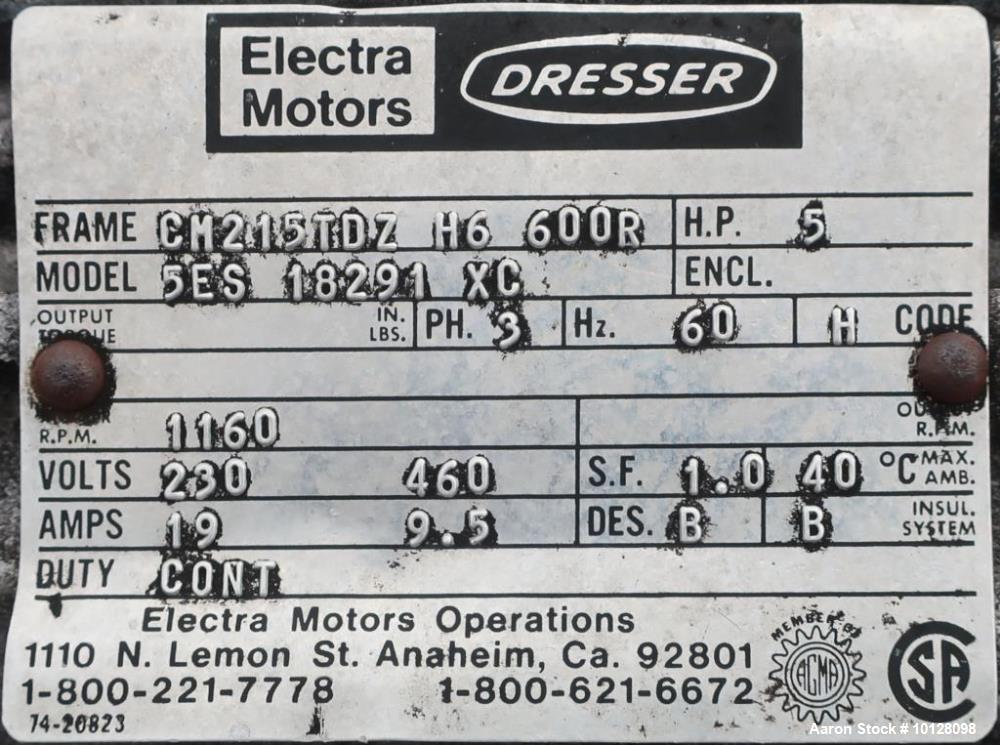

  • 5 HP gear-reduced motor

  • Power: 230/460 VAC, 3 Phase

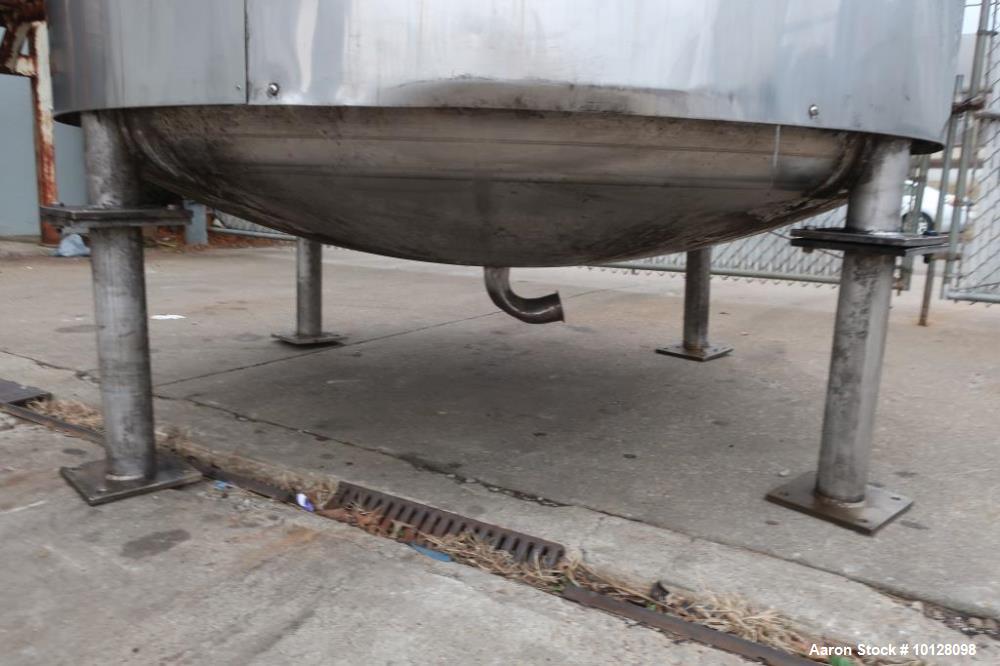

• Bottom Outlet: 3" Bent Tri-Clamp Nozzle

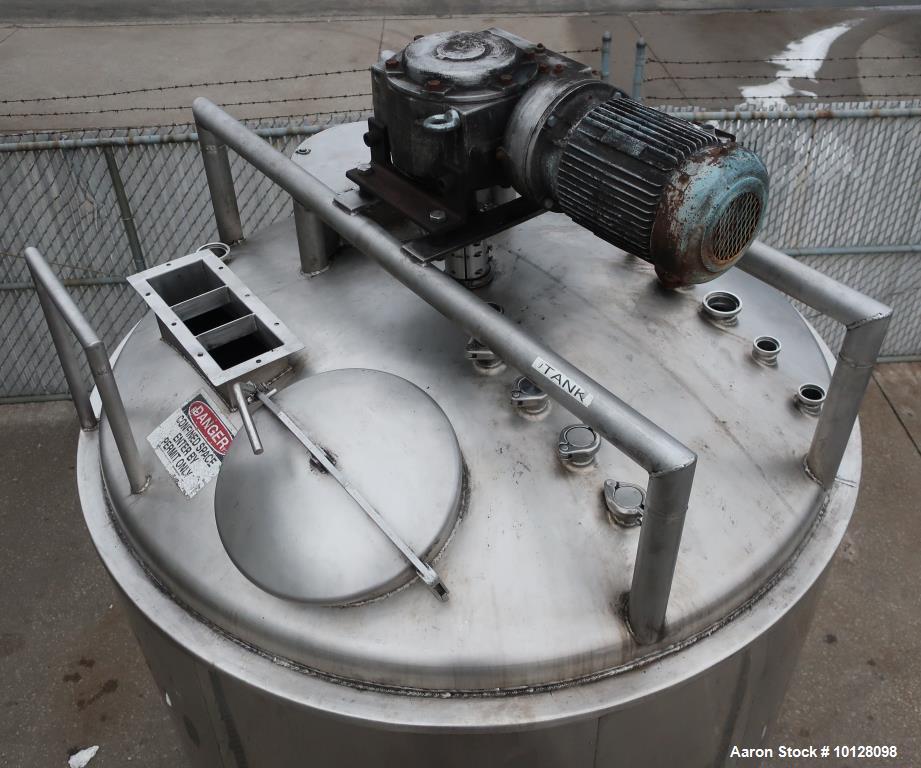

• Top Nozzles:

  • 18" Hinged Manway

  • 6" x 18" Rectangular Nozzle

  • 14" Flanged Nozzle

  • (3) 3" Tri-Clamp Nozzles

  • (6) 2" Tri-Clamp Nozzles

  • (1) 1" Tri-Clamp Nozzle

• Internal Features: Spray Ball for CIP

• Mounting: 4 Stainless Steel Legs

• Condition Notes: Cosmetic denting to insulation skin

🔧 Applications

Ideal for sanitary and industrial processing in:

• Food & beverage production

• Confectionery batching

• Dairy and cultured products

• Nutraceutical blending

• Pharmaceutical paste processing

• Cosmetic and personal care mixing

• High-viscosity product blending

• Ingredient melting and emulsification

• Slurry and suspension processing

• Batch thermal treatment

📌 What Products Would This Be Used For?

• Yogurt, creams, and custards

• Sauces, soups, and stews

• Cosmetic lotions and gels

• Nutraceutical paste and slurries

• Confectionery syrups or emulsions

• Fruit purées and jams

• Plant-based proteins

• Ointments and salves

• Skincare or pharmaceutical creams

• Sugar and starch-based blends
