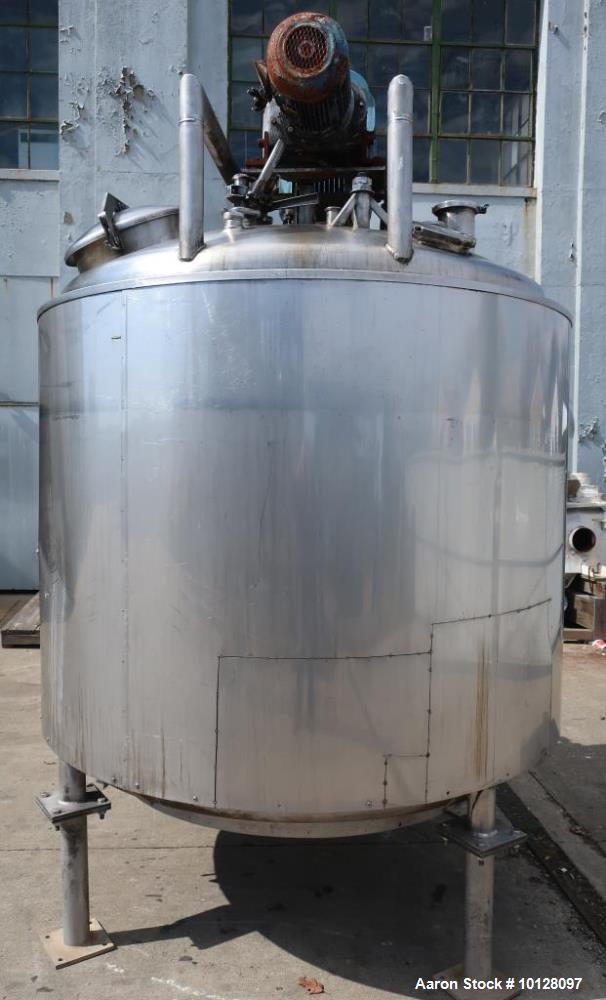

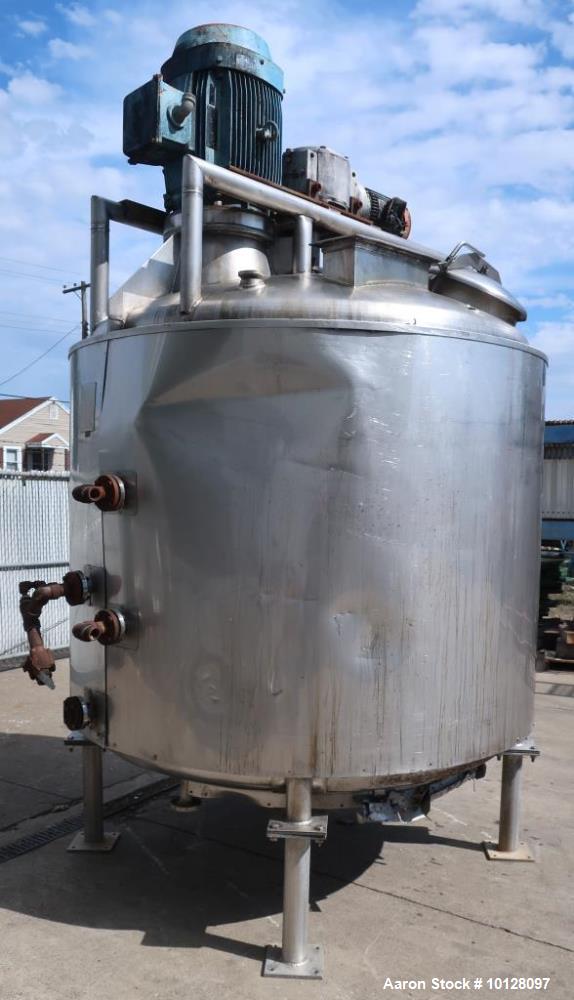

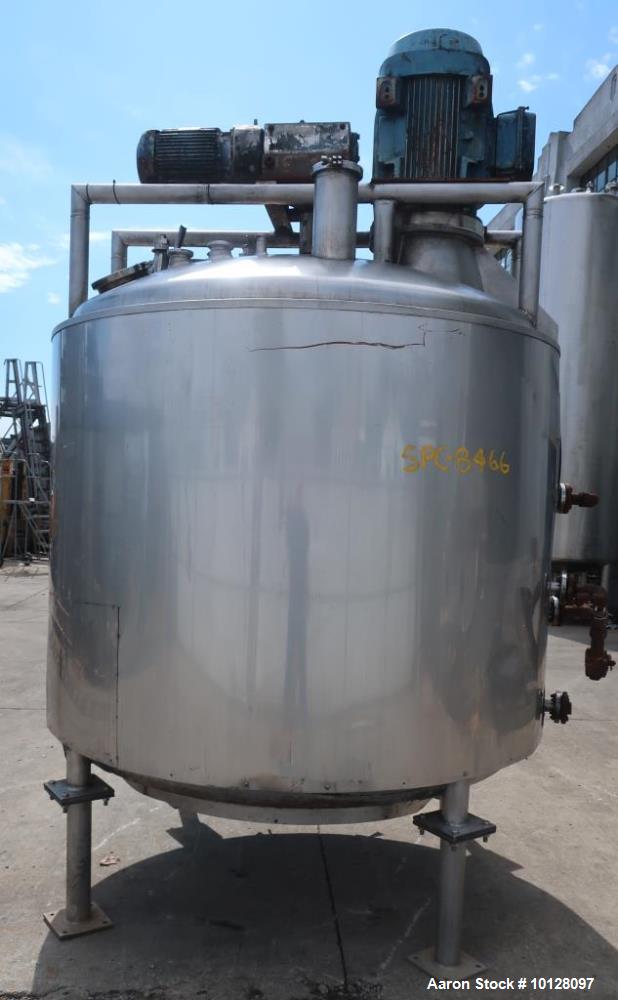

1,000 gallon Vendome stainless steel processor with dual agitation.

🏭 Manufacturer Information

Brand: Vendome
Capacity: 1,400 Gallons
Material: Stainless Steel
Construction: Jacketed (sides and bottom), Dimple Jacket

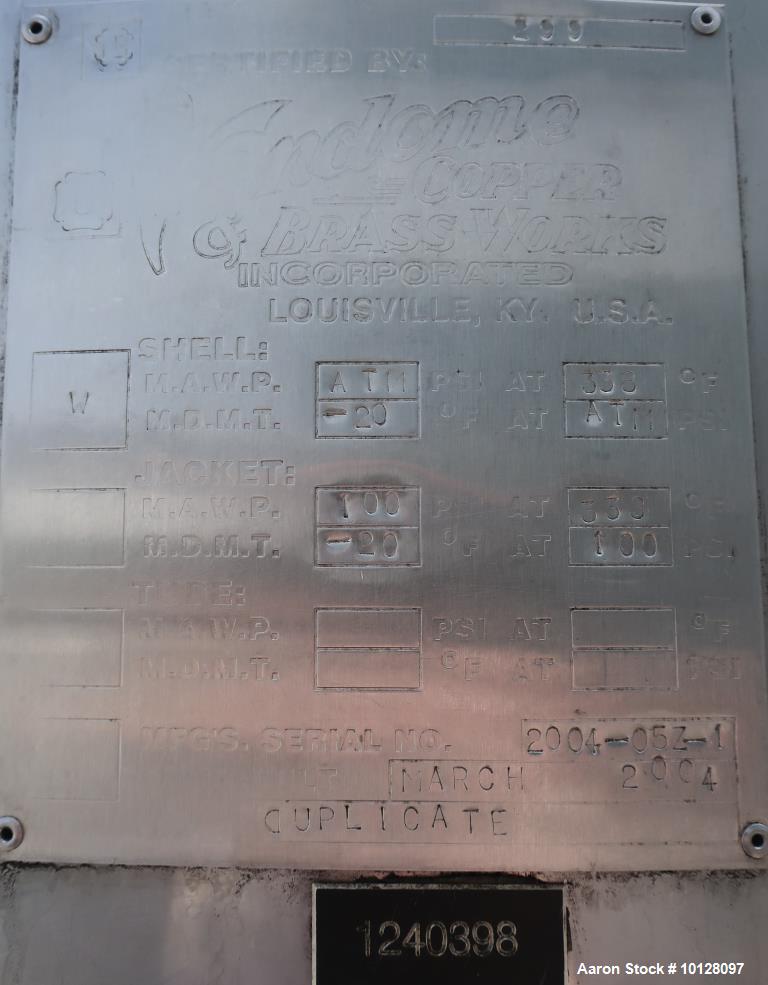

National Board #: 299
Year Built: March 2004
Condition: Used (some exterior dents/repairs, jackets hydro-tested and passed)

📦 Product Description

This Used 1,400 Gallon Vendome Stainless Steel Processor is a heavy-duty, dual-agitation vessel designed for high-intensity mixing, emulsifying, and heat transfer processes. Built with dimple jackets on the bottom and side, this unit is rated to 100 PSI @ 338°F, ideal for steam or glycol operations.

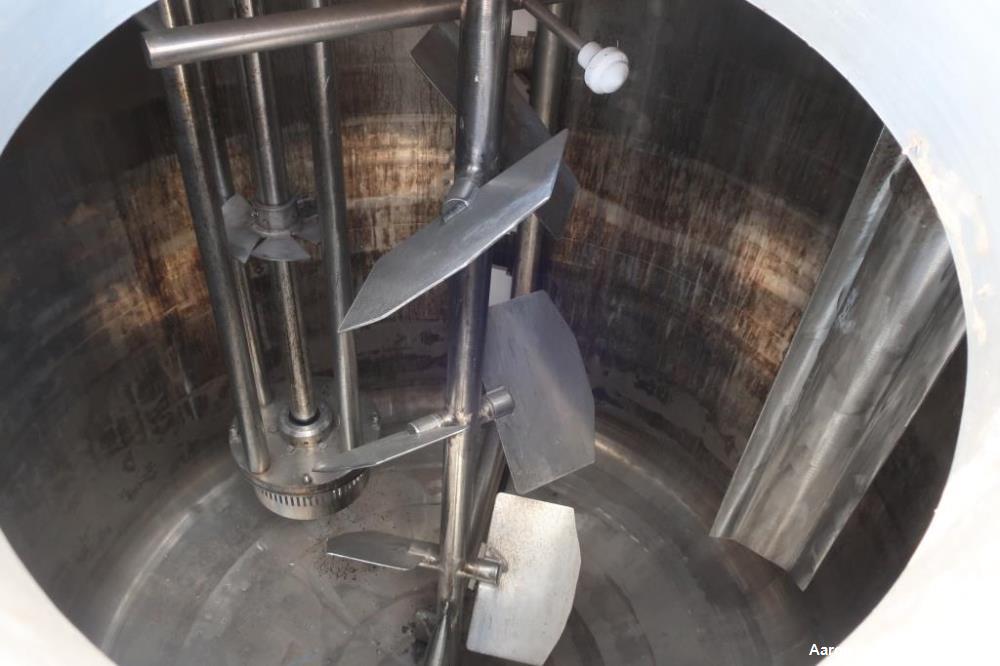

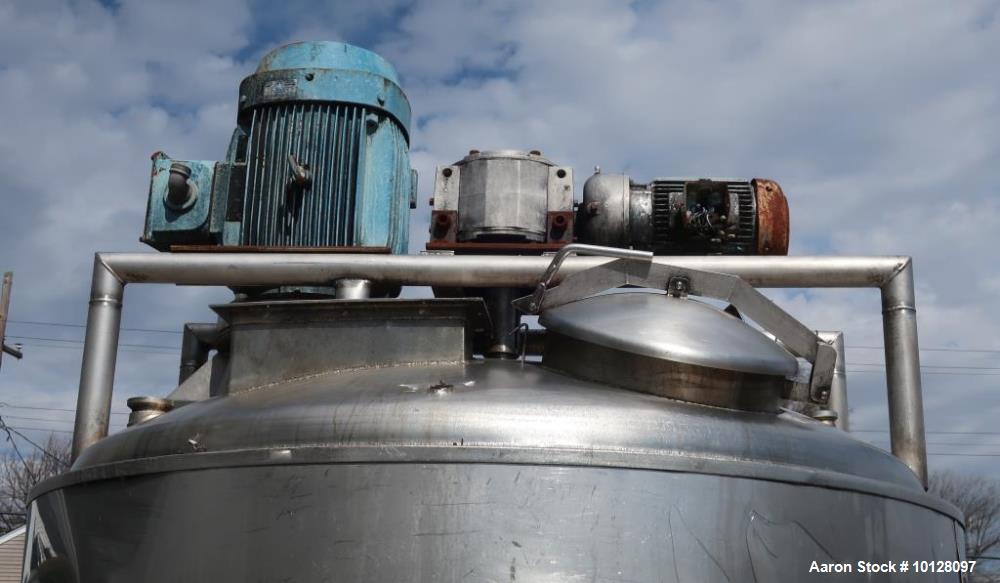

Equipped with both side scrape agitation (5 HP motor) and a top-entry homogenizing mixer (50 HP motor), it allows thorough product blending and particle size reduction. The tank includes a single adjustable internal baffle for enhanced flow control and mixing.

It features an 18" hinged manway, 6" rectangular inlet, multiple top-mounted tri-clamp and threaded nozzles, and a 3" tri-clamp bottom outlet. Despite some cosmetic wear to the jacket skin, the vessel remains structurally sound and passed hydrostatic testing.

⚙️ Technical Specifications

• Total Capacity: 1,400 Gallons

• Material: Stainless Steel

• Body Dimensions:

  • Diameter: 84"

  • Straight Side Height: 60"

• Top/Bottom: Dished Top and Bottom

• Jacket Type: Dimpled – Side and Bottom

• Jacket Rating: 100 PSI @ 338°F

• Agitation:

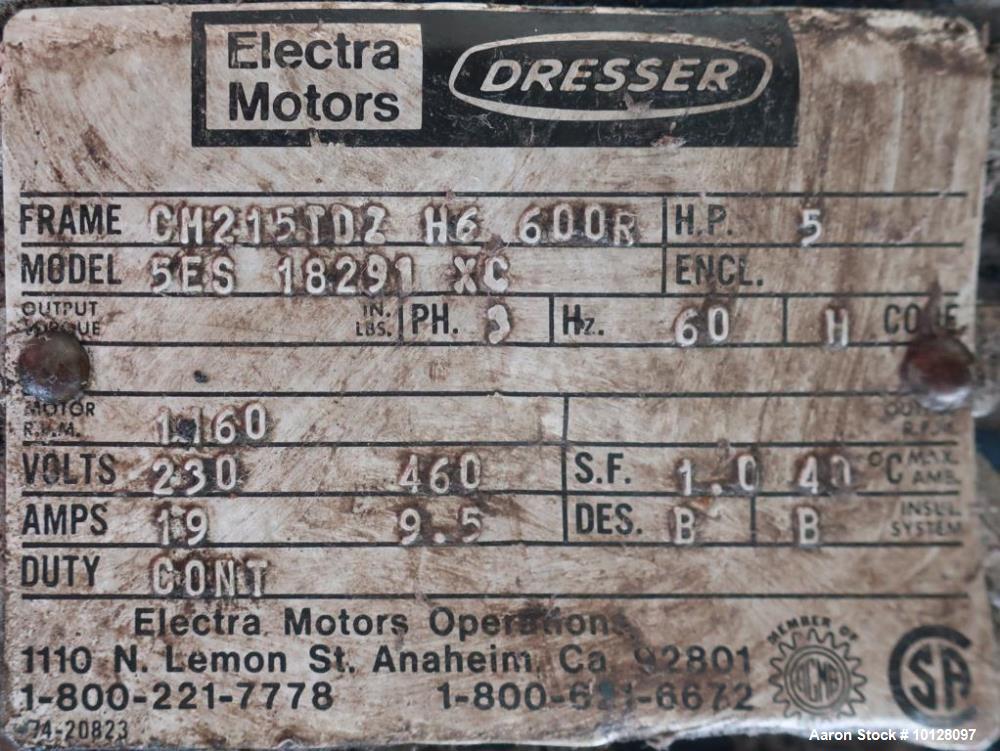

  • Side Scrape Agitator – 5 HP motor

  • Top Homogenizer – 50 HP motor

  • Power: 230/460V, 3 Phase

• Internal Features: 1 adjustable baffle

• Outlet: 3" Tri-Clamp Bottom Nozzle

• Top Access & Nozzles:

  • 18" Hinged Manway Lid

  • 6" x 18" Rectangular Inlet

  • (1) 6" Tri-Clamp Nozzle

  • (1) 4" Sight Glass

  • (3) 3" Nozzles

  • (5) 2" Nozzles

  • (1) 1" Nozzle

• Jacket Connections:

  • Bottom: (2) 2" RFSO Flanges

  • Side: (4) 2" RFSO Flanges

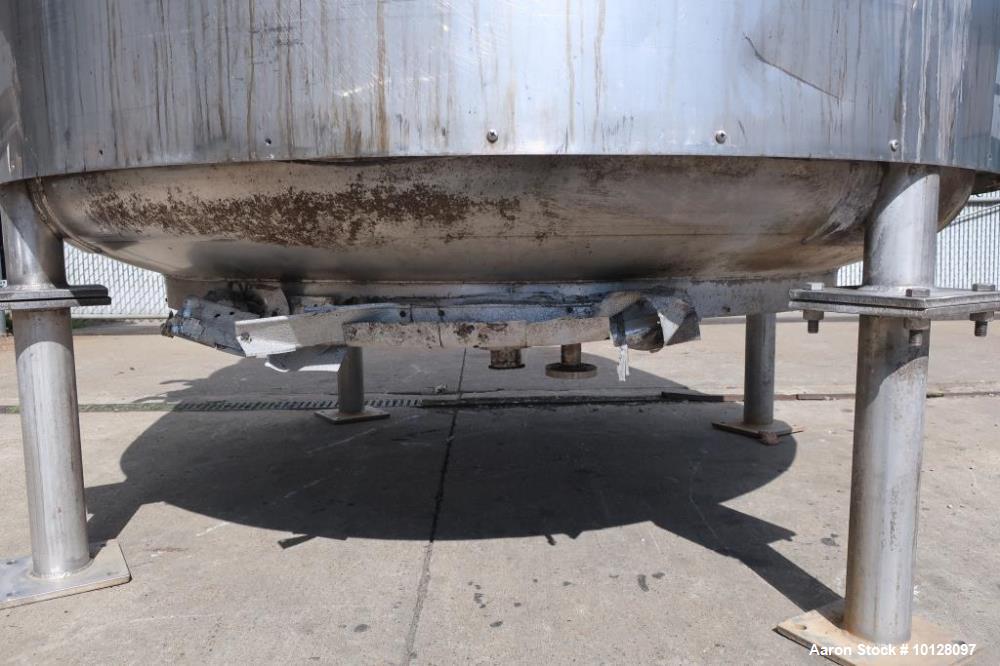

• Mounting: 4 Stainless Steel Pipe Legs

• Condition Note: Jacket skin has dents/repairs; hydro-tested and passed

🔧 Applications

Excellent for high-performance mixing and thermal processing in:

• Food & beverage manufacturing

• Dairy and cheese processing

• Nutraceutical production

• Sauce, soup, and puree batching

• Emulsion and homogenized product manufacturing

• Cosmetic product blending

• Pharmaceutical and personal care mixing

• Industrial slurry handling

• Chemical reaction mixing

• Extracts and concentrates production

📌 What Products Would This Be Used For?

• Yogurt, custards, or cream fillings

• Sauces, gravies, and emulsions

• Plant-based protein blends

• Cosmetic lotions and gels

• Nutraceutical pastes and supplements

• Soups and stews with particulates

• Pharmaceutical creams and slurries

• Confectionery syrups and fondants

• Ointments or viscous personal care products

• Beverage concentrates or thick slurries
