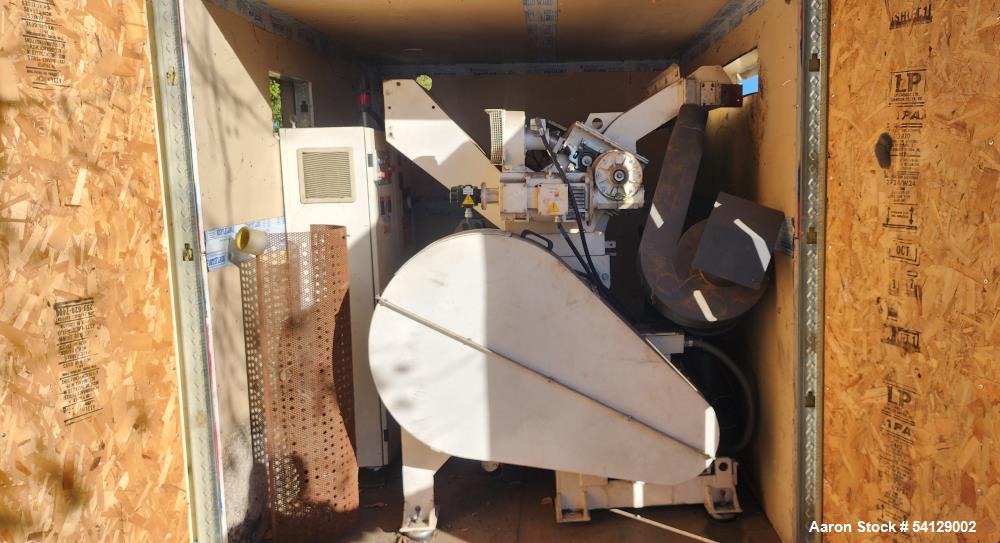

Used Tria Model TR 120 49 Granulator | 50 HP | 1,200 kg/hr | Water-Cooled, Soundproofed Plastic Recycling Grinder

🏭 Manufacturer Information

• Manufacturer: Tria S.p.A.

• Model: TR 120 49

• Condition: Used (Excellent, industrial-grade)

• Country of Origin: Italy

• Drive Motor: 50 HP (approx. 37 kW)

• Voltage: 460V / 480V, 3-Phase

• Frequency: 60 Hz

⚙️ Product Description

The Tria Model TR 120 49 Granulator is a heavy-duty, high-throughput granulation system designed for processing plastics and other materials in demanding industrial environments. Featuring a water-cooled cutting chamber, tungsten-tipped knives, and sound reduction casing, it delivers quiet, efficient, and consistent size reduction performance.

Built with an open rotor design (5 rows × 2 knives = 10 total) and 4 stator knives (2 front, 2 rear), this model is ideal for processing thermoformed scrap, film, sheet, or molded components. With a throughput capacity of up to 1,200 kg/hr, the TR 120 49 provides exceptional reliability and energy efficiency.

The soundproofed steel enclosure and large discharge screen minimize noise while maximizing output. A rear trap-door feed system enables seamless integration into thermoforming or extrusion lines, ensuring smooth and safe operation.

📏 Specifications

• Rotor Diameter: 490 mm

• Rotor Width: 1,200 mm

• Feed Opening: ~970 mm (W) × 120 mm (H)

• Rotor Type: Open rotor, 5 rows × 2 knives (10 total)

• Stator (Bed) Knives: 4 total (2 front, 2 rear)

• Drive Motor: 50 HP (37 kW)

• Voltage: 460V / 480V, 3-Phase

• Frequency: 60 Hz

• Cutting Chamber: Water-cooled

• Throughput Capacity: Up to ~1,200 kg/hr (varies by material & screen size)

• Screen Area: Large, high-throughput discharge design

• Feed System: Rear trap-door (ideal for thermoforming integration)

• Knife Material: Tungsten-tipped (extended wear life)

• Noise Reduction: Fully enclosed, sound-insulated casing

• Construction: Heavy-duty steel with hinged access doors

• Sound Enclosure: Yes, complete sound reduction casing

🧩 Applications

• Plastic granulation and recycling

• Thermoforming scrap recovery

• Injection molding regrind

• Film and sheet extrusion trimming

• PET, PVC, HDPE, PP reprocessing

• Compounding and blending prep

• Automotive plastic waste recovery

• Packaging and container regrind

• Industrial waste reduction

• Recycling plant integration

♻️ What Might This Be Used For

This Tria TR 120 49 is ideal for recycling plastic production waste such as thermoformed sheet offcuts, runners, sprues, or edge trim. It can be integrated into extrusion and thermoforming lines to reduce material size for reintroduction into production, minimizing waste and material cost.

🧱 Products That Could Use This Machine

• PET sheet and bottle scrap

• PP and HDPE containers

• PVC pipe and profile trimmings

• ABS and polycarbonate components

• Packaging film regrind

• Thermoformed trays and cups

• Automotive plastic parts

• Injection molded housings

• Plastic caps and closures

• Industrial recycling material
