Used 2011 Wanner E 45x80 Granulator – Up to 800 Kg/Hr, 30 kW Drive with Soundproof Enclosure

Manufacturer Information

Wanner

Wanner manufactures granulators and size-reduction equipment used primarily in plastics processing, recycling, and industrial material-recovery applications. Granulators of this type are commonly used to reduce production scrap, molded parts, runners, sprues, and other compatible materials into smaller particles for recycling, reprocessing, or disposal.

This Wanner Type E 45x80 granulator features a 450 mm diameter x 800 mm wide cutting area, a 30 kW belt-driven motor, and a stated maximum capacity of approximately 800 kg/hr (1,760 lb/hr) depending on the material.

Description

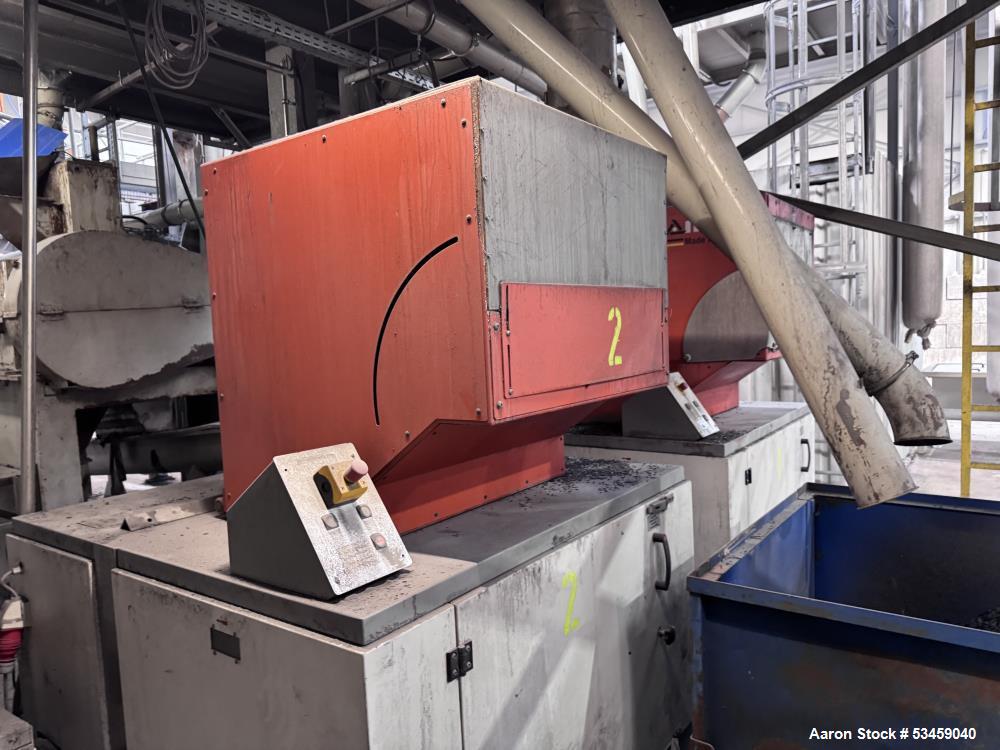

Available for sale is a used Wanner Granulator, Type E 45x80, built in 2011 and designed for industrial size-reduction and recycling applications.

The granulator features an approximately 450 mm diameter x 800 mm wide cutting section and operates at a maximum stated speed of 450 RPM.

Power is supplied by a 30 kW (approximately 40 HP) belt-driven motor operating on 400V, 50 Hz, 3-phase electrical service.

Depending on the material being processed and operating conditions, the Wanner E 45x80 has a stated maximum throughput of approximately 800 kg/hr (1,760 lb/hr).

The machine is housed in a soundproof enclosure, helping reduce operating noise in production and recycling environments. Overall dimensions are approximately 1,000 mm x 2,250 mm x 2,100 mm high, with an empty weight of approximately 2 metric tonnes (4,409 lb).

This granulator may be suitable for plastics processors, recyclers, injection molders, extrusion operations, and other facilities requiring efficient reduction of compatible production scrap.

Specifications

Typical Applications

• Plastic recycling
• Industrial size reduction
• Injection molding scrap recovery
• Extrusion scrap processing
• Production waste reduction
• Runner and sprue granulation
• Plastic part granulation
• In-house material recycling
• Manufacturing scrap recovery
• Regrind production
• Polymer recycling
• Industrial material reclamation

Products & Materials This Granulator Could Be Used For

• Plastic molded parts
• Injection molding runners
• Sprues
• Plastic production rejects
• Extrusion scrap
• Polymer components
• Plastic sheets and profiles
• Thermoplastic scrap
• Plastic containers
• Compatible plastic components
• Recyclable manufacturing scrap
• Other materials suitable for granulation

Actual throughput and suitability depend on material type, dimensions, density, toughness, temperature, feed method, knife condition, screen configuration, and desired finished particle size.

Frequently Asked Questions

• What is the maximum capacity of this Wanner granulator? The stated maximum throughput is approximately 800 kg/hr (1,760 lb/hr). Actual capacity will vary significantly with the material and required finished particle size.
• How large is the cutting section? The machine is specified at approximately 450 mm diameter x 800 mm wide, or roughly 17.7" x 31.5".
• What size motor does the E 45x80 have? The granulator is powered by a 30 kW motor, approximately equivalent to 40 HP, using a belt-drive arrangement.
• Does the machine have noise reduction? Yes. The granulator is installed in a soundproofed enclosure, which can help reduce operating noise compared with an unenclosed granulator.
• What electrical service is required? The stated electrical requirement is 400V, 50 Hz, 3-phase. Facilities operating on North American 60 Hz power should evaluate electrical compatibility before installation.
• Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with loading coordination, domestic and international freight, customs documentation, and logistics planning. With an empty weight of approximately 2 metric tonnes, appropriate material-handling and freight arrangements should be planned.
