Used Cumberland 1456i Granulator – 75 HP Twin Shear Rotor with 68" Pull Rolls

Manufacturer

Cumberland

Cumberland is a well-known manufacturer of industrial granulators and size-reduction equipment for plastics processing, recycling, extrusion, injection molding, thermoforming, and other manufacturing operations. Cumberland granulators are widely used for reducing production scrap, plastic parts, sheet, film, profiles, and other recyclable materials into manageable regrind.

Description

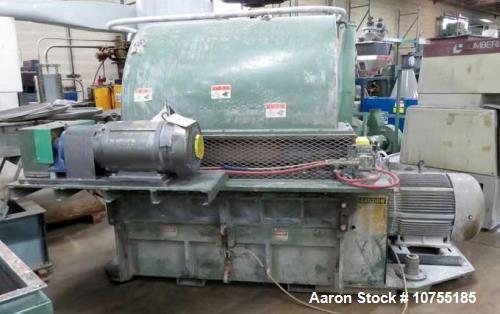

Available for sale is a used Cumberland Model 1456i granulator equipped with a 75 HP drive motor and a large 14" x 56" feed throat for industrial plastics recycling and size-reduction applications.

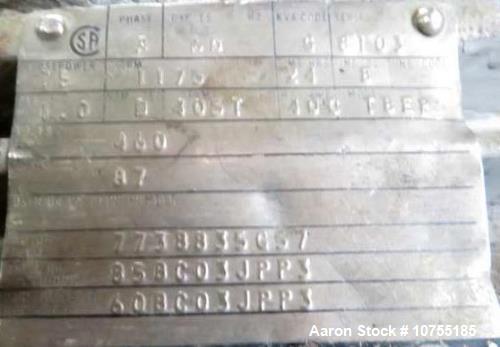

The cutting chamber features a three-knife twin shear rotor with two bed knives, providing an efficient cutting action for reducing suitable production scrap and recyclable materials. The rotor is belt driven by a 75 HP, 3-phase, 60 Hz, 460-volt motor.

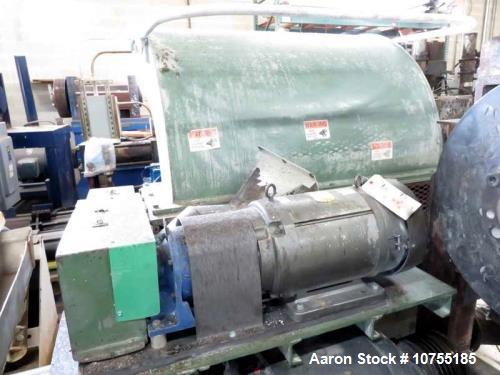

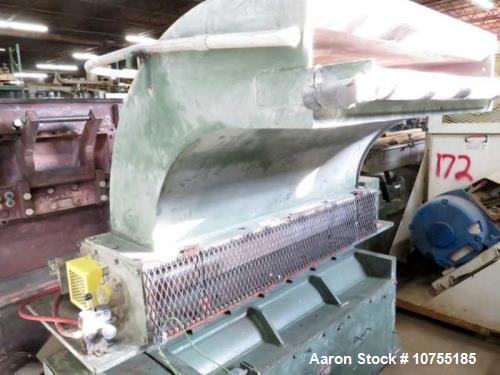

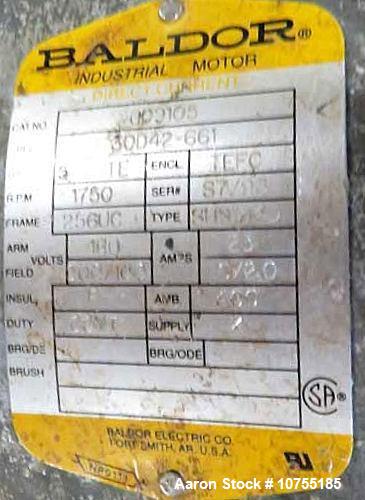

Material feeding is handled by 68" wide powered infeed pull rolls driven by a 5 HP DC motor. The upper and lower feed rolls are poly covered and pneumatically actuated, providing controlled feeding into the granulator.

This machine is supplied with the pull-roll hopper only. Controls are not included, allowing the buyer to integrate the granulator into an existing processing line or install a control package appropriate for the intended application.

Specifications

Typical Applications

• Plastics recycling
• In-line extrusion scrap recovery
• Thermoforming scrap reduction
• Plastic sheet recycling
• Manufacturing scrap granulation
• Edge-trim processing
• Plastic profile recycling
• Production waste reduction
• Regrind production
• Post-industrial recycling
• Plastic component size reduction
• Secondary material recovery

Products & Materials This Granulator Could Be Used For

• Plastic sheet
• Thermoformed skeletons
• Plastic profiles
• Extrusion scrap
• Plastic trim
• Production offcuts
• Molded plastic parts
• Suitable plastic film and web materials
• Polymer manufacturing scrap
• Plastic packaging scrap
• Post-industrial plastic waste
• Other compatible plastics and recyclable materials

Material suitability, throughput, and final particle size depend on resin type, material dimensions, knife condition, screen configuration, feed rate, and operating conditions.

Frequently Asked Questions

• What size motor does the Cumberland 1456i have? The granulator is powered by a 75 HP, 3-phase, 60 Hz, 460-volt electric motor.
• What cutting system is installed? It features a three-knife twin shear rotor operating with two stationary bed knives.
• Does it include powered feed rolls? Yes. The machine has 68" wide upper and lower poly-covered pull rolls powered by a 5 HP DC motor and pneumatically actuated.
• Are electrical controls included? No. Controls are not included with this used granulator.
• What type of hopper is included? This machine is equipped with the pull-roll hopper only, making it particularly useful for applications where material is continuously fed into the cutting chamber.
• Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with freight coordination, loading and rigging arrangements, domestic and international transportation, and logistics for granulators and other industrial size-reduction equipment.
