Ross HDM Double Planetary Mixer

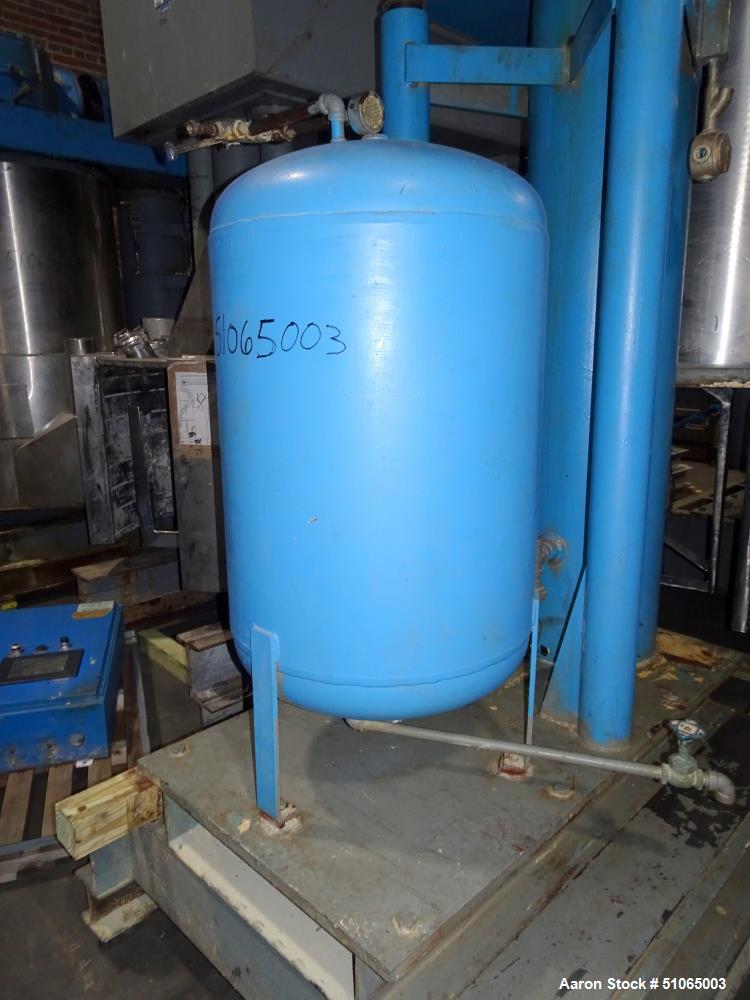

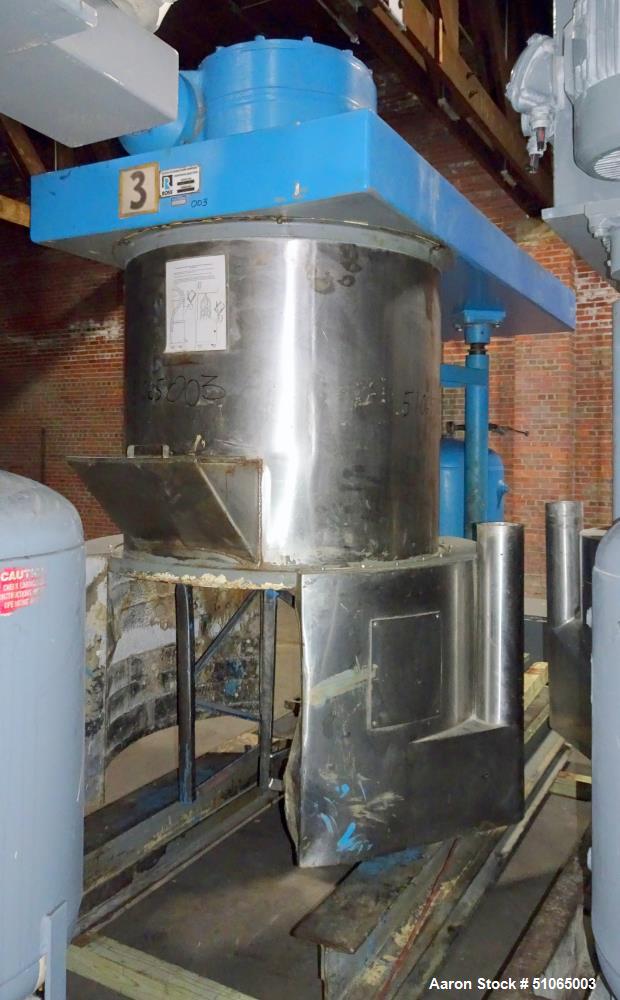

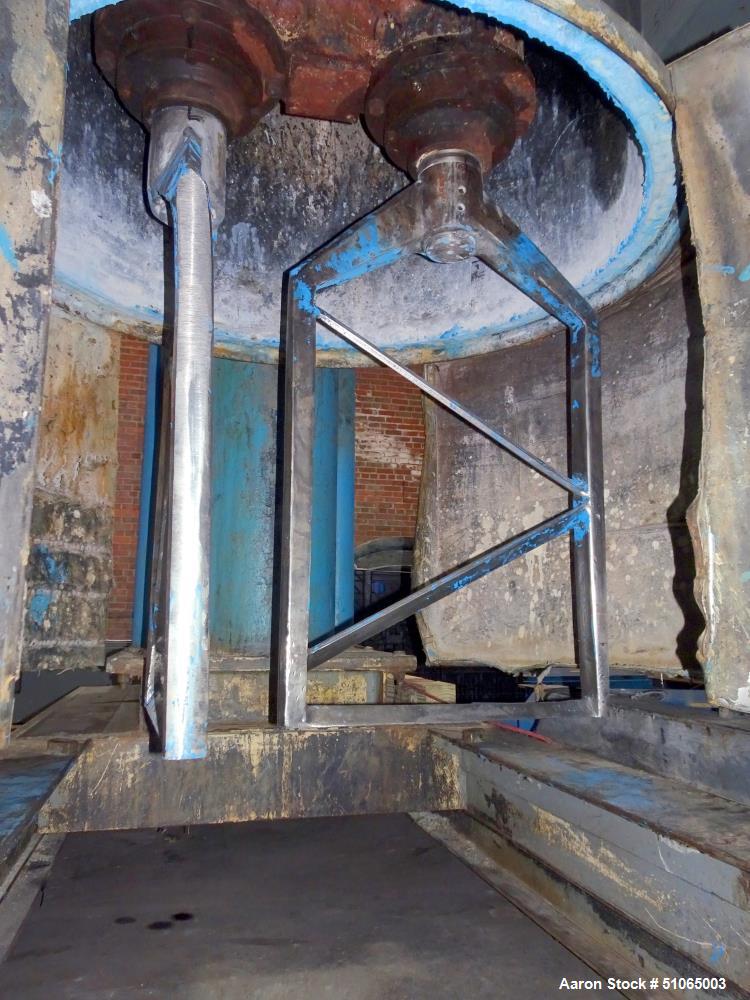

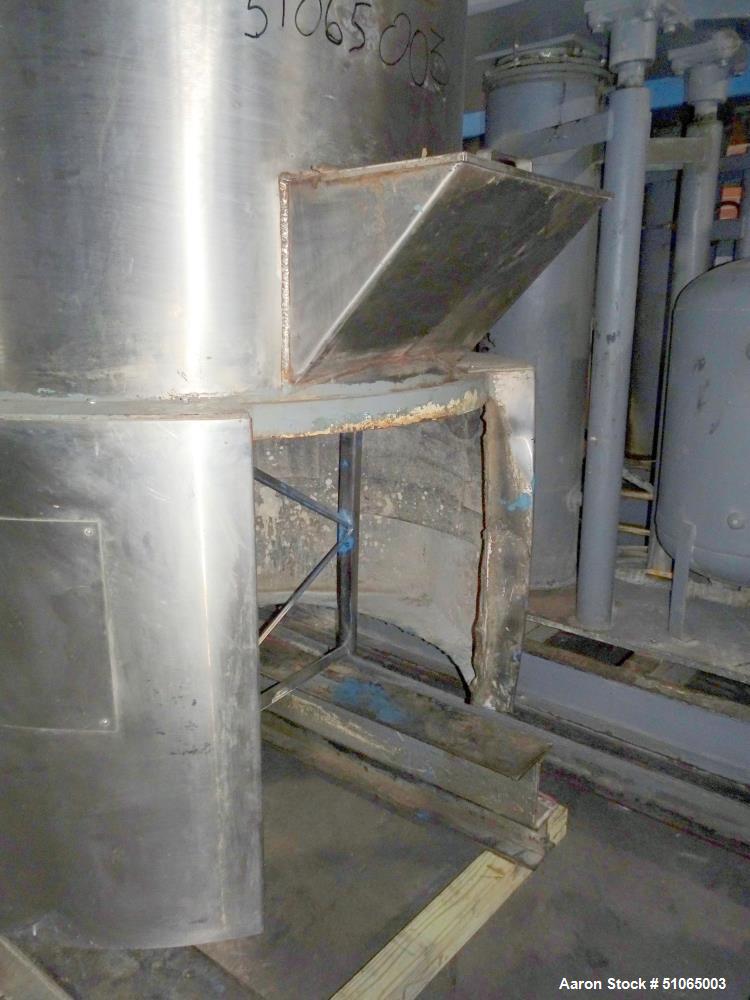

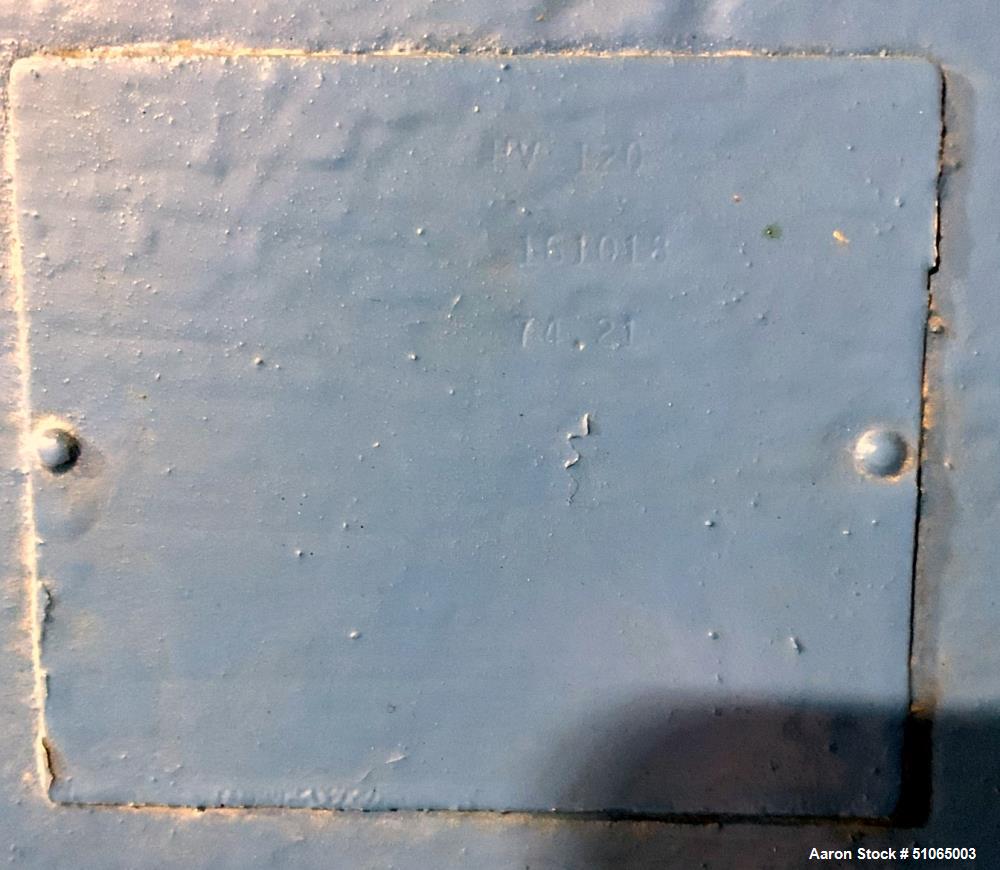

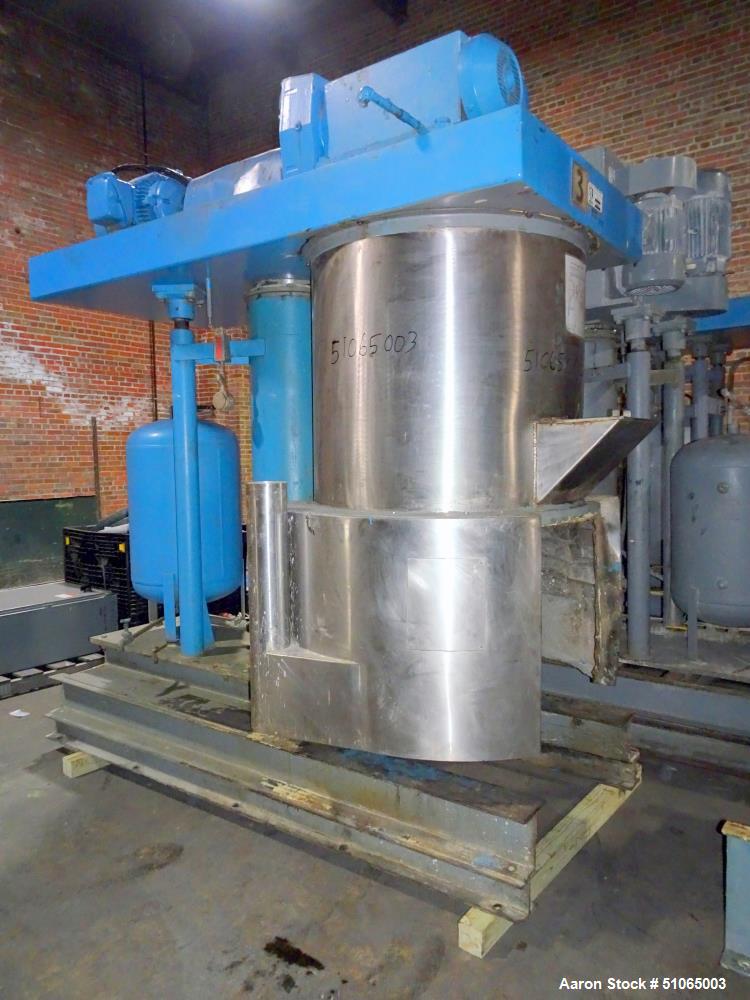

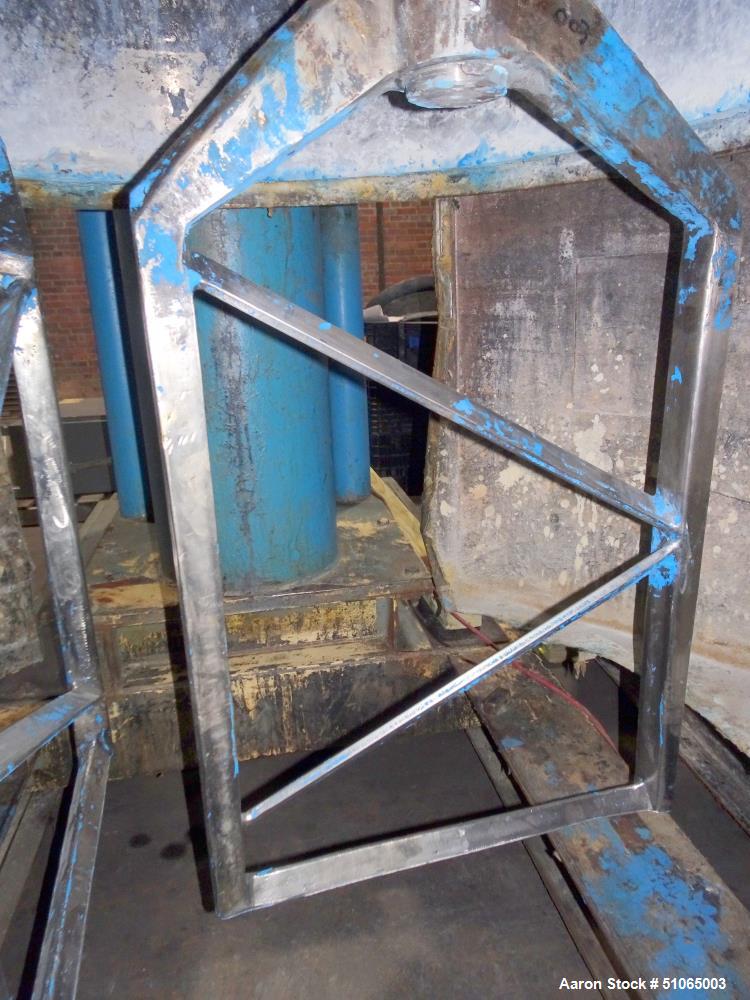

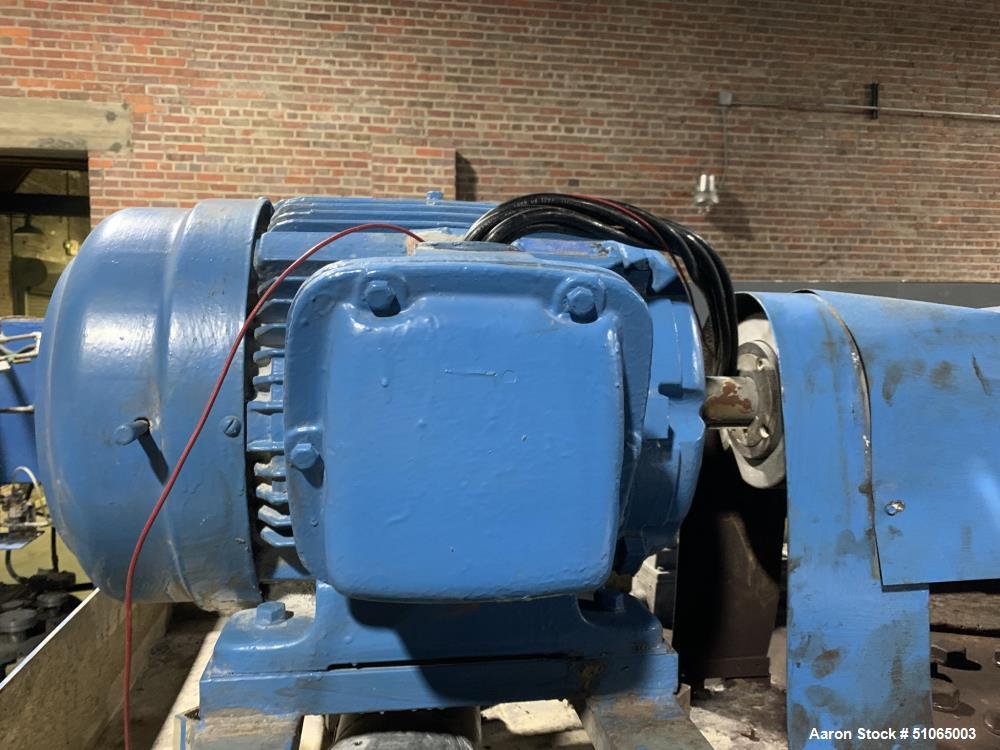

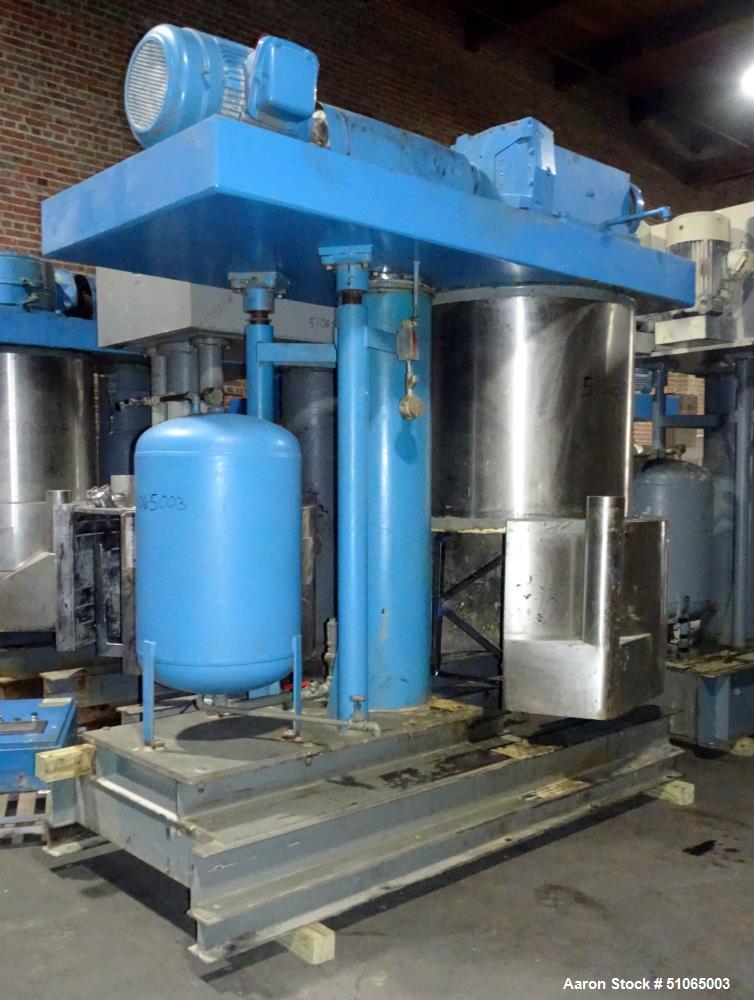

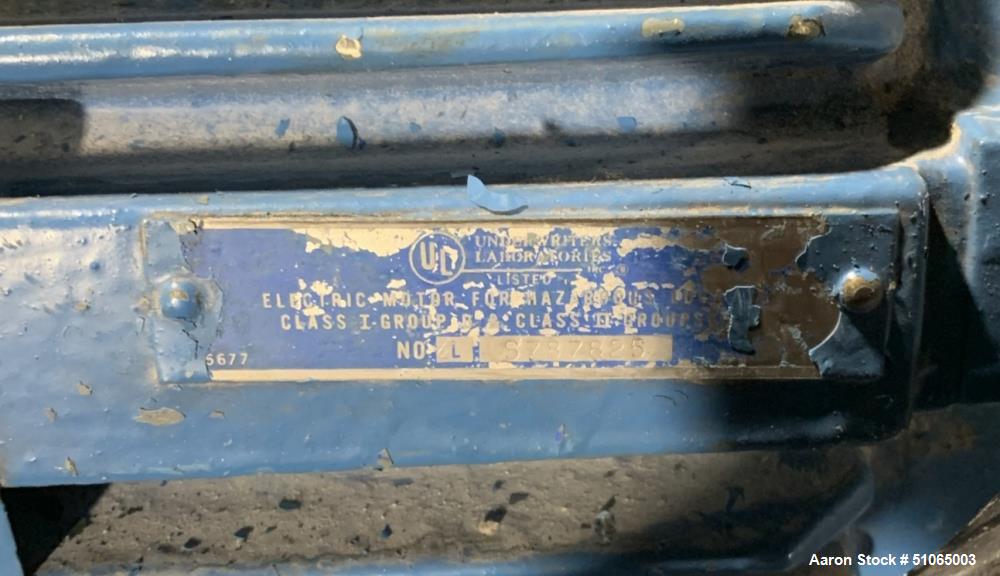

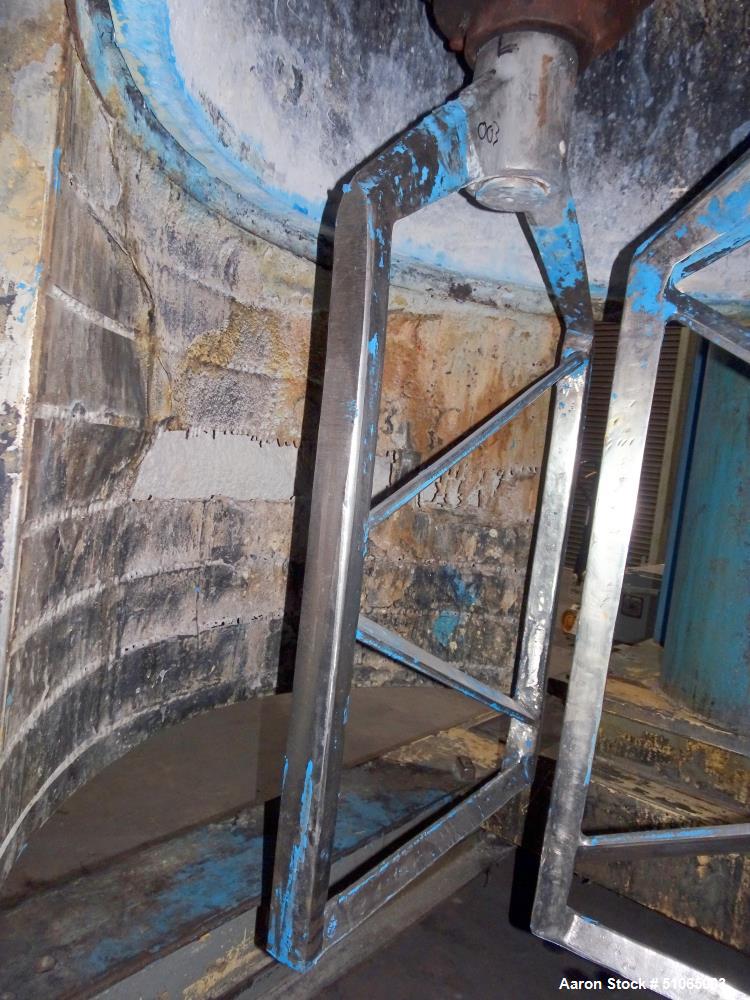

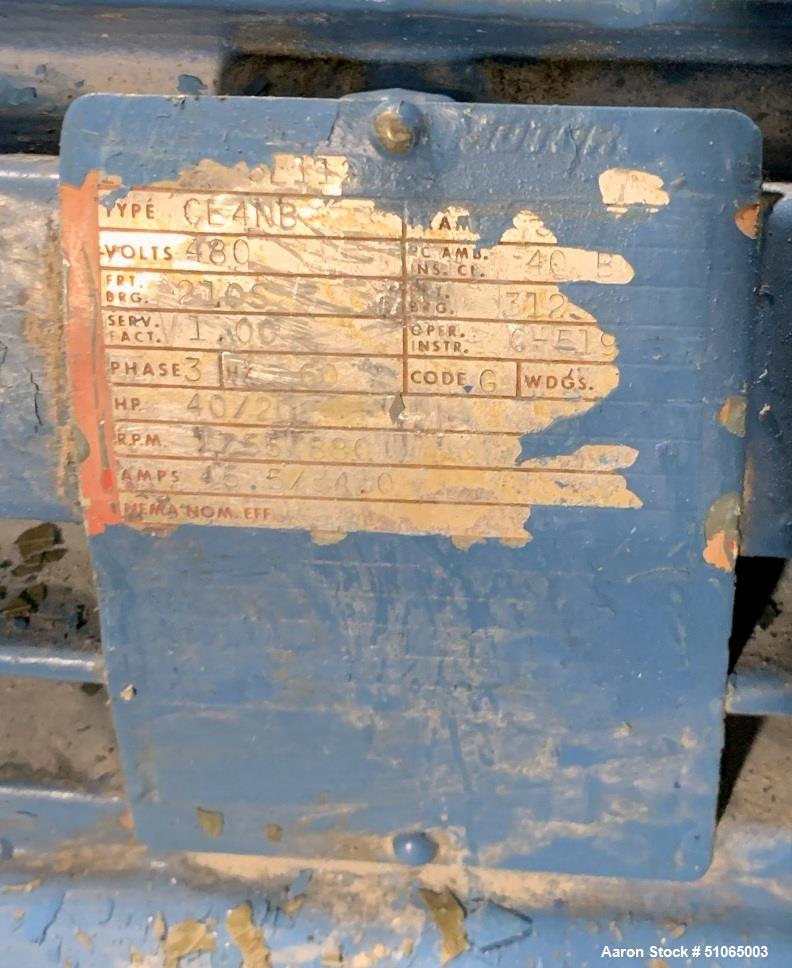

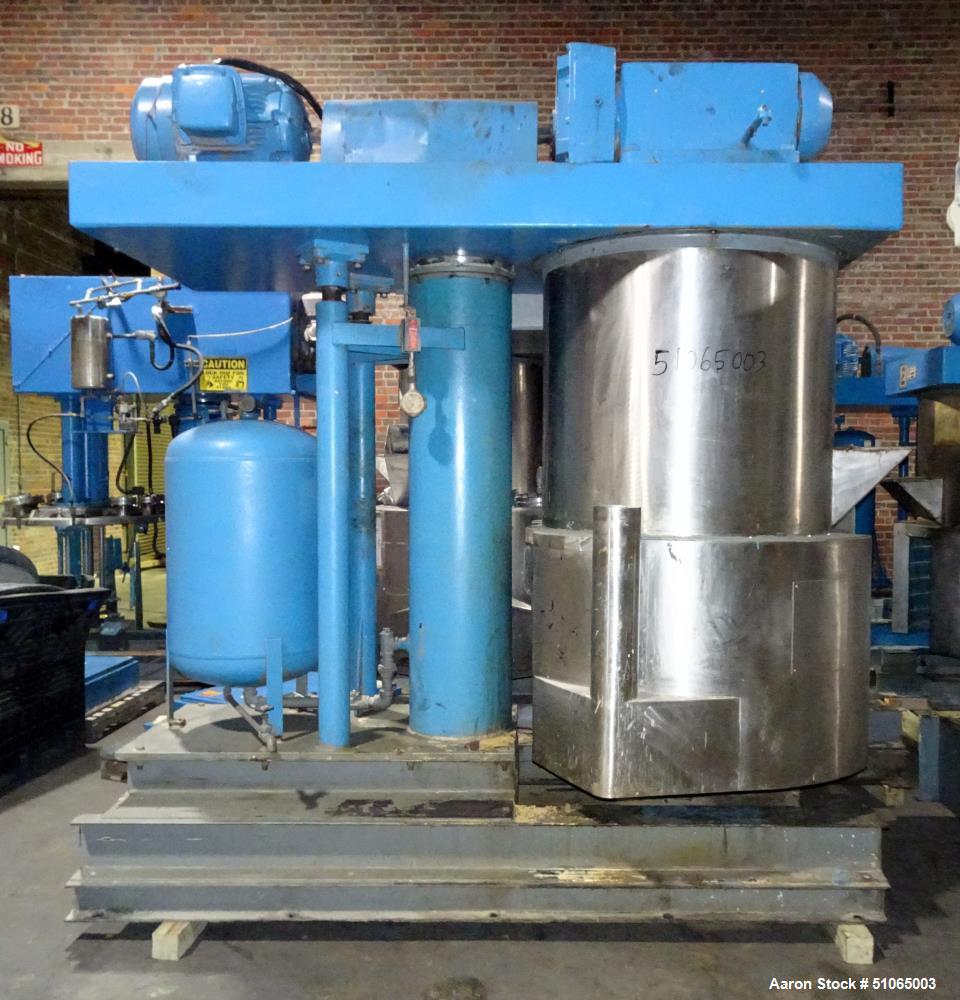

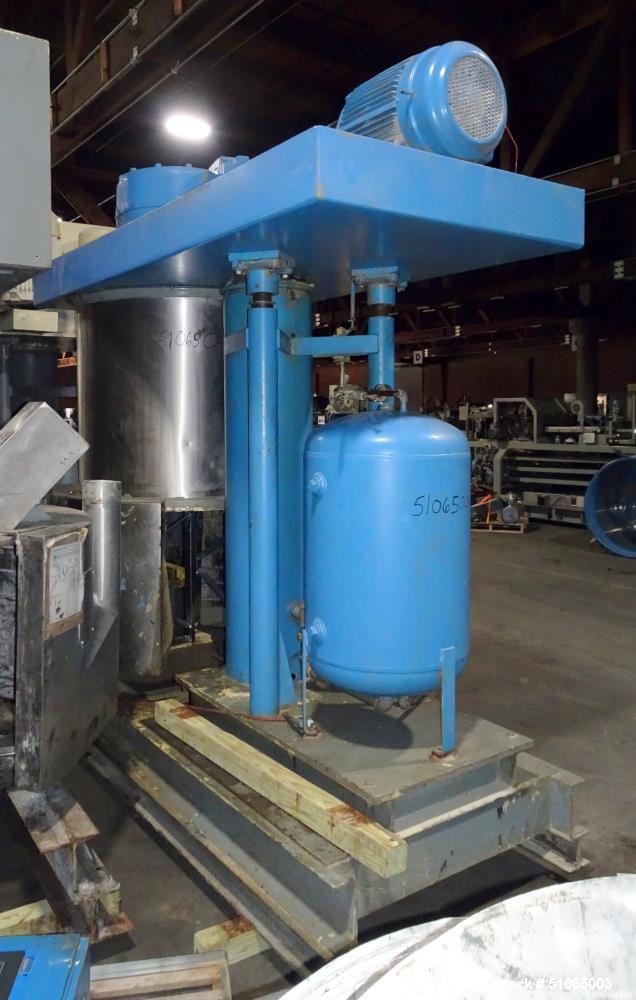

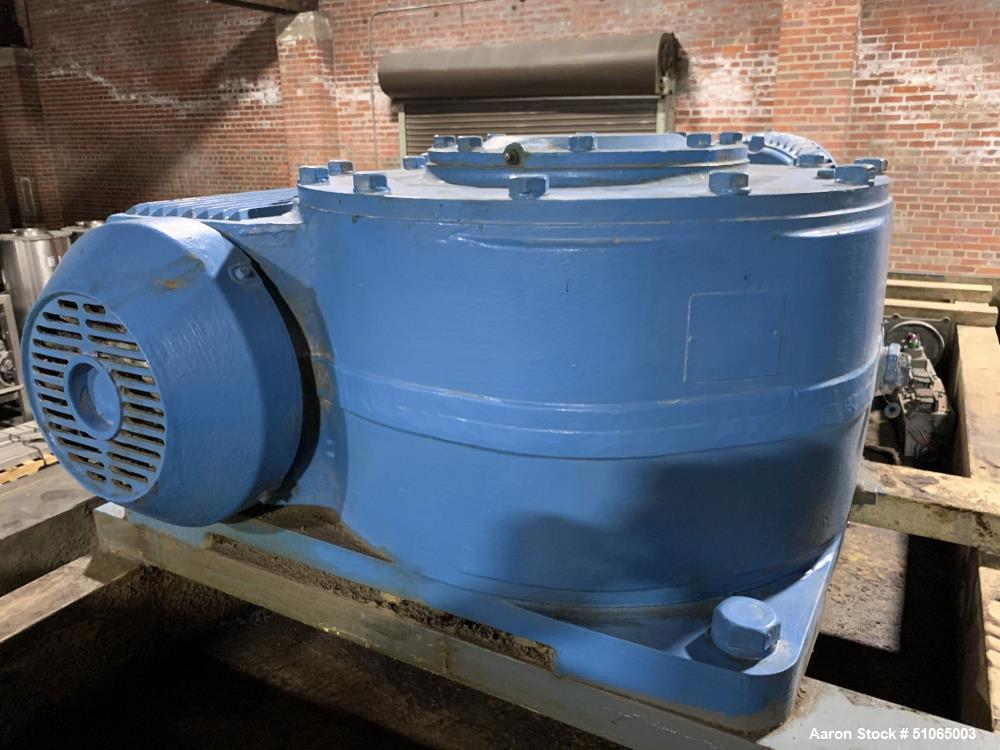

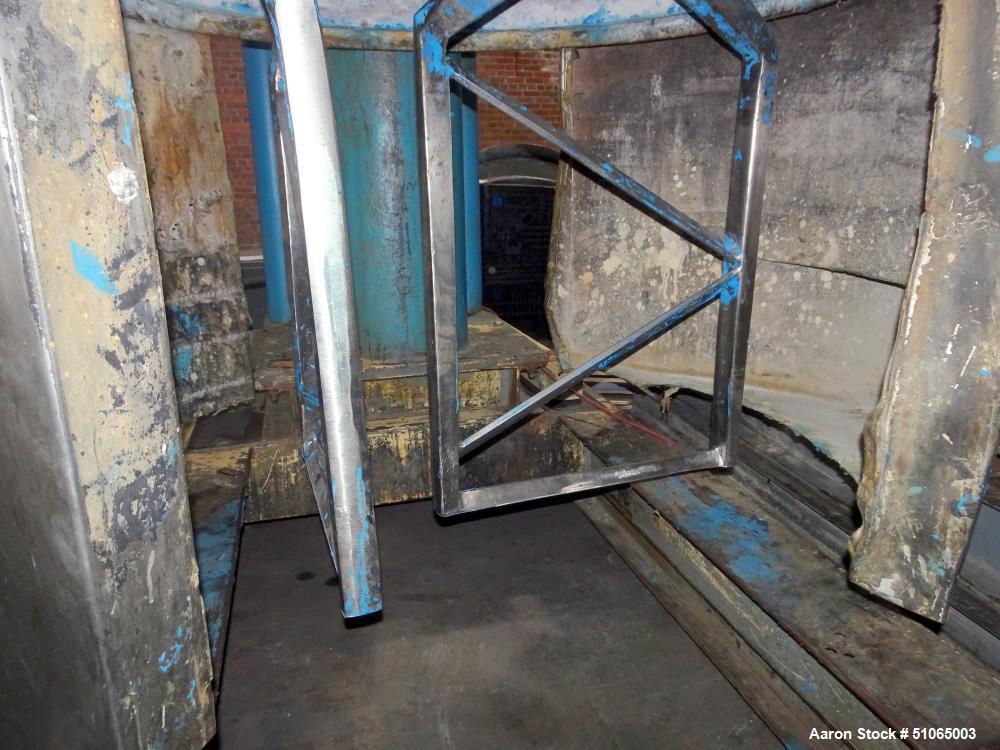

Used- Ross Double Planetary Mixer, Model HDM 200, 304 Stainless Steel. 30-200 Gallon working capacity. (2) Stirrers approximate orbital speed 24 rpm, stirrer speed 26 rpm. Top dust hood with charge port, bottom fume hood, air/oil lift. Includes (1) 44'' diameter x 33-3/4'' deep can. Driven an 40 HP, 3/60/480 volt, 1755 rpm XP motor, thru reduction gear, 74.21 to 1 ratio. Mounted on an I beam frame. Serial# 46392. Additional mix cans available for purchase at additional cost, subject to availability.

ManufacturerCharles Ross

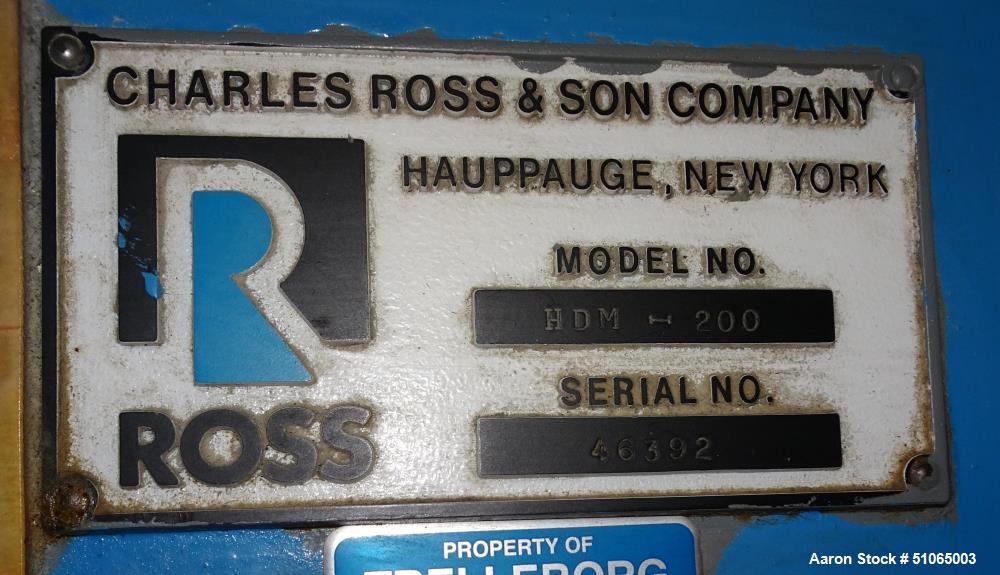

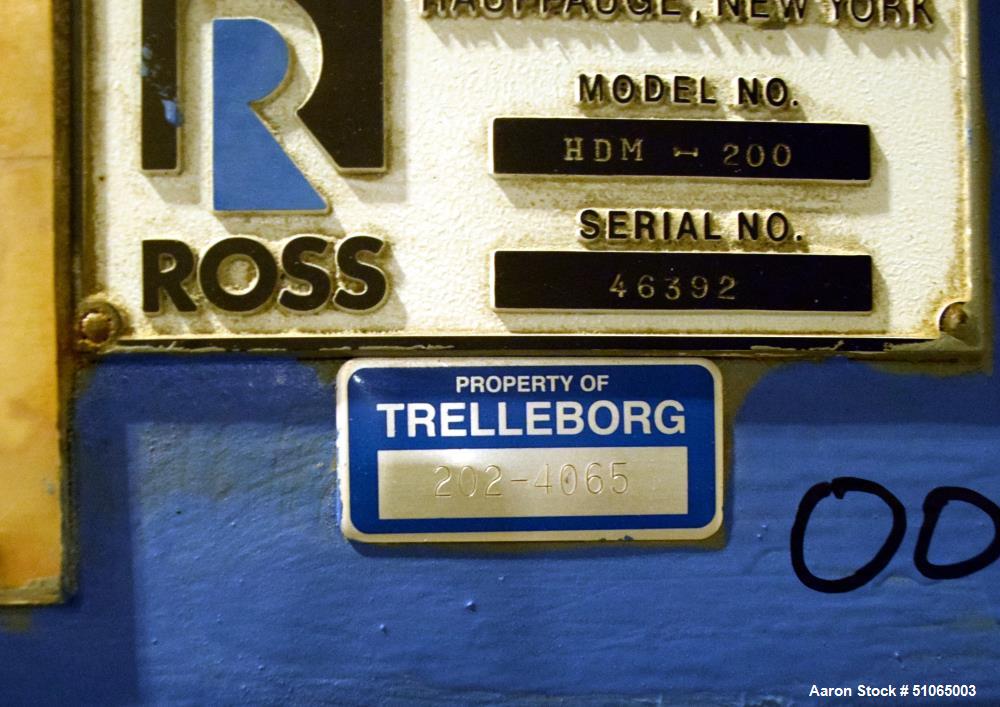

ModelHDM 200

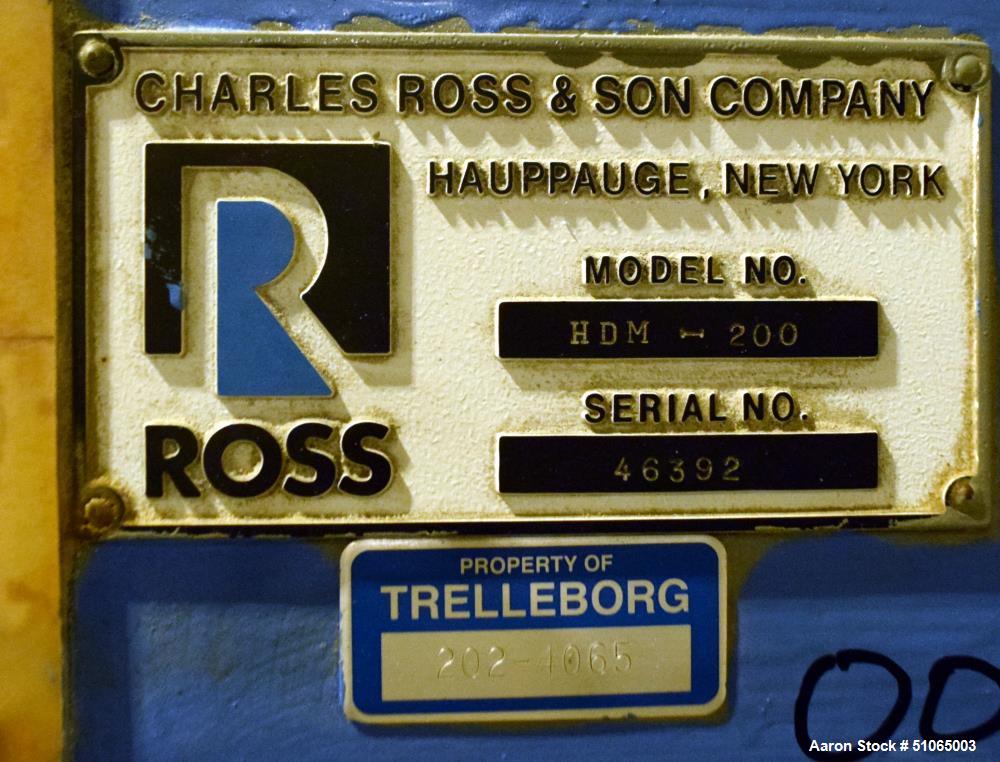

Serial #46392
CategoryMixers
SubcategoryPlanetary Mixer

We offer a variety of finance programs. Please contact your sales person for more information.
