sed Aaron Process Lab Sigma Blade Mixer – 1 Gallon – Model LNG-1 – 304 SS – Vacuum Rated – Jacketed – 2 HP DC – With Controls

Manufacturer Info:

• Manufacturer: Aaron Process

• Model: LNG-1

• Condition: Used

• Construction: 304 Stainless Steel

Description:

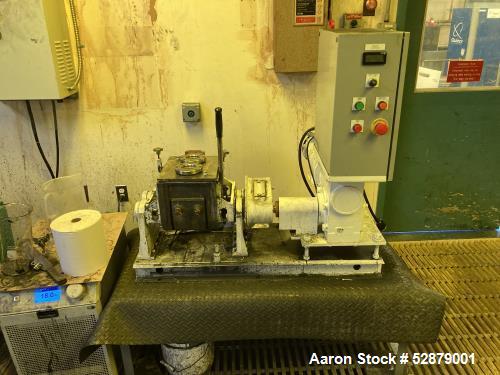

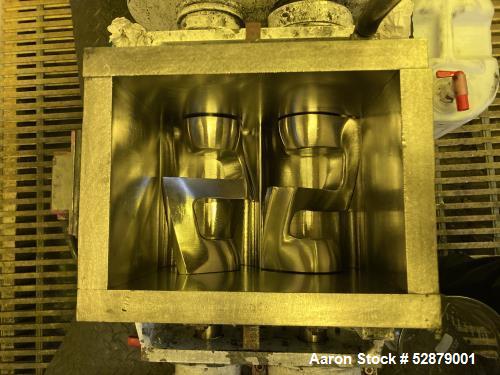

This used Aaron Process 1-gallon sigma blade mixer, model LNG-1, is a lab-scale kneader/mixer designed for heavy-duty mixing and blending of viscous materials such as doughs, polymers, adhesives, or pastes. The 304 stainless steel bowl measures 7" W x 9-3/8" L x 8-3/4" D, with a vacuum-rated chamber and jacketed body for precise thermal control up to 14.7 psig at 400°F.

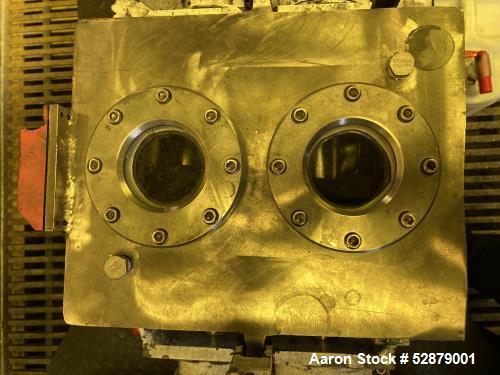

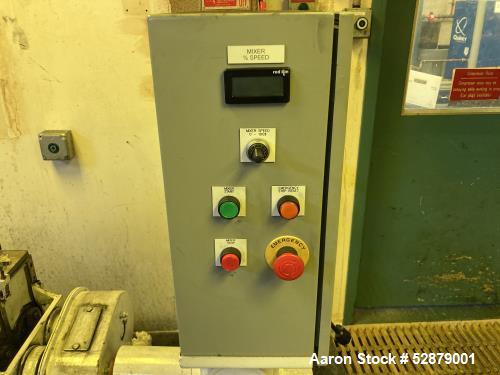

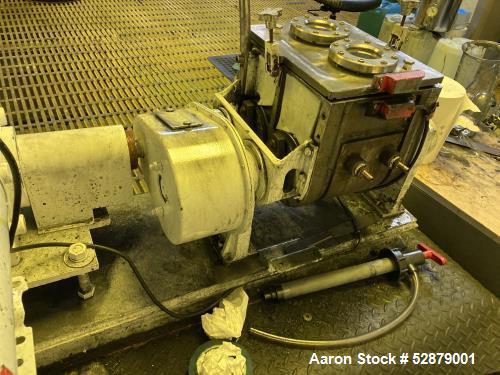

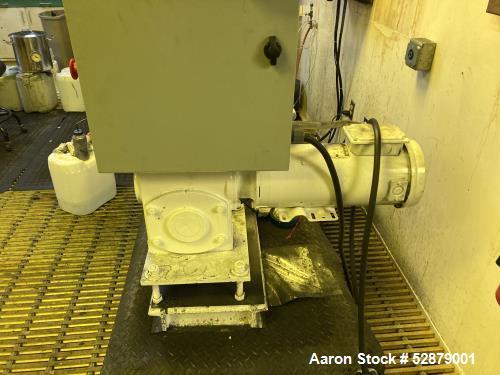

Equipped with a manual tilt handle, this unit allows for easy product discharge, and includes a top cover with two 2" sight glasses for viewing and sampling during mixing. Driven by a 2 HP DC motor, this machine delivers controlled mixing power through a 25:1 gearbox, providing high torque at low RPMs. A control panel with digital speed control, start/stop, and emergency stop (E-Stop) is included for safe, user-friendly operation.

Specifications:

• Model: LNG-1

• Bowl Capacity: 1 gallon

• Bowl Dimensions: 7" W x 9-3/8" L x 8-3/4" D

• Material: 304 Stainless Steel

• Vacuum Rated: Yes

• Jacket Rating: 14.7 psig @ 400°F

• Top Cover: With (2) 2" sight glasses

• Tilt: Manual tilt with handle

• Motor:

  • 2 HP DC

  • 180 Volt

  • 1750 RPM

  • 9.4 Amps

  • TEFC (Totally Enclosed Fan Cooled)

• Gearbox Ratio: 25:1

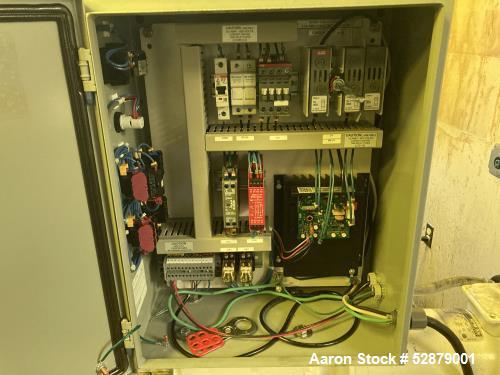

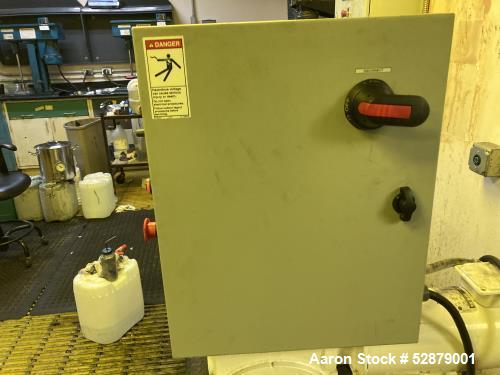

• Control Panel:

  • Speed control with digital readout

  • Start/Stop

  • Emergency Stop (E-Stop)

Applications:

• Adhesives and sealants

• Ceramic or metal pastes

• Polymer and plastic compounds

• Battery slurries

• Pigment and dye dispersions

• Food and confectionery blends

• Lab-scale compounding and R&D

• Resin and epoxy mixing

• Viscous pharmaceutical products

• Rubber, gum, and synthetic formulations

What might this be used for?:

This mixer is perfect for labs, pilot plants, and R&D facilities working with high-viscosity materials in controlled environments. Its vacuum capability, jacketed heating/cooling, and powerful sigma blade action make it ideal for small-batch processing, formulation trials, or specialty production in chemical, food, or pharmaceutical sectors.
