Stock No.: 50697012
Used Toshin Co. Double Arm Mixer / Hybrid Kneader - Dispersion Mixer – 75L, 100 HP, Stainless Steel. Chewing Gum.

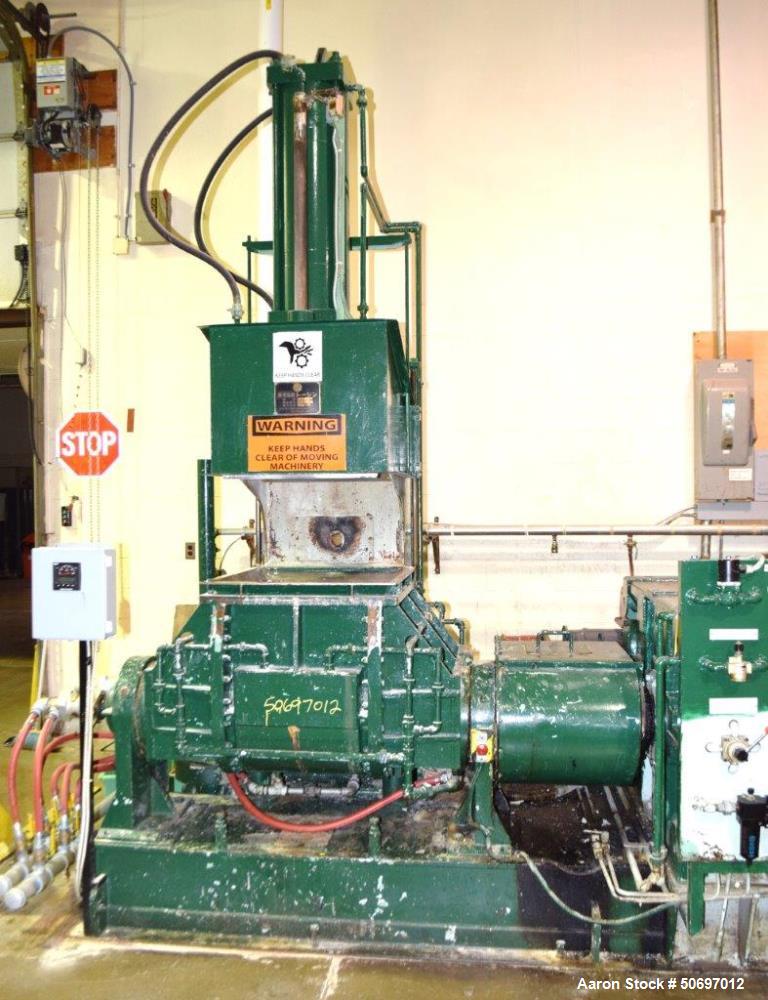

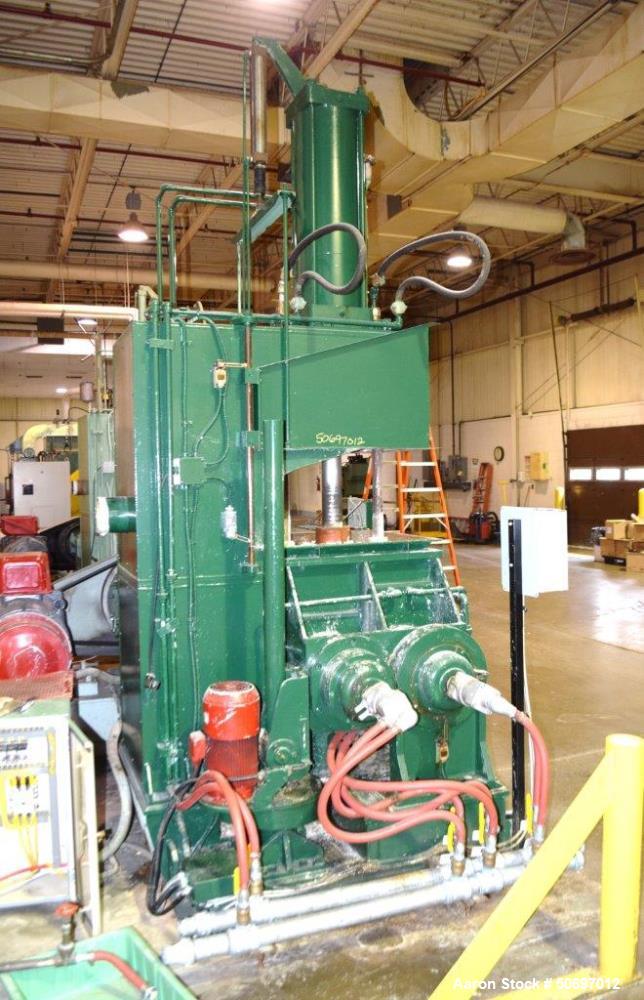

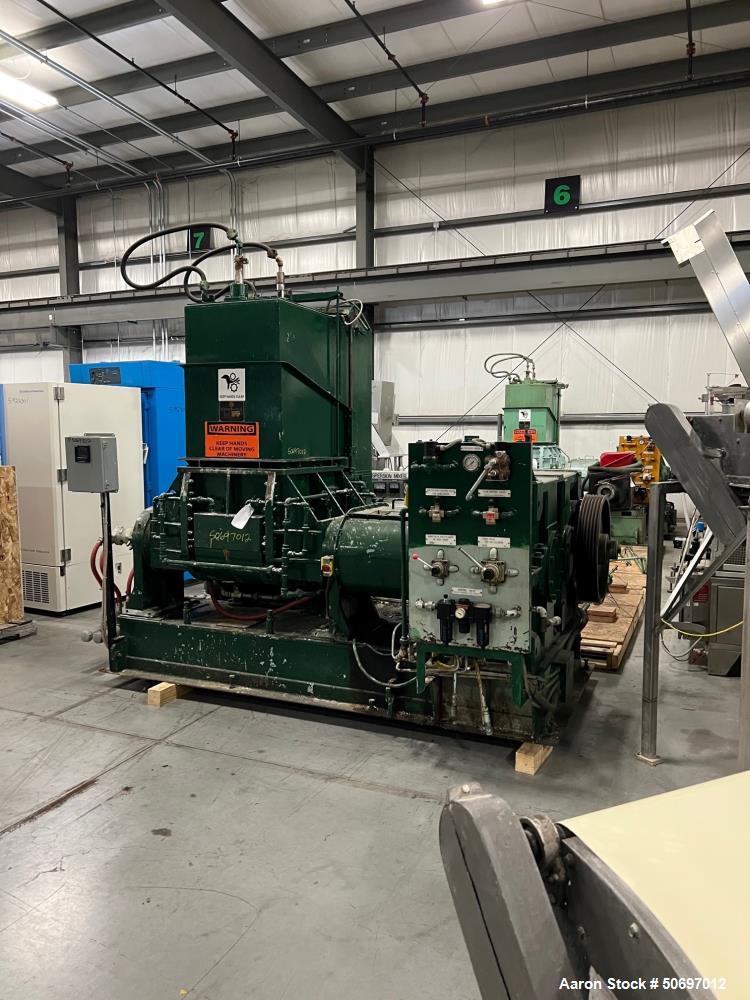

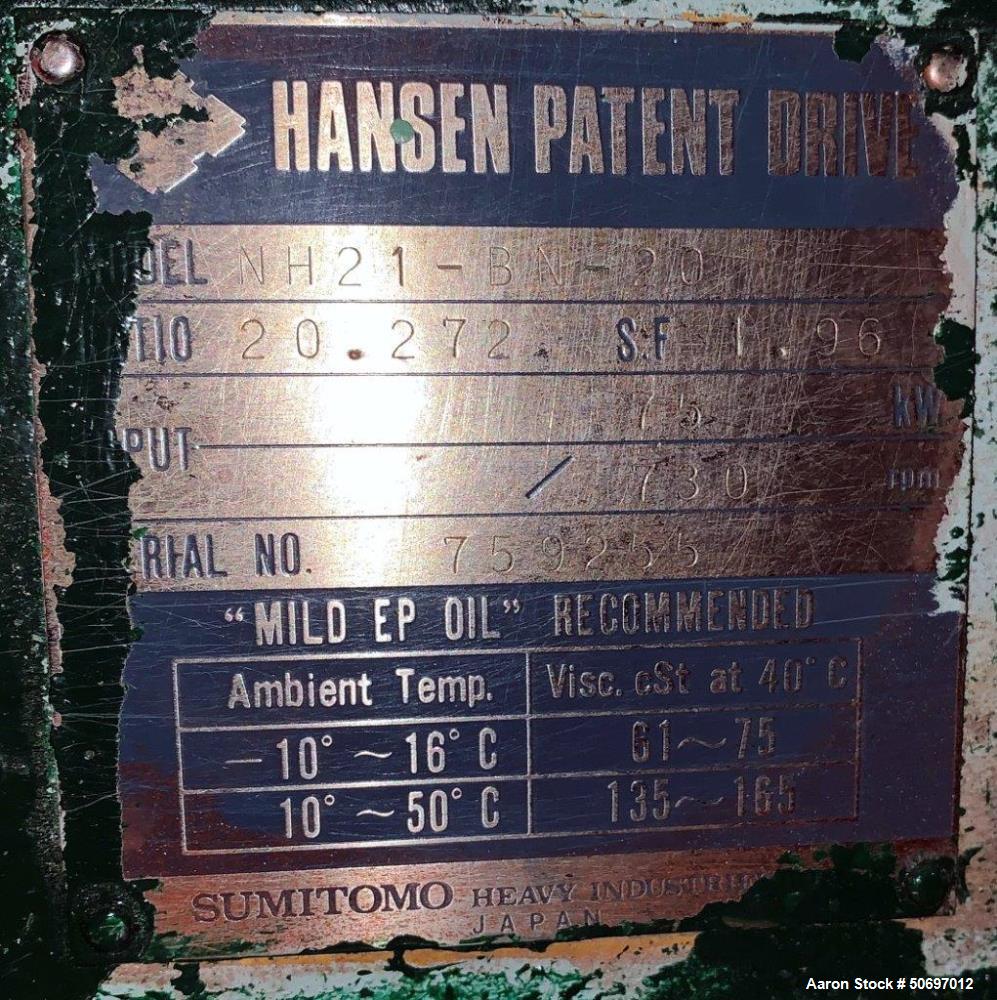

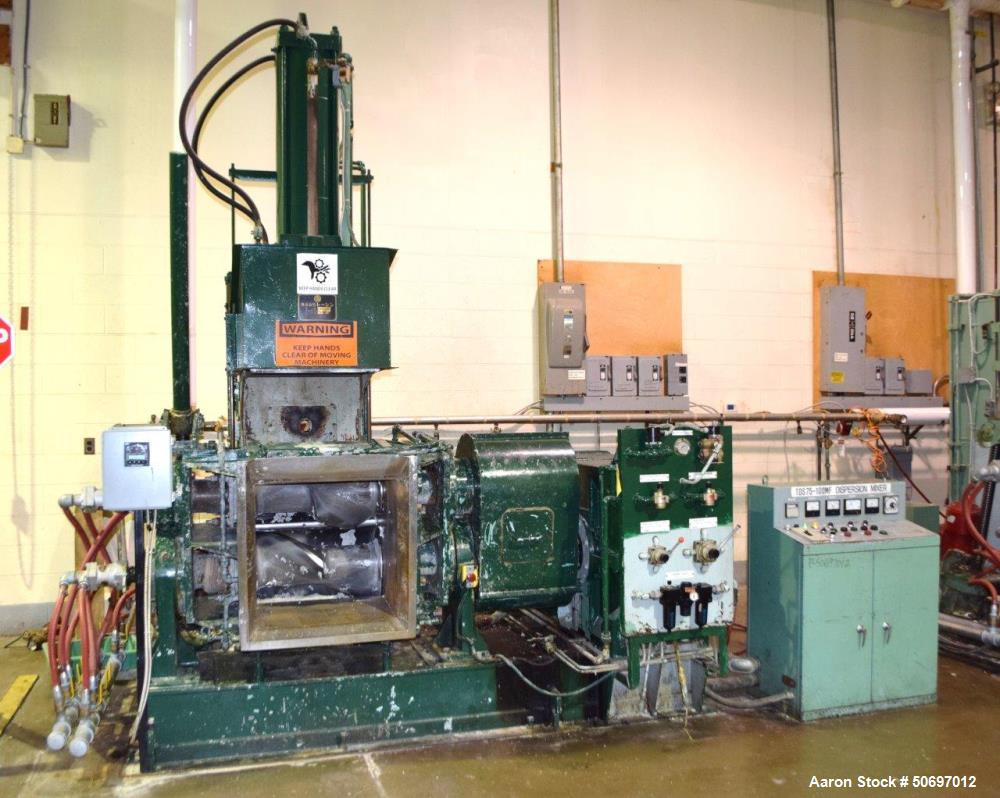

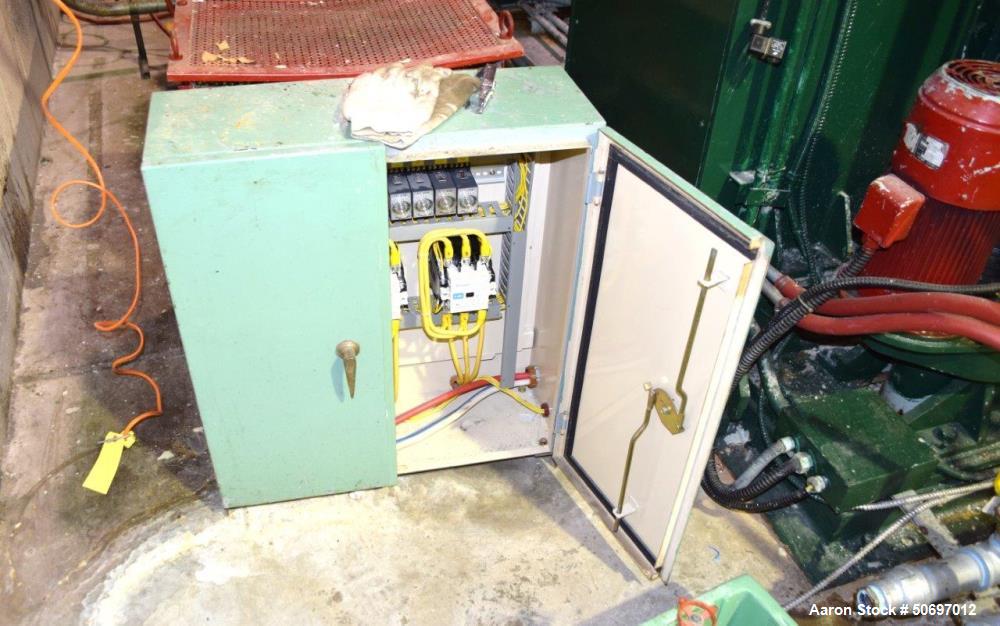

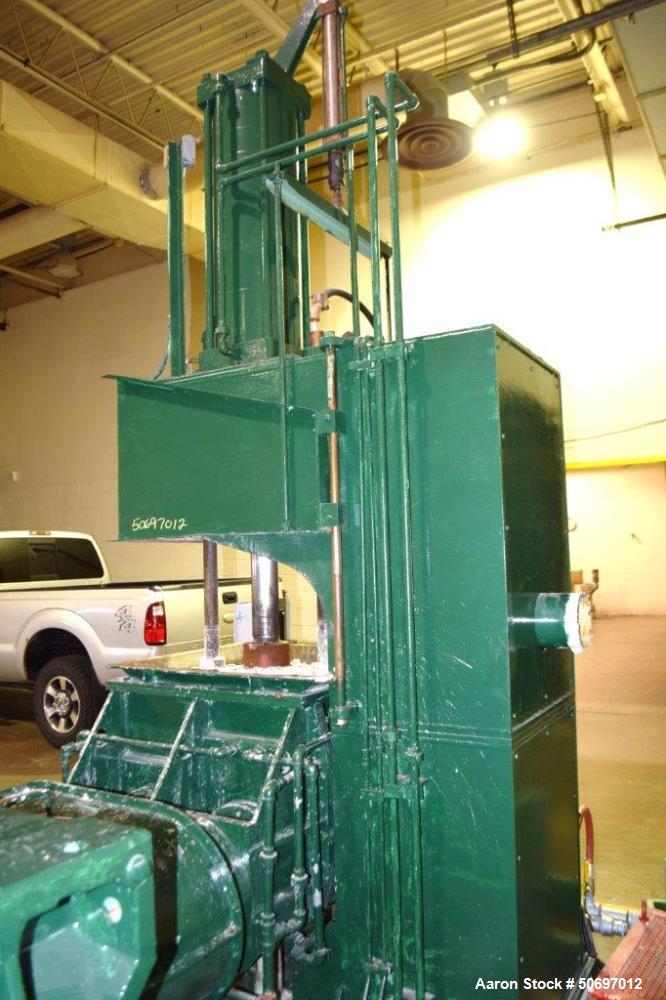

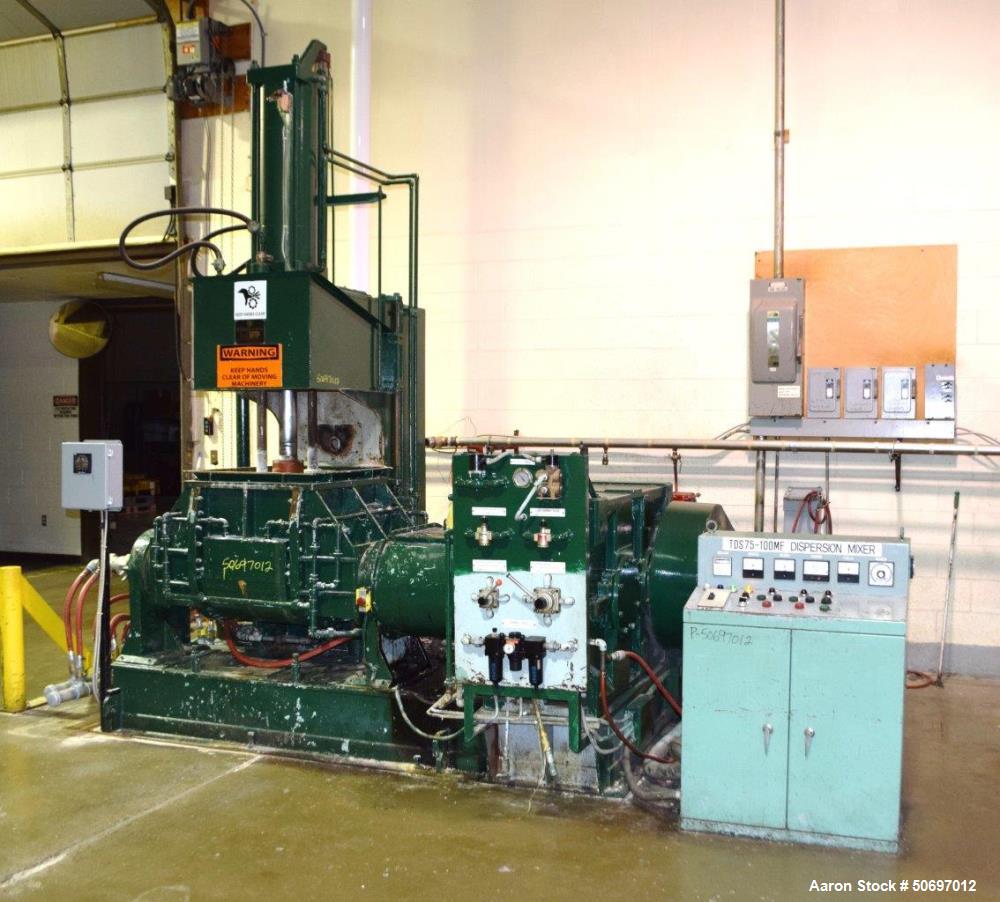

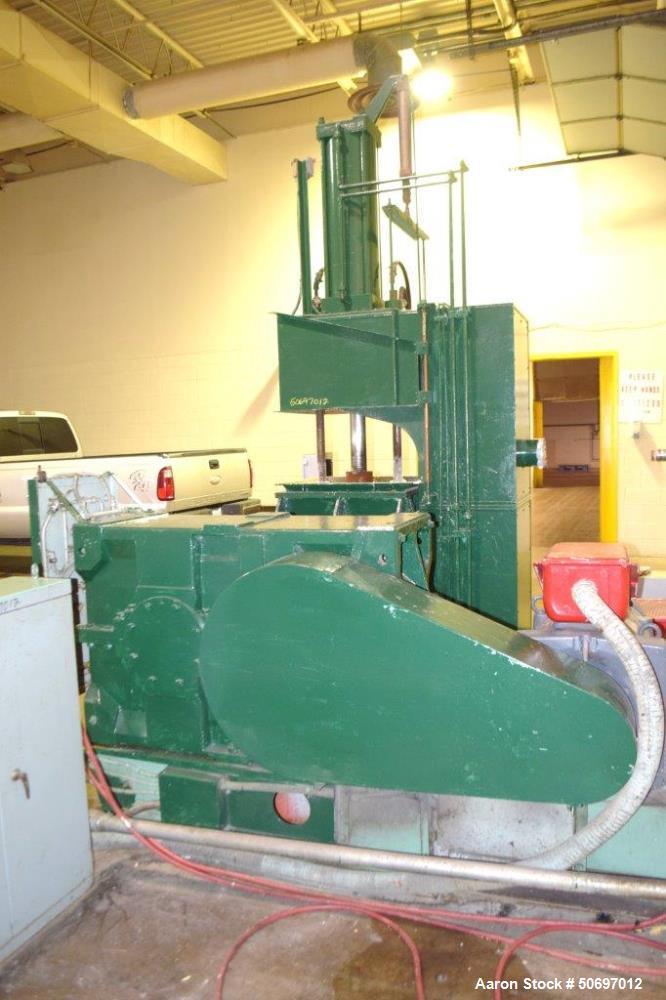

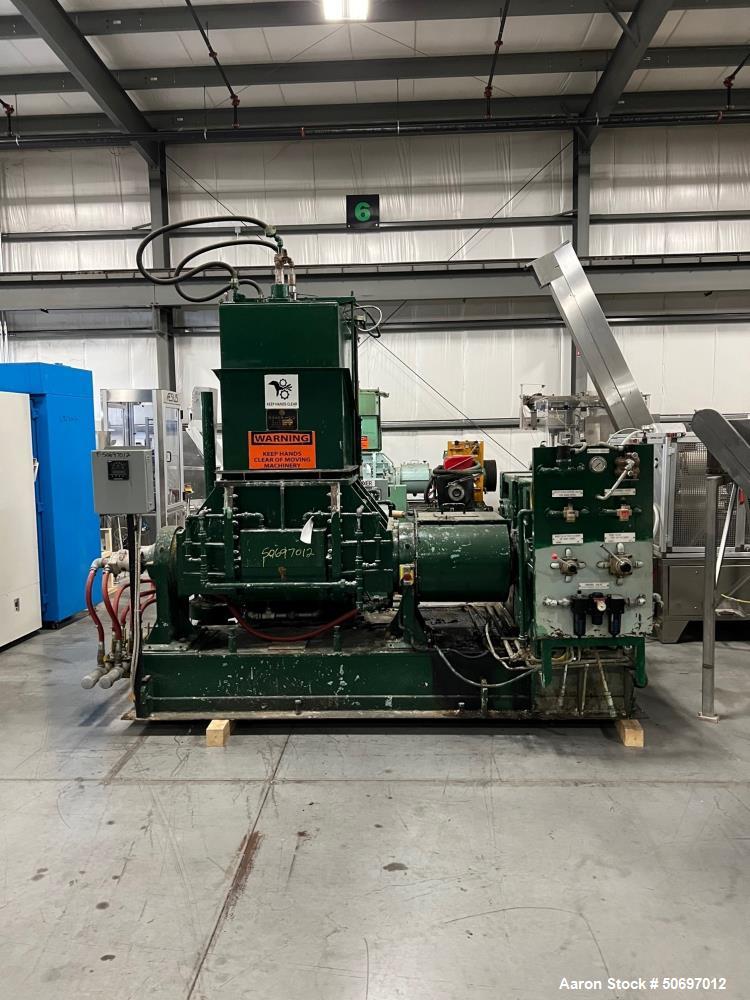

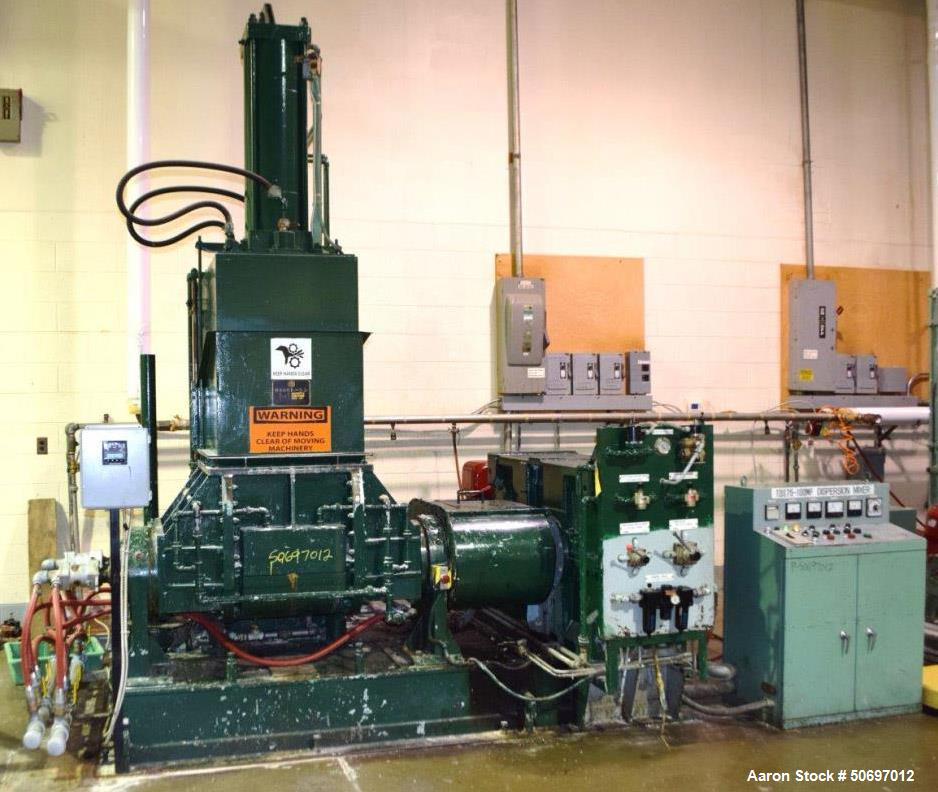

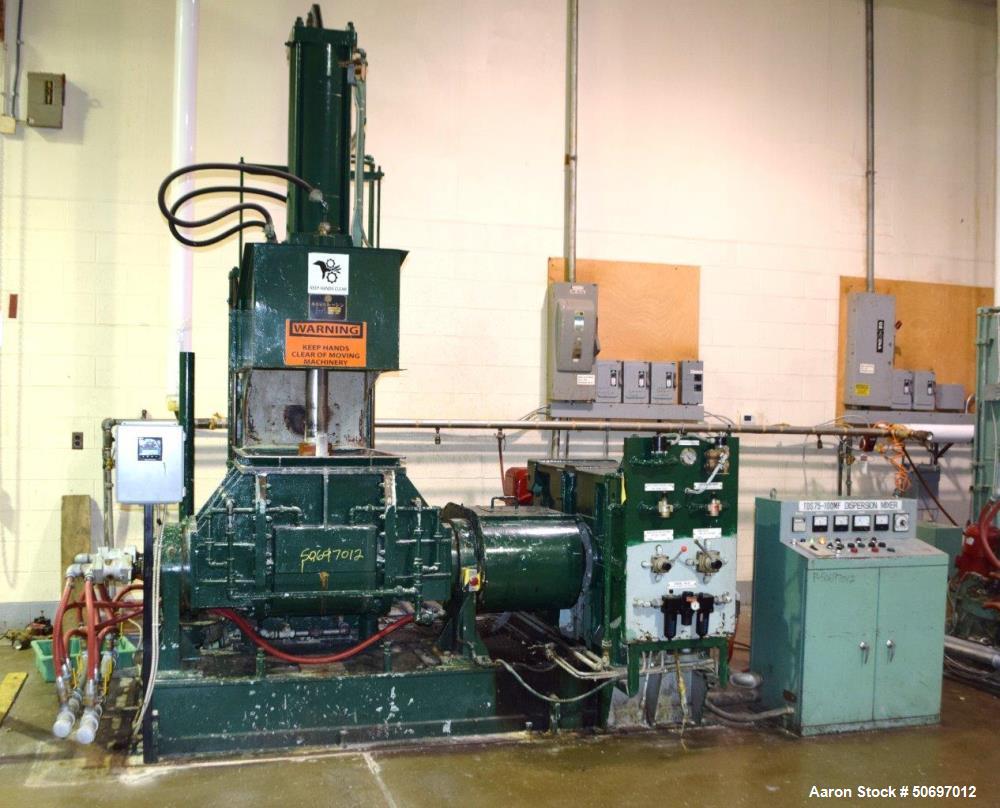

Used- Toshin Model TDS75-100MF Double Arm Dispersion Mixer, Stainless Steel. 75 Liter (19.8 gallon) working capacity, 150 liter (39.6 gallon) total. Jacketed bowl approximate 22" left to right x 23" front to back x approximately 20" deep rated 213 maximum psi at 302 degrees F. Cored masticator blades, front 27 rpm, rear 23 rpm, geared one end, top air operated pressure cap, air operated dust hood, motorized bowl screw tilt with a 2.2kw motor. Mixer driven by a 75 kw (100 hp), 3/60/480 volt, 1760 rpm motor thru a reducer ratio 20.272 to 1. Includes an operator panel and control panel. Mounted on a base. Serial # 1298. For Chewing Gum.
-
ManufacturerToshin
-
ModelTDS75-100MF
-

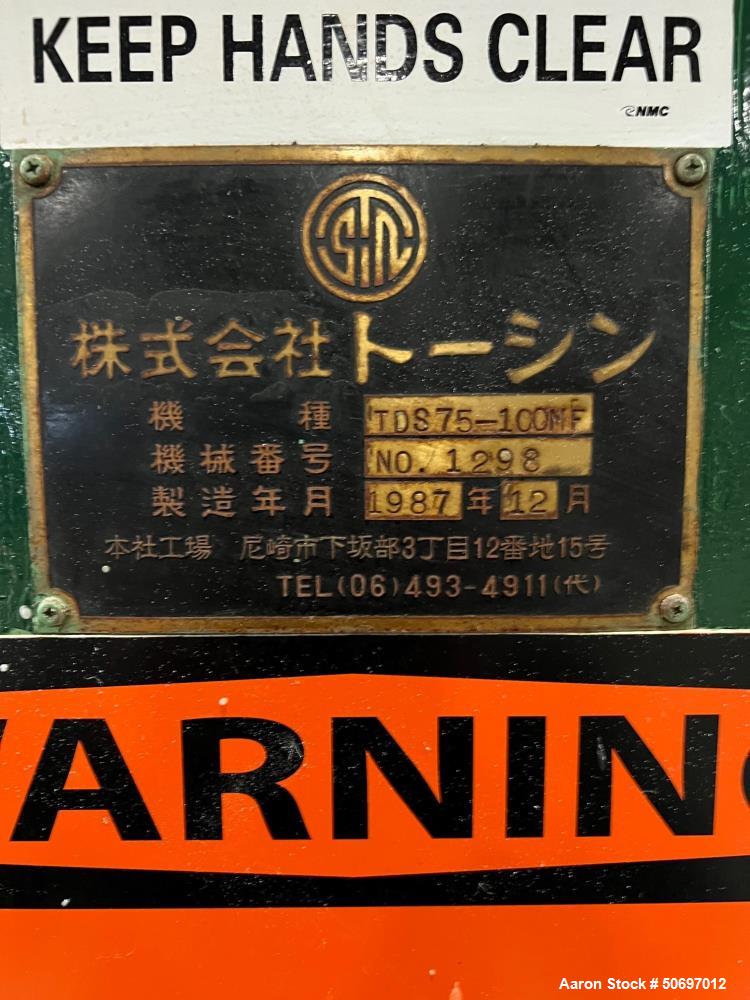

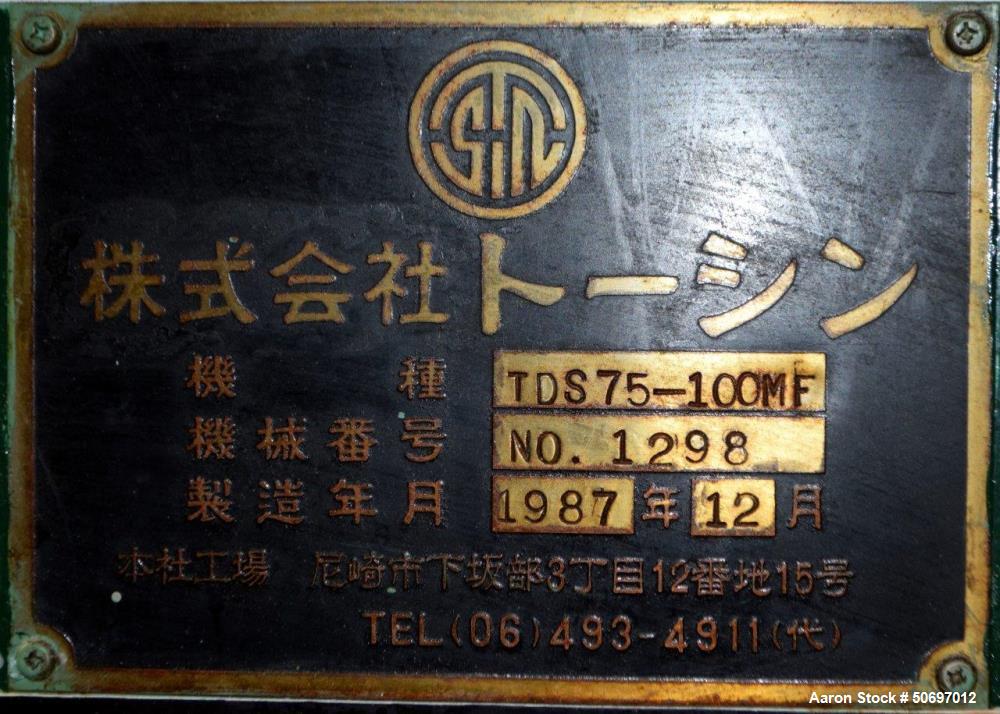

Serial #1298
-
CategoryMixers
-
SubcategoryDouble Arm Mixer
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information:
- Brand: Toshin
- Model: TDS75-100MF
- Type: Double Arm Dispersion Mixer
- Material: Stainless Steel
- Serial #: 1298
Description:
This used Toshin TDS75-100MF double arm dispersion mixer is a heavy-duty industrial mixing system, engineered for high-viscosity material blending, kneading, and dispersion in chemical, food, pharmaceutical, and industrial applications.
With a 75-liter (19.8-gallon) working capacity and a total capacity of 150 liters (39.6 gallons), this unit features a stainless steel jacketed bowl (22” L x 23” W x 20” D) rated for 213 PSI at 302°F, providing precise temperature control for heat-sensitive processes.

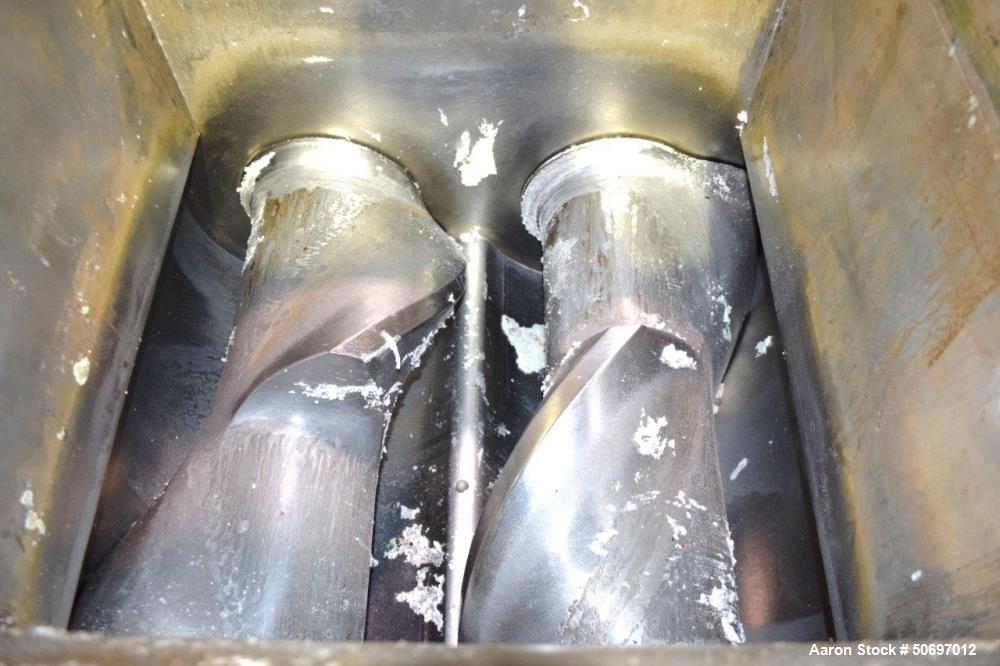

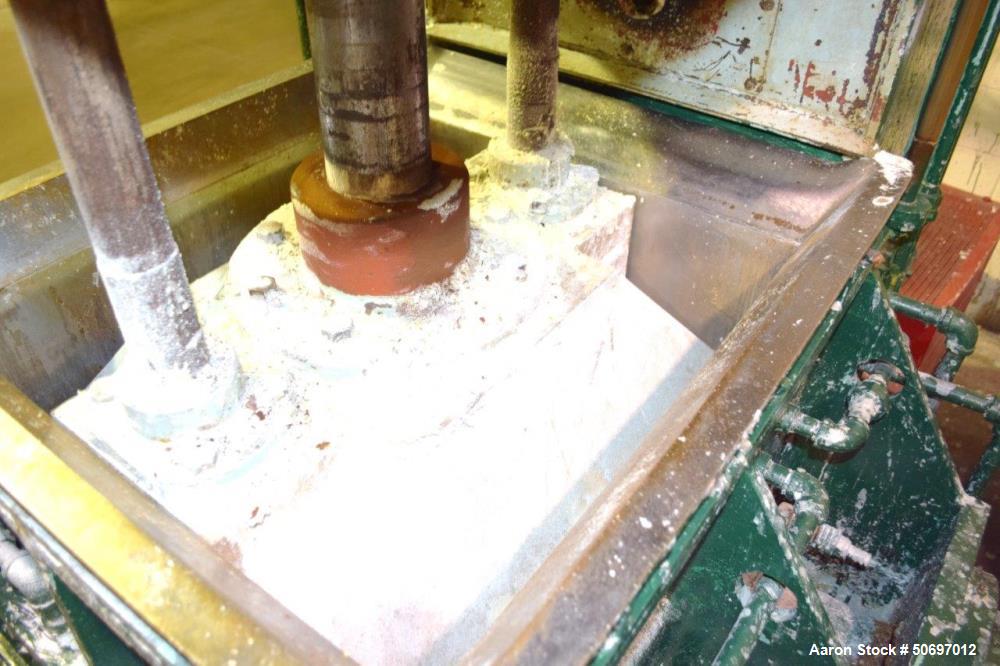

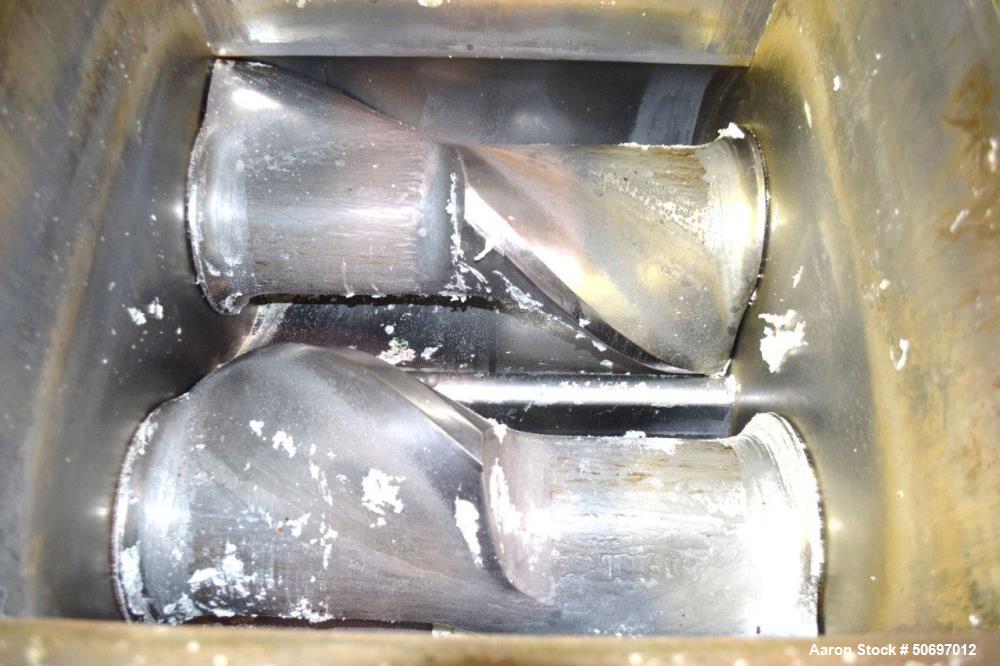

The cored masticator blades ensure high-efficiency mixing, with the front blade operating at 27 RPM and the rear blade at 23 RPM, both geared at one end. It is equipped with a top air-operated pressure cap and an air-operated dust hood, allowing for sealed and controlled processing.

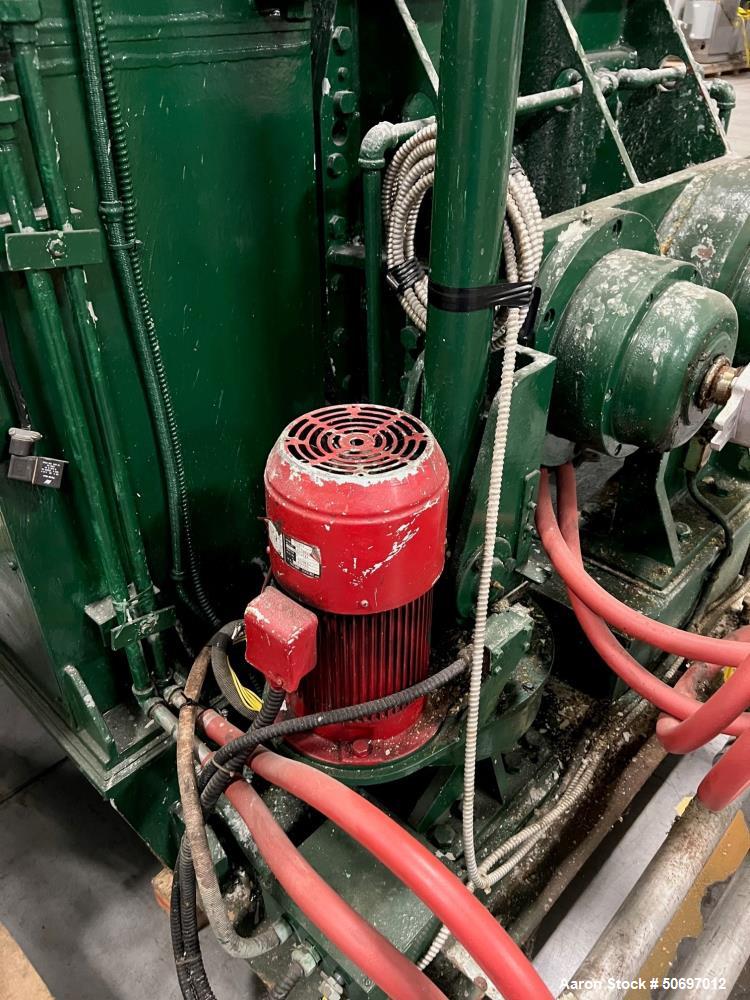

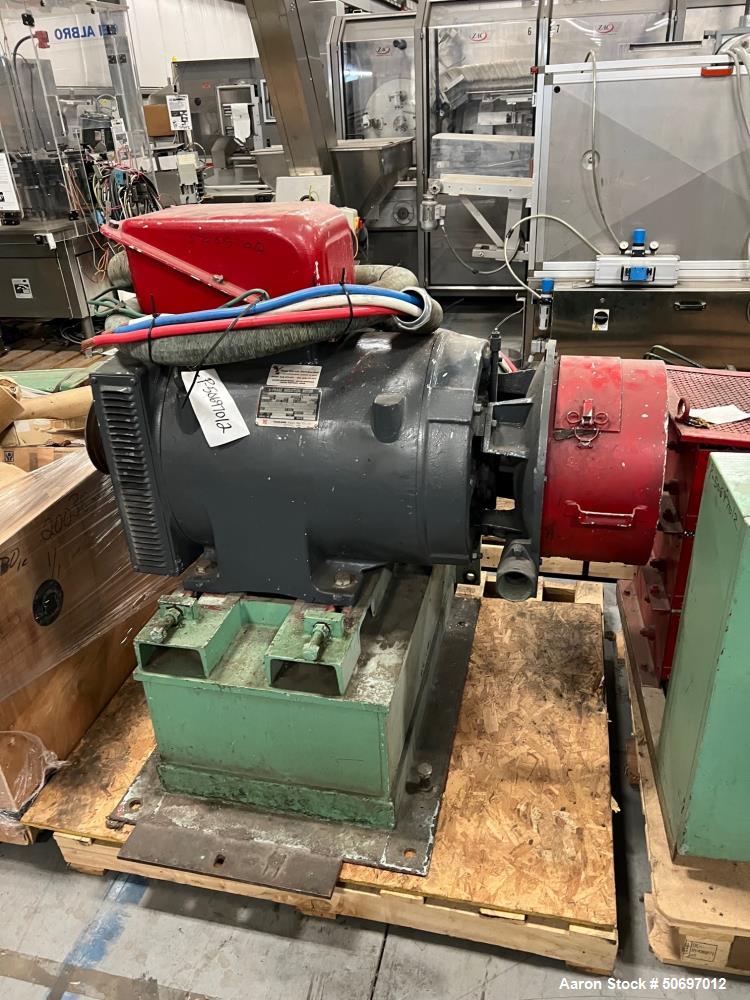

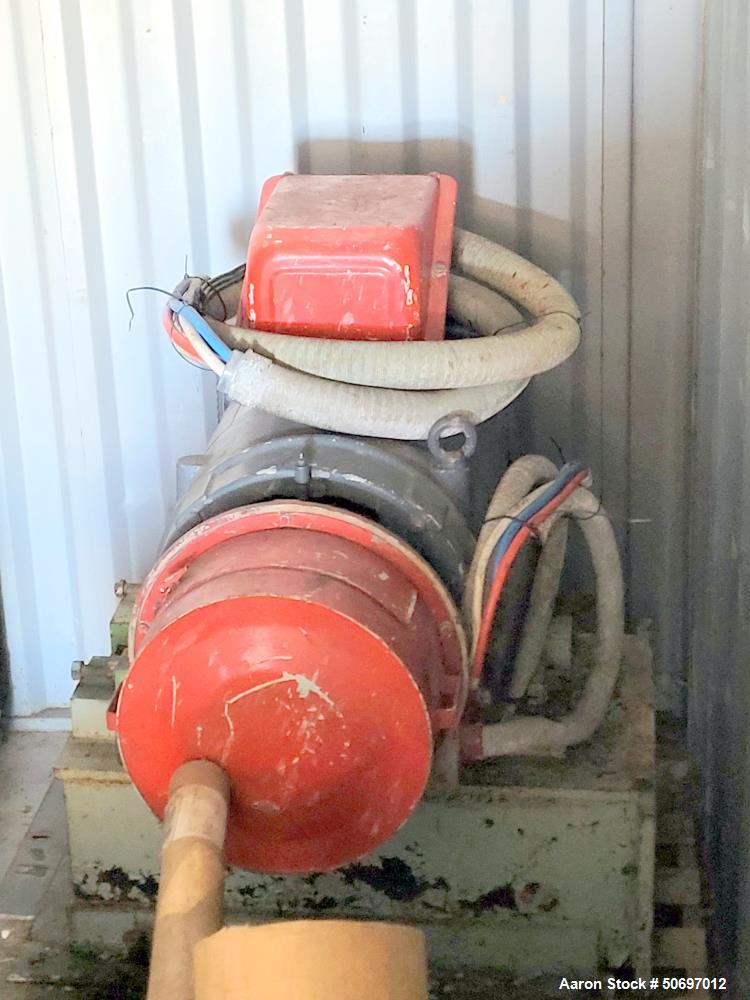

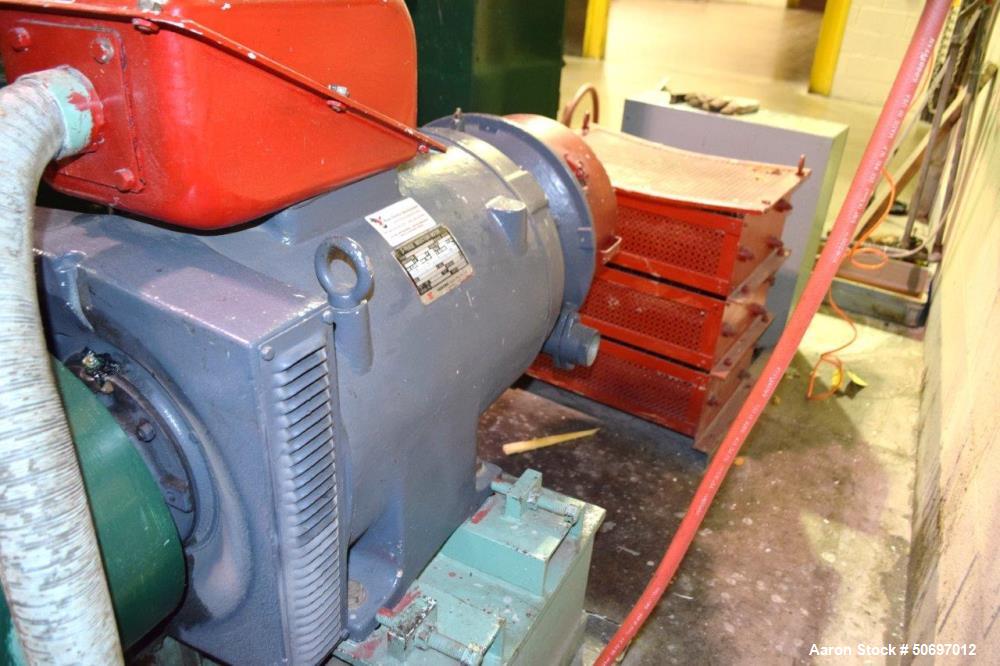

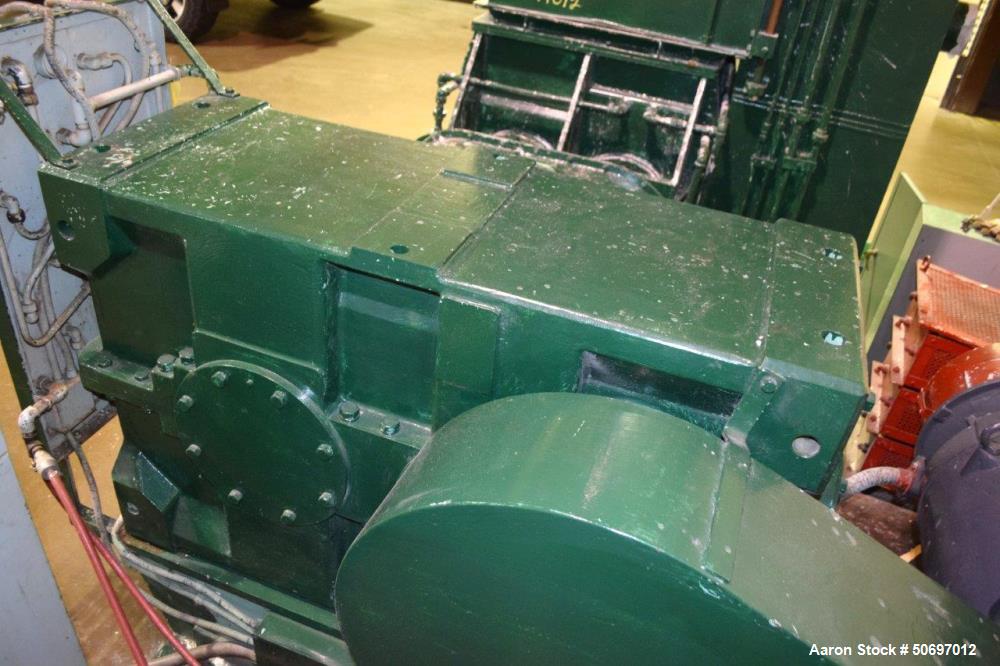

The mixer includes a motorized bowl screw tilt mechanism powered by a 2.2 kW motor, making it easy to discharge processed materials. Driven by a powerful 75 kW (100 HP), 3/60/480V motor at 1760 RPM, it operates through a reducer with a 20.272:1 ratio, ensuring high torque output for demanding applications.

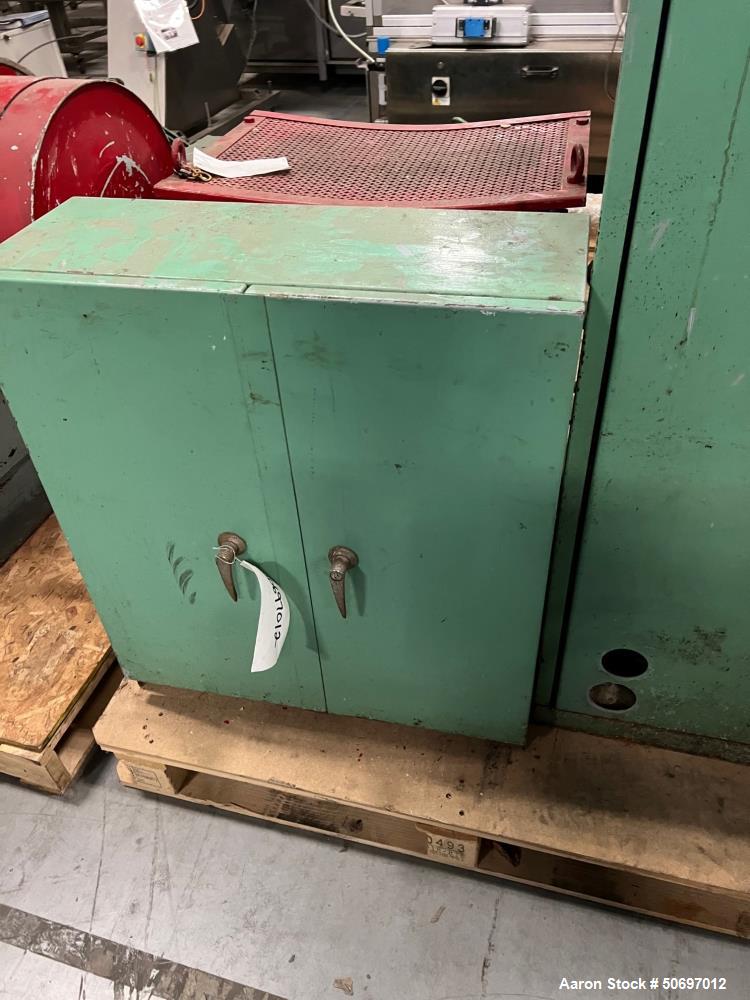

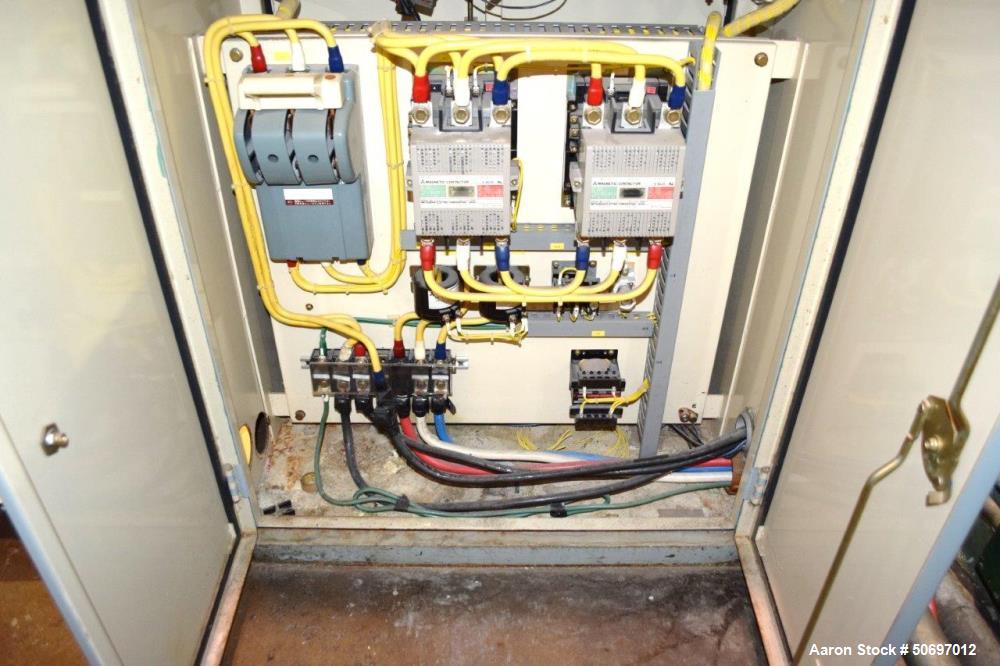

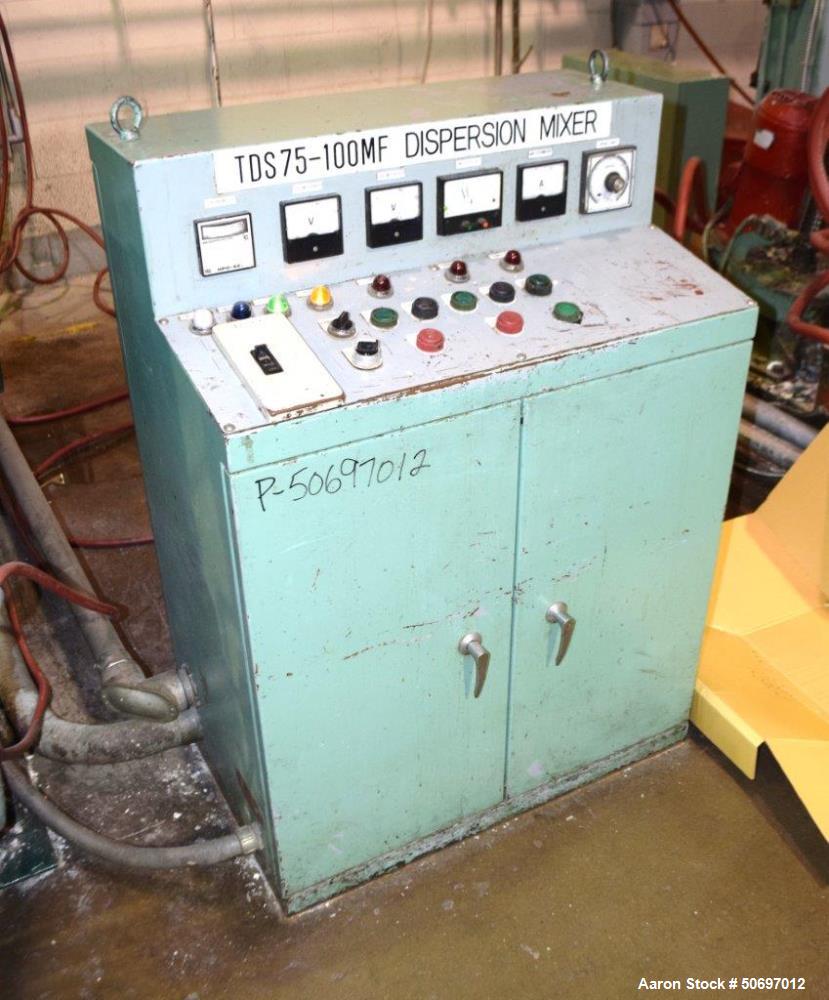

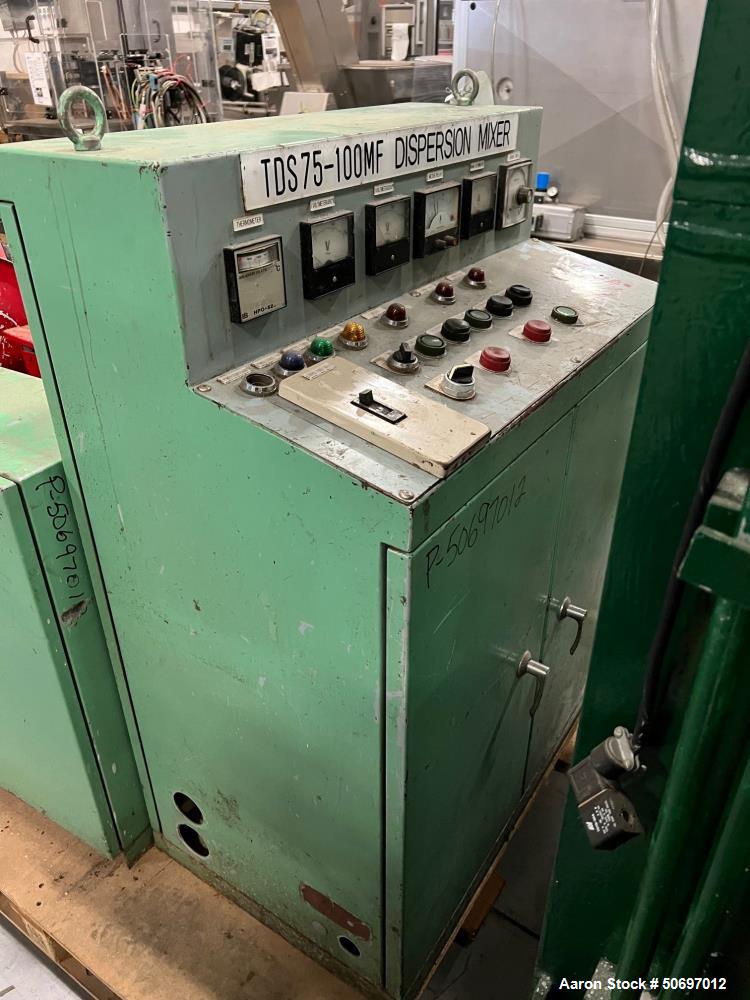

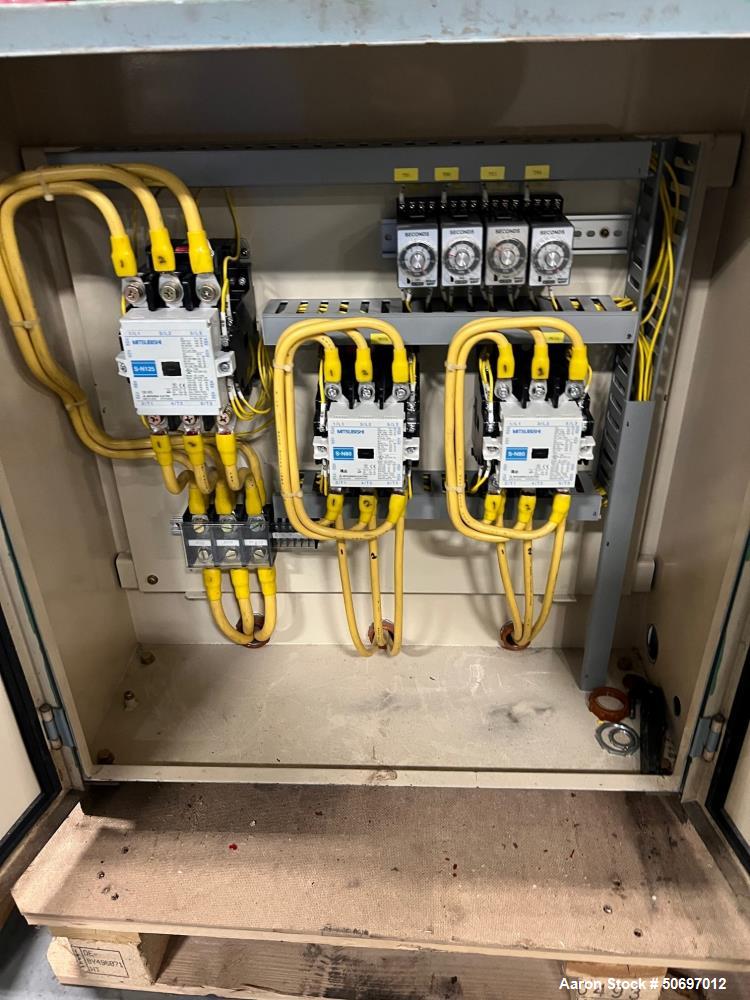

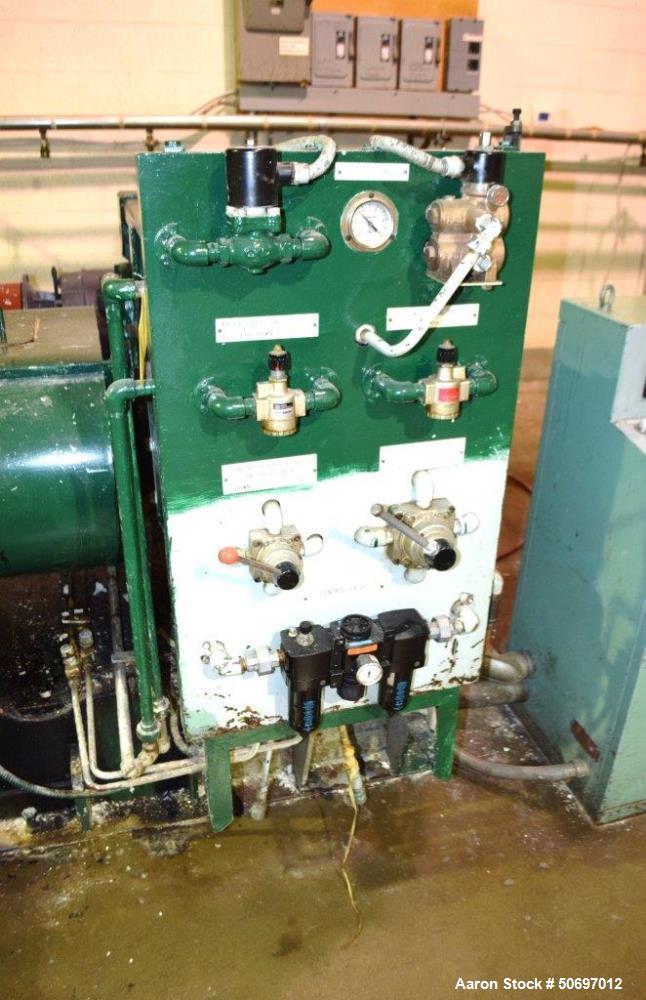

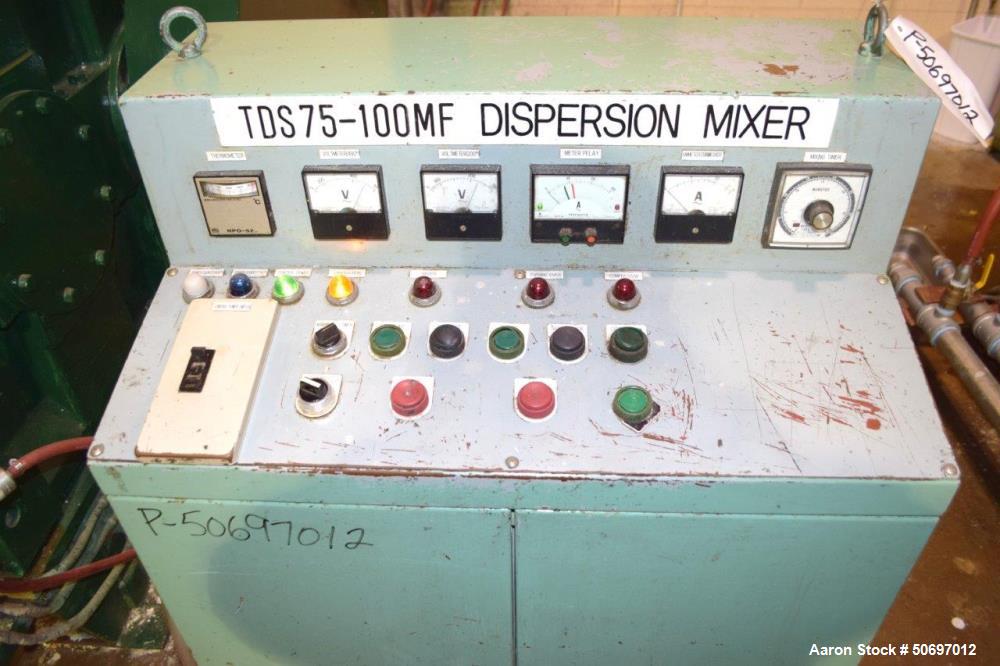

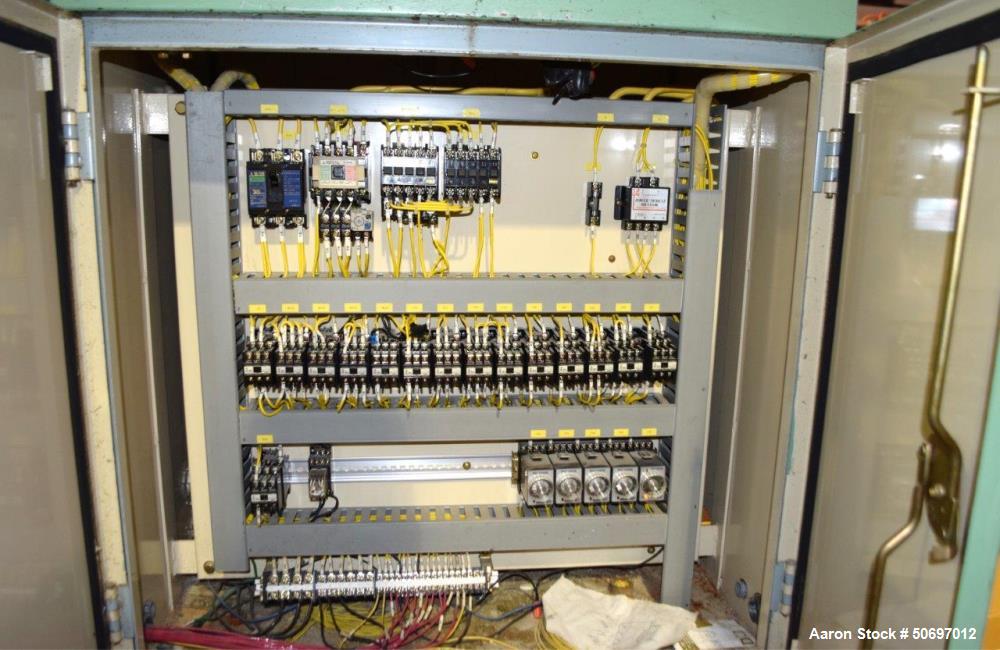

Additionally, the unit comes with a fully integrated operator panel and control panel, allowing for precise speed, pressure, and tilt control. The system is mounted on a stable base, ensuring durability and reliability in industrial environments.
Specifications:
- Model: TDS75-100MF
- Working Capacity: 75 Liters (19.8 Gallons)
- Total Capacity: 150 Liters (39.6 Gallons)
- Material: Stainless Steel
- Bowl Dimensions: 22” L x 23” W x 20” D (Jacketed)
- Jacket Rating: 213 PSI at 302°F

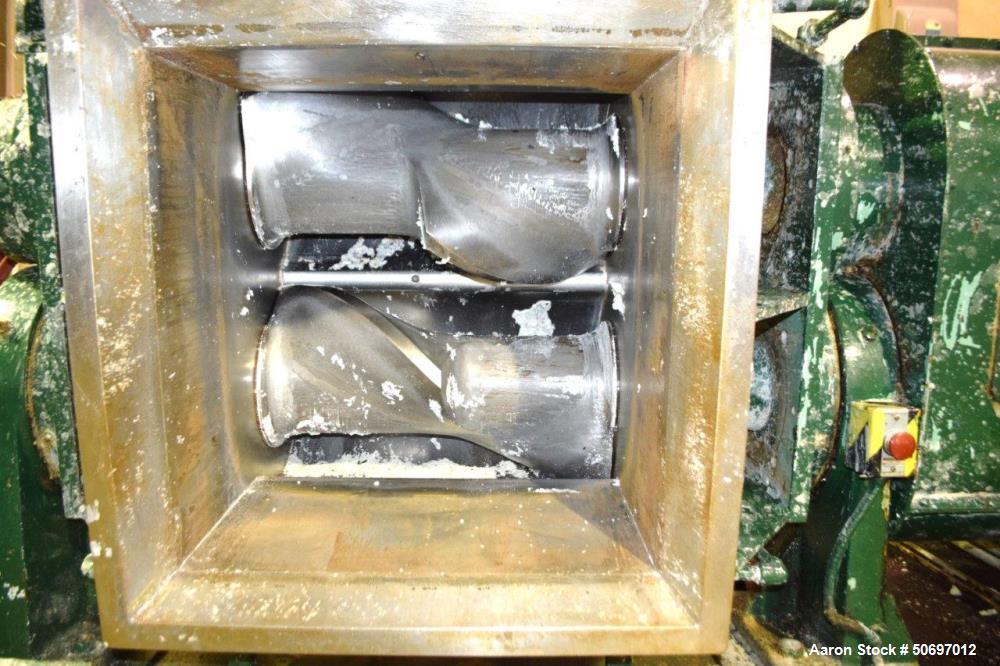

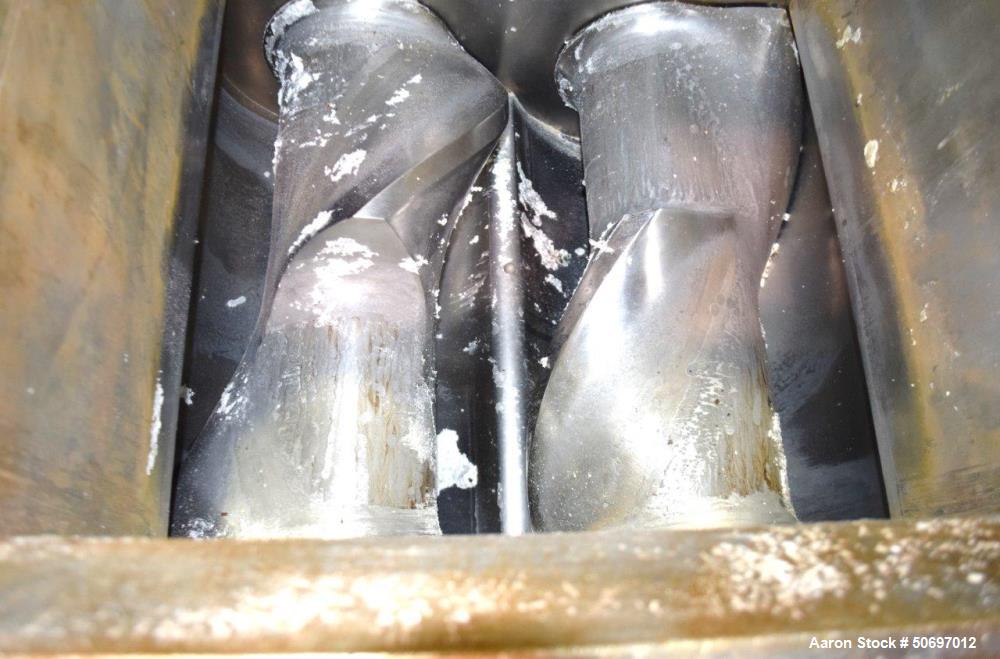

- Blades: Cored Masticator Blades
- Blade Speeds:
- Front Blade: 27 RPM
- Rear Blade: 23 RPM

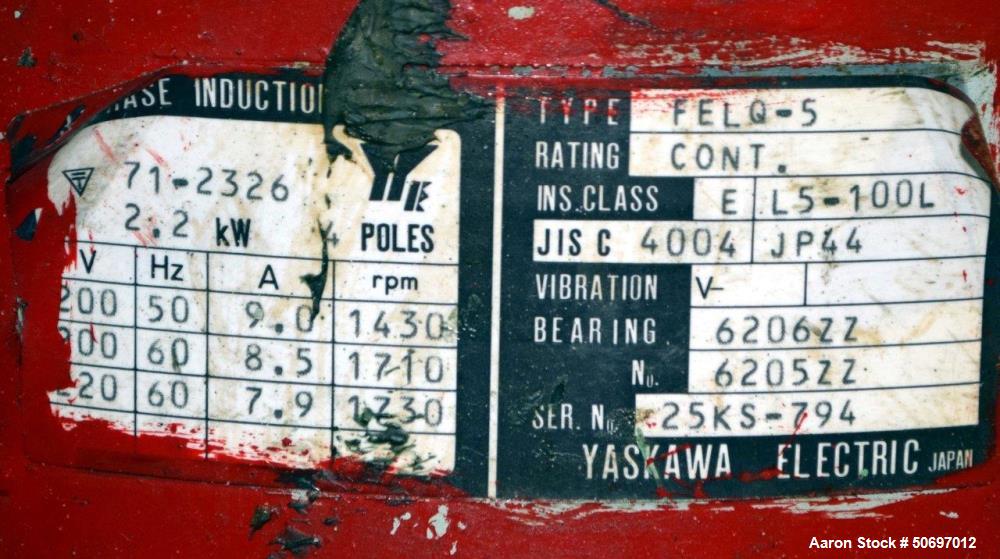

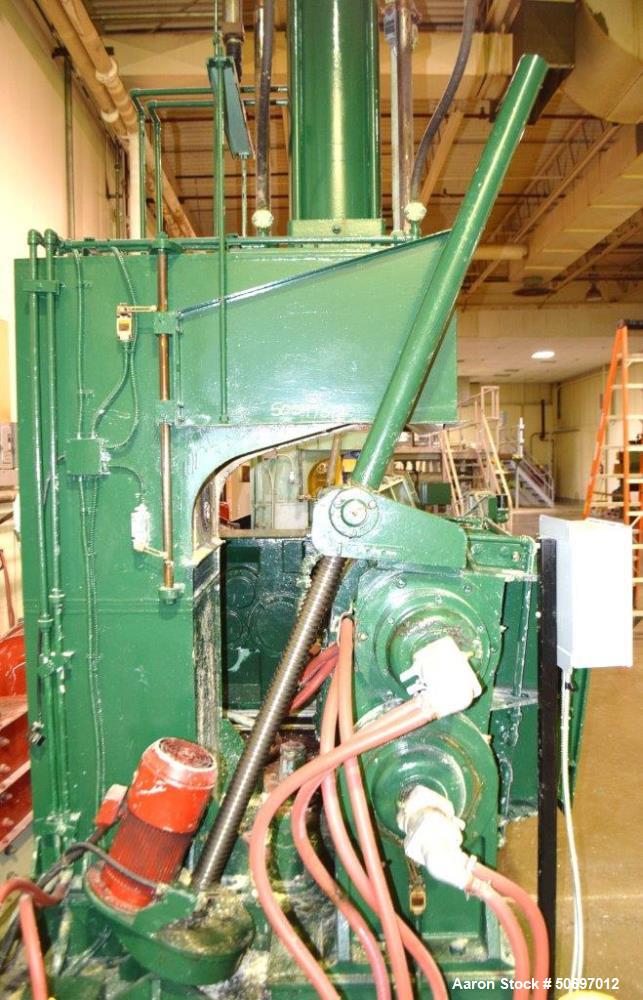

- Tilt Mechanism: Motorized Bowl Screw Tilt (2.2 kW Motor)
- Lid Features:

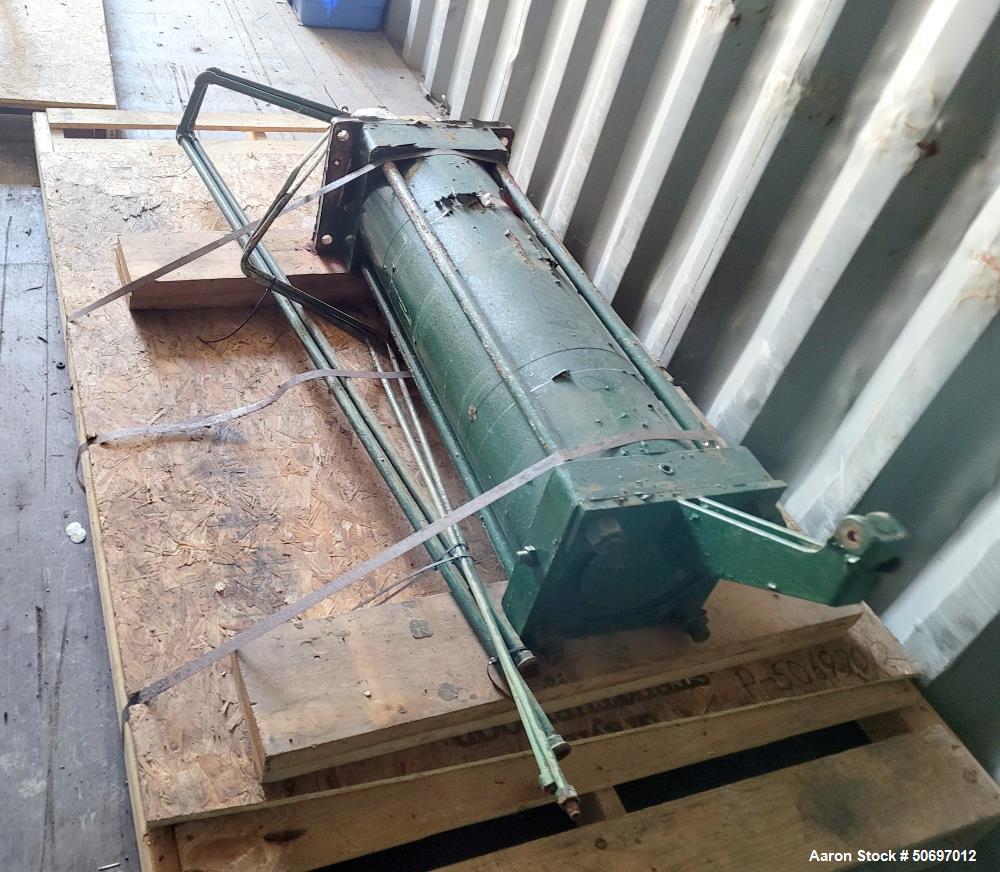

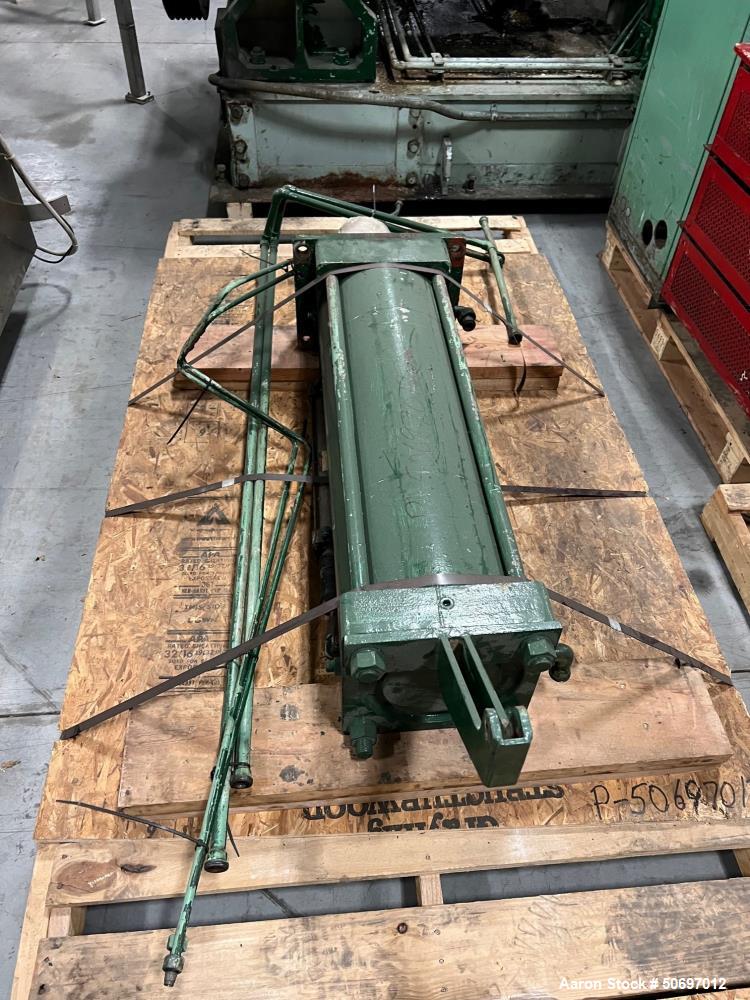

- Air-Operated Pressure Cap
- Air-Operated Dust Hood

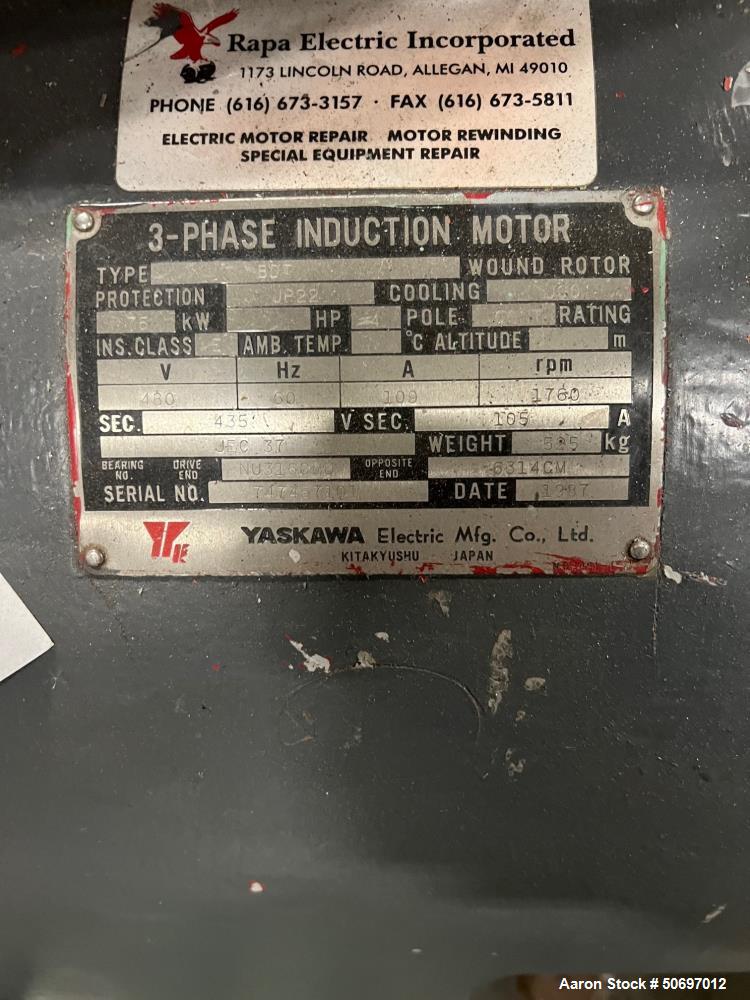

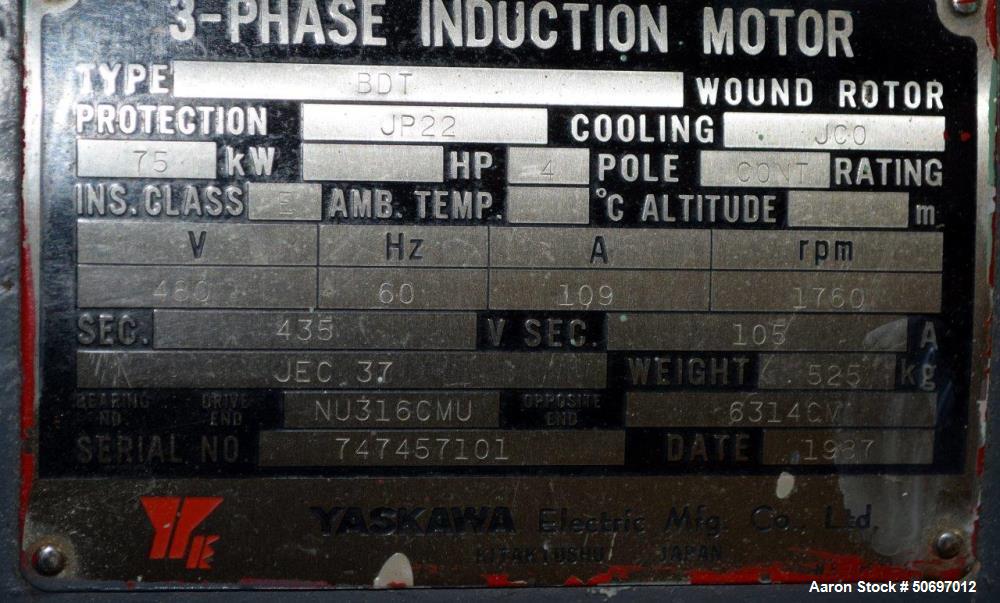

- Mixer Motor: 75 kW (100 HP), 3/60/480V, 1760 RPM

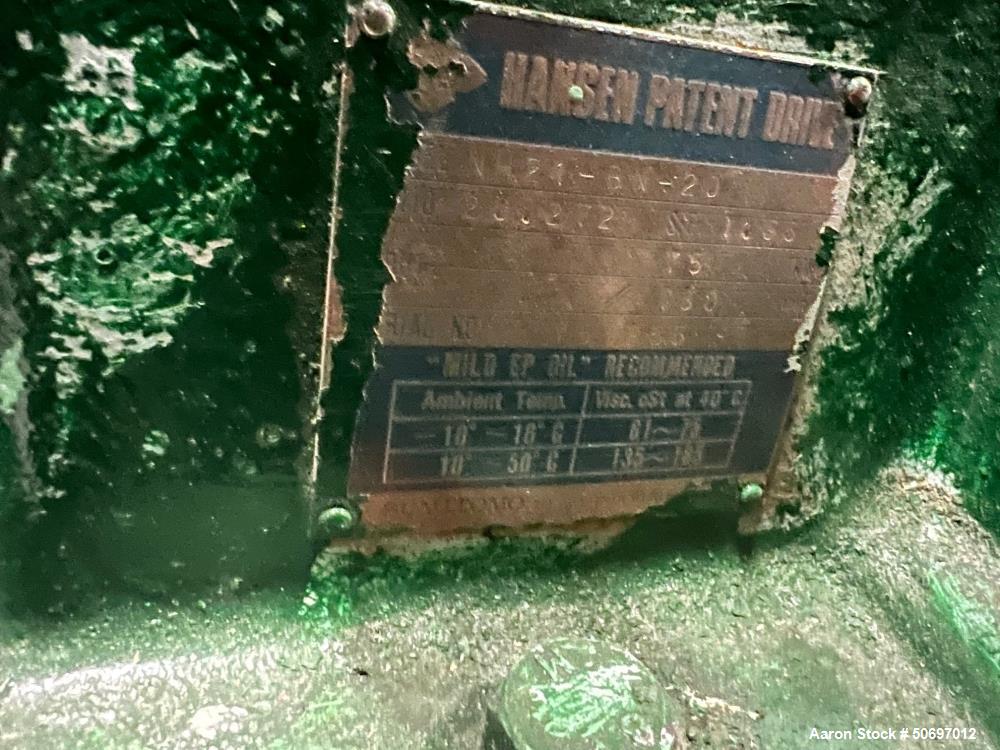

- Reducer Ratio: 20.272:1

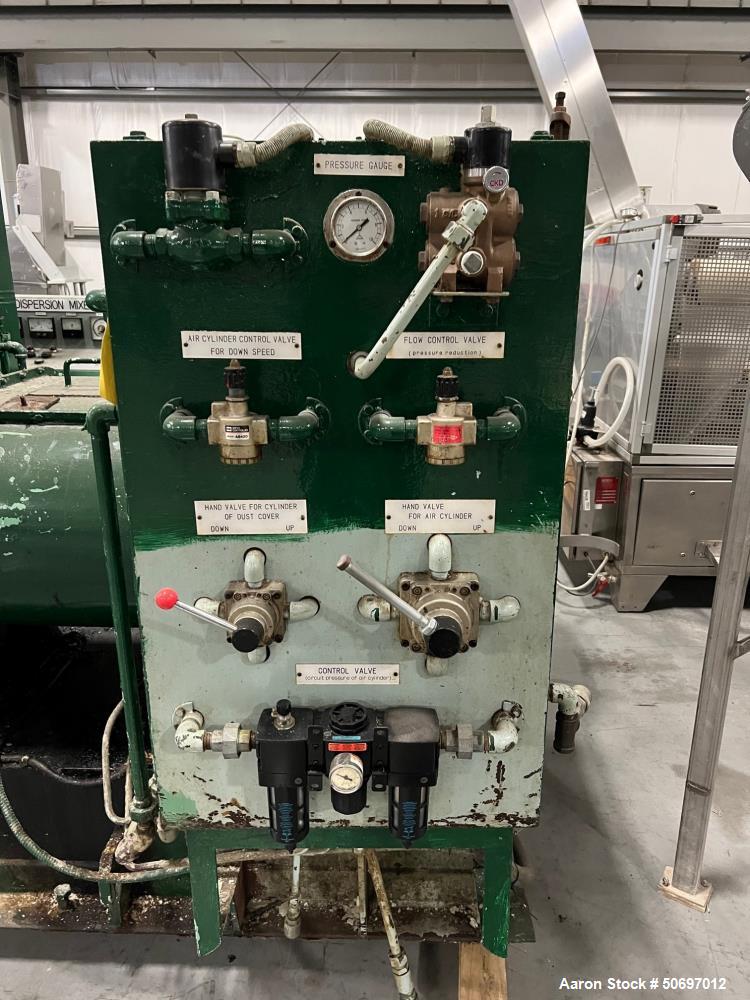

- Controls: Operator Panel & Control Panel
- Mounting: Base Mounted
- Serial #: 1298
Applications:
- Chemical Processing – High-viscosity adhesives, sealants, and coatings
- Food Processing – Thick pastes, doughs, and emulsions
- Pharmaceutical & Biotech – Creams, ointments, and high-density formulations
- Plastics & Polymers – Mixing of resins, putties, and composite materials
- Cosmetics & Personal Care – Skincare formulations, balms, and emulsions
What Products Would This Be Used For?
- High-viscosity adhesives, resins, and sealants
- Pharmaceutical creams, gels, and ointments
- Industrial coatings, pigments, and dispersions
- Confectionery pastes, doughs, and food emulsions
- Cosmetic lotions, balms, and personal care products
- Chewing Gum
