Used Littleford Day Mogul Double Arm Mixer – Model 100 – 100 Gallon – Jacketed – 75 HP – Vacuum Lid – Stainless Base

Manufacturer Info:

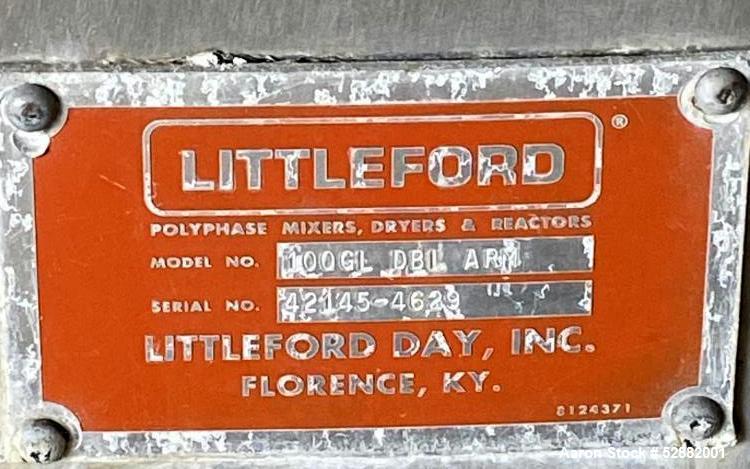

• Manufacturer: Littleford Day

• Model: 100 (Mogul Double Arm Mixer)

• Serial Number: 42145-4629

• Condition: Used

• Construction: 304 Stainless Steel (product contact areas)

• Mounting: On stainless steel base

Description:

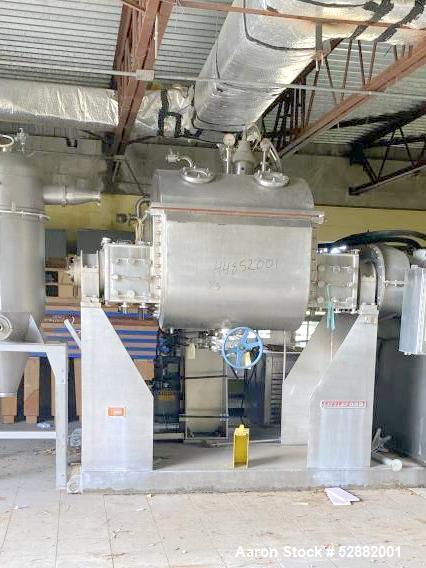

This Used Littleford Day Sanitary Mogul Double Arm Mixer, model 100, features a 100-gallon working capacity (150-gallon total) and is designed for high-viscosity mixing under sanitary conditions. Built with 304 stainless steel product contact surfaces, the mixer is equipped with cored masticator blades (geared one end) and a hydraulically operated domed vacuum-rated top cover, making it ideal for pharmaceutical, food, cosmetic, and chemical applications.

The jacketed bowl measures 40" left to right x 42" front to back x 21" deep, and is rated for 125 psi @ 353°F, enabling precise thermal control during mixing. The blades rotate at approx. 41 rpm (front) and 27 rpm (rear), powered by a 75 HP motor through a Foote-Jones reducer (40:1 ratio). Additional features include dual 6" bottom outlets, sanitary stuffing boxes, a stainless control panel, and a Torit stainless steel dust collector.

Specifications:

• Model: 100 (Mogul Double Arm Mixer)

• Working Capacity: 100 gallons

• Total Capacity: 150 gallons

• Bowl Dimensions: 40" (L) x 42" (W) x 21" (D)

• Jacket Rating: 125 psi @ 353°F

• Construction: 304 stainless steel (product contact)

• Mixing Blades: Cored masticator (geared one end)

• Blade Speeds:

  • Front: ~41 RPM

  • Rear: ~27 RPM

• Discharge: (2) 6" diameter bottom outlets

• Top Cover: Hydraulically operated domed lid, vacuum-rated

• Drive Motor:

  • 75 HP

  • 3 Phase / 60 Hz

  • 208–230/460V

  • 1780 RPM

• Gear Reducer: Foote-Jones, 40:1 ratio

• Stuffing Boxes: Sanitary split type

• Includes:

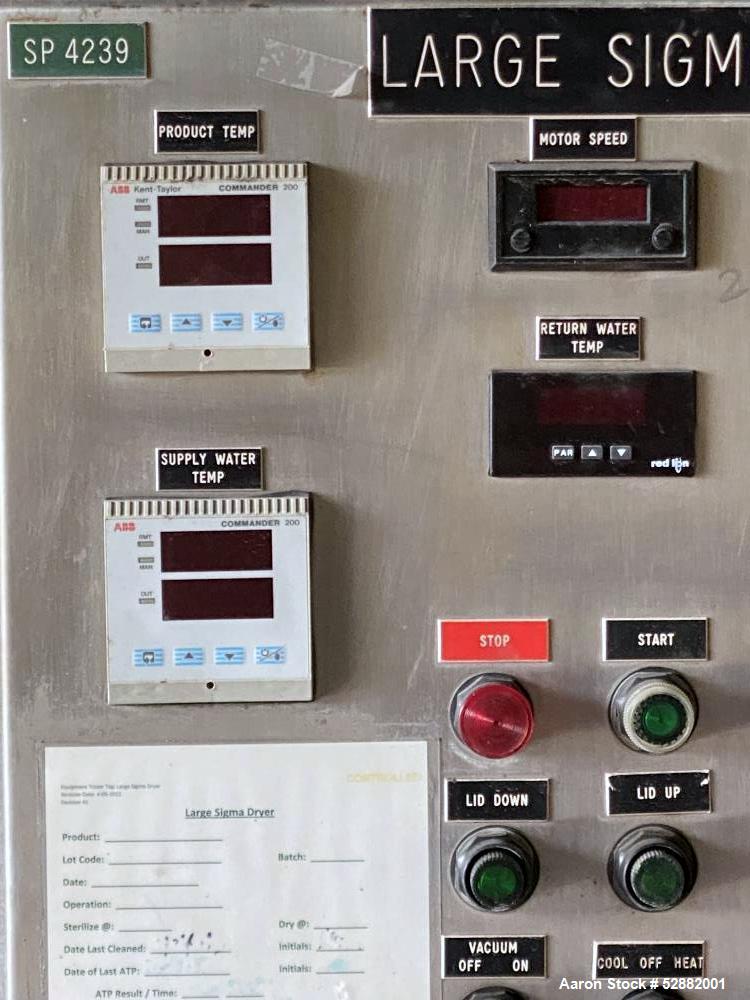

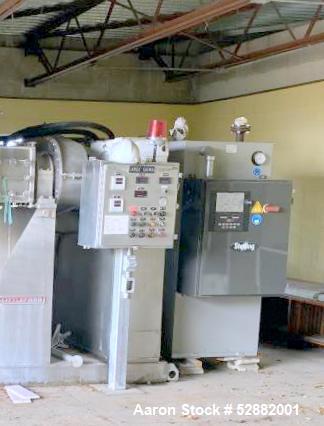

  • Stainless steel control panel

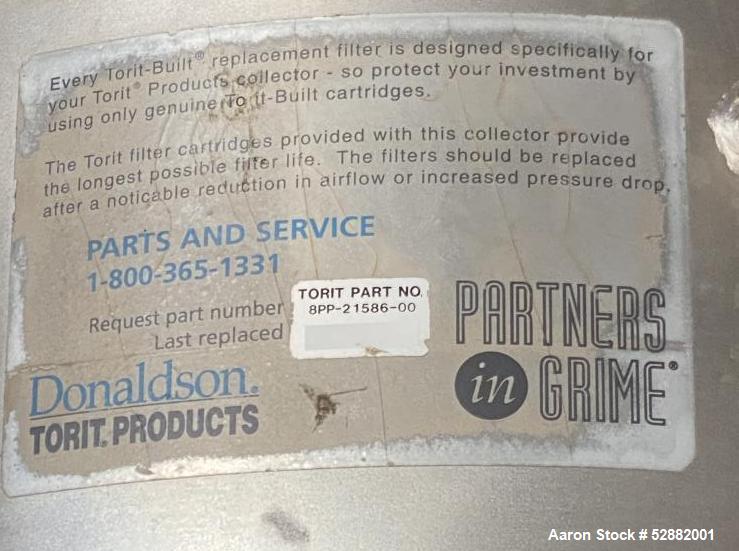

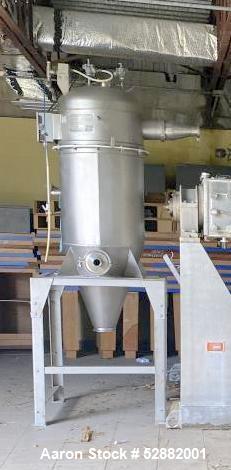

  • Torit stainless steel dust collector

• Mounting Base: Stainless steel

• Serial Number: 42145-4629

• Condition: Used

Applications:

• High-viscosity food products (chews, pastes, confections)

• Pharmaceutical wet mass mixing

• Cosmetic creams, ointments, gels

• Polymer compounding or sealant production

• Adhesives, mastics, and putties

• Pigmented material blending

• Hot melt or thermoplastic processing

• Vacuum and pressure-sensitive formulations

• Deaeration and dispersion under vacuum

• Pilot and production-scale mixing under sanitary conditions

What might this be used for?:

This mixer is ideal for processors of thick, cohesive materials in regulated industries where sanitation, jacketed heating/cooling, and vacuum capabilities are critical. Its robust dual-arm design, high-power drive, and domed vacuum lid make it suitable for demanding operations in pharmaceutical, food, cosmetic, and chemical applications requiring precise control and reliable output.
