Stock No.: 53147081

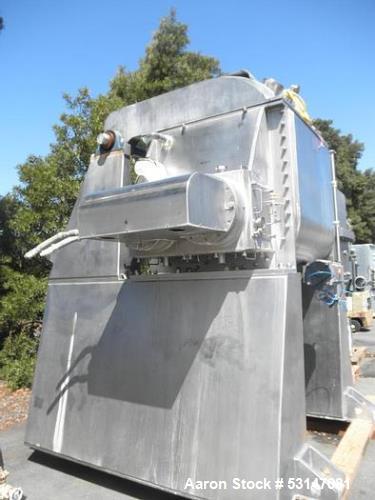

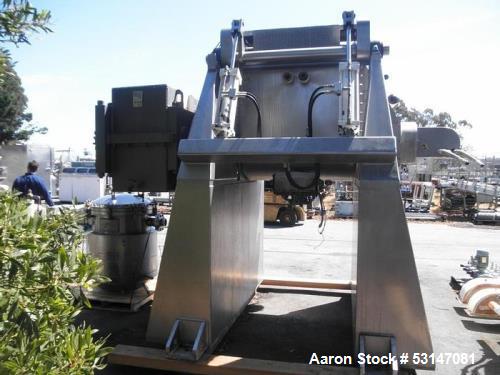

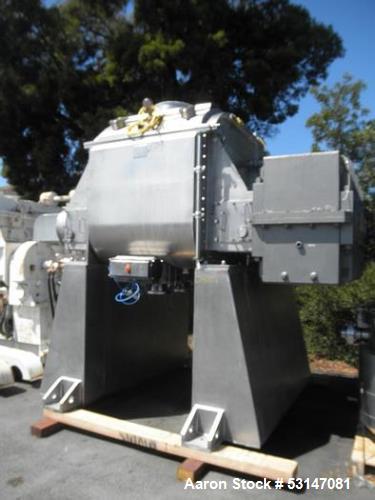

Used Aaron Process 200 Gallon (26.74 cubic feet) capacity Vacuum Drying Sigma Mixer – All Stainless, 125 HP, Jacketed, ASME

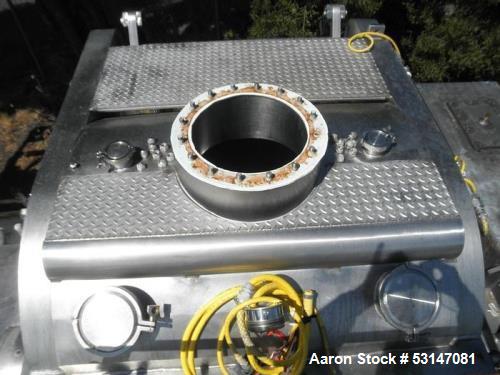

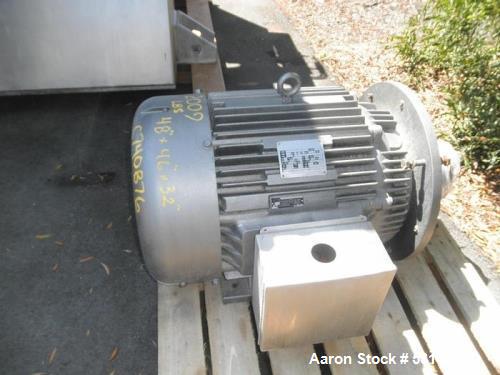

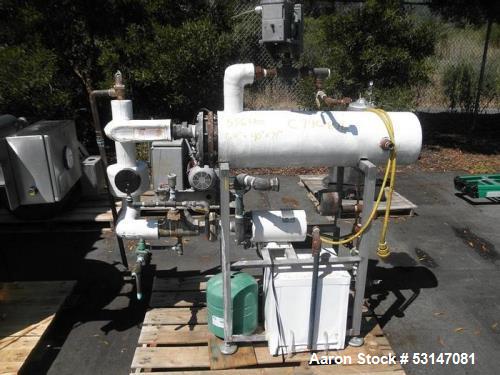

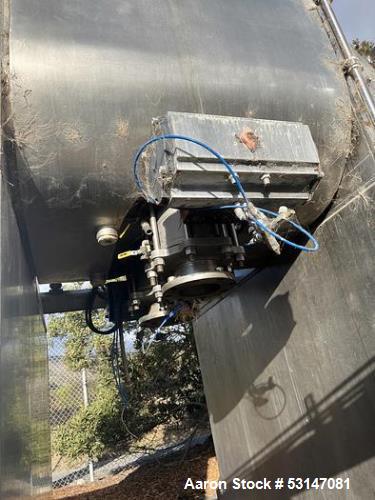

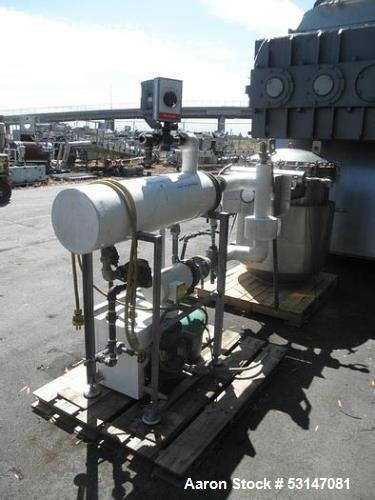

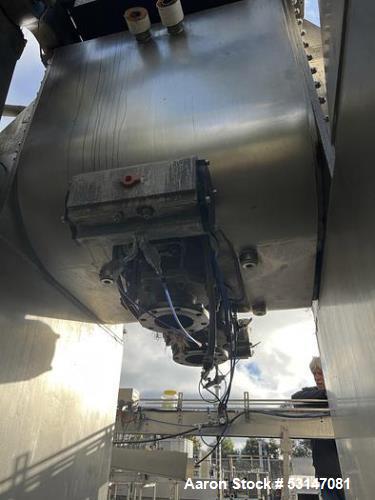

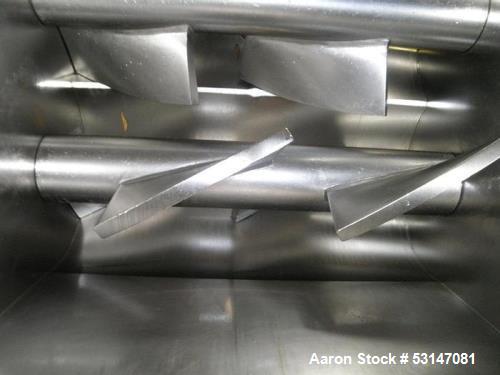

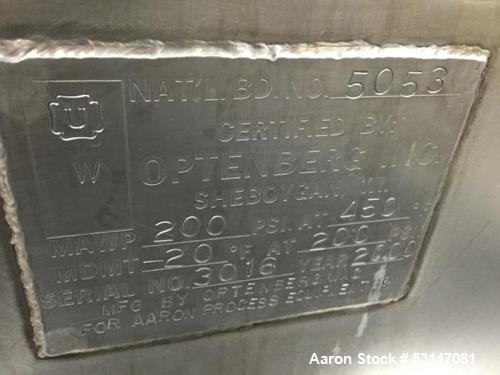

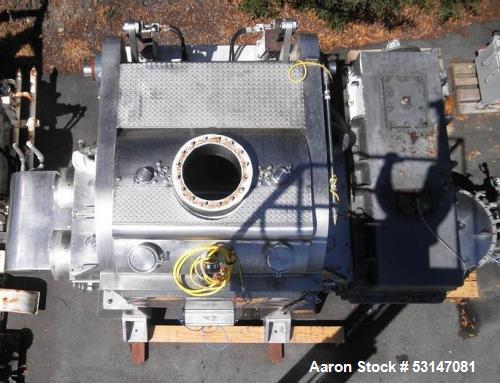

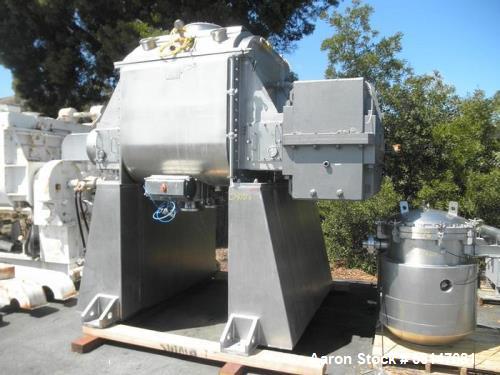

Used Aaron Process 200 Gallon (26.74 cubic feet) capacity Vacuum Drying Sigma Mixer All Stainless, 125 HP, Jacketed, ASME. Cored shafts, jacketed trough, and double nobben blades. Model MBG200-125 All stainless steel construction. All parts are insulated and sheathed with 304 Stainless steel and polished to 150 - 180 grit finish. Mixing/drying chamber includes vacuum cover and is jacketed, rated for 200 PSI at 450 degrees Fahrenheit / negative 20 degrees Fahrenheit, ASME code constructed. Mixing chamber measures 48" x 40" x 44" deep and includes (2) 6" diameter flanged discharges with ball valves. Blades are overlapping double nobben blades and driven by 125 HP motor thru heavy duty gearbox, 160 Amps and 460 volts. Manufactured in 2000. Serial number 00200125643MBG. Previously used in clean room type environment. Complete with control panel and unitized on heavy duty frame. Includes main control panel, power panel with starters and VFD's, steam-to-water heat exchanger for heating of jacket and hydraulic pump/reservoir for opening vessel lid. Also includes top mounted, stainless steel Mikro Pulsaire dust collector, Model 10-2-FV TR.
-
ManufacturerAaron Process
-
ModelMBG200-125
-
Serial #00200125643MBG
-
CategoryMixers
-
SubcategoryDouble Arm Mixer
Used equipment facts about this machine
Manufacturer Information
🔹 Manufacturer:
Aaron Process Equipment Company
A trusted name in industrial mixing and drying systems for high-performance applications in food, chemical, and pharmaceutical industries.
🔹 Description:
This Used Aaron Process MBG200-125 Vacuum Drying Sigma Mixer features a 200-gallon (26.74 cubic foot) capacity with all-stainless steel construction and a heavy-duty double nobben blade design for efficient mixing and drying of viscous or powder materials.
The mixer includes a jacketed and insulated trough, cored shafts, and a vacuum-rated cover, making it ideal for thermal drying under vacuum in a clean room-grade environment. The system is ASME code constructed and rated to 200 PSI at 450°F and -20°F. It includes a 125 HP motor, VFDs, control panels, and a top-mounted stainless Mikro Pulsaire dust collector.
🔹 Specifications:
-
Model: MBG200-125
-
Capacity: 200 Gallons (26.74 cu. ft.)
-
Construction: All parts stainless steel; sheathed/insulated in 304 SS
-
Finish: 150–180 grit polish
-

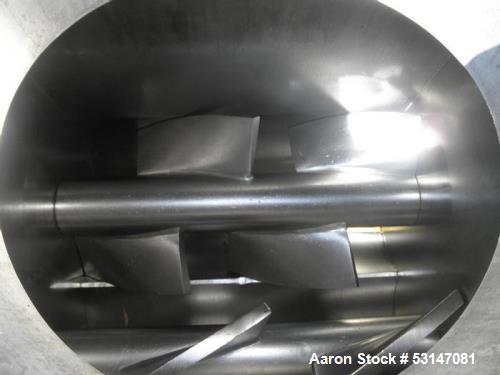

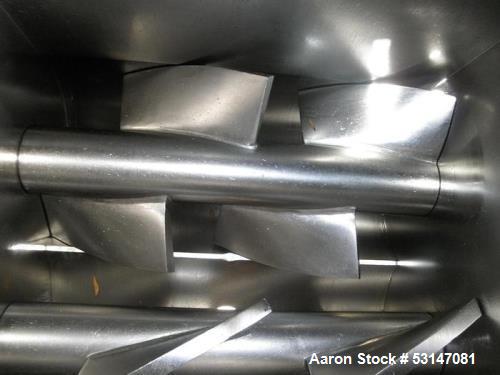

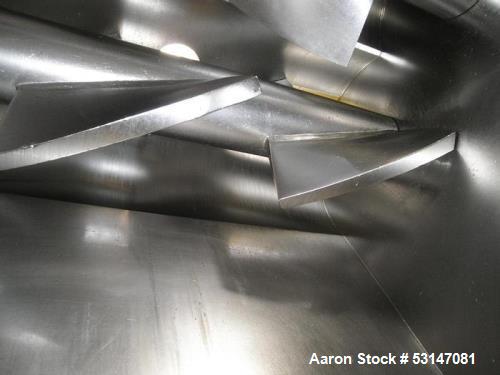

Blades: Overlapping double nobben
-
Shafts: Cored, jacketed trough
-

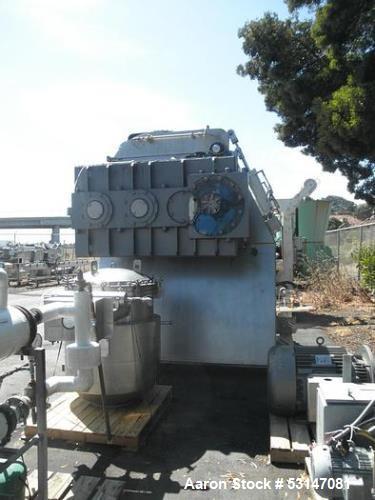

Drive: 125 HP motor via heavy-duty gearbox
-
Power: 160 Amps, 460 Volts
-
Chamber Dimensions: 48" L x 40" W x 44" D
-
Vacuum Jacket Rating: 200 PSI @ 450°F / -20°F
-
Discharges: Two 6" dia. flanged w/ ball valves
-
Frame: Unitized heavy-duty base
-
Controls:
-
Main control panel
-
Power panel with starters & VFDs
-
-
Heating: Steam-to-water heat exchanger
-

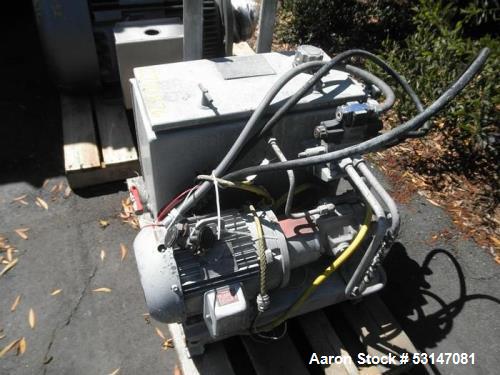

Lid Actuation: Hydraulic pump & reservoir
-

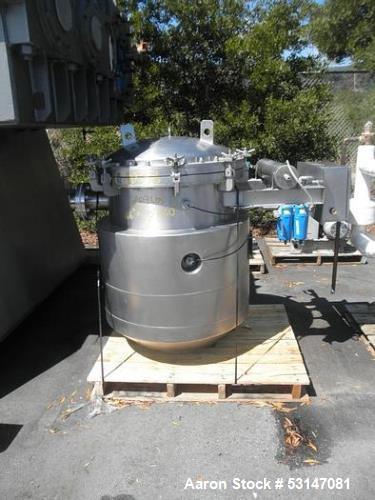

Dust Collector: Mikro Pulsaire, Model 10-2-FV TR
-
Year: 2000
-
Serial #: 00200125643MBG
🔹 Applications:
-
Pharmaceutical powder drying
-
Food-grade paste or slurry mixing
-
Resin compounding
-
Plastic and polymer additive preparation
-
Thermoset materials mixing and devolatilization
-
Adhesives and sealants production
-
Biotech paste formulation
-
Cleanroom material handling and drying
-
High-viscosity mixing under vacuum
-
Drying under controlled temperature and pressure
🔹 What might this be used for?
-
Vacuum drying of active pharmaceutical ingredients (API)
-
Paste or compound production in a sanitary environment
-
Processing of thermally sensitive materials under vacuum
-
Thick slurry or plasticizer mixing and devolatilization
-
Preparing cleanroom-grade materials in food or pharma
